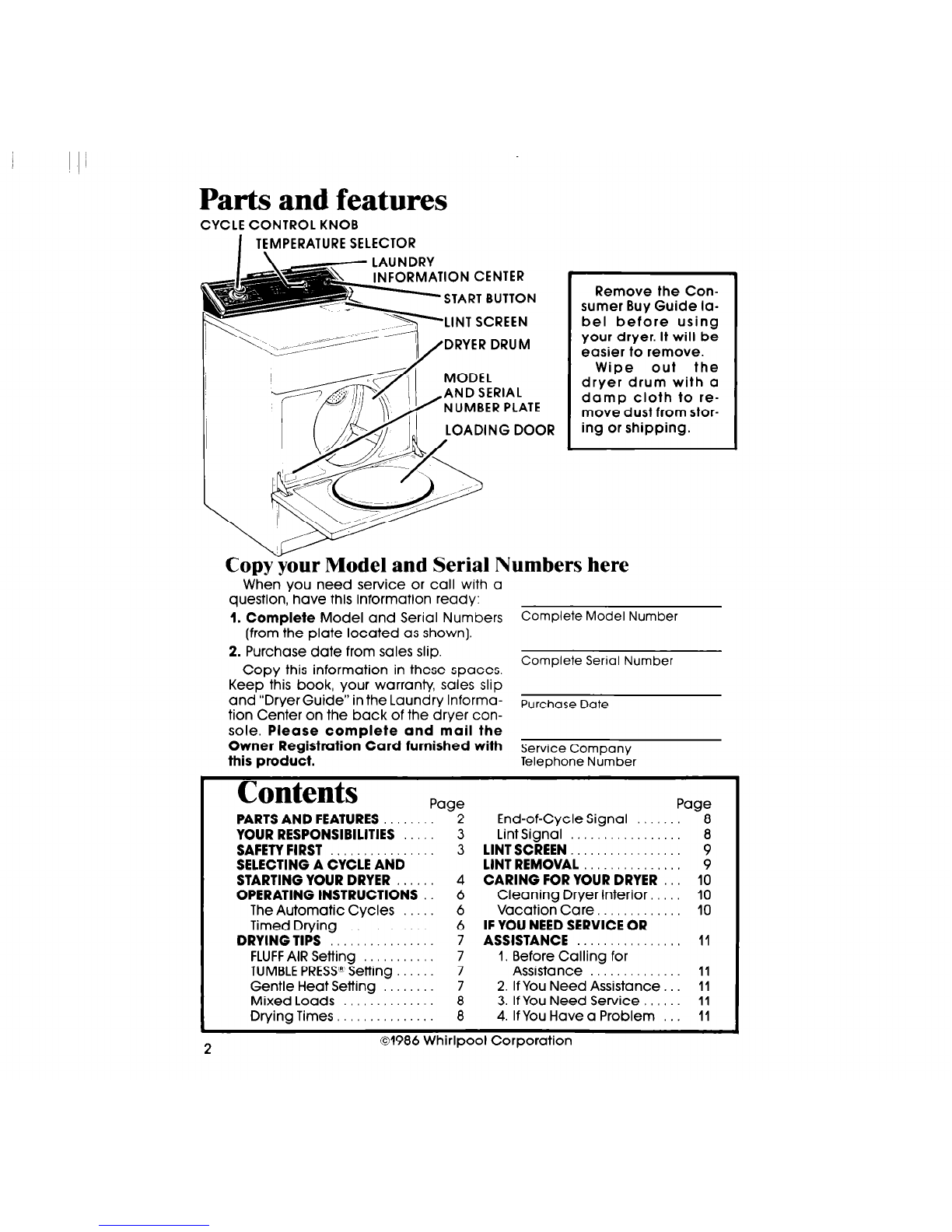

Parts and features
CYCLE CONTROL KNOB
I TEMPERATURE SELECTOR \ - LAUNDRY
b
INFORMATION CENTER
-r -START BUTTON
-LINT SCREEN
\*M~DRYER DRUM
NUMBER PLATE
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Copyjour Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
1. Complete Model and Serial Numbers Complete Model Number
(from the plate located as shown).
2. Purchase date from sales slip.
Copy this information in these spaces.
Complete Serial Number
Keep this book, your warranty, sales slip
and “Dryer Guide” in the Laundry Informa-
Purchase Date
tion Center on the back of the dryer con-
sole. Please complete and mail the
Owner Registration Card furnished with
this product. Service
Company
Telephone Number
Contents
Page Page
PARTS AND FEATURES 2 End-of-Cycle Signal 8
YOUR RESPONSIBILITIES 3 Lint Signal B
SAFETY FIRST 3 LINTSCREEN. 9
SELECTING A CYCLE AND LINT REMOVAL 9
STARTING YOUR DRYER 4 CARING FOR YOUR DRYER 10
OPERATING INSTRUCTIONS 6 Cleaning Dryer Interior. 10
The Automatic Cycles 6 Vacation Care.. 10
Timed Drying 6 IF YOU NEED SERVICE OR
DRYING TIPS 7 ASSISTANCE 11
FLUFFAIR Setting 7 I. Before Calling for
TUMBLE PRESS%Setting 7 Assistance 11
Gentle Heat Setting 7 2. If You Need Assistance 11
Mixed Loads 8 3. If You Need Service 11
Drying Times. 8 4. If You Have a Problem 11
2 01986 Whirlpool Corporation

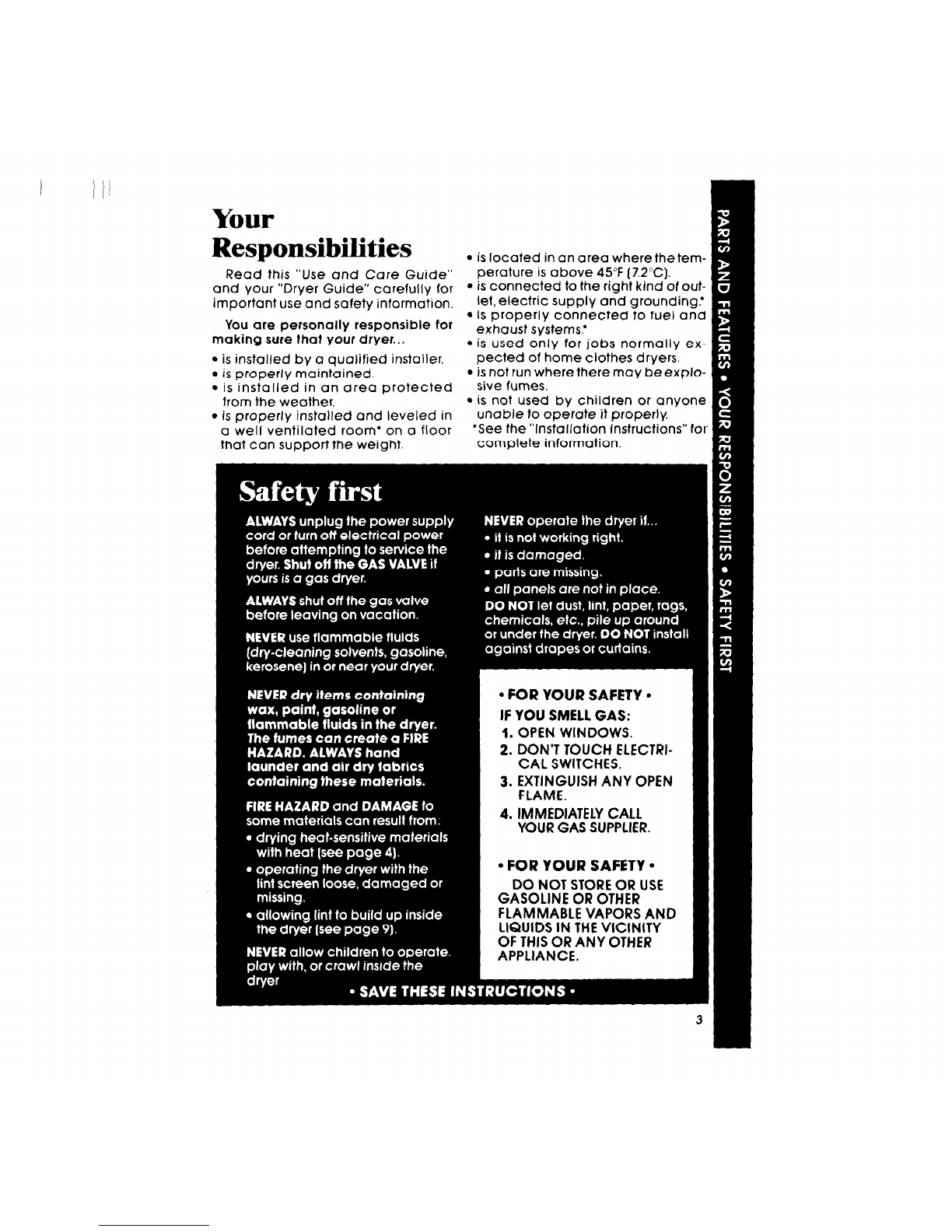

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer..
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled in
a well ventilated room’ on a floor
l is located in an area whe
perature is above 45°F (7.2”C).
l is connected to the right kind of out-
let, electric supply and grounding.*
l is properly connected to fuel and
exhaust systems.’
l is used only for jobs normally ex-
pected of home clothes dryers.
l is not run where there may be explo-
sive fumes.
l is not used by children or anyone
unable to operate it properly.
*See the “Installation Instructions” for
that can support the weight. complete information.
l FOR YOUR SAFETY.
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. EXTINGUISH ANY OPEN
FLAME.
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
l FOR YOUR SAFETY l
I
DO NOT STOREOR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THEVICINITY
OF THIS OR ANY OTHER
APPLIANCE.

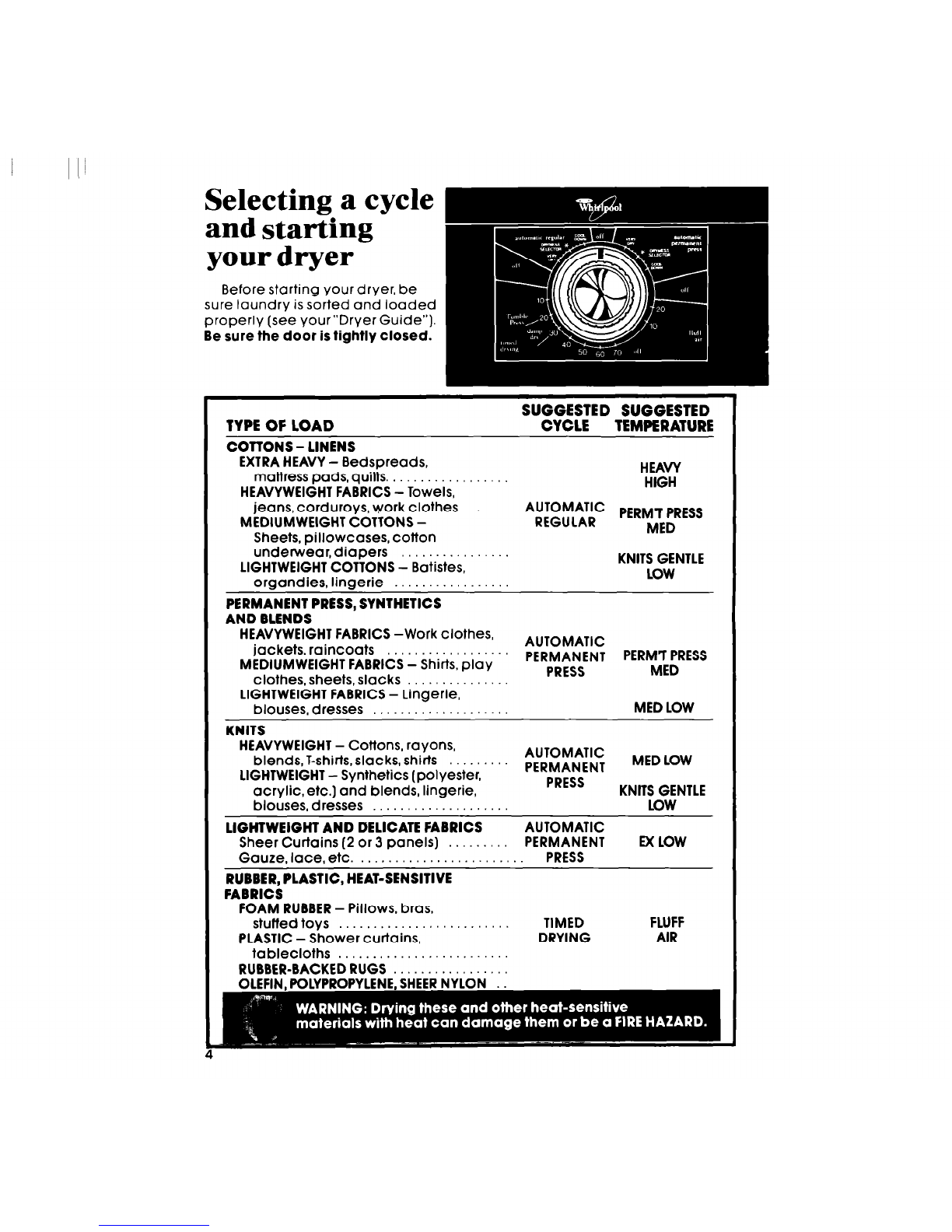

Selecting a cycle
and starting
your dryer
Before starting your dryer, be
sure laundry is sorted and loaded
properly (see your”Dryer Guide”).
Be sure the door is tightly closed.
TYPE OF LOAD
COTTONS - LINENS
SUGGESTED SUGGESTED
CYCLE TEMPERATURE
EXTRA HEAVY - Bedspreads,
mattress pad&quilts. . HEAVY
HEAVYWEIGHT FABRICS -Towels, HIGH
jeans, corduroys, work clothes AUTOMATIC
MEDIUMWEIGHT COTTONS - REGULAR PERMVTPRESS
Sheets, pillowcases, cotton MED
undefwear,diapers
LIGHTWEIGHT COTTONS - Batistes, KNITS GENTLE
organdies, lingerie LOW
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVYWEIGHT FABRICS -Work clothes,
jackets, raincoats AUTOMATIC
MEDIUMWEIGHT FABRICS - Shirts, play PERMANENT PERMT PRESS
clothes,sheets,slacks PRESS MED
LIGHTWEIGHT FABRICS - Lingerie,
blouses, dresses . MED LOW
KNITS
HEAVYWEIGHT - Cottons, rayons,
blend&T-shirts,slacks, shirts AUTOMATIC
LIGHTWEIGHT - Synthetics (polyester, PERMANENT MED LOW
acrylic, etc.] and blends, lingerie, PRESS KNITS GENTLE
blouses, dresses LOW
LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC
Sheer Curtains (2 or 3 panels) PERMANENT Ex LOW
Gauze, lace, etc. . , . . PRESS
RUBBER, PLASTIC, HEAT-SENSITIVE
FABRICS
FOAM RUBBER - Pillows, bras,
stuffed toys . . . .
PLASTIC - Shower curtains,
tablecloths . . . . . . . . . . . . . . . . . . . . . . . . .
RUBBER-BACKED RUGS .
OLEFIN POLYPROPYLENE SHEERNYLON
TIMED FLUFF
DRYING AIR

I
I I’

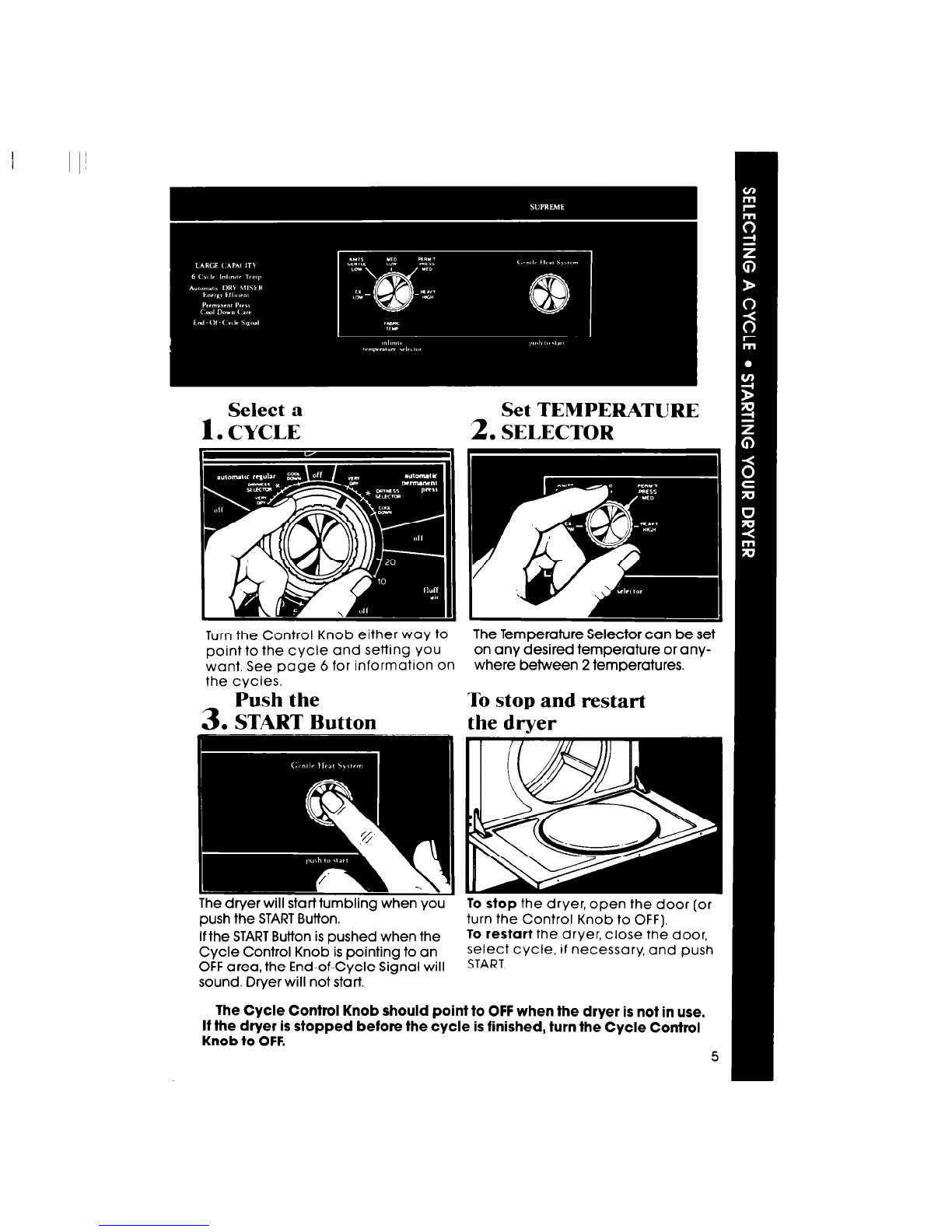

Select a Set TEMPERATURE
1. CYCLE 2. SELECTOR
Turn the Control Knob either way to The Temperature Selector can be set
point to the cycle and setting you on any desired temperature or any-
want. See page 6 for information on where between 2 temperatures.
the cycles.
Push the
3. START Button To stop and restart
the dwer
The dryer will start tumbling when you To stop the dryer, open the door [or
push the STARTButton. turn the Control Knob to OFF].
Ifthe STARTButton is pushed when the To restart the dryer, close the door,
Cycle Control Knob is pointing to an select
Cycle. if necessary, and push
OFF area, the End-of-Cycle Signal will START.
sound. Dryer will not start.
The Cycle Control Knob should point to
If the dryer is stopped before the cycle is
Knob to OFF.
OFF when the dryer is not in use.
finished, turn the Cycle Control

Operating instructions

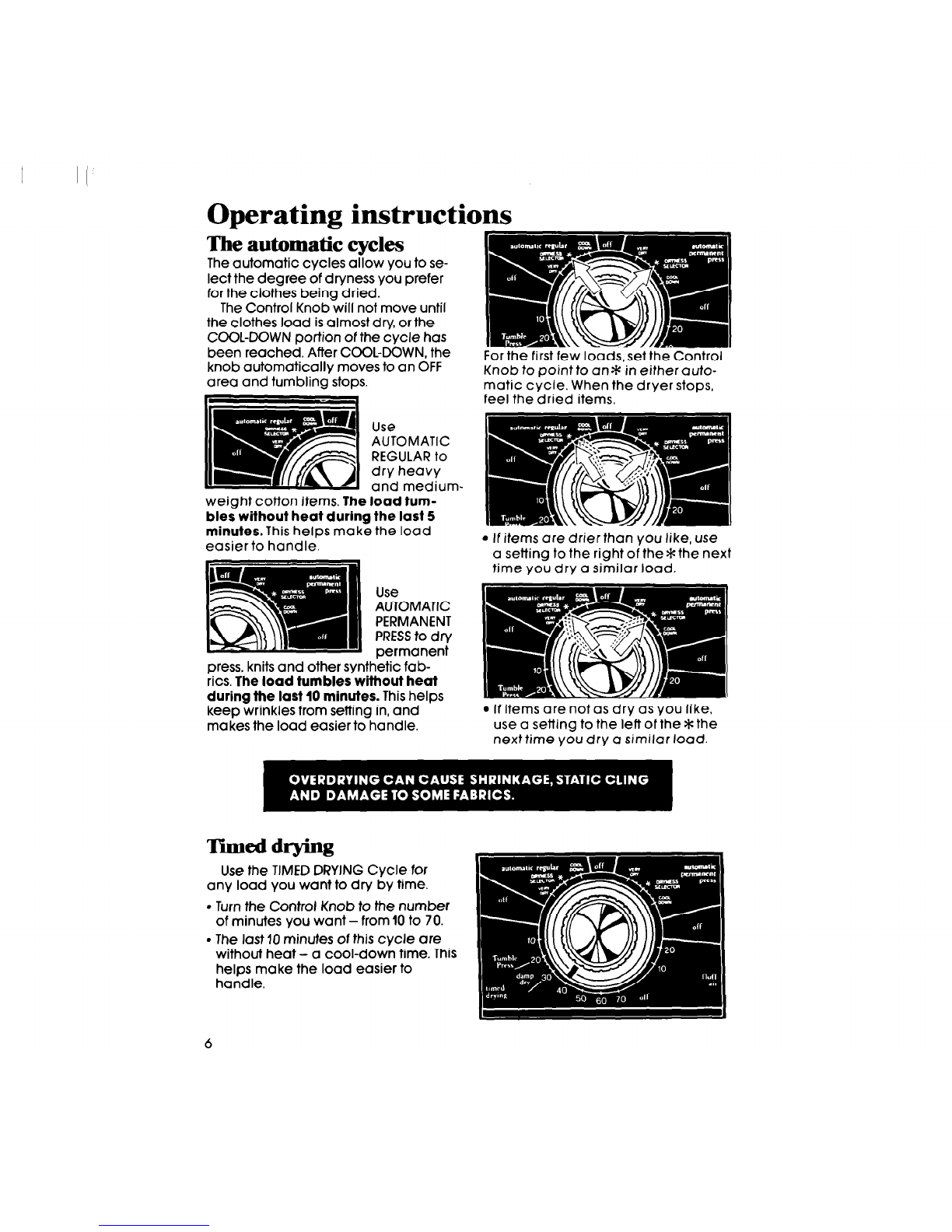

The automatic cycles
The automatic cycles allow you to se-
lect the degree of dryness you prefer
for the clothes being dried.
The Control Knob will not move until
the clothes load is almost dry, or the
COOL-DOWN portion of the cycle has
been reached. After COOL-DOWN, the
knob automatically moves to an OFF
area and tumbling stops.
weight cotton items. The load tum-
bles without heat during the last 5
minutes. This helps make the load
easier to handle.
press, knits and other synthetic fab-
rics. The load tumbles without heat
during the last 10 minutes. This helps
keep wrinkles from setting in, and
makes the load easier to handle.
For the first few loads,set the Control
Knob to point to an* in either auto-
matic cycle. When the dryer stops,
feel the dried items.
l If items are drier than you like, use
a setting to the right of the $ the next
time you dry a similar load.
l If items are not as dry as you like,
use a setting to the left of the * the
next time you dry a similar load.
‘Iheddrying
Use the TIMED DRYING Cycle for
any load you want to dry by time.
l Turn the Control Knob to the number
of minutes you want - from 10 to 70.
. The last 10 minutes of this cycle are
without heat - a cool-down time. This
helps make the load easier to
handle.
6

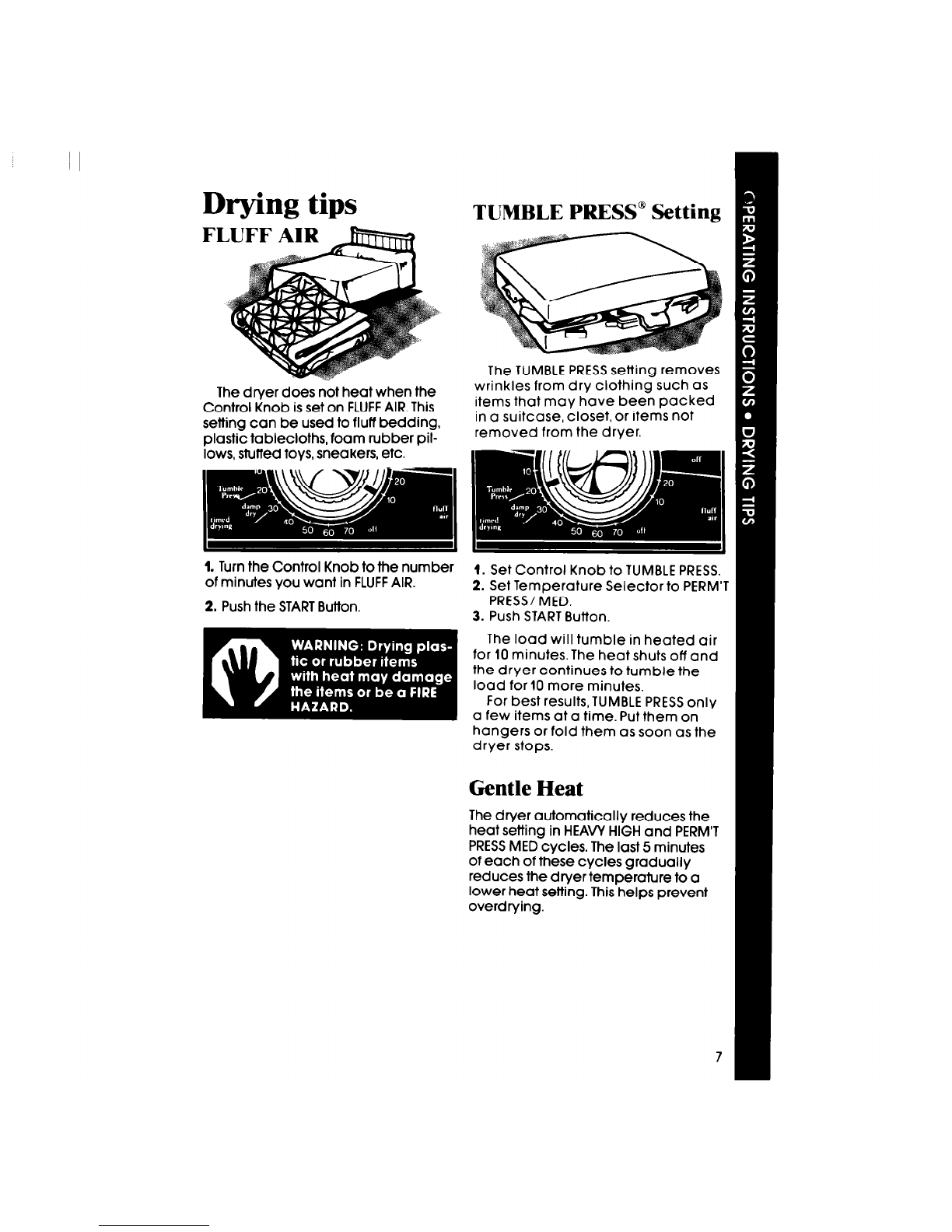

Drying tips
TUMBLE PRESS” Setting
FLUFF AIR
The dryer does not heat when the
Control Knob is set on FLUFFAIR. This
setting can be used to fluff bedding,
plastic tablecloths, foam rubber pil-
lows, stuffed toys, sneakers, etc.
1. Turn the Control Knob to the number
of minutes you want in FLUFFAIR.
2. Push the STARTButton.
The TUMBLE PRESS setting removes
wrinkles from dry clothing such as
items that may have been packed
in a suitcase, closet, or items not
removed from the dryer.
1. Set Control Knob to TUMBLE PRESS.
2. Set Temperature Selector to PERM’T
PRESS/ MED.
3. Push START Button.
The load will tumble in heated air
for 10 minutes. The heat shuts off and
the dryer continues to tumble the
load for 10 more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.
Gentle Heat
The dryer automatically reduces the
heat setting in HEAVY HIGH and PERMIT
PRESSMED cycles. The last 5 minutes
of each of these cycles gradually
reduces the dryer temperature to a
lower heat setting. This helps prevent
overdrying.

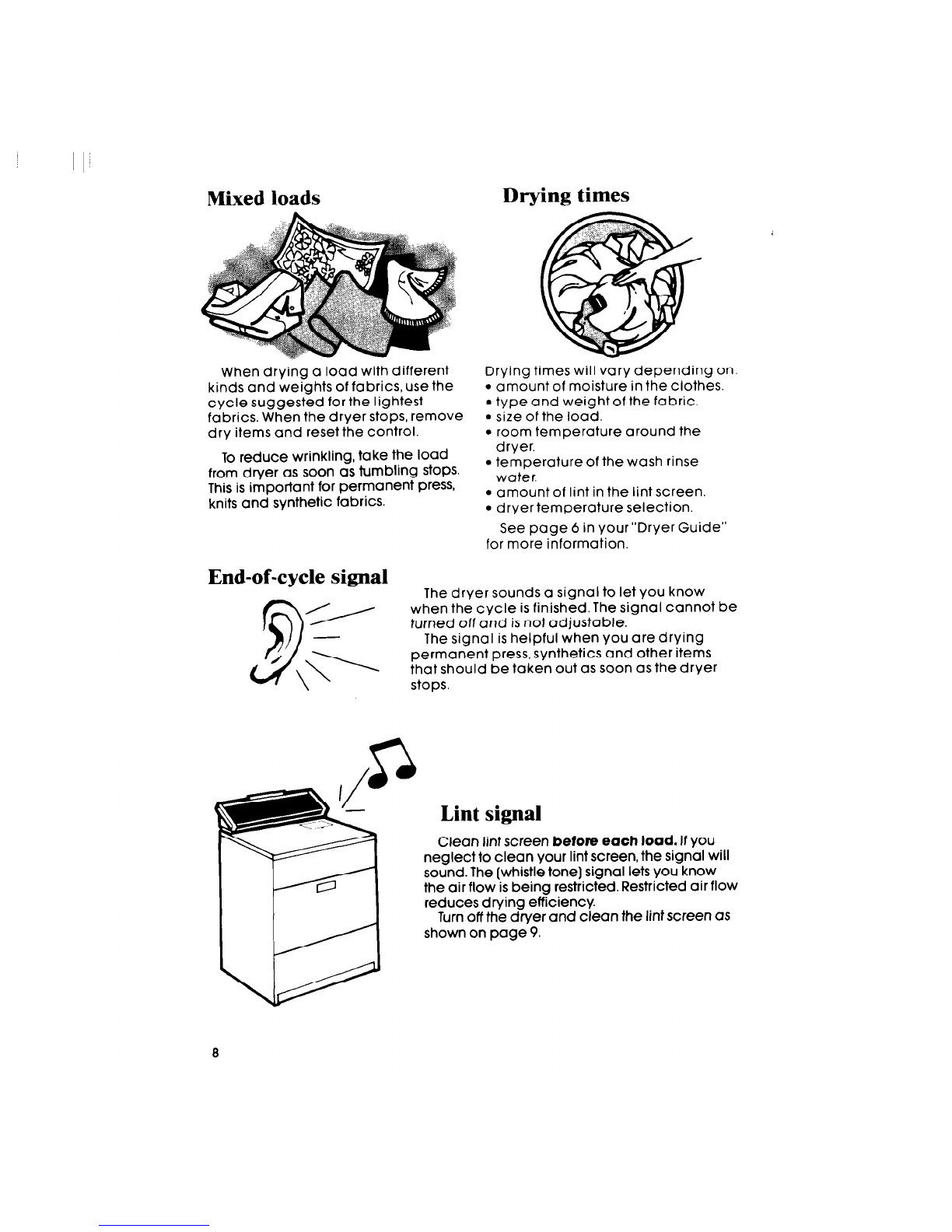

Mixed loads Drying times
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest
fabrics. When the dryer stops, remove
dry items and reset the control.
To reduce wrinkling, take the load
from dryer as soon as tumbling stops.
This is important for permanent press,
knits and synthetic fabrics.
End-of-cycle signal
Drying times will vary depending on:
l amount of moisture in the clothes.
l type and weight of the fabric.
l size of the load.
l room temperature around the
dryer.
l temperature of the wash rinse
water.
l amount of lint in the lint screen.
l dryer temperature selection.
See page 6 in your”Dryer Guide”
for more information.
The dryer sounds a signal to let you know
when the cycle is finished. The signal cannot be
turned off and is not adjustable.
The signal is helpful when you are drying
permanent press, synthetics and other items
that should be taken out as soon as the dryer
stops.
Lint signal
Clean lint screen before each load. If you
neglect to clean your lint screen, the signal will
sound. The [whistle tone] signal lets you know
the air flow is being restricted. Restricted air flow
reduces drying efficiency.
Turn off the dryer and clean the lint screen as
shown on page 9.

Lint screen
Clean the lint screen before each load. A screen blocked by lint can
increase drying time and may be a FIRE HAZARD.
Lint removal
Lint can gather inside the dryer and create a fire hazard. This lint
should be removed at least every 2 to 3 years, or more otten,
depending on dryer usage.
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
8
WARNING:
l Avoid electrical shock
hazard - unplug power
supply cord or turn otf
electrical power.
l Avoid injury or damage -.do not
put hands Inside cabinet.
l Make sure dryer is cool.
1.
2.
3.
4.
Remove back panel (electric)
or lower access panel (gas).
Avoid damaging wires,
thermostats, funnel or igniter.
Remove lint from shaded area -
see art - with a soft brush or
vacuum cleaner.
Replace panel; reconnect and
re-level dryer.
9

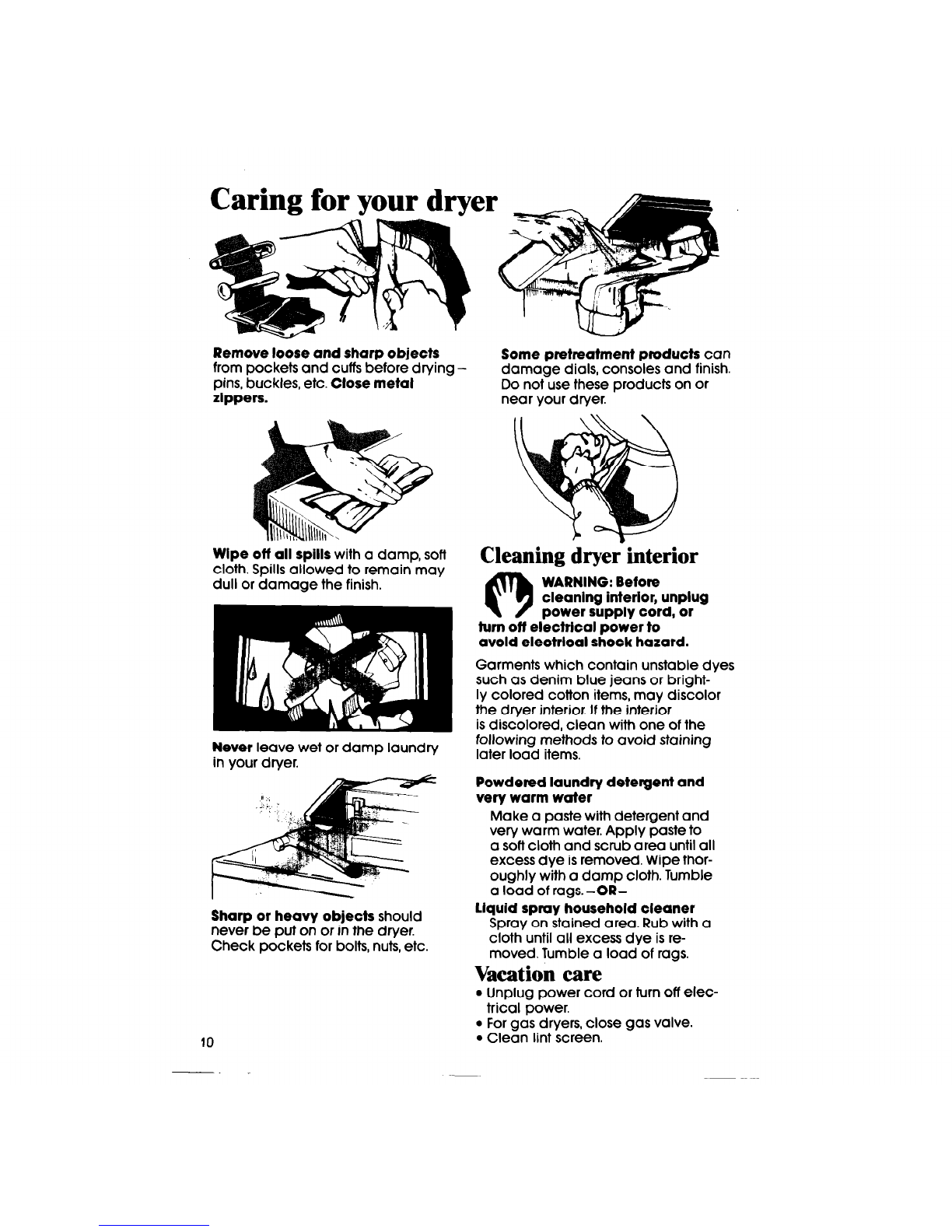

Caring for your dryer
Remove loose and sharp objects
from Dockets and cuffs before drvina -
pins, buckles, etc. Close metals ’ ”
zippers.
Some pretreatment products can
damage dials, consoles and finish.
Do not-use these products on or
near your dryer.
Wlpe off all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
10
Cleaning dryer interior
0
WARNING: Before
cleaning interior, unplug
power supply cord, or
turn off electrical power to
avold electrlcal shock hazard.
Garments which contain unstable dyes
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub area until all
excess dye is removed. Wipe thor-
oughly with a damp cloth. Tumble
a load of rags. -OR-
Liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags.
Vacation care
l Unplug power cord or turn off elec-
trical power.
l For gas dryers, close gas Valve.
0 Clean lint screen.

II

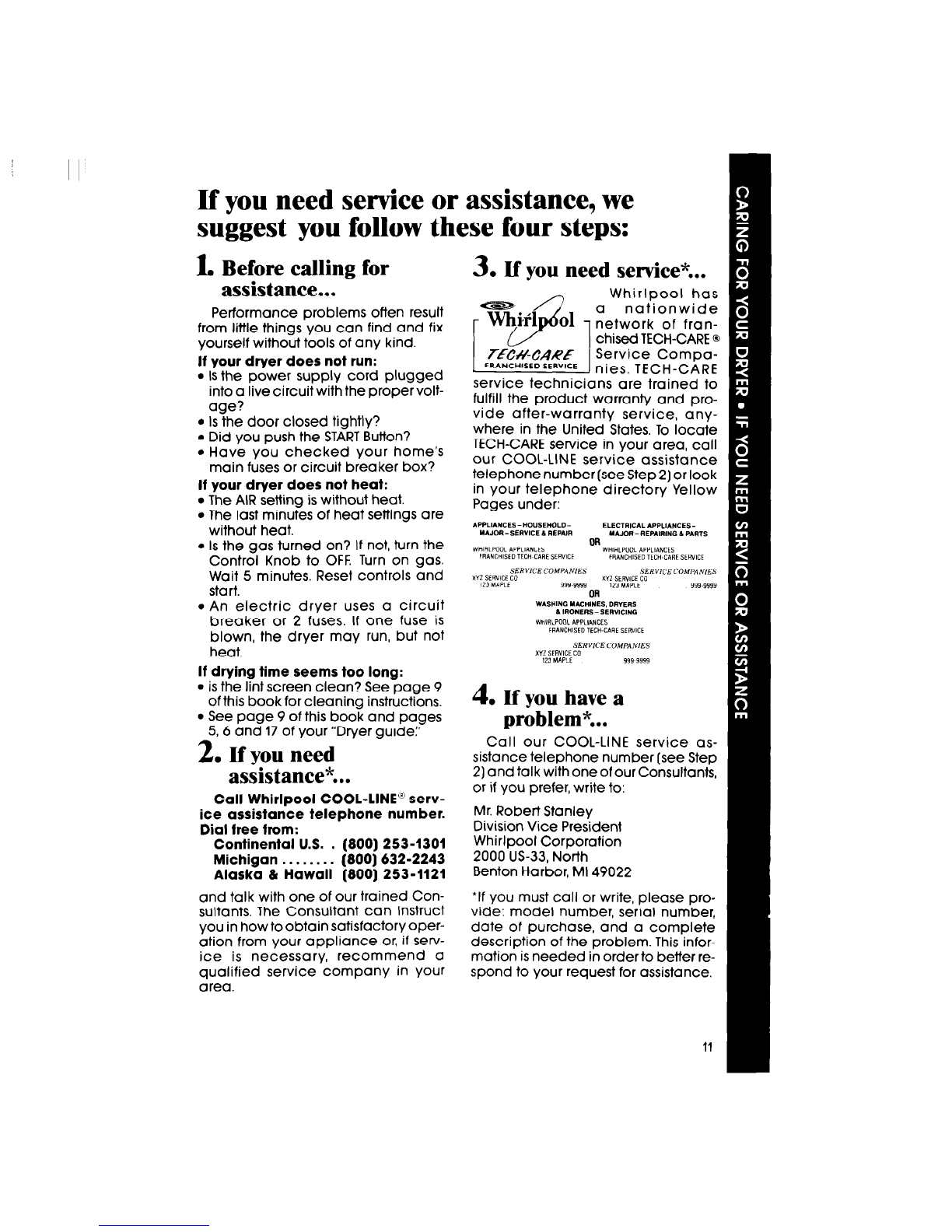

If you need service or assistance, we
suggest you follow these four steps:
l. Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l Is the power supply cord plugged
into a live circuit with the propervolt-
age?
l Is the door closed tightly?
l Did you push the STARTButton?
l Have you checked your home’s
main fuses or circuit breaker box?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems too long:
l is the lint screen clean? See page 9
of this book for cleaning instructions.
l See page 9 of this book and pages
5.6 and 17 of vour “Drver auide:’
e -
2. If you need
assistance*. ..
Call Whirlpool COOL-LINE” serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . (BOO) 253-1301
Michigan . . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of our trained Con-
sultants The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-CARE Q
Service Compa-
nies, TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number(see Step 2) or look
in your telephone directory Yellow
Pages under:
4. If you have a
problem*...
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 US-33, North
Benton Harbor, Ml 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better re-
spond to your request for assistance.

whirlpool
Home L Appliances
Making your world a little easier.
Part No. 696767 Rev. A
01986 Whirlpool Corporation Printed in U.S.A.
latlc Washers. Clothes Dryers, Freezers, Refrlgeralor-Freezers. Ice Makers, Dishwashers. Bwlt-In Ovens and Surface Un~ls. Ranges, Mlcrc
