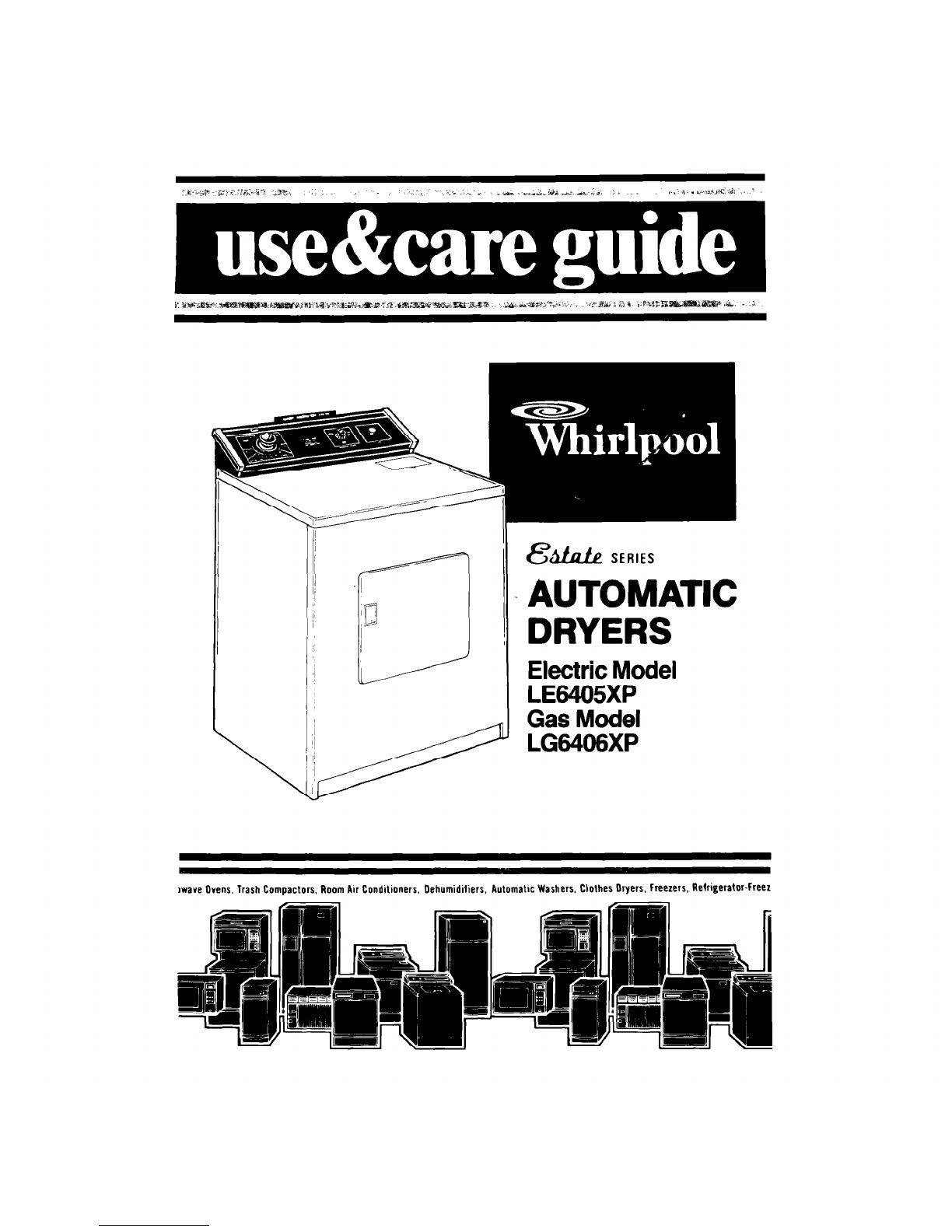

Whirlpool LE6405XP User manual

a
&ti SERIES
AUTOMATIC
DRYERS
Electric Model
LE6405XP
Gas Model
LG6406XP
wave Ovens. Trash Compactors, Room Au Conditioners. Dehumidifiers. Automatic Washers, Clolhes Dryers. Freezers. Refrigerator-Freez

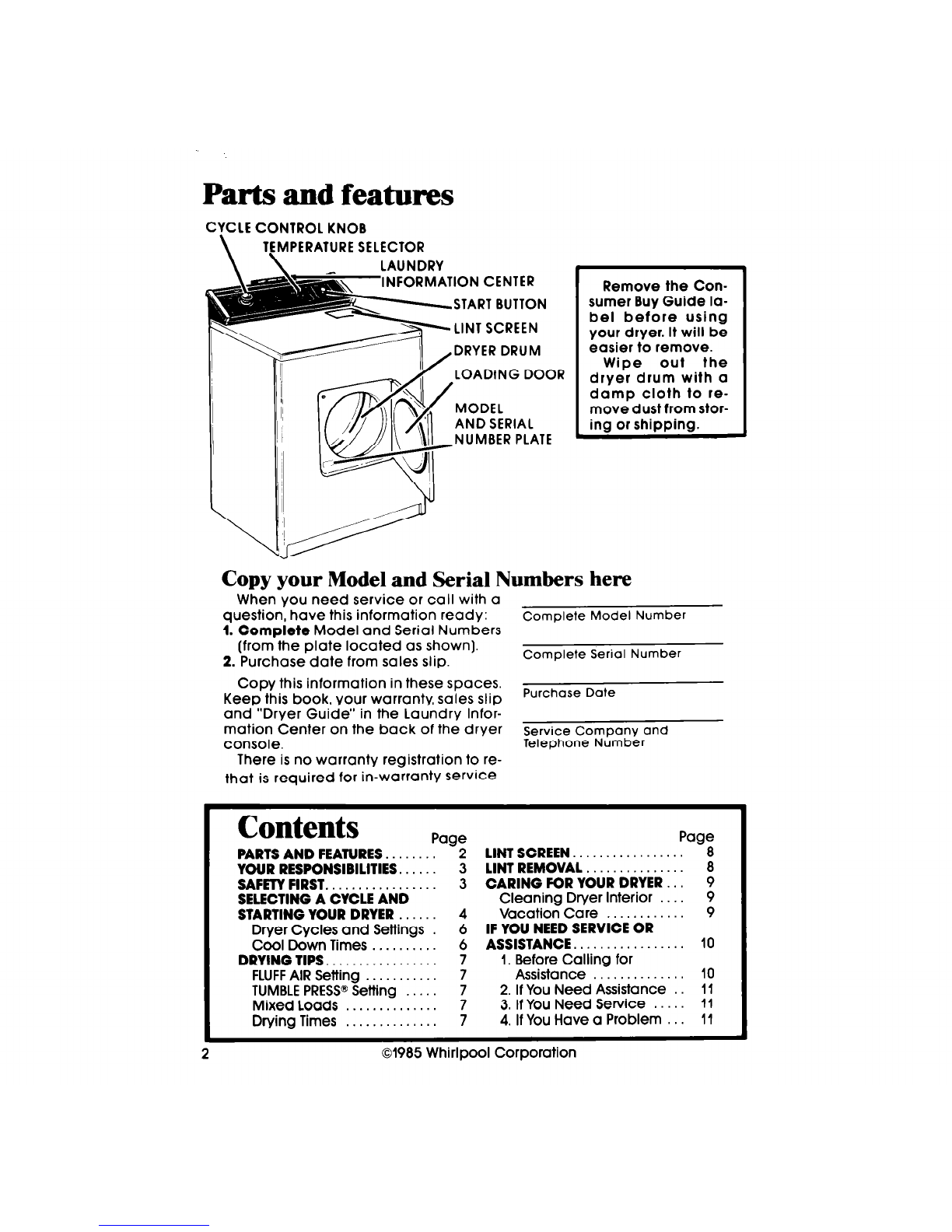

Parts and features
CYCLE CONTROL KNOB
\ TEMPERATURE SELECTOR \ LAUNDRY
FORMATION CENTER
START BUTTON
LINT SCREEN
/
DRYER DRUM
LOADING DOOR
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Complete Model Number
1. Complete Model and Serial Numbers
(from-the plate located as shown).
2. Purchase date from sales slip.
Complete Serial Number
Copy this information in these spaces.
Keep this book, vour warrantv, sales slip
Purchase Date
and’“Dryer Guide” in the Laundry Infor-
mation Center on the back of the dryer
Service Company and
console.
Telephone Number
There is no warranty registration to re-
that is required for in-warranty service.
Contents
PARTSAND FEATURES..
YOUR RESPONSIBILITIES. . . .
SAFETYFIRST. . . . . . . . .
SELECTING A CYCLE AND
STARTING YOUR DRYER . .
Dryer Cycles and Settings
Cool Down Times . . . . . . . .
DRYING TIPS. . . . . . . . . . . . . . .
FLUFFAIR Setting . . . . . . . . .
TUMBLE PRESS@Setting . . .
Mixed Loads . . . . . . . . . . . .
Drying Times . . . . . . . .
Page
2
3
3
. :
6
. 7
7
. :
. 7
LINT SCREEN. . . . .
LINT REMOVAL . . .
CARING FOR YOUR DRYER.
Cleaning Dryer Interior
Vacation Care . . .
IF YOU NEEDSERVICE OR
ASSISTANCE. . . . . .
1. Before Calling for
Assistance . . .
2. If You Need Assistance
3. If You Need Service .
4. If You Have a Problem
Page
8
t
;
. 10
10
11
11
. 11
01985 Whirlpool Corporation

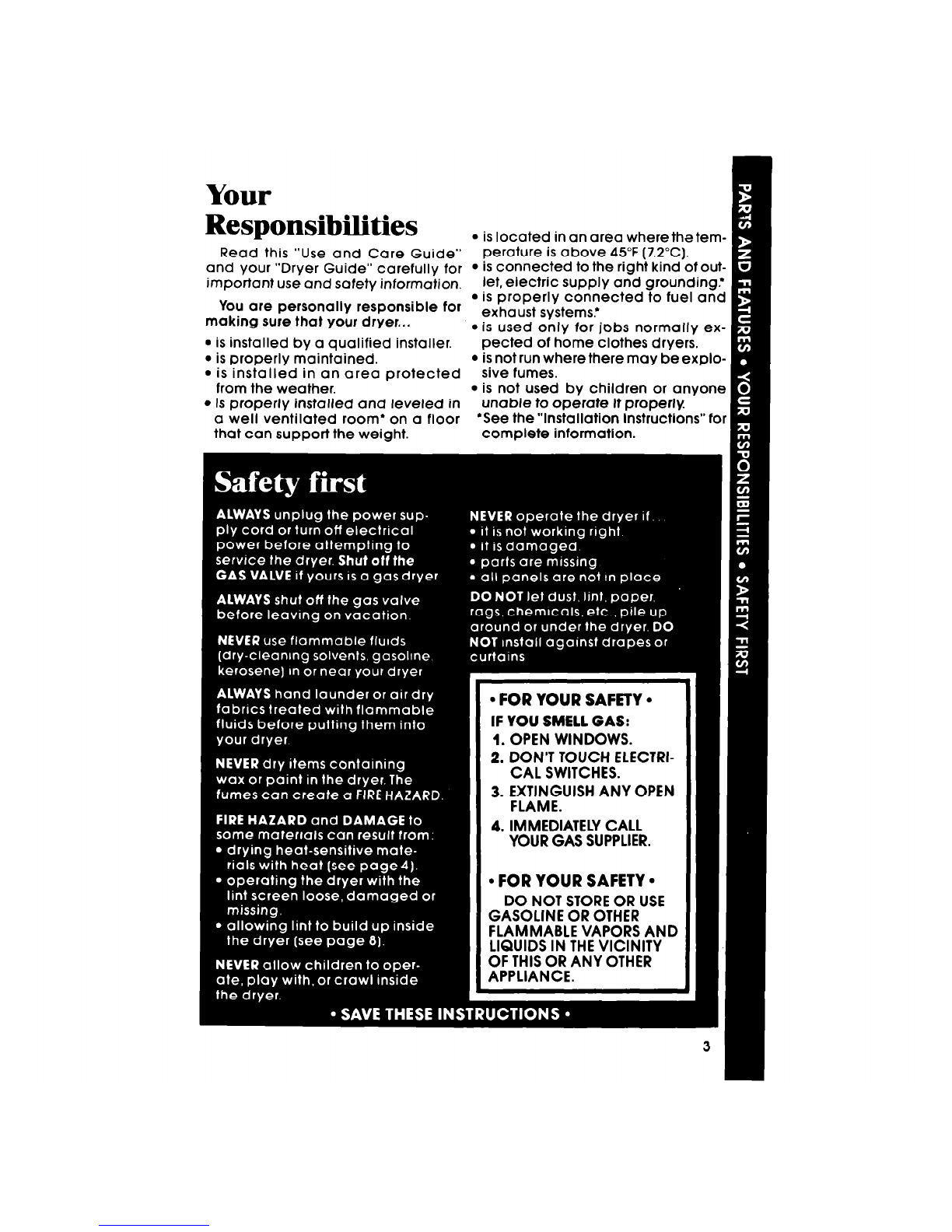

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled in
a well ventilated room’ on a floor
that can support the weight.
l is located in an area where the tem-
perature is above 45°F (7.2”C).
l is connected to the right kind of out-
let, electric supply and grounding:
l is properly connected to fuel and
exhaust systems.*
l is used only for jobs normally ex-
pected of home clothes dryers.
l is not run where there may be explo-
sive fumes.
l is not used by children or anyone
unable to operate it properly
*See the “Installation Instructlons” for
complete informatlon.
. FOR YOUR SAFETY l
IF YOU SMELLGAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. ;~~;~lJlSH ANY OPEN
4. IMMEDiATELY CALL
YOUR GAS SUPPLIER.
l FOR YOUR SAFETY l
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THEVICINITY
OF THIS OR ANY OTHER
APPLIANCE.

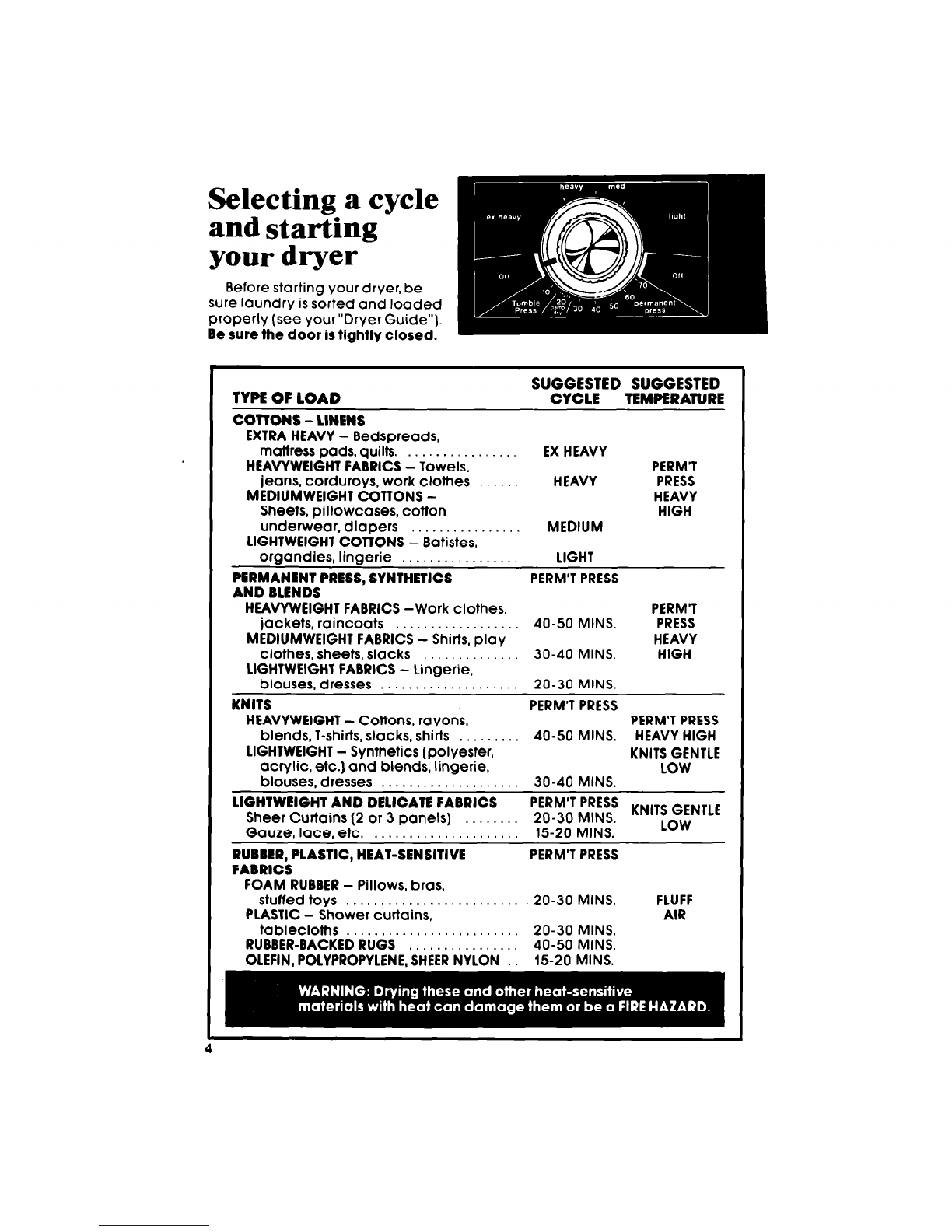

TYPEOF LOAD
COTTONS - LINENS
EXTRA HEAVY - Bedspreads,
mattress pads, quilts. . .
HEAVYWEIGHT FABRICS - Towels,
jeans, corduroys, work clothes .
MEDIUMWEIGHT COTTONS -
Sheets, pillowcases, cotton
underwear, diapers
LIGHTWEIGHT COTTONS -&i&s: ’
organdles, lingerie . . . . . . . .
PERMANENT PRESS,SYNTHETICS
AND BLENDS
HEAVYWEIGHT FABRICS -Work clothes,
jackets, raincoats . . . .
MEDIUMWEIGHT FABRICS - Shirts, play
clothes, sheets, slacks .
LIGHTWEIGHT FABRICS - Lingerie,
blouses, dresses . .
KNITS
HEAVYWEIGHT - Cottons, rayons,
blends, T-shirts, slacks, shirts . . . .
LIGHTWEIGHT - Synthetics (polyester,
acrylic, etc.) and blends, lingerie,
blouses, dresses . . . . . . . . . . .
SUGGESTED SUGGESTED
CYCLE TEMPERATURE
EX HEAVY
HEAVY
MEDIUM
PERMIT
PRESS
HEAVY
HIGH
LIGHT
PERM’T PRESS
40-50 MINS.
30-40 MINS.
PERMIT
PRESS
HEAVY
HIGH
20-30 MINS.
PERMIT PRESS PERMIT PRESS
40-50 MINS. HEAVY HIGH
KNITS GENTLE
LOW
30-40 MINS.
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains (2 or 3 panels) PERM’T PRESS KNITS GENTLE . . . . 20-30 MINS.
Gauze, lace, etc. 15-20 MINS. LOW . . . . . . . . . . . . . . .
RUBBER,PLASTIC, HEAT-SENSITIVE PERMIT PRESS
FABRICS
FOAM RUBBER - Pillows, bras,
stuffed toys . . . . . . . . . . . . 20-30 MINS.
PLASTIC - Shower curtains,
tablecloths . . . . . . . . . . . . . 20-30 MINS.
RUBBER-BACKED RUGS . . . . . . . 40-50 MINS.
OLEFIN, POLYPROPYLENE, SHEER NYLON 15-20 MINS.
FLUFF
AIR

Select a
1. CYCLE
Turn the Control Knob either way to
point to the cycle and settin.g you
want. See page 6 for information on
the cycles.
Push the
3. START Button
The dryer will start tumbling when
you push the START Button.
Set TEMPERATURE
2. SELECTOR
Turn the Temperature Selector to the
needed drying temperature.
To stop and restart
the dryer
To stop the dryer, open the door (or
turn the Control Knob to OFF].
To restart the dryer, close the door,
select cycle, if necessary, and push
START.
The Cycle Control Knob should point to OFFwhen the dryer is not In use.

Operating instructions
Dryer cycles and settings
The PERMANENT PRESS Cycle helps
provide the special care that perma-
nent press and synthetic fabrics
need...a period of heated drying
followed by a 10 minute cool down.
The chart on page 4 suggests time
and temperature settings for different
kinds of loads.
The EX HEAVY,HEAVY,MEDIUM and
LIGHT cycles describe the loads
they are designed to dry The chart
on page 4 tells what is meant by
EX HEAVY, HEAVY MEDIUM and LIGHT
loads.
At each setting, the dryer will run
about long enough to dry the load
described by the setting. Example:
The HEAVY Cycle is designed to be
long enough to dry a load of heavy
fabrics (towels, jeans, corduroys, etc.)
when the Temperature Selector is set
on PERM’T PRESS/HEAVY HIGH.
I C
MOPETIME LESS TIME + I
If the load is not as dry as you want,
set the dial more to the leff the next
time you dry that kind of load.
If the load is dryerthan you want,
set the dial more to the right the next
time you dry that kind of load.
6
Cool down times
In all cycles, the heat shuts off
before the dryer stops tumbling. This
cool dowh time helps:
l keep wrinkles from setting in.
l make handling the hot load items
easier.
The PERMANENT PRESS Cycle has
10 minutes of cool down time at the
end of the cycle.
All other cycles have 5 minutes of
cool down time.

Drying tips
FLUFF AIR
The dryer does not heat when the
Temperature Selector is set on FLUFF
AIR. This setting can be used to fluff
bedding, plastic tablecloths, foam
rubber pillows, stuffed toys, sneakers,
etc.
1. Turn the Temperature Selector to
FLUFFAIR.
2. Turn the Control Knob to the num-
ber of minutes you want in the
TIMED DRYING Cycle.
3. Push the START Button.
Mixed loads
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest
fabrics. When the dryer stops, remove
dry items and reset the control.
TUMBLE PRESS” Setting
The TUMBLE PRESS setting removes
wrinkles from dry clothing such as
items that may have been packed
in a suitcase, closet, or items not
removed from the dryer.
1. Set Temperature Selector to PERMIT
PRESS/HEAVY HIGH.
2. Set Control Knob to TUMBLE PRESS.
3. Push START Button.
The load will tumble in heated air
for 5 minutes. The heat shuts off and
the dryer continues to tumble the
load for 10 more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.
Drying times
Drying times will vary depending on:
l amount of moisture in the clothes.
l type and weight of the fabric.
l size of the load.
l room temperature around the
dryer.
l temperature of the wash rinse
water.
l amount of lint in the lint screen.
l dryertemperature selection.
See page 6 in your”Dryer Guide”
for more information.
7

Lint screen
Open the lid and pull the lint screen
straight out.
Clean the lint screen betore each load. A screen blocked by lint can
increase drying time and may be a FIRE HAZARD.
ROLL the lint off the screen
with your fingers.
DO NOT rinse or wash the screen.
:
Lint removal
Lint can gather inside the dryer and create a fire hazard.This lint
should be removed every 2 to 3 years, or more otten, dependlng on
dryer usage.
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
WARNING:
l Avoid electrical shock
hazard - unplug power
SUDDIVcord or turn off
electrtcal p&tier.
l Avold InJury or damage - do not
put hands lnslde cabinet.
l Make sure dryer Is cool.
8
1. Remove back panel [electric)
or lower access panel (gas].
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art - with a soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer.

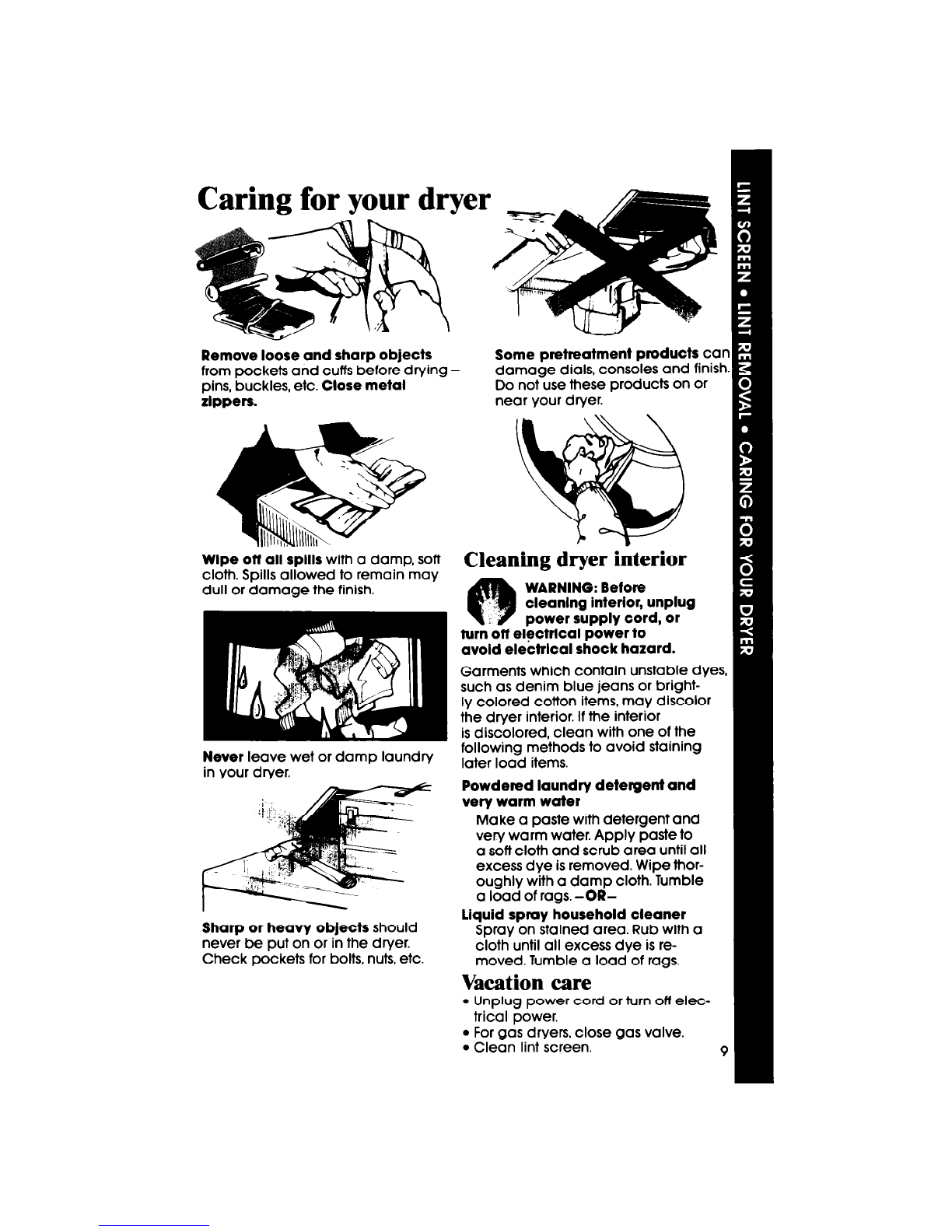

Caring for your dryer
Remove loose and sharp objects
from pockets and cuffs before drying -
pins, buckles, etc. Close metal
zippers.
Some pretreatment products can
damage dials, consoles and finish
Do not use these products on or
near your dryer.
Wlpe off all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
Cleaning dryer interior
WARNING: Before
cleaning interior, unplug
power supply cord, or
turn off electrical power to
avoid electrlcal shock hazard.
Garments which contain unstable dyes,
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub area until all
excess dye is removed. Wipe thor-
oughly with a damp cloth. Tumble
a load of rags. -OR-
liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags.
Vacation care
l Unplug power cord or turn off elec-
trical power.
l For gas dryers, close gas valve.
0 Clean lint screen.

. . . “”

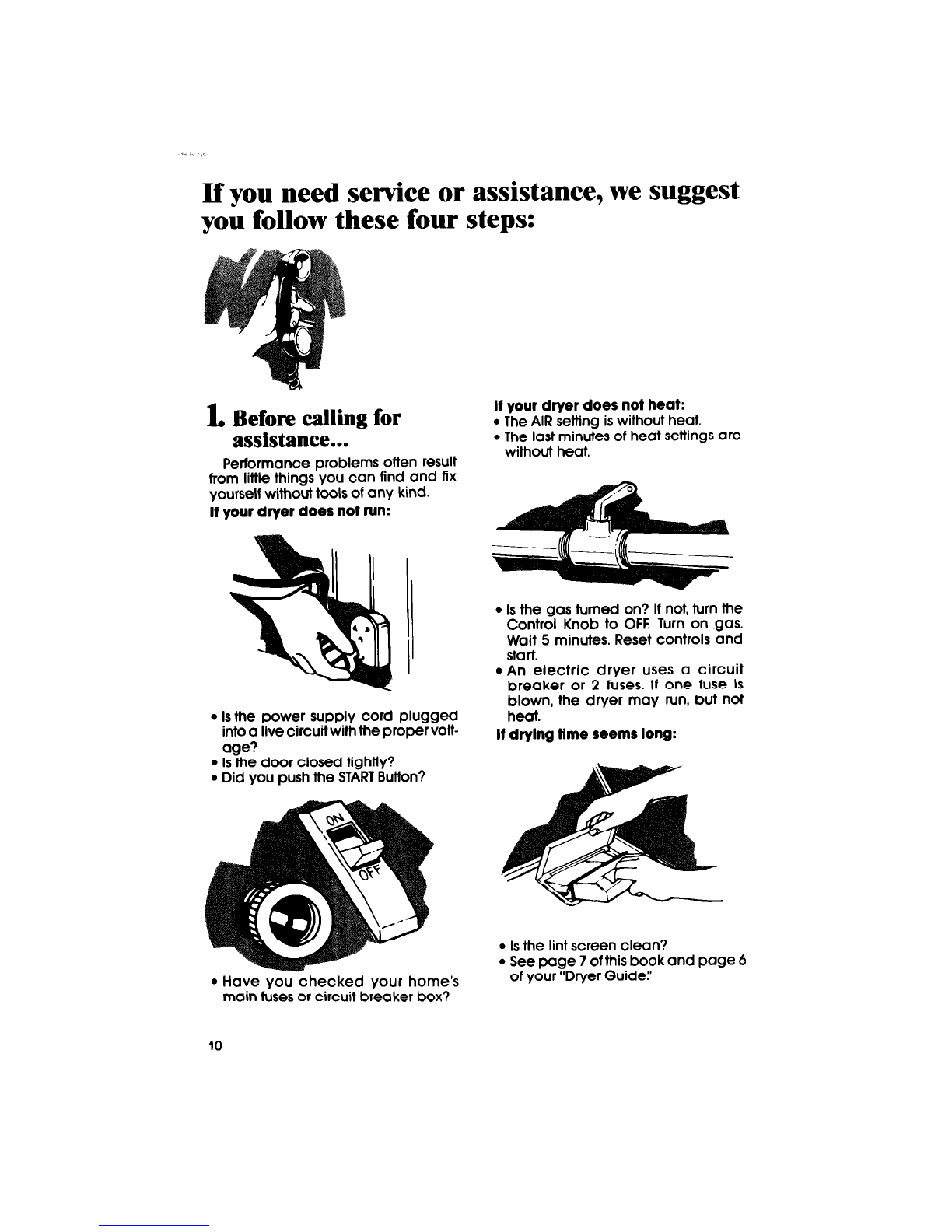

If you need service or assistance, we suggest
you follow these four steps:
L Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l Is the power supply cord plugged
into a live circuit with the proper volt-
age?
l Is the door closed tightly?
l Did you push the STARTButton?
l Have you checked your home’s
main fuses or circuit breaker box?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems long:
l Is the lint screen clean?
l See page 7 of this book and page 6
of your “Dryer Guide!’
10

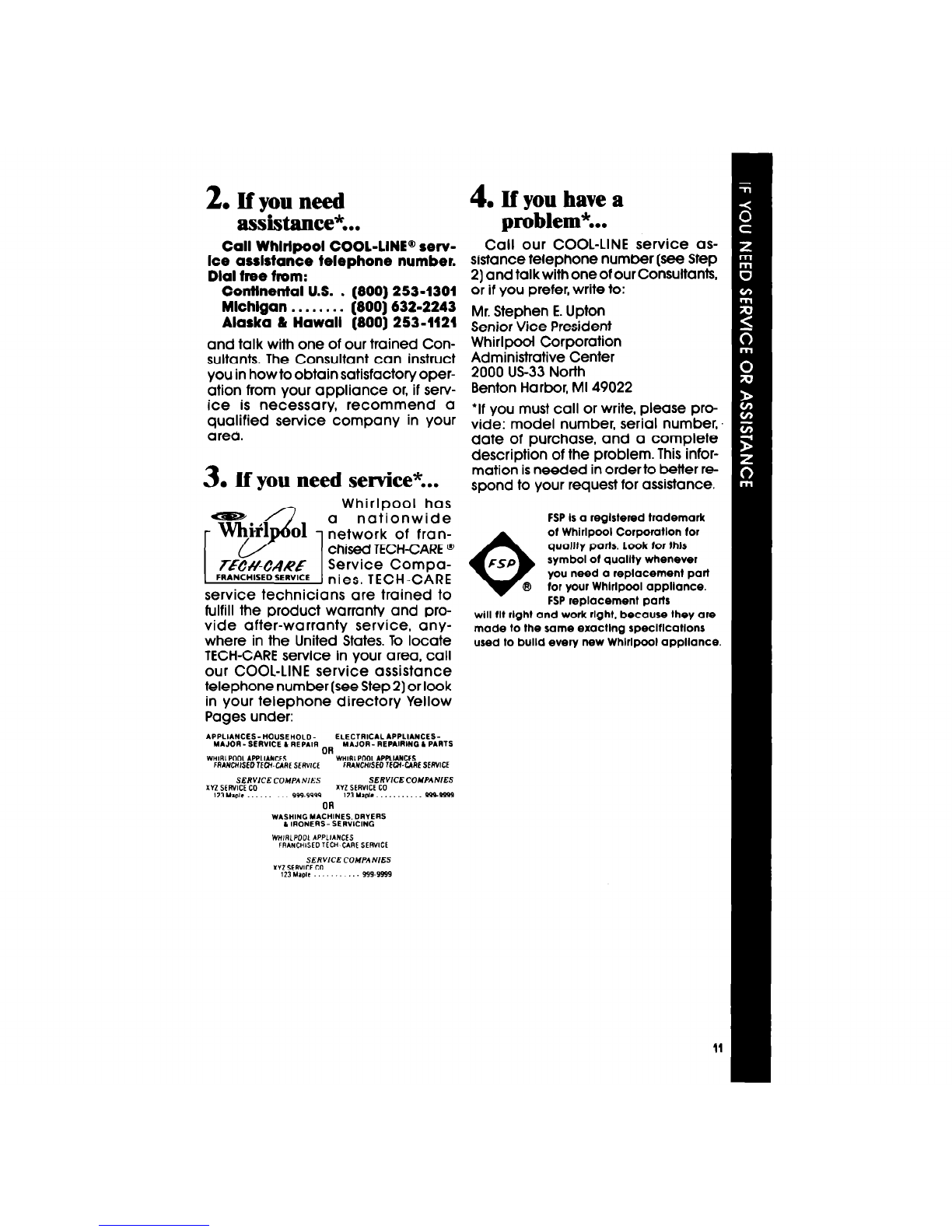

2. If you need
assistance*...
Call Whlrlpool COOL-LINE0 serv-
Ice assistance telephone number.
Dlal tree tram:
Contlnental U.S. . [phone]
Mlchlgan . . . . . . . . [phone]
Alaska b Hawall [phone]
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-CARE @
Service Compa-
nies, TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
in your telephone directory Yellow
Pages under:
4. If you have a
problem*. ..
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, MI 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a Complete
description of the problem. This infor-
mation is needed in order to better re-
spond to your request for assistance.
FSPIs a reglstered trademark
0
of Whirlpool Corporation for
quallty parts. look for this
FSP
symbol of quollty whenever
you need o replacement part
@ for your Whlrlpool appliance.
FSPreplacement parts
will fit rlght and work right. because they are
made to the same exacting speclflcatlons
used to build every new Whlrlpool appliance.

Making your world a little easier.
Part No. 696747
01985 Whirlpool Corporation Printed in U.S.A.
matlc Washers, Clothes Dryers, Freezers. Relngerator-Freezers, Ice Makers, Dishwashers. Built-In Ovens and Surface Units. Ranges, MI
