Whirlpool LE6685XP User manual

\
&&dL’ SERIES
AUTOMATIC
DRYERS
Electric Model
LE6685XP
// gds Model
LG6686XP
Htcrowave Ovens. Trash Compaclors. Room AH Condllloners. Oehumldlfwrs. Automatic Washers. Clothes Dryers. Freezers. Aefrlgerator-f

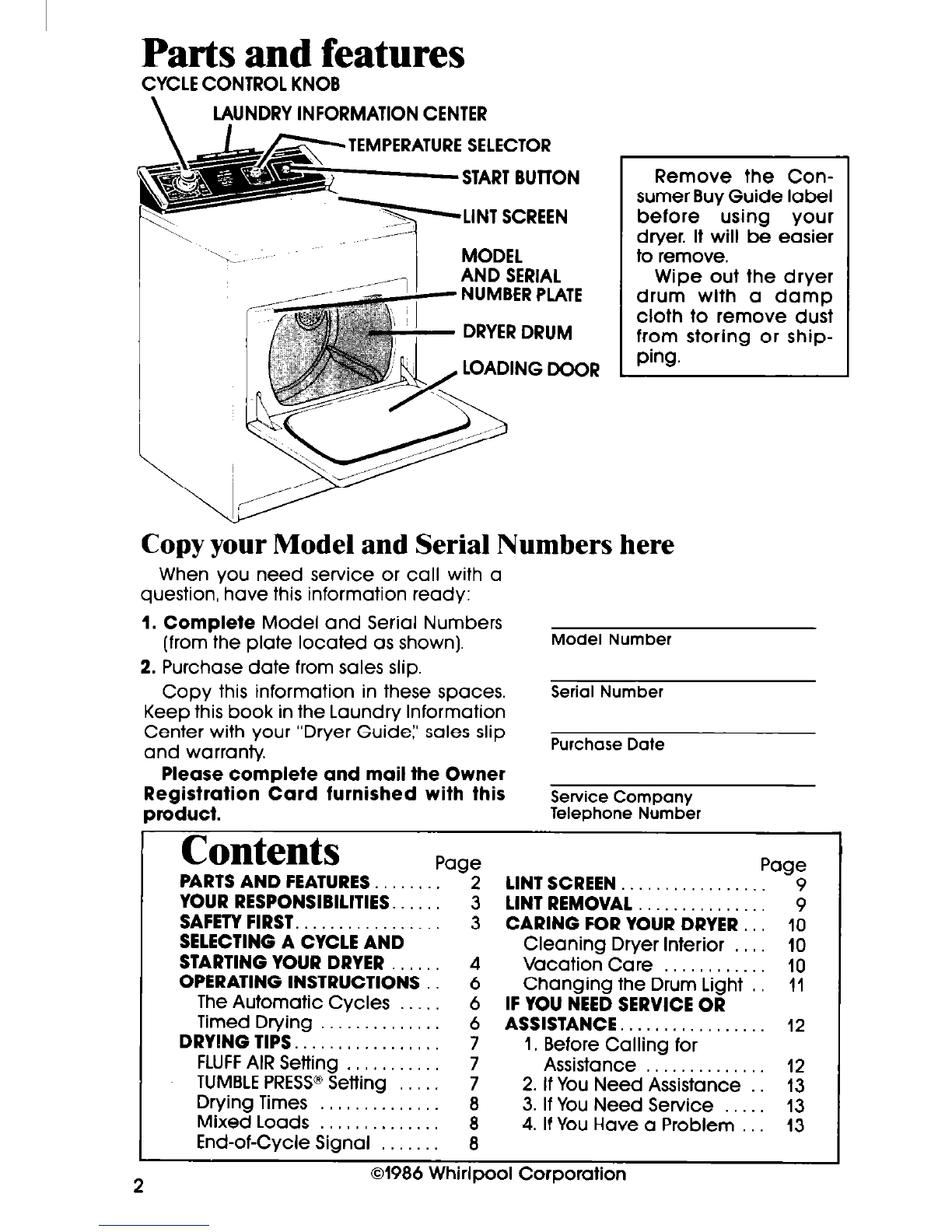

Parts and features
CYCLECONTROL KNOB
LAUNDRYINFORMATION CENTER
LOADING DOOR
Remove the Con-
sumer Buy Guide label
before using your
dryer. It will be easier
to remove.
Wipe out the dryer
drum with a damp
cloth to remove dust
from storing or ship-
ping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
1. Complete Model and Serial Numbers
(from the plate located as shown).
2. Purchase date from sales slip.
Copy this information in these spaces.
Keep this book in the Laundry Information
Center with your “Dryer Guide:’ sales slip
and warranty
Please complete and mail the Owner
Registration Card furnished with this
product.
Model Number
Serial Number
Purchase Date
Service Company
Telephone Number
Contents
Page
PARTS AND FEATURES. Page
2 LINTSCREEN.. 9
YOUR RESPONSIBILITIES. 3 LINT REMOVAL . 9
SAFETY FIRST. 3 CARING FOR YOUR DRYER.. 10
SELECTING A CYCLE AND Cleaning Dryer Interior . 10
STARTING YOUR DRYER 4 Vacation Care . 10
OPERATING INSTRUCTIONS 6 Changing the Drum Light 11
The Automatic Cycles 6 IF YOU NEED SERVICE OR
Timed Drying 6 ASSISTANCE.. . . . . . 12
DRYING TIPS. . 7
FLUFFAIR Setting . . I. Before Calling for 7 Assistance . . 12
TUMBLE PRESS@Setting . 7 2. If You Need Assistance 13
Drying Times . . . B 3. If You Need Service . 13
Mixed Loads . . . . . . 8 4. If You Have a Problem 13
End-of-Cycle Signal . 8
2 01986 Whirlpool Corporation

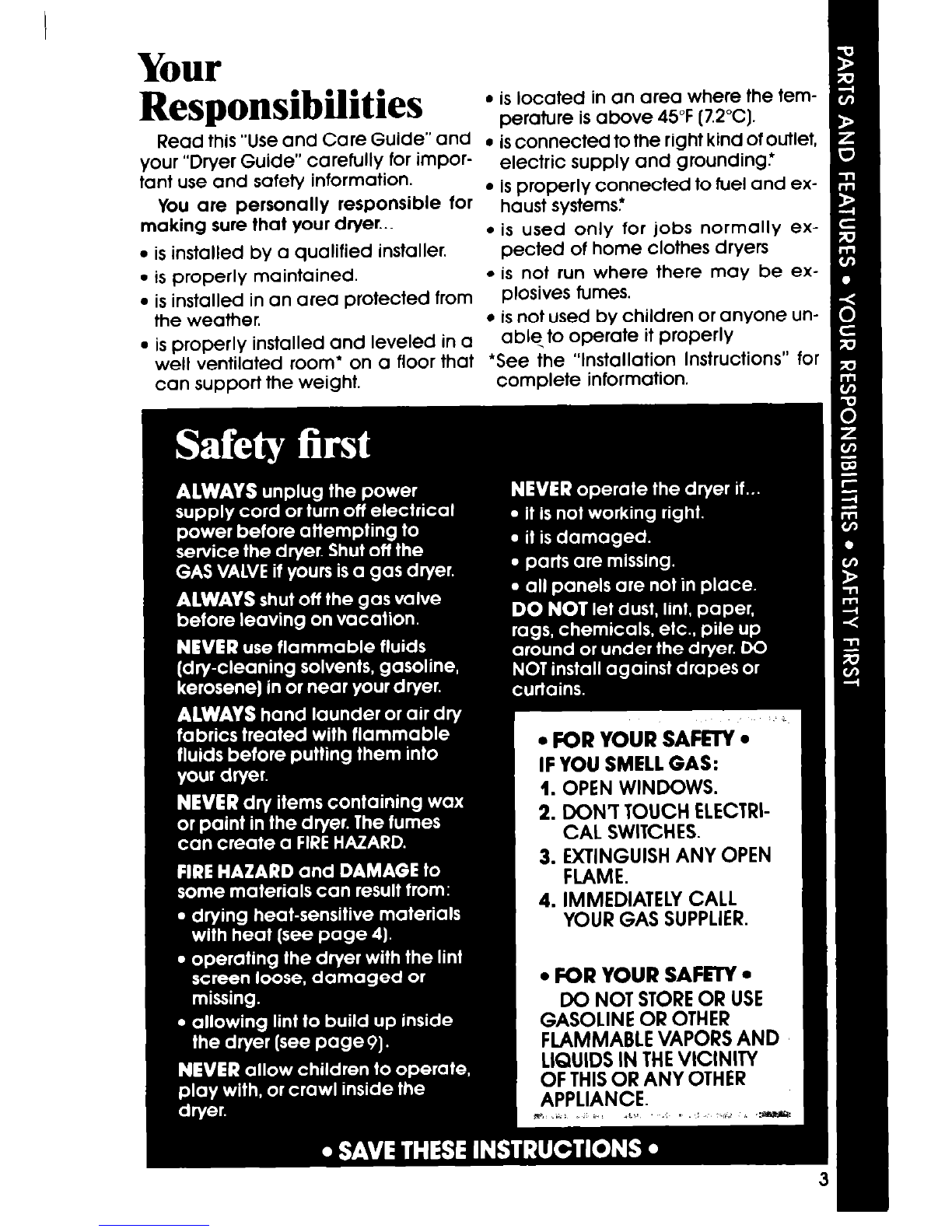

Your
Responsibilities
Read this “Use and Care Guide” and
your “Dryer Guide” carefully for impor-
tant use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected from
the weather.
l is properly installed and leveled in a
well ventilated room* on a floor that
can support the weight.
l is located in an area where the tem-
perature is above 45°F (7.2”CJ.
l is connected to the right kind of outlet,
electric supply and grounding?
l is properly connected to fuel and ex-
haust systems:
l is used only for jobs normally ex-
pected of home clothes dryers
l is not run where there may be ex-
plosives fumes.
l is not used by children or anyone un-
able to operate it properly
‘See the “Installation Instructions” for
complete information.

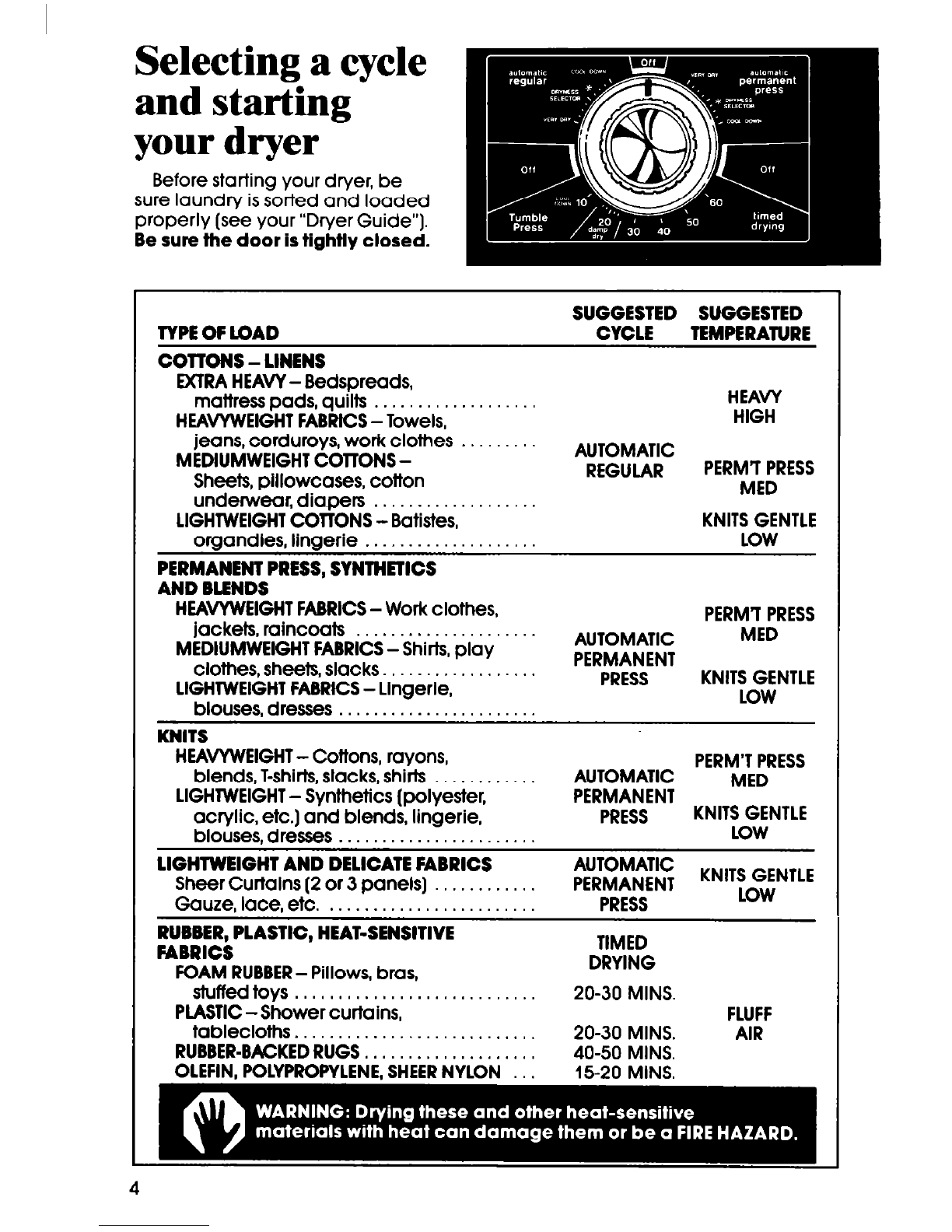

TYPE OF LOAD
COTTONS - LINENS
EXTRAHEAW - Bedspreads,
SUGGESTED SUGGESTED
CYCLE TEMPERATURE
mattress pads, quilts . . .. . . . . . . . HEAW
HEAVYWEIGHTFABRtCS- Towels, HIGH
jeans, corduroys, work clothes . .
MEDIUMWEIGHTCOTTONS- AUTOMATIC
Sheets, pillowcases, cotton REGULAR PERM7PRESS
underwear, diapers . . . MED
LIGHTWEIGHTCOTTONS- Batistes, KNITSGENTLE
organdies, lingerie . . . . . . . LOW
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVYWEIGHTFABRICS- Work clothes,
jackets, raincoats . . . . . . .
MEDIUMWEIGHTFABRICS-Shirts, play
clothes, sheets, slacks. . . . . . . . . . . . .
LIGHTWEIGHTFABRlCS- Lingerie,
blouses, dresses . . . . . . . . . . . . . . . . .
PERM’TPRESS
AUTOMATIC MED
PERMANENT
PRESS KNITSGENTLE
LOW
PERMITDDESS I RS
AUTOMATIC ME,
n
PERMANENT
PRESS KNITSG ‘-’ -
iENILt
LOW
KNITS
HEAVYWEIGHT- Cottons, rayons,
blends, T-shirts,slacks, shirts . . . . . .
LIGHTWEIGHT- Synthetics (polyester,
acrylic, etc.) and blends, lingerie,
blouses, dresses . . . . . . . . . . . . . . . . . . . .
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains (2 or 3 panels) . . . . . . . . . . .
Gauze, lace, etc. . . . . . . . . . . . . . . . .
RUBBER, PLASTIC, HEAT-SENSITIVE
FABRICS
FOAM RUBBER- Pillows, bras,
stuffed toys . . . . . . . . . . . . . . . . . . . , . .
PLASTIC-Shower curtains,
tablecloths.........................
RUBBER-BACKEDRUGS. . . . . . . . . . . . . .
OLEFIN.POLYPROPYLENE.
SHEERNYLON
;;;ir$? KNITSGENTLE
PRESS LOW
TIMED
DRYING
20-30 MINS. FLUFF
20-30 MINS. AIR
40-50 MINS.
15-20 MINS.

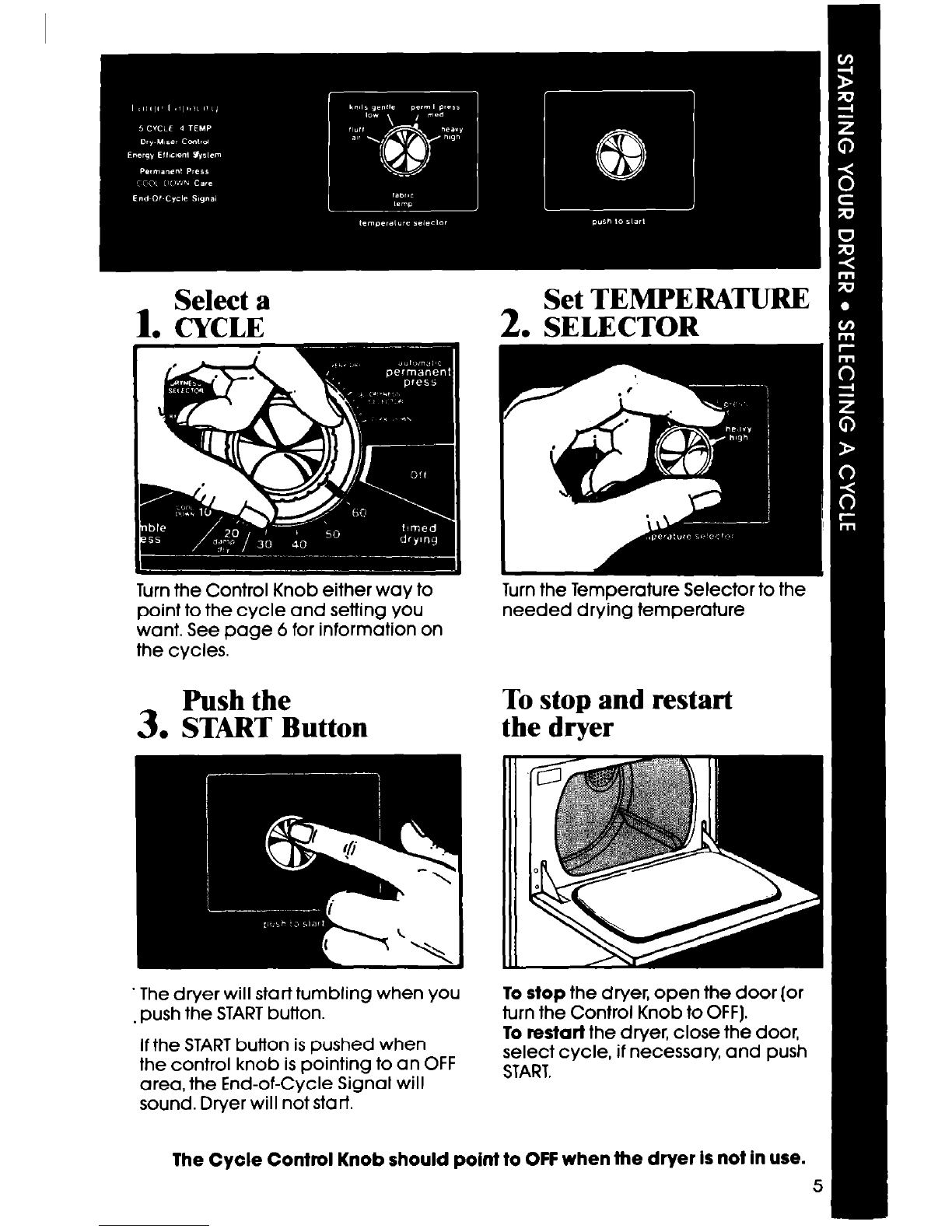

Set TEMPERATURE
2. SELECTOR I :
Turn the Control Knob either way to
point to the cycle and setting you
want. See page 6 for information on
the cycles.
Push the
3. START Button
The dryer will start tumbling when you
.push the STARTbutton.
If the STARTbutton is pushed when
the control knob is pointing to an OFF
area, the End-of-Cycle Signal will
sound. Dryer will not start.
The Cycle Control Knob sl lould p
,011
Turn the Temperature Selector to the 1
To stop and restart
the dryer
To stop the dryer, open the door (or
turn the Control Knob to OFF].
To restart the dryer, close the door,
select cycle, if necessary, and push I
START.
nt to OFF when the dryer is not in use. I

Operating instructions
The automatic cycles
The automatic cycles allow you
to select the degree of dryness you
prefer for the clothes being dried.
The Control Knob moves and stops
several times until the load reaches
the dryness setting you selected.
Then the knob automatically moves
to OFF and tumbling stops.
weight cotton items. The load tumbles
wlthout heat during the last 5 min-
utes. This helps make the load easier
to handle.
Use
AUTOMATIC
PERMANENT
PRESSto dry
permanent
press, knits and other synthetic fabrics.
The load tumbles without heat during
the last 10 minutes. This helps keep
wrinkles from setting in.
For the first few loads, set the Control
Knob to point to an * in either auto-
matic cycle. When the dryer stops, feel
the dried items.
l If items are drier than you like, use
a setting to the right of the * the next
time you dry a similar load.
l If items are not as dry as you like, use
a setting to the left of the * the next
time you dry a similar load.
Timed drying
Use the TIMED DRYING Cycle for
any load you want to dry by time. For
example: small loads, large bulky
items, items to be fluffed or dusted
with the FLUFFAIR heat setting.
l Turn the Control Knob to the number
of minutes you want- from 10 to 60.
l The last 5 minutes of this cycle are
without heat - a cool-down time. This ,
helps make the load easier to
handle.
6

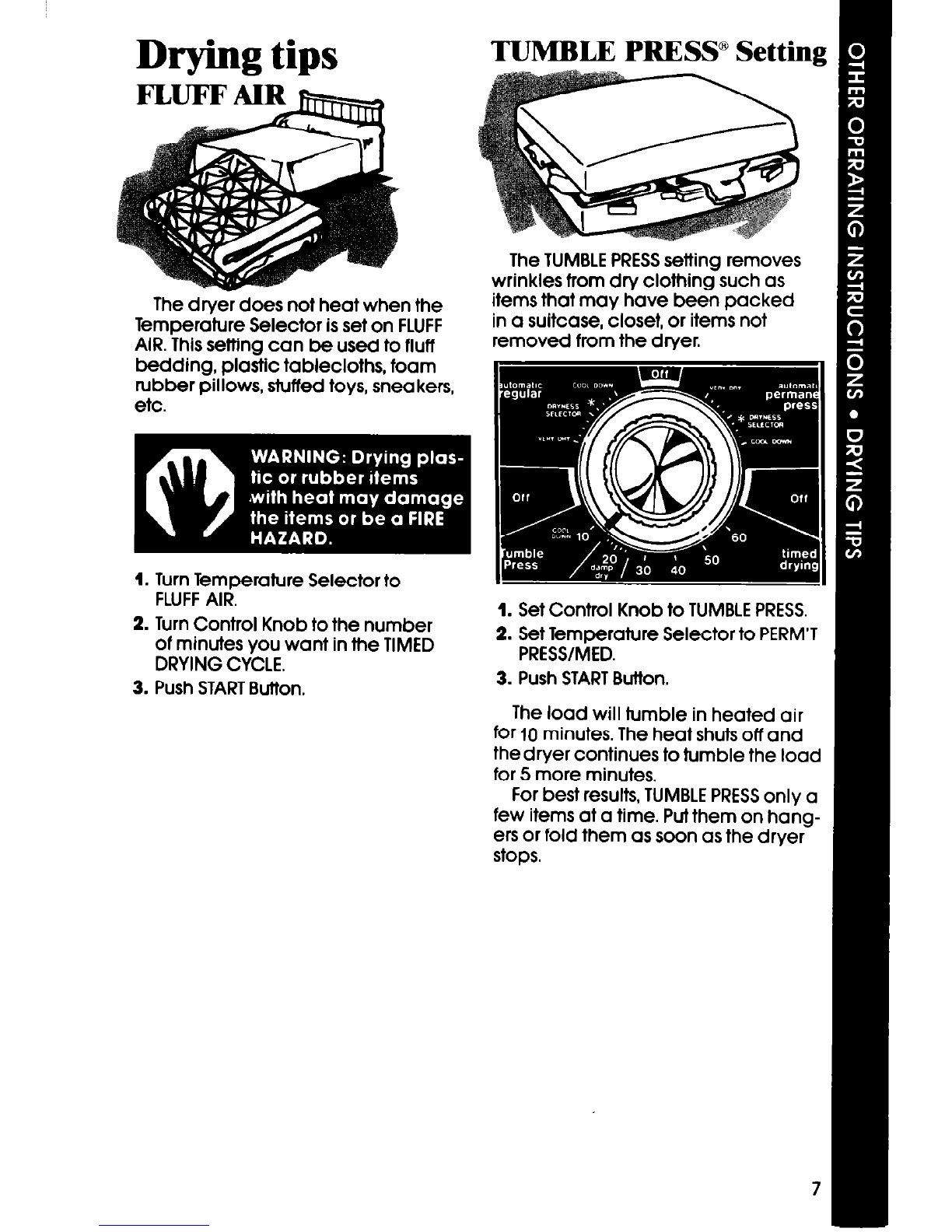

Drying tips
The dryer does not heat when the
Temperature Selector is set on FLUFF
AIR. This setting can be used to fluff
bedding,plastictablecloths,foam
rubber pillows, stuffed toys, sneakers,
etc.
TUMBLE PRESS” Setting
The TUMBLE PRESSsetting removes
wrinkles from dry clothing such as
items that may have been packed
in a suttcase, closet, or items not
removed from the dryer.
1. Turn Temperature Selector to
FLUFFAIR.
2. Turn Control Knob to the number
of minutes you want in the TIMED
DRYING CYCLE.
3. Push STARTButton.
1. Set Control Knob to TUMBLE PRESS.
2. Set Temperature Selector to PERM’T
PRESS/MED.
3. Push STARTButton.
The load will tumble in heated air
for 10 minutes. The heat shuts off and
thedryer continues to tumble the load
for 5 more minutes.
For best results, TUMBLE PRESSonly a
few items at a time. Put them on hang-
ers or fold them as soon as the dryer
stops.

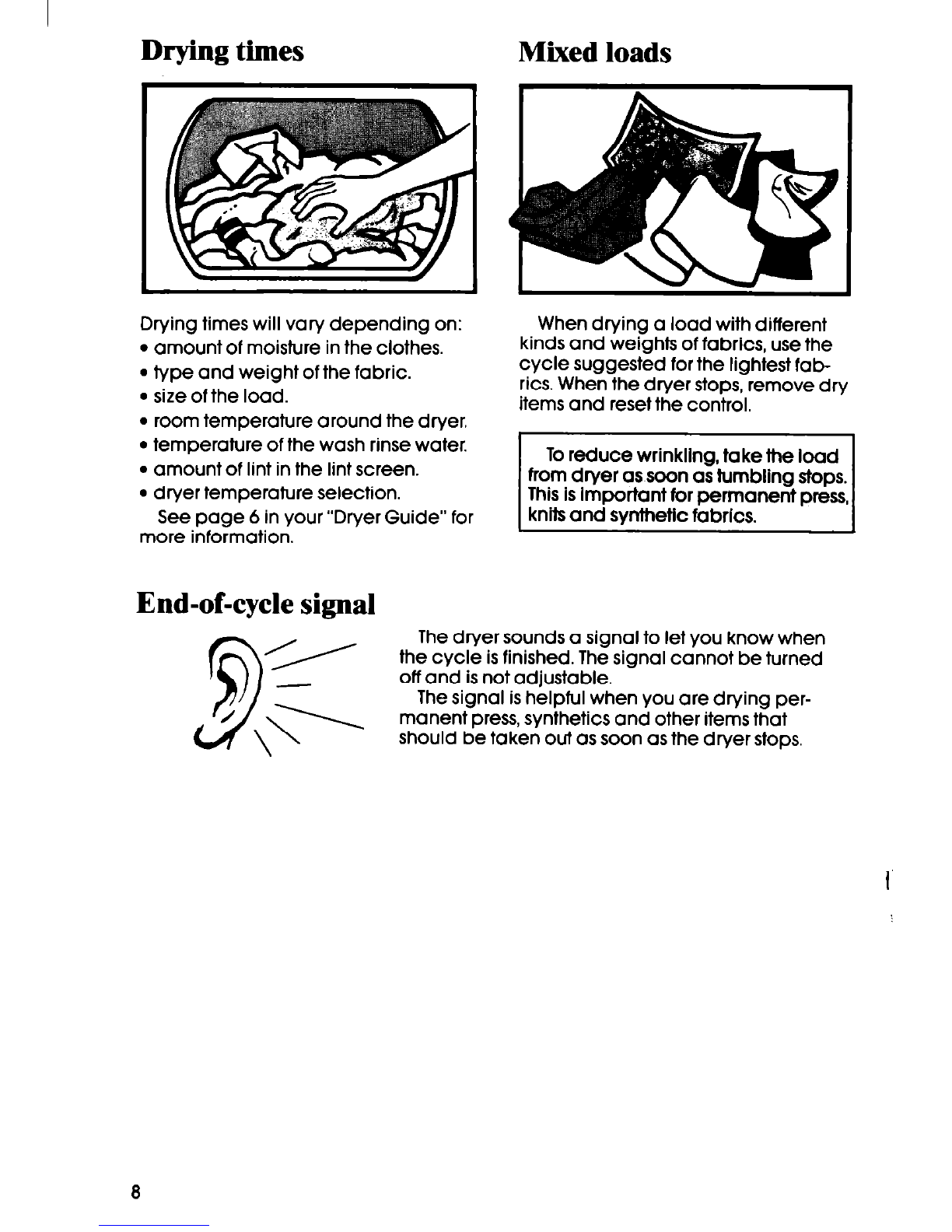

Drying times Mixed loads
Drying times will vary depending on:
l amount of moisture in the clothes.
l type and weight of the fabric.
l size of the load.
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest fab-
rics. When the dryer stops, remove dry
items and reset the control.
To reduce wrinkllng, take the load
from dryer as saan as tumbling stops.
This is Important far permanent press,
knits and synthetic fabrics.
l room temperature around the dryer.
l temperature of the wash rinse water.
l amount of lint in the lint screen.
l dryer temperature selection.
See page 6 in your “Dryer Guide” for
more information.
End-of-cycle signal
The dryer sounds a signal to let you know when
the cycle is finished. The signal cannot be turned
off and is not adjustable.
The signal is helpful when you are drying per-
manent press, synthetics and other items that
should be taken out as soon as the dryer stops,
I’
8

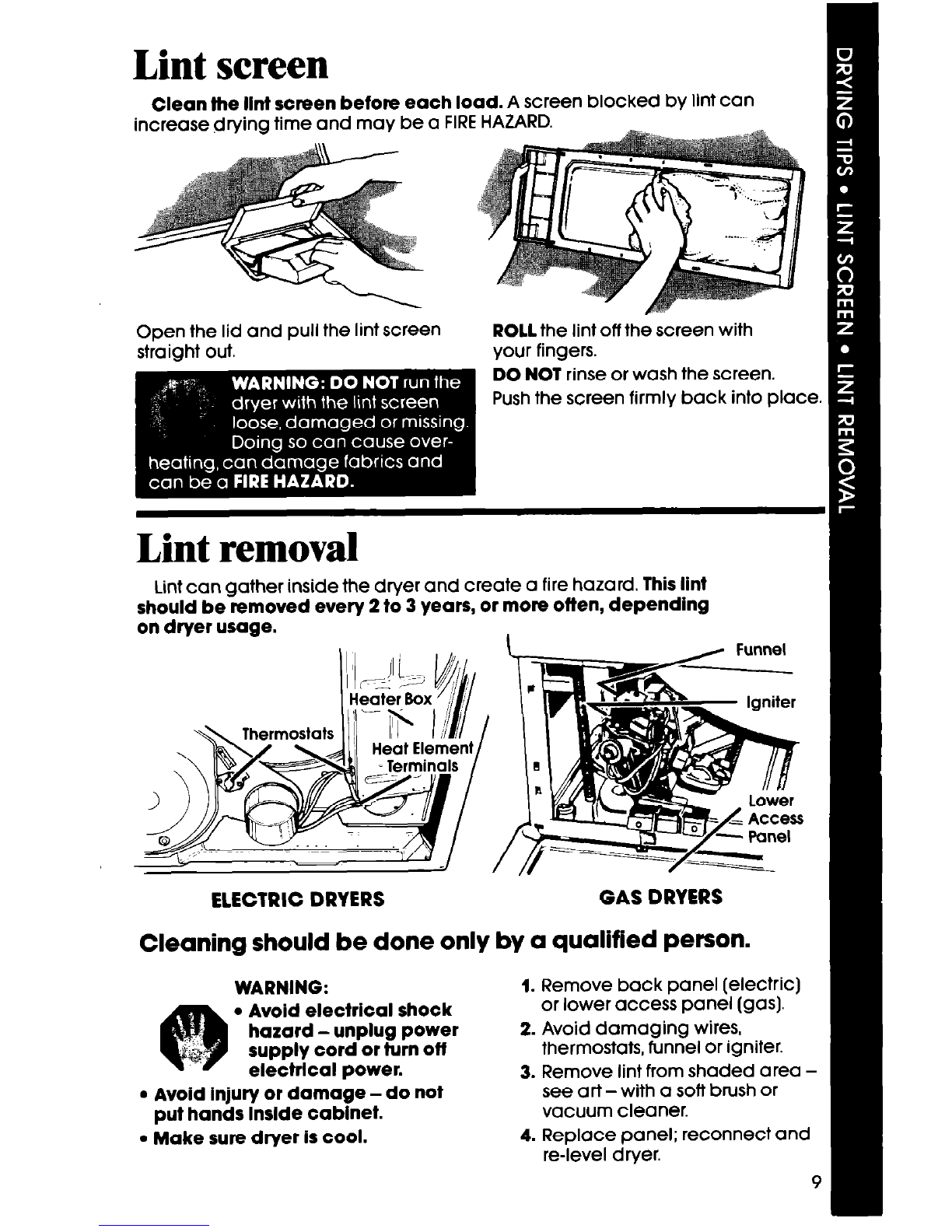

Lint screen
Clean the lint screen before each load. A screen blocked by lint can
be a FIREHAZARD.
Open the lid and pull the lint screen
straight out. ROLL the lint off the screen with
your fingers.
DO NOT rinse or wash the screen.
Push the screen firmly back into place.
Lint removal
Lint can gather inside the dryer and create a fire hazard. This lint
should be removed every 2 to 3 years, or more otten, depending
on dryer usage.
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
WARNING:
l Avoid electrical shock
hazard - unplug power
supply cord or turn off
electrical power.
l Avoid injury or damage - do not
put hands inside cabinet.
l Make sure dryer is cool.
1. Remove back panel (electric)
or lower access panel (gas).
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art - with a soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer.
9

r

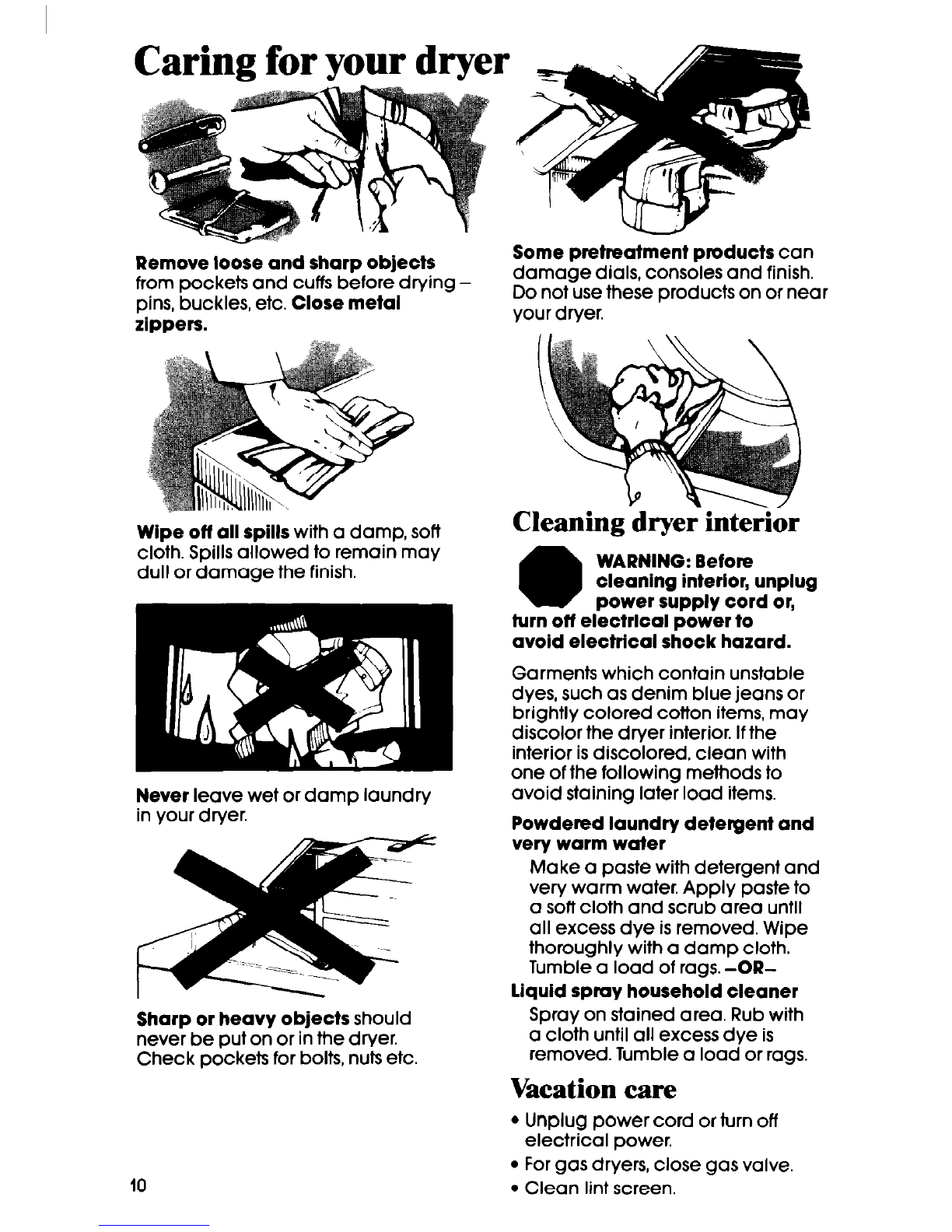

Remove loose and sharp objects
from pockets and cuffs before drying -
pins, buckles, etc. Close metal
zippers.
Some pretreatment products can
damage dials, consoles and finish.
Do not use these products on or near
your dryer.
Wipe off ail spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts etc.
10
Cleaning dryer inter&
a
WARNING: Before
cleaning interior, unplug
power supply cord or,
turn off electrical power to
avoid electrical shock hazard.
Garments which contain unstable
dyes, such as denim blue jeans or
brightly colored cotton items, may
discolor the dryer interior. If the
interior is discolored, clean with
one of the following methods to
avoid staining later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub area until
all excess dye is removed. Wipe
thoroughly with a damp cloth.
Tumble a load of rags. -OR-
liquid spray household cleaner
Spray on stained area. Rub with
a cloth until all excess dye is
removed. Tumble a load or rags.
Vacation care
l Unplug power cord or turn off
electrical power.
l For gas dryers, close gas valve.
l Clean lint screen.

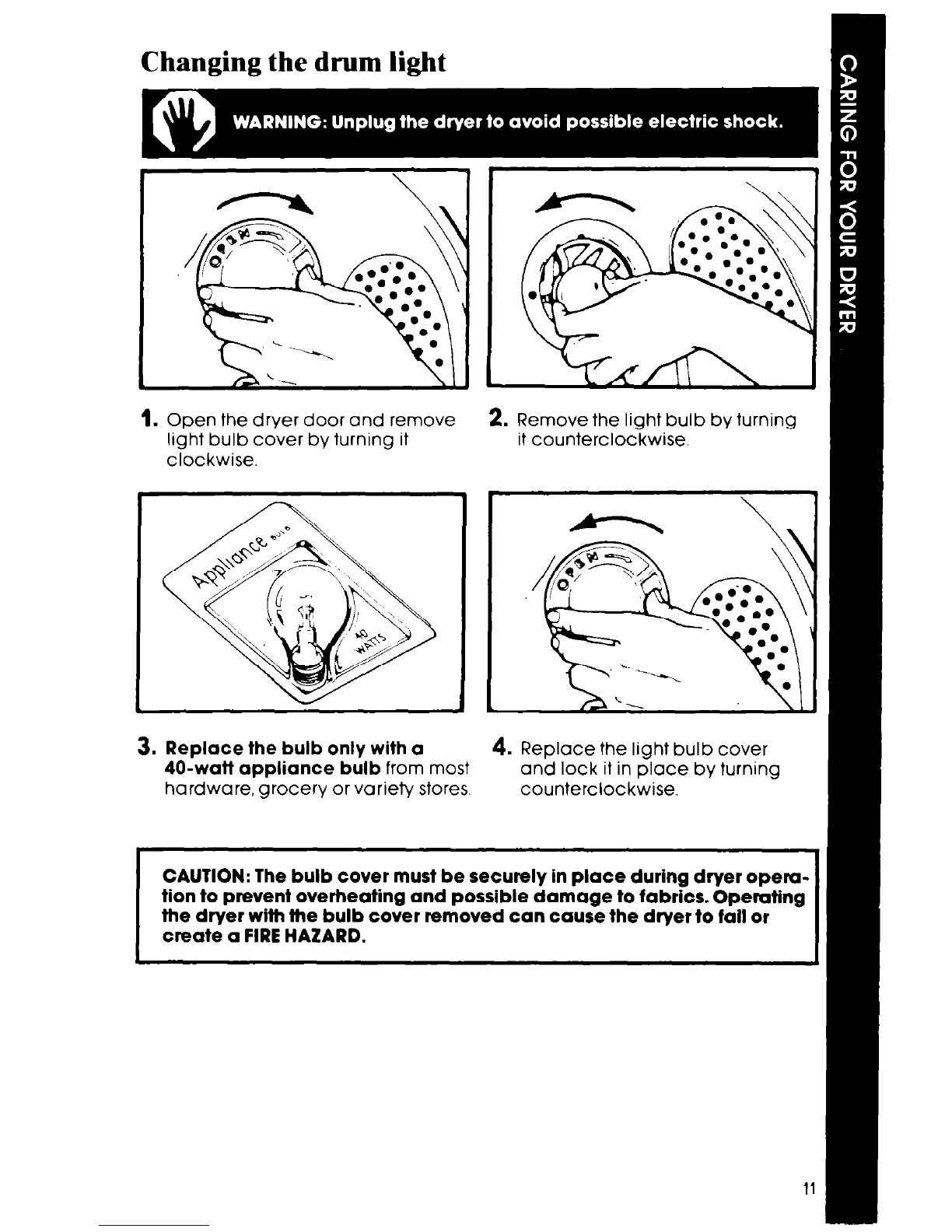

1. Open the dryer door and remove 2. Remove the light bulb by turning
light bulb cover by turning it
clockwise. it counterclockwise.
3. Replace the bulb only with a 4. Replace the liaht bulb cover
40-watt appliance bulb from most
hardware, grocery or variety stores.
Changing the drum light
anb lock it in $ace by turning
counterclockwise.
CAUTION: The bulb cover must be securely in place during dryer opem-
tion to prevent overheating and possible damage to fabrics. Operating
the dryer with the bulb cover removed can cause the dryer to fail or
create a FIRE HAZARD.

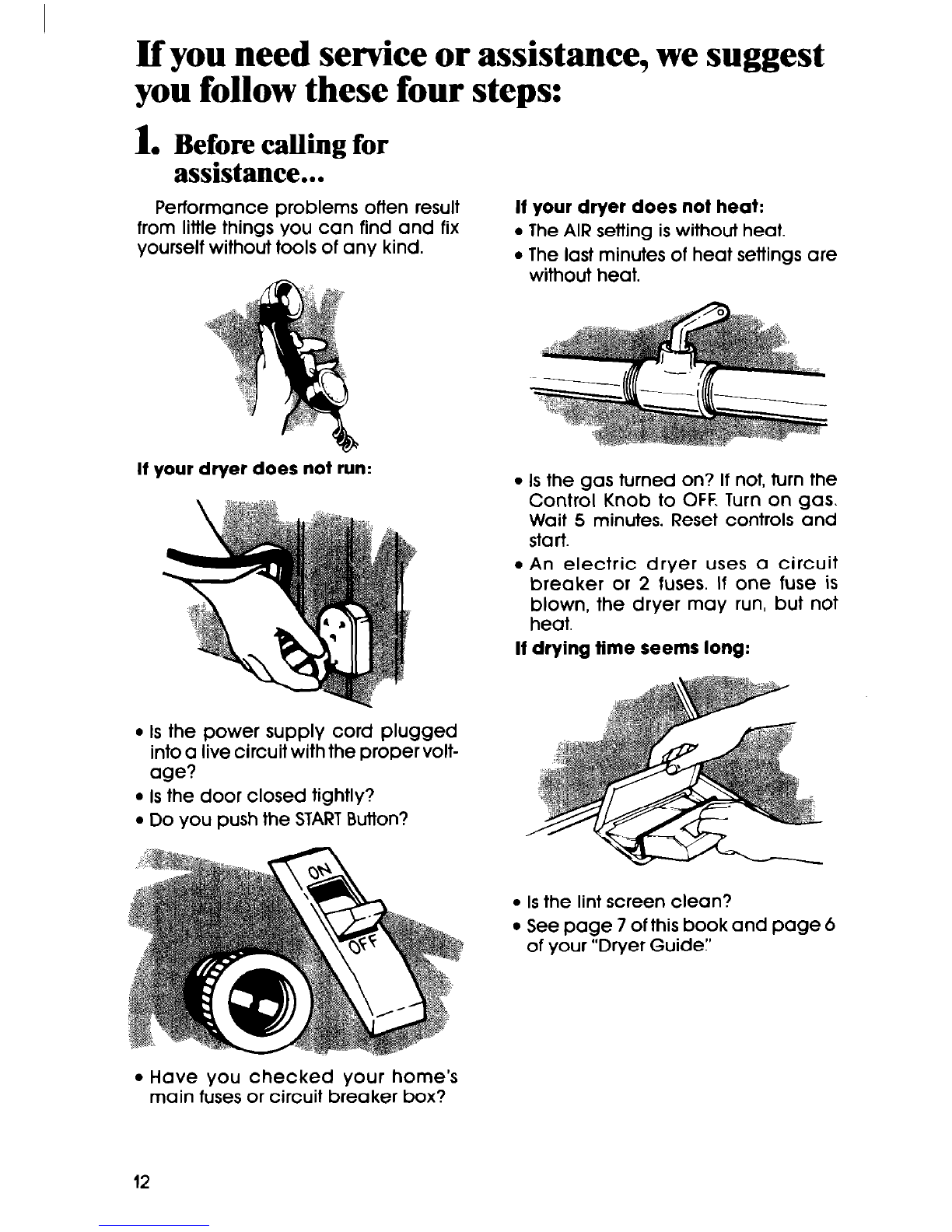

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l Is the power supply cord plugged
into a live circuit with the propervolt-
age?
l Is the door closed tightly?
l Do you push the STARTButton?
if your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse iS
blown, the dryer may run, but not
heat.
if drying time seems long:
l Is the lint screen Clean?
l See page 7 of this book and page 6
of your “Dryer Guide:’
l Have you checked your home’s
main fuses or circuit breaker box?
12

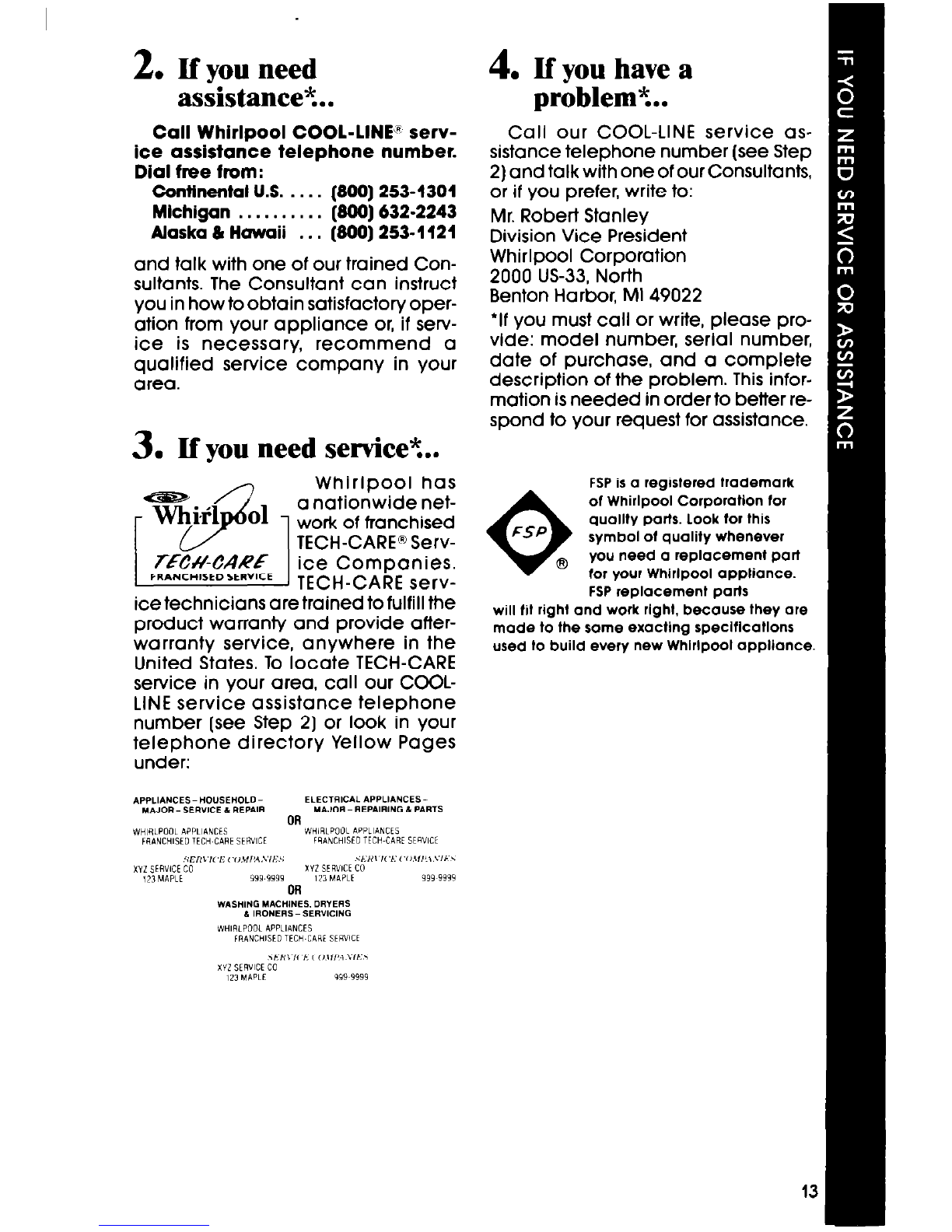

2. If you need
assistance?..
Call Whirlpool COOL-LINER serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . . . . [phone]
Mtchigan . . . . . . . . . . [phone]
Alaska & Hawaii . . . (BOO)253-l 121
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need setice%.
Whirlpool has
a nationwide net-
1
work of franchised
TECH-CAREa Serv-
ice technicians are trained to fulfill the
product warranty and provide after-
warranty service, anywhere in the
United States. To locate TECH-CARE
service in your area, call our COOL-
LINE service assistance telephone
number [see Step 2) or look in your
telephone directory Yellow Pages
under:
4. If you have a
problem%.
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 US-33, North
Benton Harbor, Ml 49022
‘If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better re-
spond to your request for assistance.
0
FSP is a registered trademark
of Whirlpool Corporatton lor
FSP
quality parts. look tor this
symbol ot quality whenever
8 you need a replacement part
tar your Whirlpool appliance.
FSP replacement parts
will tit right and work right, because they are
made to the same exacting speclflcatlons
used to build every new Whlrtpool appliance.

Notes
14

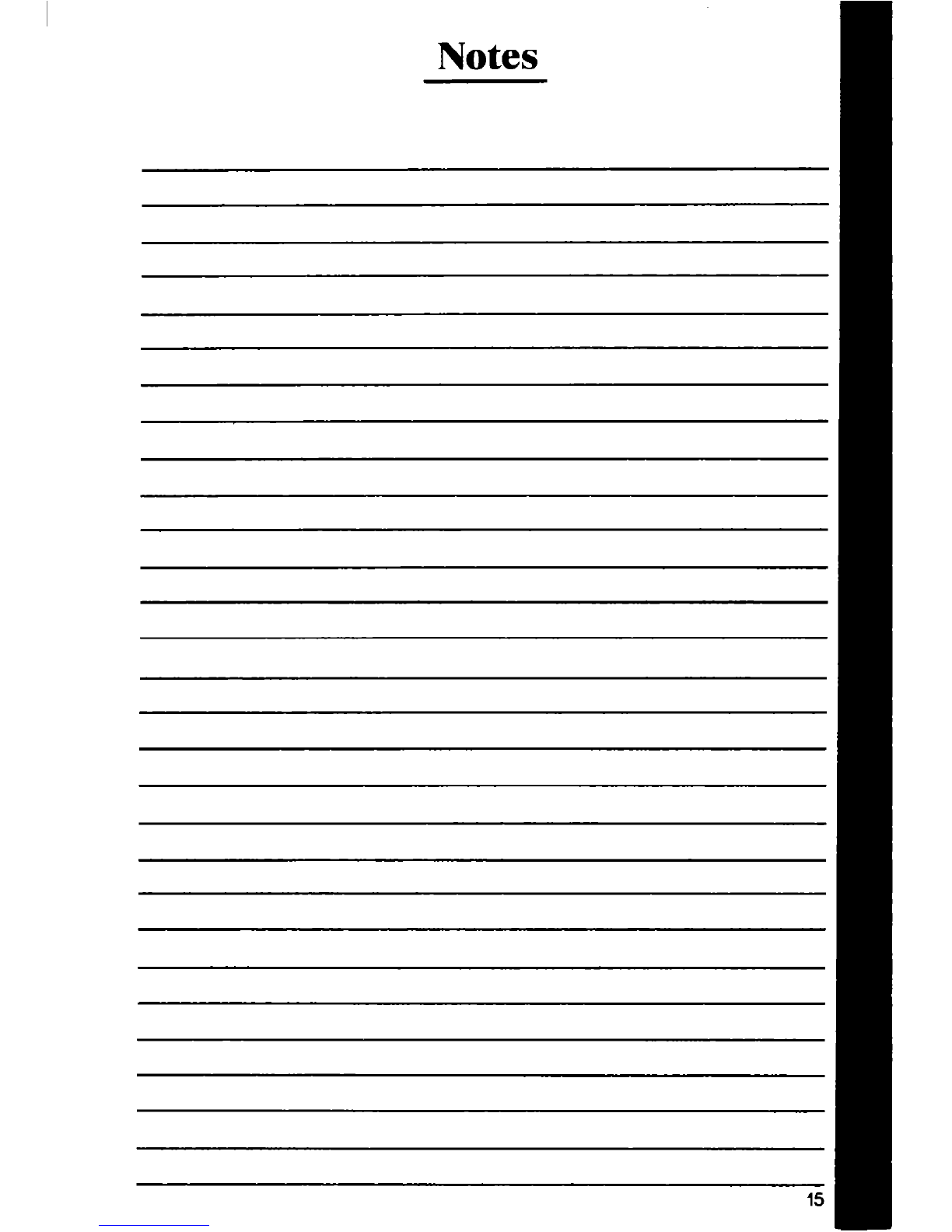

Notes
15

Whirlp001
Home L /Appliances
Making your world a little easier.
Part No. 3387068
01986 Whirlpool Corporation Printed in U.S.A.
Aulomallc Washers. Clothes Dryers Freezers Refrlgeralor-Freezers Ice Makers. Olshwashers. Built-In Ovens and Surface Un~ls. Ranges
