Whirlpool LER3624EQ1 User manual

E¢_ LIJ I.]
3406080
Use Care
Eledricand
GasDryers
A Note to You ................ 2
Dryer Safety .................. 3
Parts and Features ........ 5
Chocking Your Vent ...... 6
Using Your Dryer .......... 8
Starting your dryer ........ 8
Loading ...................... 10
Selecting a cycle
and temperature
setting ........................ 10

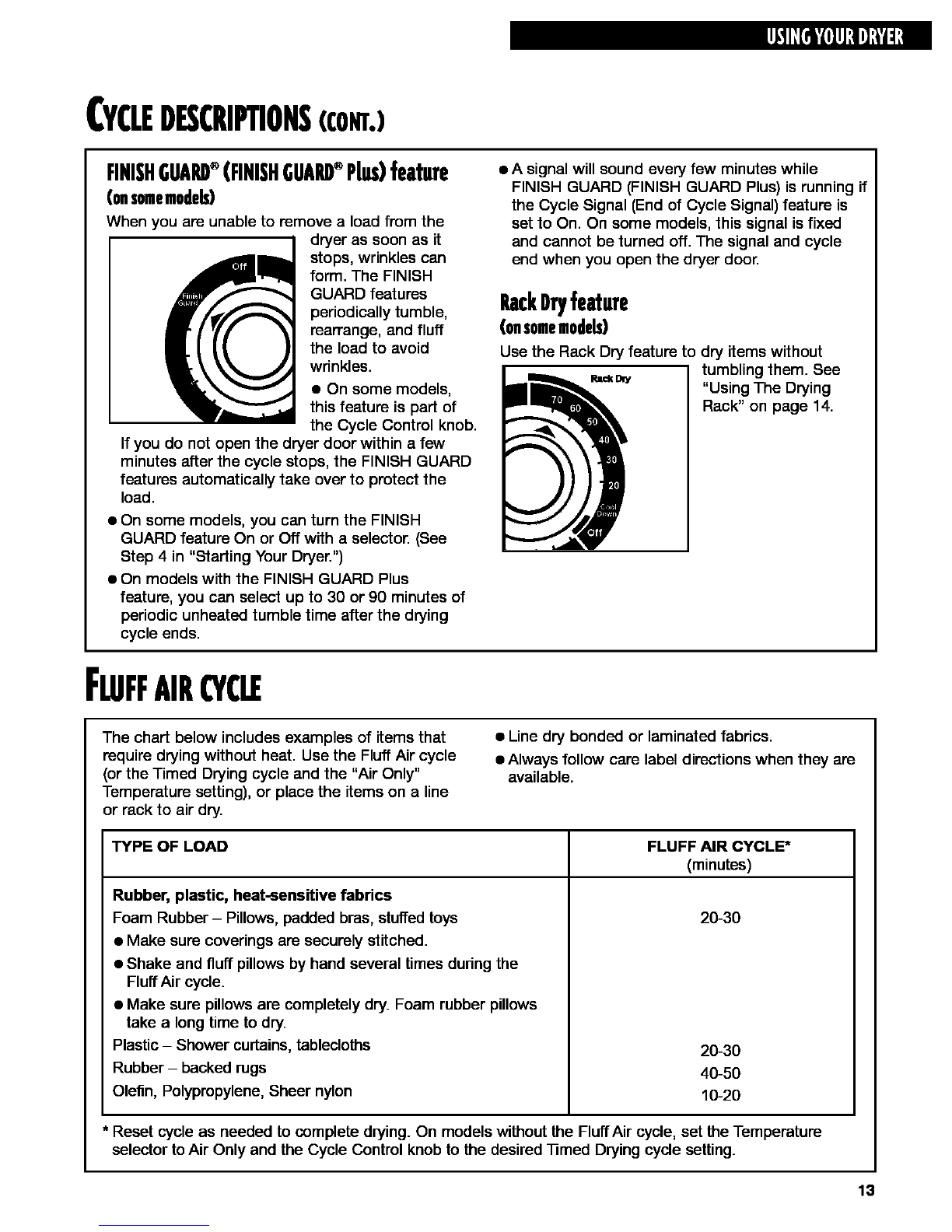

Cycle descriptions ....11
Fluff Air cycle ............ 13
Using the drying
rack ............................ 14

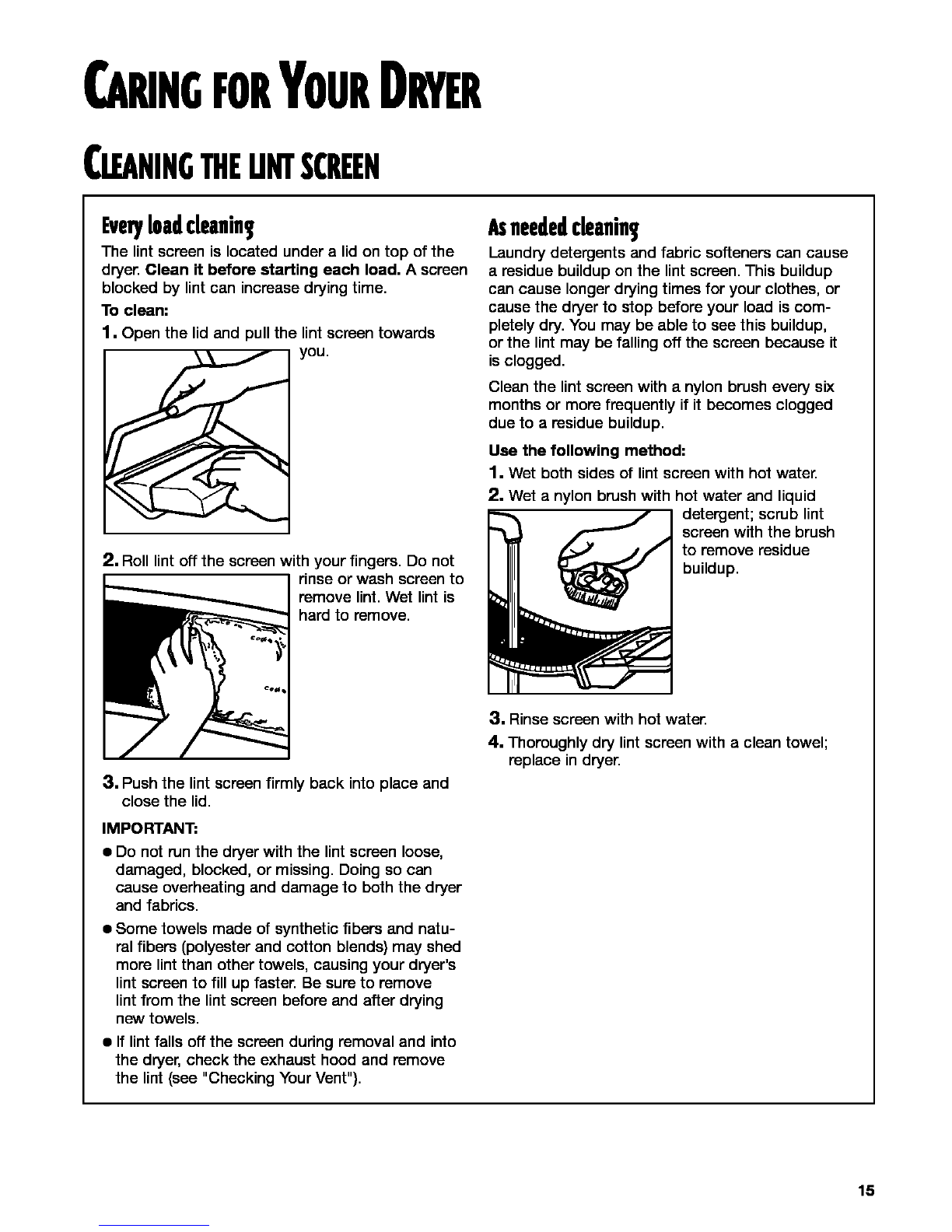

Caring for Your Dryer..15
Troubleshooting .......... 18
Assistance
or Service .................... 20
Warranty ...................... 24
1-800-253-1301
Call us with questions or comments.
www.whirlpool.com

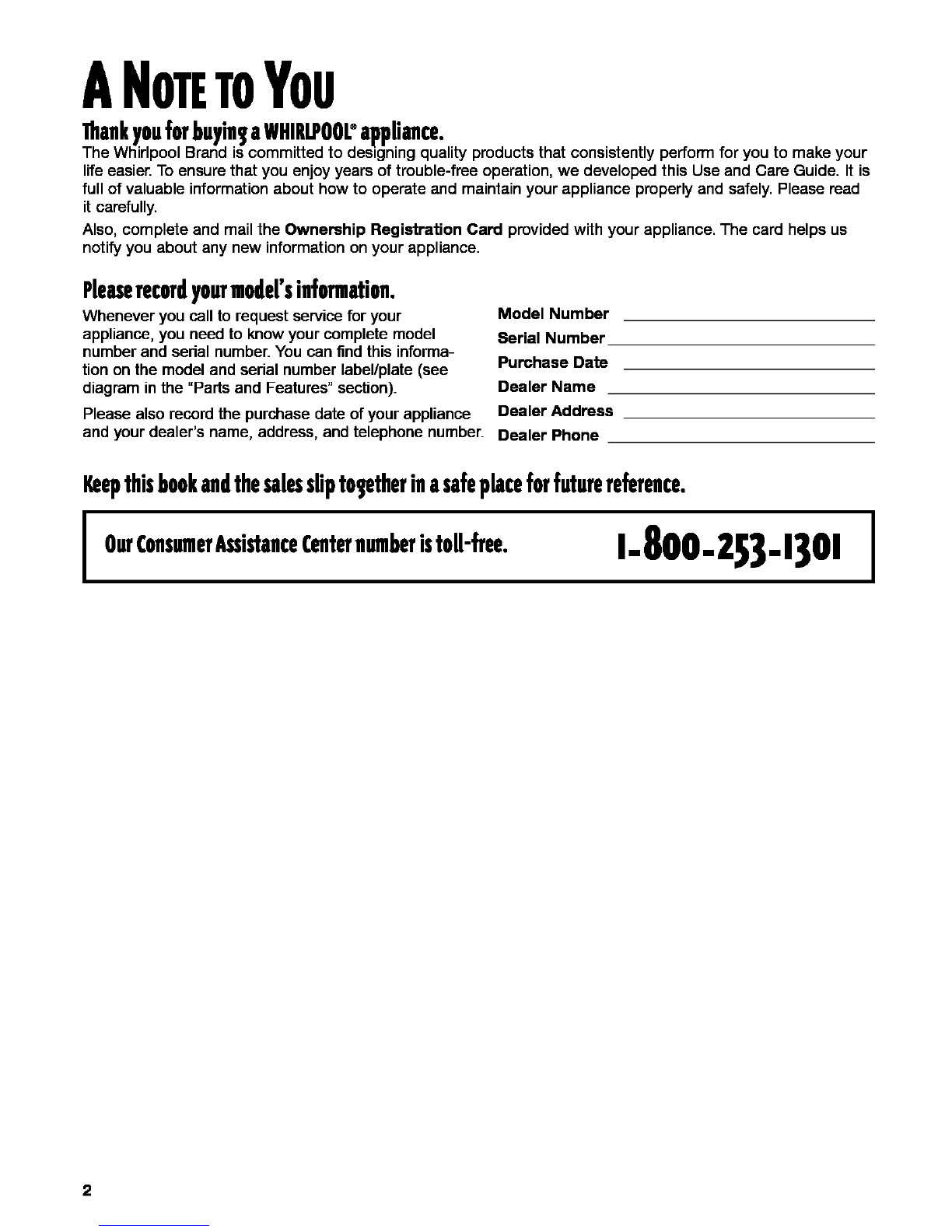

ANOT[TOYou
1honkyouforbuyin_aWHIRLPOOL®appliance.
The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your
life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is
full of valuable information about how to operate and maintain your appliance properly and safely. Please read
it carefully.
Also, complete and mail the Ownership Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Pleaserecordyourmodel'sinformation.
Whenever you cell to request service for your
appliance, you need to know your complete model
number and sedal number. You can find this informa-
tion on the model and serial number label/plate (see
diagram in the "Parts and Features" section).
Model Number
Serial Number
Purchase Date
Dealer Name
Please also record the purchase date of your appliance Dealer Address
and your dealer's name, address, and telephone number. Dealer Phone
Keepthisbookandthesalesslipto_etherinasafeplaceforfuturereference.
0urConsumerAssistonceCenternumberist0U-free. 1.800.253.1301
2

DRYERSAFETY
Yoursafelyandthesafetyofothersisveryimportant.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"#MARNING". These words mean:
You will be killed or seriously injured if you don't
follow instructions.
All safety messages will identity the hazard,
happen if the instructions are not followed.
You can be killed or seriously injured if you don't
follow instructions.
tell you how to reduce the chance of injury, and tell you what can
I WARNING: For your safety the information in this manual must be followed to I
I
minimize the risk of fire or explosion or to prevent property damage, personal I
injury or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Clear the room, building or area of all occupants.
•Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
•If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
continued on next page

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the
dryer, follow basic precautions, including the following:
•Read all instructions before using
the dryer.
• Do not place items exposed to cooking
oils in your dryer. Items contaminated
with cooking oils may contribute to a
chemical reaction that could cause a
load to catch fire.
• Do not dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, other flammable, or explosive
substances as they give off vapors that
could ignite or explode.
• Do not allow children to play on or in
the dryer. Close supervision of children
is necessary when the dryer is used
near children.
• Before the dryer is removed from service
or discarded, remove the door to the
drying compartment.
• Do not reach into the dryer if the drum
is moving.
• Do not install or store the dryer where
it will be exposed to the weather.
• Do not repair or replace any part of the
dryer or attempt any servicing unless
specifically recommended in this Use and
Care Guide or in published user-repair
instructions that you understand and
have the skills to carry out.
• Do not use fabric softeners or products
to eliminate static unless recommended
by the manufacturer of the fabric softener
or product.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-
like materials.
• Clean lint screen before or after each
load.
• Keep area around the exhaust opening
and adjacent surrounding areas free from
the accumulation of lint, dust, and dirt.
• The interior of the dryer and exhaust vent
should be cleaned periodically by
qualified service personnel.
• See Installation Instructions for grounding
requirements.
• Do not tamper with controls.
SAVE THESE INSTRUCTIONS
4

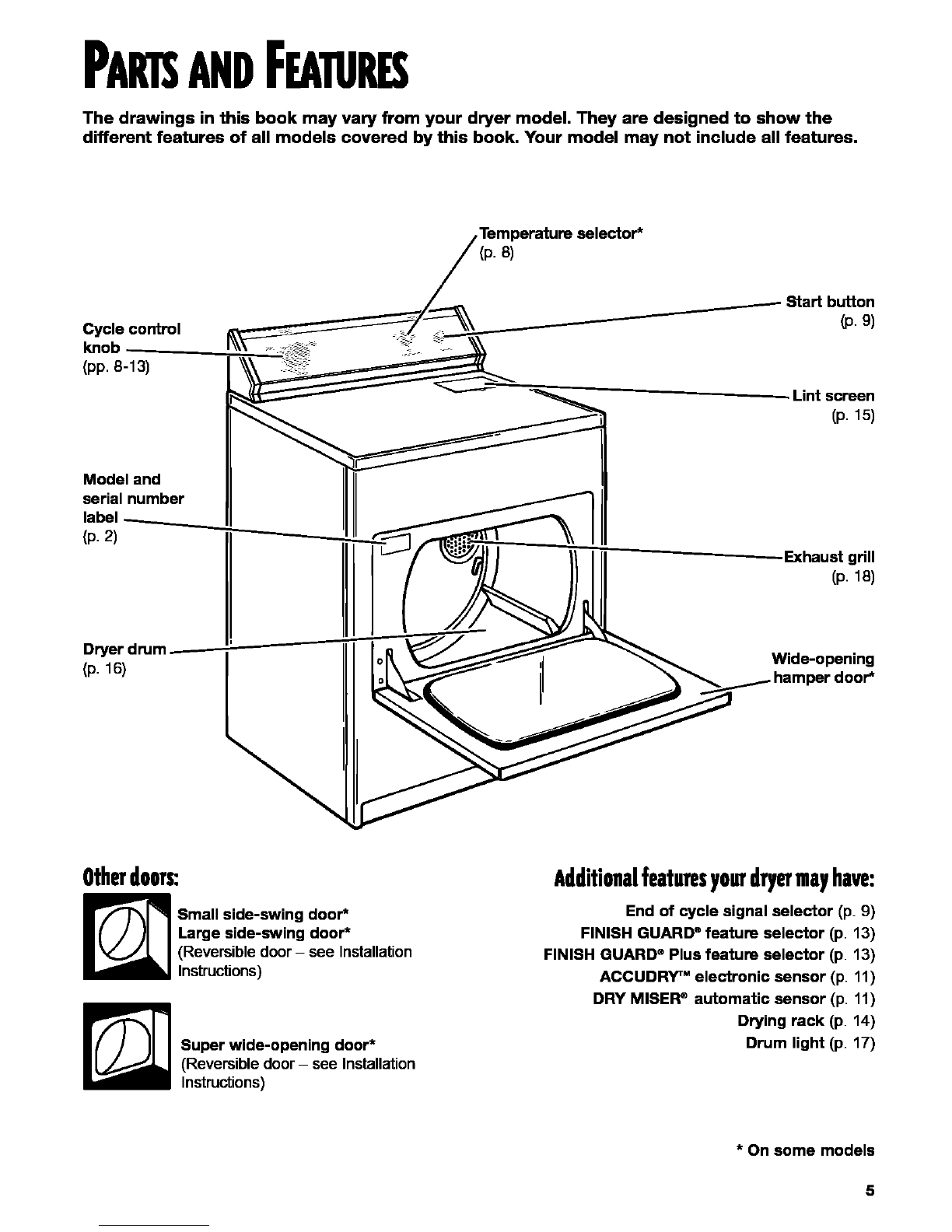

PAreANDF wm
The drawings in this book may vary from your dryer model. They are designed to show the
different features of all models covered by this book. Your model may not include all features.
Temperature selector*
8)
Cycle control
knob
(pp. 8-13)
(p. 9)
Lint screen
(p. 15)
Model and
serial number
label
(p. 2) Exhaust grill
(p. 18)
(p. 16) Wide-opening
door*
Otherdoors:.
_mall side-swing door*
Large side-swing door*
(Reversible door - see Installation
Instructions)
Super wide-opening door*
(Reversible door - see Installation
Instructions)
Additionalfeaturesyourdryermayhave:
End of cycle signal selector (p. 9)
FINISH GUARD ®feature selector (p. 13)
FINISH GUARD ®Plus feature selector (p. 13)
ACCUDRW" electronic sensor (p. 11)
DRY MISER ®automatic sensor (p. 11)
Drying rack (p. 14)
Drum light (p. 17)
* On some models
5

(HE(KINGYOURVENT
Your dryer must be properly installed and vented to achieve maximum drying efficiency and
shorten drying times, Use the minimum recommended installation clearances (found in your
Installation Instructions) to avoid blocking the flow of combustion and ventilation air. Install
your dryer in a well-ventilated room where the temperature is always above 45°F. Also make
sure that your dryer is leveled. Refer to your Installation Instructions for more
information.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent,
Failure to follow these instructions can
result in desth or fire.
If the dryer is not properly installed and vented, itwill
not be covered under the warranty.
NOTE: Service calls caused by improper venting will
be paid for by the customer, whether it was a paid
installationor self-installed For paid installation,call
the company that installedthe vent for adjustment.
1. Do not use plastic vent or flexible metal foil vent.
Use 4 inch heavy metal
or flexible metal vent.
Do not kink or crush
flexible metal vent. It
must be completely
extended to allow
adequate exhaust air to
flow. Check vent after
installation. Refer to
your Installation
Instructions for proper
length requirements of vent.
2. Use a 4inch exhaust hood. Smaller hoods
increase drying times.
3.The exhaust vent can be routed up, down, left,
right, or straight out the
back of the dryer. Space
re_luirements are listed
in your Installation
Instructions.
6

VENTING(CONT.)
4. Use the straightest path possible when routing
the exhaust vent. Use
the fewest number of
elbows and turns. Allow
better room when using
elbows or making turns.
Bend vent gradually to
avoid kinking.
5. Use duct tape to seal all joints. Do not use
screws to secure vent.
Lint may catch on
screws.
6. Clean exhaust vent periodically, depending on use,
but at least every 2
years, or when installing
your dryer in a new
location.
•Disconnect vent from
the dryer and clean one
section at a time until
you reach the exhaust
hood.
• Use the hose attach-
ment on your vacuum,
or a pole or wire with a feather duster or rag
attached, to clean out lint.
• Be sure the flapper on the outside end of vent
moves freely.
• When cleaning is complete, be sure to follow the
Installation Instructions supplied with your dryer
for final product check.

USINGYOURDRYER
STARTINGYOURDRYER
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from dryer.
Do not dry anything that has ever had
anything flammable on it (even after
washing).
Failure to follow these instructions can
result in death, explosion, or fire.
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any
type of oil on it (including cooking oils).
Items containing foam, rubber, or plastic
must be dried on a clothesline or by using an
Air Cycle.
Failure to follow these instructions can result
in death or fire.
Before using your dryer, wipe the dryer drum with
adamp cloth to remove dust from storingand
shipping.
1. Load clothes loosely into the dryer and close
the door. Do not pack
the dryer; allow space
for clothes to tumble
freely.
2. Turn the Cycle Control knob to the recom-
mended cycle for the
type of load being dried.
•Use the Energy
Preferred Automatic
Setting (*) to dry
most loads.
NOTE: On some
models, the Tempera-
ture selector is part of
the Cycle Control knob.
3. If your dryer has a Temperature selector, set it to
the recommended setting for the type of fabric
being dried. The cycle descriptions on the
following pages include temperature setting
suggestions.
8

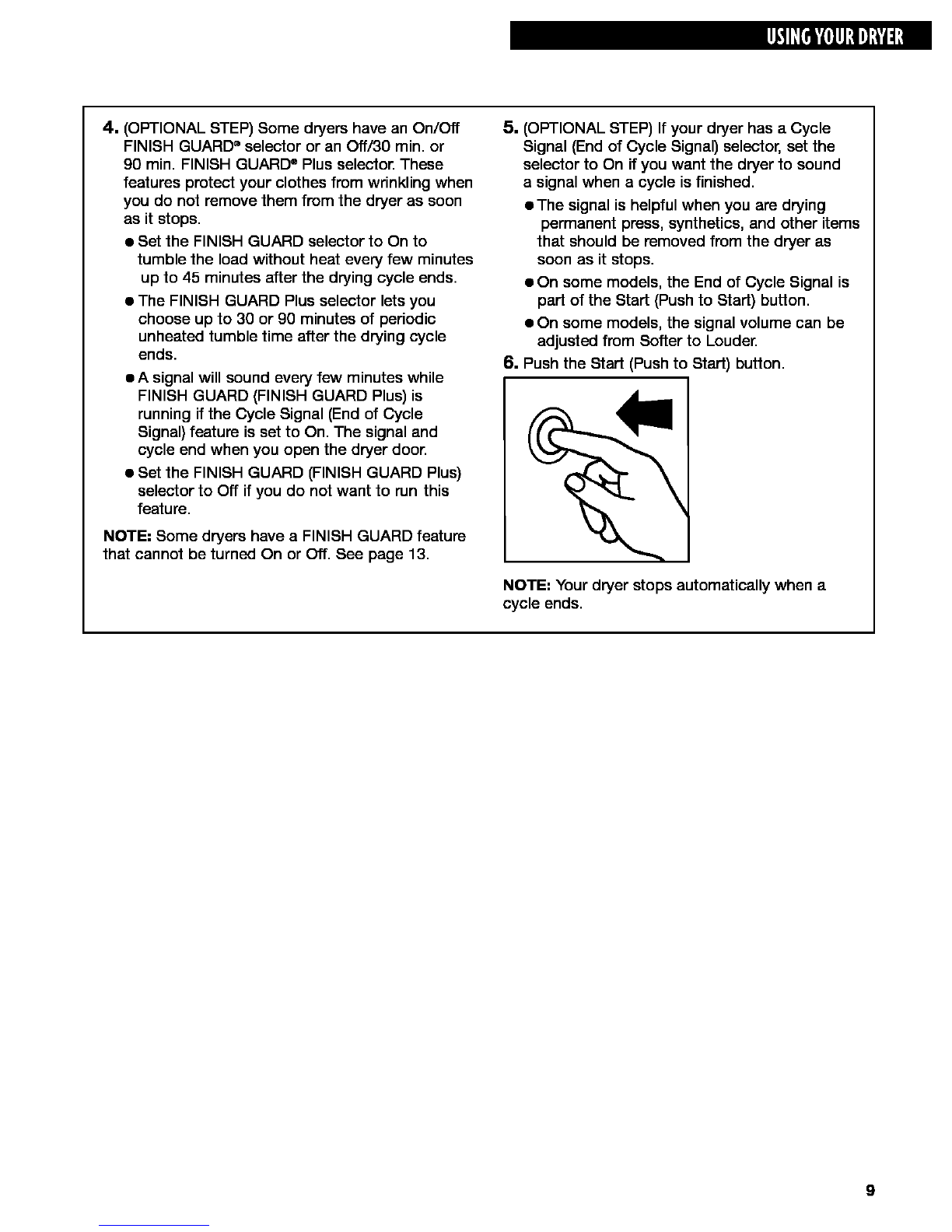

4. (OPTIONAL STEP) Some dryers have an On/Off
FINISH GUARD®selector or an Off/30 min. or
90 min. FINISH GUARD®Plus selector. These
features protect your clothes from wrinkling when
you do not remove them from the dryer as soon
as it stops.
• Set the FINISH GUARD selector to On to
tumble the load without heat every few minutes
up to 45 minutes after the drying cycle ends.
•The FINISH GUARD Plus selector lets you
choose up to 30 or 90 minutes of periodic
unheated tumble time after the drying cycle
ends.
•Asignal will sound every few minutes while
FINISH GUARD (FINISH GUARD Plus) is
running if the Cycle Signal (End of Cycle
Signal) feature is set to On. The signal and
cycle end when you open the dryer door.
•Set the FINISH GUARD (FINISH GUARD Plus)
selector to Off if you do not want to run this
feature.
NOTE: Some dryers have a FINISH GUARD feature
that cannot be turned On or Off. See page 13.
5. (OPTIONAL STEP) if your dryer has a Cycle
Signal (End of Cycle Signal) selector, set the
selector to On if you want the dryer to sound
a signal when a cycle is finished.
• The signal is helpful when you are drying
permanent press, synthetics, and other items
that should be removed from the dryer as
soon as it stops.
• On some models, the End of Cycle Signal is
part of the Start (Push to Start) button.
• On some models, the signal volume can be
adjusted from Softer to Louder.
6. Push the Start (Push to Start) button.
NOTE: Your dryer stops automatically when a
cycle ends.

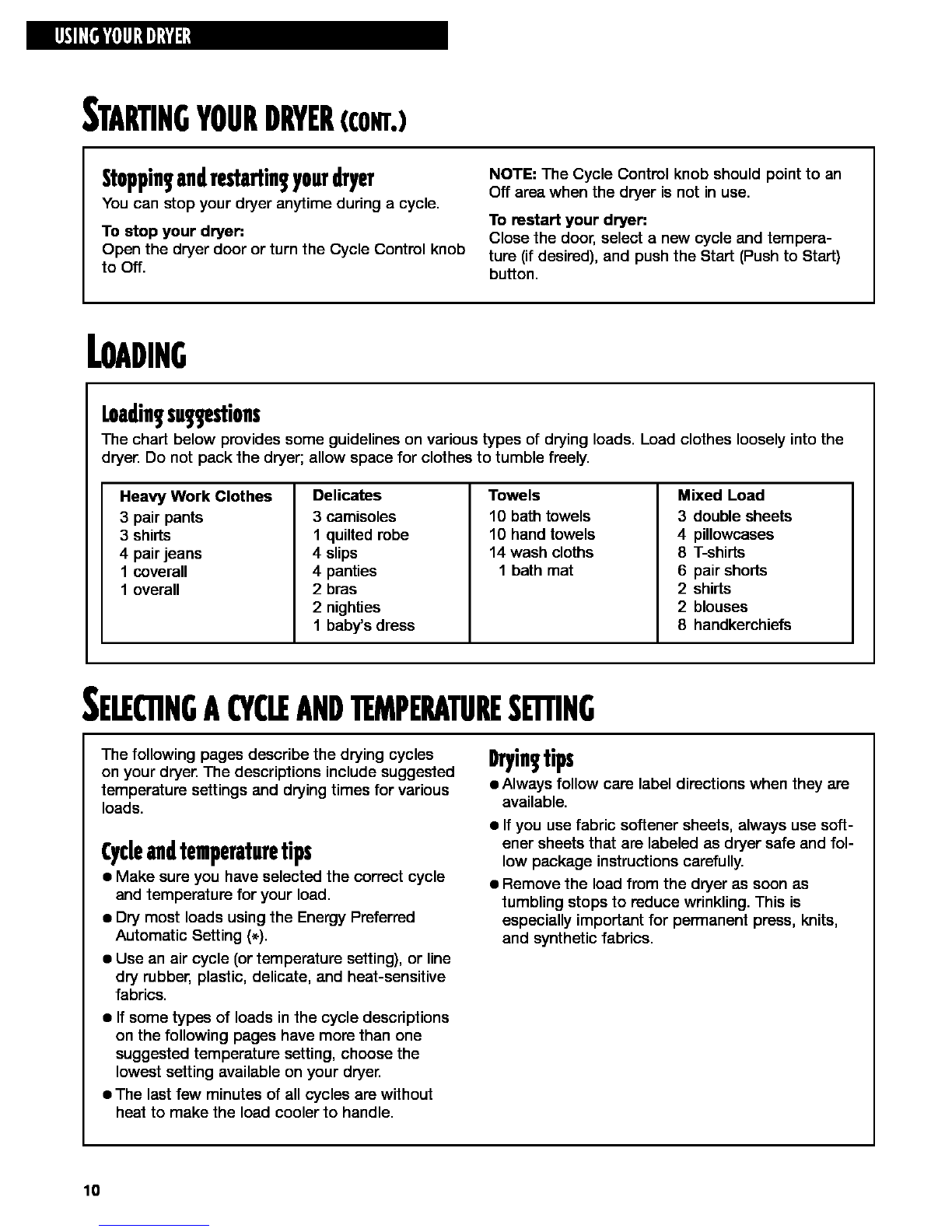

STARTINGYOURDRYER(cot..)
Stoppin_andrestartin_yourdryer
You can stop your dryer anytime during a cycle.
To stop your dryer:
Open the dryer door or turn the Cycle Control knob
to Off.
NOTE: The Cycle Control knob should point to an
Off area when the dryer is not in use.
To restart your dryer:
Close the door, select a new cycle and tempera-
ture (if desired), and push the Start (Push to Start)
button.
LOADING
Loadin_suggestions
The chart below provides some guidelines on various types of drying loads. Load clothes loosely into the
dryer. Do not pack the dryer; allow space for clothes to tumble freely.
Heavy Work Clothes
3 pair pants
3 shirts
4 pairjeans
1 coverall
1 overall
Delicates
3camisoles
1 quilted robe
4slips
4 panties
2 bras
2 nighties
1 baby's dress
Towels
10 bath towels
10 hand towels
14 wash cloths
1 bath mat
Mixed Load
3double sheets
4 pillowcases
8T-shirts
6 pair shorts
2 shirts
2 blouses
8handkerchiefs
SELECI1NGACYCLEANDI MPERATURESETTING
The following pages describe the drying cycles
on your dryer. The descriptions include suggested
temperature settings and drying times for various
loads.
Cycleandtemperaturetips
•Make sure you have selected the correct cycle
and temperature for your load.
•Dry most loads using the Energy Preferred
Automatic Setting (*).
•Use an air cycle (or temperature setting), or line
dry rubber, plastic, delicate, and heat-sensitive
fabrics.
• If some types of loads in the cycle descriptions
on the following pages have more than one
suggested temperature setting, choose the
lowest setting available on your dryer.
•The last few minutes of all cycles are without
heat to make the load cooler to handle.
_yin_t_s
•Always follow care label directions when they are
available.
• Ifyou use fabric softener sheets, always use soft-
ener sheets that are labeled as dryer safe and fol-
low package instructions carefully.
•Remove the load from the dryer as soon as
tumbling stops to reduce wrinkling. This is
especially important for permanent press, knits,
and synthetic fabrics.
10
