Whirlpool W10224610A User manual

DRYER INSTALLATION INSTRUCTIONS
GAS (U.S.A. AND CANADA)
ELECTRIC (CANADA ONLY)
INSTRUCTIONS D'INSTALLATION DE LA SÉCHEUSE
À GAZ (É.-U. ET CANADA)
ÉLECTRIQUE (CANADA UNIQUEMENT)
TABLE OF CONTENTS
DRYER SAFETY..............................................................................2
INSTALLATION REQUIREMENTS ................................................4
Tools and Parts ............................................................................4
Optional Equipment .....................................................................4
Location Requirements................................................................4
ELECTRIC DRYER POWER HOOKUP – CANADA ONLY ..........8
Electrical Requirements ...............................................................8
GAS DRYER POWER HOOKUP....................................................9
Gas Supply Requirements ...........................................................9
Make Gas Connection ...............................................................10
VENTING .......................................................................................10
Venting Requirements................................................................10
Plan Vent System.......................................................................11
Install Vent System.....................................................................13
INSTALL LEVELING LEGS...........................................................13
CONNECT VENT...........................................................................13
CONNECT INLET HOSE (STEAM MODELS) .............................13
LEVEL DRYER ..............................................................................14
COMPLETE INSTALLATION .......................................................14
TROUBLESHOOTING ..................................................................15
TABLE DES MATIÈRES
SÉCURITÉ DE LA SÉCHEUSE ....................................................17
EXIGENCES D'INSTALLATION...................................................19
Outillage et pièces......................................................................19
Équipement facultatif .................................................................19
Exigences d'emplacement.........................................................19
RACCORDEMENT DE L’ALIMENTATION À LA SÉCHEUSE
ÉLECTRIQUE - CANADA UNIQUEMENT...................................23
Spécifications électriques ..........................................................23
RACCORDEMENT DE L’ALIMENTATION À
LA SÉCHEUSE À GAZ..................................................................24
Alimentation en gaz....................................................................24
Raccordement au gaz................................................................25
ÉVACUATION................................................................................26
Exigences concernant l'évacuation ...........................................26
Planification du système d’évacuation ......................................27
Installation du système d’évacuation.........................................28
INSTALLATION DES PIEDS DE NIVELLEMENT........................29
RACCORDEMENT DU CONDUIT D’ÉVACUATION ..................29
RACCORDEMENT DES TUYAUX D'ALIMENTATION
(MODÈLES À VAPEUR)................................................................29
RÉGLAGE DE L’APLOMB DE LA SÉCHEUSE...........................30
ACHEVER L'INSTALLATION .......................................................30
DÉPANNAGE.................................................................................31
W10224610A
SP PN W10224611A

2

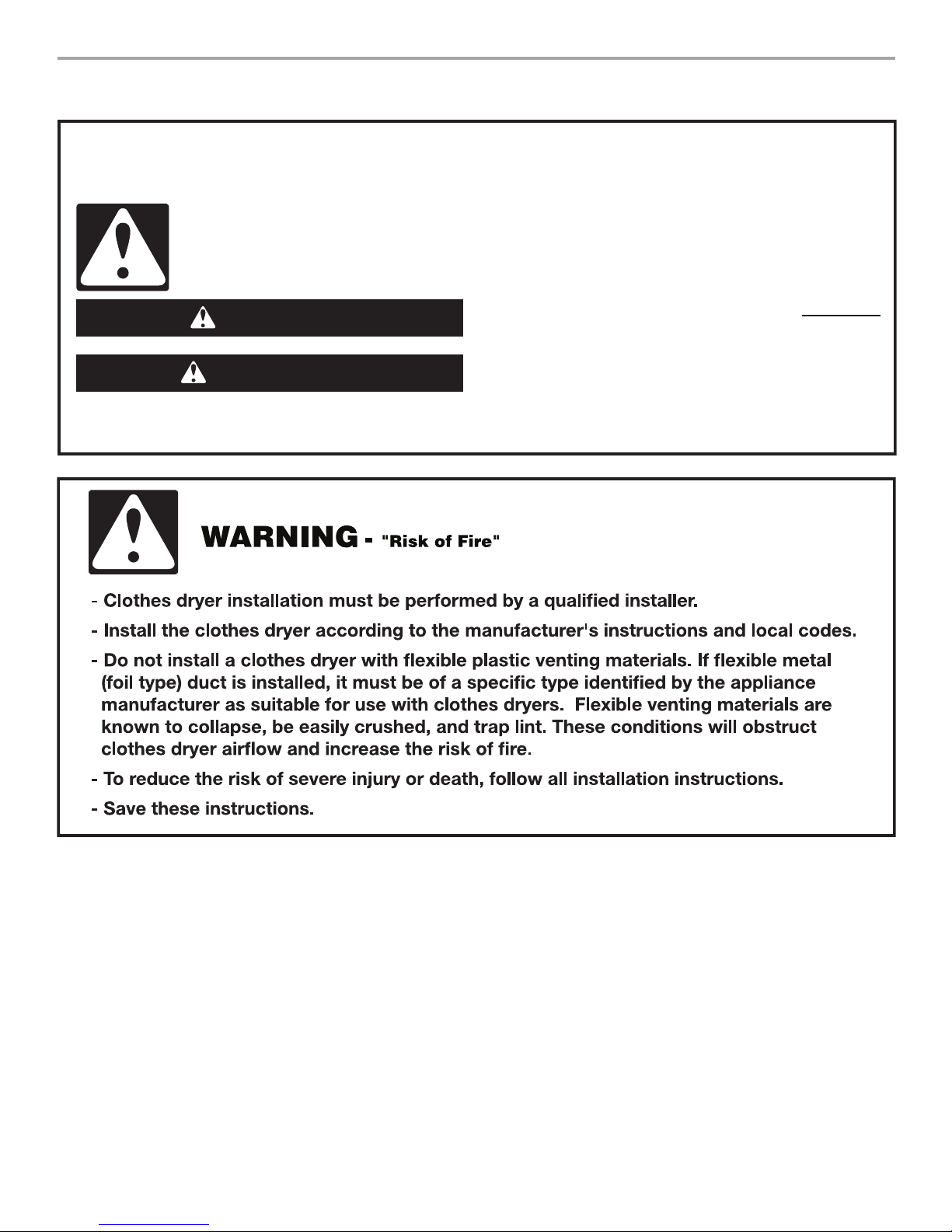

DRYER SAFETY
You
You can be killed or seriously injured if you don't immediately
can be killed or seriously injured if you don't follow
All safety messageswill tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructionsare not followed.
Your safety and the safety of others are very important.
We have provided many important safety messagesin thismanual and on your appliance. Alwaysread and obey all safety
messages.
Thisisthe safety alert symbol.
Thissymbol alertsyou to potential hazardsthat can kill or hurt you and others.
All safety messageswill follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These wordsmean:
follow instructions.
instructions.
DANGER
WARNING

WARNING: For your safety, the information in this manual must be followedto minimize
the risk of re or explosion, or to prevent property damage, personal injury, or death.
– Do not store or use gasoline or other ammable vapors andliquids in the vicinity of this
or any other appliance.
– WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call the re department.
– Installation andservice must be performedby a qualiedinstaller, service agency, or
the gas supplier.
•Clear the room, building, or area of all occupants.
WARNING: Gasleakscannot alwaysbe detected by smell.
Gassuppliersrecommend that you use a gasdetector approved by UL or CSA.
For more information, contact your gassupplier.
If a gasleak isdetected, follow the “What to do if you smell gas” instructions.
IMPORTANT: The gasinstallation must conform with local codes, or in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 or the Canadian Natural Gasand Propane Installation Code, CSA B149.1.
The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.
In the State of Massachusetts, the following installation instructionsapply:
■ Installationsand repairsmust be performed by a qualied or licensed contractor, plumber, or gastter qualied or licensed by
the State of Massachusetts.
■ If using a ball valve, it shall be a T-handle type.
■ A exible gasconnector, when used, must not exceed 3 feet.
3

4
INSTALLATION REQUIREMENTS
Tools andParts
Gather the required tools and parts before starting installation. Read
and follow the instructions provided with any tools listed here.
■Flat-blade screwdriver
■#2 Phillips screwdriver
■Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
(for adjusting dryer feet)
■Level
■Vent clamps
■Caulking gun and compound
(for installing new exhaust
vent)
■Tin snips (new vent
installations)
■¼" nut driver
(recommended)
■Tape me asure
■Pliers
For All Installations:
Gas Installations:
■8" or 10" pipe wrench
■8" or 10" adjustable wrench
(for gas connections)
■Pipe-joint compound
resistant to LP gas
Parts supplied
Non-Steam Models
4 Leveling legs
Steam Models
ABCDE
A. Leveling legs (4)
B. “Y” connector
C. Short inlet hose
D. Inlet hose with right-angle
connector
E. Rubber washer
Remove parts package from dryer drum. Check that all parts
are included.
NOTE: Do not use leveling legs supplied with dryer if installing
on a pedestal.
Parts needed
Check local codes. Check existing electrical supply and venting.
See “Electrical Requirements” and “Venting Requirements” before
purchasing parts.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryer. For further information, please refer to the “Assistance
or Service” section in your Use and Care Guide.
Optional Equipment
Refer to your Use and Care guide for information about the
accessories available for your dryer.
Location Requirements
You will need
■A location that allows for proper exhaust installation.
See “Venting Requirements.”
■A separate 30-amp circuit.
■If you are using a power supply cord, a grounded electrical
outlet located within 2 ft (610 mm) of either side of the dryer.
See “Electrical Requirements.”
■A sturdy floor to support the total dryer weight of 200 lbs
(90.7 kg). The combined weight of a companion appliance
should also be considered.
■A level floor with a maximum slope of 1" (25 mm) under entire
dryer. If slope is greater than 1" (25 mm), install Extended Dryer
Feet Kit, Part Number 279810. Clothes may not tumble properly
and automatic sensor cycles may not operate correctly if dryer is
not level.
■For a garage installation, you will need to place the dryer at least
18" (460 mm) above the floor. If using a pedestal, you will need
18" (460 mm) to the bottom of the dryer.
■Steam models only: Cold water faucets located within
4 ft (1.2 m) of the dryer, and water pressure of 20-100 psi
(137.9-689.6 kPa). You may use the cold water supply from
your washer using the “Y” connector provided.
Do not operate your dryer at temperatures below 45ºF (7ºC). At
lower temperatures, the dryer might not shut off at the end of an
automatic sensor cycle. This can result in longer drying times.
The dryer must not be installed or stored in an area where it will be
exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.
Installation clearances
The location must be large enough to allow the dryer door to
open fully.

5

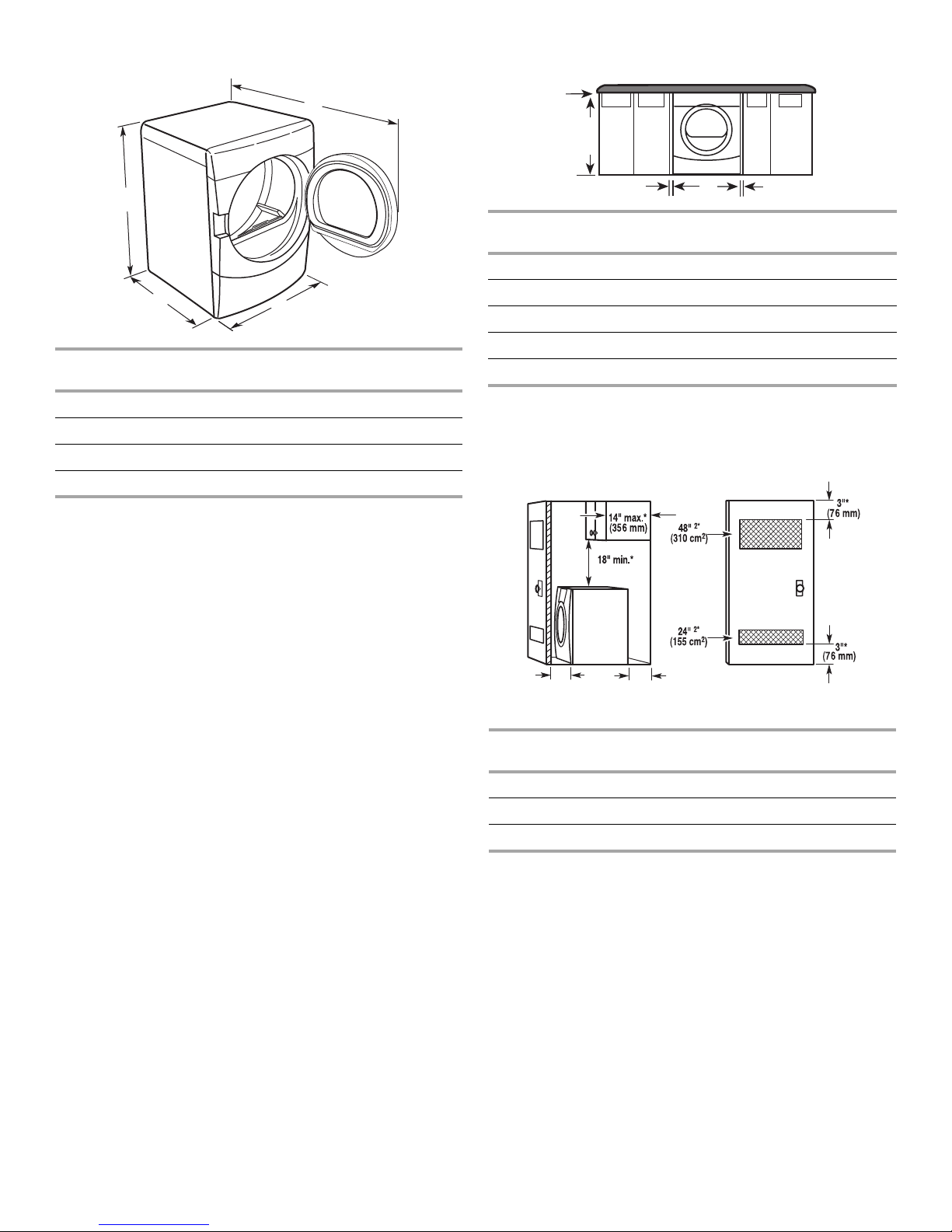

Dryer Dimensions
A
BC
D
Steam
(Electric or Gas) Non-Steam (Electric or Gas)
A38" (9652 mm) 38" (9652 mm)
B32 9/16" (686 mm) 31 1/2" (800 mm)
C27" (686 mm) 27" (686 mm)
D52 9/16" (1335 mm) 51 1/2" (1308 mm)
NOTE: Most installations require a minimum 5" (127 mm)
clearance behind the dryer for the exhaust vent with elbow.
See “Venting Requirements.”
Installation spacing for recessedarea or closet installation
The following spacing dimensions are recommended for this dryer.
This dryer has been tested for spacing of 0" (0 mm) clearance on the
sides and rear. Recommended spacing should be considered for the
following reasons:
■Additional spacing should be considered for ease of installation
and servicing.
■Additional clearances might be required for wall, door, and floor
moldings.
■Additional spacing should be considered on all sides of the dryer
to reduce noise transfer.
■For closet installation, with a door, minimum ventilation openings
in the top and bottom of the door are required. Louvered doors
with equivalent ventilation openings are acceptable.
■Companion appliance spacing should also be considered.
Custom undercounter installation - Dryer only
A
B
C*DE*
Steam
(Electric or Gas) Non-Steam (Electric or Gas)
A0" (0 mm) 0" (0 mm)
B38" (9652 mm) 38" (9652 mm)
C* 1" (25 mm) 1" (25 mm)
D27" (686 mm) 27" (686 mm)
E* 1" (25 mm) 1" (25 mm)
*Required spacing
NOTE: Some models are not recommended for undercounter
installation.
Side view Closet door with vents
Closet installation - Dryer only
A* B C**
(460 mm)
Steam
(Electric or Gas) Non-Steam (Electric or Gas)
A* 1" (25 mm) 1" (25 mm)
B32 9/16" (686 mm) 31 1/2" (800 mm)
C** 5" (127 mm) 5" (127 mm)
*Required spacing
**For side or bottom venting, 0" (0 mm) spacing is allowed.

6
Recessedor closet installation - Dryer on pedesta
AB C D* E F**
(460 mm)
l
Steam
(Electric or Gas) Non-Steam
(Electric or Gas)
A1" (25 mm) 1" (25 mm)
B27" (686 mm) 27" (686 mm)
C1" (25 mm) 1" (25 mm)
D* 1" (25 mm) 1" (25 mm)
E32 9/16" (686 mm) 31 1/2" (800 mm)
F** 5" (127 mm) 5" (127 mm)
*Required spacing
**For side or bottom venting, 0" (0 mm) spacing is allowed
NOTE: Some models are not recommended for recessed or closet
installation.
Recommendedinstallation spacing for cabinet
installation
NOTE: Some models are not recommended for cabinet installation.
■For cabinet installation, with a door, minimum ventilation
openings in the top of the cabinet are required.
A* B*
C*
D** EF* HI
G
Steam
(Electric or Gas) Non-Steam (Electric or Gas)
A* 7" (178 mm) 7" (178 mm)
B* 7" (178 mm) 7" (178 mm)
C* 9" (229 mm) 9" (229 mm)
D** 5" (127 mm) 5" (127 mm)
E32 9/16" (686 mm) 31 1/2" (800 mm)
F* 1" (25 mm) 1" (25 mm)
G1" (25 mm) 1" (25 mm)
H27" (686 mm) 27" (686 mm)
I1" (25 mm) 1" (25 mm)
*Required spacing
**For side or bottom venting, 0" (0 mm) spacing is allowed.

7
Recommendedinstallation spacing for recessedor
closet installation, with stackedwasher anddryer
The dimensions shown are for the recommended spacing.
48 in.
2
*
(310 cm
2
)
3"* (76 mm)
3"* (76 mm)
1"* (25 mm)
24 in.
2
*
(155 cm
2
)
6"* (152 mm)
76"
(1930 mm)
27"
(686 mm)
A*
1"
(25 mm)
1"
(25 mm)
Steam
(Electric or Gas) Non-Steam (Electric or Gas)
A* 5 ½" (140 mm) 5" (127 mm)
*Required spacing
NOTE: Some models are not recommended for stacked recessed or
closet installation.
Mobile home - Additional installation requirements
This dryer is suitable for mobile home installations. The installation
must conform to the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title 24, HUD Part 280) or
Standard CAN/CSA-Z240 MH.
Mobile home installations require:
All Dryers
■Metal exhaust system hardware, which is available for purchase
from your dealer.
■Special provisions must be made in mobile homes to introduce
outside air into the dryer. The opening (such as a nearby
window) should be at least twice as large as the dryer exhaust
opening.
For gas dryers
■Mobile Home Installation Kit Part Number 346764. See “Tools
and Parts” section for information on ordering.

8
ELECTRIC DRYER POWER HOOKUP – CANADA ONLY
Electrical Requirements
WARNING
Electrical Shock Hazard
Plug into a grounded4 prong outlet.
Failure to do so can result in death or electrical shock.
It is your responsibility
■To contact a qualified electrical installer.
■To be sure that the electrical connection is adequate and in
conformance with the Canadian Electrical Code, C22.1-latest
edition and all local codes. A copy of the above codes standard
may be obtained from: Canadian Standards Association, 178
Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.
■To supply the required 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply on a separate 30-amp circuit,
fused on both sides of the line. A time-delay fuse or circuit
breaker is recommended. Connect to an individual branch
circuit.
■This dryer is equipped with a CSA International Certified Power
Cord intended to be plugged into a standard 14-30R wall
receptacle. The cord is 5 ft (1.52 m) in length. Be sure wall
receptacle is within reach of dryer’s final location.
4-wire receptacle 14-30R
If using a replacement power supply cord, it is recommended that
you use Power Supply Cord Replacement Part Number 9831317.
For further information, please reference the service numbers
located in the “Assistance or Service” section.
GROUNDINGINSTRUCTIONS
SAVE THESE INSTRUCTIONS
■For a grounded, cord-connected dryer:
Thisdryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
Thisdryer isequipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codesand ordinances.
WARNING:Improper connection of the
equipment-grounding conductor can result in a risk of
electric shock. Check with a qualied electrician or service
representative or personnel if you are in doubt asto
whether the dryer isproperly grounded. Do not modify the
plug provided with the dryer: if it will not t the outlet, have
a proper outlet installed by a qualied electrician.

9
GAS DRYER POWER HOOKUP
Gas Supply Requirements
WARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualied person make sure
gas pressure does not exceed 13" (330 mm) water
column.
Examples of a qualied person include:
licensed heatingpersonnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or re.
Gas Type
Natural gas:
This dryer is equipped for use with Natural gas. It is design-certified
by CSA International for LP (propane or butane) gases with
appropriate conversion.
■Your dryer must have the correct burner for the type of gas in
your home. Burner information is located on the rating plate in
the door well of your dryer. If this information does not agree
with the type of gas available, contact your dealer or call the
phone numbers referenced in the “Assistance or Service”
section.
LP gas conversion:
Conversion must be made by a qualifiedtechnician.
No attempt shall be made to convert the appliance from the gas
specified on the model/serial rating plate for use with a different gas
without consulting your gas company.
Gas supply line
■Must include 1/8" NPT minimum plugged tapping accessible
for test gauge connection, immediately upstream of the gas
connection to the dryer. See illustration.
■1/2" IPS pipe is recommended.
■3/8" approved aluminum or copper tubing is acceptable for
lengths under 20 ft (6.1 m) if local codes and gas supplier
permit.
■If you are using Natural gas, do not use copper tubing.
■Lengths over 20 ft (6.1 m) should use larger tubing and a
different size adapter fitting.
■If your dryer has been converted to use LP gas, 3/8" LP
compatible copper tubing can be used. If the total length of the
supply line is more than 20 ft (6.1 m), use larger pipe.
NOTE: Pipe-joint compounds that resist the action of LP gas
must be used. Do not use TEFLON®†
†®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.
tape.
■Must include a shutoff valve:
In the U.S.A.:
An individual manual shutoff valve must be installed within six (6)
feet (1.8 m) of the dryer in accordance with the National Fuel
Gas Code, ANSI Z223.1. The location should be easy to reach
for opening and closing.
The location should be easy to reach for opening and closing.
A
B
E
D
C
A. 3/8" flexible gas connector
B. 3/8" pipe to flare adapter
fitting
C. 1/8"NPT minimum plugged
tapping
D. 1/2" NPT gas supply line
E. Gas shutoff valve
Gas supply connection requirements
■Use an elbow and a 3/8" flare x 3/8" NPT adapter fitting between
the flexible gas connector and the dryer gas pipe, as needed to
avoid kinking.
■Use only pipe-joint compound. Do not use TEFLON®† tape.
■This dryer must be connected to the gas supply line with a
listed flexible gas connector that complies with the standard
for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.
Burner input requirements
Elevations above 10,000 ft (3,048 m):
■When installed above 10,000 ft (3,048 m) a 4% reduction of the
burner Btu rating shown on the model/serial number plate is
required for each 1,000 ft (305 m) increase in elevation.
Gas supply pressure testing
■The dryer must be disconnected from the gas supply piping
system during pressure testing at pressures greater than ½ psi.

10
Dryer gas pipe
■The gas pipe that comes out through the rear of your dryer has a
3/8" male pipe thread.
A. 1/2" NPT gas supply line
B. 3/8" NPT dryer pipe
A
B
*6¼"
(159 mm)
1½"
(38 mm)
*NOTE: If the dryer is mounted on a pedestal, the gas pipe
height must be an additional 10" (254 mm) or 15.5" (394 mm)
from the floor, depending on the pedestal model. For a garage
installation, the gas pipe height must be an additional
18" (460 mm) from the floor.
Make Gas Connection
1. Remove the red cap from the gas pipe.
2. Using a wrench to tighten, connect the gas supply to the dryer.
Use pipe-joint compound on the threads of all non-flared male
fittings. If flexible metal tubing is used, be sure there are no kinks.
A
B
A. Flared male fitting
B. Non-flared male fitting
NOTE: For LP gas connections, you must use pipe-joint
compound resistant to the action of LP gas. Do not use
TEFLON®†
†®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.
tape.
A combination of pipe fittings must be used to connect the dryer
to the existing gas line. Shown is a recommended connection.
Your connection may be different, according to the supply line
type, size and location.
A. 3/8" flexible gas
connector
B. 3/8" dryer pipe
C. 3/8" to 3/8" pipe elbow
D. 3/8" pipe-to-flare
adapter fitting
A
BC
D
3. Open the shutoff valve in the supply line. The valve is open when
the handle is parallel to the gas pipe.
A. Closed valve
B. Open valve
A
B
4. Test all connections by brushing on an approved noncorrosive
leak-detection solution. Bubbles will show a leak. Correct any
leak found.
VENTING
Venting Requirements
WARNING
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death
or re.
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.
The dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, attic, crawlspace, or a concealed space
of a building. Only rigid or flexible metal vent shall be used for
exhausting.
If using an existing vent system
■Clean lint from the entire length of the system and make sure
exhaust hood is not plugged with lint.
■Replace any plastic or metal foil vent with rigid or flexible heavy
metal vent.
■Review vent system chart. Modify existing vent system if
necessary to achieve the best drying performance.
If this is a new vent system
Vent material
■Use a heavy metal vent. Do not use plastic or metal foil vent.

11
■4" (102 mm) heavy metal exhaust vent and clamps must be
used.
4" (102 mm) heavy metal exhaust vent
4"
102 mm
Vent products can be purchased from your dealer or by calling
Whirlpool Service. For more information, see the “Assistance or
Service” section.
Rigidmetal vent
■For best drying performance, rigid metal vents are
recommended.
■Rigid metal vent is recommended to avoid crushing and kinking.
Flexible metal vent
■Flexible metal vents are acceptable only if accessible for
cleaning.
■Flexible metal vent must be fully extended and supported when
the dryer is in its final location.
■Remove excess flexible metal vent to avoid sagging and kinking
that may result in reduced airflow and poor performance.
■Do not install flexible metal vent in enclosed walls, ceilings, or
floors.
■The total length of flexible metal vent should not exceed
7¾ ft. (2.4 m).
Elbows
45° elbows provide better airflow than 90° elbows.
Good Better
Clamps
■Use clamps to seal all joints.
■Exhaust vent must not be connected or secured with screws or
other fastening devices that extend into the interior of the duct
and catch lint. Do not use duct tape.
Clamp
Exhaust
A and B: Recommended hood styles.
C: Acceptable hood style.
4"
(102 mm)
4"
(102 mm)
B
A
4"
(102 mm)
2½"
(64 mm)
C
A. Louvered hood style
B. Box hood style
C. Angled hood style
■An exhaust hood should cap the vent to keep rodents and
insects from entering the home.
■Exhaust hood must be at least 12" (305 mm) from the ground
or any object that may be in the path of the exhaust (such as
flowers, rocks or bushes, snow line, etc.).
■Do not use an exhaust hood with a magnetic latch.
Improper ventingcan cause moisture and lint to collect
indoors, which may result in:
Moisture damage to woodwork, furniture, paint, wallpaper,
carpets, etc.
Housecleaning problemsand health problems.
Plan Vent System
Choose your exhaust installation type
Recommendedexhaust installations
Typical installations vent the dryer from the rear of the dryer. Other
installations are possible.
H
G
F
E
D
C
A
B
A. Dryer
B. Elbow
C. Wall
D. Exhaust hood
E. Clamps
F. Rigid metal or flexible metal vent
G. Vent length necessary to connect elbows
H. Exhaust outlet

12
Optional exhaust installations
This dryer can be converted to exhaust out the right side, left side or
through the bottom. If you prefer, you may contact your local dealer
to have the dryer converted.
WARNING
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death
or re.
ABC
A. Standard rear offset exhaust installation
B. Left or right side exhaust installation
C. Bottom exhaust installation
Alternate installations for close clearances
Venting systems come in many varieties. Select the type best
for your installation. Two close-clearance installations are shown.
Refer to the manufacturer’s instructions.
AB
A. Over-the-top installation (also available with one offset elbow)
B. Periscope installation
NOTE: The following kits for close clearance alternate installations
are available for purchase. Please see the “Assistance or Service”
section to order.
■Over-the-Top Installation:
Part Number 4396028
■Periscope Installation (For use with dryer vent to wall vent
mismatch):
Part Number 4396037 - 0" (0 mm) to 18" (460 mm) mismatch
Part Number 4396011 - 18" (460 mm) to 29"(737 mm) mismatch
Part Number 4396014 - 29" (737 mm) to 50" (1270 mm)
mismatch
Special provisions for mobile home installations
The exhaust vent must be securely fastened to a noncombustible
portion of the mobile home structure and must not terminate
beneath the mobile home. Terminate the exhaust vent outside.
Determine vent path
■Select the route that will provide the straightest and most direct
path outdoors.
■Plan the installation to use the fewest number of elbows
and turns.
■When using elbows or making turns, allow as much room
as possible.
■Bend vent gradually to avoid kinking.
■Use the fewest 90° turns possible.
Determine vent length andelbows neededfor best
drying performance
■Use the following vent system chart to determine type of vent
material and hood combinations acceptable to use.
NOTE: Do not use vent runs longer than those specified in the
Vent system chart.
Exhaust systems longer than those specified will:
■Shorten the life of the dryer.
■Reduce performance, resulting in longer drying times and
increased energy usage.
The vent system chart provides venting requirements that will help
to achieve the best drying performance.
Vent system chart
NOTE: Side and bottom exhaust installations have a 90º turn inside
the dryer. To determine maximum exhaust length, add one 90º turn
to the chart.
Number
90º elbowsType of vent Box /louvered
hoodsAngled hoods
0Rigidmetal 64 ft (20 m) 58 ft (17.7 m)
1Rigidmetal 54 ft (16.5 m) 48 ft (14.6 m)
2Rigidmetal 44 ft (13.4 m) 38 ft (11.6 m)
3Rigidmetal 35 ft (10.7 m) 29 ft (8.8 m)
4Rigidmetal 27 ft (8.2 m) 21 ft (6.4 m)

13
Install Vent System
1. Install exhaust hood. Use caulking compound to seal exterior wall
opening around exhaust hood.
2. Connect vent to exhaust hood. Vent must fit inside exhaust hood.
Secure vent to exhaust hood with 4" (102 mm) clamp.
3. Run vent to dryer location. Use the straightest path possible. See
“Determine vent path” in “Plan Vent System.” Avoid 90º turns.
Use clamps to seal all joints. Do not use duct tape, screws or
other fastening devices that extend into the interior of the vent to
secure vent, which can catch lint.
INSTALL LEVELING LEGS
WARNING
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1. To protect the floor, use a large flat piece of cardboard from
the dryer carton. Place cardboard under the entire back edge
of the dryer.
2. Firmly grasp the body of the dryer (not the console panel). Gently
lay the dryer on the cardboard. See illustration.
3. Examine the leveling legs. Find the diamond marking.
4. Screw the legs into the leg holes by hand. Use a wrench to finish
turning the legs until the diamond marking is no longer visible.
5. Place a carton corner post from dryer packaging under each of
the 2 dryer back corners. Stand the dryer up. Slide the dryer on
the corner posts until it is close to its final location. Leave enough
room to connect the exhaust vent.
CONNECT VENT
1. Using a 4" (102 mm) clamp, connect vent to exhaust outlet in
dryer. If connecting to existing vent, make sure the vent is clean.
The dryer vent must fit over the dryer exhaust outlet and inside the
exhaust hood. Check that the vent is secured to exhaust hood
with a 4" (102 mm) clamp.
2. Move dryer into its final location. Do not crush or kink vent.
3. (On gas models) Check that there are no kinks in the flexible
gas line.
4. Once the exhaust vent connection is made, remove the corner
posts and cardboard.
CONNECT INLET HOSE
(STEAM MODELS)
The dryer must be connected to the cold water faucet using the new
inlet hoses. Do not use old hoses.
1. Turn cold water faucet off and remove washer inlet hose.
2. Remove old rubber washer from inlet hose and replace with new
rubber washer provided. If space permits, attach the brass female
end of the “Y” connector to the cold water faucet.
NOTE: If “Y” connector can be attached directly to cold water
faucet, go to Step 6. If “Y” connector cannot be attached
directly to the cold water faucet, the short hose must be used.
Continue with Step 3.
3. Attach short hose to cold water faucet. Screw on coupling by
hand until it is seated on faucet.
4. Using pliers, tighten the couplings with an additional two-thirds
turn.
NOTE: Do not overtighten. Damage to the coupling can result.
5. Attach “Y” connector to brass male end of small hose. Screw on
coupling by hand until it is seated on connector.
6. Attach straight end of long hose to “Y” connector.
7. Attach washer cold inlet hose to other end of “Y” connector.
Screw on coupling by hand until it is seated on connector.
A
A. Inlet to cold water
8. Using pliers, tighten the couplings an additional two-thirds turn.
NOTE: Do not overtighten. Damage to the coupling can result.

14

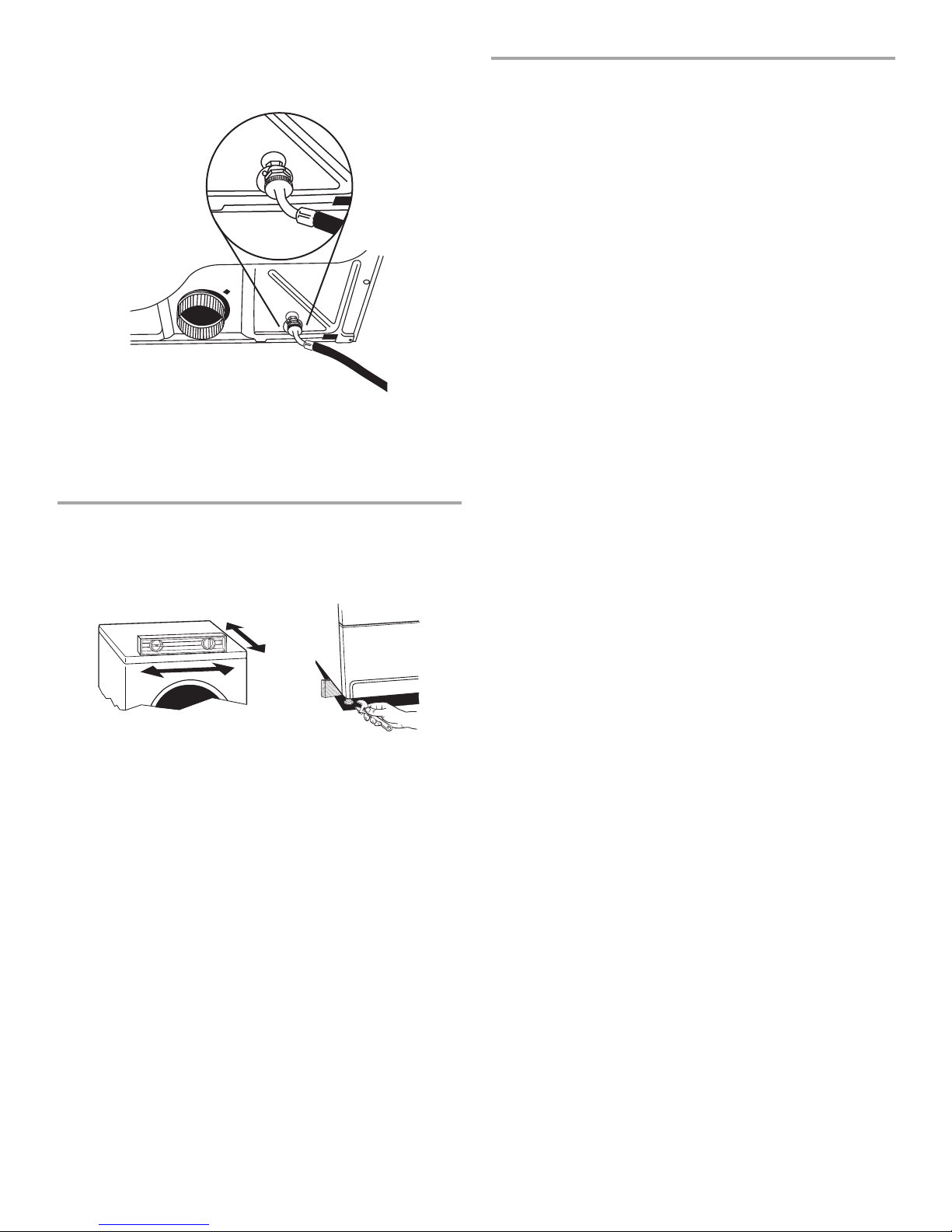

9. Attach angled end of long hose to fill valve at bottom of dryer
back panel. Screw on coupling by hand until it is seated on fill
valve connector.
10. Using pliers, tighten the coupling an additional two-thirds turn.
NOTE: Do not overtighten. Damage to the coupling can result.
11. Check that the water faucets are on.
12. Check for leaks around “Y” connector, faucet, and hoses.
LEVEL DRYER
Check the levelness of the dryer. Check levelness first side to side,
then front to back.
If the dryer is not level, prop up the dryer using a wood block. Use a
wrench to adjust the legs up or down and check again for levelness.
COMPLETE INSTALLATION
1. Check that all parts are now installed. If there is an extra part, go
back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. Check the dryer’s final location. Be sure the vent is not crushed or
kinked.
5. Check that the dryer is level. See “Level Dryer.”
6. Remove the blue protective film on the console and any tape
remaining on the dryer.
7. Wipe the dryer drum interior thoroughly with a damp cloth to
remove any dust.
8. Read “Dryer Use.”
Electric Models Only
9. For power supply cord installation, plug into a grounded outlet.
Gas Models Only:
10. Check that gas supply is on.
11. Check for leaks.
Steam Models Only:
12. Be sure the water faucets are on.
13. Check for leaks around “Y” connector, faucet, and hoses.
14. If you live in a hard water area, use of a water softener is
recommended to control the buildup of scale through the water
system in the dryer. Over time, the buildup of lime scale may clog
different parts of the water system, which will reduce product
performance. Excessive scale buildup may lead to the need for
certain part replacement or repair.
All Models:
15. Select a Timed Dry heated cycle, and start the dryer. Do not select
the Air Only Temperature setting.
If the dryer will not start, check the following:
■Controls are set in a running or “On” position.
■Start button has been pushed firmly.
■Dryer is plugged into an outlet and/or electrical supply
is connected.
■Household fuse is intact and tight, or circuit breaker has
not tripped.
■Dryer door is closed.
This dryer automatically runs an installation diagnostic routine at the
start of its first cycle.
If you receive an L2 code, there may be a problem with your
home power supply keeping the dryer’s heater from turning on.
See “Troubleshooting.”
If you receive an AF code, your dryer vent may be crushedor
blocked. See “Troubleshooting.”
NOTE: You may notice a odor when the dryer is first heated. This
odor is common when the heating element is first used. The odor
will go away.

15
TROUBLESHOOTING
First try the solutions suggestedhere andpossibly avoidthe cost of a service call...
Dryer Operation
Dryer will not run
■Has a householdfuse blown, or has a circuit breaker
tripped?
There may be 2 household fuses or circuit breakers for the dryer.
Check that both fuses are intact and tight, or that both circuit
breakers have not tripped. Replace the fuse or reset the circuit
breaker. If the problem continues, call an electrician.
■Is the correct power supply available?
Electric dryers require 240-volt power supply. Check with a
qualified electrician.
■Was a regular fuse used?
Use a time-delay fuse.
No heat
■Has a householdfuse blown, or has a circuit breaker
tripped?
The drum may be turning, but you may not have heat. Electric
dryers use 2 household fuses or circuit breakers. Replace the
fuse or reset the circuit breaker. If the problem continues, call an
electrician.
Dryer displaying code message
■“PF” (power failure), check the following:
Was the drying cycle interrupted by a power failure?
Press and hold START/PAUSE to restart the dryer.
■“L2” Diagnostic Code (low or no line voltage condition):
The drum will turn, but there may be a problem with your home
power supply keeping the dryer's heater from turning on. The
dryer will continue to run when this diagnostic code is present.
Press any key to clear the code from the display and return to
the estimated time remaining.
Try the following:
Check to see if a household fuse has blown or circuit breaker
has tripped. Electric dryers use two household fuses or
breakers. Replace the fuse or reset the circuit breaker.
Confirm the power cord is properly installed. Refer to “Electrical
Connection” for details.
Select a Timed Dry heated cycle, and restart the dryer.
If the message persists, consult a qualified electrician.
■“AF” (low airflow condition):
The dryer will continue to run when this diagnostic code is
present. Press any key to clear the code from the display and
return to the estimated time remaining.
■Try the following:
Clean lint screen.
■Check to see if the vent run from the dryer to the wall is
crushed or kinked.
■Confirm the vent run from the dryer to the wall is free of lint
and debris.
■Confirm the exterior vent exhaust hood is free of lint and
debris.
■Confirm your vent system falls within the recommended run
length and number of elbows for the type of vent you are
using. Refer to “Plan Vent System” for details.
■Select a Timed Dry heated cycle, and restart the dryer.
If the message persists, have your entire home venting run
cleaned.
■“E” Variable (E1, E2, E3) service codes:
Call for service.

16
Dryer Results
Clothes are not drying satisfactorily, drying times are too
long, or loadis too hot
■Is the lint screen cloggedwith lint?
Lint screen should be cleaned before each load.
WARNING
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death
or re.
■Is the exhaust vent or outside exhaust hoodcloggedwith
lint, restricting air movement?
Run the dryer for 5-10 minutes. Hold your hand under the
outside exhaust hood to check air movement. If you do not feel
air movement, clean exhaust system of lint or replace exhaust
vent with heavy metal or flexible metal vent. See the Installation
Instructions.
■Are fabric softener sheets blocking the grille?
Use only one fabric softener sheet, and use it only once.
■Is the exhaust vent the correct length?
Check that the exhaust vent is not too long or has too many
turns. Long venting will increase drying times. See the
Installation Instructions.
■Is the exhaust vent diameter the correct size?
Use 4" (102 mm) diameter vent material.
■Is the dryer locatedin a room with temperature below 45ºF
(7ºC)?
Proper operation of dryer cycles requires temperatures above
45ºF (7ºC).
■Is the dryer locatedin a closet?
Closet doors must have ventilation openings at the top and
bottom of the door. The front of the dryer requires a minimum of
1" (25 mm) of airspace, and, for most installations, the rear of the
dryer requires 5" (127 mm). See the Installation Instructions.

17
SÉCURITÉ DE LA SÉCHEUSE
Risque possible de décès ou de blessure grave si vous ne
suivez pas immédiatement les instructions.
Risque possible de décès ou de blessure grave si vous
ne suivez pas les instructions.
Touslesmessagesde sécurité vousdiront quel est le danger potentiel et vousdisent comment réduire le risque de blessure et
ce qui peut se produire en casde non-respect desinstructions.
Votre sécurité et celle des autres est très importante.
Nousdonnonsde nombreux messagesde sécurité importantsdansce manuel et sur votre appareil ménager. Assurez-vousde
toujourslire touslesmessagesde sécurité et de vousy conformer.
AVERTISSEMENT
DANGER
Voici le symbole d’alerte de sécurité.
Ce symbole d’alerte de sécurité voussignale lesdangerspotentielsde décèset de blessuresgravesà vous
et à d’autres.
Touslesmessagesde sécurité suivront le symbole d’alerte de sécurité et le mot “DANGER” ou
“AVERTISSEMENT”. Cesmotssignient :

AVERTISSEMENT : L’odorat ne permet pastoujoursla détection d’une fuite de gaz.
Lesdistributeursde gaz recommandent l’emploi d’un détecteur de gaz (homologation UL ou CSA).
Pour d’autre information, contacter le fournisseur de gaz local.
En casde détection d’une fuite de gaz, exécuter lesinstructions“Que faire dansle casd’une odeur de gaz”.
IMPORTANT : L'installation du gaz doit se conformer aux codeslocaux, ou en l'absence de codeslocaux, au code canadien
d'installation B149.1 du gaz naturel ou du propane.
La sécheuse doit être électriquement reliée à la terre conformément aux codeslocaux, ou en l'absence de codeslocaux, au Code
canadien de l'électricité, CSA C22.1.
18

19
EXIGENCES D’INSTALLATION
Outillage et pièces
Rassembler les outils et pièces nécessaires avant de commencer
l’installation. Lire et suivre les instructions fournies avec les outils
indiqués ici.
■Tournevis à lame plate
■Tournevis Phillips n° 2
■Clé à molette avec ouverture
jusqu’à 1" (25 mm) ou clé à
douille hexagonale (pour
ajuster les pieds de la
sécheuse)
■Niveau
■Brides de serrage
■Pince
■Pistolet à calfeutrage et
composé de calfeutrage
(pour l'installation d'un
nouveau conduit
d’évacuation)
■Cisaille de ferblantier (pour
l’installation d'un nouveau
conduit)
■Tourne-écrou de ¼"
(recommandé)
■Mètre-ruban
Pour toutes les installations :
Installations à gaz :
■Clé à tuyau de 8" ou 10"
■Clé à mollette de 8" ou 10"
(pour le raccordement au
gaz)
■Composé d’étanchéité des
raccords filetés - résistant
au gaz propane
Pièces fournies :
Modèles sans vapeur
4 pieds de nivellement
Modèles à vapeur
ABCDE
A. Pieds de nivellement (4)
B. Connecteur en “Y”
C. Tuyau d'alimentation court
D. Tuyau d’alimentation avec
connecteur à angle droit
E. Rondelle en caoutchouc
Retirer le sachet de pièces du tambour de la sécheuse. Vérifier que
toutes les pièces sont présentes.
REMARQUE : Ne pas utiliser les pieds de nivellement fournis avec
la sécheuse en cas d'installation sur un piédestal.
Pièces nécessaires
Consulter les codes locaux. Vérifier l’alimentation électrique et le
circuit d’évacuation existants. Voir “Spécifications électriques “et”
Exigences concernant l’évacuation” avant d’acheter les pièces.
Les installations pour maison mobile nécessitent un système
d’évacuation en métal disponible chez le marchand chez qui vous
avez acheté votre sécheuse. Pour en savoir plus, veuillez consulter
la section “Assistance ou service” de votre Guide d’utilisation et
d’entretien.
Équipement facultatif
Consulter votre Guide d'utilisation et d’entretien pour en savoir plus
sur les accessoires disponibles pour votre sécheuse.
Exigences d'emplacement
Il vous faudra
■Un emplacement avec un conduit d’évacuation à proximité.
Voir “Exigences concernant l’évacuation”.
■Un circuit séparé de 30 ampères.
■Une prise électrique avec liaison à la terre située à moins de
2 pi (610 mm) de l’un des côtés de la sécheuse. Voir
“Spécifications électriques”.
■Un plancher robuste capable de supporter un poids total
(sécheuse et charge) de 200 lb (90,7 kg). Le poids combiné
d’un appareil voisin doit également être pris en compte.
■Un plancher de niveau ayant une pente maximale de 1" (25 mm)
sous l’ensemble de la sécheuse. Si l’inclinaison est supérieure à
1" (25 mm), installer l’ensemble de pieds d’extension de
sécheuse, pièce no 279810. Si la sécheuse n’est pas de niveau,
les vêtements peuvent ne pas culbuter convenablement et les
programmes automatiques de détection peuvent ne pas
fonctionner correctement.
■Pour l’installation dans un garage, vous devez placer la
sécheuse à au moins 18" (460 mm) au-dessus du sol. En cas
d’utilisation d’un piédestal, il faudra 18" (460 mm) jusqu’au fond
de la sécheuse.

20
■Modèles à vapeur uniquement : Les robinets d’eau froide
doivent être situés à moins de 4 pi (1,2 m) de la sécheuse
et la pression de l’eau doit être de 20 à 100 lb/po²
(137,9 à 689,6 kPa). Vous pouvez utiliser l’alimentation en eau
droite de votre laveuse à l’aide du connecteur en “Y” fourni.
Ne pas faire fonctionner la sécheuse à des températures
inférieures à 45°F (7°C). À des températures inférieures, la
sécheuse risque de ne plus s’arrêter à la fin d’un programme
automatique. Les temps de séchage risquent alors d’augmenter.
La sécheuse ne doit pas être installée ou remisée dans un endroit
où elle sera exposée à l’eau et/ou aux intempéries.
Vérifier les règlements locaux. Certains codes limitent ou
n’autorisent pas l’installation des sécheuses dans un garage, un
placard, une maison mobile ou une chambre à coucher.
Communiquer avec l’inspecteur des bâtiments local.
Dégagements de séparation à respecter
L’emplacement doit être assez grand pour permettre d’ouvrir
complètement la porte de la sécheuse.
Dimensions de la sécheuse
A
BC
D
Vapeur
(électrique ou à gaz) Sans vapeur (électrique ou à gaz)
A38" (9652 mm) 38" (9652 mm)
B32 9/16" (686 mm) 311/2" (800 mm)
C27" (686 mm) 27" (686 mm)
D52 9/16" (1335 mm) 511/2" (1308 mm)
REMARQUE : La plupart des installations requièrent un espace
minimum de 5" (127 mm) derrière la sécheuse pour le conduit
d’évacuation avec coude. Voir “Exigences concernant l’évacuation”.
Espacement pour une installation dans un encastrement
ou dans un placard
On recommande les dimensions d’espacement suivantes pour cette
sécheuse. Cette sécheuse a été testée pour une installation avec
dégagement de 0" (0 mm) sur les côtés et à l’arrière. L’espacement
recommandé doit être considéré pour les raisons suivantes :
■Prévoir davantage d’espace pour faciliter l’installation et
l’entretien.
■Un espace supplémentaire peut être requis pour les moulures
de porte et de plancher et pour les plinthes.
■Un espace supplémentaire doit être envisagé de tous les côtés
de la sécheuse afin de réduire le transfert de bruit.
■Pour installation dans un placard avec porte, on doit prévoir des
ouvertures minimales d’entrée d’air en haut et en bas de la
porte. Les portes à claire-voie offrant des ouvertures
équivalentes de passage de l’air sont acceptables.
■Il faut aussi prendre en compte l’espace requis entre les
appareils voisins.
Installation personnalisée sous un comptoir -
sécheuse seulement
A
B
C*DE*
Vapeur
(électrique ou à gaz) Sans vapeur (électrique ou à gaz)
A0" (0 mm) 0" (0 mm)
B38" (9652 mm) 38" (9652 mm)
C* 1" (25 mm) 1" (25 mm)
D27" (686 mm) 27" (686 mm)
E* 1" (25 mm) 1" (25 mm)
*Espacement requis
REMARQUE : Certains modèles ne sont pas recommandés pour
une installation sous un comptoir.
Vue latérale Porte de placard avec
orifices d'entrée d'air
Installation dans un placard- Sécheuse seulement
A* B C**
(460 mm)
Vapeur
(électrique ou à gaz) Sans vapeur (électrique ou à gaz)
A1" (25 mm) 1" (25 mm)
B32 9/16" (686 mm) 31 1/2" (800 mm)
C5" (127 mm) 5" (127 mm)
*Espacement requis
**Pour une évacuation par le côté ou par le fond, un espacement
de 0" (0 mm) est permis.
