SERVICE MANUAL
WALL MONTED
COMPACT ELECTRIC DRYER
220V / 60Hz
MODEL:
WSI24ABBPH00 Wall Mounted - White Color GW
Portinari Project
MSEX0110i PHILIPPINES - OCTOBER/ 2006 MADE IN BRAZIL

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 2-21
INDEX
1– IDENTIFICATION.................................................................................................................03
2 – TECHNICAL SPECIFICATION...............................................................................................04
3 – BASIC FEATURES...................................................................................................................04
4 – INSTALLATION PROCEDURE................................................................................................05
5 – PARTS SUPPLIED WITH THE PRODUCT..............................................................................09
6 – ACCESSORIES........................................................................................................................09
7 – FUNCTIONAL CHARACTERISTICS.......................................................................................10
8 – CONTROL PANEL - USE INSTRUCTION...............................................................................11
9 – COMPONENT ASSEMBLY AND DISASSEMBLY..................................................................13
10 – COMPONENT TESTING........................................................................................................14
11 – NECESSARY TOOLS............................................................................................................19
12 – IMPORTANT HINTS...............................................................................................................20
13 – TROUBLE SHOOTING..........................................................................................................20
14 – WIRING DIAGRAM.................................................................................................................21

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 3-21
1 – IDENTIFICATION :
1.1 – Whirlpool Version
WSI24 A B B PH 00 DESCRIPTION
ENGING.
DIGIT 00= Lauching
DESTINATION PH= Philippines
VOLTAGE B= 220V / 60Hz
COLOR B= White color (painted)
VERSION A= 1ªVersion
CAPACITY 24 inches (10,5Kg)
TYPE I= Wall-Mounted, Electric
PRODUCT S= Dryer
BRAND W= WHIRLPOOL
1.2 – Whirlpool Serial Number
X X X XXXXXX DESCRIPCION
4ODIGIT Serial Number (Sequential manufacturing number)
3ODIGIT Manufacturing Year
2ODIGIT Manufacturing Month
1ODIGIT Manufacturing Plant (Factory)
The first digit indicates the Factory Plant (in Brasil), identified by a letter as follows:
C– Rio Claro Plant P– São Paulo Plant
J– Joinville Plant I– Imported Products M– Manaus Plant
The second digit indicates the manufacturing month of the product:
A– January D– April G– July J– October
B– February E– May H– August L– November
C– March F– June I– September M– December
The third digit indicates the manufacturing year of the product:
8– 1998 1– 2001 4– 2004 7– 2007
9– 1999 2– 2002 5– 2005 8– 2008
0– 2000 3– 2003 6– 2006 9– 2009
The following six digits indicate the product manufacturing sequential:
Example: 000001, 000002, ..

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 4-21
2 – TECHNICAL SPECIFICATION
WSI24A
Nominal tension (V) 230
Allowed tension oscilation (V) 198 a 242
Energy consumption – Cotton Cycle (kWh) 4,81
- Delicate cycle (kWh) 2,90
Frequency (Hz) 60
Current Intensity (A) 8,5
Heater Potency (W) 1750
Dryer total Potency (with heater) (W) 2000
Basket speed (rpm) 58
Maximum temperature – Cotton Cycle (°C) 60
Maximum temperature – Delicate Cycle (°C) 45
Circuit breaker * to install (A) 15
* The circuit breaker(s) must be installed in the phase wire(s). DO NOT install them on the neutral
wire.
* In those places with 220 V voltage and two phase wires, a 15 A circuit breaker must be installed on
each phase.
2.1 - Dimensions:
W/0 PACKAGING WITH PACKAGING
SHRINK
Width (mm) 610 660
Depth (mm) 580 660
With closed door
Height (mm) 780 900
With opened door Depth (mm) 1130 -
Weight Depth (kg) 41,1 47,0
3– BASIC FEATURES:
WSI24A
Rotating Timer l
Three-Wire Power Supply Cord l
Reversible Tempered Glass Door l
Lint Screen Cleaning Indicator l
7 Drying Programs l
Special Cycle Selection for Different Textiles l
Softening Cycle l
Anti-Wrinkle System l
Drying Time Information in the Panel l
Capacity for 10 kg of drier clothes l
Automatic Security Lock l
Leveling Legs
Shrink Packaging l

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 5-21
4- INSTALLATION PROCEDURE:
Before to install the Dryer check if:
•Wire diameter (gauge) complies with specifications (see table of item 2.1).
•Supply voltage indicated by the label of Dryer Power Supply Cord is the same as the outlet where the
Appliance will be connected.
•Will be appropriate Hot Air Exhausting
•The installation condition: has good ventilation;
is not exposed to sunlight, heat sources or rain;
has a ground wire and the circuit breaker(s) is (are) installed.
•There is a 10 cm minimum clearance between the Dryer and the walls.
•Do not use electrical extension and/or electrical “T” sockets, as they can be sources of bad contact and
overloads in the mains.
•The Dryer is well leveled, in order to prevent vibration and noise.
4.1 – Wire diameter (Gauge) for installation purposes:
voltage /
gauge 2.5 mm2
(12 AWG) 4.0 mm2 (10 AWG) 6.0 mm2 (8 AWG) 10.0 mm2 (6 AWG)
Distance from
the Circuit
Breaker 220 V up to 70 meters 71 to116 meters -- --
It’s very important and necessary to install a ground wire if it is unavailable.
4.2 – Rack Installation:
There is a risk of death or injury if the installation instructions are not followed properly.
The security instructions mentioned below point out possible risks and advise the user how to reduce the
possibility of any injury and details what can happen if the instructions are not followed properly.
Before installing the Rack Set:
Check if the walls of Customer’s home have the required structural conditions to have the Dryer's Rack Set
safely installed.
Check if the area where the rack will be installed is free of water, electricity and gas pipelines. For your
safety, please wear protective glove to handle the parts from the Rack Set and to lift the Dryer during
installation.
If the residence have walls made of wood or plaster, it is recommended that the installation of the dryer not
be done until you contact an exclusive representative of the material used for the walls and verify if the wall
material can take the weight of the dryer.
In case the dryer is installed in a wooden or plaster wall without the approval of the wall material
manufacturer, you will risk that the dryer might fall and void the warranty.

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 6-21
4.2.1 – The Rack Set is composed by:
4.2.2 – Required tools for installation:

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 7-21
4.3 – Installation Procedure:
Marking the holes on the Wall:
A - Fix the guide on the wall with the adhesive tape, following the height
recommended below:
For 5-6kg or 7-8kg Whirlpool Washing Machines, please consider at least
157cm, measured from the lower edge, as drawing on the side.
For other washing machines, please consider the maximum height of the
washing machine with its door open, plus 20cm.
WARNING:
To prevent against the desalignment of your Dryer, check the guide
alignment by measuring from its two lower ends to the floor.
B - Use a nail and a hammer to mark the 8 holes on the wall, using the center
of the red circles as reference, on the sides of this Installation Guide.
C - After marking the holes, remove the installation guide from the wall.
D - Check if the distance between the hole marks are in accordance with the measurements indicated in
this guide.
4.3.1 - Drilling the wall:
A - Drill the 8 holes marked on the wall with the electric drill and the 5mm twist drill.
B - Then, repeat the procedure above with the 10mm twist drill.
C - Place the 8 bushings in the holes.
4.3.2 - Assembling the bracket
A - Screw the Bracket Set on the wall using the large screws and
washers, following the figure on the side.
B - Make sure the screws are
completely fixed. For that, even if
the screws are touching the
Bracket Set, keep on screwing
until it is not possible to twist the
open-end wrench.

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 8-21
4.3.3 - Fitting the Dryer on the bracket
WARNING
Risk of injures due to excess of weight. Use two or more people to move
and install the Dryer.
The non-compliance with this instruction may cause damages to your
column or physical injuries.
A - Fit the Dryer through the back slots on the clamps of upper right and left
brackets. To make fitting easy, tilt the front part of the Dryer slightly.
WARNING: Check if the Dryer is correctly fitted in the upper bracket clamps, as the figure on the
side.
B - Place the Dryer on the lower left and right brackets.
C - Then, screw the Dryer on the lower brackets using the two small bolts
and two washers on left and right sides (as shown in the drawing on the
side).
D - Make sure the Dryer is at a distance of approximately 13cm from the
wall in its whole extension.
WARNING: This whole procedure must be followed, so your Dryer is well fixed on the bracket and
safe for use.
5 – PARTS SUPPLIED WITH THE PRODUCT:

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 9-21
5.1 – Sneaker and clothes drying grid/shelf:
It is used for those shoes or clothes that must be dried in flat surfaces. It must be fastened to the Sneaker
Grid Plugs, which can be found inside the Dryer’s Drum.
GRID/SHELF
Part number: 326.013.309
5.2 – Exhaust vent:
It is also used to direct the air outdoors and avoid the excess of internal moisture, which can impair the
drying process. Do not assemble the hot air exhaust vent with splices. It must have a maximum length of 3
meters and two elbows, in order to improve the Dryer performance.
HOSE, OUTLET
Part number: 326.023.085
5.3 – Rack:
It is used to fix the product in product on the wall. See installation Instructions.
RACK
Part number: 326.058.319
6 – ACCESSORIES (it’s not included with the Dryer):
IMPORTANT:
ALTHOUGH THE ACCESSORIES ARE NOT SUPPLIED WITH THE DRYER, THEY CAN BE
ACQUIRED AT THE AUTHORIZED DEALERS.
6.1 – Air routing vent:
It is used to help routing the air outdoors, thus avoiding excess of moisture in the internal air, which can
impair the drying process.
DEFLECTOR
Part number: 000.055.208
7 – FUNCTIONAL CHARACTERISTICS:

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 10 -21
7.1 – Drying Cycles:
The Dryer features 2 specific drying cycles for different fabric types: Normal Cycle and
Delicate Cycle.
•The Normal Cycle was designed to dry cotton and polyester clothes, with a
temperature of 60°C.
•The Delicate Cycle was designed to dry synthetic and fine clothes, with a
temperature of 45°C.
Note: Please see Instruction Use on item 8.1 – Delicate Cycle Knob
7.2 – Air Cycle / Cold Air:
At the end of each programming cycle, the Dryer will switch to cold air during
10 minutes, in order to cool the clothes and give a soft and agreeable touch
to the fabrics. The softening cycle can also be used to eliminate certain
smells from the clothes, such as mildew and cigarette smoke.
7.3 – Anti-Wrinkle System:
The Anti-Wrinkle System occurs during all drying cycles. It reverts the drum rotation direction at regular
intervals, preventing the entanglement of the clothes and minimizing wrinkle formation.
TABLE OF DRYER’S OPERATING TIMES (All Cycles)
DRUM TIME DRYER FUNCTION
Counterclockwise Rotation 5 minutes Clothes drying period
Still 3 seconds Drum reversion period
Clockwise Rotation 5 seconds Anti-wrinkle system period
Still 3 seconds Drum reversion period
These times are repeated during the entire dryer programming.

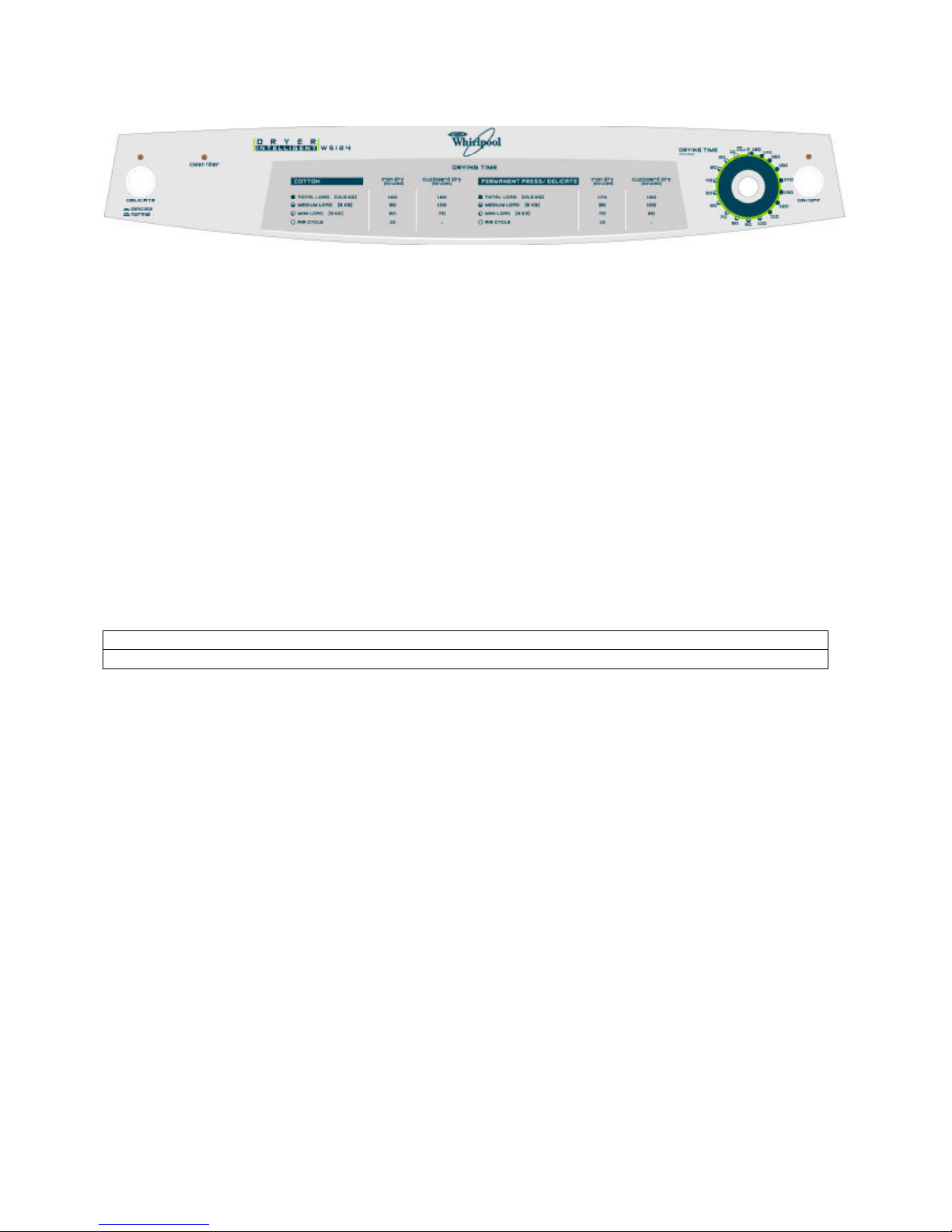

7.4 – Decorative Panel:
On its decorative panel, the Dryer shows the approximate clothes drying times, according to the clothes
quantity to be dried and the desired moisture level – that is, dry clothes for ironing or laying away. These
times are merely illustrative and have been calculated for clothes that are spun in 750-rpm Washers.

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 11 -21
8 – CONTROL PANEL - USE INSTRUCTION :
8.1 – Delicate Cycle Button:
The Delicate Cycle Button is used to select the cycle according to the type of clothes the user wants do dry
– NORMAL or DELICATE cycle.
Keep this button RELEASED to select the Normal cycle.
Keep this button PUSHED to select the Delicate cycle; the indicating light will remain lit in this case.
8.2 – Selector Knob:
The Selector Knob is used to select the desired clothes drying time.
Check the drying times in the Decorative Panel’s time chart, turn the Selector in the CLOCKWISE direction
and align the knob mark with the selected time.
8.3 – On/Off Button:
Push the On/Off Button to start the drying process. The indicating light will remain lit to show that the dryer
is operating.
WARNING!
Push the On/Off Button at the end of drying time to turn off the Dryer.
8.4 – Changing the drying program:
Push the On/Off button to turn off the Dryer before changing the drying program. Select the new drying cycle
through the Delicate Cycle knob if applicable. Select then the new drying time by turning the program
selector and pushing the Start/Off knob once more. Turn the Selector only in the CLOCKWISE direction.
8.5 – Lint Filter Cleaning Indication:
The Dryer panel includes an Indicating Light that will remain lit whenever the lint filter needs cleaning due to
the clogging by lint.

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 12 -21
8.6 – Lint Filter Cleaning:
To increase and guarantee the Dryer performance, Lint Filter must be cleaned at the end of each
programming cycle. Follow the steps below to clean the lint screen:
1. Wait until the end of Dryer programming cycle,
in order to enable the cooling of internal parts.
Remove the lint filter from its casing by pulling with
the fingers inserted in the proper part holes.
2. Press the screen to unlock the cover.
3. Remove all lint caught in the filter with a soft
brush.
4. Install the lint filter by pressing the screen
against the lid until it locks in place. Check
whether the lid is well fit in the plastic grips of the
lid.
5. Once assembled the lint filter, insert it again in
the proper casing, inside the Dryer.
NOTE:
Do not wet or wash the lint filter to remove the lint,
in order to prevent rust build up.

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 13 -21
9 – COMPONENT ASSEMBLY AND DISASSEMBLY:
IMPORTANT:
BE VERY CAREFUL when assembling and handling the parts, as there are some
Sharp-edged surfaces. Use gloves for your protection.
Avoid accidents: DISCONNECT THE DRYER from electric supply
before any maintenance procedure.

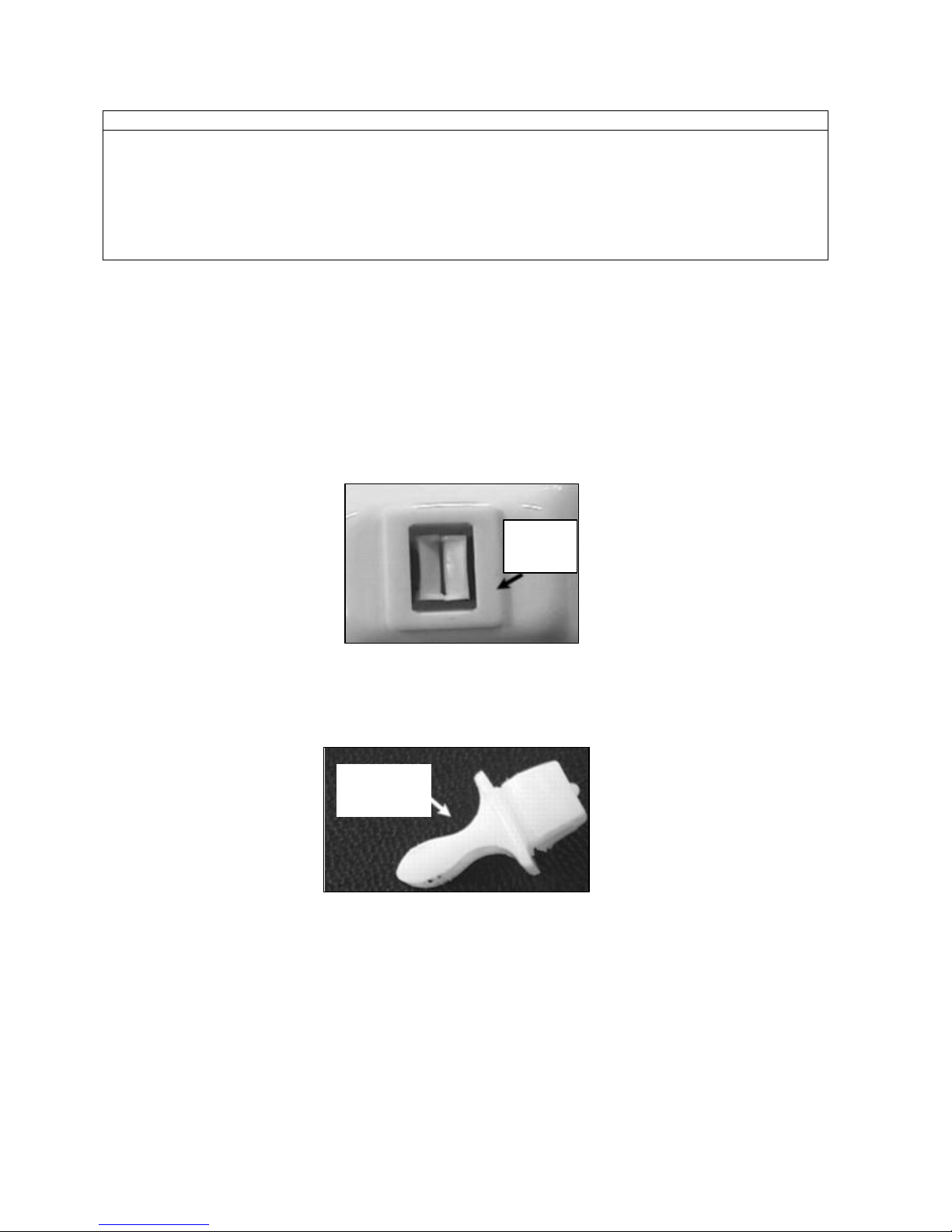

9.1 – Door Reversing :
a) Remove the Knob, loosen the Phillips screws in the Upper Panel and pull it upwards.
b) Release the Upper Hinge using a 5/16” socket wrench. Pull the door to release it from the lower hinge.
c) Remove the Lower Panel and release the lower hinge.
d) Invert the position of Door Bushings and plugs.
e)
Remove the Door Plug and install a Door Catch in its place. The reversed door has now two Door Catches
and no Plugs.
f) Loosen the screws at the left side of Instrument Support and remove it from the Dryer.
g) Invert the door latch Coupler and the Plug of Front Panel with the aid of nose pliers.
h) Reinstall the Instrument Support
i) Fasten the Lower Hinge to the left side of Door in the first place. The
Upper Hinge must be fastened to the
lower part of Dryer and the Lower Hinge will be fastened to the upper part.
j) Fit the Door in the Hinge Pin and install the other Hinge.
k)
Check the opening and closing movement of the Door to test its movements. It must be aligned, locking
and sealing in a perfect way.
l) Reinstall the Upper and Lower Panels, along with the Knob.
Door
Coupler
Door
Catch

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 14 -21
10 – COMPONENT TESTING:
IMPORTANT:
DISCONNECT THE DRYER FROM THE ELECTRIC SUPPLY BEFORE ANY MAINTENANCE
PROCEDURE.
10.1 – Security Thermostat Set:
The Security Thermostat Set can be found in the HEATER Box at the rear of Dryer. It is composed by two
thermostats: Thermostat 1 of SECURITY and Thermostat 2 of LINT FILTER CLEANING.
When the Thermostats are operating the Heater open the contact (i.e., it is disconnected) but the motor keeps
operating. Each Thermostat comes with different colored dot, which is a guide
for a correct fitting of the
wiring connection on each terminal.
Use a Multimeter to test the thermostats and check continuity between their leads.
10.1.1 – Security Thermostat:
The security thermostat is always closed during Dryer operation,
but when its contacts open they do not
close again.
The security thermostat opens its contacts in the 190ºC to 210ºC temperature range.
The security thermostat contacts open in the following cases:
1. When the Operation Thermostat fails;
2. When the Lint Screen Cleaning Thermostat fails;
3. When the Lint Screen is clogged and the Lint Screen Cleaning Thermostat fails.
The Security Thermostat Set must be replaced in such cases.
10.1.2 – Lint Screen Cleaning Thermostat:
The Lint Screen Cleaning Thermostat is normally closed during Dryer operation; when its contacts open,
however, the Lint Screen Cleaning lamp will light in the Dryer Panel.
The Lint Screen Cleaning Thermostat operates in the following temperature ranges:
contact opening: 115ºC to 125ºC
contact closing: 35ºC to 45ºC
The security thermostat contacts open when the Lint Screen is clogged, i.e., when it needs to be cleaned.
SECURITY
THERMOSTAT
LINT SCREEN
CLEANING
GUIDE TO
CONECT
WIRE
TERMINLS

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 15 -21
10.2 – Operational Thermostat Set :
The Operational Thermostat Set can be found in the Air Vent, at the rear of Dryer. It is composed by two
thermostats: Thermostat 1 NORMAL CYCLE and Thermostat 2 GENTLE CYCLE.
When the Thermostats are operating the Heater open the contacts (i.e., it is disconnected) but the motor
keeps operating. The contacts of these thermostats close again automatically.
The Gentle Cycle Thermostat comes with a colored dot, which is a guide for a correct fitting of the the
terminal on the wire.
Use a Multimeter to test the thermostats and check continuity between their terminals.
10.2.1 – Normal Cycle Thermostat:
The Normal Cycle Thermostat operates when the Gentle Cycle Knob is not pushed.
The Normal Cycle Thermostat operates in the following temperature ranges:
contact opening: 60ºC to 66ºC
contact closing: 49ºC to 59ºC
10.2.2 – Gentle Cycle Thermostat:
The Gentle Cycle Thermostat operates when the Gentle Cycle Knob is pushed
; in this case, the Indicator
Lamp lights in the Dryer Panel.
The Gentle Cycle Thermostat operates in the following temperature ranges:
contact opening: 42ºC to 48ºC
contact closing: 30ºC to 40ºC
NORMAL
CYCLE
THERMOSTAT
GENTLE
CYCLE
THERMOSTAT
GUIDE TO
FIX THE
WIRES

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 16 -21
10.3 – Micro Switch:
The Micro Switch is a security device that prevents Dryer operation when the Door is open. It is located inside
the Front Panel, in the upper right corner.
To test the switch, disconnect the wires from the leads and check continuity.
Apply the probes of a Multimeter to the Micro Switch leads and push
its stem to close the contacts. These
contacts will be open when the stem is not pushed.
Micro Switch with pushed stem Micro Switch with released stem
continuity no continuity
The Micro Switch must be replaced together with its support, in order to avoid any damages to the switch.
10.4 – Temperature Selector Switch (Normal/Delicate):
The Temperature Selector Switch can be found inside the Instrument Support, in the left side of Dryer.
When this Switch is pushed
, the Dryer operates in the Gentle Cycle, i.e. at a temperature of 45ºC. When the
Switch is released, the Dryer operates in the Normal Cycle, i.e. at a temperature of 60ºC.
To check the switch with a Multimeter check the continuity between the terminals as the chart below:
When the Temperature Selector Switch is
pushed When the Temperature Selector Switch is released
continuity between leads 2 & 3 continuity between leads 3 & 4
MICRO SWITCH
LEVER
LEVER
MICRO SWITCH
KNOB

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 17 -21

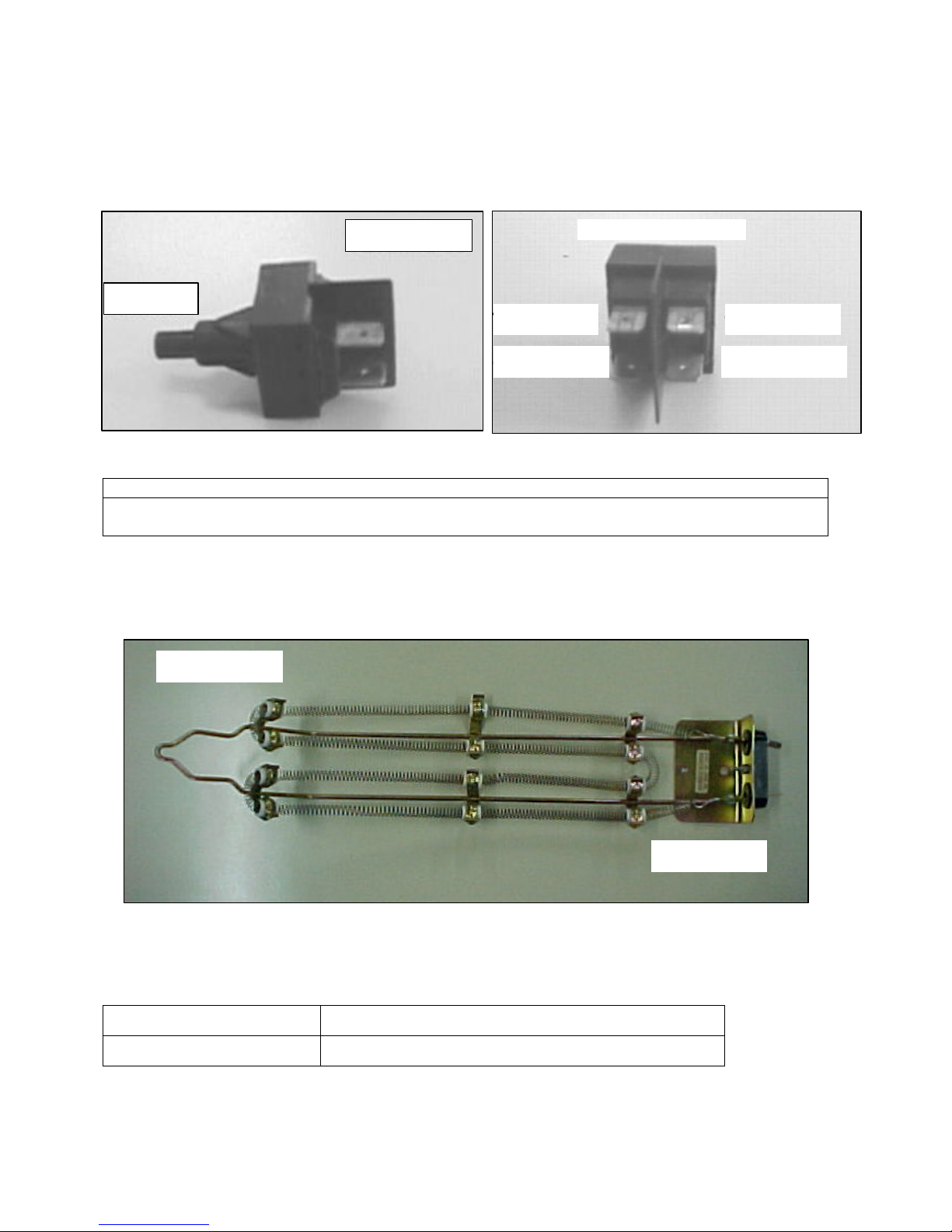

10.5 – On/Off Switch:
The On/Off Switch can be found inside the Instrument Support, in the right side of Dryer.
When this Switch is pushed, its contacts close and Dryer starts operating.
When the Switch is released, its contacts open and the Dryer stops operating.
To test the Switch, check continuity between its leads with a multimeter, according to the table below:
When the On/Off Switch is pushed
continuity between leads 1 & 2
continuity between leads 5 & 6
10.6 - Heater
The Heater is located inside of the proper box behind of the Dryer.
To test the Heater, disconnect it from the circuit and check its resistance value (in Ohms) with a Multimeter,
according to the table below:
Tension Ohmic value
220 V 25 to 28 Ω
KNOB
TERMINALS
SIDE A SIDE B
TERMINAL 1
TERMINAL 2
TERMINAL 5
TERMINAL 6
HEATER
TERMINALS

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 18 -21
10.7 – Motor:
The Motor can rotate both in the clockwise and anti-clockwise directions due to the Anti-Wrinkle System.
To test the Motor, disconnect the wires and check continuity on the terminals of Motor according to the table
below:
Motor
clockwise rotation continuity between white and yellow wires
Anti-clockwise rotation continuity between white and red wires
WARNING!
WHEN YOU MUST REPLACE THE MOTOR, DO NOT FORGET TO TIGHTEN THE FAN AGAIN;
ACTUALLY, AS THE MOTOR ROTATES IN BOTH DIRECTIONS (CLOCKWISE AND
ANTICLOCKWISE), THE FAN MAY LOOSE ITSELF.
MOTOR
WIRING

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 19 -21
10.8 – Timer:
The Timer controls the clothes drying time up to 180 minutes. It can be found in the Instrument Support, in the
right side of Dryer.
To test the Timer, check continuity between its terminals with a Multimeter, according to the table below:
TIMER
ACTIVATED
COMPONENT CONTACT OCCURRENCE
Motor Timer continuity between
terminals 4T & 4C During all cycle (180 minutes).
Heater continuity between
terminals 3B & 3C During all cycle, except for the last 10 minutes of any selected program (Softening Cycle).
Dryer Motor Anti-
clockwise direction continuity between terminals 36B & 36C During the drying period of clothes. Occurs 35 times in a full programming during 5 seconds and
repeats every 5 minutes and 11 seconds.
Dryer Motor –
Clockwise direction Continuity between leads 36T & 36C During the Anti-Wrinkle System period. Occurs 34 times in a full programming during 5 seconds
and repeats every 5 minutes and 11 seconds.
11 – NECESSARY TOOLS:
- Socket Wrench Set;
- Phillips Screwdriver Set;
- Flat-blade Screwdriver Set;
- Open-ended Wrench Set;
- Nose Pliers;
- Analog or Digital Multimeter;
- Gloves (for protection purposes);
- Cleaning cloth.
TIMER
TERMINALS

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 20 -21
12 – IMPORTANT HINTS:
•For your own safety, disconnect the appliance from the mains outlet before working on it.
•Do not forget to discharge the Capacitor before any maintenance work on the Motor.
•Be careful when working on the appliance, as there are some sharp-edged metallic
parts.
13 – TROUBLE SHOOTING:
TROUBLE POSSIBLE CAUSE SOLUTION
Start/Off button is not pushed Push the Start/Off button.
Lack of electric power Wait until power returns.
Door is open Close the door (the Micro
Switch prevents the Dryer
from working with the door
open).
The plug is not connected to mains Connect the plug to the outlet.
Mains failure (bad contact) Check outlet operation with
other appliance.
Dryer does not work / does
not turn on
Defective outlet Fix the outlet.
Noise Hairpins, pins or other objects may
be in the Dryer with the clothes Remove the objects from the Dryer.
Clothes volume exceeded Dryer
capacity Remove excess of clothes.
Clothes load is inadequate for the
selected cycle Select another drying cycle, according to clothes type.
Drying time is inadequate for
clothes volume Select drying time according to clothes volume.
Program is inadequate for clothes
type Refer to program table.
The clothes have not been spun or
wrung out Spin the clothes in the Washer or wring them out to
remove as much as water as
possible before placing them
in the Dryer.
Lint Screen is dirty Clean the Lint Screen.
The Dryer does not dry the
clothes
Security thermostat is open Test continuity in thermostat.
Lint Screen is dirty Clean the Lint Screen.
Lint Filter cleaning light is lit Hot air exhaust vent is clogged Check and remove clog from
hot air exhaust vent.
