INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the
door support and that the internal door seal is
not damaged. Empty the oven and clean the
interior with a soft, damp cloth.
AFTER CONNECTING
THE FIRST TIME THE OVEN IS SWITCHED ON, you will be
asked to set the language and current time.
Follow the instructions under the headline
“Changing settings” in this instructions for use.
The appliance is ready to use after these two
steps have been taken.
The manufacturers are not liable for any
problems caused by the user’s failure to ob-
serve these instructions.
DONOT OPERATE THIS APPLIANCE if it has a damaged
mains cord or plug, if it is not working proper-
ly, or if it has been damaged or dropped. Do
not immerse the mains cord or plug in water.
Keep the cord away from hot surfaces. Electri-
cal shock, fire or other hazards may result.
DONOT REMOVE THE MICROWAVE INLET PROTECTION
PLATES located on the side of
the oven cavity wall. They
prevent grease & food parti-
cles from entering the mi-
crowave inlet channels.
ENSURE the oven cavity is
empty before mounting.
CHECK THAT THE VOLTAGE on the rating plate corre-
sponds to the voltage in your home.
THE OVEN CAN BE OPERATED ONLY if the oven door is
firmly closed.
THE EARTHING OF THIS APPLIANCE is compulsory. The
manufacturer will accept no responsibility for
injury to persons, animals or damage to ob-
jects arising from the non-observance of this
requirement.
MOUNTING THE APPLIANCE FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.
DONOT USE EXTENSION CORD:
IFTHE POWER SUPPLY CORD IS TOO SHORT, have a
qualified electrician or serviceman install
an outlet near the appliance.

3
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE MATERIALS in or
near the oven. Fumes can create a fire hazard
or explosion.
DONOT USE YOUR MICROWAVE oven for drying
textiles, paper, spices, herbs, wood, flowers,
fruit or other combustible materials. Fire could
result.
DONOT OVER-COOK FOOD. Fire could result.
DONOT LEAVE THE OVEN UNATTENDED, especially
when using paper, plastic or other combustible
materials in the cooking process. Paper can
char or burn and some plastics can melt if used
when heating foods.
IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IGNITE
OR SMOKE IS OBSERVED, keep oven door closed and
turn the oven off. Disconnect the power cord
or shut off power at the fuse or circuit breaker
panel.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
EGGS
DONOT USE YOUR MICROWAVE oven for cooking
or reheating whole eggs with or
without shell since they may
explode even after microwave
heating has ended.
DONOT USE corrosive chemicals or vapors in
this appliance. This type of oven is specifically
designed to heat or cook food. It is not
designed for industrial or laboratory use.
THIS APPLIANCE CAN BE USED by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved.
USE, CLEANING AND USER MAINTENANCE shall not be
made by children unless they are aged from 8
years and above and supervised.
CHILDREN SHALL NOT PLAY with the appliance.

4
IMPORTANT SAFETY INSTRUCTIONS
CHILDREN LESS THAN 8 YEARS OF
AGE shall be kept away unless
continuosly supervised.
DONOT USE YOUR
MICROWAVE oven for
heating anything
in airtight
sealed containers. The pressure
increases and may cause damage
when opening or may explode.
THE APPLIANCE AND ITS ACCESSIBLE
PARTS MAY BECOME HOT during use. IFTHE MAINS CORD NEEDS REPLACING
it should be replaced by the
original mains cord, which is
available via our service
organization. The
mains cord may only
be replaced by a trained
service technician.
WARNING!
SERVICE ONLY TO BE CARRIED
OUT BY ATRAINED SERVICE
TECHNICIAN. It is hazardous
for anyone other than
a trained person to carry out
any service or repair operation,
which involves the removal of
any cover, which gives protection
against exposure to microwave
energy.
CARE SHOULD BE TAKEN to avoid
touching heating elements.
DONOT REMOVE ANY COVER.
THE DOOR SEALS AND THE DOOR
SEAL AREAS must be regularly
inspected for damage. If these
areas are damaged the appliance
should not be operated until it
has been repaired by a trained
service technician.

5
THE APPLIANCE SHOULD NOT BE OPERATED without food
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
IFYOU PRACTICE OPERATING the oven, put a glass
of water inside. The water will absorb the mi-
crowave energy and the oven will not be dam-
aged.
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in
the oven.
DEEPFRYING
DONOT USE YOUR MICROWAVE oven for deep-frying,
because the oil temperature cannot be
controlled.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the
following steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully re-
moving the container from the oven.
CAREFUL
ALWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food
that contains alcohol.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving.
This will ensure that the heat is evenly distributed
and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed be-
fore heating!
USE HOT PADS OR OVEN MITTS to prevent burns,
when touching containers, oven parts, and
pan after cooking.
DONOT USE THE CAVITY for any storage purposes.
LI
LI
LI
LI
QU
QU
QU
QU
I
ID
ID
ID
S
S
S
GENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
IMPORTANT PRECAUTIONS
THIS APPLIANCE IS INTENDED for heating food and
beverages. Drying of food or clothing and
heating of warming pads, slippers, sponges,
damp cloth and similar may lead to risk of
injury, ignition or fire.
THIS APPLIANCE IS INTENDED to be used built-in. Do
not use it freestanding.

6

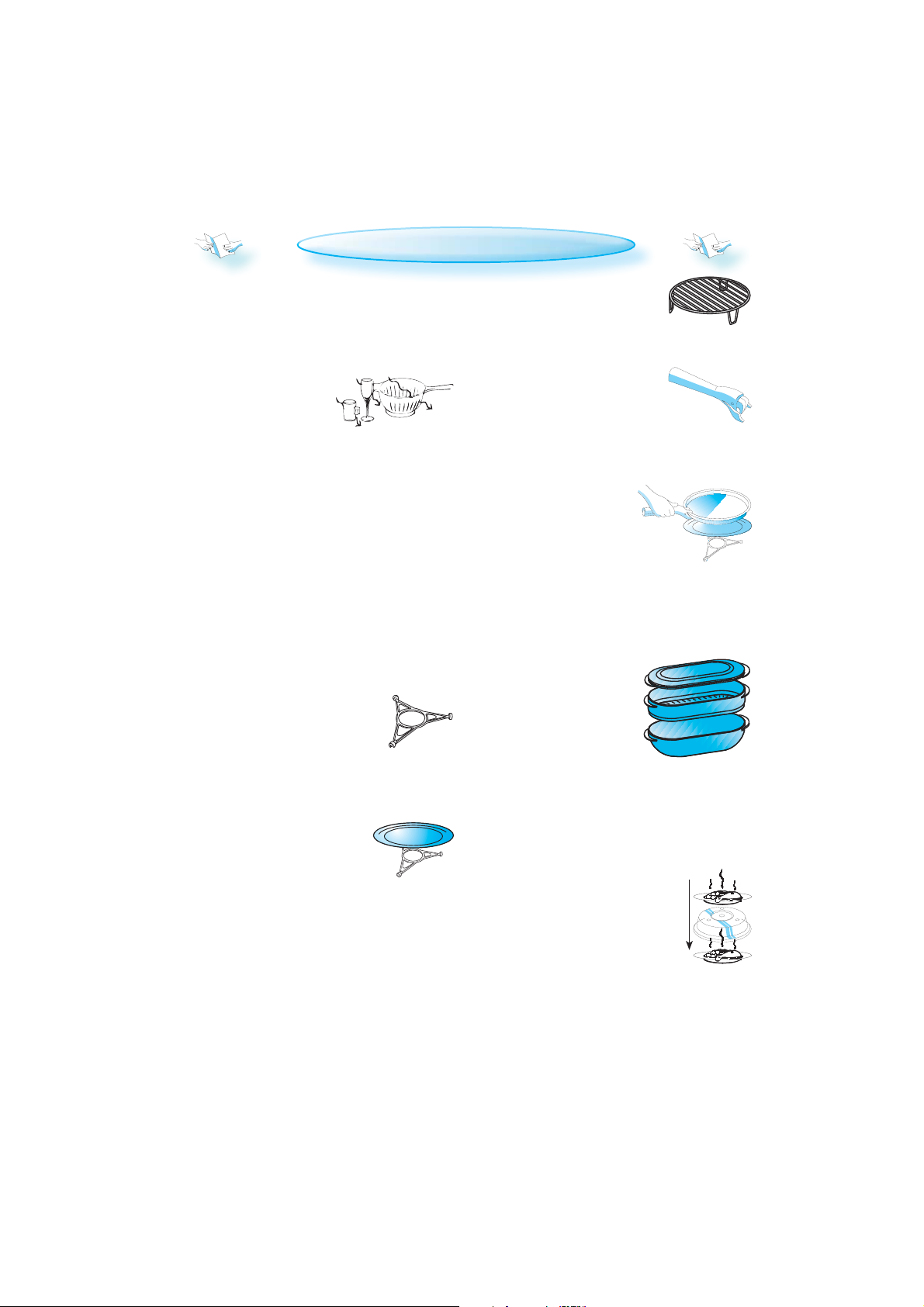

ACCESSORIES
GENERAL
IFACCESSORIES CONTAINING METAL comes in contact
with the oven interior, while the oven is in op-
eration, sparking can occur and the oven could
be damaged.
TURNTABLE SUPPORT
USE THE TURNTABLE SUPPORT under the
Glass turntable. Never put any oth-
er utensils on the turntable sup-
port.
Fit the turntable support in the oven.
GLASS TURNTABLE
USE THE GLASS TURNTABLE with all cooking meth-
ods. It collects the dripping juic-
es and food particles that other-
wise would stain and soil the in-
terior of the oven.
Place the Glass turntable on the turntable
support.
ENSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to
pass through them before
cooking.
WHEN YOU PUT FOOD AND ACCESSORIES in the micro-
wave oven, ensure that they do not come in
contact with the interior of the oven.
This is especially important with accesso-
ries made of metal or metal parts.
ALWAYS ENSURE that the turntable is able to turn
freely before starting the oven.
CRISP HANDLE
USE THE SUPPLIED SPECIAL CRISP HAN-
DLE to remove the hot Crisp plate
from the oven.
CRISP-PLATE
PLACE THE FOOD DIRECTLY ON THE CRISP-PLATE.
Always use the Glass turn-
table as support when us-
ing the Crisp-plate.
DONOT PLACE ANY UTENSILS on the
Crisp-plate since it will quickly be-
come very hot and is likely to cause
damage to the utensil.
THE CRISP-PLATE may be preheated before use
(max. 3 min..). Always use the Crisp function
when preheating the crisp-plate.
THERE ARE a number of accessories available on
the market. Before you buy, ensure they are
suitable for microwave use.
WIRE RACK
USE THE WIRE RACK when grilling
using the Grill functions.
STEAMER
USE THE STEAMER WITH THE
STRAINER in place for foods
such as fish, vegetables and
potatoes.
USE THE STEAMER WITHOUT THE
STRAINER in place for foods such as rice, pasta
and white beans.
ALWAYS place the steamer on the Glass Turnta-
ble.
COVER
THE COVER is used to cover food dur-
ing cooking and reheating with mi-
crowaves only and helps to reduce
spattering, retain food moisture as
well as reducing the time needed.
USE the cover for two level reheat-
ing

7
Safety Lock is activated
close door and press
19:30
Key Lock
has been activated
Key Lock
has been deactivated
START PROTECTION
THE START PROTECTION FUNCTION IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“.
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released.
KEY LOCK
PRESS THE BACK AND OK buttons simultaneously and keep pressed until two beeps are heard
(3 seconds).
USE THIS FUNCTION to hinder chil-
dren from using the oven unat-
tended.
WHEN THE LOCK IS ACTIVE, all buttons
are non-responsive.
A CONFIRMATION MESSAGE is displayed for 3 seconds be-
fore returning to the previous view.
THE KEY LOCK ID DEACTIVATED the same way it was acti-
vated.
PLEASE NOTE: These buttons only work in conjunction
when the oven is turned OFF.



8
DONENESS
WEIGHT
END TIME
COOK TIME
Normal
Steamed Fillets
30:00300g
19:30
DONENESS
WEIGHT
Light
Fruit Pie
400g
DONENESS
Extra
Rolls
AMOUNT
8
Please add milk
Press when done
Cooking nearly finished
Please check on food
Insert food in steamer
Press when done
Please use
high wire rack
Please stir food
Please turn food
Temperature reached
Insert food and press
DONENESS (AUTO FUNCTIONS ONLY)
DONENESS IS AVAILABLE in most of the auto func-
tions. You have the possibility to personally
control the end result through the Adjust do-
neness feature. This feature enables you to
achieve higher or lower end temperature com-
pared to the default standard setting.
WHEN USING one of these functions the oven
chooses the default standard setting. This set-
ting normally gives you the best result. But if
the food you heated became too warm to eat
at once, you can easily adjust this before you
use that function the next time.
WHEN USING SOME OF THE FUNCTIONS the oven may
stop and prompt you to perform an action or
simply advice on which accsessoire to use.
MESSAGES
THIS IS DONE BY SELECTING ADONENESS LEVEL with the
Up & Down buttons before pressing the Start
button.
WHEN AMESSAGE APPEAR:
Open the door (if needed).
Perform the action (if needed).
Close the door and restart by pressing the
Start button.
DONENESS
LEVEL EFFECT
EXTRA YIELDS HIGHEST END TEMPERATURE
NORMAL DEFAULT STANDARD SETTING
LIGHT YIELDS LOWEST END TEMPERATURE

9
Pan Pizza
Lasagna
French Fries
Your most used cooking functions
Shortcut
Your most used cooking functions
French Fries
Shortcut
Shortcut
Shortcut
Your most used cooking functions
Pan Pizza
Lasagna
French Fries
Your most used cooking functions
COOLING DOWN
WHEN AFUNCTION IS FINISHED, the oven may carry
out a cooling procedure. This is normal.
After this procedure the oven switches off au-
tomatically.
SHORTCUTS
TOFAVOR THE EASE OF USE, the oven automatical-
ly compiles a list of your favorite shortcuts for
you to use.
WHEN YOU BEGIN using your oven, the list con-
sists of 10 empty positions marked “shortcut”.
As you use the oven over time, it will automat-
ically fill in the list with shortcuts to your most
frequently used functions.
WHEN YOU ENTER THE SHORTCUT MENU, the function
you have been using mostly, will be pre-select-
ed and positioned as shortcut #1.
NOTE: the order of functions presented in the
shortcut menu will automatically change ac-
cording to your cooking habits.
PRESS THE SHORTCUT BUTTON.
USE THE UP / DOWN BUTTONS to choose your favorite shortcut. The most frequently used function
is pre-selected.
PRESS THE OK BUTTON to confirm your selection.
USE THE UP / DOWN / OK BUTTONS to make the needed adjustments.
PRESS THE START BUTTON.
THE COOLING PROCEDURE can be interrupted with-
out any harm to the oven by opening the door.






10
Settings
Manual
Cleaning
Appliance and display settings
Language
Time
Guides
Appliance and display settings
English
Italiano
Français
Please select language
Language
has been set
WHEN THE APPLIANCE IS FIRST PLUGGED
IN it will ask you to set the Lan-
guage and 24 hour Clock.
AFTER APOWER FAILURE the Clock will
flash and needs to be reset.
YOUR OVEN HAS a number of func-
tions which can be adjusted to
your personal taste.
CHANGING SETTINGS
PRESS THE MENU BUTTON.
USE THE UP / DOWN BUTTONS until Settings is shown.
PRESS THE OK BUTTON
USE THE UP / DOWN BUTTONS to choose one of the settings to adjust.
PRESS THE BACK BUTTON TO EXIT the settings function when you are done.
LANGUAGE
PRESS THE OK BUTTON.
USE THE UP / DOWN BUTTONS to choose one of the available
languages.
PRESS THE OK BUTTON again to confirm the change.
THE APPLIANCE IS TURNED ON OR OFF using
the On/Off button.
ON/OFF
WHEN THE APPLIANCE IS TURNED OFF, all but two
buttons are non-responsive. I.E. The Start but-
ton (see Jet Start) and the OK button (see
Kitchen Timer). The 24 hour clock is displayed.
WHEN THE APPLIANCE IS TURNED ON, all buttons
function normally and the 24 hour clock is not
displayed.
NOTE: The oven behavior may differ from the
above described, depending on the ECO func-
tion being turned ON or OFF (see ECO for more
information).
THE DESCRIPTIONS IN THIS IFU assume that the
oven is turned ON .








