Whirlpool AKZ 478/01 Operating instructions

User and maintenance manual
Manuel d’utilisation et d’entretien
EN
AKZ 478/01
AKZ 480/01

EN1
These instructions shall also be available on website: www.whirlpool.eu
YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT
This manual and the appliance itself provide important safety warnings, to be read and observed at all times.
All safety warnings give specific details of the potential risk present
and indicate how to reduce risk of injury, damage and electric shock
resulting from improper use of the appliance. Carefully observe the
following instructions:
- Use protective gloves to perform all unpacking and installation
operations.
- The appliance must be disconnected from the power supply before
carrying out any installation work.
- Installation and maintenance must be carried out by a qualified
technician, in compliance with the manufacturer’s instructions and
local safety regulations. Do not repair or replace any part of the
appliance unless specifically stated in the user manual.
- Power cable replacement must be carried out by a qualified
electrician. Contact an authorized service centre.
- Regulations require that the appliance is earthed.
- The power cable must be long enough for connecting the
appliance, once fitted in its housing, to the main power supply.
- For installation to comply with current safety regulations, an all-
pole disconnect switch with minimum contact gap of 3 mm must
be utilized.
- Do not use multiple plug adaptors if the oven is fitted with a plug.
- Do not use extension leads.
- Do not pull the power supply cable.
- The electrical components must not be accessible to the user after
installation.
- If the surface of the induction plate is cracked, do not use it and
switch off the appliance to avoid the possibility of electric shock
(only for models with induction function).
IMPORTANT SAFETY INSTRUCTIONS
This is the danger symbol, pertaining to safety, which alerts users to potential risks to themselves and others.
All safety warnings are preceded by the danger symbol and the following terms:
DANGER Indicates a hazardous situation which, if not avoided, will cause serious injury.
WARNING Indicates a hazardous situation which, if not avoided, could cause serious injury.

EN2
- Do not touch the appliance with any wet part of the body and do
not operate it when barefoot.
- This appliance is designed solely for use as a domestic appliance
for cooking food. No other type of use is permitted (e.g.: heating
rooms). The Manufacturer declines all responsibility for
inappropriate use or incorrect setting of the controls.
- The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Very young (0-3 years) and young children (3-8 years) shall
be kept away unless continuously supervised.
- Children from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge can use this appliance only if they are supervised or
have been given instructions on safe appliance use and if they
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
- During and after use, do not touch the heating elements or interior
surfaces of the appliance - risk of burns. Do not allow the appliance
to come into contact with cloths or other flammable materials until
all the components have cooled down completely.
- At the end of cooking, exercise caution when opening the
appliance door, letting the hot air or steam exit gradually before
accessing the oven. When the appliance door is shut, hot air is
vented from the aperture above the control panel. Do not obstruct
the vent apertures.
- Use oven gloves to remove pans and accessories, taking care not to
touch the heating elements.
- Do not place flammable materials in or near the appliance: a fire
may break out if the appliance is inadvertently switched on.
- Do not heat or cook sealed jars or containers in the appliance.
The pressure that builds up inside might cause the jar to explode,
damaging the appliance.
- Do not use containers made of synthetic materials.
- Overheated oils and fats catch fire easily. Always remain vigilant
when cooking foods rich in fat and oil.

EN3
- Never leave the appliance unattended during food drying.
- If alcoholic beverages are used when cooking foods (e.g. rum,
cognac, wine), remember that alcohol evaporates at high
temperatures. As a result, there is a risk that vapours released
by the alcohol may catch fire upon coming into contact with the
electrical heating element.
- Never use steam cleaning equipment.
- Do not touch the oven during the pyrolysis cycle. Keep children
away from the oven during the pyrolysis cycle. Excess spillage must
be removed from the oven cavity before cleaning cycle (only for
ovens with Pyrolysis function).
- Only use the temperature probe recommended for this oven.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass since they can scratch the surface, which may
result in shattering of the glass.
- Ensure that the appliance is switched off before replacing the lamp
to avoid the possibility of electric shock.
- Do not use aluminium foil to cover food in the cooking vessel (only
for ovens with cooking vessel supplied).
Scrapping of household appliances
- This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with
local waste disposal regulations. Before scrapping, cut off the power supply cable.
- For further information on the treatment, recovery and recycling of household electrical appliances,
contact your competent local authority, the collection service for household waste or the store where
you purchased the appliance.
After unpacking the oven, make sure that it has not been damaged during transport and that the oven
door closes properly. In the event of problems, contact the dealer or your nearest After-sales Service. To
prevent any damage, only remove the oven from its polystyrene foam base at the time of installation.
PREPARING THE HOUSING UNIT
• Kitchen units in contact with the oven must be heat resistant (min 90°C).
• Carry out all cabinet cutting work before fitting the oven in the housing and carefully remove all
wood chips and sawdust.
• After installation, the bottom of the oven must no longer be accessible.
• For correct appliance operation, do not obstruct the minimum gap between the worktop and the
upper edge of the oven.
ELECTRICAL CONNECTION
Make sure the power voltage specified on the appliance dataplate is the same as the mains voltage. The
dataplate is on the front edge of the oven (visible when the door is open).
• Power cable replacement (type H05 RR-F 3 x 1.5 mm2) must be carried out by a qualified electrician.
Contact an authorized service centre.
INSTALLATION

EN4
GENERAL RECOMMENDATIONS
Before use:
- Remove cardboard protection pieces, protective film and adhesive labels from accessories.
- Remove the accessories from the oven and heat it at 200° for about an hour to eliminate the smell
and fumes from the insulating materials and protective grease.
During use:
- Do not place heavy objects on the door as they could damage it.
- Do not cling to the door or hang anything from the handle.
- Do not cover the inside of the oven with aluminium foil.
- Never pour water into the inside of a hot oven; this could damage the enamel coating.
- Never drag pots or pans across the bottom of the oven as this could damage the enamel coating.
- Make sure that the electrical cables of other appliances do not touch hot parts of the oven or become
trapped in the door.
- Do not expose the oven to atmospheric agents.
Disposal of packing material
The packing material is 100% recyclable and is marked with the recycle symbol ( ). The various parts of
the packing must therefore be disposed of responsibly and in full compliance with local authority
regulations governing waste disposal.
Scrapping the product
- This appliance is marked in compliance with European Directive 2002/96/EC, Waste Electrical and
Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
- The symbol on the product or on the accompanying documentation indicates that it should not be
treated as domestic waste but must be taken to an appropriate collection centre for the recycling of
electrical and electronic equipment.
Energy saving
- Only pre-heat the oven if specified in the cooking table or your recipe.
- Use dark lacquered or enamelled baking moulds as they absorb heat far better.
- Switch the oven off 10/15 minutes before the set cooking time. Food requiring prolonged cooking will
continue to cook even once the oven is switched off.
- This oven, which is intended to come into contact with foodstuffs, complies with European
Regulation ( ) n.1935/2004 and has been designed, manufactured and sold in conformity with the
safety requirements of the “Low Voltage” directive 2006/95/CE (which replaces 73/23/CEE and
subsequent amendments), the protection requirements of “EMC” 2004/108/CE.
The oven does not work:
• Check for the presence of mains electrical power and if the oven is connected to the electrical supply.
• Turn off the oven and restart it to see if the fault persists.
The door will not open:
• Turn off the oven and restart it to see if the fault persists.
•Important: during self-cleaning, the oven door will not open. Wait until it unlocks automatically (see
paragraph “Cleaning cycle of ovens with pyrolysis function”).
SAFEGUARDING THE ENVIRONMENT
DECLARATION OF CONFORMITY
TROUBLESHOOTING GUIDE

EN5
The electronic programmer does not work:
• If the display shows the letter “ ” followed by a number, contact your nearest After-sales Service.
Specify in this case the number that follows the letter “ ”.
Before calling the After-Sales Service:
1. See if you can solve the problem yourself with the help of the suggestions given in the
“Troubleshooting guide“.
2. Switch the appliance off and back on again it to see if the fault persists.
If after the above checks the fault still occurs, get in touch with the nearest After-sales Service.
Always specify:
• a brief description of the fault;
• the type and exact model of the oven;
• the service number (number after the word Service on the rating plate), located on the right hand
edge of the oven cavity (visible when the oven door is open). The service number is also indicated on
the guarantee booklet;
• your full address;
• your telephone number.
If any repairs are required, please contact an authorised After-sales Service (to guarantee that original
spare parts will be used and repairs carried out correctly).
Oven exterior
IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally
comes into contact with the appliance, clean immediately with a damp microfibre cloth.
• Clean the surfaces with a damp microfibre cloth. If it is very dirty, add a few drops of washing up
detergent to the water. Finish off with a dry cloth.
Oven interior
IMPORTANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin
enamelled surfaces and the oven door glass.
• After every use, allow the oven to cool then clean it preferably while it is still warm in order to remove
built-up dirt and stains caused by food residues (e.g. food with a high sugar content).
• Use proprietary oven detergents and follow the manufacturer’s instructions to the letter.
• Clean the door glass with a suitable liquid detergent. The oven door can be removed to facilitate
cleaning (see MAINTENANCE).
• The top heating element of the grill (see MAINTENANCE) can be lowered (some models only) to clean
the roof of the oven.
N.B.: during prolonged cooking of foods with a high water content (e.g. pizza, vegetables, etc.)
condensation may form on the inside of the door and around the seal. When the oven is cold, dry the
inside of the door with a cloth or sponge.
Accessories:
• Soak the accessories in water with washing up detergent immediately after use, handling them with
oven gloves if still hot.
• Food residues can be easily removed using a brush or sponge.
AFTER-SALES SERVICE
CLEANING
WARNING - Never use steam cleaning equipment.
- Only clean the oven when it is cool to the touch.
- Disconnect the appliance from the power supply.

EN6
Cleaning the rear wall and catalytic side panels of the oven (if present):
IMPORTANT: do not use corrosive or abrasive detergents, coarse brushes, pot scourers or oven
sprays which could damage the catalytic surface and ruin its self-cleaning properties.
• Operate the oven empty with the fan-assisted function at 200°C for about one hour
• Next, leave the appliance to cool down before removing any food residue with a sponge.
Cleaning cycle of ovens with pyrolysis function (if present):
This function burns off spatters produced inside the oven during cooking at a temperature of approx.
500°C. At this high temperature, the deposits turn into a light ash which can be easily wiped away with a
damp cloth, when the oven is cool. Do not select the pyrolysis function after every use, only when the oven
is very dirty or produces smoke or fumes while preheating or cooking.
• If the oven is installed below a hob, make sure that all burners or electric hotplates are switched off
during the self-cleaning (pyrolysis) function.
• Remove all accessories before running the pyrolysis function (also the lateral grids).
• For optimum cleaning of the oven door, remove the worst soiling with a damp sponge before using
the pyrolytic function.
The appliance is equipped with 2 pyrolysis functions:
1. Energy-saving cycle (PYRO EXPRESS/ECO): which consumes approximately 25% less energy than the
standard cycle. Select it at regular intervals (after cooking meat on 2 or 3 consecutive occasions).
2. Standard cycle (PYRO): which is suitable for cleaning a very dirty oven.
• In any case, after a certain number of uses and depending on how dirty the oven is, a message on the
oven display advises you to run a self-cleaning cycle.
N.B.: during the pyrolysis function, the oven door will not open; it will remain locked until the
temperature inside the oven has returned to an acceptably safe level.
REMOVING THE DOOR
To remove the door:
1. Open the door fully.
2. Lift the catches and push them forwards as far as they will go (Fig. 1).
3. Close the door as far as it will go (A), lift it up (B) and turn it (C) until it is released (D) (Fig. 2).
To refit the door:
1. Insert the hinges in their seats.
2. Open the door fully.
3. Lower the two catches.
4. Close the door.
WARNING - Do not touch the oven during the pyrolysis cycle.
- Keep children away from the oven during the pyrolysis cycle.
MAINTENANCE
WARNING - Use protective gloves.
- Ensure the oven is cold before carrying out the following operations.
- Disconnect the appliance from the power supply.
Fig. 1 Fig. 2

EN7
MOVING THE TOP HEATING ELEMENT (SOME MODELS ONLY)
1. Remove the side accessory holder grilles (Fig. 3).
2. Pull the heating element out a little (Fig. 4) and lower it (Fig. 5).
3. To reposition the heating element, lift it up, pulling it slightly towards you, making sure it comes to
rest on the lateral supports.
REPLACING THE OVEN LAMP
To replace the rear lamp (if present):
1. Disconnect the oven from the power supply.
2. Unscrew the lamp cover (Fig. 6), replace the lamp (see note for lamp type) and screw the lamp cover
back on.
3. Reconnect the oven to the power supply.
To replace the side lamp (if present):
1. Disconnect the oven from the power supply.
2. Remove the side accessory holder grilles, if present (Fig. 3).
3. Use a screwdriver to prise off the lamp cover (Fig. 7).
4. Replace the lamp (see note for lamp type) (Fig. 8).
5. Reposition the lamp cover, pushing it on firmly until it snaps into place (Fig. 9).
6. Refit the side accessory holder grilles.
7. Reconnect the oven to the power supply.
N.B.:
- Only use 25-40W/230V type E-14, T300°C incandescent lamps, or 20-40W/230 V type G9, T300°C
halogen lamps.
- The lamp used in the appliance is specifically designed for electrical appliances and is not suitable for
household room illumination (Commission Regulation (EC) No 244/2009).
- Lamps are available from our After-sales Service.
IMPORTANT:
- If using halogen lamps, do not handle with bare hands since fingerprints can damage them.
- Do not use the oven until the lamp cover has been repositioned.
Fig. 3 Fig. 4 Fig. 5
Fig. 6 Fig. 7 Fig. 8 Fig. 9

EN8
FOR ELECTRICAL CONNECTION, SEE THE PARAGRAPH ON INSTALLATION
1. Control panel
2. Upper heating element/grill
3. Cooling fan (not visible)
4. Dataplate (not to be removed)
5. Lamp
6. Circular heating element (not visible)
7. Fan
8. Turnspit
9. Lower heating element (not visible)
10. Door
11. Position of shelves (the number of shelves is indicated on the front of the oven)
12. Rear wall
N.B.:
- During cooking, the cooling fan may switch on at intervals in order to minimise energy consumption.
- At the end of cooking, after the oven has been switched off, the cooling fan may continue to run for a
while.
- When the oven door is opened during cooking, the heating elements switch off.
ACCESSORIES SUPPLIED
A. WIRE SHELF: the wire shelf can be used to grill food or as a support for pans, cake tins and other
ovenproof cooking receptacles.
B. DRIP TRAY: the drip tray is designed to be positioned under the wire shelf in order to collect fat or as
an oven tray for cooking meat, fish, vegetables, focaccia, etc.
C. TURNSPIT: for even roasting of large pieces of meat and poultry.
The number of accessories may vary according to which model is purchased.
ACCESSORIES NOT SUPPLIED
Other accessories can be purchased separately from the After-sales Service.
INSTRUCTIONS FOR OVEN USE
Fig. A Fig. B Fig. C

EN9

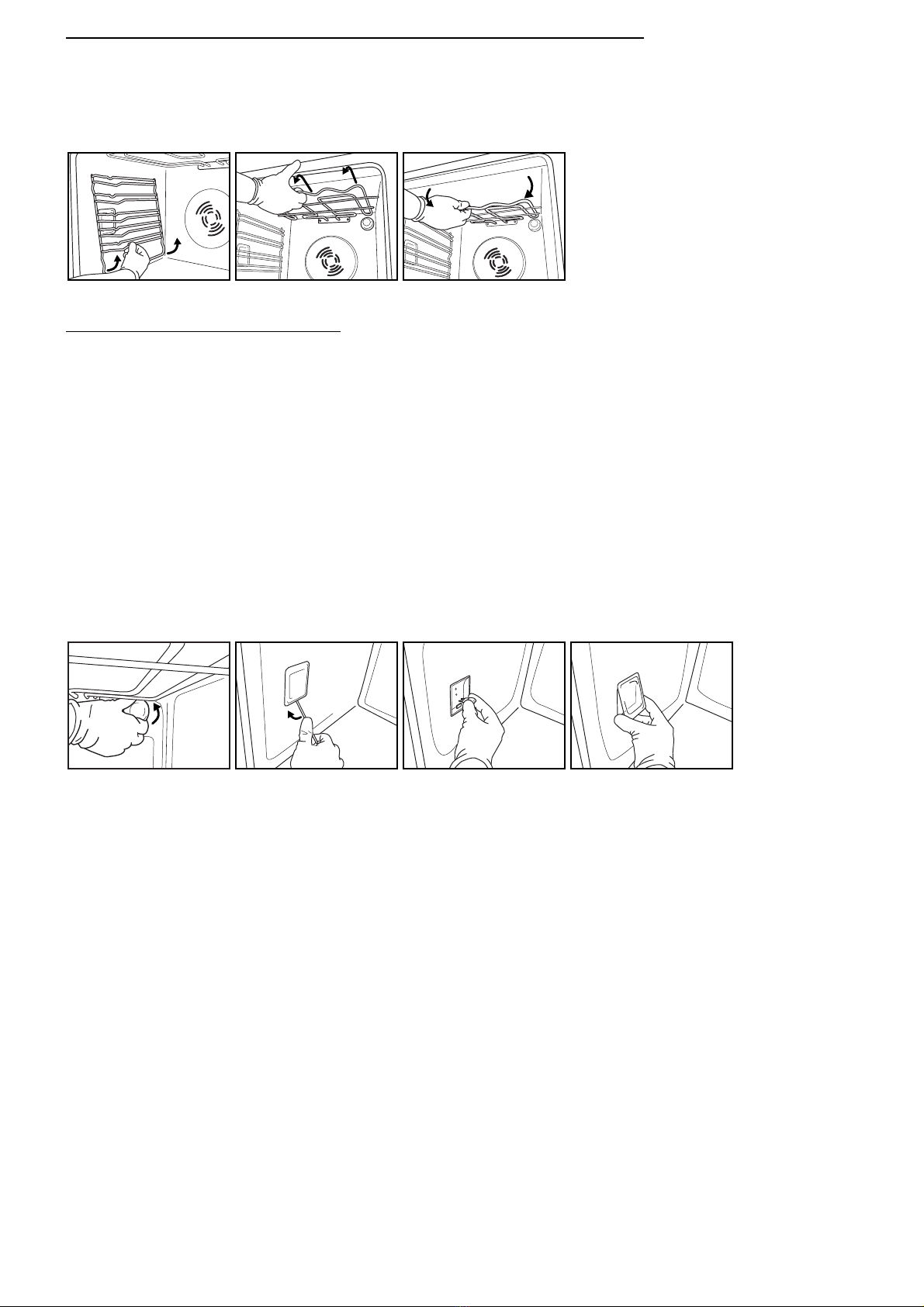

INSERTING WIRE SHELVES AND OTHER ACCESSORIES IN THE OVEN
1. Insert the wire shelf horizontally, with the raised part “A” upwards (Fig. 1).
2. The other accessories, like the drip tray and baking tray, are inserted with the raised part on the flat
section “B” facing upwards (Fig. 2).
CONTROL PANEL DESCRIPTION
ELECTRONIC PROGRAMMER
1. FUNCTION SELECTOR KNOB: On/off and function selector knob
2. BROWSE KNOB: for browsing the menu and adjusting pre-set values
3. SELECTION/CONFIRMATION BUTTON
N.B.:the display shows for indications regarding this button.
LIST OF FUNCTIONS
Turn the “Functions” knob to any position and the oven switches on: the display shows the functions or the
associated submenus.
The submenus are available and selectable by turning the knob to the functions GRILL, SPECIALS,
SETTINGS, BREAD/PIZZA, AUTOMATIC OVEN CLEANING.
N.B.:for the list and description of functions, see the specific table at page14.
DESCRIPTION OF DISPLAY
A. Display of heating elements activated during the various cooking functions
B. Time management symbols: timer, cooking time, end of cooking time, time
C. Information regarding selected functions
D. Automatic BREAD/PIZZA function selected
E. Indication of door locked during automatic cleaning cycle (pyro-cleaning)
F. Internal oven temperature
G. Pyrolisis function
H. Browning
I. Special functions: Defrost, Keep Warm, Rising
Fig. 1 Fig. 2
DISPLAY
1 23
A
B C D
E
I H G F

EN10

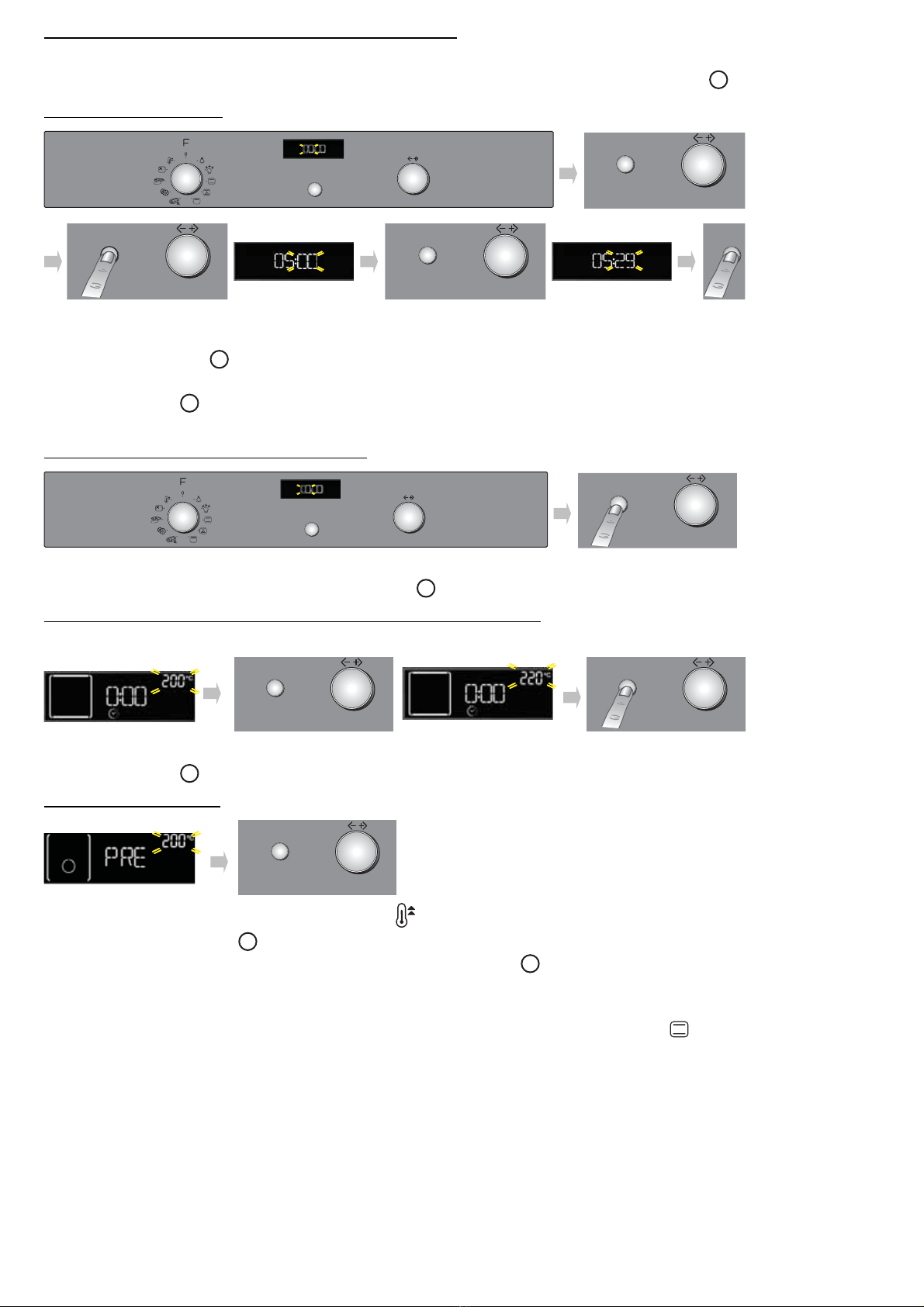

STARTING THE OVEN - SETTING LANGUAGE
At the first switch on of the oven, the display shows: ENGLISH.
Turn the “Browse” knob until the desired language is displayed, then press the button to confirm.
SETTING THE TIME
After setting the languages, the time must be set on the clock. The two hour digits flash on the display.
1. Turn the “Browse” knob to display the correct hour.
2. Press the button to confirm; the two minute digits flash on the display.
3. Turn the “Browse” knob to display the correct minutes.
4. Press button to confirm.
To change the time, for example following a power cut, see the next paragraph (SETTINGS).
SELECTING COOKING FUNCTIONS
1. Turn the “Functions” knob to the desired function: the cooking settings are shown on the display.
2. If the values shown are those desired, press . To change them, proceed as indicated below.
SETTING THE TEMPERATURE/OUTPUT OF THE GRILL
To change the temperature or output of the grill, proceed as follows:
1. Turn the “Browse” knob to display the desired value.
2. Press button to confirm.
FAST PREHEATING
1. Turn the “Functions” knob to the symbol to select the fast preheating function.
2. Confirm by pressing : the settings are shown on the display.
3. If the proposed temperature is that desired, press button . To change the temperature, proceed as
described in previous paragraphs. The message PRE appears on the display. When the set
temperature is reached, the corresponding value (e.g. 200°) and an acoustic signal will sound. At the
end of preheating, the oven automatically selects the conventional function .
At this point food can be placed in the oven for cooking.
4. If you wish to set a different cooking function, turn the “Functions” knob and select the desired
function.
3
3
3
3
3
3
3

EN11
SETTING COOKING TIME
This function can be used to cook food for a set length of time, from a minimum of 1 minute to the
maximum time allowed by the selected function, after which the oven switches off automatically.
1. Once the temperature is confirmed, the symbol flashes.
2. Turn the adjustment knob to display the desired cooking time.
3. To confirm the cooking time, press button .
SETTING END OF COOKING TIME/START DELAYED
IMPORTANT:the start delayed setting is not available for the following functions:
FAST PREHEATING, BREAD/PIZZA.
N.B.:with this setting, the selected temperature is reached in a more gradual way, so cooking times
will be slightly longer than stated in the cooking table.
The end of cooking time can be set, delaying the start of cooking by up to a maximum of 23 hours and
59 minutes. This can only be done once cooking time has been set.
After setting cooking time, the display shows the end of cooking time (for example 15:45) and the
symbol flashes.
To delay the end of cooking time, and thus also the cooking start time, proceed as follows:
1. Turn the “Browse” knob to display the time you wish cooking to end (for example 16:00).
2. Confirm the selected value by pressing button : the two dots of end of cooking time flash,
indicating that the setting has been made correctly.
3. The oven will automatically delay the start of cooking so as to finish cooking at the set time.
TIMER
This function can be used only with the oven switched off and is useful, for example, for monitoring the
cooking time of pasta. The maximum time which can be set is 23 hours and 59 minutes.
1. With the “Functions” knob at zero, turn the “Browse” knob to display the desired time.
2. Press button to start the countdown. When the set time has elapsed, the display will show “END”
and an acoustic signal will sound. To mute the acoustic signal, press button (the time of day
appears on the display).
SELECTING SPECIAL FUNCTIONS
Turn the “Functions” knob indicator to the symbol to access a submenu containing special functions.
To browse, select and start one of these functions, proceed as follows:
1. Turn the “Functions” knob to symbol : the display shows “ DEFROST” along with this function’s
corresponding symbol.
2. Turn the “Browse” knob to scroll the list of functions: DEFROST, KEEP WARM, RISING.
3. Press button to confirm.
3
3
3
3
3

EN12
BROWNING
At the end of cooking, with certain functions, the display indicates the possibility of browning. This
function can only be used when cooking time has been set.
At the end of cooking time, the display shows: “PRESS TO BROWN”. Press button , and the oven starts
a 5 minute browning cycle. This function can be selected consecutively a maximum of twice.
BREAD/PIZZA FUNCTION SELECTION
Turn the “Functions” knob indicator to the symbol to access a submenu containing two automatic
cooking functions for “bread” and “pizza”.
Bread
1. Turn the “Functions” knob to symbol : the display shows “BREAD” and AUTO at the side.
2. Press to select the function.
3. Turn the “Browse” knob to set the required temperature (between 180°C and 220°C) and confirm with
button .
4. Turn the “Browse” knob to set the required cooking duration and press to start cooking.
Pizza
1. Turn the Functions knob to symbol : the display shows “BREAD”. To select the “PIZZA” function,
proceed as follows:
2. Turn the “Browse” knob: “PIZZA” appears on the display.
3. Press to select the function.
4. Turn the “Browse” knob to set the required temperature (between 220°C and 250°C) and confirm with
button .
5. Turn the “Browse” knob to set the required cooking duration and press to start cooking.
SETTINGS
Turn the “Functions” knob indicator to the symbol to access a submenu containing five display settings
which can be changed.
Language
1. Turn the “Browse” knob to display LANGUAGE.
2. Press to access the setting
3. Turn the “Browse” knob until desired language is displayed then press the confirmation button .
Clock
Turn the “Browse” knob to display CLOCK. To change the time of day, see the previous paragraph
(SETTING THE TIME).
3
3
3
3
3
3
3
3
3

EN13
Eco
With the ECO mode selected (ON), the display reduces the brightness, showing the clock when the oven
is in a stand-by position for 3 minutes. To view information on the display, simply press a button or turn
aknob.
1. Turn the “Browse” knob to display “ECO”.
2. Press to access the setting (ON/OFF).
3. Turn the “Browse” knob to select the desired setting and confirm by pressing button .
4. During a cooking function, if the Eco Mode is activated, the cavity lamp will be switched off after
1 minute of cooking and reactivated for each user interaction.
Acoustic signal
To activate or deactivate the acoustic signal, proceed as follows:
1. Turn the “Browse” knob to display “SOUND”.
2. Press to access the setting (ON/OFF).
3. Turn the “Browse” knob to select the desired setting and confirm by pressing button .
Brightness
To change the display brightness, proceed as follows:
1. Turn the “Browse” knob to display “BRIGHTNESS.
2. Press button : number 1 appears on the display.
3. Turn the “Browse” knob to increase or decrease brightness and confirm by pressing .
AUTOMATIC OVEN CLEANING
For the description of this function, see the chapter CLEANING and the functions table at page14.
To activate the oven’s automatic cleaning cycle (pyro-cleaning), proceed as follows:
1. Turn the “Functions” knob to symbol : the word PYRO appears on the display.
2. Press button to confirm your choice and start the pyro-cleaning cycle.
To select ECO pyro-cleaning, turn the “Browse” knob: the word ECO appears bottom right on the display.
Press button to start the shorter programme.
During pyro-cleaning, the oven door is automatically locked and the symbol appears on the display. The
door remains locked at the end of the cleaning cycle: “COOL” appears on the display, indicating the oven
is still cooling down. When the oven cools to a safe temperature, the symbol switches off and the display
shows “END”.
N.B.:the automatic door lock control procedure fails to execute properly, the symbol appears on the
display. If, on the other hand, the door remains closed due to a fault in the locking system, and “DOOR
LATCHED” appear on the display. In this case, contact the After-sales Service.
3
3
3
3
3
3
3
3

EN14
OVEN FUNCTION DESCRIPTION TABLE
FUNCTIONS KNOB
OFF To stop cooking and switch off the oven.
LAMP To switch the oven interior light on/off.
SPECIALS
DEFROST
To speed up defrosting of food. Place food on the middle shelf. Leave food
in its packaging in order to prevent it from drying out on the outside.
KEEP WARM
For keeping just-cooked food hot and crisp (e.g: meat, fried food or flans).
Place food on the middle shelf. The function will not activate if the
temperature in the oven is above 65°C.
RISING
For optimal rising of sweet or savoury dough. To safeguard the quality of
proving, the function will not activate if the temperature in the oven is
above 40°C. Place the dough on the 2nd shelf. The oven does not have to
be preheated.
CONVENTIONAL To cook any kind of dish on one shelf only. Use the 2nd shelf. Preheat the
oven before placing food inside.
CONVECTION BAKE
For baking cakes with liquid filling (sweet or savoury) on a single shelf. This
function can also be used for cooking on two shelves. Switch the position
of the dishes to cook food more evenly. Use the 2nd shelf to cook on one
shelf only, and the 1st and 3rd to cook on two shelves. Preheat the oven
before cooking.
GENTLE
CONVECTION BAKE
To cook food requiring medium/low cooking temperatures on a maximum
of two shelves. This function is used to cook gently and slowly on two
levels without having to switch the position of the dishes during the
cooking process. Use the 2nd shelf to cook on one shelf only, and the 1st
and 4th to cook on two shelves. Preheat the oven before cooking.
GRILL
To grill steak, kebabs and sausages; to cook vegetables au gratin and toast
bread. Place food on the 4th shelf. When grilling meat, use the drip tray to
collect the cooking juices. Position it on the 3rd shelf, adding approx. half a
litre of water. The oven does not have to be preheated. During cooking the
oven door must remain closed.
TURBO GRILL
To roast large joints of meat (legs, roast beef, chickens). Position the food
on the middle shelves. Use the drip tray to collect the cooking juices.
Position it on the 1st/2nd shelf, adding approx. half a litre of water. The
oven does not have to be preheated. During cooking the oven door must
remain closed. With this function you can also use the turnspit, if provided.
MAXI COOKING
To cook large joints of meat (above 2.5 kg). Use the 1st or 3rd shelves,
depending on the size of the joint. The oven does not have to be
preheated. It is advisable to turn the meat over during cooking for more
even browning. It is best to baste the meat every now and again to prevent
it from drying out.
SETTINGS To set the display (language, time, brightness, buzzer volume, energy
saving).

EN15
BREAD/PIZZA
To bake different types and sizes of pizza and bread. This function contains
two programmes with predefined settings. Simply indicate the values
required (temperature and time) and the oven will manage the cooking
cycle automatically. Place the dough on the 2nd shelf after preheating the
oven.
AUTOMATIC OVEN
CLEANING
To eliminate cooking spatters by means of a cycle at very high temperature
(approx. 500°). Two self-cleaning cycles are available: a complete cycle
(PYRO) and a shorter cycle (ECO). It is advisable to use the complete cycle
only in case of a very dirty oven, and the shorter cycle if the function is
used at regular intervals.
FAST PREHEATING To preheat the oven rapidly.
FUNCTIONS KNOB

EN16
COOKING TABLE
Recipe Function Pre-
heating
Shelf (from
bottom)
Temp.
(°C)
Time
(min)
Accessories and
notes
Leavened cakes
Yes 2160-180 30-90 Cake tin on wire shelf
GENTLE
Yes 1-4 160-180 30-90
Shelf 4: cake tin on
wire shelf
Shelf 1: cake tin on
wire shelf
Filled pies
(cheesecake,
strudel, apple pie)
Yes 2160-200 30-85
Drip tray/baking tray
or cake tin on wire
shelf
Yes 1-3 160-200 35-90
Shelf 3: cake tin on
wire shelf (switch
levels halfway
through cooking)
Shelf 1: cake tin on
wire shelf
Biscuits / Tartlets
Yes 2170-180 15-45 Drip tray / baking
tray
GENTLE
Yes 1-4 160-170 20-45
Shelf 4: wire shelf
Shelf 1: drip tray /
baking tray
Choux buns
Yes 2180-200 30-40 Drip tray / baking
tray
GENTLE
Yes 1-4 180-190 35-45
Shelf 4: oven tray on
wire shelf
Shelf 1: drip tray /
baking tray
Meringues
Yes 290 110-150 Drip tray / baking
tray
GENTLE
Yes 1-4 90 130-150
Shelf 4: oven tray on
wire shelf
Shelf 1: drip tray /
baking tray
Bread / Pizza /
Focaccia
Yes 2 190-250 15-50 Drip tray / baking
tray
Yes 1-3 190-250 25-45
Shelf 3: oven tray on
wire shelf (switch
levels halfway
through cooking)
Shelf 1: drip tray /
baking tray
Bread (Bread) Yes 2180-220 30-50 Drip tray / baking
tray or wire shelf
Pizza (Pizza) Yes 2220-250 15-30 Drip tray / baking
tray

EN17
Frozen pizza
Yes 2250 10-15
Shelf 3: drip tray /
baking tray or wire
shelf
Yes 1-3 250 10-20
Shelf 3: oven tray on
wire shelf (switch
levels halfway
through cooking)
Shelf 1: drip tray /
baking tray
Savoury pies (veg-
etable pie, quiche)
Yes 2180-190 40-55 Cake tin on wire shelf
Yes 1-3 180-190 40-55
Shelf 3: cake tin on
wire shelf (switch
levels halfway
through cooking)
Shelf 1: cake tin on
wire shelf
Vols-au-vent / Puff
pastry crackers
Yes 2190-200 20-30 Drip tray / baking
tray
GENTLE
Yes 1-4 180-190 20-40
Shelf 4: oven tray on
wire shelf
Shelf 1: drip tray /
baking tray
Lasagne / Baked
pasta / Cannelloni
/ Flans
Yes 2190-200 45-65 Drip tray or oven tray
on wire shelf
Lamb / Veal / Beef
/ Pork 1 Kg Yes 2190-200 70-100 Drip tray or oven tray on wire shelf
Chicken / Rabbit /
Duck 1 Kg Yes 2200-230 50-100 Drip tray or oven tray on wire shelf
Turkey / Goose
3Kg Yes 1/2 190-200 80-130 Drip tray or oven tray on wire shelf
Baked fish / en
papillote (fillet,
whole)
Yes 2180-200 40-60 Drip tray or oven tray
on wire shelf
Stuffed vegeta-
bles (tomatoes,
courgettes,
aubergines)
Yes 2180-200 50-60 Oven tray on wire
shelf
Toast - 4 High (3) 2-5 Wire shelf
Fish fillets / steaks - 4 Medium (2) 20-35
Shelf 4: wire shelf
(turn food halfway
through cooking)
Shelf 3: drip tray with
water
Sausages / Kebabs
/ Spare ribs /
Hamburgers
- 4 Medium - High (2-3) 15-40
Shelf 4: wire shelf
(turn food halfway
through cooking)
Shelf 3: drip tray with
water
Recipe Function Pre-
heating
Shelf (from
bottom)
Temp.
(°C)
Time
(min)
Accessories and
notes

EN18
Roast chicken
1-1.3 Kg
- 2 Medium (2) 50-65
Shelf 2: wire shelf
(turn food two thirds
of the way through
cooking)
Shelf 1: drip tray with
water
- 2 High (3) 60-80
Shelf 2: turnspit
(if present)
Shelf 1: drip tray with
water
Roast Beef rare
1Kg - 2 Medium (2) 35-45
Oven tray on wire
shelf (turn food two
thirds of the way
through cooking if
necessary)
Leg of lamb /
Shanks - 2 Medium (2) 60-90
Drip tray or oven tray
on wire shelf (turn
food two thirds of
the way through
cooking if necessary)
Roast potatoes - 2 Medium (2) 45-55
Drip-tray / baking
tray (if necessary,
turn food two thirds
of the way through
cooking)
Vegetable gratin - 2 High (3) 10-15 Oven tray on wire
shelf
Lasagna & Meat Yes 1-3 200 50-100
Shelf 3: Oven tray on
wire shelf (turn food
two thirds of the way
through cooking if
necessary)
Shelf 1: drip tray or
oven tray on wire
shelf
Meat & Potatoes Yes 1-3 200 45-100
Shelf 3: Oven tray on
wire shelf (turn food
two thirds of the way
through cooking if
necessary)
Shelf 1: drip tray or
oven tray on wire
shelf
Fish & Vegetables
GENTLE
Yes 1-4 180 30-50
Shelf 4: oven tray on
wire shelf
Shelf 1: drip tray or
oven tray on wire
shelf
Recipe Function Pre-
heating
Shelf (from
bottom)
Temp.
(°C)
Time
(min)
Accessories and
notes
