Whirlpool AKZ 6240 IX Operating instructions

BUILT-IN OVEN
EINBAU-BACKOFEN
FOUR ENCASTRABLE
INBOUWOVEN

User and maintenance manual
EN
Manuel d'utilisation et d'entretien
FR
Bedienungs- undWartungsanleitung
DE
Handleiding voor gebruik en onderhoud
NL
 AR

ENGLISH
LANGUAGES
EN PAGE 1
DE PAGE 27
FR PAGE 53
NL PAGE 79
AR PAGE 105
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ............. 2
DECLARATION OF CONFORMITY .............................. 5
SAFEGUARDING THE ENVIRONMENT......................5
INSTALLATION INSTRUCTIONS ..................................6
INSTALLATION................................................... 8
PREPARINGTHE HOUSING UNIT................................ 8
ELECTRICAL CONNECTION..........................................8
GENERAL RECOMMENDATIONS................................8
THE APPLIANCE ................................................ 9
ACCESSORIES.................................................................... 9
INSERTING WIRE SHELVES AND OTHER
ACCESSORIES INTOTHE OVEN ...................................10
MOUNTINGTHE SLIDING SHELVES ..........................10
CONTROL PANEL DESCRIPTION ...................... 11
KNOB ANDTOUCH KEYS...............................................11
LEFT DISPLAY ....................................................................11
RIGHT DISPLAY ................................................................. 11
SETTINGTHE CLOCK.......................................................12
SETTINGS............................................................................12
ON/OFF................................................................................12
SELECTING A FUNCTION .............................................. 12
QUICK START .....................................................................13
SETTINGTHE TEMPERATURE.......................................13
SETTINGTHE GRILL LEVEL............................................ 13
PREHEAT PHASE............................................................... 13
SETTING DURATION ....................................................... 14
UNTIMED COOKING CYCLE..........................................14
TIMED COOKING CYCLE................................................14
SETTING CYCLE END TIME
WITH DELAYED START....................................................14
6TH SENSE FUNCTIONS...................................................15
SPECIAL FUNCTIONS......................................................15
FAST PREHEATING...........................................................15
CAVITY LIGHT.................................................................... 16
KEYLOCK............................................................................16

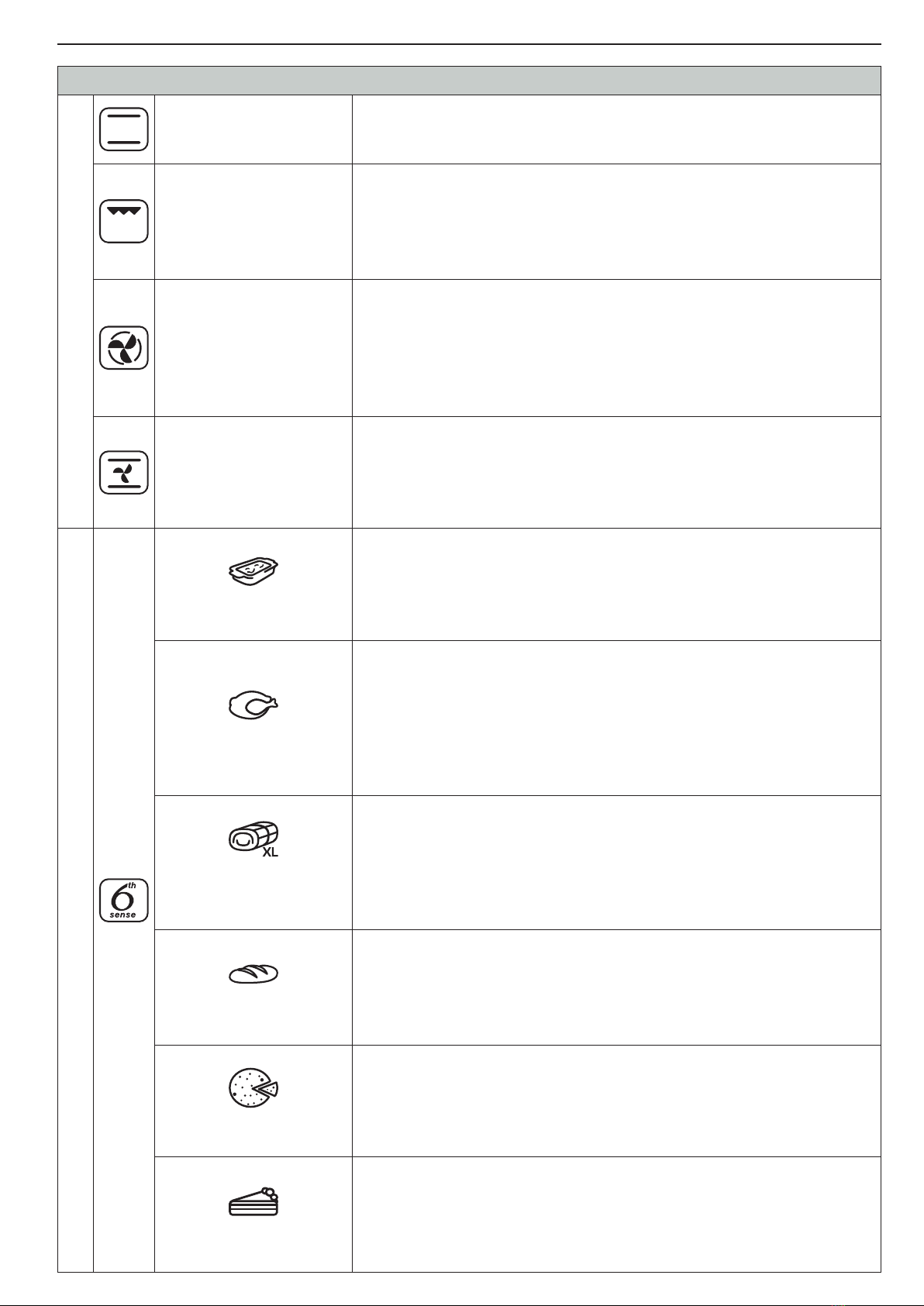

FUNCTION DESCRIPTIONSTABLE ................... 17
COOKINGTABLE................................................ 19
TESTED RECIPES ............................................... 22
RECOMMENDED USE ANDTIPS ....................... 23
CLEANING.......................................................... 24
MAINTENANCE.................................................. 25
REMOVINGTHE DOOR...................................................25
MOVINGTHE TOP HEATING ELEMENT ....................25
REPLACINGTHE OVEN LAMP...................................... 25
TROUBLESHOOTING GUIDE............................. 26
AFTER SALES SERVICES.................................... 26
SCRAPPING OF HOUSEHOLD
APPLIANCES ...................................................... 26

EN 2
IMPORTANT SAFETY INSTRUCTIONS
These instructions are also available on the website: www.whirlpool.eu
YOUR SAFETY ANDTHAT OF OTHERS ISVERY IMPORTANT
This manual and the appliance itself provide important safety
warnings, to be read and observed at all times.
This is the danger symbol, pertaining to safety, which alerts
users to potential risks to themselves and others. All safety
warnings are preceded by the danger symbol and the following
terms:
DANGER Indicates a hazardous situation which, if not
avoided, will cause serious injury.
WARNING Indicates a hazardous situation which, if not
avoided, could cause serious injury.
All safety warnings give specic details of the potential risk present
and indicate how to reduce risk of injury, damage and electric shock
resulting from improper use of the appliance. Carefully observe the
following instructions:
- Use protective gloves to perform all unpacking and installation
operations.
- The appliance must be disconnected from the power supply before
carrying out any installation work.
- Installation and maintenance must be carried out by a qualied
technician, in compliance with the manufacturer’s instructions and
local safety regulations. Do not repair or replace any part of the
appliance unless specically stated in the user manual.
- Power cable replacement must be carried out by a qualied
electrician. Contact an authorised service centre.
- Regulations require that the appliance is earthed.
- Once the appliance is tted in its housing, the power cable must be
long enough to connect the appliance to the main power supply.
- For installation to comply with current safety regulations, an all-pole
disconnect switch with minimum contact gap of 3 mm must be used.
- Do not use multiple plug adaptors if the oven is tted with a plug.
- Do not use extension leads.
- Do not pull the power supply cable.
SAFETY RECOMMENDATIONS

EN 3
SAFETY RECOMMENDATIONS
- The electrical components must not be accessible to the user after
installation.
- If the surface of the induction plate is cracked, do not use it and
switch o the appliance to avoid the possibility of electric shock
(only for models with induction function).
- Do not touch the appliance with any wet part of the body and do not
operate it when barefoot.
- This appliance is designed solely for use as a domestic appliance for
cooking food. No other type of use is permitted (e.g.: heating rooms).
The manufacturer declines all responsibility for inappropriate use or
incorrect setting of the controls.
- The appliance and its accessible parts become hot during use.
- Care should be taken to avoid touching heating elements.
- Toddlers (0-3 years) and young children (3-8 years) must be kept
away unless continuously supervised.
- Children of 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge,
can use this appliance only if they are supervised or have been given
instructions on safe appliance use and understand the hazards
involved. Children must not play with the appliance. Cleaning and
user maintenance must not be performed by children without
supervision.
- During and after use, do not touch the heating elements or interior
surfaces of the appliance – risk of burns. Do not allow the appliance
to come into contact with cloths or other ammable materials until
all the components have cooled down completely.
- At the end of cooking, exercise caution when opening the appliance
door, letting the hot air or steam exit gradually before accessing the
oven. When the appliance door is shut, hot air is vented from the
aperture above the control panel. Do not obstruct the vent
apertures.
- Use oven gloves to remove pans and accessories, taking care not to
touch the heating elements.
- Do not place ammable materials in or near the appliance: a re may
break out if the appliance is inadvertently switched on.
- Do not heat or cook sealed jars or containers in the appliance.
- The pressure that builds up inside might cause the jar to explode,
damaging the appliance.
- Do not use containers made of synthetic materials.
- Overheated oils and fats catch re easily. Always remain vigilant
when cooking foods rich in fat and oil.

EN 4
- Never leave the appliance unattended during food drying.
- If alcoholic beverages are used when cooking foods (e.g. rum,
cognac, wine), remember that alcohol evaporates at high
temperatures. As a result, there is a risk that vapours released by the
alcohol may catch re upon coming into contact with the electrical
heating element.
- Never use steam cleaning equipment.
- Do not touch the oven during the pyrolysis cycle. Keep children away
from the oven during the pyrolysis cycle. Any excess spillage must be
removed from the oven cavity before the cleaning cycle (only for
ovens with Pyrolysis function).
- Use only the temperature probe recommended for this oven.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass as they can scratch the surface, which may result
in the glass shattering.
- Ensure that the appliance is switched o before replacing the lamp
to avoid the possibility of electric shock.
- Do not use aluminium foil to cover food in the cooking vessel (only
for ovens with a cooking vessel supplied).
SAFETY RECOMMENDATIONS

EN 5
BEFORE USE
DECLARATION OF CONFORMITY
This oven, which is intended to come into contact with foodstus, complies with European Regulation
( ) n. 1935/2004 and has been designed, manufactured and sold in conformity with the safety
requirements of the“LowVoltage”directive 2006/95/CE (which replaces 73/23/CEE and subsequent
amendments), the protection requirements of“EMC”2004/108/CE.
This appliance meets the eco design requirements of European regulations n. 65/2014 and n. 66/2014 in
conformity to the European standard EN 60350-1.
SAFEGUARDINGTHE ENVIRONMENT
Disposal of packaging materials
The packaging material is 100% recyclable and is
marked with the recycle symbol ( ).The various
parts of the packaging must therefore be disposed
of responsibly and in full compliance with local
authority regulations governing waste disposal.
Energy saving tips
- Only preheat the oven if specied in the
cooking table or your recipe.
- Use dark-lacquered or enamelled baking
moulds as they absorb heat far better.
- Switch the oven o 10/15 minutes before the
end of the set cooking time. Food requiring
prolonged cooking will continue to cook even
once the oven is switched o.
Scrapping the product
- This appliance is marked in compliance with
European Directive 2002/96/EC, Waste Electrical
and Electronic Equipment (WEEE).
- By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise be
caused by inappropriate waste handling of this
product.
- The symbol on the product or on the
accompanying documentation indicates that it
should not be treated as domestic waste but
must be taken to an appropriate collection
centre for the recycling of electrical and
electronic equipment.

EN 6
595
540
453
575
595
542
20
1
23
5 mm
560 min
30
30
500
550
583 + 2
560 min
30
30
500
550
583 + 2
30
INSTALLATION INSTRUCTIONS
BEFORE USE

EN 7
BEFORE USE
INSTALLATION INSTRUCTIONS

EN 8
INSTALLATION
After unpacking the oven, make sure that it has not been damaged during transport and that the oven door
closes properly.
In the event of problems, contact the dealer or your nearest After-sales Service. To prevent any damage, only
remove the oven from its polystyrene foam base at the time of installation.
PREPARING THE HOUSING UNIT
• Kitchen units in contact with the oven must be heat resistant (min 90°C).
• Carry out all cabinet cutting work and carefully remove all wood chips and sawdust before tting the
oven in the housing.
• After installation, the bottom of the oven must no longer be accessible.
• For correct appliance operation, do not obstruct the minimum gap between the worktop and the
upper edge of the oven.
ELECTRICAL CONNECTION
Make sure the power voltage specied on the
appliance data plate is the same as the mains
voltage. The data plate is on the front edge of the
oven (visible when the door is open).
• Power cable replacement (type
H05 RR-F 3 x 1.5 mm2) must be carried
out by a qualied electrician.
Contact an authorised service centre.
The oven is programmed to operate with power
absorption above 2.5 kW (indicated by“16 A”in the
settings, as shown on page 12) which is
compatible with a domestic power supply above
3 kW.
If the household has a lower power supply, the
setting must be lowered (“13 A”in the settings).
GENERAL RECOMMENDATIONS
Before use:
- Remove cardboard protection pieces,
protective lm and adhesive labels from
accessories.
- Remove the accessories from the oven and heat
it at 200° C for about an hour to eliminate the
smell and fumes from the insulating materials
and protective grease.
During use:
- Do not place heavy objects on the door as they
could damage it.
- Do not cling to the door or hang anything from
the handle.
- Do not cover the inside of the oven with
aluminium foil.
- Never pour water into the inside of a hot oven;
this could damage the enamel coating.
- Never drag pots or pans across the bottom of
the oven as this could damage the enamel
coating.
- Make sure that the electrical cables of other
appliances do not touch hot parts of the oven or
become trapped in the door.
- Do not expose the oven to atmospheric agents.
BEFORE USE
