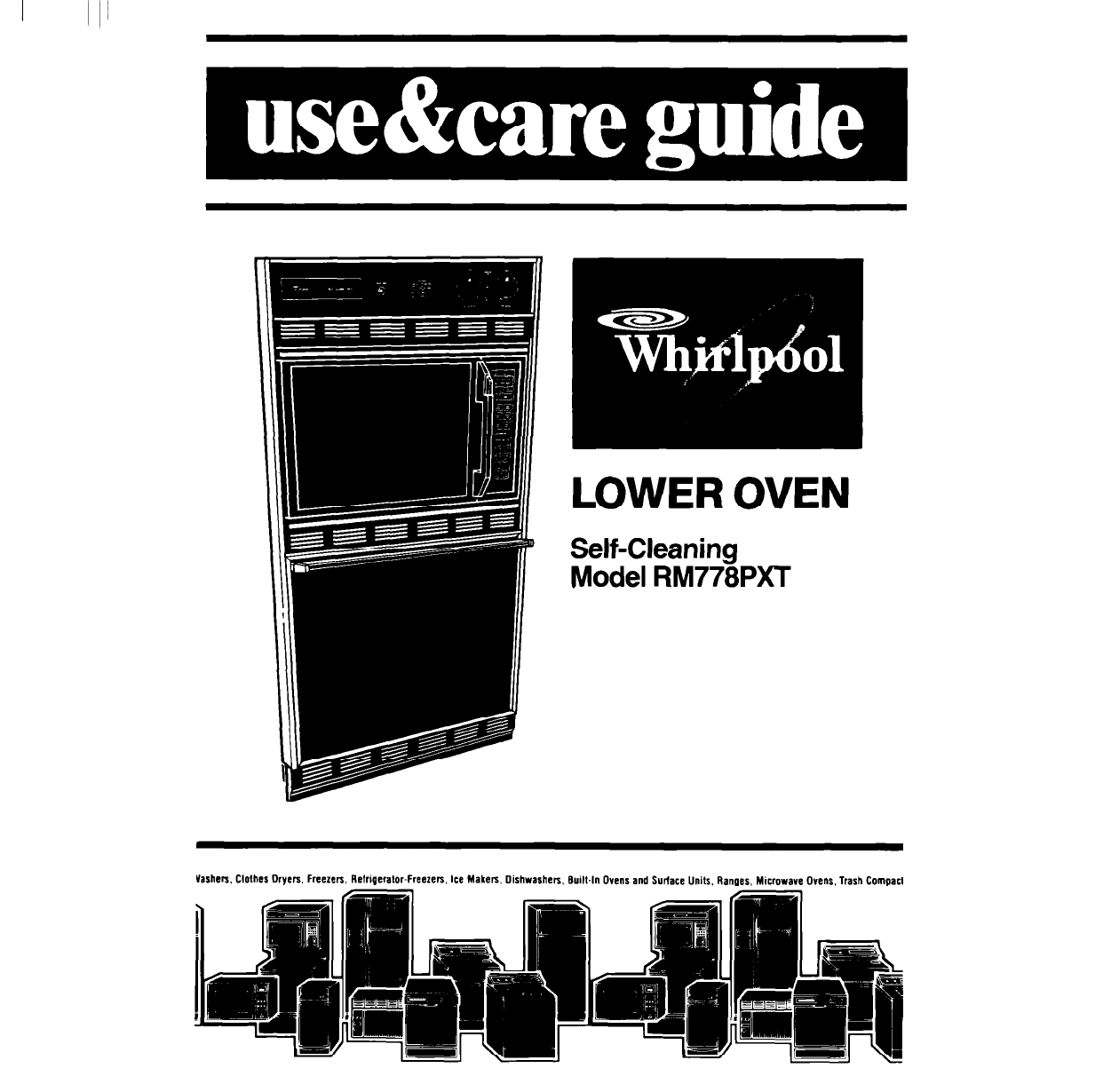

Whirlpool RM778PXT User manual

LOWER OVEN
Self-Cleaning
Model RM778PXT
Yasheo. Clolhes Dryers Freezers Relr~geralor-Freezer, Ice Makers Dishwashers BuWln Ovens and Sutlace Unils. Ranger. Microwave Ovens. Trash Compacl

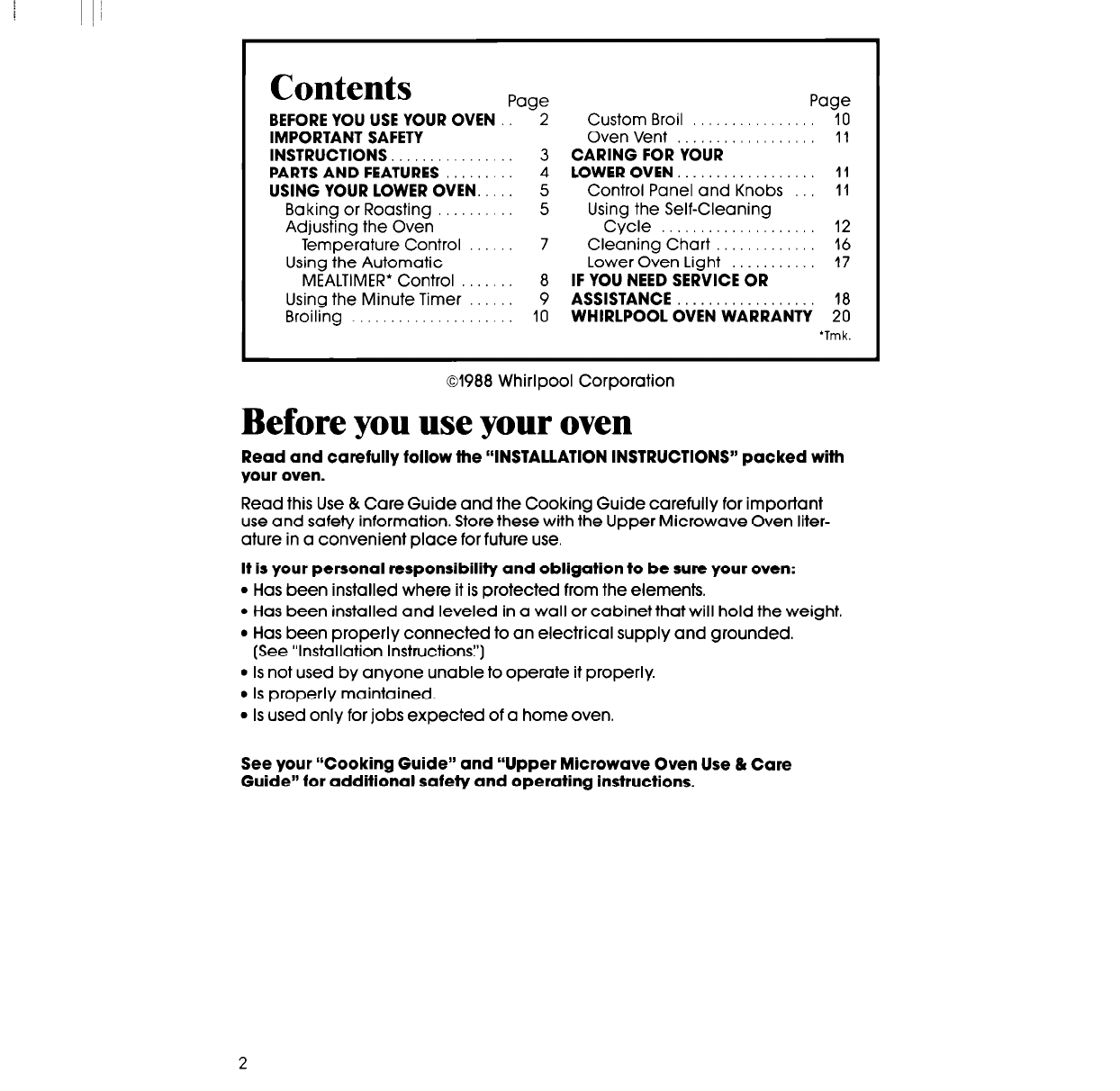

Contents
BEFORE YOU USE YOUR OVEN
IMPORTANT SAFETY
INSTRUCTIONS.
PARTS AND FEATURES
USING YOUR LOWER OVEN.,
Baking or Roasting
Adjusting the Oven
Temperature Control
Using the Automatic
MEALTIMER* Control
Using the Minute Timer
Broiling
Page
2
3
4
5
5
7
8
9
10
Page
Custom Broil 10
Oven Vent 11
CARING FOR YOUR
LOWER OVEN 11
Control Panel and Knobs 11
Using the Self-Cleaning
Cycle 12

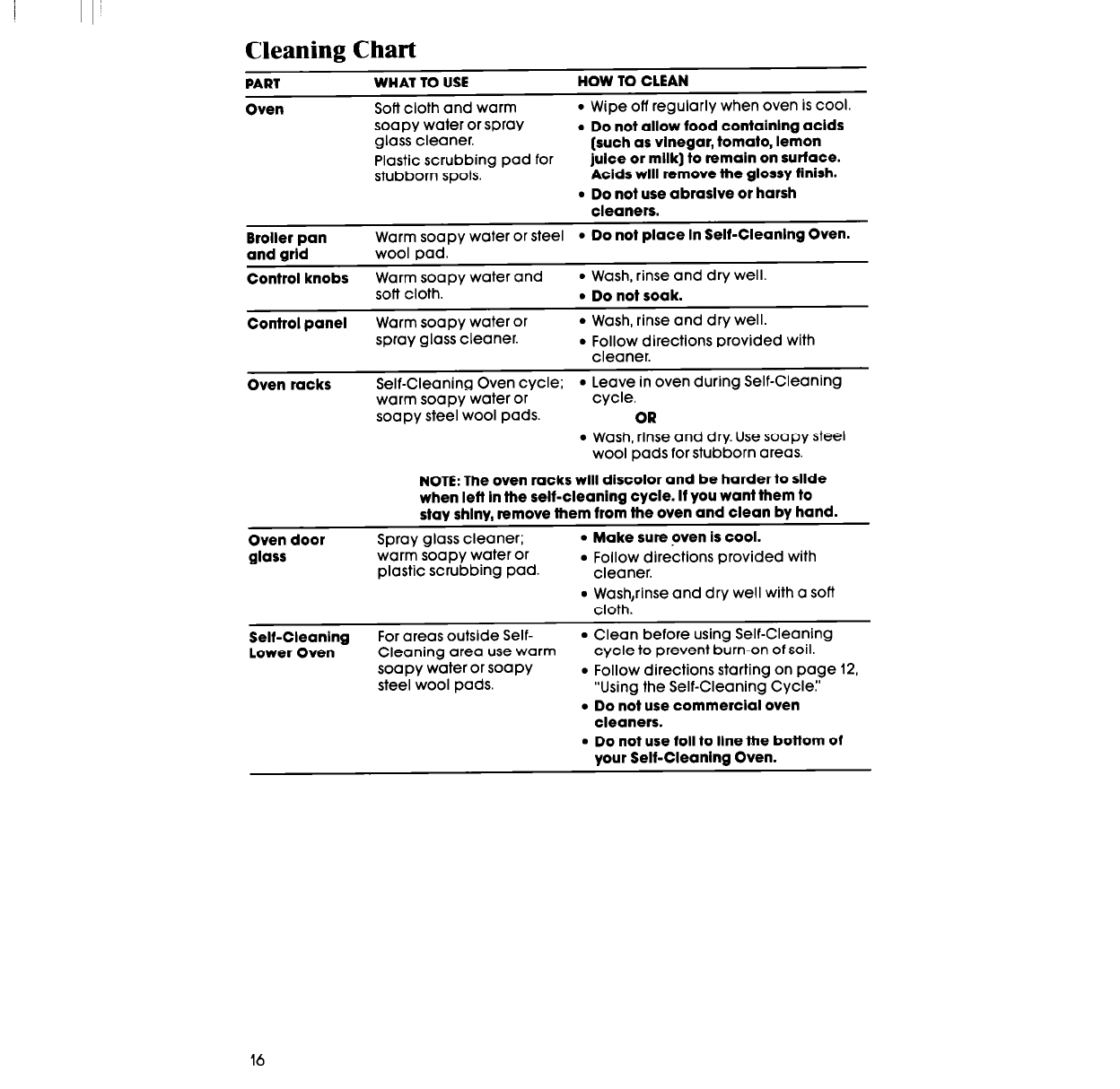

Cleaning Chart 16

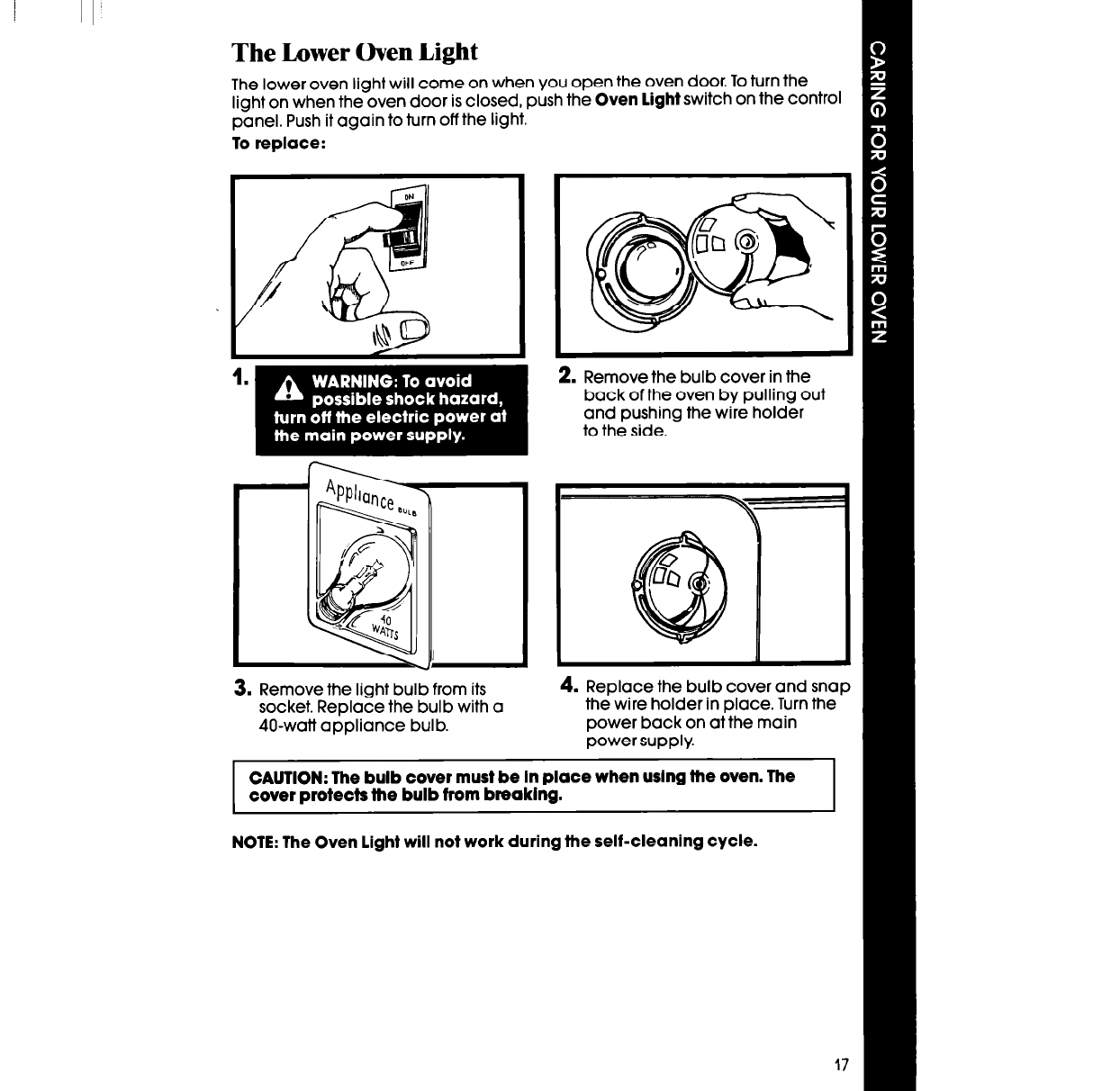

Lower Oven Light 17

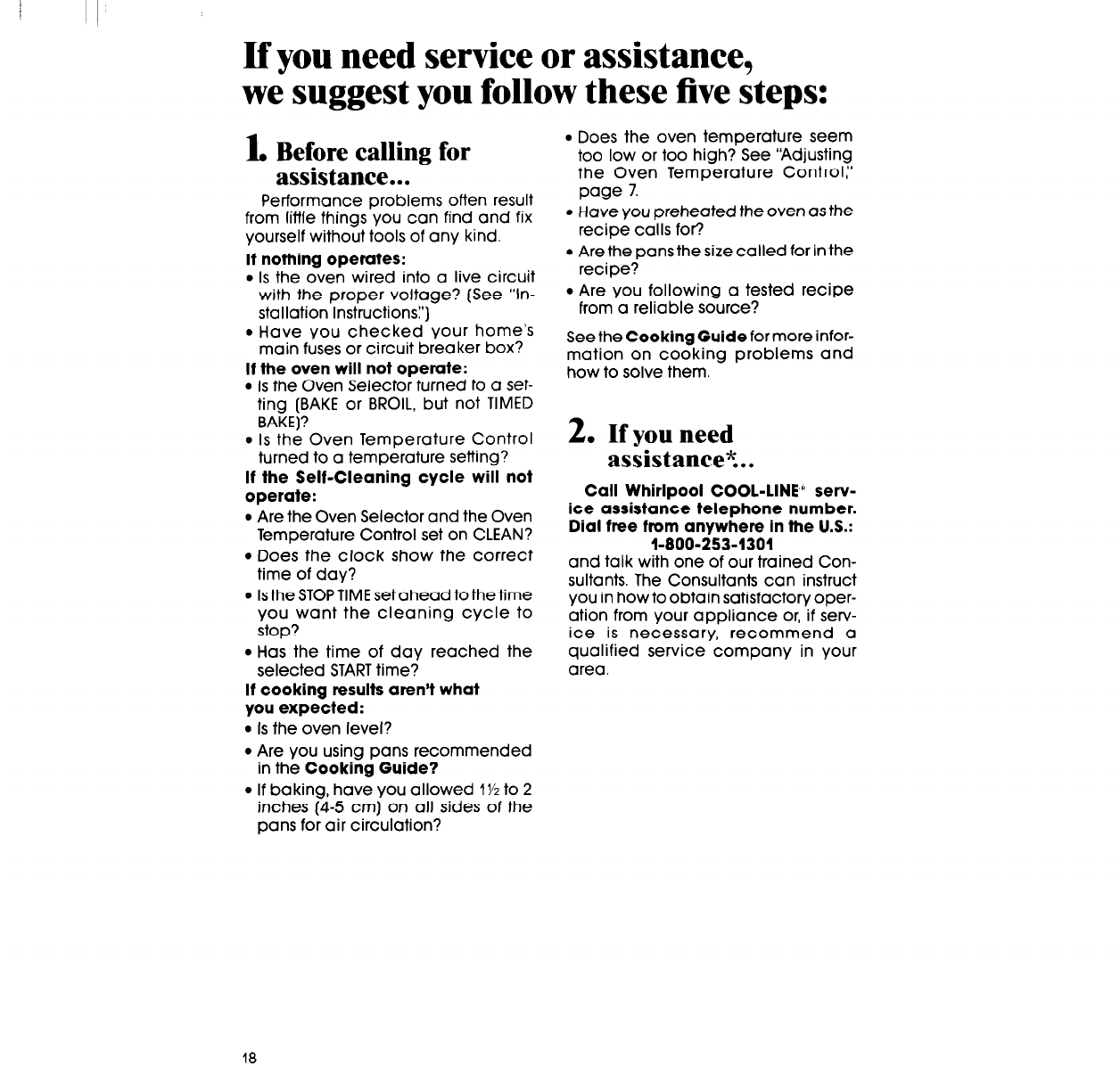

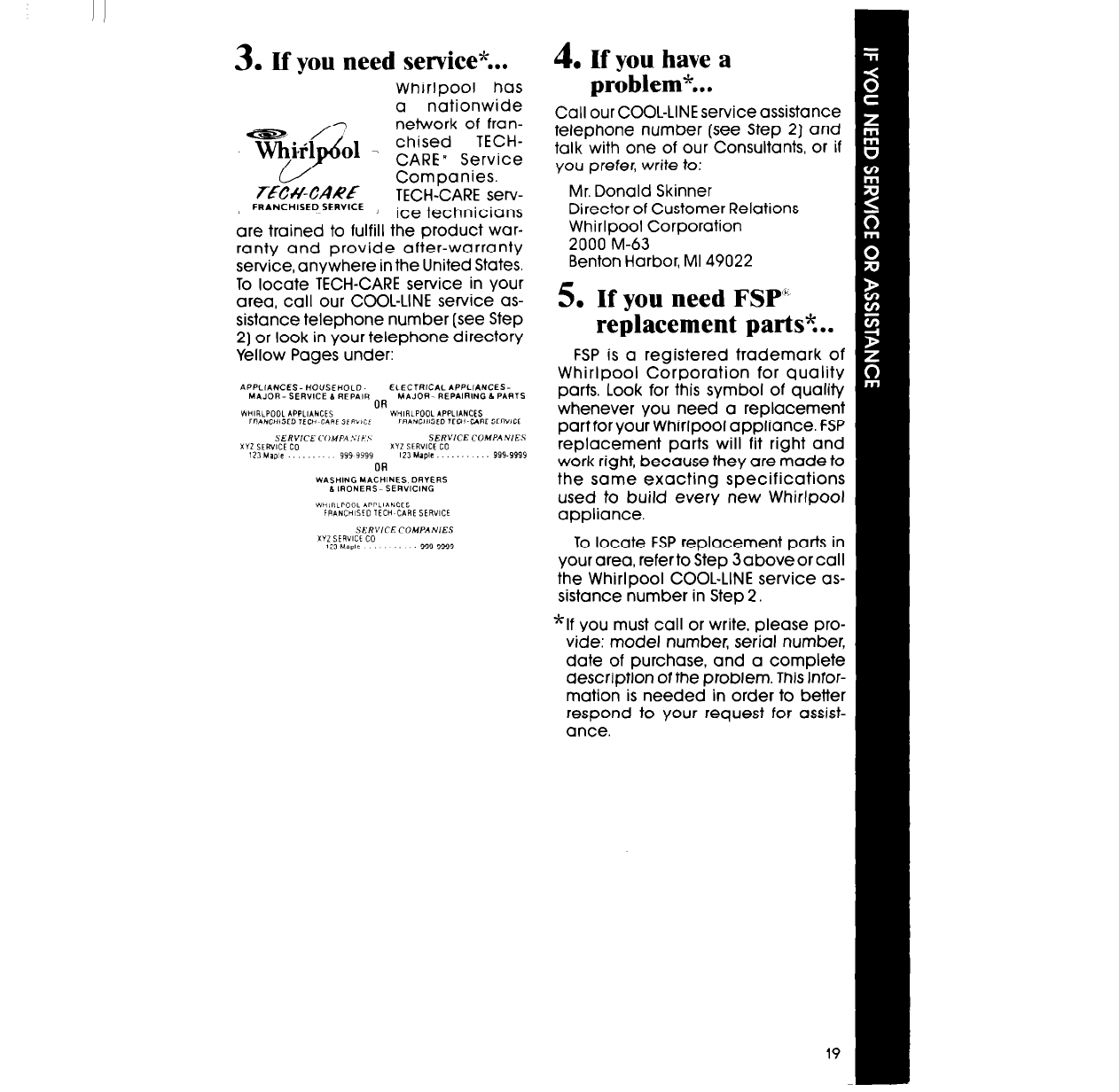

IF YOU NEED SERVICE OR
ASSISTANCE 18

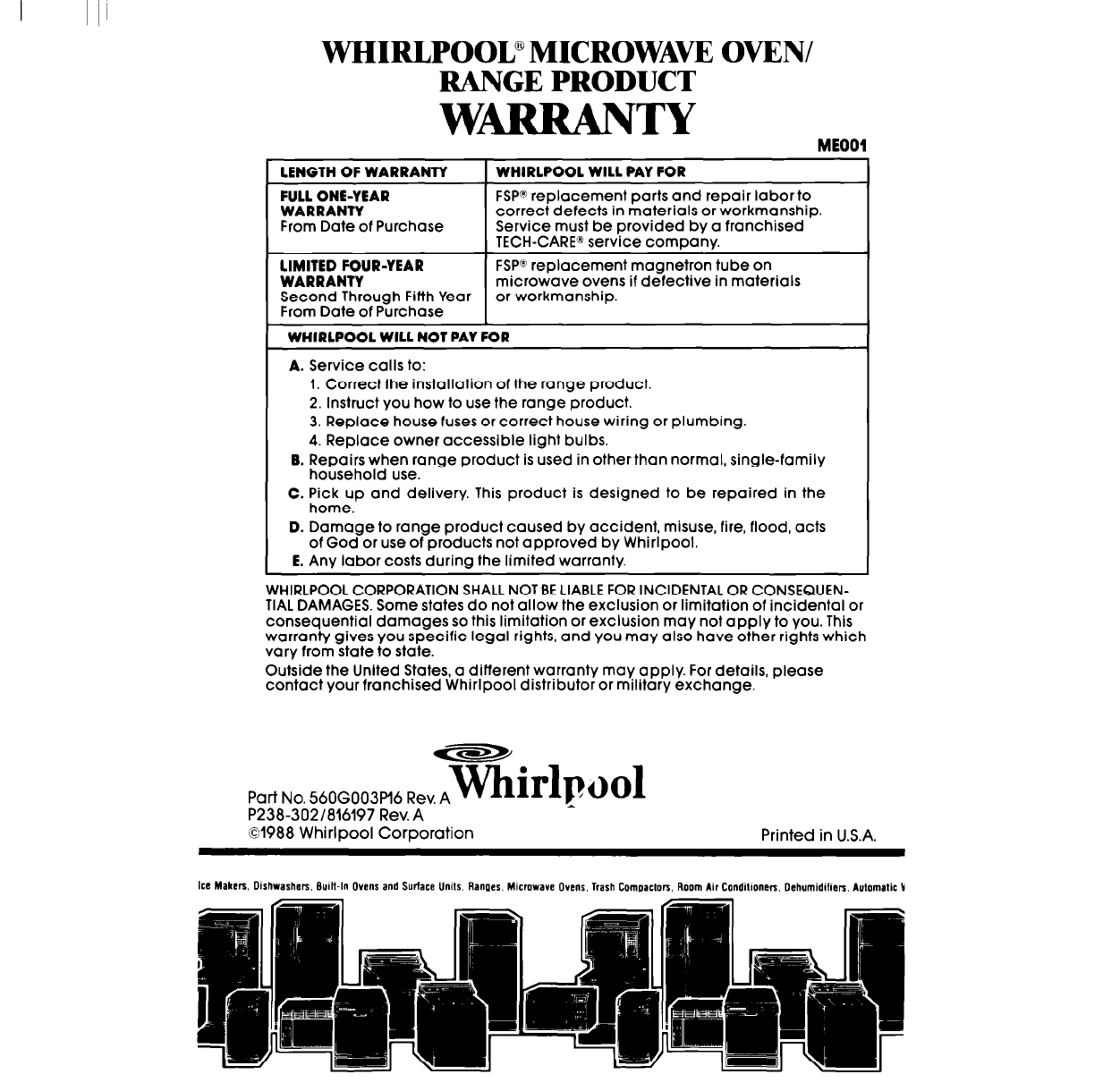

WHIRLPOOL OVEN WARRANTY 20
‘Tmk.
01988 Whirlpool Corporation
Before you useyour oven
Read and carefully follow the “INSTALLATION INSTRUCTIONS” packed with
your oven.
Read this Use & Care Guide and the Cooking Guide carefully for important
use and safety information. Store these with the Upper Microwave Oven liter-
ature in a convenient place for future use.
It is your personal responsibility and obligation to be sure your oven:
l Has been installed where it is protected from the elements.
l Has been installed and leveled in a wall or cabinet that will hold the weight.
l Has been properly connected to an electrical supply and grounded.
(See “Installation Instructions:‘)
l Is not used by anyone unable to operate it properly.
l Is properly maintained.
l Is used only for jobs expected of a home oven.
See your “Cooking Guide” and “Upper Microwave Oven Use & Care
Guide” for additional safety and operating instructions.
2

I
I
I

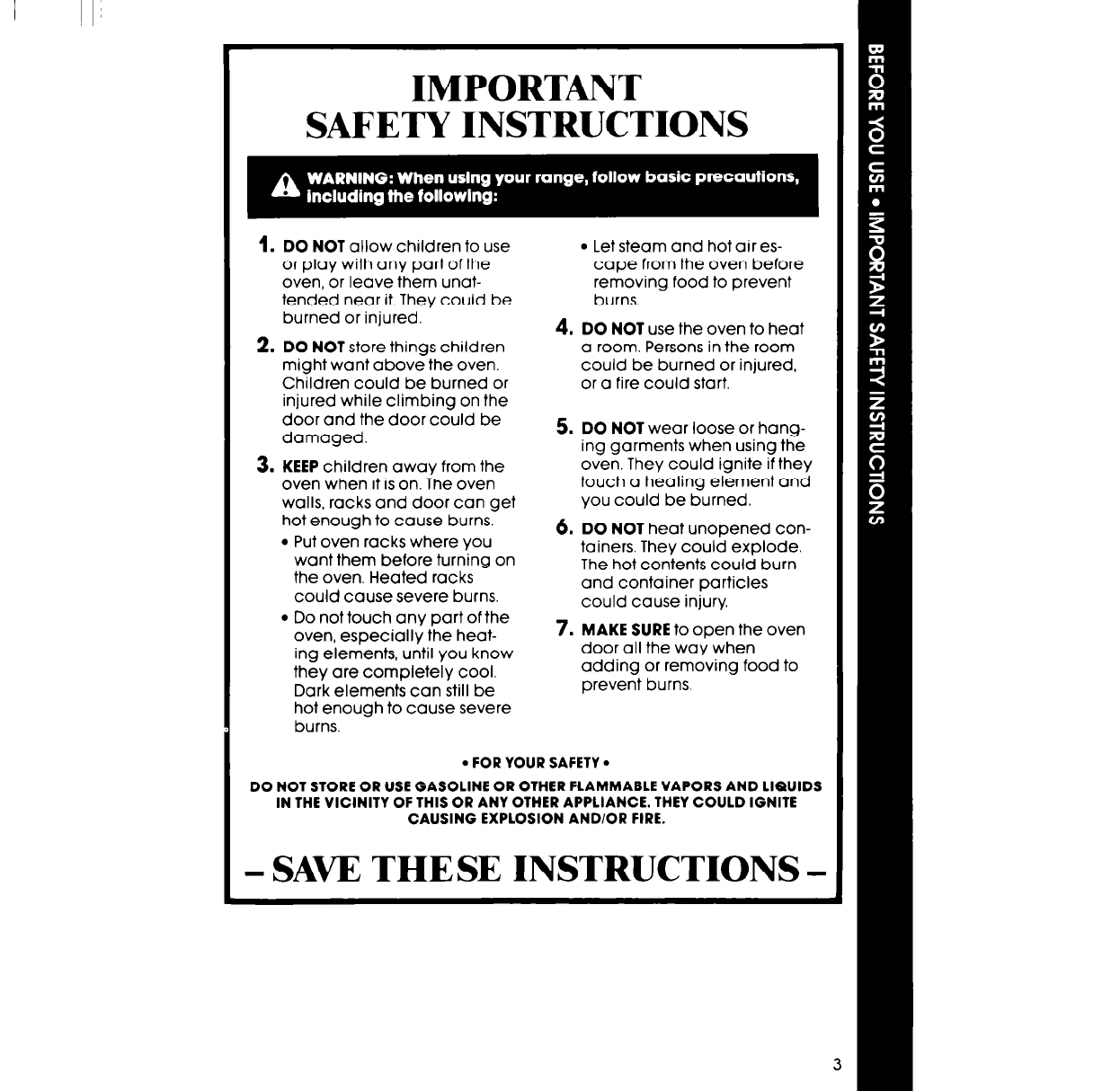

IMPORTANT
SAFETY INSTRUCTIONS
1. DO NOT allow children to use
or play with any part of the
oven, or leave them unat-
tended near it. They could be
burned or injured.
2. DO NOT store things children
might want above the oven.
Children could be burned or
injured while climbing on the
door and the door could be
damaged.
3. KEEP children away from the
oven when it is on. The oven
walls, racks and door can get
hot enough to cause burns.
* Put oven racks where you
want them before turning on
the oven. Heated racks
could cause severe burns.
l Let steam and hot air es-
cape from the oven before
removing food to prevent
burns.
4. DO NOT use the oven to heat
a room. Persons in the room
could be burned or injured,
or a fire could start.
5. DO NOT wear loose or hang-
ing garments when using the
oven. They could ignite if they
touch a heating element and
you could be burned.
6. DO NOT heat unopened con-
tainers. They could explode.
The hot contents could burn
and container particles
could cause injury.
l Do not touch any part of the
oven, especially the heat- 7. MAKE SURE to open the oven
ing elements, until you know door all the way when
they are completely cool. adding or removing food to
Dark elements can still be prevent burns.
hot enough to cause severe
burns.
l FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE
CAUSING EXPLOSION AND/OR FIRE.
- SAVE THESE INSTRUCTIONS -
.

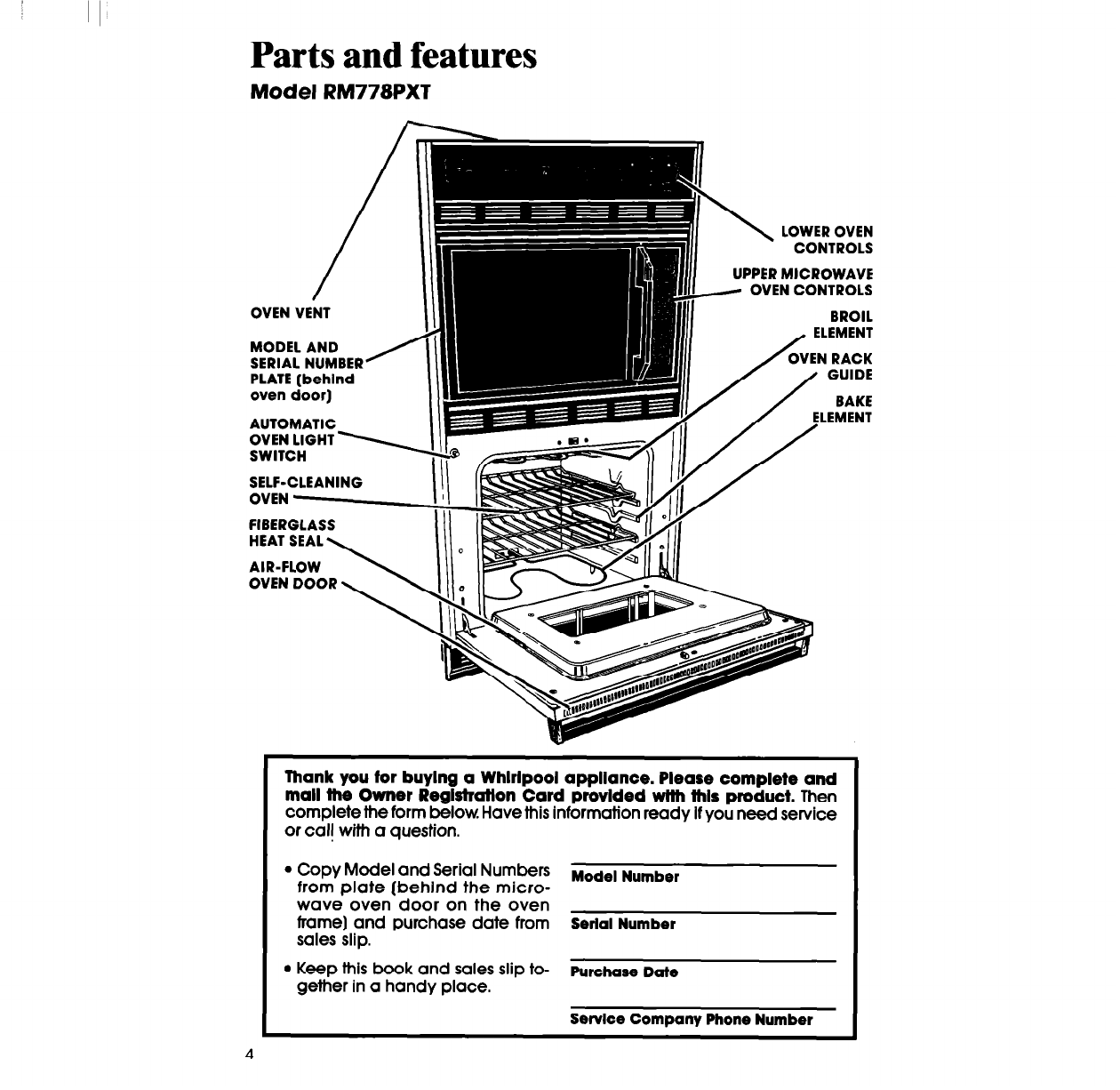

Parts and features
Model RM778PXT
OVEN VENT I III
MODEL AND
SERIAL NUMBER / III
PLATE (behlnd
oven door) I
\
LOWER OVEN
CONTROLS
I UPPER MICROWAVE
c OVEN CONTROLS
I BROIL
, ELEMENT
FIBERGLASS
4
Thank you for buylng a Whlrlpool appliance. Please complete and
mall the Owner Reglstratlon Card provided wtth thls product. Then
complete the form below Have this information ready Ifyou need service
or cal! with a question.
l Copy Model and Serial Numbers
from plate [behlnd the micro-
Model Number
wave oven-door on the oven
frame) and purchase date from
Serial Number
sales slip.
l Keep this book and sales slip to- hr&aw me
gether in a handy place.
Servloe Company Phone Number

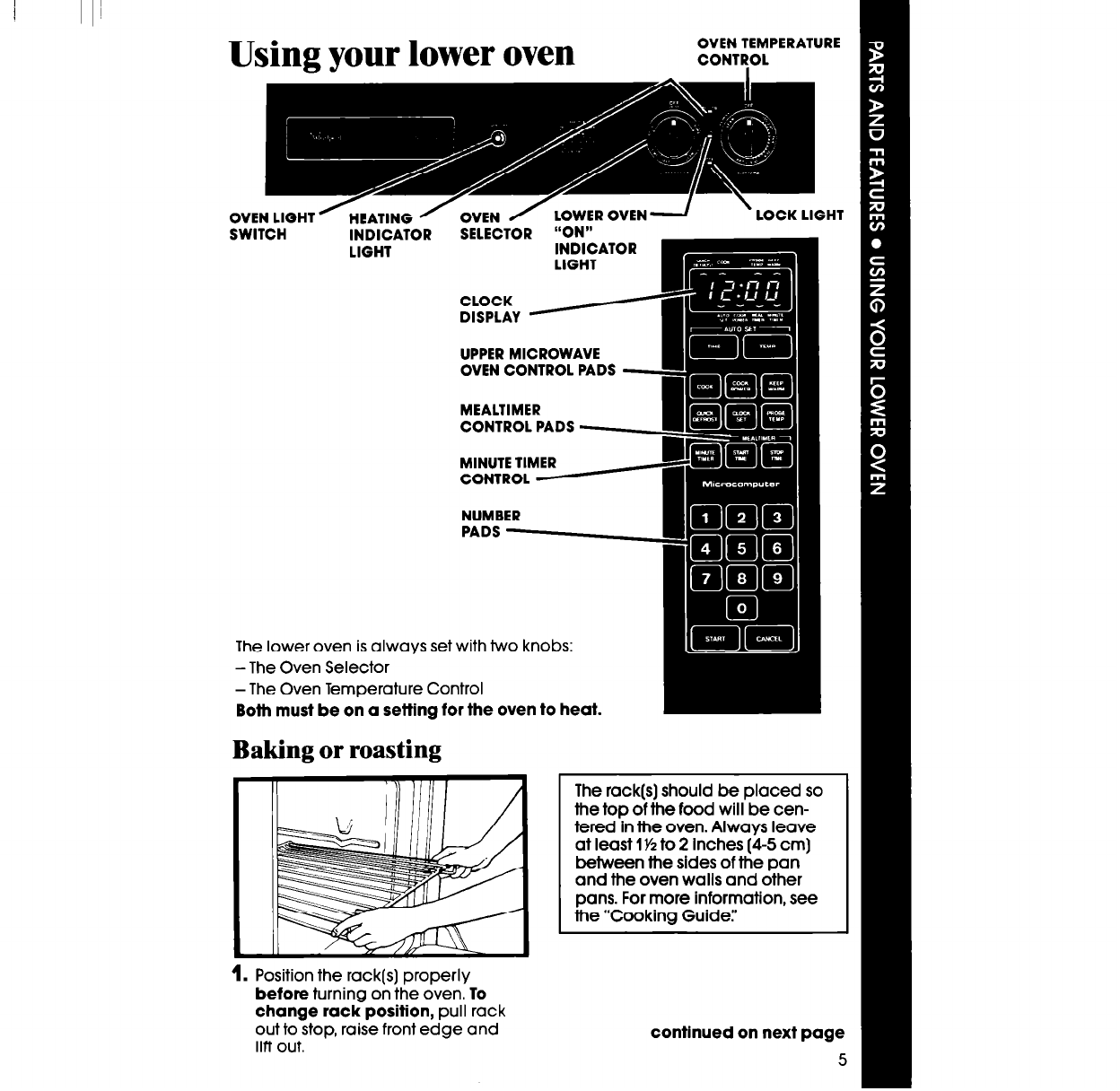

Using your lower oven
OVEN TEMPERATURE
CONTl?OL
SWITCH INDICATOR SELECTOR “ON”
LIGHT INDICATOR
LIGHT
CLOCK
DISPLAY !
UPPERMICROWAVE
OVEN CONTROL PADS -
MEALTIMER
CONTROL PADS -
MINUTETIMER
CONTROL
NUMBER
PADS -
The lower oven is always set with two knobs:
-The Oven Selector
-The Oven Temperature Control
Both must be on a setting for the oven to heat.
Baking or roasting
1. Position the rack(s) properly
before turning on the oven. To
change rack position, pull rack
out to stop, raise front edge and
lift out.
The rack(s) should be placed so
the top of the food will be cen-
tered In the oven. Always leave
at least 1YZto 2 Inches (4-5 cm]
between the sides of the pan
and the oven walls and other
pans. For more information, see
the “Cooking Guide:
continued on next page
5

I
I I
2. Set Oven Selector to BAKE.
The Lower Oven “ON” Light will
come on.
4. When the Heating Light first goes
off, the oven is preheated. Put food
in the oven. Note: Oven racks,
walls and door will be hot.
During baking, the elements will
turn on and off to keep the oven
temperature at the setting. The
Heating Light will turn on and off
with the elements.
The top element helps heat
during baking, but does not
turn red.
3. Set Oven Temperature Control to
the baking temperature you want.
The Heating Light will come on.
5. When baking is done, turn both
the Oven Selector and Oven Tem-
perature Control to OFF.The Lower
Oven “ON” Light will go off.
6

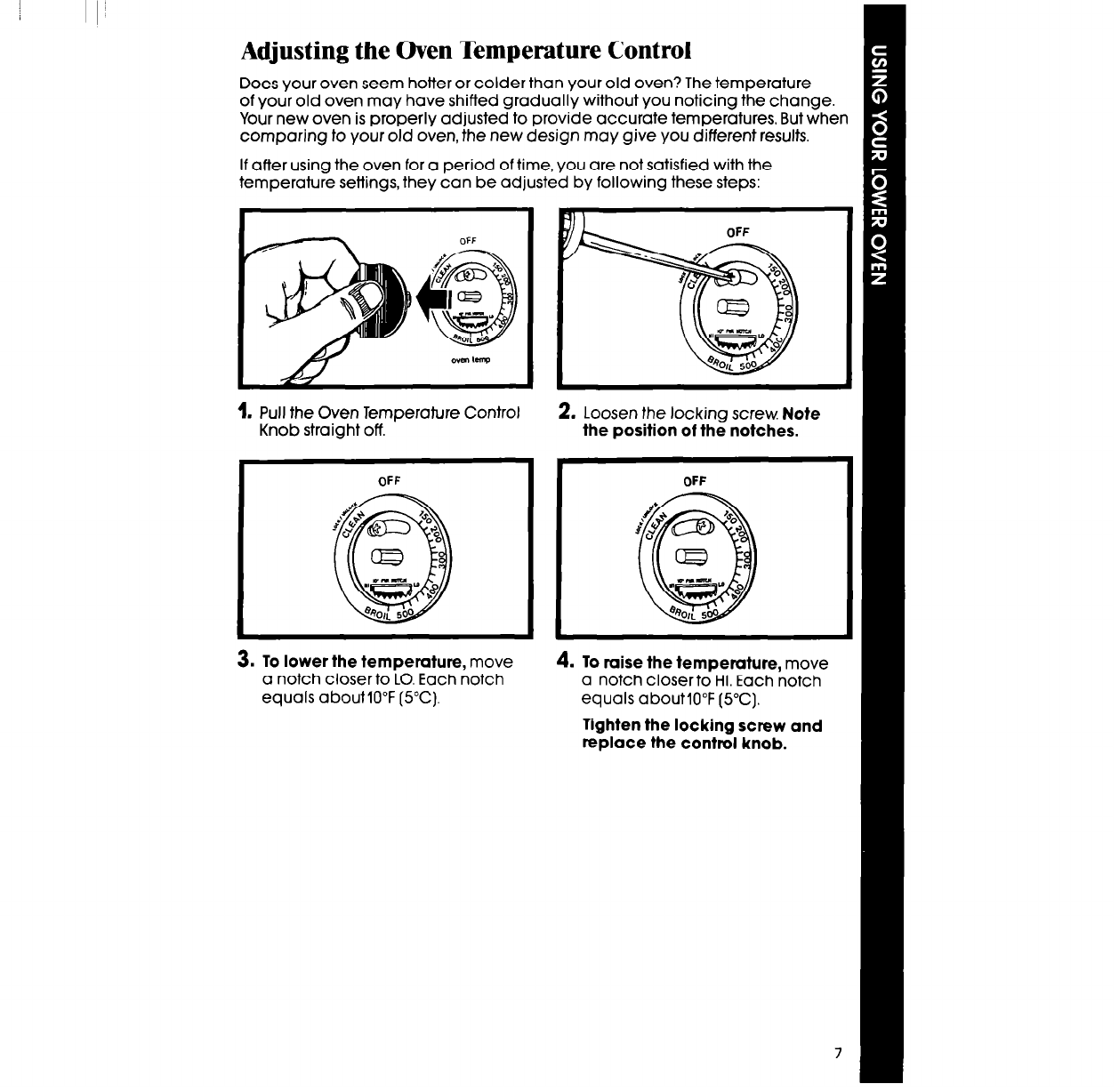

Adjusting the Oven Temperature Control
Does your oven seem hotter or colder than your old oven? The temperature
of your old oven may have shifted gradually without you noticing the change.
Your new oven is properly adjusted to provide accurate temperatures. But when
comparing to your old oven, the new design may give you different results.
If after using the oven for a period of time, you are not satisfied with the
temperature settings, they can be adjusted by following these steps:
1. Pull the Oven Temperature Control 2. Loosen the locking screw Note
Knob straight off. the position of the notches.
OFF OFF
3. To lower the temperature, move
a notch closer to LO.Each notch
equals aboutlO”F (5°C).
4. To raise the temperature, move
a notch closer to HI. Each notch
equals aboutlO”F (5°C).
Tighten the locking screw and
replace the control knob.

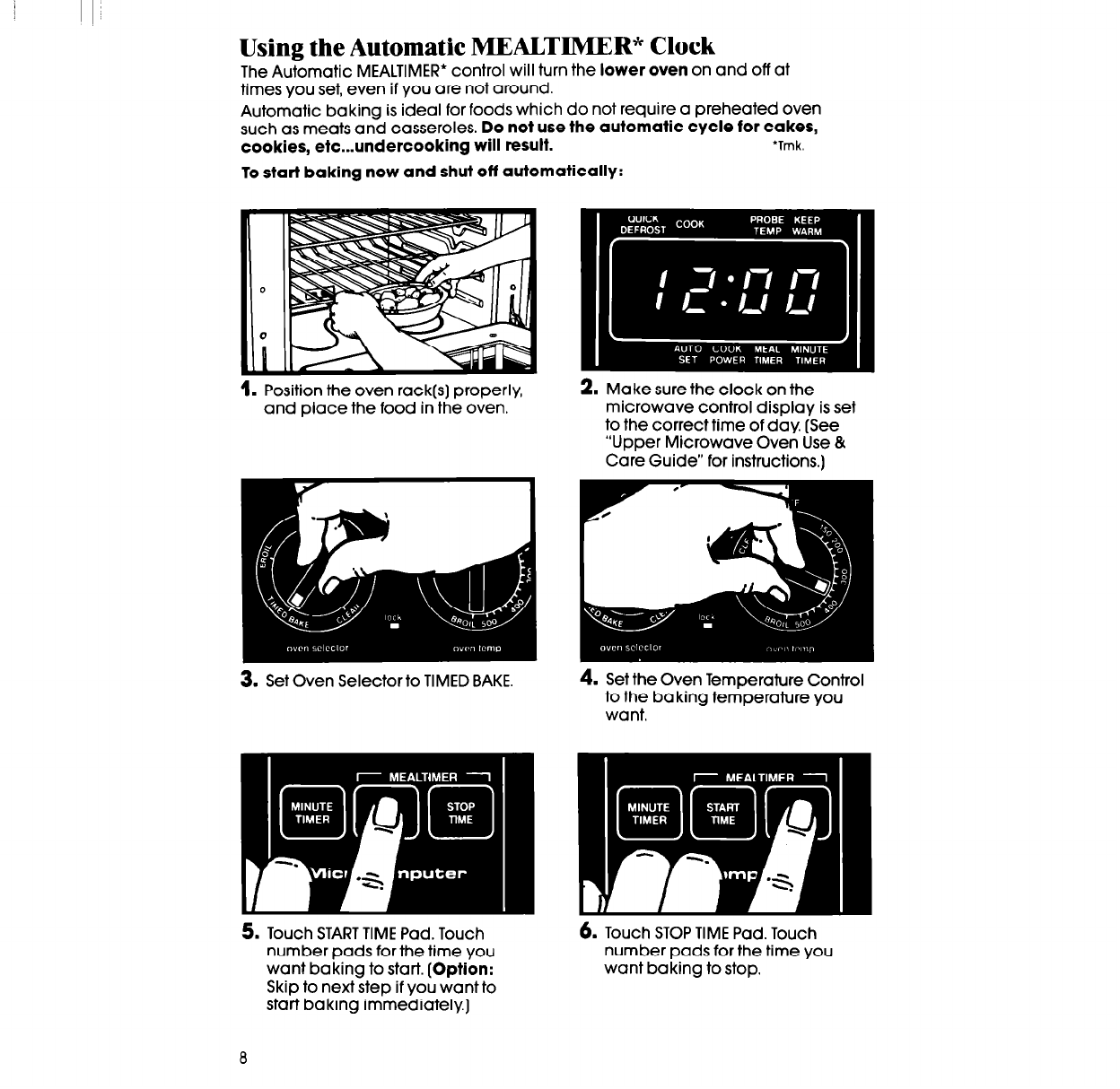

Using the Automatic MEALTIMER* Clock
The Automatic MEALTIMER’ control will turn the lower oven on and off at
times you set, even if you are not around.
Automatic baking is ideal for foods which do not require a preheated oven
such as meats and casseroles. Do not use the automatic cycle for cakes,
cookies, etc...undercooking will result.
‘Tmk.
To start baking now and shut off automatically:
1. Position the oven rack(s) properly,
and place the food in the oven.
3. Set Oven Selector to TIMED BAKE.
2. Make sure the clock on the
microwave control display is set
to the correct time of day. (See
“Upper Microwave Oven Use &
Care Guide” for instructions.)
4. Set the Oven Temperature Control
to the baking temperature you
want.
5. Touch STARTTIME Pad. Touch
number pads for the time you
want baking to start. (Option:
Skip to next step if you want to
start baking immediately.]
8
6. Touch STOP TIME Pad. Touch
number pads for the time you
want baking to stop.

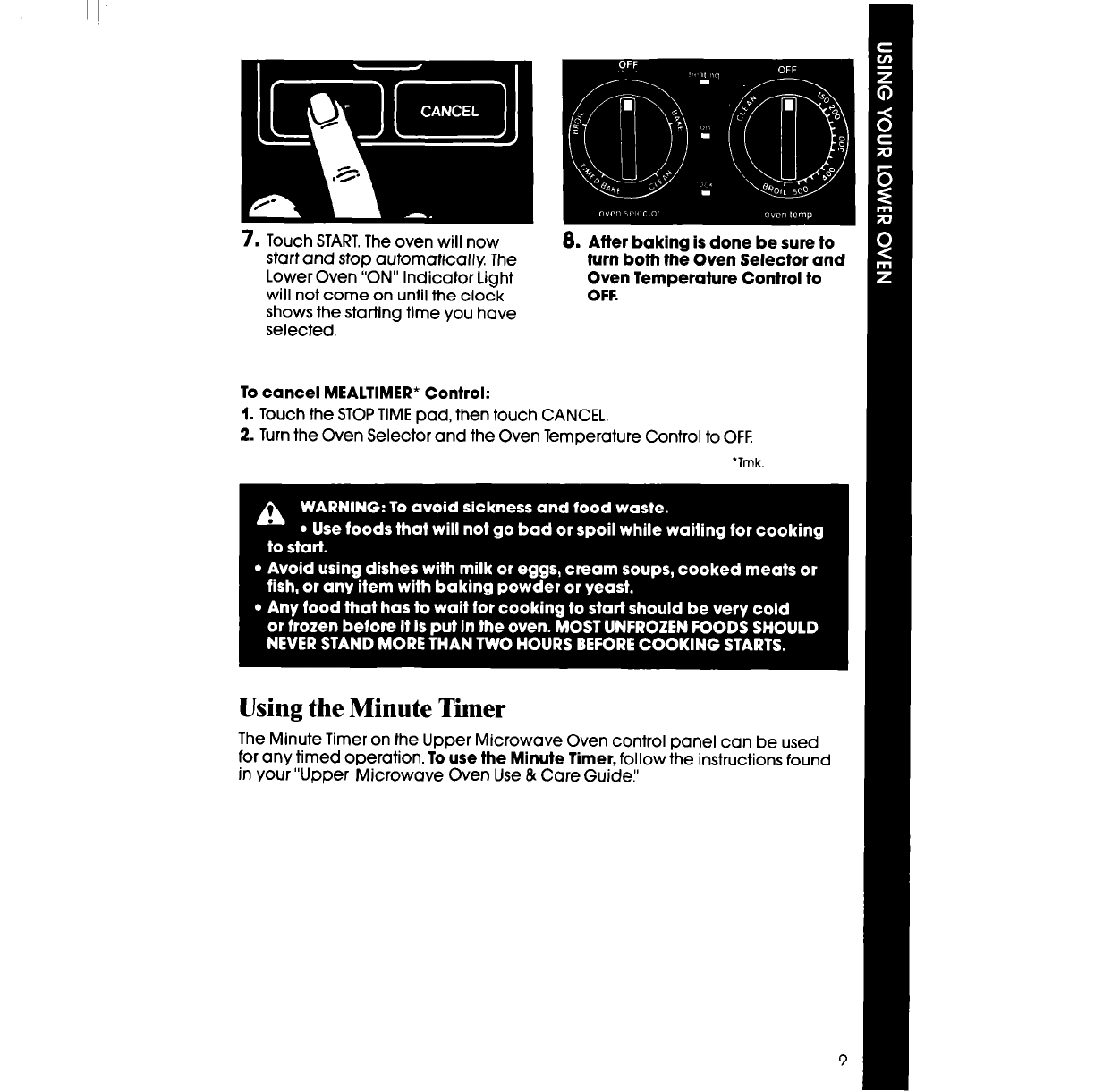

7. Touch START.The oven will now
start and stop automatically. The
Lower Oven “ON” Indicator Light
will not come on until the clock
shows the starting time you have
selected.
8. Atter baking is done be sure to
turn both the Oven Selector and
Oven Temperature Control to
OFF.
To cancel MEALTIMER* Control:
1. Touch the STOP TIME pad, then touch CANCEL.
2. Turn the Oven Selector and the Oven Temperature Control to OFF.
‘Tmk
Using the Minute Timer
The Minute Timer on the Upper Microwave Oven control panel can be used
for any timed operation. To use the Minute Timer, follow the instructions found
in your “Upper Microwave Oven Use & Care Guide:’

I
I
I’

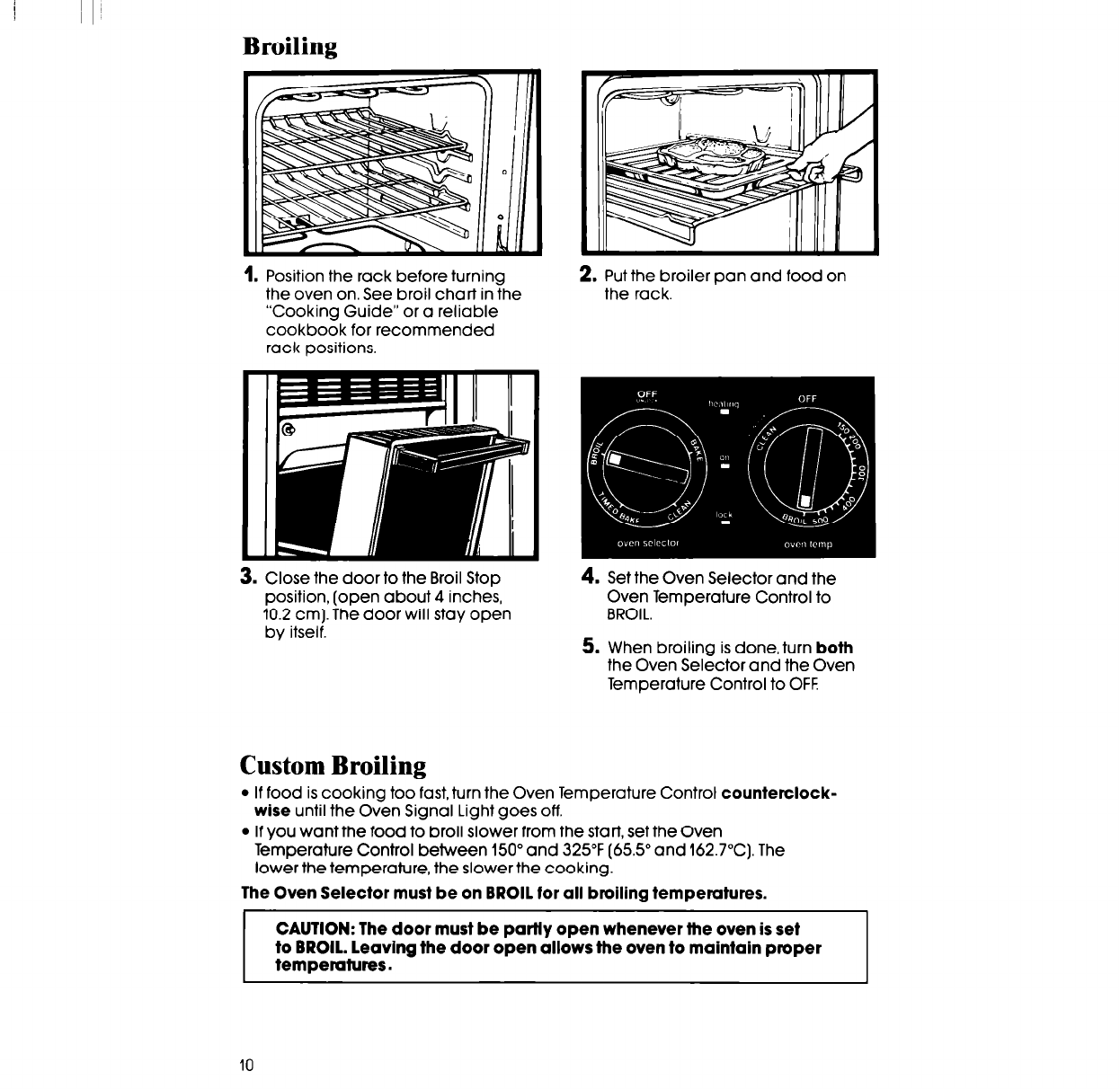

Broiling
1. Position the rack before turning
the oven on. See broil chart in the
“Cooking Guide” or a reliable
cookbook for recommended
rack positions.
3. Close the door to the Broil Stop
position, (open about 4 inches,
10.2 cm). The door will stay open
by itself.
2. Put the broiler pan and food on
the rack
4. Set the Oven Selector and the
Oven Temperature Control to
BROIL.
5. When broiling is done, turn both
the Oven Selector and the Oven
Temperature Control to OFF.
Custom Broiling
l If food is cooking too fast, turn the Oven Temperature Control counterclock-
wise until the Oven Signal Light goes off.
l If you want the food to broil slower from the start, set the Oven
Temperature Control between 150” and 325°F (65.5” and 162.7”C). The
lower the temperature, the slower the cooking.
The Oven Selector must be on BROIL for all broiling temperatures.
CAUTION: The door must be parfly open whenever the oven is set
to BROIL. Leaving the door open allows the oven to maintain proper
temperatures.
10

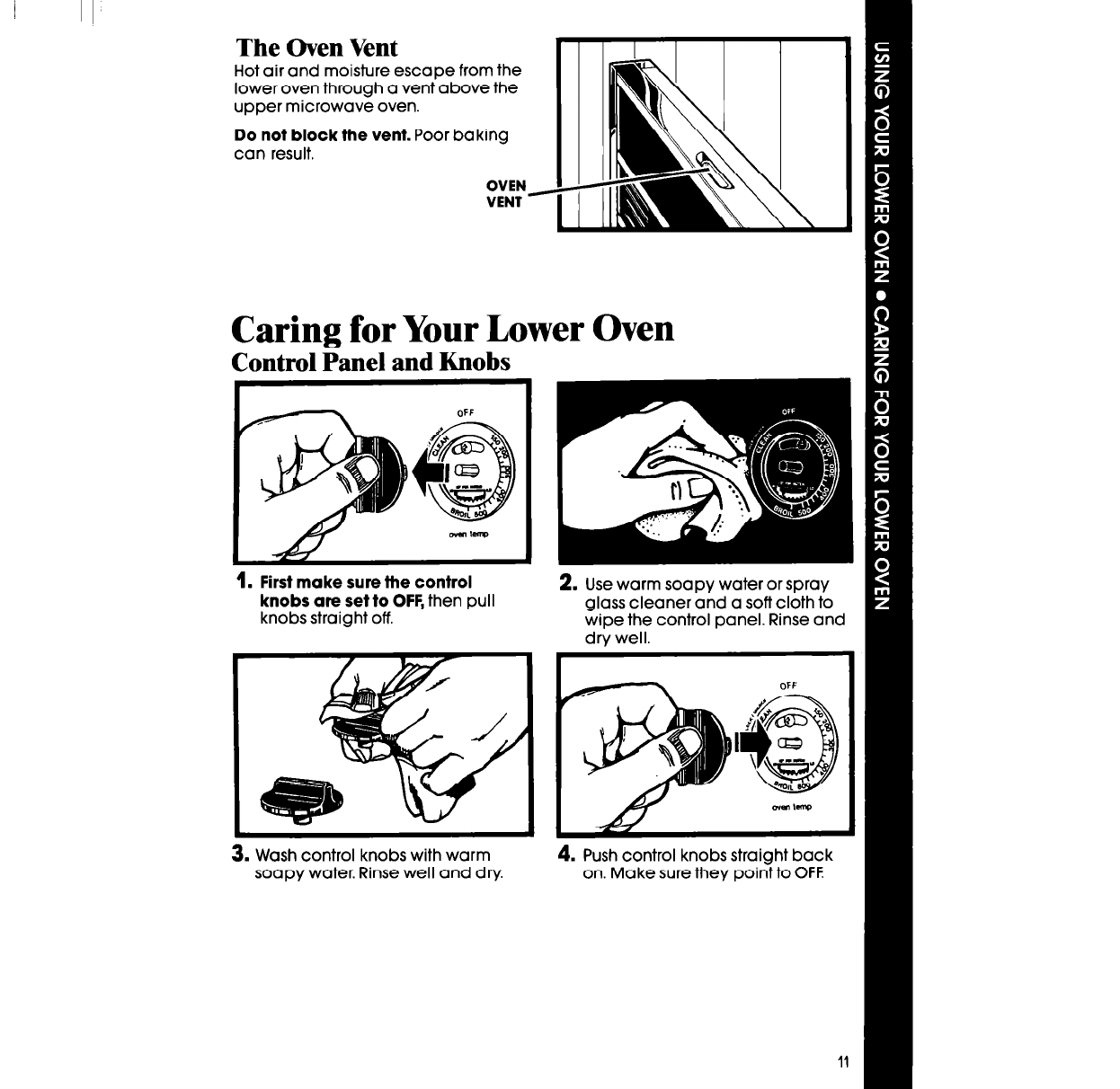

The OvenVent
Hot air and moisture escape from the
lower oven through a vent above the
upper microwave oven.
Do not block the vent. Poor baking
can result.
I
OVEN,
VENT
1
Caring for Your Lower Oven
Control Panel and Knobs
1. First make sure the control
knobs are set to OFF, then pull
knobs straight off.
3. Wash control knobs with warm
soapy water. Rinse well and dry.
2. Use warm soapy water or spray
glass cleaner and a soft cloth to
wipe the control panel. Rinse and
drv well.
4. Push control knobs straight back
on. Make sure they point to OFF.

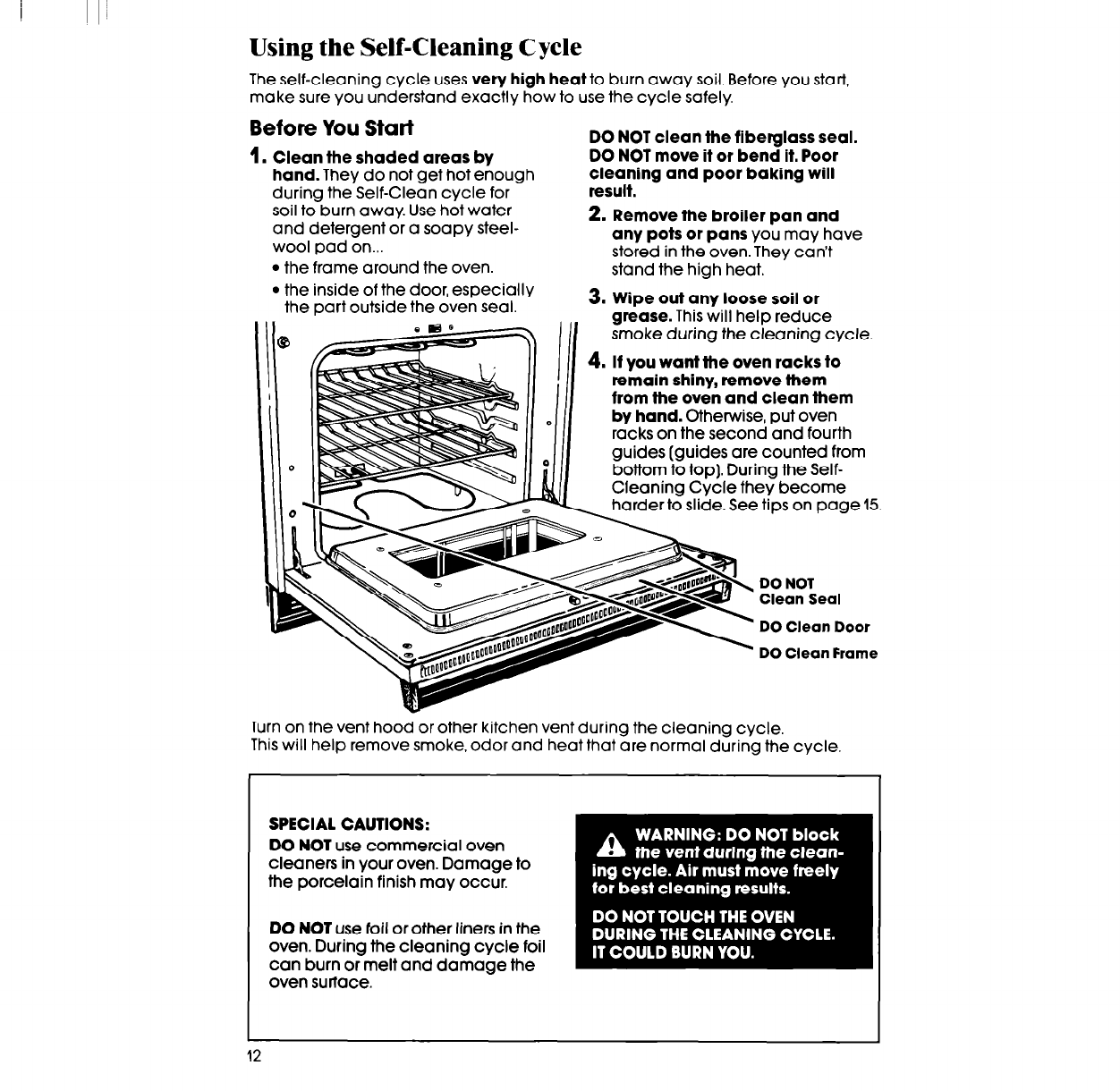

Using the Self-Cleaning Cycle
The self-cleaning cycle uses very high heat to burn away soil. Before you start,
make sure you understand exactly how to use the cycle safely.
Before You Start
1. Clean the shaded areas bv
hand. They do not get hot enough
during the Self-Clean cycle for
soil to burn away. Use hot water
and detergent or a soapy steel-
wool pad on...
l the frame around the oven.
l the inside of the door, especially
the part outside the oven seal.
DO NOT clean the fiberglass seal.
DO NOT move it or bend it. Poor
cleaning and poor baking will
result.
2. Remove the broiler pan and
any pots or pans you may have
stored in the oven. They can’t
stand the high heat.
3. Wipe out any loose soil or
grease. This will help reduce
smoke during the cleaning cycle.
4. If you want the oven racks to
remain shiny, remove them
from the oven and clean them
by hand. Otherwise, put oven
racks on the second and fourth
guides (guides are counted from
bottom to top]. During the Self-
Cleaning Cycle they become

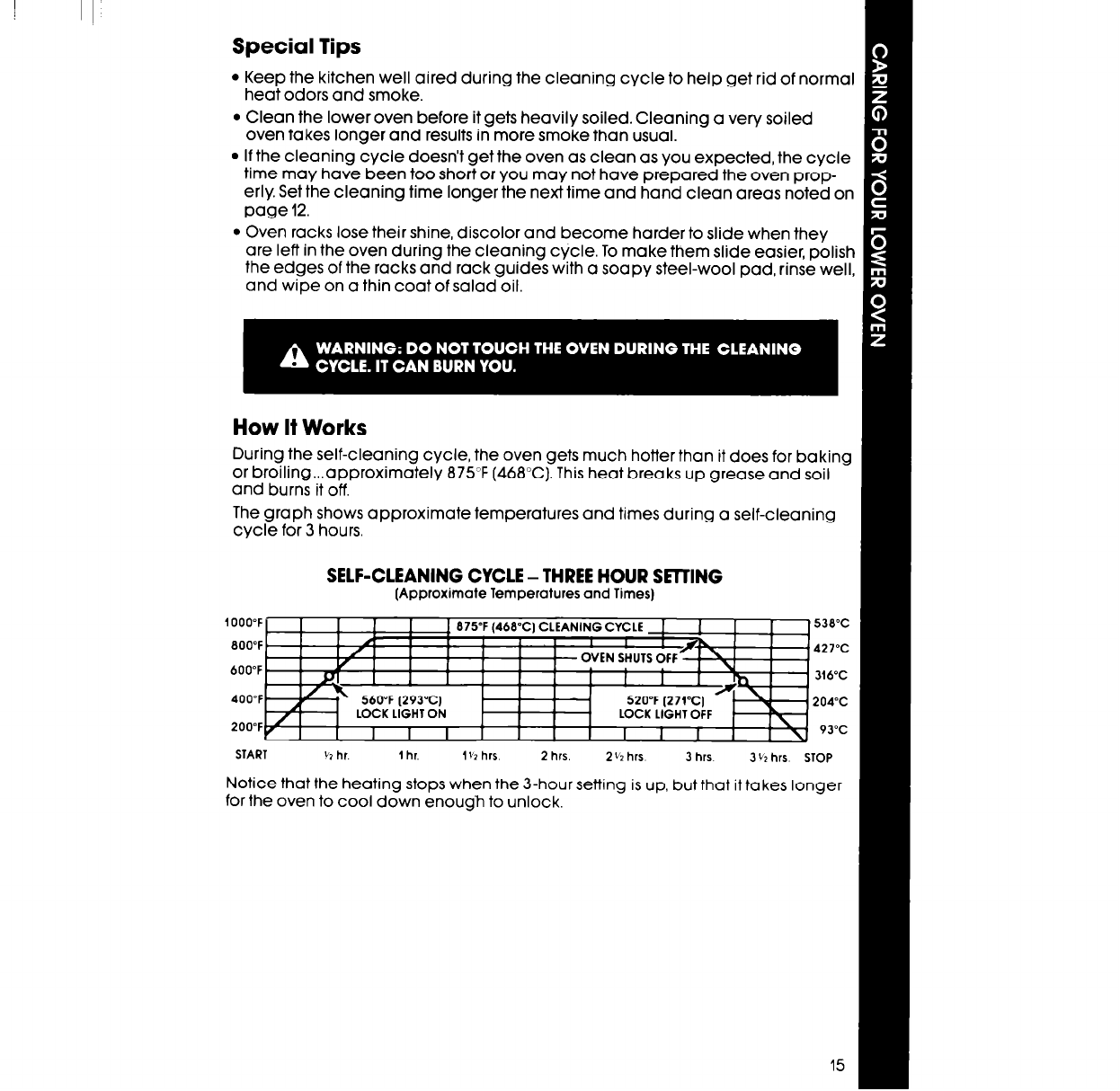

, harder to slide. See tips on page 15.
DO NOT
Clean Seal
DO Clean Door
DO Clean Frame
Turn on the vent hood or other kitchen vent during the cleaning cycle,
This will help remove smoke, odor and heat that are normal during the cycle,
SPECIAL CAUTIONS:
DO NOT use commercial oven
cleaners in your oven. Damage to
the porcelain finish may occur.
DO NOT use foil or other liners in the
oven. During the cleaning cycle foil
can burn or melt and damage the
oven surface.
12

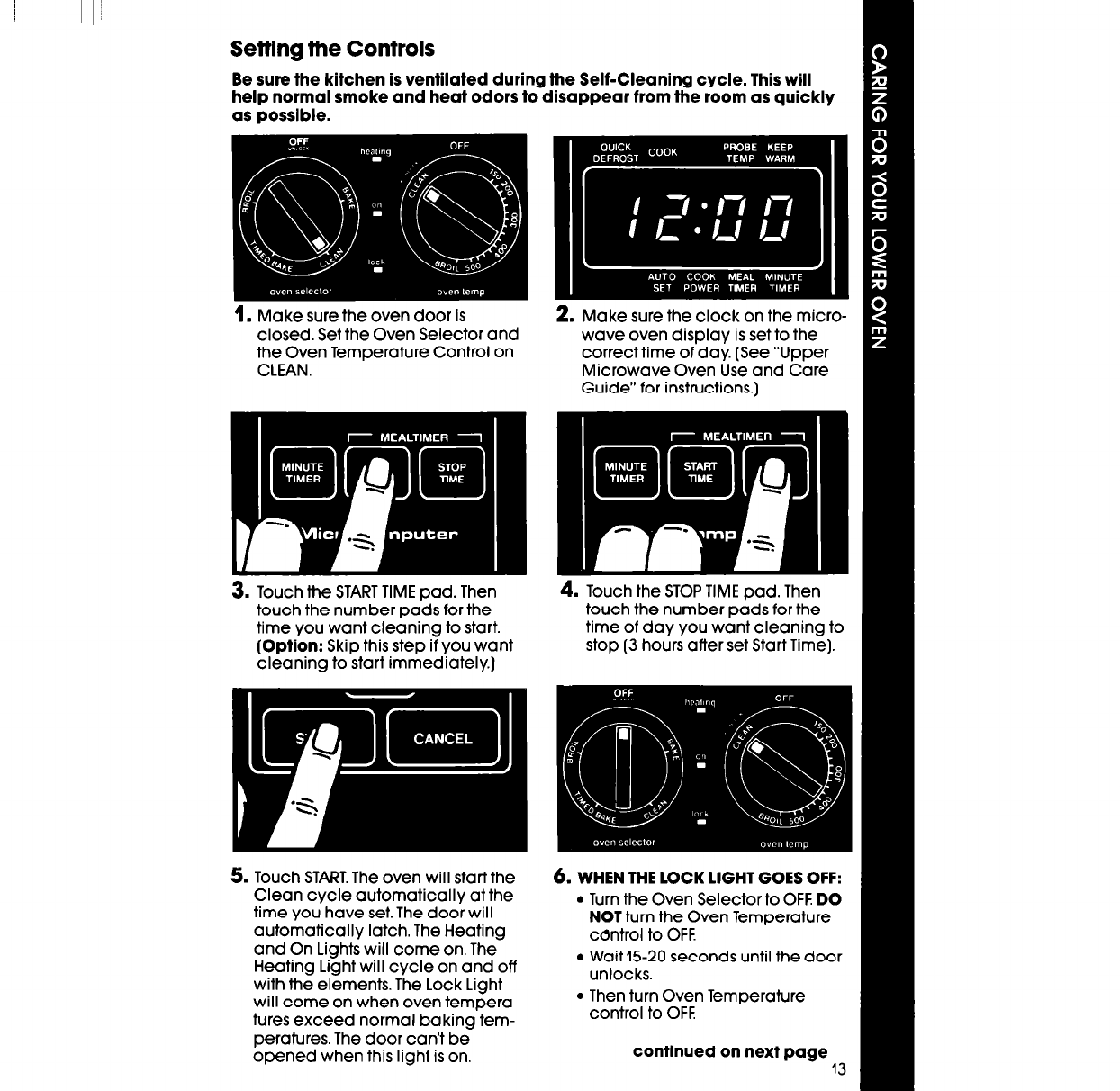

Setting the Controls
Be sure the kitchen is ventilated during the Self-Cleaning cycle. This will
help normal smoke and heat odors to disappear from the room as quickly
1. Make sure the oven door is
closed. Set the Oven Selector and
the Oven Temperature Control on
CLEAN.
2. Make sure the clock on the micro-
wave oven display is set to the
correct time of day. (See “Upper
Microwave Oven Use and Care
Guide” for instructions.)
3. Touch the STARTTIME pad. Then
touch the number pads for the
time you want cleaning to start.
(Option: Skip this step if you want
cleaning to start immediately.)
4. Touch the STOP TIME pad. Then
touch the number pads for the
time of day you want cleaning to
stop (3 hours after set Start Time).
5. Touch START.The oven will start the
Clean cycle automatically at the
time you have set. The door will
automatically latch. The Heating
and On Lights will come on. The
Heating Light will cycle on and off
with the elements. The Lock Light
will come on when oven tempera-
tures exceed normal baking tem-
peratures. The door can’t be
opened when this light is on.
6. WHEN THE LOCK LIGHT GOES OFF:
l Turn the Oven Selector to OFF DO
NOT turn the Oven Temperature
control to OFF
l Wait 15-20 seconds until the door
unlocks.
l Then turn Oven Temperature
control to OFF
continued on next page 13

/
I
I

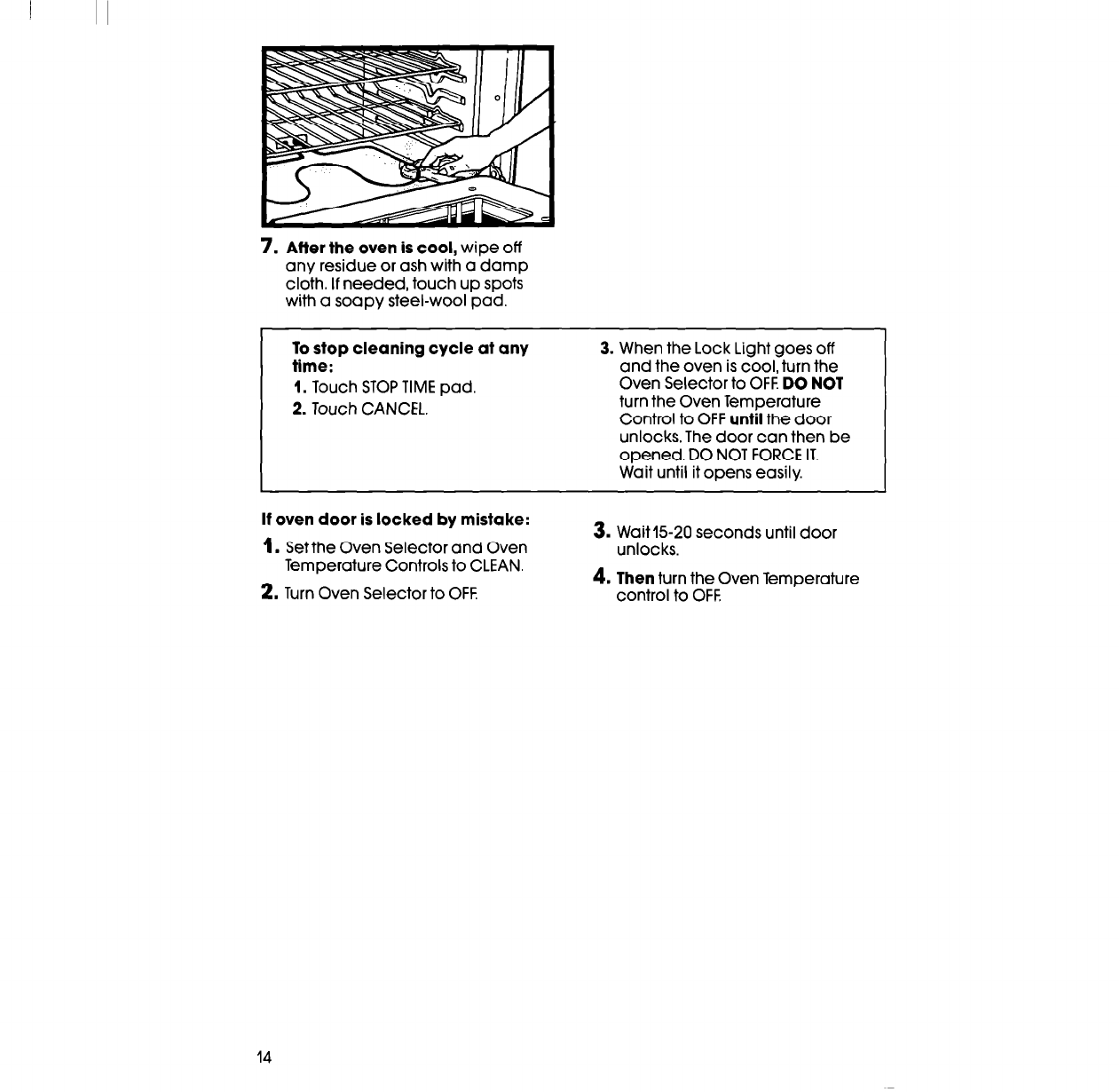

7. After the oven is cool, wipe off
any residue or ash with a damp
cloth. If needed, touch up spots
with a soapy steel-wool pad.
To stop cleaning cycle at any
time:
1. Touch STOP TIME pad.
2. Touch CANCEL.
3. When the Lock Light goes off
and the oven is cool, turn the
Oven Selector to OFF DO NOT
turn the Oven Temperature
Control to OFF until the door
unlocks. The door can then be
opened. DO NOT FORCE IT.
Wait until it opens easily.
If oven door is locked by mistake:
1. Set the Oven Selector and Oven 3. Wait 15-20 seconds until door
unlocks.
Temperature Controls to CLEAN.
2. Turn Oven Selector to OFF 4. Then turn the Oven Temperature
control to OFF
14

Special Tips
l Keep the kitchen well aired during the cleaning cycle to help get rid of normal ;
heat odors and smoke. %
l Clean the lower oven before it gets heavily soiled. Cleaning a very soiled
oven takes longer and results in more smoke than usual.
l If the cleaning cycle doesn’t get the oven as clean as you expected, the cycle
time may have been too short or you may not have prepared the oven prop-
erly. Set the cleaning time longer the next time and hand clean areas noted on
page 12.
l Oven racks lose their shine, discolor and become harder to slide when they
are left in the oven during the cleaning cycle. To make them slide easier, polish
the edges of the racks and rack guides with a soapy steel-wool pad, rinse v,
and wipe on a thin coat of salad oil. I
How It Works
During the self-cleaning cycle, the oven gets much hotter than it does for baking
or broiling...approximately 875°F (468°C). This heat breaks up grease and soil
and burns it off.
The graph shows approximate temperatures and times during a self-cleaning
cycle for 3 hours.
SELF-CLEANING CYCLE - THREEHOUR SEITING
(Approximate Temperatures and limes)
400°F
200°F
START VI hr. 1hr. IV, hrs 2 hts. 2 v1hrs 3 hrs.
204°C
93°C
3 V2hrs. STOP
Notice that the heating stops when the 3-hour setting is up, but that it takes longer
for the oven to cool down enough to unlock. I

Cleaning Chart
PART
Oven
WHAT TO USE HOW TO CLEAN
Soft cloth and warm . Wipe off regularly when oven is cool.
soapy water or spray
l Do not allow food containing acids
glass cleaner.
(such as vinegar, tomato, lemon
Plastic scrubbing pad for
juice or milk) to remain on surface.
stubborn spots.
Acids will remove the glossy finish.
l Do not use abrasive or harsh
cleaners.
Broiler pan
Warm soapy water or steel
l Do not place in Self-Cleaning Oven.
and grid
wool pad.
Control knobs
Warm soapy water and
l Wash, rinse and dry well.
soft cloth.
l Do not soak.
Control panel
Warm soapy water or
l Wash, rinse and dry well.
spray glass cleaner.
l Follow directions provided with
cleaner.
Oven racks
Self-Cleaning Oven cycle;
l Leave in oven during Self-Cleaning
warm soapy water or cycle.
soapy steel wool pads.
OR
l Wash, rinse and dry. Use soapy steel
wool pads for stubborn areas.
NOTE: The oven racks will discolor and be harder to slide
when ieff in the self-cleaning cycle. if you want them to
stay shiny, remove them from the oven and clean by hand.
Oven door
glass
Spray glass cleaner;
l Make sure pven is cool.
warm soapy water or
plastic scrubbing pad.
l Follow directions provided with
cleaner.
l Wash,rinse and dry well with a soft
cloth.
Self-Cleaning
For areas outside Self-
l Clean before using Self-Cleaning
lower Oven
Cleaning area use warm cycle to prevent burn-on of soil.
soapy water or soapy
l Follow directions starting on page 12,
steel wool pads. “Using the Self-Cleaning Cycle:’
l Do not use commercial oven
cleaners.
l Do not use foil to line the bottom of
your Self-Cleaning Oven.
16

The Lower OvenLight
The lower oven light will come on when you open the oven door. To turn the
light on when the oven door is closed, push the Oven light switch on the control
panel. Push it again to turn off the light.
To replace:
2. Remove the bulb cover in the
back of the oven by pulling out
and pushing the wire holder
to the side.
3. Remove the light bulb from its
socket. Replace the bulb with a
40-watt appliance bulb.
4. Replace the bulb cover and snap
the wire holder in place. Turn the
power back on at the main
power supply.
CAUTION: The bulb cover must be in place when using the oven. The
cover protects the bulb from breaking.
NOTE: The Oven light will not work during the self-cleaning cycle.

If you need service or assistance,
we suggest you follow these five steps:
1. Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
it nothing operates:
l Is the oven wired into a live circuit
with the proper voltage? [See “ln-
stallation Instructions:‘)
l Have you checked your home’s
main fuses or circuit breaker box?
If the oven will not operate:
l Is the Oven Selector turned to a set-
ting (BAKE or BROIL, but not TIMED
BAKE)?
l Is the Oven Temperature Control
turned to a temperature setting?
If the Self-Cleaning cycle will not
operate:
l Are the Oven Selector and the Oven
Temperature Control set on CLEAN?
l Does the clock show the correct
time of day?
l IstheSTOPTlMEsetahead tothetime
you want the cleaning cycle to
stop?
l Has the time of day reached the
selected STARTtime?
if cooking results aren’t what
you expected:
l Is the oven level?
l Are you using pans recommended
in the Cooking Guide?
l If baking, have you allowed 1% to 2
inches (4-5 cm) on all sides of the
pans for air circulation?
l Does the oven temperature seem
too low or too high? See “Adjusting
the Oven Temperature Control,”
page 7.
l Have you preheated the oven as the
recipe calls for?
l Are the pans the size called for in the
recipe?
l Are you following a tested recipe
from a reliable source?
See the Cooking Guide for more infor-
mation on cooking problems and
how to solve them.
2. If you need
as&stance%.
Call Whirlpool COOL-LINER serv-
ice assistance telephone number.
Dial free from anywhere in the U.S.:
l-800-253-1301
and talk with one of our trained Con-
sultants The Consultants can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
18

I
I
3. If you need service*...
Whirlpool has
a nationwide
network of fran-
7iECM-CARf Companies.
TECH-CARE serv-
FRANCHISEDSERVICE
J ice technicians
are trained to fulfill the product war-
ranty and provide after-warranty
service, anywhere in the United States.
To locate TECH-CARE service in your
area, call our COOL-LINE service as-
sistance telephone number [see Step
2) or look in your telephone directory
Yellow Pages under:
4. If you have a
problem*. ..
Call our COOL-LINE service assistance
telephone number (see Step 2) and
talk with one of our Consultants, or if
you prefer, write to:
Mr. Donald Skinner
Director of Customer Relations
Whirlpool Corporation
2000 M-63
Benton Harbor, Ml 49022
5. If you need FSP”
replacement parts? ..
FSP is a registered trademark of
Whirlpool Corporation for quality
parts. Look for this symbol of quality
whenever you need a replacement
part for your Whirlpool appliance. FSP
replacement parts will fit right and
work right, because they are made to
the same exacting specifications
used to build every new Whirlpool
appliance.
To locate FSP replacement parts in
your area, referto Step 3aboveorcaII
the Whirlpool COOL-LINE service as-
sistance number in Step 2.
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better
respond to your request for assist-
ance.

WHIRLPOOL”MICROWAw OVEN/
RANGE PRODUCT
WRRANTY
ME001
1 LENGTH OF WARRANTY 1 WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR
WARRANTY
From Date of Purchase
FSP@replacement parts and repair laborto
correct defects in materials or workmanship.
Service must be provided by a franchised
TECH-CARE@service comoanv.
FSP@replacement magnetron tube on
microwave ovens if defective in materials
mi;r ,workmiship.
1 WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the range product.
2. Instruct you how to use the range product.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace owner accessible light bulbs.
B. Repairs when range product is used in otherthan normal, single-family
household use.
C. Pick up and delivery. This product is designed to be repaired in the
home.
D. Damage to range product caused by accident, misuse, fire, flood, acts
of God or use of products not approved by Whirlpool.
E. Anv labor costs durina the limited warrantv.
WHIRLPOOL CORPORATION SHALLNOT BELIABLEFORINCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or
consequential damages so this limitation or exclusion may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Outside the Unlted States, a different warranty may apply. For details, please
contact your franchised Whirlpool distributor or military exchange.
Whirlpool
Pat-t No. 5606003Pl6 Rev A A
P238-3021816197 Rev. A
01988 Whirlpool Corporation Printed in U.S.A.
Ice Makers Dishwashen, Bu~ll-In Ovens and Surlace Units. Ranges. Microwave Ovens, Trash Compactors Room Air Condilmners. Dehumidilwn, Aulomatic Y
