Whirlpool Pro-Style User manual

LP/NATURAL GAS CONVERSION
INSTRUCTIONS
Pro-Style®Gas Convection Ranges
30" (76.2 cm), 36" (91.4 cm) and 48" (121.9 cm)
For residential use only
INSTRUCTIONS DE CONVERSION AU GAZ
PROPANE/NATUREL
Cuisinières à convection à Gaz Pro-Style®
de 30" (76,2 cm), 36" (91,4 cm) et 48" (121,9 cm)
Pour utilisation résidentielle uniquement
W10821593B
IMPORTANT:
Save for local electrical inspector’s use.
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
IMPORTANT :
À conserver pour consultation par l’inspecteur local des installations électriques.
Installateur : Remettre les instructions d'installation au propriétaire.
Propriétaire : Conserver les instructions d'installation pour référence ultérieure.
RANGE SAFETY ......................................................................... 2
CONVERSION REQUIREMENTS.............................................. 3
Tools & Parts ............................................................................ 3
GAS CONVERSIONS.................................................................. 4
LP Gas Conversion .................................................................. 4
Natural Gas Conversion......................................................... 14
Table of Contents/Table des matières
SÉCURITÉ DE LA CUISINIÈRE............................................... 24
EXIGENCES DU CONVERSION .............................................. 25
Outils et pièces....................................................................... 25
CONVERSIONS POUR CHANGEMENT DE GAZ .................. 26
Conversion pour l’alimentation au propane .......................... 26
Conversion pour l’alimentation au gaz naturel ...................... 36

2

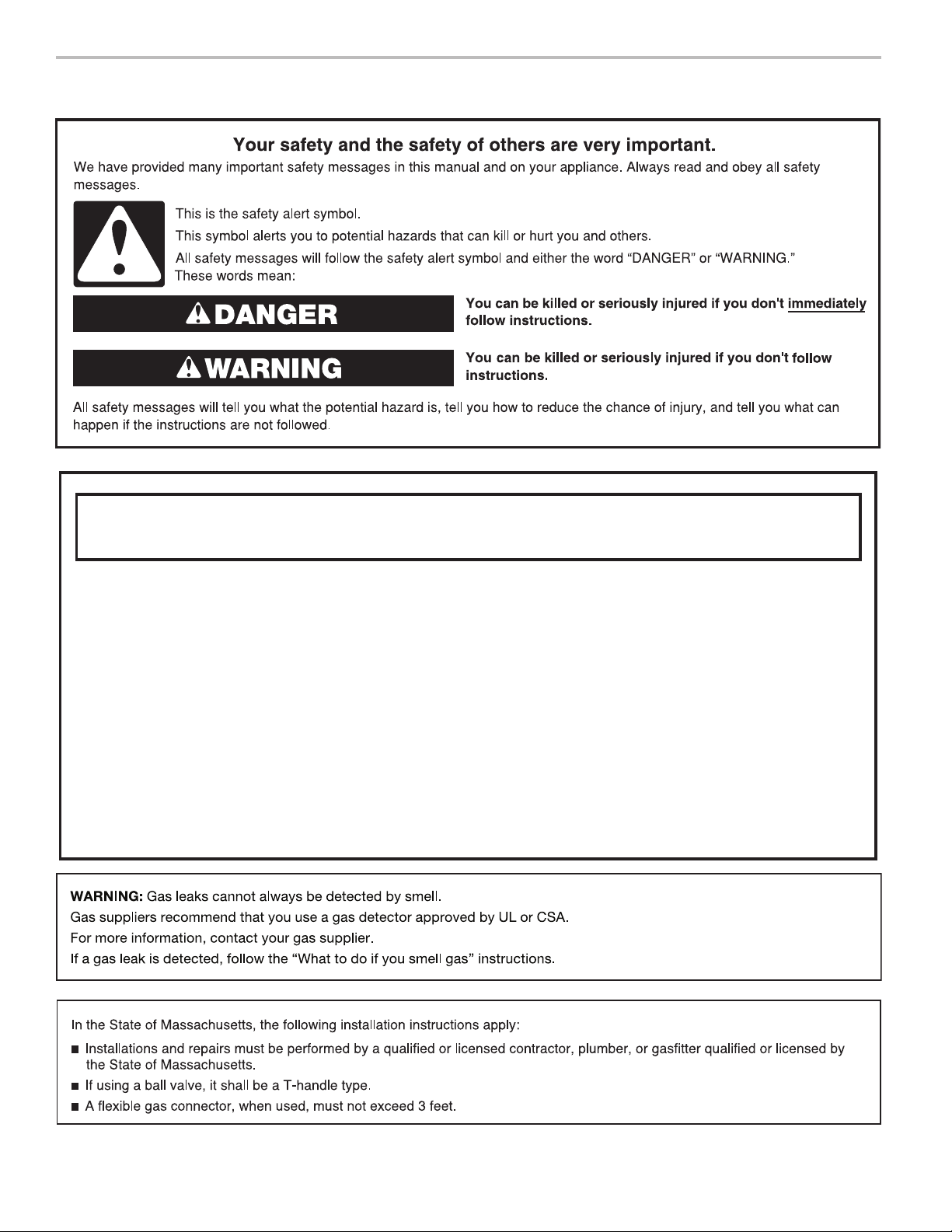

RANGE SAFETY
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
–Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
–WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call the fire department.
–Installation and service must be performed by a qualified installer, service agency or
the gas supplier.

3
Tools & Parts
CONVERSION REQUIREMENTS

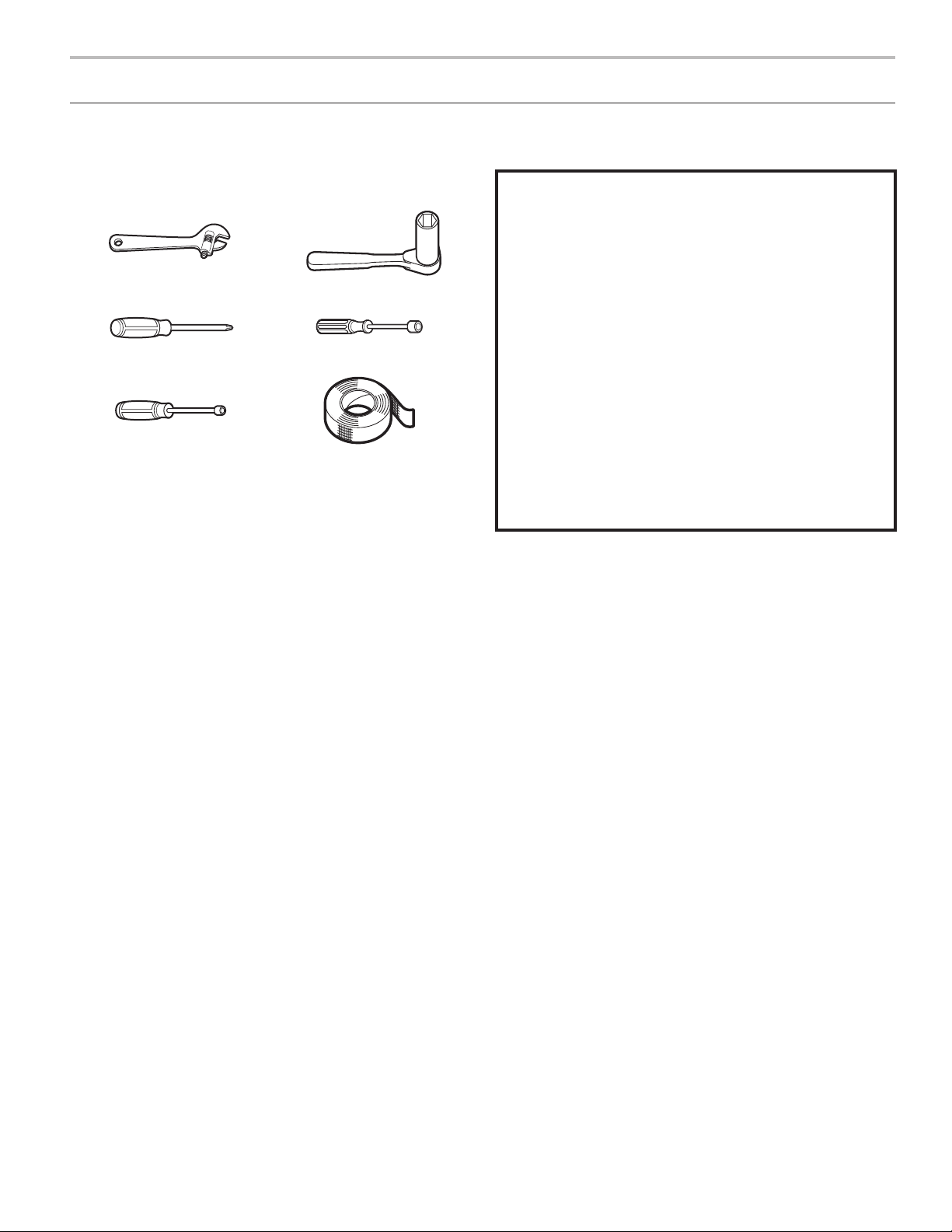

Tools Needed
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.
Parts Supplied
Check that all parts are included.
To convert from Natural Gas to LP:
■LP Orifice Kit P/N: W10825584
To convert from LP to Natural Gas:
■Natural Orifice Kit P/N: W10821163
High Altitude Conversion
To convert the cooktop for elevations above 6,560 ft
(1999.5 m), order a High Altitude Conversion Kit.
■Part Number W10394294 – LP high altitude
■Part Number W10394293 – Natural gas high altitude
To order, see the “Assistance or Service” section of the
Use and Care Guide.
Adjustable wrench Z\x" deep-well socket
#2 Phillips screwdriver
Z\v" nut driver
7 mm nut driver
Masking tape
WARNING
This conversion kit shall be installed by a
qualified service agency in accordance
with the manufacturer's instructions and
all applicable codes and requirements of
the authority having jurisdiction. If the
information in these instructions is not
followed exactly, a fire, explosion or
production of carbon monoxide may
result causing property damage, personal
injury or loss of life. The qualified service
agency is responsible for the proper
installation of this kit. The installation is
not proper and complete until the
operation of the converted appliance
is checked as specified in the
manufacturer's instructions supplied
with this kit.

4
GAS CONVERSIONS
IMPORTANT: Gas conversions from Natural gas to LP gas
must be done by a qualified installer.
WARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.

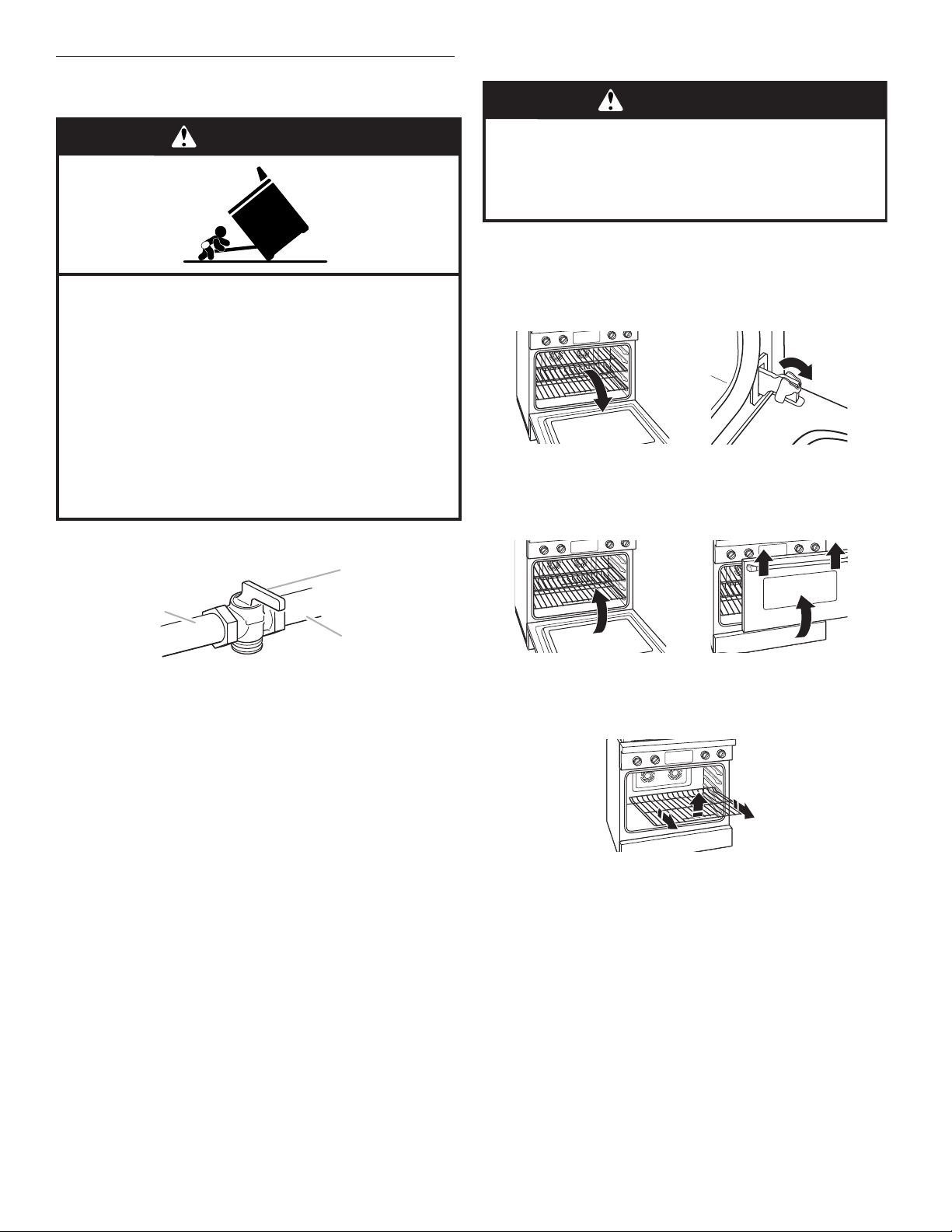

WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Install anti-tip bracket to floor or wall per installation
instructions.
Slide range back so rear range foot is engaged in the
slot of the anti-tip bracket.
Re-engage anti-tip bracket if range is moved.
Do not operate range without anti-tip bracket installed
and engaged.
Failure to follow these instructions can result in death
or serious burns to children and adults.
1. Turn the manual shut-off valve to the closed position.
2. Unplug range or disconnect power.
A
B
C
A. To range
B. Shut-off valve (closed position)
C. Gas supply line
LP Gas Conversion
Disconnect Gas and Electricity

5
Remove Oven Door
For normal range use, it is not suggested to remove the oven
door. However, removal is necessary when converting to LP
Gas. First, make sure the oven is OFF and cool. Then, follow
these instructions. The oven door is heavy.
1. Open oven door all the way. Flip the hinge latch forward on
each side.
2. Close the oven door as far as it will shut. Using 2 or more
people, lift the oven door while holding both sides.
Continue to push the oven door closed while pulling it away
from the oven door frame.
Remove Racks
Remove oven racks and the extendable roller rack from inside
the oven cavity. See the “Extendable Roller Rack” section
in the Use and Care Guide.
WARNING
Excessive Weight Hazard
Use two or more people to move and install oven
doors.
Failure to do so can result in back or other injury.
A. Kick plate
B. Remove these screws.
A
B
Remove Kick Plate
Option 1
1. Remove foam between door and kick plate.
2. Using a Phillips screwdriver, remove screws from
kick plate.
3. Lift up on kick plate to release plate from
shoulder screws.
4. Lay kick plate to the side to avoid scratching
the stainless steel.
Option 2
1. Remove kick plate from top of range and grate pack.
2. Lay kick plate to the side to avoid scratching
the stainless steel.
3. Remove screws from range.
In packaging
Packaging removed
A. Kick plate
A. Kick plate
A. Remove these screws.
A
A

6
A
A. Gas pressure regulator
Convert Gas Pressure Regulator
1. Locate the gas pressure regulator at the left rear
of the range.
2. Remove the gas pressure regulator cap by using a
large flat-blade screwdriver, turning the regulator cap
counterclockwise.
NOTE: Do not remove the spring beneath the cap.
3. Turn over the gas pressure regulator cap, and reinstall
on the regulator so that the hollow end faces out and
the letters “LP” are visible.
4. Tighten the gas pressure regulator cap by using a large
flat-blade screwdriver, turning the regulator cap clockwise.
5. Test the gas pressure regulator and gas supply line.
The regulator must be checked at a minimum 1" (2.5 cm)
water column above the set pressure. The inlet pressure
to the regulator should be as follows for operation and
checking the regulator setting:
LP Gas:
Minimum pressure 11" (27.9 cm) WCP
Maximum pressure 14" (35.5 cm) WCP
Gas Supply Pressure Testing
Gas supply pressure for testing regulator must be at least
1" water column pressure above the manifold pressure
shown on the model/serial rating plate.
Line pressure testing above ½ psi gauge (14" WCP)
The range and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures
in excess of ½ psi (3.5 kPa).
Line pressure testing at ½ psi gauge (14" WCP)
or lower
The range must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psi (3.5 kPa).

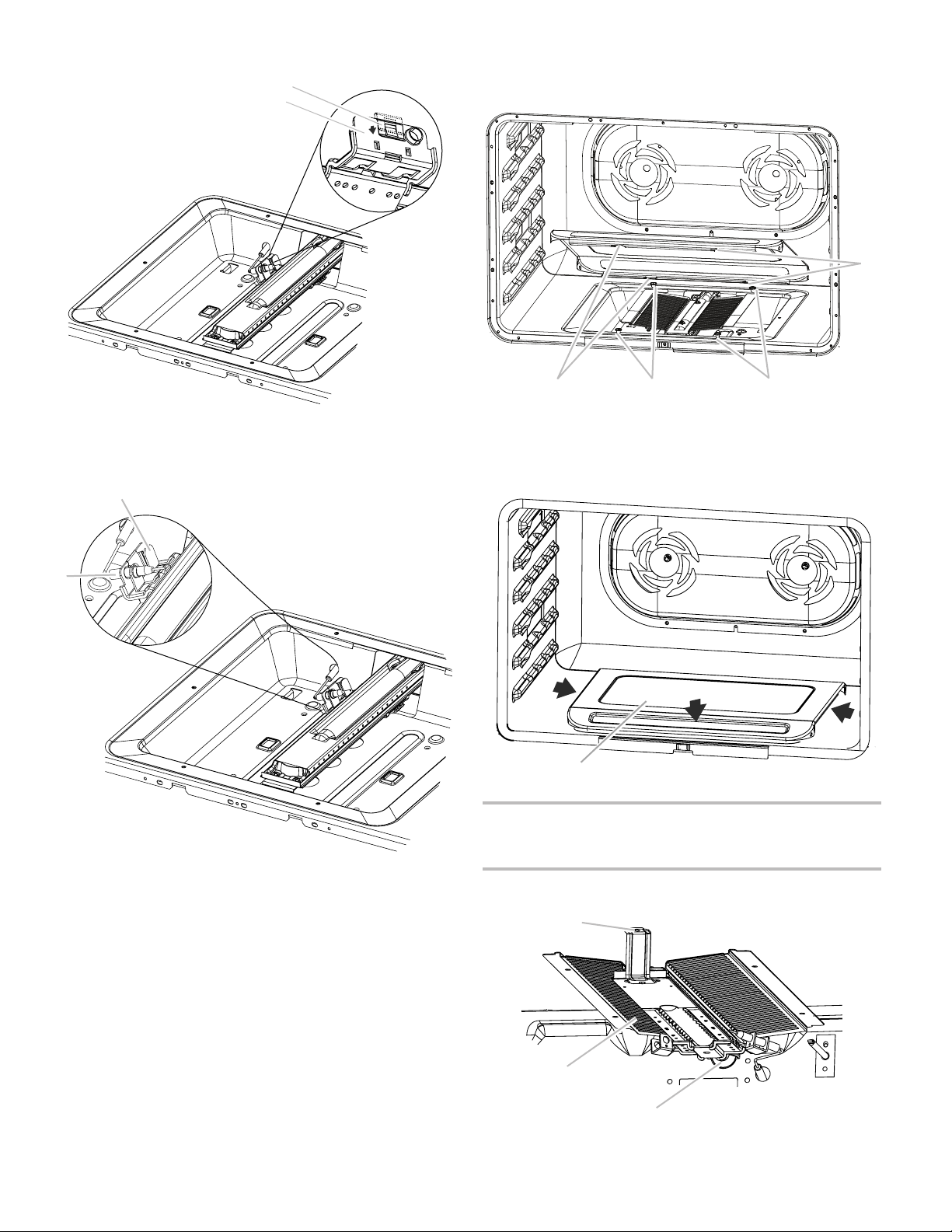

Convert Oven Bake Burner (30" [76.2 cm] and
36" [91.4 cm] models and the right oven cavity
on 48" [121.9 cm] models)
1. Slide the bake burner cover to the right or left.
2. Lift up and remove oven bake burner cover, and set aside.
3. Using a 7 mm nut driver, unscrew oven baffle nuts and
remove oven baffle. Set aside.
A
A. Bake burner cover
B
A
A. Oven baffle
B. Oven baffle nuts

7

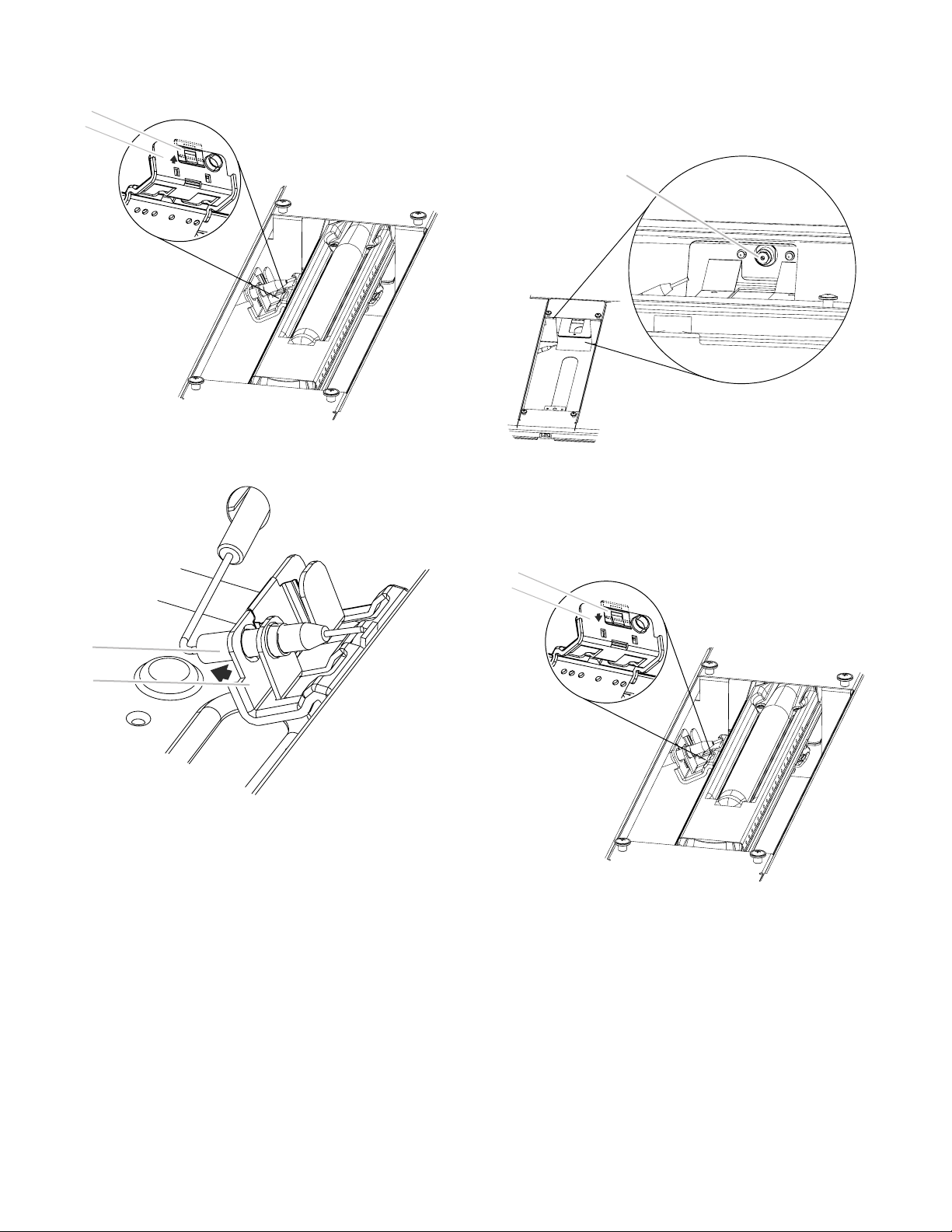

4. Remove the oven bake burner screws and oven bake
burner. Rotate burner 90° to the left, and gently lay
on its side.
5. Lift up clip on the oven bake burner electrode bracket
with a finger or flat-blade screwdriver, and pull away
the electrode.
AB
DC
A. Oven bake burner screws
B. Oven bake burner
C. Oven bake burner electrode
bracket
D. Oven bake burner electrode
A. Oven bake burner electrode bracket
B. Electrode bracket clip
A
B
6. Pull electrode out of bracket.
7. Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening, and press down onto
the gas orifice spud, then remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice
spud aside.
8. Gas orifice studs are stamped with a letter and a number.
Install the Number 125 oven bake burner orifice spud.
9. Place Natural gas orifice in plastic parts bag for future use,
and keep with package containing literature.
A
B
A. Grasp electrode here.
B. Bracket
A
A. Gas orifice spud

8
10. Push down on the clip on the electrode bracket.
11. Replace oven bake burner electrode inside bracket.
12. Reinstall the oven bake burner and oven bake burner
screws. See Step 4 for illustration.
13. Replace oven baffle and oven baffle nuts. The front holes
will be aligned, and a click will sound when baffle is seated.
A. Oven bake burner electrode bracket
B. Electrode bracket clip
A
B
A
B
A. Oven bake burner electrode
B. Oven bake burner electrode bracket

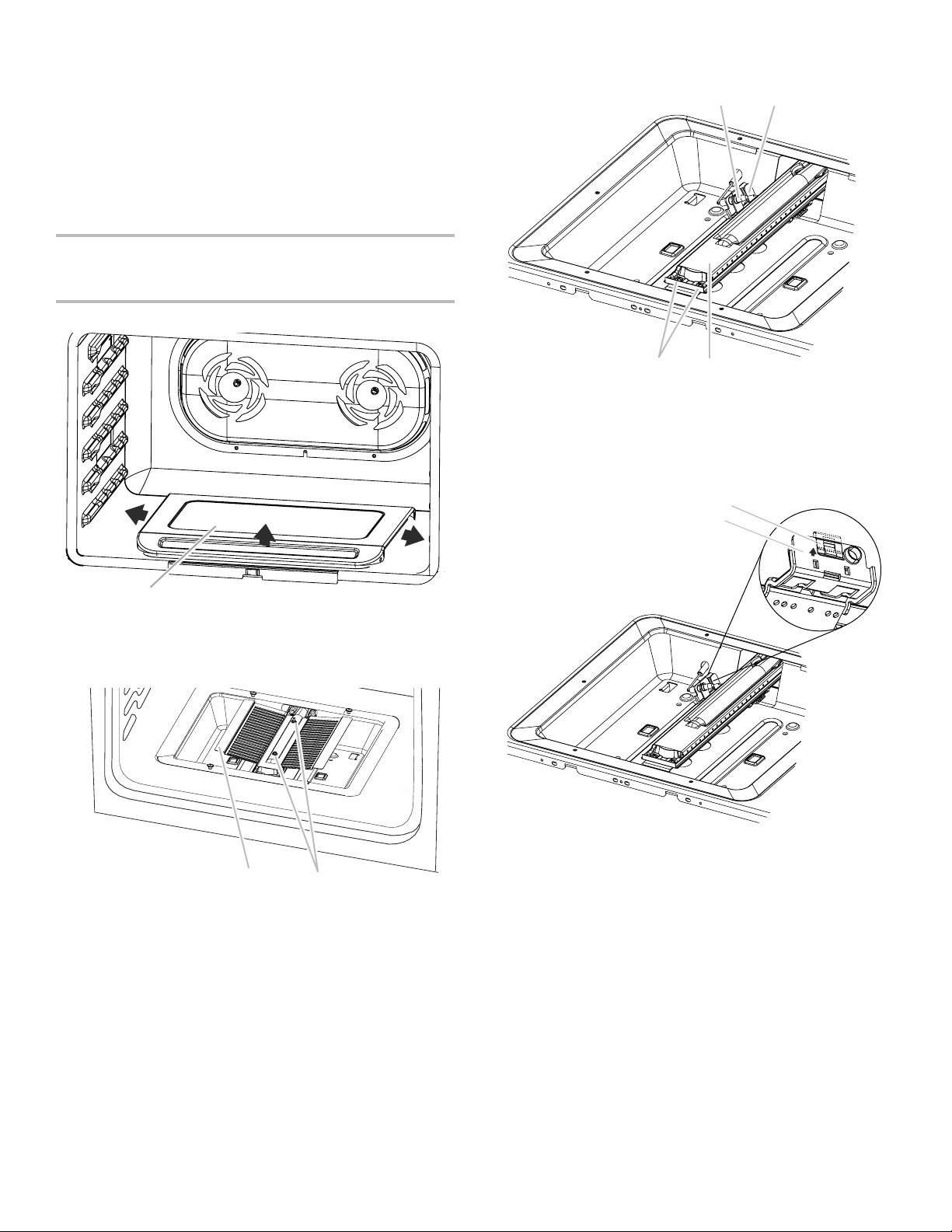

Replace Oven Bake Burner Cover
1. Align notches on the oven bake burner cover with
shoulder screws in the bottom of the oven.
2. Lower cover, and slide to left or right to slide shoulder
screws into the narrow ends of the notches, then lock
into place.

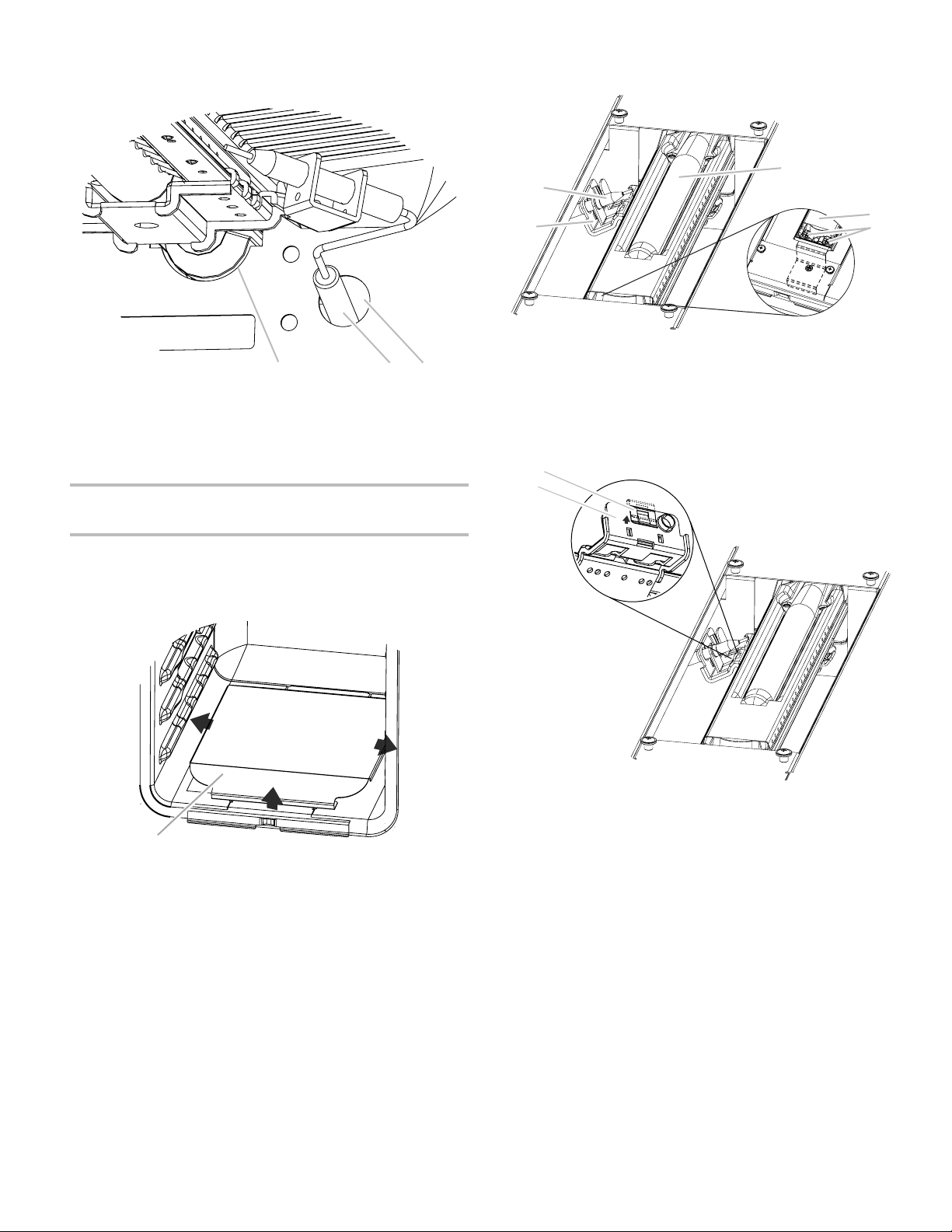

Convert Oven Broil Burner (30" [76.2 cm] and 36"
[91.4 cm] Models and the Right Oven Cavity on 48"
[121.9 cm] Models)
1. Using a Z\v" nut driver, remove broil burner screw.
Set aside with side igniter positioned on the right.
B
AB
A
A. Cover notches (4)
B. Shoulder screws (4)
A
A. Bake burner cover
B
A
C
A. Broil burner screw
B. Broil burner
C. Broil burner orifice hole

9
A. Grasp electrode here.
B. Bracket
A
B
A. Oven back
B. Broil burner orifice
C. Broil burner orifice hole
ABC
ABC
A. Broil burner orifice hole
B. Broil burner electrode
C. Broil burner electrode hole
Broil burner hanging
in back of oven
A
B
2. Pull the broil burner toward you until it slides out of the hole
in the oven back, and pull the electrode out of the bracket.
The broil burner will hang down in the back of the oven
while you change the orifice.
3. Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening, and press down onto
the gas orifice spud, then remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice
spud aside.
4. Gas orifice studs are stamped with a letter and a number.
Install the Number 97 oven broil burner orifice spud.
5. Place Natural gas orifice in plastic parts bag for future use,
and keep with package containing literature.
6. Replace the broil burner in the hole in the oven back with
the broil burner assembly inside the broil burner electrode
hole as illustrated.
7. Reinstall the oven broil burner screw. See Step 1 for
illustration. The screw is aligned with the hole when
a click sounds.
Convert Oven Bake Burner (Left Oven Cavity on 48"
[121.9 cm] Models)
1. Remove oven racks. See the “Remove Racks” section.
2. Remove the oven door. See the “Remove Oven Door”
section.
3. Slide the bake burner cover to the right or left.
4. Lift up and remove oven bake burner cover, and set aside.
5. Remove the oven bake burner screws and oven bake
burner, and gently set aside.
A. Bake burner cover
A
A. Oven bake burner
B. Oven bake burner screws
C. Oven bake burner electrode bracket
D. Oven bake burner electrode
A
C
D
A
B

10
A. Oven bake burner electrode bracket
B. Electrode bracket clip
A
B
A. Gas orifice spud
A
6. Lift clip up on the oven bake burner electrode bracket with
a finger or flat-blade screwdriver.
7. Pull electrode out of bracket.
A. Oven bake burner electrode bracket
B. Electrode bracket clip
A
B
A. Grasp electrode here
B. Bracket
A
B
8. Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening, and press down onto
the gas orifice spud, then remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice
spud aside.
9. Gas orifice studs are stamped with a letter and a number.
Install the Number 105 oven bake burner orifice spud.
10. Place Natural gas orifice in plastic parts bag for future use,
and keep with package containing literature.
11. Push down on the clip on the electrode bracket.

11
A. Shoulder screw mounting holes (keyholes)
B. Shoulder screws
B
A
A
A. Oven bake burner electrode
B. Oven bake burner electrode bracket
A
B
A. Bake burner cover
12. Replace oven bake burner electrode inside bracket.
13. Reinstall the oven bake burner and oven bake burner
screws. See Step 5 for illustration.
Replace Oven Bake Burner Cover
1. Align rear shoulder screw mounting holes (keyholes) on the
oven bake burner cover with shoulder screws in the bottom
of the oven.
2. Drop cover and slide to left or right to slide shoulder screws
into narrow ends of keyholes, and lock into place.
Install Kick Plate
1. Align shoulder screw mounting holes with shoulder screws
on range.
2. Push kick plate down against front of range until the top
screw holes are aligned with the mounting holes on the
front of the range.
3. Attach screws to the top of the kick plate.
A
B
D
C
A. Kick plate
B. Reattach these screws.
C. Top screw hole
D. Shoulder screw mounting hole
Replace Racks
Replace oven racks and the extendable roller rack. See the
“Extendable Roller Rack” section in the Use and Care Guide.
Convert Surface Burners
1. If the burner grates are installed, remove them.
2. Remove burner cap.
3. Remove the burner base.
4. Apply masking tape to the end of a 7 mm nut driver to
help hold the gas orifice spud in the nut driver while
changing it. Insert nut driver into the gas opening, and
press down onto the gas orifice spud, then remove by
turning the gas orifice spud counterclockwise and lifting
out. Set gas orifice spud aside.
A
B
A
B
C
A
B
Large Dual Burner
A. Burner cap
B. Burner base
Medium Burner
A. Burner cap
B. Burner base
C. Choke (for use with medium
burner, LP gas only)
Small Burner
A. Burner cap
B. Burner base

12
5. Replace with correct LP gas orifice spud. See the “LP
Gas Orifice Spud/Hood Chart.”
Use the following chart to find the exact orifice spud
placement.
Fully insert choke into bottom of medium burner base.
Choke should snap into place. Refer to illustration to
verify that choke is fully seated.
NOTE: Chokes are placed on medium burners only.
Burner
Rating Color Size Burner Style
3,000
BTUs Blue 0.55 mm Small burners
11,000
BTUs Yellow 0.97 mm Medium burners
14,000
BTUs Red/Green Green 1.05 mm 0.35 mm Large burner – main Large burner – simmer
14,500
BTUs Black 1.18 mm Grill burner
Burner orifice spud
A
A. Size stamp or color
A
B
C
Choke
Main
Simmer
LP Gas Orifice Spud/Hood Chart
6. Place Natural Gas orifice in plastic parts bag for future
use, and keep with package containing literature.
NOTE: There may be extra orifices in your kit.
7. Replace the burner base.
8. Replace burner cap.
9. Repeat steps 2 through 8 for the remaining burners.
10. Make sure range is unplugged or power is disconnected.
11. Remove the control knobs.
12. Using a Phillips screwdriver, remove the 2 screws on each
side of the range that hold the control console in place.
13. Pull up on the control console, and let it drop forward
into the notched console brackets on each side.
14. Remove the round gaskets from the valve stems.
15. Use a ¹⁄8" x 4¼" flat-blade screwdriver to completely
screw down all burner screws.
NOTE: When you are converting to LP gas, the screw
should be tightened down completely on the single output
valves. The dual output valve should not be adjusted.
16. Replace the round gaskets on the valve stems.
A. Control console bracket
A. Single flame burner adjustment screw (on right side of valve)
A
AB
Incorrectly seated choke
Correctly seated choke

13
17. Lift up on the control console, and set it back into place.
For a proper fit, the flange of the control console must
hook over the lip on the front of the range cooktop.
18. Check that the control console is flush with the top edge
of the range.
19. Using a Phillips screwdriver, replace the 2 screws on each
side of the control console.
20. Replace the control knobs.
21. Replace burner grates.
A. Flush with range top
A
Replace Oven Door
1. Using 2 or more people, lift the oven door and insert both
hanger arms into the door. Make sure hanger arm notch
is seated on slot in door frame.
2. Open the oven door part way. You should hear a “click”
as the door is set into place. Then, open the oven door
all the way. Move the hinge levers back to the locked
position.
WARNING
Excessive Weight Hazard
Use two or more people to move and install oven
doors.
Failure to do so can result in back or other injury.
Hanger arm
Notch
Slot in frame
Reconnect Gas and Electricity
1. Open the manual shut-off valve in the gas supply line.
The valve is open when the handle is parallel to the
gas pipe.
2. Test all connections by brushing on an approved
noncorrosive leak-detection solution. If bubbles appear,
a leak is indicated. Correct any leak found.
3. Plug into a grounded 3 prong outlet.
4. Turn on power supply. For further information, please refer
to the user instructions located in the Use and Care Guide.
5. Refer to the “Electronic Ignition System” section in the
Installation Instructions for proper burner ignition, operaion
and burner flame adjustments.
IMPORTANT: You may have to adjust the “LO” setting for
each cooktop burner.
Check flames. Checking for proper cooktop burner flame
is very important. The small inner cone should have a very
distinct blue flame ¼" (0.64 cm) to ½" (1.3 cm) long. The
outer cone is not as distinct as the inner cone. LP gas
flames have a slightly yellow tip.
A
B
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
A. Closed valve
B. Open valve
A. Control console flange
B. Front lip of range cooktop
A
B
3. Check that the door is free to open and close. If it is not,
repeat the removal and installation procedures.

14
Natural Gas Conversion
Disconnect Gas and Electricity
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Install anti-tip bracket to floor or wall per installation
instructions.
Slide range back so rear range foot is engaged in the
slot of the anti-tip bracket.
Re-engage anti-tip bracket if range is moved.
Do not operate range without anti-tip bracket installed
and engaged.
Failure to follow these instructions can result in death
or serious burns to children and adults.
1. Turn manual shut-off valve to the closed position.
A
B
C
A. To range
B. Shut-off valve (closed position)
C. Gas supply line
2. Unplug range or disconnect power.
Remove Oven Door
For normal range use, it is not suggested to remove the oven
door. However, removal is necessary when converting to
Natural Gas. First, make sure the oven is OFF and cool. Then,
follow these instructions. The oven door is heavy.
1. Open oven door all the way. Flip forward the hinge latch
on each side.
2. Close the oven door as far as it will shut. Using 2 or more
people, lift the oven door while holding both sides.
Continue to push the oven door closed while pulling it
away from the oven door frame.
Remove Racks
Remove oven racks and the extendable roller rack from inside
the oven cavity. See the “Extendable Roller Rack” section
in the Use and Care Guide.
WARNING
Excessive Weight Hazard
Use two or more people to move and install oven
doors.
Failure to do so can result in back or other injury.

15
A. Kick plate
B. Remove these screws.
A
B
Remove Kick Plate
In packaging
Packaging removed
A
A. Kick plate
A
A. Kick plate
A. Remove these screws.
Option 1
1. Remove foam between door and kick plate.
2. Using a Phillips screwdriver, remove screws from
kick plate.
3. Lift up on kick plate to release plate from
shoulder screws.
4. Lay kick plate to the side to avoid scratching
the stainless steel.
Option 2
1. Remove kick plate from top of range and grate pack.
2. Lay kick plate to the side to avoid scratching
the stainless steel.
3. Remove screws from range.
Convert Gas Pressure Regulator
1. Locate the gas pressure regulator at the left rear
of the range.
2. Remove the gas pressure regulator cap by using a
large flat-blade screwdriver, turning the regulator cap
counterclockwise.
NOTE: Do not remove the spring beneath the cap.
3. Turn over the gas pressure regulator cap, and reinstall
on the regulator so that the hollow end faces out and
the letters “NAT” are visible.
4. Tighten the gas pressure regulator cap by using a large
flat-blade screwdriver, turning the regulator cap clockwise.
5. Test the gas pressure regulator and gas supply line.
The regulator must be checked at a minimum 1" (2.5 cm)
water column above the set pressure. The inlet pressure
to the regulator should be as follows for operation and
checking the regulator setting:
Natural Gas:
Minimum pressure 6" (15.2 cm) WCP
Maximum pressure 14" (35.6 cm) WCP
Gas Supply Pressure Testing
Gas supply pressure for testing regulator must be at least
1" water column pressure above the manifold pressure
shown on the model/serial rating plate.
A
A. Gas pressure regulator

16
Line pressure testing above ½ psi gauge (14" WCP)
The range and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures
in excess of ½ psi (3.5 kPa).
Line pressure testing at ½ psi gauge (14" WCP)
or lower
The range must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psi (3.5 kPa).
Convert Oven Bake Burner (30" [76.2 cm] and 36"
[91.4 cm] models and the Right Oven Cavity on 48"
[121.9 cm] models)
1. Slide the bake burner cover to the right or left.
2. Lift up and remove oven bake burner cover and set aside.
3. Using a 7 mm nut driver, unscrew oven baffle nuts and
remove oven baffle. Set aside.
A. Bake burner cover
A
A. Oven baffle
B. Oven baffle nuts
B
A
4. Remove the oven bake burner screws and oven bake
burner and gently set aside.
5. Lift up clip on the oven bake burner electrode bracket
with a finger or flat-blade screwdriver and pull away
the electrode.
A. Oven bake burner screws
B. Oven bake burner
C. Oven bake burner electrode bracket
D. Oven bake burner electrode
A. Oven bake burner electrode bracket
B. Electrode bracket clip
A
B
AB
DC

17
6. Pull electrode out of bracket.
7. Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening, and press down onto
the gas orifice spud, then remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice
spud aside.
8. Gas orifice studs are stamped with a letter and a number.
Install the Number 189 oven bake burner orifice spud.
9. Place LP gas orifice in plastic parts bag for future use
and keep with package containing literature.
A. Grasp electrode here.
B. Bracket
A. Gas orifice spud
A
B
A
10. Push down on the clip on the electrode bracket.
11. Replace oven bake burner electrode inside bracket.
12. Reinstall the oven bake burner and oven bake burner
screws. See Step 4 for illustration.
13. Replace oven baffle and oven baffle nuts. The front holes
will be aligned and a click will sound when baffle is seated.
A. Oven bake burner electrode
B. Oven bake burner electrode bracket
A. Oven bake burner electrode bracket
B. Electrode bracket clip
A
B
A
B

18
A. Cover notches (4)
B. Shoulder screws (4)
A. Broil burner screw
B. Broil burner
C. Broil burner orifice hole
A. Bake burner cover
Replace Oven Bake Burner Cover
1. Align notches on the oven bake burner cover with shoulder
screws in the bottom of the oven.
2. Lower cover and slide to left or right to slide shoulder
screws into the narrow ends of the notches and lock
into place.
Convert Oven Broil Burner (30" [76.2 cm]
and 36" [91.4 cm] models and the Right Oven Cavity
on 48" [121.9 cm] models)
1. Using a Z\v" nut driver, remove broil burner screw
and set aside.
B
AB
A
A
B
A
C
A. Oven back
B. Broil burner orifice
C. Broil burner orifice hole
2. Pull the broil burner toward you until it slides out of the hole
in the oven back, and pull the electrode out of the bracket.
The broil burner will hang down in the back of the oven
while you change the orifice.
3. Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening and press down onto
the gas orifice spud and remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice
spud aside.
4. Gas orifice studs are stamped with a letter and a number.
Install the Number 148 oven broil burner orifice spud.
5. Place LP gas orifice in plastic parts bag for future use
and keep with package containing literature.
ABC
A. Grasp electrode here.
B. Bracket
A
B
Broil burner hanging in
back of oven
A
B

19
6. Replace the broil burner in the hole in the oven back with
the broil burner electrode inside the broil burner electrode
hole as illustrated.
7. Reinstall the oven broil burner screw. See Step 1 for
illustration. The screw is aligned with the hole when
a click sounds.
Convert Oven Bake Burner (Left Oven Cavity
on 48" [121.9 cm] models)
1. Remove oven racks. See the “Remove Racks” section
2. Remove the oven door. See the “Remove Oven Door”
section.
3. Slide the bake burner cover to the right or left.
4. Lift up and remove oven bake burner cover and set aside.
A. Broil burner orifice hole
B. Broil burner electrode
C. Broil burner electrode hole
A. Bake burner covert
A
BC
A
A. Oven bake burner
B. Oven bake burner screws
C. Oven bake burner electrode bracket
D. Oven bake burner electrode
A. Oven bake burner electrode bracket
B. Electrode bracket clip
5. Remove the oven bake burner screws and oven bake
burner and gently set aside.
6. Lift up clip on the oven bake burner electrode bracket
with a finger or flat-blade screwdriver, and pull away
the electrode.
A
C
D
A
B
A
B

20
A. Grasp electrode here.
B. Bracket
A. Gas orifice spud
7. Pull electrode out of bracket.
8. Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening, and press down onto
the gas orifice spud, then remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice
spud aside.
9. Gas orifice studs are stamped with a letter and a number.
Install the Number 154 oven bake burner orifice spud.
10. Place LP gas orifice in plastic parts bag for future use,
and keep with package containing literature.
A
B
A
A. Oven bake burner electrode bracket
B. Electrode bracket clip
A. Oven bake burner electrode
B. Oven bake burner electrode bracket
11. Push down on the clip on the electrode bracket.
12. Replace oven bake burner electrode inside bracket.
13. Reinstall the oven bake burner and oven bake burner
screws. See Step 5 for illustration.
A
B
A
B
