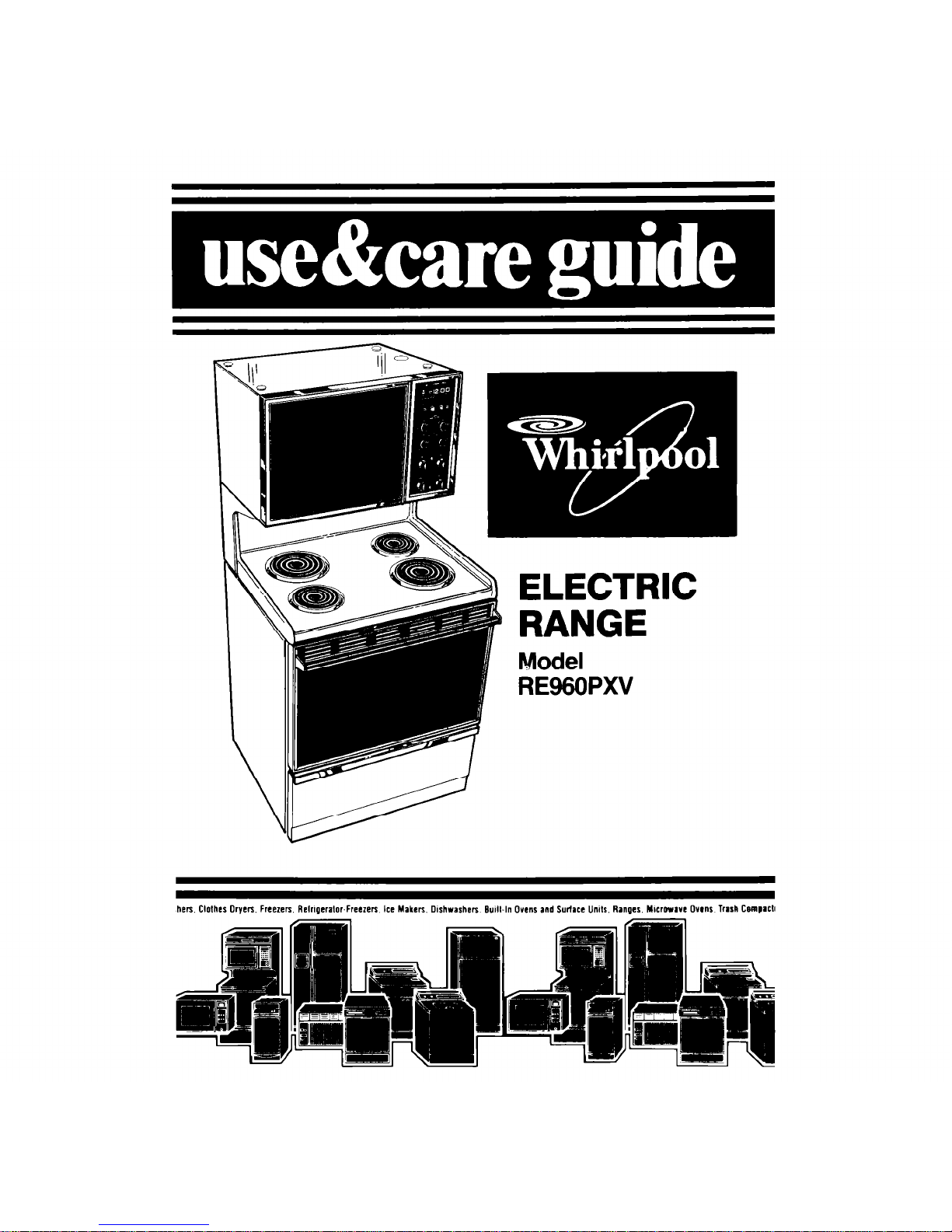

Whirlpool RE960PXV User manual

Contents
BEFORE YOU USE YOUR RANGE
IMPORTANT SAFETY
INSTRUCTIONS . . . . .
PARTS AND FEATURES . . .
USING YOUR RANGE. . .
Using the Surface Units
Optional Canning Kit .
Setting the Clock .
Using the Minute Timer .
Using the Oven Controls
Baking....................

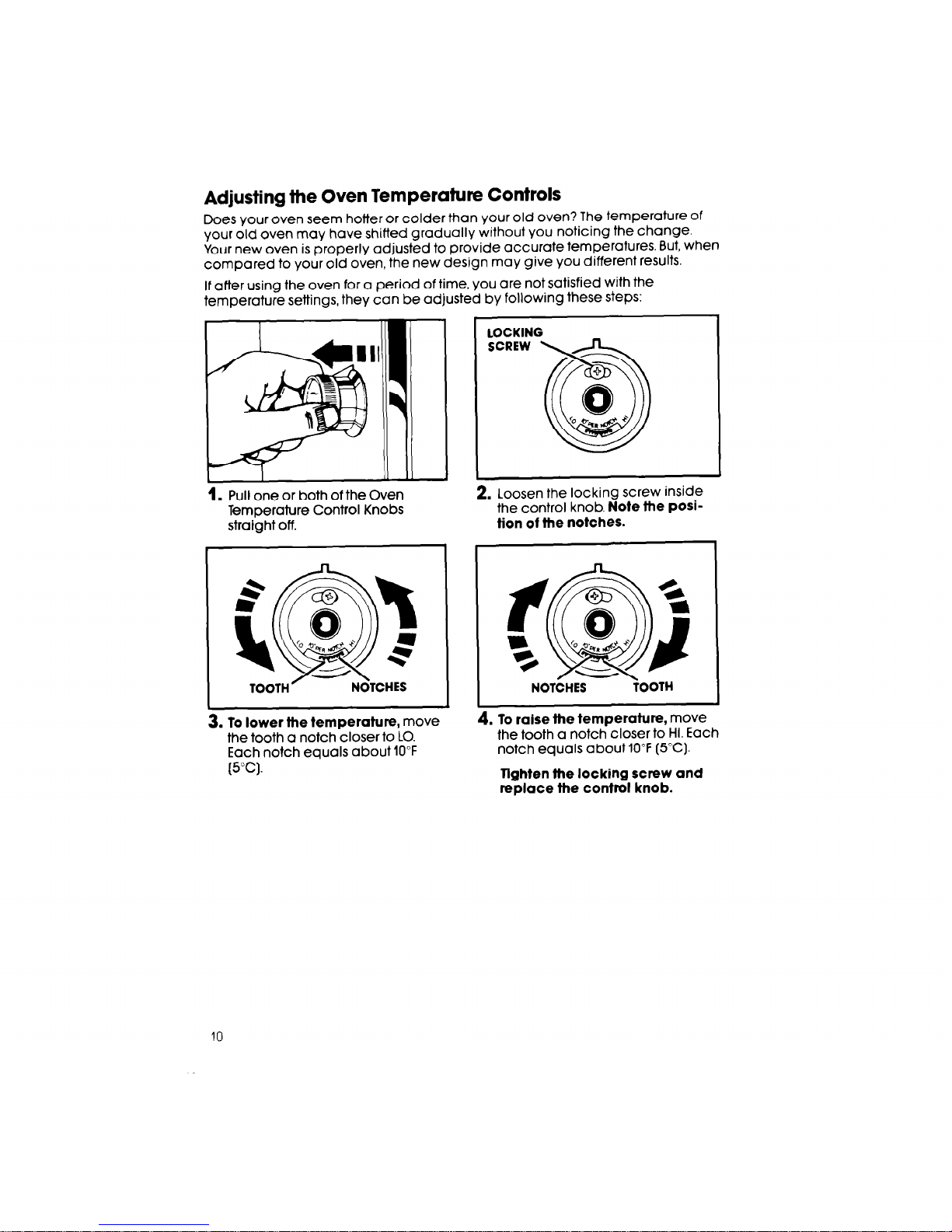

Adjusting the Oven
Temperature Controls .
Broiling . . . . .

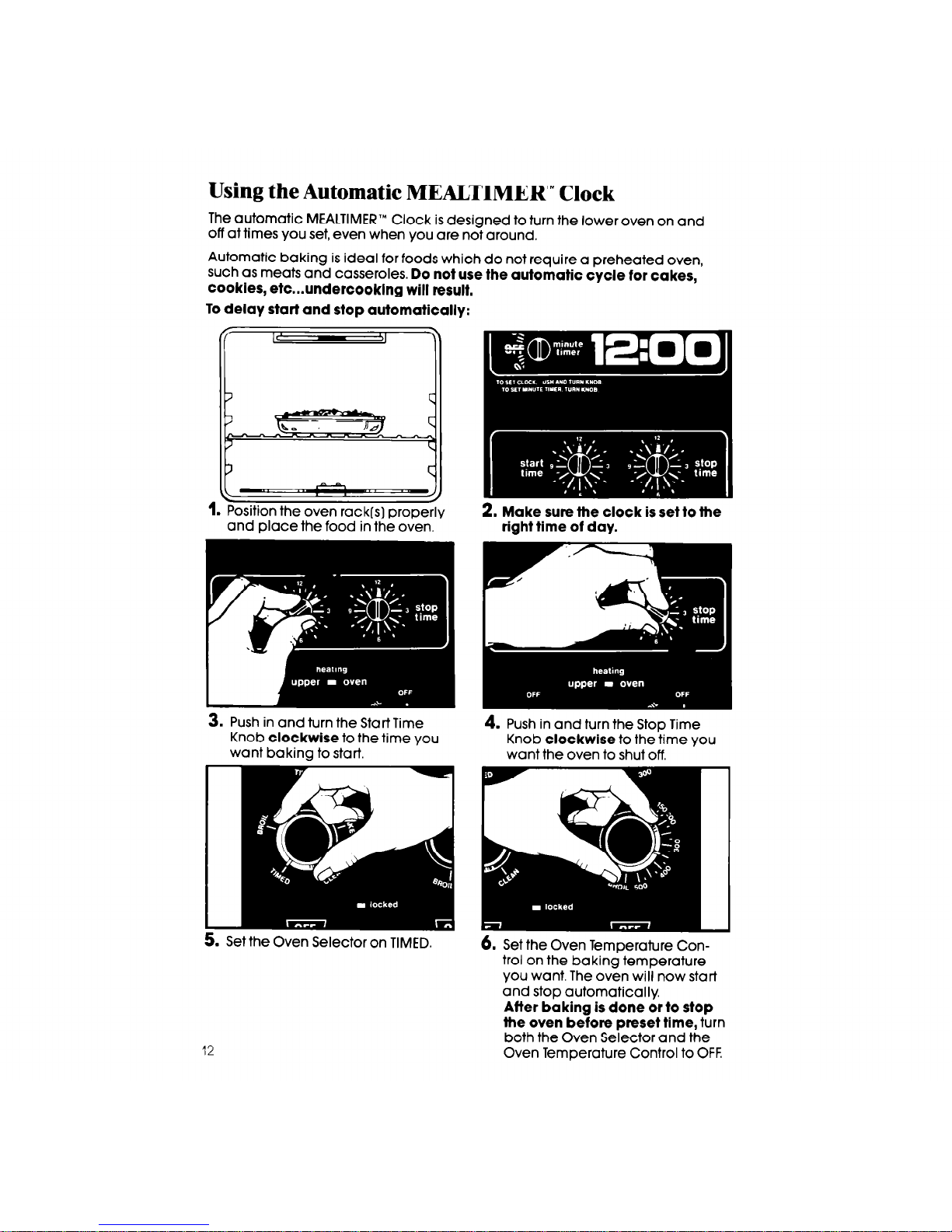

Using the Automatic
MEALTIMER’” Clock . . .

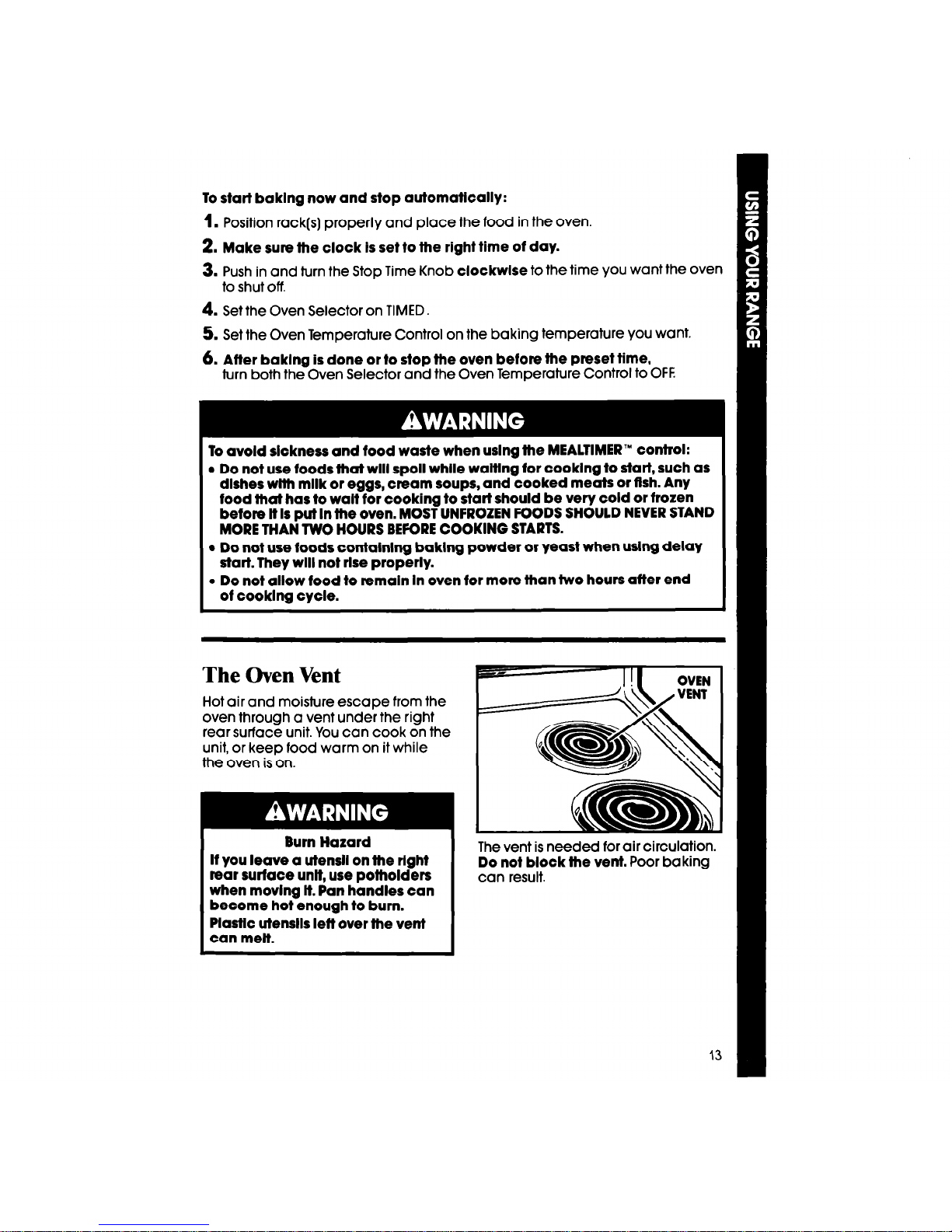

The Oven Vent . . . . .
The Storage Drawer . . .
Optional Rotisserie . . . . , . .
Optional Door Panel Pat .
10
11
12
13
14
15
15
CARING FOR YOUR RANGE,
Control Panel and Knobs
Surface Units and
Reflector Bowls
Lift-Up Cooktop
The Upper Oven Rack
Guides . . . . . . . . . . . . . .._
The Continuous-Cleaning
Upper Oven .
Using the Self-Cleaning
Cycle . . .
Cleaning Chart .
Using and Replacing the
Light Bulbs . , .
The Cooktop Light . .
The Oven Lights .
IF YOU NEED SERVICE
OR ASSISTANCE. ,
WHIRLPOOL RANGE
WARRANTY .
Page
15
. 15
16
18
18
19
21
. 24
26
26
27
29
32
01989 Whirlpool Corporation
Before you useyour range
You are responsible for:
l Reading and following all safety precautions in this Use and Care Guide
and the Cooking Guide.
l Installing and leveling the range on a floor strong enough to hold its weight,
and where it is protected from the elements. (See the Installation Instructions.)
l Making sure the range is not used by anyone unable to operate it properly.
l Properly maintaining the range.
l Using the range only for jobs expected of a home range.
Remove the Consumer Buy Guide label. It will be easier to remove before the
range is used. To remove any remaining glue:
l Rub briskly with thumb to make a ball, then remove.
or
l Soak area with liquid hand dishwashing detergent before removing glue
as described above.
Do not use rubbing alcohol or flammable or toxic solvents, such as acetone,
gasoline, carbon tetrachloride, etc. These can damage the finish.
2

IMPORTANT
SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock,
Injury to persons, or damage when using the
range, follow basic precautions, including
l Read all instructions before using
the range.
l Install or locate the range only in
accordance with the provided
Installation Instructions. It is rec-
ommended that the range be
installed by a qualified installer.
The range must be properly
connected to electrical supply
and grounded.
l Do not use the range for warm-
ing or heating the room. Persons
could be burned or injured, or
a fire could start.
l Do not leave children alone or
unattended in area where the
range is in use. They should
never be allowed to sit or stand
on any part of the range. They
could be burned or injured.
l Do not wear loose or hanging
garments when using the range.
They could ignite if they touch a
hot surface unit or heating ele-
ment and you could be burned.
0 Do not repair or replace any
part of the range unless specifi-
cally recommended in this man-
ual. All other servicing should
be referred to a qualified
technician.
l Do not store flammable mate-
rials in or near the range. They
could explode or burn.
l Do not use water on grease fires.
Never pick up a flaming pan.
Smother flaming pan on cook-
top by covering with a well-fitted
lid, cookie sheet or flat tray. Flam-
ing grease outside of pan can
be extinguished with baking
soda or, if available, a multipur-
pose dry chemical or foam-type
extinguisher.
. Use only dry potholders. Moist
or damp potholders on hot sur-
faces may result in burns from
steam. Do not let potholder touch
hot heating elements. Do not use
a towel or bulky cloth for a pot-
holder. They could catch on fire.
l Select a pan with a flat bottom
that is about the same size as
the surface unit. If pan is smaller
than the surface unit, some of
the heating element will be
exposed and may result in the
igniting of clothing or potholders.
Correct pan size also improves
cooking efficiency.
l Never leave surface units unat-
tended at high heat settings. A
boil-over could result and cause
smoking and greasy spill-overs
that may ignite.
l Make sure the reflector bowls
are in place during cooking.
Cooking without reflector bowls
may subject the wiring and
components underneath them
to damage.
l Do not line reflector bowls with
aluminum foil or other liners.
Improper installation of these
liners may result in a risk of
electric shock or fire.
l Check to be sure glass cooking
utensils are safe for use on the
cooktop. Only certain types of
glass, glass ceramic, ceramic,
earthenware or other glazed
utensils are suitable for cooktops
without breaking due to the
sudden change in temperature.
l Turn pan handles inward, but
not over other surface units. This
will help reduce the chance
of burns, igniting of flammable
materials, and spills due to
bumping of the pan.
l Do not soak removable heating
elements in water. The element

will be damaged and shock or
fire could result.
l Use care when opening oven
door. Let hot air or steam escape
before removing or replacing
food.
l Do not heat unopened con-
tainers. They could explode. The
hot contents could cause burns
and container particles could
cause injury
l Keep range vents unobstructed.
l Always position oven racks in
desired location while oven is
cool. If rack must be moved
while oven is hot, do not let
potholder contact hot heating
element in oven.
l Do not clean door seal. It is
essential for a good seal. Care
should be taken not to rub,
damage, or move the seal.
Clean only parts recommended
in this Use and Care Guide.
l Do not use oven cleaners. No
commercial oven cleaner or
oven liner protective coating of
any kind should be used in or
around any part of the oven.
l Before self-cleaning the lower
oven, remove broiler pan, broiler
grid, oven racks and other
utensils. Do not use your oven to
clean miscellaneous parts.
l Do not store things children
might want above the range.
Children could be burned or
injured while climbing on it.
l Do not touch surface units, areas
near units, heating elements or
interior surfaces of oven. Surface
units and heating elements may
be hot even though they are
dark in color. Areas near surface
units and interior surfaces of an
oven become hot enough to
cause burns. During and after
use, do not touch, or let clothing
or other flammable materials
contact surface units, areas near
units, heating elements or interior
surfaces of oven until they have
had sufficient time to cool. Other
surfaces of the range may
become hot enough to cause
burns; such as, the oven vent
opening, the surface near the
vent opening, the cooktop, the
oven door and window.
. FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FIRE
HAZARD OR EXPLOSION.
- SAVE THESE INSTRUCTIONS -
Thank you for buying a Whirlpool appliance. Please complete and
mall the Owner Registration Card provided with this product. Then
complete the form below. Have this information ready if you need service
or call with a question.
l Copy model and serial numbers
from plate (behind the oven door Modef Number
on the oven frame] and purchase
date from sales slip.
Serial Number
l Keep this book, the Cooking Guide
and sales slip together in a handy
place.
Purchase Date
Service Company Phone Number

Parts and features
Model RE960PXV
CLOCK AND
MINUTE TIMER
CONTROL KNOB
MINUTE TIMER -
START TIME --
KNOB
UPPER OVEN
SELECTOR -
LOWER OVEN HEATING
INDICATOR LIGHT -
SELF-CLEAN LOCKED
INDICATOR LIGHT H
LEFTREAR
CONTROL KNOB
SURFACE UNIT
UPPER OVEN
HEATING
INDICATOR LIGHT
RIGHT REAR
RIGHT FRONT
CONTROL KNOB
- __-_. . .-. .- -._.. --.
INDICATOR LIGHTS ’
-OVEN LIGHT SWITCH
LEFTFRONT
CONTROL KNOB -
CONTINUOUS-
COOK-TOP LIGHT
PLUG-IN
SURFACE UNIT _
CONTROL PANEL
PORCELAIN-ENAMEL
REFLECTOR BOWL AND
CHROME TRIM RING
AUTOMATIC
OVEN LIGHT
BROIL ELEMENT
OVEN RACK GUIDE
LOCK LEVER \
MODEL AND SERIAL
NUMBER PLATE j
SELF-CLEANING
OVEN
HEAT SEAL -
REMOVABLE
STORAGE DRAWER
BAKE El
- OVEN
_-.--
LEMENT
DOOR

Using your range
Using the Surface Units
,
Surface unit control knobs must be
pushed In before turning. Turn either
way until setting you want shows in
the window. Set them anywhere
between HI and LOW.
Surface Unit
Indicator lights
One of the surface unit indicator
lights on the control panel will glow
when a surface unit is on.
Burn and Fire Hazard
Be sure all control knobs are
turned to OFF and all indicator
lights are OFF when you are not
cooking. Someone could be
burned or a fire could start If a
surface unit is accidentally
letl ON.
Until you get used to the settings, use the following as a guide. For best results,
start cooking at the high seitinas; then turn the control knob down to continue
cooking.
Use HI to start Use MED-HI Use MED
foods cook- to hold a for gravy,
ing; to bring rapid boil; to
liquids to a puddings
fry chicken
boil. and icing; to
or pancakes. cook large
amounts of
vegetables.
Use MED-LO Use LO to
to keep food keep food
cooking after warm until
starting it ready to
on a higher serve. Set the
setting. heat higher
or lower
within the LO
band to keep
food at the
temperature
you want.

Use only flat-bottomed utensils for best cooking results and to prevent damage
to the cooktop. Specialty items with rounded or ridged bottoms (woks. ridged
bottom canners or tea kettles] are not recommended
Burn and Product Damage Hazard
l If the pan is too small for the surface unit, you could be burned by
the heat from the exposed section of the surface unit. Use correctly
sized cooking utensils to prevent injury.
l If a surface unlt stays red for a long time, the bottom of the pan is not
flat enough or is too small for the surface unit. Prolonged usage of
Incorrect utensils for long periods of time can result in damage to the
surface unit, cooktop, wiring and surroundlng areas. To prevent
damage, use correct utensils, start cooking on HI and turn control
down to continue cooking.
See the Cooking Guide for additional utensil information.
Optional Canning Kit (Part No. 242905)
The large diameter of most water-bath or pressure canners combined with high
heat settings for long periods of time can shorten the life of regular surface units
and cause damage to the cook-top.
If you plan to use the cooktop for canning, we recommend the installation of a
Canning Kit. Order the kit from your Whirlpool dealer or authorized WhirlpooP
service company.
See the Cooking Guide for additional canning information.

Setting the Clock
Push in and turn the Minute Timer Knob to set the Clock.
1. Push in Minute Timer Knob and
turn clockwise until clock shows
the right time of day.
2. let the Minute Timer Knob pop
out. Turn counterclockwise until
the Minute Timer dial is on OFF The
clock sefflng will change if you
push in the knob when turning.
Using the Minute Timer
The Minute Timer does not start or stop the oven. It works like a kitchen timer.
Set it in minutes up to an hour. You will hear a buzzer when the set time is up.
DO NOT PUSH IN THE KNOB when setting the Minute Timer.
1. Without pushing it In, furn the
Minute Timer Knob until the time
in the window passes the setting
You want.
2. Wlthout pushing in, turn the knob
back to the setting you want.
When the time Is up, a buzzer will
sound. To stop the buzzer, turn the
Minute Timer dial to OFF.
PUSHING IN AND TURNING THE MINUTE TIMER KNOB CHANGES THE CLOCK
SETTING.

Using the Oven Controls
Baking in Either Oven
. Position the rack(s) properly
before turning on the oven. To
change rack position, lift rack at
front and pull out.
2. Set the Oven Selector to BAKE.
I:
4. Put food in the oven. During ba k-
ing, the elements will turn on and
off to keep the oven temperature
at the setting. The HEATING indi-
cator Light will turn on and off
with the elements.
The top element helps heat
during baking, but does not
turn red.
The rack(s) should be placed so the
top of the food will be centered in
the oven. Always leave at least 1Mto
2 inches (4-5 cm) between the sides
of the pan and the oven walls and
other pans. For more information,
see the Cooking Guide.
3. Set the Oven Temperature Con-
trol to the baking temperature
you want.The HEATING Indicator
Light will come on. The oven is
preheated when the HEATING
indicator Light first goes off.
5. When baking is done, turn both
the Oven Selector and Oven
Temperature Control to OFF

Adjusting the Oven Temperature Controls
Does your oven seem hotter or colder than your old oven? The temperature of
your old oven may have shifted gradually without you noticing the change.
Your new oven is properly adjusted to provide accurate temperatures. But, when
compared to your old oven, the new design may give you different results
If after using the oven for a period of time, you are not satisfied with the
temperature settings, they can be adjusted by following these steps:
LOCKING
SCREW
1. Pull one or both of the Oven
Temperature Control Knobs
straight off.
2. Loosen the locking screw inside
the control knob. Note the pOSi-
tion of the notches.
3. To lower the temperature, move
the tooth a notch closer to LO.
Each notch equals about 10°F
(5°C).
NOTCHES TOOTH
4. To raise the temperature, move
the tooth a notch closer to HI. Each
notch equals about 10°F (5°C).
Tighten the locking screw and
replace the control knob.
IO

Broiling in Eiiher Oven
1. Position the rack before turning
the oven on. See “Broil Chart” in
the Cooking Guide or a reliable
cookbook for recommended
rack positions.
I
3. Close the door to the Broil Stop
position (open about 4 inches,
10.2 cm). The door will stay open
by itself.
2. Put the broiler pan and food on
the rack.
4. Sef the Oven Selector and Oven
Temperature Control to BROIL. The
HEATING indicator Lightwill come
on.
5. When broiling is done, turn both
the Oven Selector and Oven Tem-
perature Control to OFF.The HEAT-
ING Indicator Light will go OFF.
Custom Broil
l if food is cocking too fast, turn the Oven Temperature Control counterclock-
wlse until the HEATING indicator Light goes off.
l if you want the food to broil slower from the start, set the Oven Temperature
Control between 150” and 325°F (65.5” and 162.7”C). The lower the temperature,
the slower the cooking.
NOTE: The door must be partly open whenever the oven lo set to BROIL.
Leaving the door open allows the oven to malntaln proper temperatures.

Using the Automatic MEALTIMER’” Clock
The automatic MEALTIMER’” Clock is designed to turn the lower oven on and
off at times you set, even when you are not around.
Automatic baking is ideal for foods which do not require a preheated oven,
such as meats and casseroles. Do not use the automatic cycle for cakes,
cookies, etc...undercooking will result.
To delay start and stop automatically:
II
1. Position the oven rack(s) property
and place the food in the oven 2. Make sure the clock is set to the
right time of day.
3. Push in and turn the Start Time
Knob clockwise to the time you
want bakina to start.
4. Push in and turn the Stop Time
Knob clockwise to the time you
want the oven to shut off.
5. Set the Oven Selector on TIMED. 6. Set the Oven Temperature Con-
trol on the baking temperature
you want. The oven will now start
and stop automatically.
After baking is done or to stop
the oven before preset time, turn
both the Oven Selector and the
Oven Temperature Control to OFF

To start baking now and stop automatically:
1. Position rack(s) properly and place the food in the oven.
2. Make sure the clock is set to the right time of day.
3. Push in and turn the Stop Time Knob clockwlse to the time you Want the oven
to shut off.
4. Set the Oven Selector on TIMED.
5. Set the Oven Temperature Control on the baking temperature you want.
6. After baklng is done or to stop the oven before the preset time,
turn both the Oven Selector and the Oven Temperature Control to OFF
To avold sickness and food waste when using the MEALTIMER’” control:
l Do not use foods that will spoil while waltlng for cooklng to start, such as
dishes with milk or eggs, cream soups, and cooked meats or flsh. Any
food that has to walt for cooking to start should be very cold or frozen
before It Is put In the oven. MOST UNFROZEN FOODS SHOULD NEVER STAND
MORE THAN TWO HOURS BEFORE COOKING STARTS.
l Do not use foods contafnlng baking powder or yeast when using delay
start. They will not rise properly.
l Do not allow food to remain In oven for more than two hours after end
of cooklng cycle.
The Oven Vent
Hot air and moisture escape from the
oven through a vent under the right
rear surface unit. You can cook on the
unit, or keep food warm on it while
the oven is on.
Burn Hazard
If you leave a utensil on the right
rear surface unit, use potholders
when movlng ft. Pan handles can
become hot enough to burn.
Plastic utensils left over the vent
can melt.
The vent is needed for air circulation.
Do not block the vent. Poor baking
can result.

The Storage Drawer
The storage drawer is for storing pots and pans. The drawer can be removed to
make it easierto clean under the range.
Use care when handling the drawer.
Removing the storage drawer
1. Empty drawer of any pots and Lift back slightly and slide drawer
pans before removing drawer. Pull
drawer straight out to the first stop.
Lift front and pull out to the second
stop.
all the way out.
Replacing the stomge drawer
w
1. Fit ends of drawer slide rails into
the drawer guides on both sides
of opening.
2. Lift drawer front and push in until
metal stops on drawer slide
rails clear white stops on drawer
guides. Lift drawer front again
to clear second stop and slide
drawer closed.
14

Optional Rotisserie
If you would like a rotisserie for your lower oven, you can order a kit (Part No.
242985) from your Whirlpool Dealer. The kit includes easy installation
instructions.
Optional Door Panel Pat
if you would like to change the color of your lower oven door glass to white
or almond, you can order one of these kits: White (Kit No. 814069) or Almond
(Kit No. 814070) from your Whirlpool Dealer. The kits include easy installation
instructions.
Caring for your range
Control Panel and Knobs
Burn and Electrlcal Shock Hazard
Make sure all controls are OFF and the range Is
cool before cleaning. Failure to do so can result
In burns or electrlcal shock.
1. Pull knobs straight off. NOTE: Sur-
face unit control knobs have a
collar and a spring behind
them.
glass cieanec’and a soft cloth fo
wipe the control panel. Rinse
and wipe dry.
3. Wash control knobs and surface
unit collars in warm soapy water.
Rinse well and dry. Do not soak.
4. Push control knobs straight back
on. Make sure they pointto OFF.
Make sure the collar and spring
behind the surface unit control
knobs are put together as shown.15

Surface Units and Reflector Bowls
Removing
I
Burn and Electrical Shock Hazard
Make sure all surface units are OFF before
removing surface units and reflector bowls.
I. .
Failure to do so can result in burns or electrical
1. Turn off all surface units.
3. Pull the surface unit straight away
from the receptacle.
I
2. Lift the edge of the unit opposite
the receptacle, just enough to
clear the element hold down clip,
reflector bowl and trim ring.
4. Lift out the reflector bowl and trim
ring. See “Cleaning Chart” on
page 24 for cleaning instructions.
16

Burn, Electrlcal Shock and Fire Hazard
l Make sure all surface units are OFF betore replaclng surface units and
reflector bowls. Fallure to do so can result In burns or electrical shock.
l Do not llne the reflector bowls wlth foil. Flre or electrlcal shock could
result.
1. Turn off all surface units. 2. Line up openings in the reflector
bowl and notch in the trim ring
with the surface unit receptacle
and the element hold down clip.
3. Hold the surface unit as level as
possible with the terminal just
started into the receptacle. Push
the surface unit terminal into the
receptacle.
4. When terminal is pushed into the
receptacle as far as it will go, push
down the edge of the surface unit
opposite the receptacle. The ele-
ment hold down clip will keep the
surface unit from moving around.
NOTE: Reflector bowls reflect heat back to the utensils on the surface
unlts. They also help catch spills. When they are kept clean, they reflect
heat better and look new longer.
If a trlm rlng gets discolored, some of the utensils may not be flat enough,
or some may be too large for fhe surface unit. In elther case, some of
the heat that’s meant to go into or around a utensil goes down and heats
the trlm rlng. lhls extra heat can discolor it. See Cooking Guide for further
Informatlon.

Lift-Up Cooktop
1. Lift front of cook-top at both front
corners until the support rods lock
into place.
Personal InJury and Product
Damage Hazard
l Be sure both support rods are
fully extended and in the
locked position. Failure to do
so could result in personal
Injury from the cooktop acci-
dentally falling.
l Do not drop the cooktop.
Damage can result to the por-
celain and the cooktop frame.
2. Wipe with warm, soapy water.
Use a soapy steel wool pad on
heavily-soiled areas.
3. To lower the cooktop, lift cooktop
from both sides while pressing the
support rods back to unlock them.
Lower the cooktop into place.
The Upper Oven Rack Guides
Removing the upper oven rack guides will help make it easier to clean the
upper oven.
Burn and Electrical Shock Hazard
Make sure all controls are OFF and the oven is
cool betore removing upper oven rack guides.
Failure to do so can result in burns or electrical
1. Lift the front of the rack guides, 2. Swing the front of the rack guides
away from the oven wall far
enough so the tab in the guides
clears the notch in the oven wall.
Pull the guides straight away from
the back wall.
18
REVERSE THE PROCEDURE TO
REPLACE RACK GUIDES.

The Continuous-Cleaning Upper Oven
Standard oven walls are coated with smooth porcelain. Your Continuous-
Cleaning oven walls are coated with a special, rougher porcelain. A fat
spatter beads up on the smooth surface, but spreads out on the rougher
surface. The bead of fat on the smooth surface chars and turns black. The
spread-out fat on the rough surface gradually burns away at medium to
hlgh baklng temperatures so the oven can return to a presentably clean
condition.
TURNS BLACK. SPREADS OUT.
BURNS AWAY.
Using Foil
Using foil on the oven bottom is recommended to catch sugar and starchy
spills from pies and casseroles. It must be used properly. Cut foil from a roll of
heavy-duty iS-inch (45 cm) aluminum foil, or buy a foil kit (Part No. 241430)
from your Whirlpool Appliance dealer.
Burn, Elecfrlcal Shock and Product Damage Hazard
l Make sure all controls are OFF and the oven Is cool before uslng foil.
Fallure to do so can result In burns or electrlcal shock.
l Do not let toll touch the bake element. It could damage the element.
Make sure toll Is flat on the bottom and away from the bake element.
1. Turn off all controls. 3. Slide the foil under the bake I
2. Lift the cool bake element slightly
to llf? the feet off the oven bottom.
element. Make sure the foil is
centered, long enough to start up
both sides and without wrinkles.
For proper baking, lower the
bake element so all feet rest I
solldly on the foil.

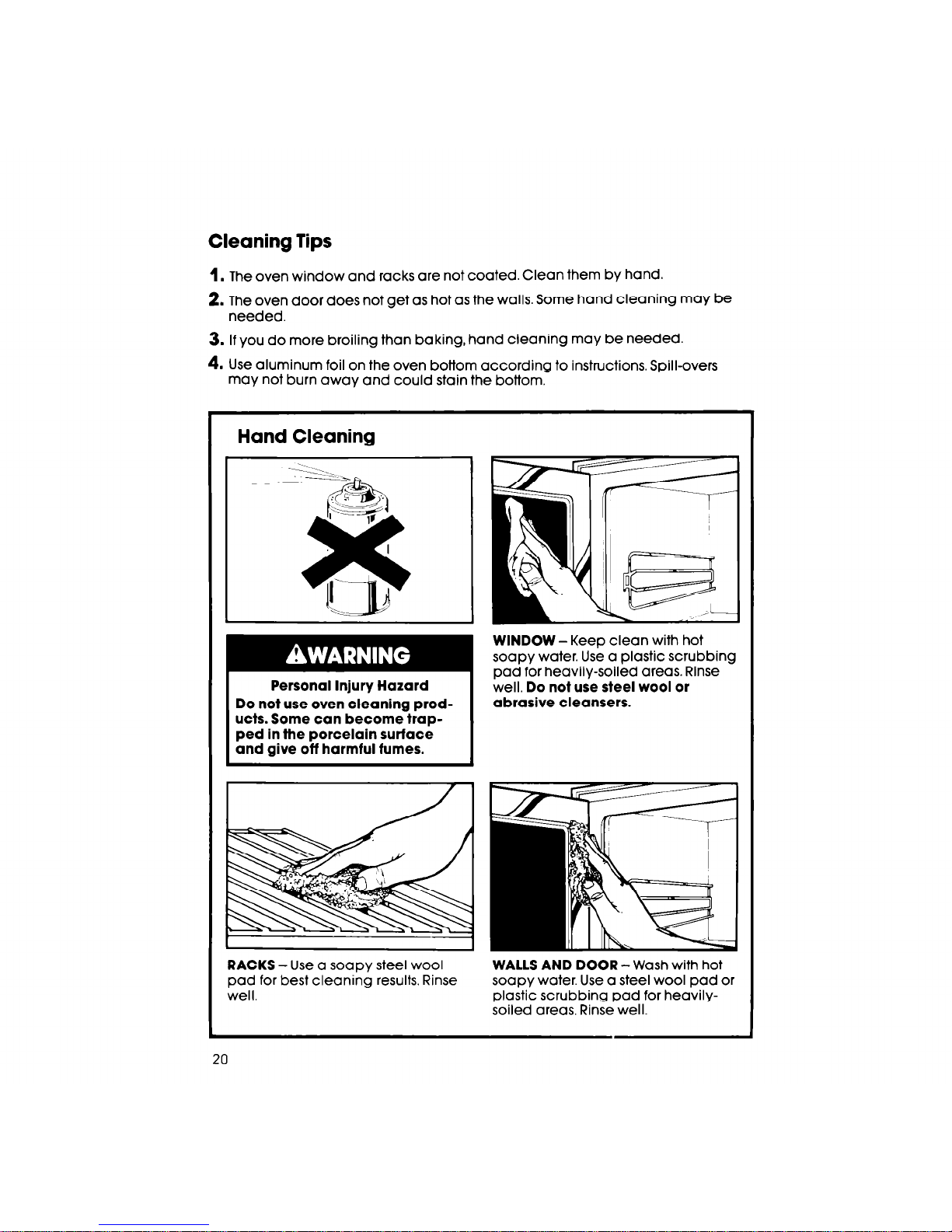

Cleaning Tips
1. The oven window and racks are not coated. Clean them by hand.
2. The oven door does not get as hot as the walls. Some hand cleaning may be
needed.
3. If you do more broiling than baking, hand cleaning may be needed.
4. Use aluminum foil on the oven bottom according to instructions, Spill-overs
may not burn away and could stain the bottom.
Hand Cleaning
Personal Injury Hazard
Do not use oven cleaning prod-
ucts. Some can become trap-
ped in the porcelain surface
and give off harmful fumes.
soapy water. Use a plastic scrubbing
pad for heavily-soiled areas. Rinse
well. Do not use steel wool or
abrasive cleansers.
RACKS - Use a soapy steel wool
pad for best cleaning results. Rinse
well.
WALLS AND DOOR-Wash with hot
soapy water. Use a steel wool pad or
plastic scrubbing pad for heavily-
soiled areas. Rinse well.
20
