Whirlpool RF385PXP User manual

.; “J 2~;,-‘y. ,i. ., I _ jr ,~~;~.~‘“*- “-; ’ ii T r, L*<m.+ *, .
~~-.‘~~~~,
rowaye Ovens. Trash Compaclors. Room AN Condltloners. Dehumldlflers. Automallc Washers, Clothes Dryers, Freezers, Refngerator-freezers

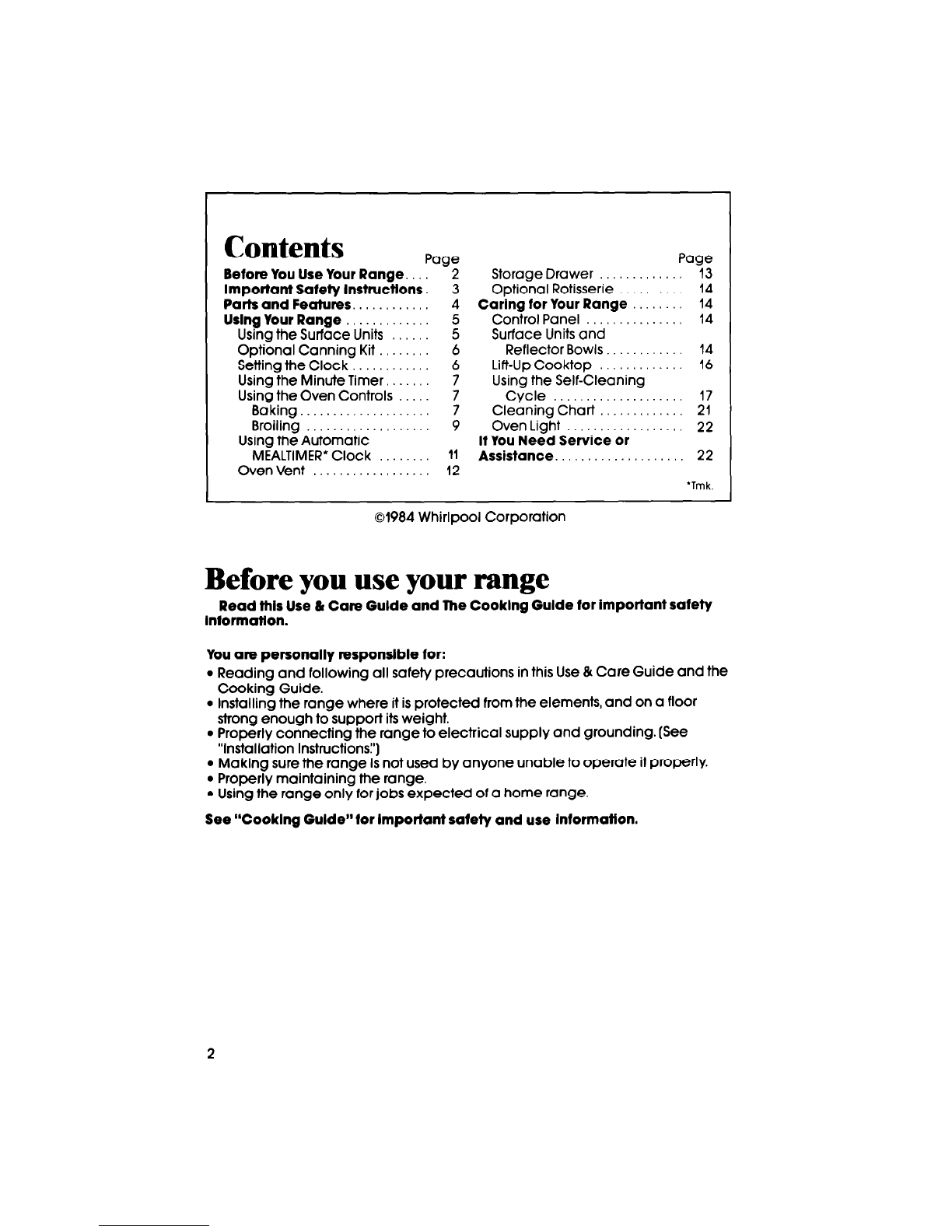

Contents
Page
Before You Use Your Range. 2
important Safety instructions. 3
Parts and Features. . . 4
Using Your Range 5
Using the Surface Units 5
Optional Canning Kit 6
Setting the Clock 6
Using the Minute Timer. 7
Using the Oven Controls 7
Baking. . . . 7
Broiling 9
Using the Automatic
MEALTIMER’Clock 11
Oven Vent . . . 12

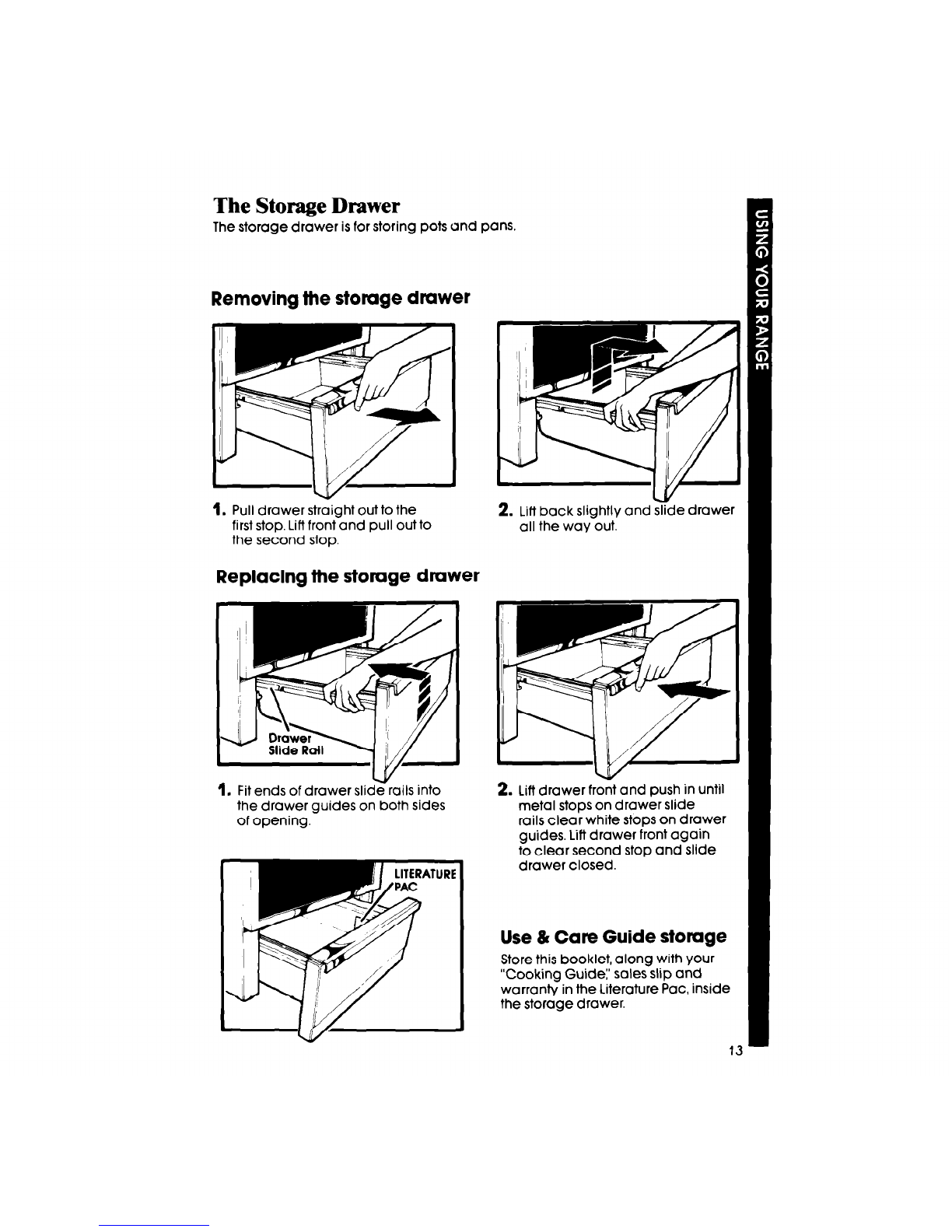

Storage Drawer
Optional Rotisserie
Caring for Your Range
Control Panel
Surface Units and
Reflector Bowls
Lift-Up Cooktop
Using the Self-Cleaning
Cycle
Cleaning Chart
Oven Light
if You Need Service or
Assistance.
Page
13
., 14
14
14
14
16
::
22
22
‘Tmk.
01984 Whirlpool Corporation
Before you useyour range
Read this Use 6 Care Guide and The Cooking Guide for important safety
information.
You are personally responsible for:
l Reading and following all safety precautions in this Use & Care Guide and the
Cooking Guide.
l Installing the range where it is protected from the elements, and on a floor
strong enough to support itsweight.
l Properly connecting the range to electrical supply and grounding. (See
“Installation Instructions!‘)
l Making sure the range is not used by anyone unable to operate it properly.
l Properly maintaining the range.
l Using the range only for jobs expected of a home range.
See “Cooking Guide” tor Important safety and use information.

IMPORTANT
SAFETY INSTRUCTIONS I
1. DO NOT allow children to use or 6. KEEPpan handles turned in, but not
play with any part of the range, or over another surface unit to avoid
leave them unattended near it. burns, injury and to help prevent the
They could be burned or injured. utensil from being pushed off the sur-
2. DO NOT store things children face units.
might want above the range. 7. DO NOT use water on grease fires.
Children could be burned or The fire will spread. Cover fire with
injured while climbing on it. large lid or smother with baking
3. DO NOT allow anyone to touch soda or salt.
hot surface units or heating ele-
8. DO NOT wear loose or hanging gar-
ments. Dark colored units and ele- ments when using the range. They
ments can still be hot enough to could ignite if they touch a hot sur-
burn severely. face unit or heating element and
4. KEEPchildren away from the you could be burned.
range when it ison. The cooktop 9. DO NOT heat unopened containers.
and oven walls, racks and door They could explode. The hot con-
can get hot enough to cause tents could burn and container par-
burns. titles could cause injury
5. DO NOT use the range to heat a
10. MAKE SUREto open the oven door
room. Persons in the room could all the way when adding or remov-
be burned or injured, or a fire ing food to prevent burns.
could start
l FCR YOUR SAFETY.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE
CAUSING EXPLOSION AND/OR FIRE.
- SAW THESE INSTRUCTIONS -
Copyyour Model and Serial Numbers here
Ifyou need service, or call with a question, have this information ready:
1. Complete Model and Serial
Numbers (from plate just behind
the oven door).
2. Purchase date from sales slip.
Copy this information in these
spaces. Keep this book, other oven
literature, your warranty and sales
slip together in the Literature Pac.
There is no warranfv reaistration
Model Number
Serial Number
Purchase Date
to return. Proof-of-purchase is all that
is required for in-warranty service. Service
CompanYlPhone Number

Parts and features
Model RF385PXP
STOP TIME
CLOCK START TIME
SURFACE UNIT SIGNAL LIGHT MINUTE TIMER
CONTROL PANEL
AUTOMATIC OVEN
REMOVAELE
BAKE
- ..----
STORAGE DRAWER
LITERATURE PAC
(not shown)
4 OVEN DOOR

OVEN TEMPERATURE CONTROL
OVEN LIGHT SWITCH I OVEN SELECTOR SURFACE UNIT INDICATOR
/ I /
\ \ \ / I
CLEAN LIGHT RIGHT REAR RIGHT FRONT
CONTROL KNOB CONTROL KNOB
LOCK LIGHT OVEN SIGNAL LIGHT
Using the surface units
Surface Unit Indicators
The solid dot in the surface unit
indicator shows which surface unit
isturned on by that knob.
Signal light
One of the signal lights will glow
when a surface unit ison.
Control knobs
before turning
can be set any
and OFF.
must be pushed in
them to a setting They
urhere between Iil
Until you get used to the settings, use the tollowlng as a guide. For best results,
start cooking at the high settings; then turn the control knob down to continue
cooking.
Use HI to start Use MED-HI Use MED Use MED-LO
foods cook- to hold a for gravy, to keep food
ing; to bring rapid boil; to puddings cooking after
liquids to a fry chicken and icing; to starting it
boil. or pancakes. cook large on a higher
amounts of setting.
vegetables.
CAUTION: The use of the HI wtllng for long pwiods of tlmo
can damage s&ace units and dlwolor ctwmo Mm rhg&
Starl oooklfig on HI and turn control down to con&we
0-W
Use LO to
keep food
warm until
ready to
serve. Setthe
heat higher
or lower
wlthln the LO
band to keep
foudatme
temperature
you want.
5

Use only flat-bottomed utensils for best cooking results and to prevent damage
to the cook-top. Specialty items with rounded or ridged bottoms (woks, ridged
bottom canners or tea kettles) are not recommended.
See the “Cooklng Guide” for Important utensil informatlon.
Optional Canning Kit (Part NO. 242905)
The large diameter of most water-bath or pressure canners combined with
high heat settings for long periods of time can shorten the life of regular surface
units and cause damage to the cooktop.
If you plan to use the cooktop for canning, we recommend the installation
of a Canning Kit.Order the kit from your Whirlpool Dealer or Tech-Care” Service
Company.
See the “Cooking Guide” for important canning information.
Setting the Clock
Push In and turn the Minute Timer Knob to set the Clock.
1. Push In Mlnute Timer Knob and
turn clockwise until clock shows
the right time of day.
2. let the Minute Timer Knob pop
out. Turn clockwise until Minute
Timer hand points to OFF.The
clock setting will change if you
push In the knob when turning.
6

Using the Minute Timer
The Minute Timer does not start or stop the oven. Itworks like a kitchen timer,
Set it in minutes up to an hour. You will hear a buzzer when the set time is up.
DO NOT PUSHIN THEKNOB when setting the Minute Timer.
1. Without pushing it in, turn the
Minute Timer Knob until the hand
passes the setting you want.
2. Without pushlng in, turn the knob
back to the setting you want.
When the time is up, a buzzer
will sound. Tostop the buzzer, turn
the Minute Timer hand to OFF.
PUSHING IN AND TURNING THEMINUTE TIMER KNOB CHANGES THECLOCK
SETTING.
Using the Oven Controls
Baking
Rack(s) should be placed so
the top of the food will be cen-
tered in me oven. Always leave
at leastlY2 to 2 inches (4-5 cm)
between the sides of the pan
and the oven wails and other
pans. For more lnformatlon, see
the “Coaklng Guide:’
1. Position the rack(s) properly
before turning on the oven. To
change rack position, lift rack at
front and pull out.
conttnued on next page7

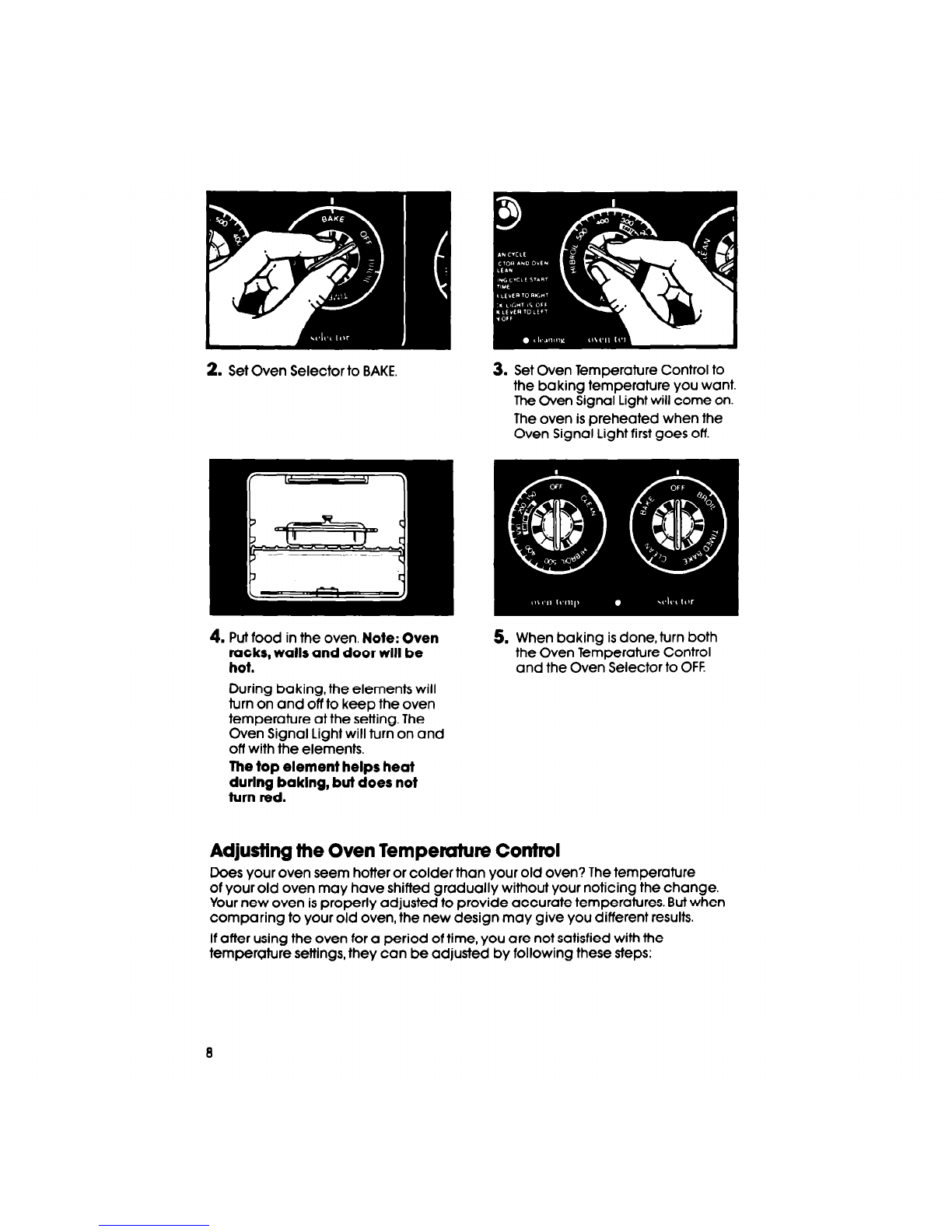

2. Set Oven Selector to BAKE.
4. Putfood in the oven. Note: Oven
racks, wails and door will be
hot.
During baking, the elements will
turn on and off to keep the oven
temperature at the setting. The
Oven Signal Light will turn on and
off with the elements.
The top element helps heat
durlng baklng, but does not
turn red.
3. Set Oven Temperature Control to
the baking temperature you want.
The Oven Signal Light will come on.
The oven is preheated when the
Oven Signal Light first goes off.
5. When baking isdone, turn both
the Oven Temperature Control
and the Oven Selector to OFF
Adjusting the Oven Tempemtum Control
Does your oven seem hotter or colder than your old oven? The temperature
of your old oven may have shifted gradually without your noticing the change.
Your new oven is properly adjusted to provide accurate temperatures. Butwhen
comparing to your old oven, the new design may give you different results.
If after using the oven for a period of time, you are not satisfied with the
temperature settings, they can be adjusted by following these steps:

1. Pull the Oven Temperature
Control straight off.
3. To lower the temperature, move
a notch closer to LO.Each notch
equals aboutlO”F (5°C).
L
2. Loosen the lockina screws inside
the control knob. iote the posi-
tion ot the notches.
4. To raise the temperature, move
a notch closer to HI.Each notch
equals aboutlO”F (5°C)
Tighten the locking screw and
replace the control knob.
Broiling
1. Position the rack before turning
the oven on. See broil chart in the
“Cooking Guide” or a reliable
cookbook for recommended
rack positions
2. Putthe broiler pan and food on
the rack.
continued on next page

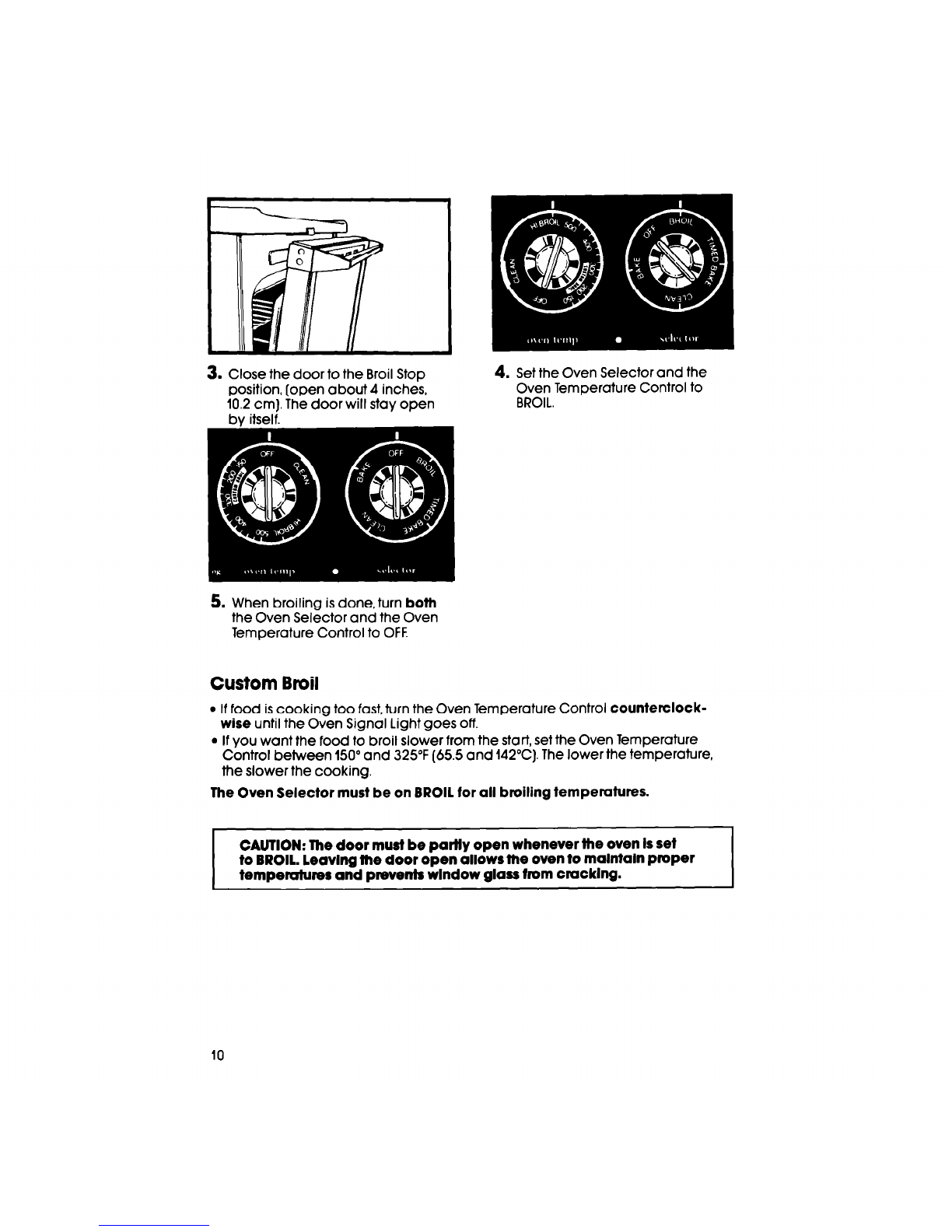

3. Close the door to the Broil Stop
position, (open about 4 inches,
10.2cm]. The door will stay open
4. Set the Oven Selector and the
Oven Temperature Control to
BROIL.
5. When broiling is done, turn both
the Oven Selector and the Oven
Temperature Control to OFF.
Custom Broil
l If food iscooking too fast, turn the Oven Temperature Control counterclock-
wise until the Oven Signal Light goes off.
l If you want the food to broil slower from the start, set the Oven Temperature
Control between 150”and 325°F (65.5 and 142°C).The lower the temperature,
the slower the cooking.
The Oven Selector must be on BROIL for all broiling temperatures.
CAUTION: The door must be partly open whenever the oven Is set
to BROIL. Leaving the door open allows the oven to malntaln proper
tempemtures and prevents wlndow glass irom cracking.
10

Using the Automatic MEALTIMER* Clock
The automatic MEALTIMER*Clock is designed to turn the oven on and off at times
you set,even when you are not around.
Automatic baking is ideal for foods which do not require a preheated oven such
as meats and casseroles. Do not use the automattc cycle for cakes, cookies,
etc...undercooklng will result.
To start and stop baklng automatically:
1. Position the oven rack(s) properly,
and place the food in the oven.
3. Push in and turn the Start Time
Knob clockwise to the time you
want baking to start.
2. Make sure the clock Is set to the
right tlme ot day.
4. Push in and turn the Stop Time
Knob clockwlse to the time you
want the oven to shut off.
5. Setthe Oven Selector on TIMED
BAKE.
6. Set the Oven Temperature Con-
trol on the baking temperature
you want. The oven will now start
and stop automatically.
Atter baklng Is done or to stop
the oven before preset time, turn
both the Oven Selector and the
Oven Temperature Control to OR 11

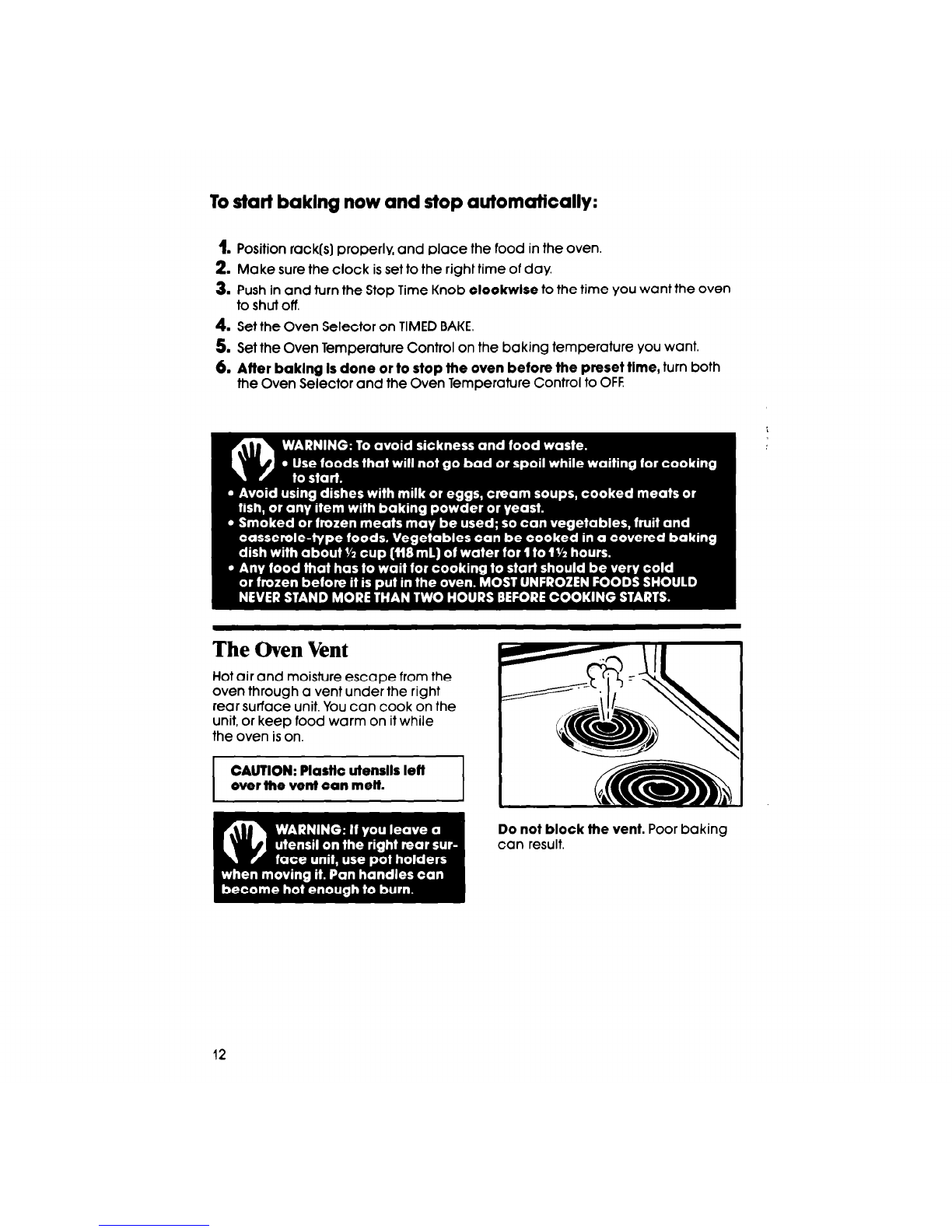

To start baking now and stop automatically:
1. Position rack(s) properly, and place the food in the oven.
2. Make sure the clock isset to the right time of day.
3. Push In and turn the Stop Time Knob clockwlse to the time you want the oven
to shut off.
4. Set the Oven Selector on TIMEDBAKE.
5. Set the Oven Temperature Control on the baking temperature you want,
6. After baklng Is done or to stop the oven before the preset tlme, turn both
the Oven Selector and the Oven Temperature Control to OFF
The Oven Vent
Hot air and moisture escape from the
oven through a vent underthe right
rear surface unit. You can cook on the
unit, or keep food warm on it while
the oven ison.
CAUTION: Plasltc utensils lefi
over the vent can mett.
Do not block the vent. Poor baking
can result.
12

The Storage Drawer
The storage drawer is for storing pots and pans.
Removing the storage drawer
1. Pull drawer straight out to the
first stop. Liftfront and pull out to
the second stop.
Replacing the stomge drawer
1. Fitends of drawer slid%ails into
the drawer guides on both sides
of opening.
2. Lift back slightly and slide drawer
all the way out.
2. Lift drawer fro‘;;tand push in until
metal stops on drawer slide
rails clear white stops on drawer
guides. Lift drawer front again
to clear second stop and slide
drawer closed.
Use & Care Guide stomge
Store this booklet, along with your
“Cooking Guide:’ soles slip and
warranty in the Literature Pat, inside
the storage drawer.
13

Optional Rotisserie
If you would like a rotisserie for your lower oven, you can order a kit (Par-lNo.
RCK-81/242985) from your Whirlpool Dealer. The kit includes easy installation
instructions.
Caring for your range
Control Panel
1. Pull knobs straight off.
2. Use warm soapy water and a soft cloth, or spray glass cleaner, to wipe the
control panel. Rinse and wipe dry
3. Wash control knobs in warm soapy water. Rinse well and dry.
4. Push control knobs straight back on. Make sure they point to OFF.
Surface Units and Reflector Bowls
2. Liftthe edge of the unit, opposite
the receptacle, just enough to
clear the reflector bowl and trim
ring.
14

3. Pull the surface unit straight away
from the receptacle.
Replacing
3. Hold the surface unit as level as
possible with the terminal just
started into the receptacle.
4. Liftout the reflector bowl and trim
ring.
See Cleaning Chart on page 21
for cleaning instructions.
2. Line up opening in the reflector
bowl and notch in the trim ring
with the surface unit receptacle.
4. Push the surface unit terminal into
the receptacle. When the terminal
is pushed into the receptacle as
far as it will go, the surface unit will
fit into the trim ring.

CAUTION: Reflector bowls reflect heat back to the utensils on the surface
units. They also help catch spills. When they are kept clean, they reflect
heat better and look new longer.
If a Mm ring gets dlscolored, some ot the utensils may be not be flat
enough, or some may be too large tor the surtace unlt. In either case,
some of the heat that’s meant to go Into or around a utensil goes down
and heats the trim ring. This extra heat can discolor il. See “CookIng
Guide” for further Information.
Lift-Up Cooktop
1. Liftfront of cooktop at center and
swing-up the support rod.
2. Carefully lower the cooktop onto
the support rod.
3. Wipe with warm soapy water.
Use soapy steel-wool pad on
stubborn spots.
CAUTION: Do not drop the
cooktop. Damage can
result to the porcelain and
the cooktop frame.

LJsing the Self-Cleaning Cycle
The self-cleaning cycle uses very high heat to burn away soil. Before you start,
make sure you understand exactly how to use the cycle safely.
Before You start
1. Clean the shaded areas by hand.
They do not get hot enough dur-
ing the Self-Clean cycle for soil to
burn away. Use hot water and
detergent or a soapy steel-wool
pad on...
l the trame around the oven.
l the inside of the door, especially
the part outside the oven Seal.
I
DO NOT clean the flberglau seal.
DO NOT move it or bend it. Poor
cieanlng and poor baking will result.
2. Remove the broiler pan and any
pots or pans you may have stored
in the oven. They can’t stand the
high heat.
3. Wipe out any loose soil or grease.
Thiswill help reduce smoke dur-
ingthecleaningcycle.
4. Ifyour oven has a rotisserie, make
sure the motor socket cover is
closed.
5. Putoven racks on the second
and fourth guides. During the Self-
Cleaning Cycle they will darken
and become harder to slide. See
tips on pageI9. If you want the
oven racks to remain shiny, clean
them by hand.
DONOT / wr
Clean Seal
4
6. The porcelain reflector bowls may be cleaned in the oven.
Clean Doo l Putthe oven racks on the second and fourth guides.
l Wipe the reflector bowls of loose soil and grease.
Clean Frame l Place 2 bowls, upside down on each rack. For best results,
.. . . . . . . . &a~ .. ~-.I.
rney snoula nor Toucn
l Chrome trim rings ml
They will discolor.
Iec
Icn omer or me oven walls.
usl not be cleaned In the eveIn.
Turn on the vent hood or other kitchen vent during the cleaning cycle.
Thiswill help remove smoke, odor and heat that are normal during the cycle.
SPECIAL CAUTIONS:
DO NOT us commercial oven
cleaners in your oven. Damage to
the porcelain finish may occur.
DO NOT force the Lock Lever, you
could bend or break it.The lever is
designed to stay locked until the
oven is cool enough to safely open.
Wait until it moves freely.
DO NOT use foil or other liners in the
oven. During the cleaning cycle foil
can burn or melt and damage the
oven surface.

Setting the Controls
Be sure the kitchen is ventilated during the Self-Cleaning cycle. This will help
normal smoke and heat odors to disappear from the room as quickly as possible.
1. Setthe Oven Selector and the
Oven Temperature Control on
CLEAN.
2. Make sure the Clock, Start and
Stop Times all have the right time
of day.
3. Push in and turn the Stop Time
Knob clockwise 2 or 3 hours.
l Use 2 hours for light soil.
l Use 3 hours or more for
moderate to heavy soil.
4. Move the Lock Lever to the
Clean Position. The Clean Light
will come on only when the
lever is all the way to the right.
5. The Lock Light comes on when the
oven temperature exceeds 500°F
(300°C). The Lock Lever must not
be moved and the door can’t be
opened when this light is on.
18
After the Clean Cycle Is com-
pleted, the Lock Light goes off.
Move the Lock Lever back to the
Cook Position. Do not force it.
Wait until it moves easily. Thisturns
off the Clean Light. Turnthe Oven
Selector and the Oven Tem-
perature Control to OFF
After the oven Is cool, wipe off
any residue or ash with a damp
cloth. If needed, touch up spots
with a soapy steel wool pad.

Special Tips
Keep the kitchen well ventilated
during the cleaning cycle to help
get rid of normal heat, odors and
smoke.
Ifthe cleaning cycle doesn’t get
the oven as clean as you ex-
pected, the cycle may not have
been set long enough or you
may not have prepared the oven
properly. Set the cleaning time
longer the next time and hand
clean areas noted on page17.
Clean the oven before it gets
heavily soiled. Cleaning a very
soiled oven takes longer and
results in more smoke than usual.
Oven racks lose their shine, dis-
color and become harder to slid{
on their guides when they are left
in the oven during the cleaning
cycle. Tomake them slide easier,
polish the edges of the racks with
a soapy steel-wool pad, rinse
well and wipe on a thin coat of
salad oil.
To stop the cleaning cycle at
any time: 2. Turn the Oven Selector and Oven
Temperature Control to OFF.When
1. Push in and turn the Stop Time
Knob clockwise until it points to
the right time of day.
the Lock Light turns off, move the
Lock Lever back to the Cook
Position. DO NOT FORCEIT.Wait
until it moves easily.
I’

How It Works
During the self-cleaning cycle, the oven gets much hotter than it does for baking
or broiling...approximately 875’F (468°C). This heat breaks up grease and soil and
burns it off
The graph shows approximate temperatures and times during a self-cleaning
cycle for 3 hours.
SELF-CLEANING CYCLE- THREEHOUR SElTING
[Approximate Temperatures and Times)
1000°F 53az
a009
427’C
600°F 316’c
4OO’F 204’C
2OO’F 93°C
START Vzhr. 1hr. 1Vzhrs. 2 hrs. 2 Yzhrs. 3 hrs. 3 h hrs. STOP
Notice that the heating stops when the 3-hour setting is up, but that it takes longer
for the oven to cool down enough to unlock.
20
