Whirlpool SF3000SG User manual

TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION
BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP THIS
BOOK FOR FUTURE REFERENCE.
4.65 Cubic Foot Oven
MODEL SF3000SG SF3020SG SF302BSG
PART NO. 8053369 Rev. A
Standard-Cleaning
Gas Range
A Note to You.............2
Range Safety .............3
Parts and Features .... 5
Using Your Range ......6
Caring for Your
Range ......................16
Troubleshooting .......22
Requesting
Assistance or
Service ..................... 24
Index ........................ 27
Warranty .................. 28
1-800-253-1301
Call our Consumer Assistance Center
with questions or comments.

2
1-800-253-1301
Our Consumer Assistance Center number is toll free.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
– Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
ANOTE TO YOU
Thank you for buying a WHIRLPOOL®appliance.
The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your
life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It is full of valuable information about how to operate and maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.

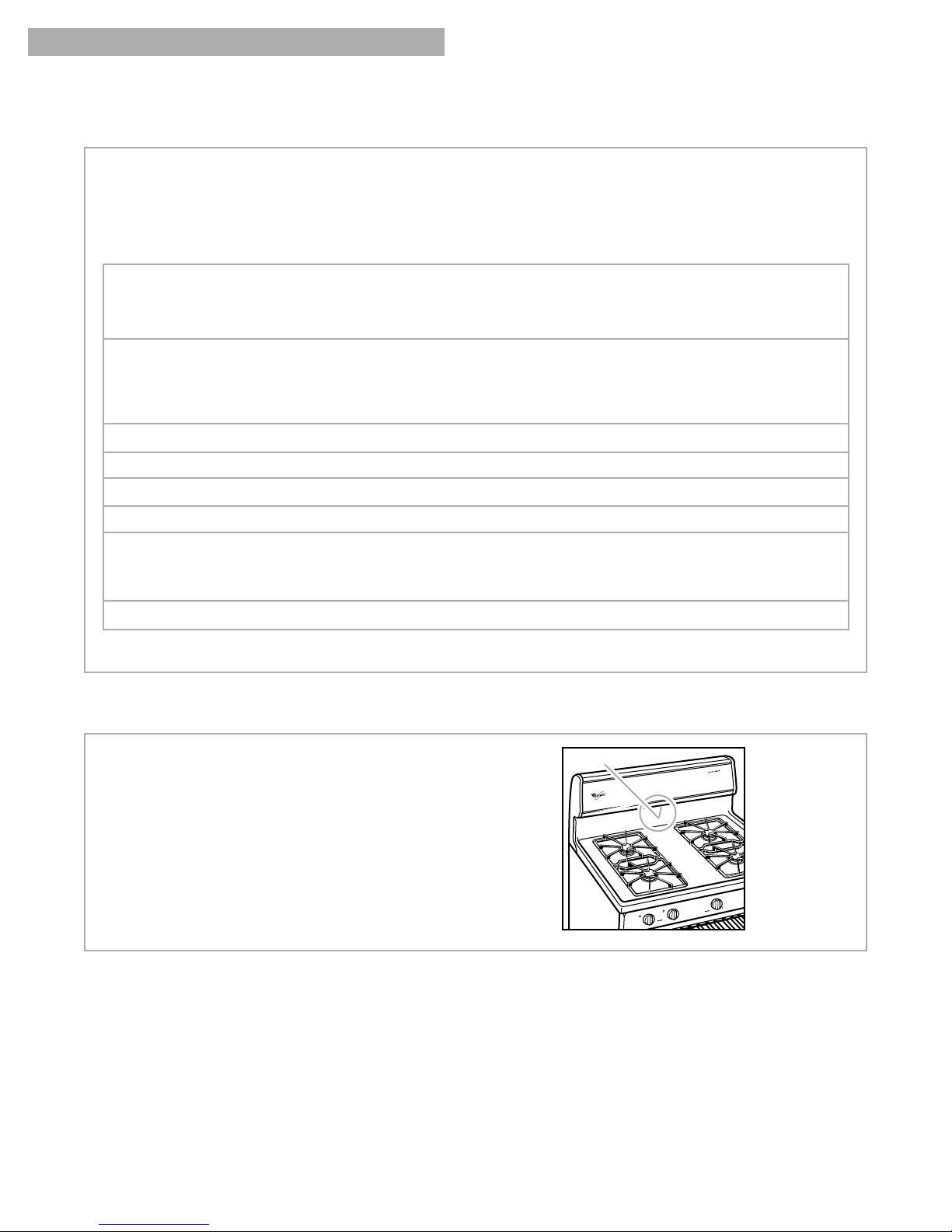

Please record your model’s information.
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see diagram in
the “Parts and Features” section).
Please also record the purchase date of your appliance
and your dealer’s name, address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference. It is important for
you to save your sales receipt showing the date of purchase. Proof of purchase will assure
you of in-warranty service.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone

3
RANGE SAFETY
continued on next page
You will be killed or seriously injured if you don’t
follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
wDANGER
wWARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
wWARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
•Slide range forward.
•Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
Anti-Tip Bracket
Range Foot

4
RANGE SAFETY
– SAVE THESE INSTRUCTIONS –
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
•WARNING –TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE
FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE
RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
•CAUTION – Do not store items of interest to
children in cabinets above a range or on the
backguard of a range –children climbing on the
range to reach items could be seriously injured.
•Proper Installation – The range, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70. Be
sure the range is properly installed and grounded
by a qualified technician.
•This range is equipped with a three-prong
grounding plug for your protection against shock
hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or
remove the grounding prong from this plug.
IMPORTANT SAFETY INSTRUCTIONS
•Disconnect the electrical supply before
servicing the appliance.
•Never Use the Range for Warming or Heating
the Room.
•Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
•Maintenance – Keep range area clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
•Storage in or on the Range – Flammable
materials should not be stored in an oven or
near surface units.
•Top burner flame size should be adjusted so it
does not extend beyond the edge of the
cooking utensil.
For self-cleaning ranges –
•Before Self-Cleaning the Oven – Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle.

5

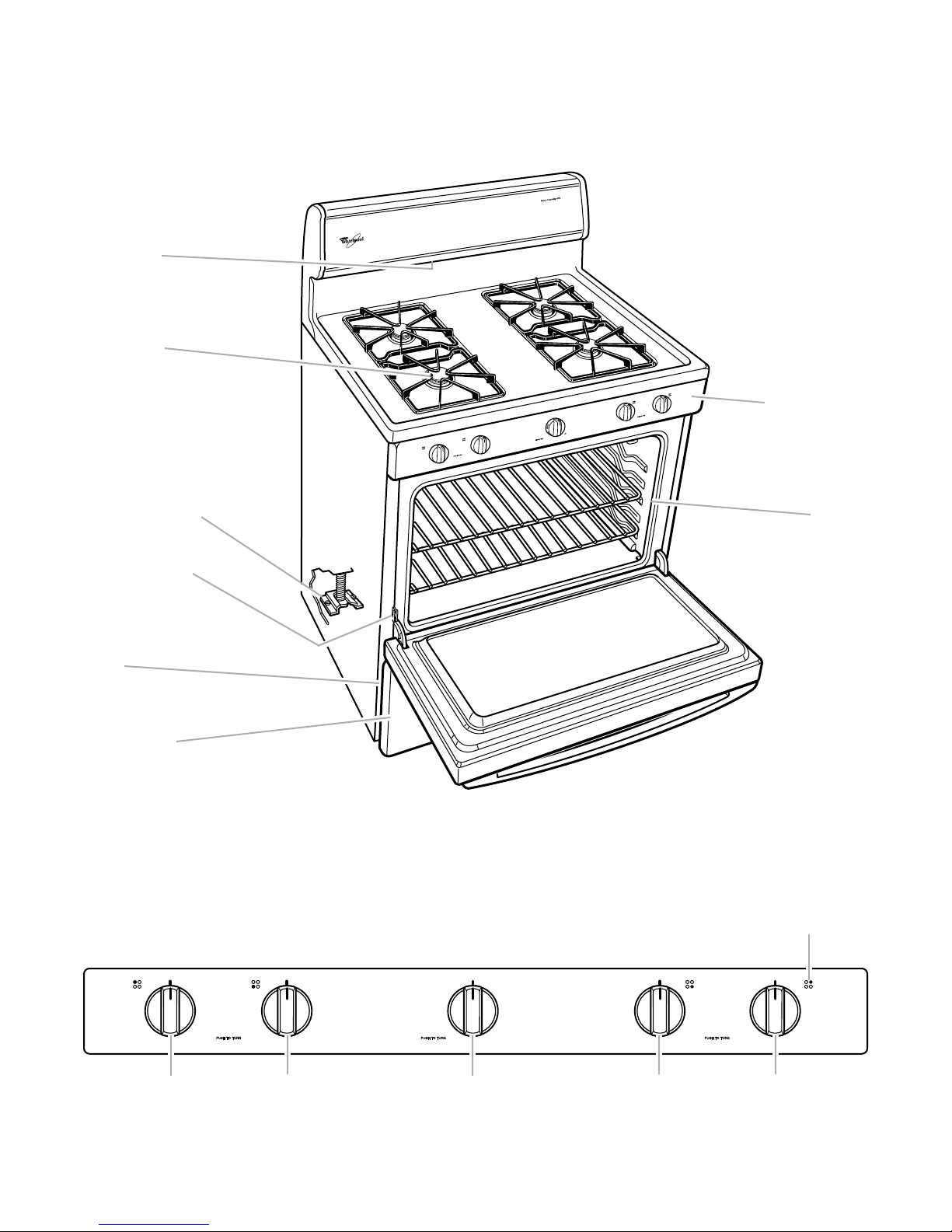

PARTS AND FEATURES
(Models SF302BSG and
SF3020SG shown)
Left front
control knob
Oven temperature
control knob
Right front
control knob
Right rear
control knob
Left rear
control knob
Oven vent
(p. 14)
Surface burners
and grates
(pp. 8, 16, 17, 18)
Anti-tip bracket
(p. 15)
Door stop clip
(p.19, 20)
Model and
serial number
plate
(behind left side
of broiler door)
Broiler door
(p. 13)
Surface burner marker
(shows which burner
you are setting)
CONTROL PANEL
Control panel
(pp. 5, 16)
Gasket
(p.17)

6

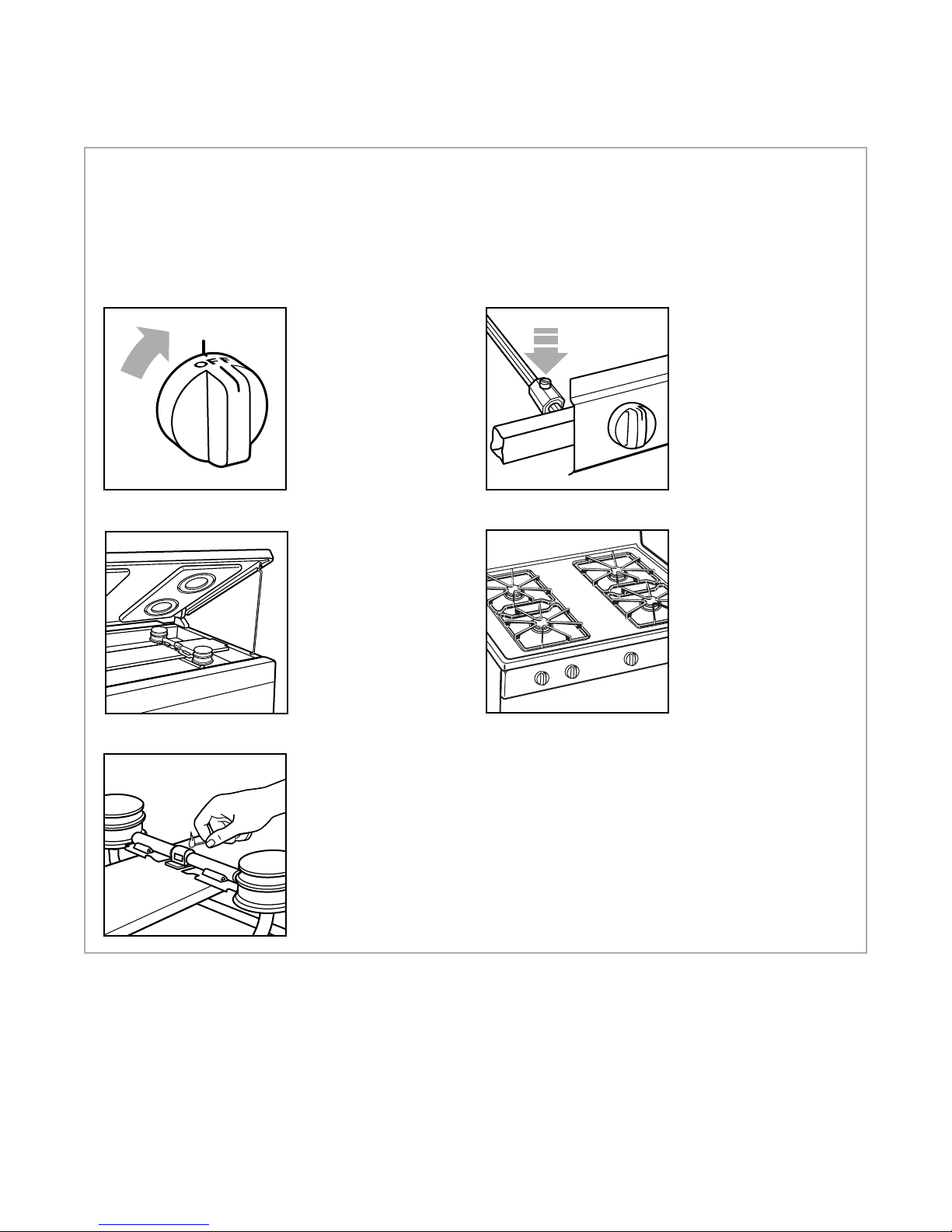

Your range comes with standing pilots. When you
first use your range, you have to light the standing
pilot. The pilot light will stay lit when you turn off
the burners.

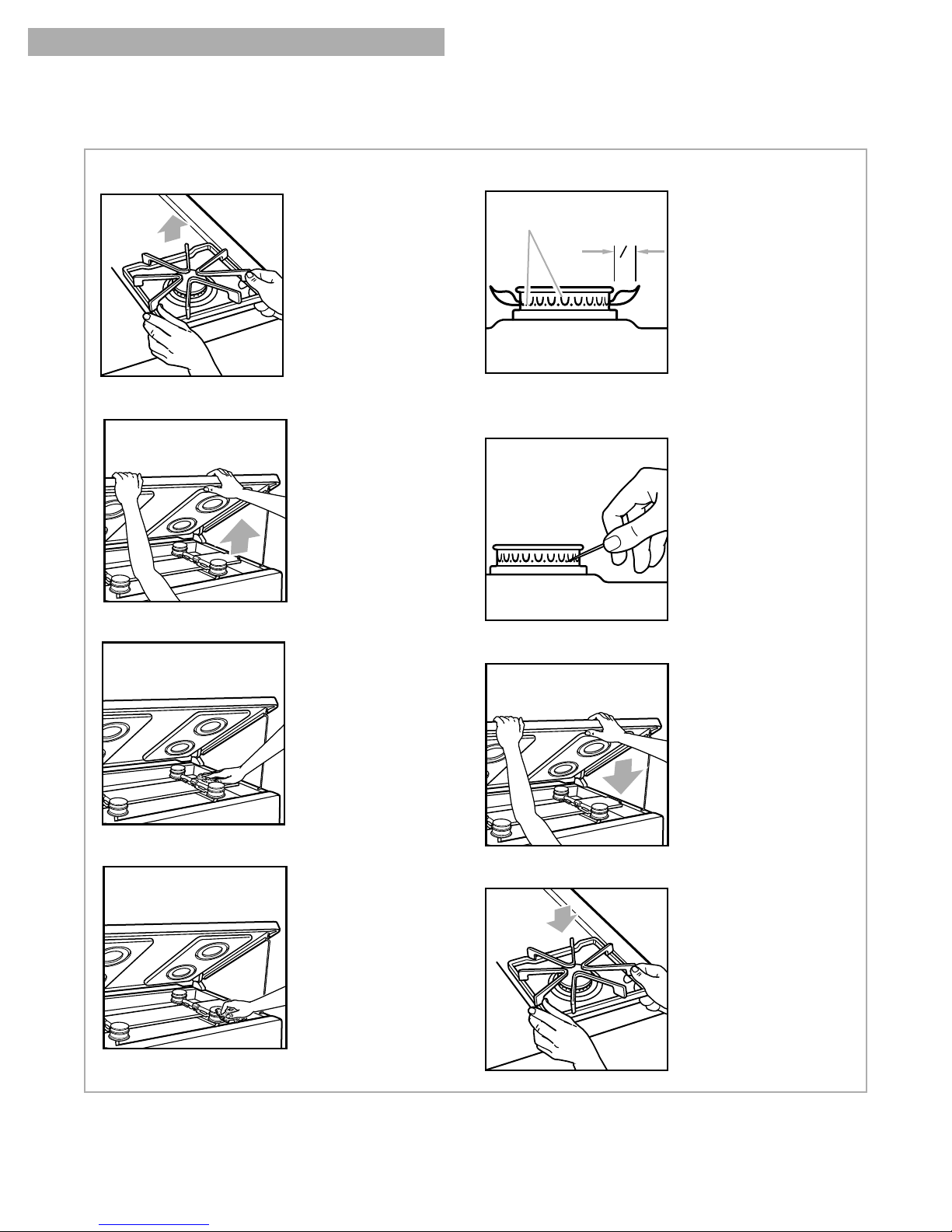

To light surface burner pilots:
1. Make sure all controls are turned off.
2. Remove the surface burner grates from the
cooktop. Lift up the
cooktop. (See “Lift-up
cooktop and surface
burners” section.)
3. To light, hold a lit match over the pilot light
located between the
front and back burners.
4. The pilot flame should be 1⁄4to 3⁄8inch high. If
the pilot flame needs
adjustment, turn the pilot
adjustment screw located
near the manifold pipe,
behind the control panel.
5. Lower the cooktop and replace the grates before
using the surface burners.
USINGYOUR RANGE
LIGHTING STANDING PILOTS

7
LIGHTING STANDING PILOTS (CONT.)
To light the oven burner pilot:
1. Make sure the oven temperature control knob is
turned off.
2. Open the broiler door.
3. Remove the broiler pan and grid.
4. Hold a lit match over the oven burner pilot located
at the rear of the burner.
NOTE: To make it easier
to reach the pilot, use a
long (fireplace) match.
6. Replace the broiler pan and grid and close
the door.
5. After the oven burner pilot is burning steadily,
check the burner
lighting by turning the
oven temperature control
knob to a temperature at
or above 250°F. The
burner will take 50-60
seconds to light.
USING YOUR RANGE

8
USING THE SURFACE BURNERS
NOTE: Do not leave empty cookware, or cookware
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the
cookware or cooking product.
Easy ways to save energy
•To help shorten your cooking time, use the least
amount of liquid possible.
•Preheat your pots and pans only when
recommended and for the shortest time possible.
•Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
wWARNING
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can
result in death or fire.
RECOMMENDED USE
•To light the burner.
•To start food cooking.
•To bring liquid to a boil.
•To hold a boil.
•To fry chicken or pancakes.
•For gravy, pudding, and icing.
•To cook large amounts of
vegetables.
•To keep food warm.
•To melt chocolate or butter.
•To simmer.
SETTING
LIGHT
HIGH
Mid-range
(between HIGH
and LOW)
LOW
Burner heat settings
Use the following chart as a guide.
Using the control knobs
•Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a
burner for extended periods of time without
having cookware on the grate.
•Push in the control knob and turn it counter-
clockwise to the
LIGHT position. Make
sure the burner has lit.
•After the burner lights,
turn the control knob
anywhere between
HIGH and LOW.
USING YOUR RANGE

9
USING YOUR RANGE
USING THE SURFACE BURNERS (CONT.)
In case of a prolonged power failure
You can manually light surface burners. Hold a lit
match near a burner and turn the control knob to
the LIGHT position. After the burner lights, turn the
control knob to the setting you want.
Home canning information
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.
To protect your range:
•For best results, use a canner which can be
centered over the surface burner.
•Do not place your canner on 2 surface burners
at the same time.
•Start with hot water. This reduces the time
the control is set on high. Reduce the heat
setting to the lowest position needed to maintain
a boil or required pressure levels in a pressure
canner.
•
Refer to your canner manual for specific
instructions.
For up-to-date information on canning, contact your
local U.S. Government Agricultural Department
Extension Office or companies who manufacture
home canning products.
Using the right cookware makes a
big difference
•The pan should have a flat bottom, straight sides,
and a well-fitting lid.
•Choose medium to heavy gauge (thickness)
cookware.
•The pan material (metal or glass) affects how quickly
and evenly the pan heats.
•When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.
•To avoid tipping, make sure pots and pans are
centered on the grates.
CHARACTERISTICS OF COOKWARE MATERIALS
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum • Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or
ceramic glass • Heats slowly and unevenly.
• Use on low to medium settings.
• Follow manufacturer’s instructions.
Copper • Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
Earthenware • Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
Porcelain enamel-on-steel or
enamel-on-cast iron • See cast iron and stainless steel.
Stainless steel • Heats quickly but unevenly.
•
A core or base of aluminum or copper on the cookware provides
even heating.
• Can be coated with porcelain enamel.

10
USING YOUR RANGE
Positioning racks and pans
Place the oven racks where you need them before
turning on the oven.
•To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
•Be sure the rack(s) is level.
•Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
•For best performance, cook on one rack. Place
the rack so the top of the food will be centered in
the oven.
•When cooking with two racks, arrange the racks
on the 2nd and 4th rack guides. Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake time.
Increase baking time, if necessary.
•For best results allow 2 inches of space around
each pan and between pans and oven walls.
Extra oven rack position (roasting rack)
Use this rack position when roasting food too large to
be placed on the first rack
position.
For proper roasting,
follow these guidelines:
•To avoid spillage,
remove food before pulling
out the rack.
•Tilt the rack up at the
front before pulling it over
the door.
•Use an adequate amount of liquid in the pan (meat
juices or water) so your food does not get overdone.
USING THE OVEN
Extra oven rack position
Where to place pans:
WHEN YOU HAVE
1 pan
2 pans
3 or 4 pans
PLACE
In center of the oven rack.
Side by side or slightly
staggered.
In opposite corners on
each oven rack. Stagger
pans so no pan is directly
over another.

11
USING YOUR RANGE

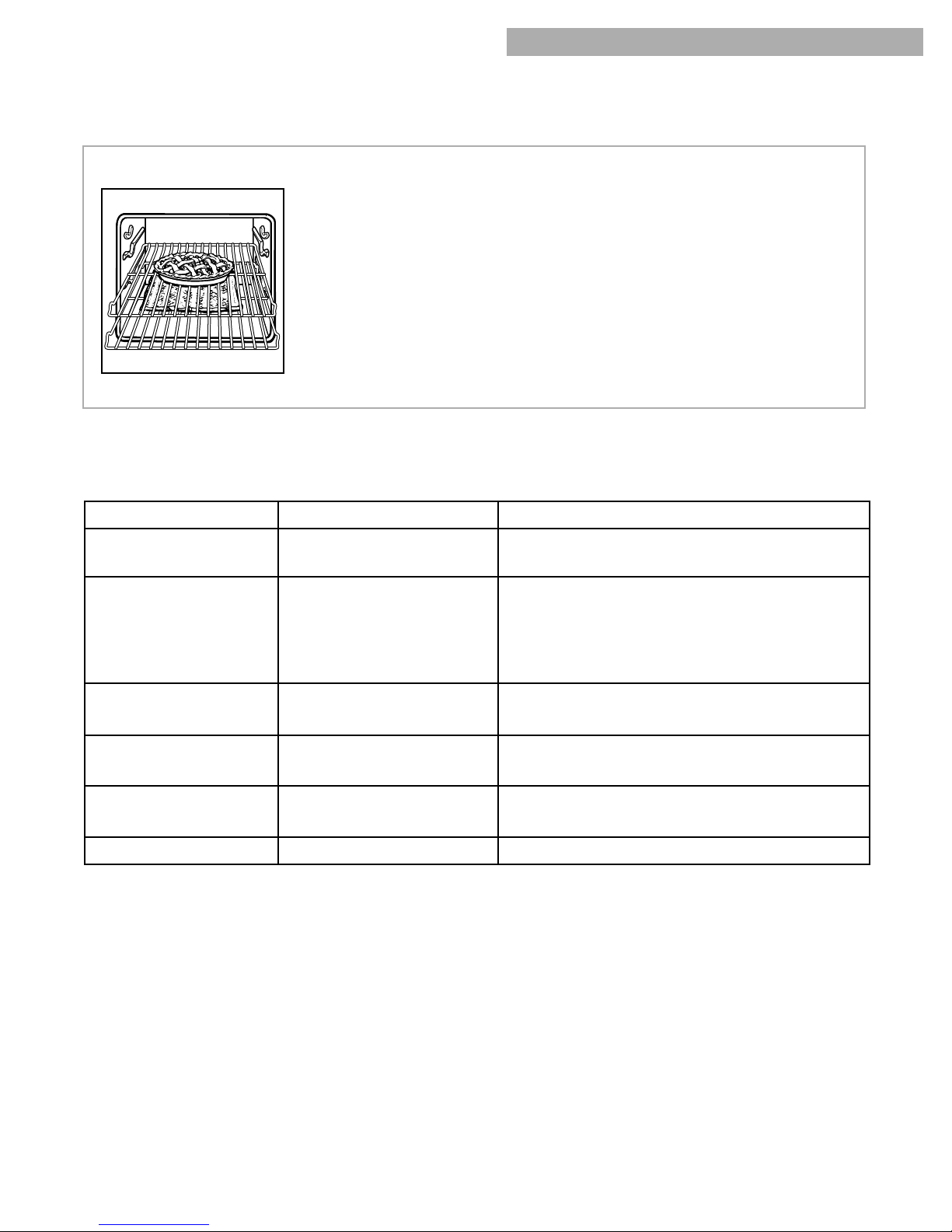

BAKEWARE CHOICES
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE
Light colored aluminum • Light golden crusts
• Even browning • Use temperature and time recommended
in recipe.
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
• Brown, crisp crusts • May reduce baking temperature 25°F.
• Use suggested baking time.
• Use temperature and time recommended in recipe
for pies, breads, and casseroles.
• Place rack in center of oven.
Ovenproof glassware,
ceramic glass, or ceramic • Brown, crisp crusts • May reduce baking temperature 25°F.
Insulated cookie sheets or
baking pans • Little or no bottom browning • Place in the bottom third of oven. • May need to increase baking time.
Stainless steel • May need to increase baking time.
• Crisp crusts
Stoneware • Follow manufacturer's instructions.
• Light, golden crusts
• Uneven browning
BEST USED FOR GUIDELINES
•Use aluminum foil to catch spillovers from pies or
casseroles by placing
foil on the oven rack
below. Foil should be
turned up at edges and
be at least 1 inch larger
than dish.
•Do not cover the entire
rack with aluminum foil.
It will reduce air circula-
tion and give you poor
cooking results.
•Do not line the oven bottom with foil or other liners.
It could affect the oven surface as well as the quality
of your baking.
•Place tent-shaped foil loosely over meat or poultry
to slow down surface browning for long term
roasting. Remove foil for the last 30 minutes.
•Use narrow strips of foil to shield piecrust edges if
browning too quickly.
USING ALUMINUM FOIL

12
USING YOUR RANGE

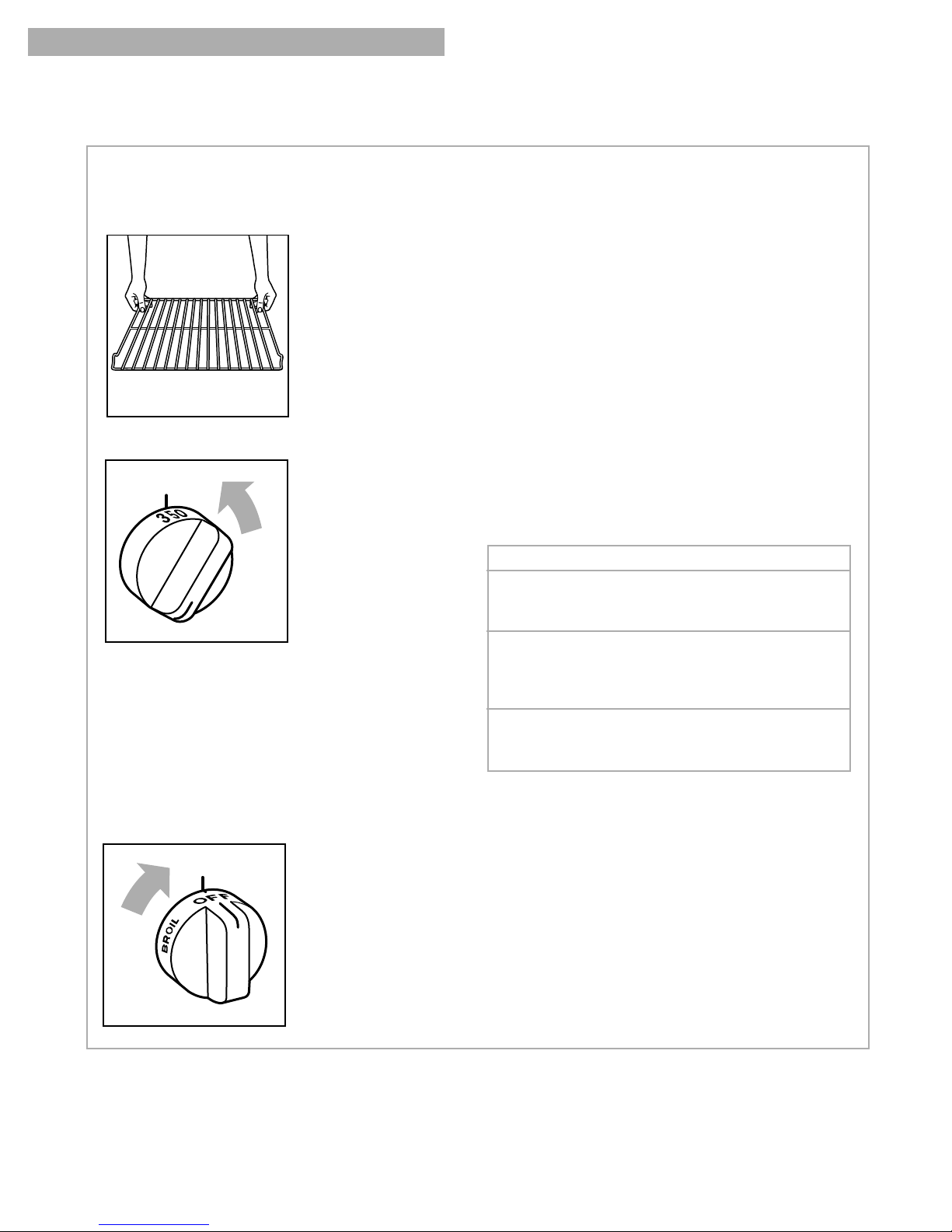

BAKING/ROASTING
Rear
Front
2. Push in and turn the oven temperature control
knob counterclockwise
to the baking/roasting
temperature you want.
The oven burner will
light by itself in
50-60 seconds.
IMPORTANT: Do not attempt to light the oven
burner during a power failure.
1. Place racks where you need them. For more
information, see
“Positioning racks and
pans” in the “Using the
oven” section.
3. When baking, preheat the oven before putting
food into it. During baking/roasting, the oven
burner will turn on and off to keep the oven
temperature at the selected setting.
NOTE: Do not place food directly on the oven door or
the oven bottom. If you want, place the food on the
rack at the extra rack position.
Roasting meats and poultry
•For even cooking, place the meat on a rack in a
shallow pan. This keeps the meat out of the drip-
pings and allows the heat to circulate better.
•Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of the
largest muscle or thickest portion of the meat or
poultry. Make sure the thermometer is not touching
bone, fat, or the bottom of the pan.
4. After baking/roasting, turn the oven temperature
control knob clockwise
to OFF.
Saving energy
•To avoid loss of heat, open the oven door as little
as possible.
•Use a timer to keep track of cooking time.
•Plan your meals for the most efficient use of the
oven by cooking more than one food at a time,
or baking while the oven is still hot after cooking
a meal.
Rack placement for specific foods:
FOOD
Frozen pies, large
roasts, turkeys, angel
food cakes
Bundt cakes, most
quick breads, yeast
breads, casseroles,
meats
Cookies, biscuits,
muffins, cakes,
nonfrozen pies
RACK POSITION
1st or 2nd rack
guide from bottom
2nd rack guide
from bottom
2nd or 3rd rack
guide from bottom
NOTE: For information on where to place your rack
when broiling, see “Broiling guidelines” later in this
section.

13
USING YOUR RANGE

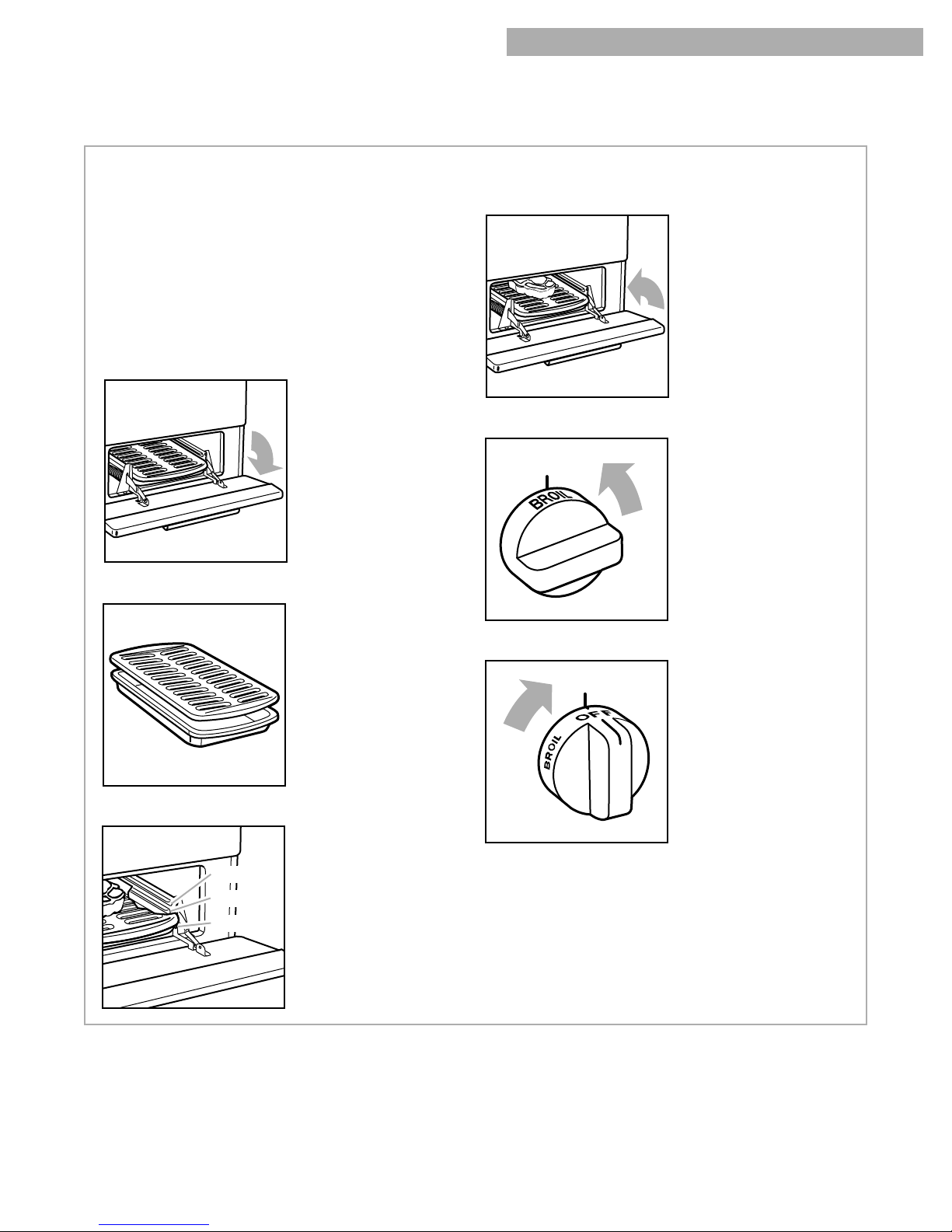

BROILING
The broiler is located below the oven door. Always
broil with the broiler and oven doors closed.
NOTES:
•Do not step on or apply weight to the broiler door
when it is open. This could damage the door.
•Do not preheat the broiler before using it.
Completely close the broiler door during broiling.
1. Open the broiler door. Pull out the broiler pan and
grid.
2. Place the grid on the broiler pan so grease can
drain down into the
lower part of the
broiler pan.
3. Before the broiler is turned on, place your food
on the broiler pan. Then
place the pan on the
broiler bottom (Position
0) or one of the two
other positions.
Position 2
Position 0
Position 1
4. Close the broiler door.
5. Push in and turn the oven temperature control
knob counterclockwise
to BROIL. The broiler will
automatically light in
50-60 seconds.
6. After broiling, turn the oven temperature control
knob clockwise to OFF.
Broiler pan and grid
continued on next page

14
Broiling guidelines
Recommended pan positions are numbered from bottom (0) to top (2) (see “Broiler pan and grid” earlier in
this section.) For best results, place food 3 inches or more from the broil burner. You should rotate the
broiler pan back to the front at the same time you turn the foods.
BROILING (CONT.)
MEAT
Steak, 1" thick
medium-rare
medium
well-done
Ground Meat Patties, 3⁄4" thick, well-done
Pork Chops, 1" thick
Ham Slice, 1⁄2" thick-precooked
Frankfurters
Chicken
bone-in pieces
boneless breasts
Fish, 1⁄2-3⁄4" thick fillets
SIDE 2
5-6
6-7
8-9
6-7
9-10
3-4
2-3
15-17
11-13
3-4
SIDE 1
10-12
12-14
16-17
11-13
19-21
6-8
5-6
15-17
11-13
7-8
PAN
POSITION
1
1
0
1
1
0
1
1
APPROXIMATE TIME
(MINUTES)
Times are guidelines only and may need to be adjusted to individual tastes.
Hot air and moisture escape from the oven through
a vent that is near the middle of the backguard.
The vent lets air circulate properly. Be careful not to
block the vent, or you will get poor baking/roasting
results.
NOTE: Never store plastics, paper, or other items
that could melt or burn near the oven vent, or any
of the surface burners.
THE OVEN VENT
USING YOUR RANGE
Oven vent

15
USING YOUR RANGE
Making sure the anti-tip bracket is installed:
•Slide range forward.
•Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
THE ANTI-TIP BRACKET
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
wWARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Anti-Tip Bracket
Range Foot

16
CARING FORYOUR RANGE
wWARNING
Explosion Hazard
Do not store flammable materials such as gasoline near this appliance.
Doing so can result in death, explosion, or fire.
CLEANING CHART
Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all
cleaning agents before using them to clean your range.
PART CLEANING METHOD SPECIAL INSTRUCTIONS
Control Knobs •Soap and water
•Dishwasher •DO NOT use steel wool or
abrasive cleaners.
•Pull knobs straight away from
control panel.
•Wash, rinse and dry with soft
cloth.
Control Panel •Soap and water •Wash, rinse and dry with soft
cloth.
Exterior Surfaces*
(excluding control panel and
oven door glass)
•Soap and water
•Mild liquid cleaner
•Spray glass cleaner
•DO NOT use abrasive or harsh
cleaners like chlorine bleach,
ammonia or oven cleaners.
•Wash, rinse and dry with soft
cloth.
•Spray glass cleaner •Apply spray cleaner to paper
towel, do not spray directly on
panel.
•Gently clean around the model
and serial plate, too much
scrubbing could remove the
numbers.
•Non-abrasive plastic scrubbing pad
Surface burner grates*
•Light to moderate soil •Soap and water
•Non-abrasive plastic scrubbing pad •Clean as soon as they become
dirty.
•Wash, rinse and dry well.
•Repeat steps of cleaning process
(with items at left) as needed,
until soil is completely removed.
•Rinse thoroughly and dry.
•Non-abrasive plastic scrubbing pad
•Mild abrasive powdered cleanser
and water
•Heavy burned on soils •Dishwasher
•NOTE: To avoid product
damage, do not remove the
cooktop.
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato,
may affect the finish.

17
CARING FOR YOUR RANGE
CLEANING CHART(CONT.)
PART CLEANING METHOD SPECIAL INSTRUCTIONS
Surface burners •
See “Lift-up cooktop and surface burners”
in the “Caring for your range” section.
Oven cavity
•Food spills containing
sugar and/or milk •Soap and water •When oven cools, wash, rinse and dry with soft cloth.
Broiler pan and grid •Soap and water
•Steel wool pad
•Dishwasher
•Wash, rinse and dry.
Oven racks •Soap and water
•Steel wool pad •Wash, rinse and dry.
•Solution of 1/2 cup ammonia to
1 gallon water
•Mild abrasive cleanser or
commercial oven cleaner
•Soak for 20 minutes, then scrub
with plastic scrubbing pad.
Oven door glass
(Model SF302BSG) •Soap and water
•Non-abrasive plastic scrubbing pad •Wash, rinse and dry with soft
cloth.
•Spray glass cleaner •Wipe with paper towel.
•Heavily soiled areas •Steel wool pad •Wipe with clean water and dry well.
•Commercial oven cleaner •Follow the directions that come with the
oven cleaner. (Place newspaper on the
floor to protect the floor surface.) Wipe
well with clean water and dry.
NOTES:
•Use oven cleaners in a well-ventilated
room.
•Do not let commercial oven cleaners
contact the gasket, thermostat, or
exterior surfaces of the range. This
will cause damage.
•For easier cleaning, you can remove
the oven door. Carefully follow the
instructions in the “Removing the oven
door” section.

18
CARING FOR YOUR RANGE
8. Replace the surface burner grates.
7. To lower the cooktop, lift the cooktop from both
sides while pressing the
support rods back to
unlock them. Lower the
cooktop into place.
LIFT-UP COOKTOP AND SURFACE BURNERS
1. Remove the surface burner grates.
2. Lift the front of cooktop at both front corners
until the support rods
lock into place.
NOTE: Do not drop the
cooktop. Damage could
result to the porcelain
and the cooktop frame.
3. Wipe the surface under the cooktop with warm,
soapy water and a
sponge. Use a soap-
filled plastic scrubbing
pad on heavily soiled
areas.
4. Wipe off the surface burners with warm, soapy
water and a sponge
after each use. To
remove cooked-on
food, soak the burners
in a vinegar and water
solution for 20-30
minutes. Then scrub
them with a plastic
scrubbing pad. (See the
“Cleaning chart” section
for more information.)
12"
5. Check the burner flames once in a while for proper
size and shape as shown.
A good flame is blue in
color. If flames lift away
from ports, are yellow,
or are noisy, turn off the
burner. Allow the burner
to cool and follow Step 6.
If you still have a problem,
contact an authorized
service technician to
check the air/gas mixture
or see the Installation Instructions.
6. If the ports are clogged, clean with a straight
pin. DO NOT enlarge
or distort the ports.
DO NOT use a tooth-
pick to clean the ports.
Toothpick pieces may
clog the ports.
Ports

19
CARING FOR YOUR RANGE
REMOVING THE OVEN DOOR
continued on next page
For normal use of your range, you do not need to
remove the door. However, if you find it necessary
to remove the door, follow the instructions in this
section.
NOTE: The oven door is heavy.
Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain.
3. Repeat procedure for other door stop clip.
Door removal
pin hole
Hinge
hanger
Range
Front frame
hinge slot
Door stop clip
To remove:
1. Open the oven door. Insert door removal pins,
included with your
range, into both hinge
hangers. Do not remove
the pins while the door
is removed from the
range.
3. Grasp the door on the sides with your fingers on
the front of the door
and your thumbs on
the inside surface.
2. Carefully close the door until it rests against the
door removal pins.
To replace:
NOTE: The door removal pins you inserted must still
be in both door hinges.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface.
4. Pull door straight up, then toward you. Hinge
hangers will slide out of front frame hinge slot.

20
CARING FOR YOUR RANGE
REMOVING THE OVEN DOOR (CONT.)
Range
Front frame
hinge slot
2. Hold oven door so that the top edge of each
hinge hanger is horizontal. Insert hinge hangers
into the front frame hinge slots.
3. Rotate top of door toward range. Slide hinge
hangers down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully
seated and engaged on the support pins.
4. Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in
the bottom of the clip until flanges are flush with
the front frame.
5. Open the door completely and remove the door
removal pins. Save door removal pins for future
use.
6. Close the door.
Door removal
pin hole
Hinge
hanger
Door stop
clip
Angular
surface of
door stop
clipDoor removal
pin hole
Support pins
