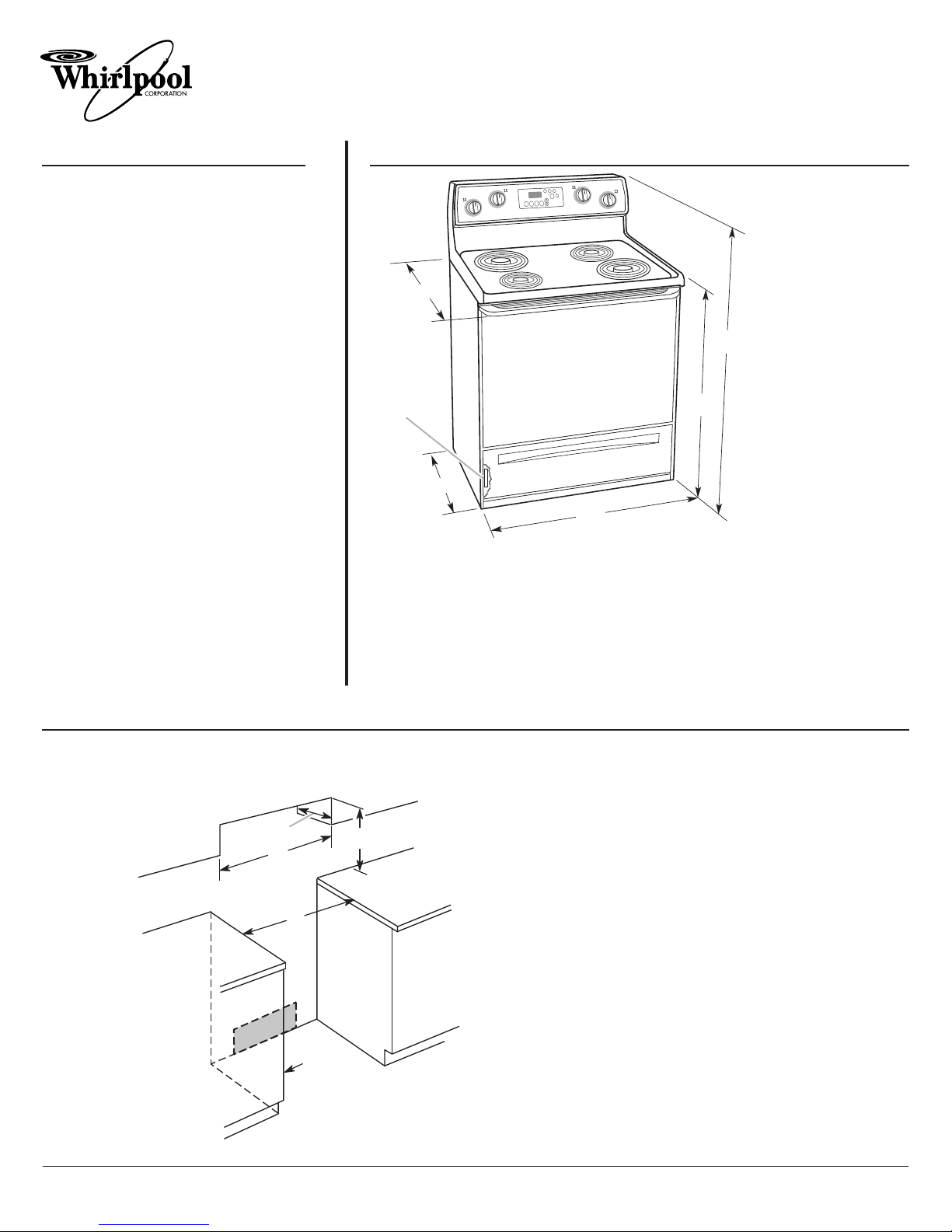

30" (76 cm) Freestanding Electric Range
PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
WFE321LW WFE324LW
Because Whirlpool Corporation policy includes a continuous commitment to improve our
products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Electrical: Range must be connected to the
proper electrical voltage and frequency as
specified on the model/serial number rating plate.
The model/serial number rating plate is located
behind the control panel or on the oven frame
behind the storage drawer panel. Refer to the
figures in the “Product Dimensions” section.
This range is manufactured with the neutral
terminal connected to the cabinet. Use a 3-wire,
UL listed, 40- or 50-amp power supply cord
(pigtail). If local codes do not permit ground
through the neutral, use a 4-wire power supply
cord rated at 250 volts, 40 or 50 amps and
investigated for use with ranges.
A circuit breaker is recommended.
The range can be connected directly to the circuit
breaker box (or fused disconnect) through
flexible or nonmetallic sheathed, copper or
aluminum cable.
CABINET OPENING DIMENSIONS
* NOTE: 24" (61 cm) min. when bottom of wood or
metal cabinet is protected by not less than ¼1/4" (6.4 mm)
flame retardant millboard covered with not less than No. 28
MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) min. clearance between the top of the cooking
platform and the bottom of an unprotected wood or metal
cabinet.
Cabinet opening dimensions shown are for:
25" (63.5 cm) countertop depth,
24" (61 cm) base cabinet depth,
36" (91.4 cm) countertop height
Ref. W10252706A
07-14-09
A. 27¹⁷⁄₃₂" (69.9 cm) max. depth with handle
B. 46
⁷⁄₈ " (119.1 cm) overall height (max.) with leveling legs
screwed all the way in*
C. 36" (91.4 cm) cooktop height (max.) with leveling legs screwed
all the way in*
D. 29⁷⁄₈" (75.9 cm) width
E. 25" (63.5 cm) depth
F. Model/serial rating plate (located on the left side frame behind
storage drawer panel)
A
B
C
D
E
F
*Range can be raised
approximately 1"
(2.5 cm) by adjusting
the leveling legs.
A. 13" (33.0 cm) max. upper cabinet depth
B. 30" (76.2 cm) min. opening width
C. For minimum clearance to top of cooktop, see NOTE*.
D. 30¹⁄₈" (76.5 cm) min. opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet,
5¹⁄₂" (14.0 cm) max. from floor
F. ⁷⁄₈" (2.2 cm) min. required between cutout and cabinet door or
hinge.
®
