A Note to You ............2
Range Safety..............3
Parts and Features....5
Using YourRange ......6
Using the Self-
Cleaning Cycle ........24
Caring for Your
Range ......................27
Troubleshooting ......33
Requesting
Assistance or
Service ....................35
Index ........................39
Warranty ..................40
1-800-253-1301
Call the Consumer Assistance Center
with questions or comments.
Self-Cleaning
Gas Range
TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION
BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP THIS
BOOK FOR FUTURE REFERENCE.

2
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
– Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
A NOTE TO YOU
Thank you for buying a Kirkland Signature™ appliance by Whirlpool Corporation.
To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It is full of valuable information about how to operate and maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see diagram in
the “Parts and Features” section).
Please also record the purchase date of your appliance
and your dealer’s name, address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference. It is important for
you to save your sales receipt showing the date of purchase. Proof of purchase will assure
you of in-warranty service.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
The Consumer Assistance Center number is toll free. 1-800-253-1301

3
RANGE SAFETY
You will be killed or seriously injured if you don’t
follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
wDANGER
wWARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
continued on next page
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
•Slide range forward.
•Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
Anti-Tip Bracket
Range Foot
wWARNING
THE ANTI-TIP BRACKET
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.

4
RANGE SAFETY
– SAVE THESE INSTRUCTIONS –
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
•WARNING – TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE
FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE
RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
•CAUTION – Do not store items of interest to
children in cabinets above a range or on the
backguard of a range – children climbing on the
range to reach items could be seriously injured.
•Proper Installation – The range, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70. Be
sure the range is properly installed and grounded
by a qualified technician.
•This range is equipped with a three-prong
grounding plug for your protection against shock
hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or
remove the grounding prong from this plug.
IMPORTANT SAFETY INSTRUCTIONS
•Disconnect the electrical supply before
servicing the appliance.
•Never Use the Range for Warming or Heating
the Room.
•Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
•Maintenance – Keep range area clear and free
from combustible materials, gasoline, and other
flammable vapors and liquids.
•Storage in or on the Range – Flammable
materials should not be stored in an oven or
near surface units.
•Top burner flame size should be adjusted so it
does not extend beyond the edge of the
cooking utensil.
For self-cleaning ranges –
•Before Self-Cleaning the Oven – Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle.

5
COOKTIME/COOKTIME/
TIMED
BAKE
BROIL
HEAT
CLEAN
ON
STARTTIME/ARTTIME/
DELAY
OFF
CANCEL
START
5SEC
ENTER
TIME
DOOR
LOCKED
AUTO
CLEAN
CUSTOM
BROIL
SELF CLEANING OVENCLEANING OVEN
TIMER START?
CLOCK
TIMER
•• CANCEL
START
TIME
COOK
TIME
Oven vent
(p. 22)
Surface burners
and grates
(pp. 6, 28-30)
Anti-tip bracket
(p. 3)
Door stop clip
(pp. 30-32)
Model and
serial number
plate
(behind left side
of storage drawer)
Storage drawer
(p. 23)
Left front
control knob
(Rapid Boil)
Right front
control knob
Right rear
control knob
Left rear
control knob
Electronic
Oven control
(pp. 10-22)
Control panel
(pp. 5, 27)
Automatic oven
light switch
(p. 32)
Gasket
(p. 24)
Surface burner marker
(shows which burner
you are setting)

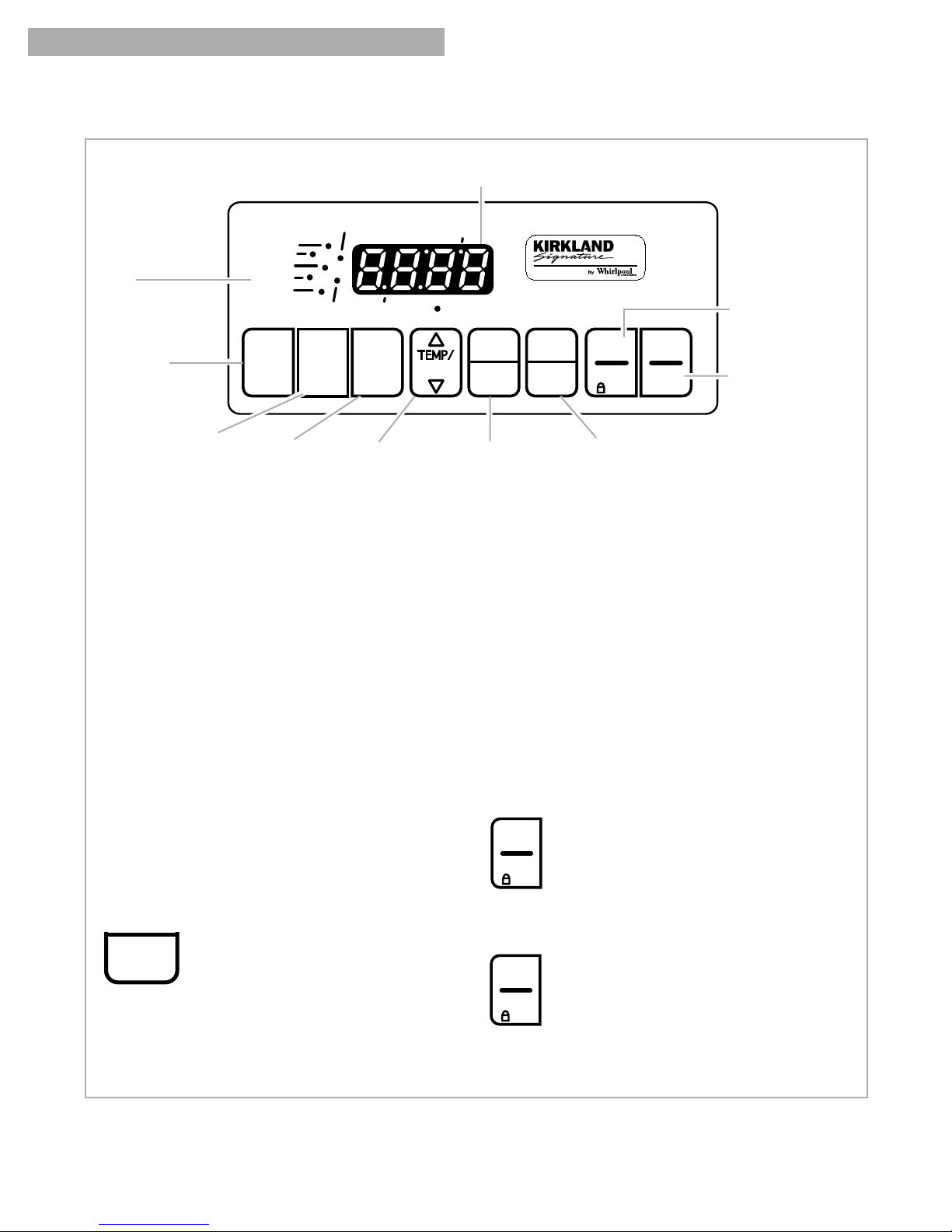

CONTROL PANEL
PARTS AND FEATURES

6
USING YOUR RANGE
USING THE SURFACE BURNERS
NOTE: Do not leave empty cookware, or cookware
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the
cookware or cooking product.
Using Rapid Boil
Rapid Boil is an adjustable setting for the left front
burner which provides an ultra-high heat setting. It
can be used to rapidly bring liquid to a boil and to
cook large quantities of food.
Easy ways to save energy
•When heating large quantities of liquid for foods
such as pasta or soup, cover with a lid to help
shorten cooking time.
•Preheat your pots and pans only when
recommended and for the shortest time possible.
•Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
wWARNING
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can
result in death or fire.
RECOMMENDED USE
•To light the burner.
•To provide highest heat
setting.
•To start food cooking.
•To bring liquid to a boil.
•To hold a boil.
•To fry chicken or pancakes.
•For gravy, pudding, and icing.
•To cook large amounts of
vegetables.
•To keep food warm.
•To melt chocolate or butter.
•To simmer.
SETTING
LIGHT
Rapid Boil
(left front burner)
HIGH
Mid-range
(between HIGH
and LOW)
LOW
Burner heat settings
Use the following chart as a guide.
Using the control knobs
Your range comes with electric ignitors. Electric
ignitors automatically light the burners each time
you turn the control knobs to LIGHT.
•Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a
burner for extended periods of time without
having cookware on the grate.
•Push in the control knob and turn it counter-
clockwise to the
LIGHT position. The
clicking sound is the
ignitor sparking. Make
sure the burner has lit.
•To stop the clicking
sound after the burner
lights, turn the control
knob to the cook setting
you want. You can set
the control knob
anywhere between HIGH and LOW.
NOTE: All four electric ignitors will click at the same
time. However, the burner with the control knob
turned to LIGHT is the one that will ignite.

7
USING YOUR RANGE
USING THE SURFACE BURNERS (CONT.)
In case of a prolonged power failure
You can manually light surface burners. Hold a lit
match near a burner and turn the control knob to
the LIGHT position. After the burner lights, turn the
control knob to the setting you want.
Home canning information
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.
To protect your range:
•Center the canner over the surface burner. Do
not extend more than 1 inch outside the burner
area.
•Do not place your canner on two surface burners
at the same time.
•Start with hot water, cover with a lid and bring to
a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.
•
Refer to your canner manual for specific
instructions.
For up-to-date information on canning, contact your
local U.S. Government Agricultural Department
Extension Office or companies who
manufacture home canning products.
Using the right cookware makes a
big difference
•The pan should have a flat bottom, straight sides,
and a well-fitting lid.
•Choose medium to heavy gauge (thickness)
cookware.
•The pan material (metal or glass) affects how
quickly and evenly the pan heats.
•When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.
•To avoid tipping, make sure pots and pans are
centered on the grates.
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum • Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or
ceramic glass • Heats slowly and unevenly.
• Use on low to medium settings.
• Follow manufacturer’s instructions.
Copper • Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
Earthenware • Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
Porcelain enamel-on-steel or
enamel-on-cast iron • See cast iron and stainless steel.
Stainless steel • Heats quickly but unevenly.
•
A core or base of aluminum or copper on the cookware provides
even heating.
• Can be coated with porcelain enamel.
CHARACTERISTICS OF COOKWARE MATERIALS

Positioning racks and pans
Place the oven racks where you need them before
turning on the oven.
•To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
•Be sure the rack(s) is level.
•Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
•For best performance, cook on one rack. Place
the rack so the top of the food will be centered in
the oven.
•When cooking with two racks, arrange the racks
on the 2nd and 4th rack guides. Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake time.
Increase baking time, if necessary.
•For best results allow 2 inches of space around
each pan and between pans and oven walls.
Extra oven rack position (roasting rack)
Use this rack position when roasting food too large
to be placed on the first
rack position.
For proper roasting,
follow these guidelines:
•To avoid spillage,
remove food before
pulling out the rack.
•Tilt the rack up at the
front before pulling it
over the door.
•Use an adequate amount of liquid in the pan (meat
juices or water) so your food does not get overdone.
Extra oven rack position
8
USING YOUR RANGE
USING THE OVEN
Where to place pans:
WHEN YOU HAVE
1 pan
2 pans
3 or 4 pans
PLACE
In center of the oven rack.
Side by side or slightly
staggered.
In opposite corners on
each oven rack. Stagger
pans so no pan is directly
over another.
Rack placement for specific foods:
FOOD
Frozen pies, large
roasts, turkeys, angel
food cakes
Bundt cakes, most
quick breads, yeast
breads, casseroles,
meats
Cookies, biscuits,
muffins, cakes,
nonfrozen pies
RACK POSITION
1st or 2nd rack
guide from bottom
2nd rack guide
from bottom
2nd or 3rd rack
guide from bottom
NOTE: For information on where to place your rack
when broiling, see “Broiling guidelines” later in this
section.

9
BAKEWARE CHOICES
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE
Light colored aluminum • Light golden crusts
• Even browning • Use temperature and time recommended
in recipe.
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
• Brown, crisp crusts • May reduce baking temperature 25°F.
• Use suggested baking time.
• Use temperature and time recommended in recipe
for pies, breads, and casseroles.
• Place rack in center of oven.
Ovenproof glassware,
ceramic glass, or ceramic • Brown, crisp crusts • May reduce baking temperature 25°F.
Insulated cookie sheets or
baking pans • Little or no bottom browning • Place in the bottom third of oven. • May need to increase baking time.
Stainless steel • May need to increase baking time.
• Crisp crustsStoneware • Follow manufacturer's instructions.
• Light, golden crusts
• Uneven browning
BEST USED FOR GUIDELINES
USING YOUR RANGE
USING ALUMINUM FOIL
NOTE: Do not line the oven bottom with foil or
other liners. It could
affect the oven surface
as well as the quality of
your baking.
•Do not cover the entire
rack with aluminum foil.
It will reduce air circula-
tion and give you poor
cooking results.
•Use aluminum foil to catch spillovers from pies or
casseroles by placing foil on the oven rack below.
Foil should be turned up at edges and be at least 1
inch larger than dish.
•Place tent-shaped foil loosely over meat or poultry
to slow down surface browning for long term
roasting. Remove foil for the last 30 minutes.
•Use narrow strips of foil to shield piecrust edges if
browning too quickly.

Display/clock
•When you first plug in the range, “PF” will appear
on the display until you press any command
pad. If “PF” again appears on the display, your
electricity was off for a while.
•When you are using the oven, the display will
show preheat times and temperature settings.
•When you are not using the oven, the display
shows the time of day.
•When showing the time of day, the display will
show the hour and minutes.
•When you are using the minute timer, the display
will count down each minute.
•When setting a function, if you do not press
START/ENTER within 5 seconds, the Start?
indicator light will flash. If you do not press
START/ENTER within 5 minutes, the function
will be canceled.
•When you are using COOK TIME, the display will
show hours and minutes or minutes
and seconds.
Indicator lights
An indicator light to the left of the display lights up
when you are in a setting. An indicator light on the
display lights up when the oven is on.
10
USING YOUR RANGE
THE ELECTRONIC OVEN CONTROL
Using the control lock
The control lock lets you disable the control panel
command pads. The control lock comes in handy
when you want to prevent others from using
the oven.
NOTES:
•You can only use the control lock when the oven
is not in use or the control has not been set.
•Set the control lock when cleaning the control
panel to prevent yourself from accidentally turning
on the oven.
To lock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear a single tone and “Loc” will
appear on the temperature display for 5
seconds. “Loc” will then appear whenever
a command pad is pressed.
To unlock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear a single tone and “Loc” will
disappear from the temperature display.
START
5 SEC
ENTER
START
5 SEC
ENTER
COOK TIME/
TIMED
BAKE
BROIL
HEAT
CLEAN
ON
START TIME/
DELAY
OFF
CANCEL
START
5 SEC
ENTER
TIME
DOOR
LOCKED
BAKE
AUTO
CLEAN
CUSTOM
BROIL
SELF CLEANING OVEN
TIMER START?
CLOCK
TIMER
• • CANCEL
START
TIME
COOK
TIME
Off/cancel
pad
(pp. 12, 14,
16, 20, 26)
Start/enter pad
(pp. 10, 11, 12,
14, 15, 16, 20, 26)
Clock/timer pad
(pp. 11, 12)
Bake pad
(pp. 13, 15)
Start time/
Cook time pad
(pp. 19, 21)
Electronic
display
Temperature/
time pad
(pp. 11, 13, 15,
17, 19, 21, 25)
Auto clean
pad
(p. 25)
Custom broil
pad
(pp. 16, 17)
Indicator
lights
(see below )
COOK
TIME
