Whirlpool ES5DVAXWA00 User manual

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301.
In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.
You will need your model and serial number located on the inside wall of the refrigerator compartment.
Table of Contents /Indice/Table des matibres
REFRIGERATOR SAFETY ................................ 1
INSTALLATION INSTRUCTIONS ..................... 2
REFRIGERATOR USE ....................................... 5
REFRIGERATOR CARE .................................... 9
TROUBLESHOOTING ..................................... 10
ACCESSORIES ................................................ 12
WATER FILTER CERTIFICATIONS ................ 12
PERFORMANCE DATA SHEETS ................... 13
WAR RANTY ..................................................... 15
SEGURIDAD DEL REFRIGERADOR .............. 16
INSTRUCClONES DE INSTALAClON ............ 17
USO DE SU REFRIGERADOR ........................ 20
CUlDADO DE SU REFRIGERADOR .............. 24
SOLUClON DE PROBLEMAS ........................ 25
ACCESORIOS .................................................. 27
HOJA DE DATOS DEL RENDIMIENTO ......... 28
GARANTIA ....................................................... 30
SI_CURITI_ DU RI_FRIGI_RATEUR ................. 31
INSTRUCTIONS D'INSTALLATION ............... 32
UTILISATION DU RI=FRIGI=RATEUR ............. 35
ENTRETIEN DU RI_FRIGI_RATEUR ............... 39
DI_PANNAGE ................................................... 40
ACCESSOIRES ................................................ 42
FEUlLLES DE DONNI_ES
SUR LA PERFORMANCE ............................... 43
GARANTI E ....................................................... 45
REFRIGERATORSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10162451A

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
• Use two or more people to move and install refrigerator.
• Disconnect power before installing ice maker (on ice maker
kit ready models only).
• Use a sturdy glass when dispensing ice (on some models).
SAVE THESE INSTRUCTIONS
Proper Disposal of Your Old Refrigerator
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." Ifyou are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
• Takeoff the doors.
• Leave the shelves in place so that children may not easily
climb inside.
INSTALLATIONINSTRUCTIONS
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
When Moving "{our Refrigerator:
Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to protect the floor.
Always pull the refrigerator straight out when moving it.
Do not wiggle or "walk" the refrigerator when trying to move
it, as floor damage could occur.
Remove packaging materials. Do not use sharp instruments,
rubbing alcohol, flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the surface of your
refrigerator. For more information, see "Refrigerator Safety."
important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when
removing them to avoid impact from dropping.
2

Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
To ensure proper ventilation for your refrigerator, allow for 1/2"
(1.25 cm) space on each side and at the top. When installing your
refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on
each side (depending on your model) to allow for the door to
swing open. If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.
NOTES:
F-qF-q
•._ r-
lil /
1/2" (1.25 cm) _/_
II- il
II
2" (5.08 cm}/
It is recommended that you do not install the refrigerator near
an oven, radiator, or other heat source. Do not install in a
location where the temperature will fall below 55°F (13°C).
Normal minimum cabinet cut-out width required for product
installation is 36" (91.44 cm). However, if the product is placed
against an extended wall and the ability to remove the crisper
pans is desired, an additional 18" (45.72 cm) of cabinet width
is required, so a total cabinet opening width of 54"
(137.16 cm)is recommended.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the control (Thermostat, Refrigerator or
Freezer Control depending on the model) to OFF and then
disconnect the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical source and
reset the control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting. See "Using the
Controls."
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
TOOLS NEEDED:
• Flat-blade screwdriver • 1/4"Nut driver
• 7/le"and 1/2"Open-end or two • 1/4"Drill bit
adjustable wrenches • Cordless drill
NOTE: Your refrigerator dealer has a kit available with a 1/4"
(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve complies with
your local plumbing codes. Do not use a piercing-type or ¾e"
(4.76 mm) saddle valve which reduces water flow and clogs more
easily.
IMPORTANT:
• All installations must meet local plumbing code requirements.
• Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.

Water Pressure
A cold water supply with water pressure of between 30 and
120 psi (207 and 827 kPa)is required to operate the water
dispenser and ice maker. Ifyou have questions about your water
pressure, call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi (207 and
827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
If your refrigerator has a water filter, it may further reduce the
water pressure when used in conjunction with a reverse
osmosis system. Remove the water filter. See "Water Filtration
System."
If you have questions about your water pressure, call a licensed,
qualified plumber.
Read all directions before you begin.
IMPORTANT: Ifyou turn the refrigerator on before the water line is
connected, turn the ice maker OFF.
Connect to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Locate a 1/2"(12.70 mm) to 11¼"(3.18 cm) vertical cold water
pipe near the refrigerator.
IMPORTANT:
4=
5=
• Make sure it is a cold water pipe.
• Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
Determine the length of copper tubing you need. Measure
from the connection on the lower rear corner of refrigerator to
the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4"
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure both
ends of copper tubing are cut square.
Using a cordless drill, drill a 1/4"(6.35 mm) hole in the cold
water pipe you have selected.
A. Cold waterpipe
B. Pipe clamp
C. Copper tubing
D. Compression nut
E. Compression sleeve
FShutoff valve
G. Packing nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"(6.35 mm)
drilled hole in the water pipe and that the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe clamp
screws slowly and evenly so the washer makes a watertight
seal. Do not overtighten or you may crush the copper tubing.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw the compression
nut onto outlet end with adjustable wrench. Do not
overtighten.
8. Place the free end of the tubing in a container or sink, and turn
ON the main water supply. Flush the tubing until water is clear.
Turn OFF the shutoff valve on the water pipe. Coil the copper
tubing.
Connect to Refrigerator
Style 1
1. Unplug refrigerator or disconnect power.
2. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do not
overtighten.
3. Use the tube clamp on the back of the refrigerator to secure
the tubing to the refrigerator as shown. This will help avoid
damage to the tubing when the refrigerator is pushed back
against the wall.
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
B
A. Tube clamp
B. Copper tubing C. Compression nut
D. Valve inlet
6= The ice maker is equipped with a built-in water strainer. If your
water conditions require a second water strainer, install it in
the 1/4"(6.35 mm) water line at either tube connection. Obtain
a water strainer from your nearest appliance dealer.
Style 2
1. Unplug refrigerator or disconnect power.
2. Remove and discard the black nylon plug from the gray water
tube on the rear of the refrigerator.
3. If the gray water tube supplied with the refrigerator is not long
enough, a V4"x 1/4"(6.35 mm x 6.35 mm) coupling is needed in
order to connect the water tubing to an existing household
water line. Thread the provided nut onto the coupling on the
end of the copper tubing.
NOTE: Tighten the nut by hand. Then tighten it with a wrench
two more turns. Do not overtighten.
A B C D E F G
A. Refrigerator water tubing E.Ferrule(purchased)
B.Nut (provided) FNut (purchased)
C.Bulb G.Household water fine
D. Coupling (purchased)

4. Turn shutoff valve ON.
5. Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
Style 3
1. Unplug refrigerator or disconnect power.
2. Remove and discard the black nylon plug from the gray water
tube on the rear of the refrigerator.
3. Thread the provided nut onto the water valve as shown.
NOTE: Tighten the nut by hand. Then tighten it with a wrench
two more turns. Do not overtighten.
A
I/ III B
A. Bulb
B. Nut (provided)
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
Complete the Installation
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Flush the water system. See "Prepare the Water System" or
"Water and Ice Dispensers."
NOTE: Allow 24 hours to produce the first batch of ice. Allow
3 days to completely fill ice container.
REFRIGERATORUSE
Temperature Control Adjustment and Cooling On/Off
The refrigerator and freezer control buttons are located on the
dispenser panel.
Cube "_ GOOD (_ FastIce
FastCool
_.=.
ICE LIGHT TEMPERATURE FILTER STATUS UNLOCKED FEATURES
To turn cooling off, press and hold the LOCK and FAST ICE/COOL
buttons at the same time for 3 seconds. Press and hold LOCK
and FAST ICE/COOL again to turn cooling on. Your refrigerator
and freezer will not cool when cooling is off.
IMPORTANT: To avoid unintentionally locking the dispenser
or changing other settings, be sure to press both buttons at
exactly the same time.
For your convenience, your refrigerator and freezer controls are
preset at the factory. When you first install your refrigerator, make
sure that the controls are still set to the "mid-settings."
To view set points, press the TEMPERATURE button on your
dispenser panel. The factory recommended set points are
0°F (-18°C) for the freezer and 37°F (3°C) for the refrigerator.
IM PORTANT:
•Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the set points to a higher (colder) than
recommended setting will not cool the compartments any
faster.
If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
The preset settings should be correct for normal household
usage. The controls are set correctly when milk or juice is as
cold as you like and when ice cream is firm.
Wait at least 24 hours between adjustments. Recheck the
temperatures before other adjustments are made.
The display screen on the dispenser control panel has a
backlight, which will turn off automatically when the control
buttons have not been used for 30 seconds or more. When
the backlight is off, the first press of a control button will only
reactivate the backlight, without changing any settings. Within
30 seconds after the backlight has been reactivated,
additional presses of control buttons will change the
applicable settings.

Adjusting the Controls
To adjust the set points, press and hold the TEMPERATURE
button for 3 seconds. When adjust mode is activated, set points
and adjusting information will appear on the display screen.
tSuggested J Suggested _IO F
0o I--I % 37°
FREEZER |J t_REFRGERATOR_1
I x I
r • • ) SETIEXIT OF l°C r • •
NOTE: To view Celsius temperatures, press the FILTER button
when adjust mode is activated. To return the display setting to
Fahrenheit, press FILTER again.
Refrigerator Controls
When adjust mode is activated, the LOCK and FAST ICE/COOL
buttons adjust the refrigerator compartment temperature. The set
point range for the refrigerator is 33°F to 45°F (0°C to 7°C).
• Press LOCK to lower the set point.
• Press FAST ICE/COOL to raise the set point.
Freezer Controls
When adjust mode is activated, the ICE and LIGHT buttons adjust
the freezer compartment temperature. The set point range for the
freezer is -5°F to 5°F (-21 °C to -15°C).
• Press ICE to lower the set point.
• Press LIGHT to raise the set point.
CONDITION: TEMPERATURE
ADJUSTMENT:
REFRIGERATOR too cold REFRIGERATOR Setting
1° higher
REFRIGERATOR too warm REFRIGERATOR Setting
1° lower
FREEZER too cold FREEZER Setting
1° higher
FREEZER too warm/too little ice FREEZER Setting
1° lower
Press TEMPERATURE to exit adjust mode, or allow about
15 seconds of inactivity and adjust mode will turn off
automatically.
Additional Features
NOTE: The display screen on the dispenser control panel has a
backlight, which will turn off automatically when the control
buttons have not been used for 30 seconds or more. When the
backlight is off, the first press of a control button will only
reactivate the backlight, without changing any settings. Within
30 seconds after the backlight has been reactivated, additional
presses of control buttons will change the applicable settings.
Fast Cool &Fast Ice
The Fast Cool feature assists with periods of heavy ice usage, full
grocery loads, or temporarily warm room temperatures.
The Fast Ice feature assists with temporary periods of heavy ice
use by increasing ice production over a 24-hour period.
Press the FAST ICE/COOL button to turn on the Fast Cool
feature. When the feature turns on, the "Fast Cool" animation
will appear on the dispenser display.
The Fast Cool setting will remain on for 24 hours unless
manually turned off.
Press FAST ICE/COOL again to turn off Fast Cool and turn on
the Fast Ice feature. When the feature turns on, the "Fast Ice"
animation will appear on the dispenser display.
dd
The Fast Ice setting will remain on for 24 hours unless
manually turned off.
Press FAST ICE/COOL a third time to activate Fast Cool and
Fast Ice at the same time. When the features are activated,
both the "Fast Cool" and "Fast Ice" animations will appear on
the dispenser display.
Press FAST ICE/COOL a fourth time to turn both Fast Cool
and Fast Ice off.
When Fast Cool and/or Fast Ice are active, the temperature
display will not change. After 24 hours, the refrigerator returns to
the previous temperature set points.
NOTE: If increased ice production is desired at all times, change
the freezer control to a lower setting. Setting the freezer to a
colder temperature may make some foods, such as ice cream,
harder.
6th Sense TM Temperature Management
The 6th Sense TM feature assists with regulating the temperature
inside the refrigerator. If a large quantity of warm food is placed in
the refrigerator or warm air enters the refrigerator while the door
is held open, 6th Sense TM activates to quickly restore the
temperature to the set point.
NOTE: 6th Sense TM is always on when your refrigerator is
operating. You do not need to press any buttons to activate it.
The 6th Sense TM icon on the dispenser display screen indicates
that the feature has automatically activated.
Temperature Display Always On
This feature keeps the temperature display on at all times.
• Press and hold TEMPERATURE and LOCK at the same time
for 3 seconds to turn the feature on.
IMPORTANT: To avoid unintentionally locking the dispenser
or changing other settings, be sure to press both buttons at
exactly the same time.
• Press and hold TEMPERATURE and LOCK at the same time
for 3 seconds again to turn the feature off.
Door Ajar Alarm
The Door Ajar Alarm feature sounds an alarm when the refrigerator
or freezer door is open for 5 minutes and the product cooling is
turned on. The alarm will repeat every 2 minutes. Close both
doors to turn it off. The feature then resets and will reactivate
when either door is left open again for 5 minutes.
Disabling Sounds
• To turn off all dispenser and control sounds, including the
Door Ajar Alarm, press and hold ICE and FAST ICE/COOL at
the same time for 3 seconds.
• To turn all sounds back on, press and hold ICE and FAST ICE/
COOL at the same time for 3 seconds again.
6

The control can be adjusted to properly chill meats or vegetables.
The air inside the pan is cooled to avoid "spot" freezing and can
be set to keep meats at the National Livestock and Meat Board
recommended storage temperatures of 28° to 32°F (-2° to 0°C).
The convertible vegetable/meat drawer control comes preset at
the lowest meat setting.
To store meat:
Set the control to one of the three MEAT settings to store meat at
its optimal storage temperature.
To store vegetables:
Set the control to VEG to store vegetables at their optimal storage
temperatures.
NOTE: If food starts to freeze, move the control to the left (less
cold). Remember to wait 24 hours between adjustments.
You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW and HIGH.
LOW (open) for best storage of fruits and vegetables with skins.
HIGH (closed) for best storage of fresh, leafy vegetables.
Cool air from the freezer is directed to the refrigerator door bin
directly beneath the vents.
NOTE: The dairy compartment and can rack are not associated
with the Chilled Door Bin feature.
Chilled Door Bin Control
The chilled door bin control is located on the left-hand side of the
refrigerator compartment.
A'--
A. Chilled door bin control
Slide the door chill control to the left to reduce the flow of cold
air to the bin and make it less cold.
Slide the door chill control to the right to increase the flow of
cold air to the bin and make it colder.
Depending on your model, you may have one or more of the
following options: the ability to select either crushed or cubed ice,
a special light that turns on when you use the dispenser, or a lock
option to avoid unintentional dispensing.
NOTES:
•The dispensing system will not operate when the freezer door
is open.
After connecting the refrigerator to a water source, flush the
water system. Use a sturdy container to depress and hold the
water dispenser lever for 5 seconds, then release it for
5 seconds. Repeat until water begins to flow. Once water
begins to flow, continue depressing and releasing the
dispenser lever (5 seconds on, 5 seconds off) for an additional
2 minutes. This will flush air from the filter and water
dispensing system. Additional flushing may be required in
some households. As air is cleared from the system, water
may spurt out of the dispenser.
Allow 24 hours for the refrigerator to cool down and chill
water.
Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The display screen on the dispenser control panel has a
backlight, which will turn off automatically when the control
buttons have not been used for 30 seconds or more. When
the backlight is off, the first press of a control button will only
reactivate the backlight, without changing any settings. Within
30 seconds after the backlight has been reactivated,
additional presses of control buttons will change the
applicable settings.
The Water Dispenser
IMPORTANT: Dispense enough water every week to maintain a
fresh supply.
To Dispense Water:
1. Press a sturdy glass against the water dispenser lever.
2. Remove the glass to stop dispensing.
Thelce Dispenser
Ice dispenses from the ice maker storage bin in the freezer when
the dispenser lever is pressed. The dispensing system will not
operate when the freezer door is open. To turn off the ice maker,
see "Ice Maker and Storage Bin."
Your ice maker can produce both crushed and cubed ice. Before
dispensing ice, select which type of ice you prefer by pressing the
ICE button.
The display screen indicates which type of ice is selected.
CRUSHED CUBED
For crushed ice, cubes are crushed before being dispensed. This
may cause a slight delay when dispensing crushed ice. Noise
from the ice crusher is normal, and pieces of ice may vary in size.
When changing from crushed to cubed, a few ounces of crushed
ice will be dispensed along with the first cubes.

To Dispense Ice:
1. Press the button to select the desired type of ice.
Cut Hazard
Use asturdy glass when dispensing ice.
Failure to do so can result in cuts.
2.
3.
Press a sturdy glass against the ice dispenser lever. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure to the
lever in order to activate the ice dispenser. Pressing hard will
not make the ice dispense faster or in greater quantities.
Remove the glass to stop dispensing.
NOTE: Ice may continue to dispense for up to 10 seconds
after removing the glass from the lever. The dispenser may
continue to make noise for a few seconds after dispensing.
The Dispenser Light (on some models)
When you use the dispenser, the light will automatically turn on.
If you want the light to be on continuously, you may choose either
ON or DIM. The display screen indicates which mode is selected.
ON DIM OFF
ON: Press LIGHT to turn the dispenser light on.
DIM: Press LIGHT a second time to select DIM mode. The
dispenser light will remain on, but at a lower intensity.
OFF: Press LIGHT a third time to turn the dispenser light off.
The dispenser lights are LEDs that can not be changed. If it
appears that your dispenser lights are not working, see
"Troubleshooting" for more information.
The Dispenser Lock (on some models)
The dispenser can be turned off for easy cleaning or to avoid
unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the refrigerator,
to the ice maker, or to the dispenser light. It simply deactivates the
dispenser controls and levers. To turn off the ice maker, see "Ice
Maker and Storage Bin."
• Press and hold LOCK for 3 seconds to lock the dispenser.
• Press and hold LOCK a second time to unlock the dispenser.
The display screen indicates when the dispenser is locked.
LOCKED UNLOCKED
Turning the Ice Maker On/Off
The On/Oft switch is located on the top right-hand side of the
freezer compartment.
To turn on the ice maker, slide the control to the ON (left) position.
To manually turn off the ice maker, slide the control to the OFF
(right) position.
NOTE: Your ice maker has an automatic shutoff. The ice maker
sensors will automatically stop ice production, but the control will
remain in the ON (left) position.
REMEMBER:
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If a softened water supply cannot be avoided,
make sure the water softener is operating properly and is well
maintained.
Do not use anything sharp to break up the ice in the storage
bin. This can cause damage to the ice container and the
dispenser mechanism.
Do not store anything on top of or in the ice maker or storage
bin.
Removing and Replacing Ice Storage Bin
1. Hold the base of the storage bin with both hands and press
the release button to lift the storage bin up and out.
NOTE: It is not necessary to turn the ice maker control to the
OFF (right) position when removing the storage bin. The
sensor cover ("flipper door") on the left wall of the freezer
stops the ice maker from producing ice if the door is open or
the storage bin is removed.
2. Replace the storage bin on the door and push down to make
sure it is securely in place. ' i
J
8

*_ _;:!._ .......................... .......
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
Water Filter Status Light (on some models)
The water filter status light will help you know when to change
your water filter. When the water filter status display changes from
"GOOD" to "ORDER," this tells you that it is almost time to
change the water filter cartridge. Replace the water filter cartridge
when the water filter status display changes to "REPLACE." If
water flow to your water dispenser or ice maker decreases
noticeably, change the filter sooner. The filter should be replaced
at least every 6 months depending on your water quality and
usage.
After changing the water filter, reset the status light by pressing
and holding the FILTER button for 3 seconds. The status light will
change from "REPLACE" to "GOOD" when the system is reset.
Changing the Water Filter
1. Press the eject button to release the filter from the base grille.
2. Pull the filter straight out.
3. Turn the cap counterclockwise to remove it from the filter.
IMPORTANT: Do not discard the cap. It is part of your
refrigerator. Keep the cap to use with the replacement filter.
4= Align the ridge on the cap with the arrow on the new filter and
turn the cap until it snaps into place.
NOTE: You can run the dispenser without afilter. Your water
will not be filtered. Simply insert the cap all of the way into the
base grille and rotate the cap until it is firmly in place.
5. Remove the protective covers from the O-rings. Be sure the
O-rings are still in place after the covers are removed.
6. Push the filter into the base grille. The eject button will pop
back out when the filter is fully engaged.
7. Flush the water system. See "Water and Ice Dispensers."
REFRIGERATORCARE
ExpJosion Hazard
Use nonfJammable cleaner.
Failure to do so can result in death, explosion, or fire.
3.
4.
5=
Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water.
There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.
If you need to clean the condenser:
•Remove the base grille.
• Use a vacuum cleaner with asoft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser.
• Replace the base grille when finished.
Plug in refrigerator or reconnect power.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid
buildup of odors. Wipe up spills immediately.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To avoid odor
transfer and drying out of food, wrap or cover foods tightly.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or other harsh
cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the
bulb with one of the same size, shape and wattage. Replacement
bulbs are available from your dealer.
• The dispenser lights are LEDs that can not be changed.
• All other lights require a 40-watt bulb.
1. Unplug refrigerator or disconnect power.
2. Remove light shield when applicable.
NOTE: To clean the light shield, wash it with warm water and
liquid detergent. Rinse and dry the shield well.
3. Remove light bulb and replace with one of the same size,
shape and wattage.
4. Replace light shield when applicable.
5. Plug in refrigerator or reconnect power.

TROUBLESHOOTING
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call.
In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca
The refrigerator will not operate
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Power cord unplugged? Plug into a grounded 3 prong outlet.
Is outlet working? Plug in a lamp to see ifthe outlet is
working.
Household fuse blown or circuit breaker tripped? Replace
the fuse or reset the circuit breaker. If the problem continues,
call an electrician.
Are controls on? Make sure the refrigerator controls are on.
See "Using the Controls."
New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
NOTE: Adjusting the temperature controls to coldest setting
will not cool either compartment more quickly.
The motor seems to run too much
Your new refrigerator may run longer than your old one due to its
high-efficiency compressor and fans. The unit may run even
longer if the room is warm, a large food load is added, doors are
opened often, or if the doors have been left open.
The refrigerator is noisy
Refrigerator noise has been reduced over the years. Due to this
reduction, you may hear intermittent noises from your new
refrigerator that you did not notice from your old model. Below are
listed some normal sounds with an explanation.
•Buzzing - heard when the water valve opens to fill the ice
maker
•Pulsating - fans/compressor adjusting to optimize
performance
Rattling - flow of refrigerant, water line, or from items placed
on top of the refrigerator
Sizzling/Gurgling - water dripping on the heater during
defrost cycle
Popping - contraction/expansion of inside walls, especially
during initial cool-down
Water running - may be heard when water melts during the
defrost cycle and runs into the drain pan
Creaking/Cracking - occurs as ice is being ejected from the
ice maker mold.
The doors will not close completely
•Door blocked open? Move food packages away from door.
• Bin or shelf in the way? Push bin or shelf back inthe correct
position.
The doors are difficult to open
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
•Are the gaskets dirty or sticky? Clean gaskets with mild
soap and warm water.
The lights do not work
•Is a light bulb loose in the socket or burned out? See
"Changing the Light Bulbs."
Is the dispenser light set to OFF? The dispenser light will
operate only when the levers are pressed. If you want the
dispenser light to stay on continuously, set the dispenser light
to ON, or NIGHT LIGHT or AUTO or HALF or DIM. See "Water
and Ice Dispensers."
Is the dispenser light set to NIGHT LIGHT or AUTO? If the
dispenser isset to the NIGHT LIGHT or AUTO mode, be sure
the dispenser light sensor is not blocked. See "Water and Ice
Dispensers."
10

Temperature is too warm
•New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
•Door(s) opened often or left open? Allows warm air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
Large load of food added? Allow several hours for
refrigerator to return to normal temperature.
Controls set correctly for the surrounding conditions?
Adjust the controls a setting colder. Check temperature in
24 hours. See "Using the Controls."
There is interior moisture buildup
NOTE: Some moisture buildup is normal.
•Humid room? Contributes to moisture buildup.
•Door(s) opened often or left open? Allows humid air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
aRd
The ice maker is not producing ice or not enough ice
•Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Ice maker turned on? Make sure wire shutoff arm or switch
(depending on model) is in the ON position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
Large amount of ice recently removed? Allow 24 hours for
ice maker to produce more ice.
Ice cube jammed in the ice maker ejector arm?
Remove ice from the ejector arm with a plastic utensil.
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements" in either the Installation
Instruction booklet or the Use and Care Guide.
The ice cubes are hollow or small
NOTE: This is an indication of low water pressure.
•Water shutoff valve not fully open? Turn the water shutoff
valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
Questions remain regarding water pressure? Call a
licensed, qualified plumber.
Off-taste, odor or gray color in the ice
•New plumbing connections? New plumbing connections
can cause discolored or off-flavored ice.
•Ice stored too long? Discard ice. Wash ice bin. Allow
24 hours for ice maker to make new ice.
Odor transfer from food? Use airtight, moisture proof
packaging to store food.
Are there minerals (such as sulfur) in the water? A water
filter may need to be installed to remove the minerals.
Is there a water filter installed on the refrigerator? Gray or
dark discoloration in ice indicates that the water filtration
system needs additional flushing.
The ice dispenser will not operate properly
Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."
Ice bin installed correctly? Be sure the ice bin is firmly in
position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
Ice stuck in the delivery chute? Use a plastic utensil to clear
the delivery chute.
Has the wrong ice been added to the bin? Use only cubes
produced by the current ice maker.
Has the ice melted around the auger (metal spiral) in the
ice bin? Empty the ice container. Use warm water to melt the
ice if necessary.
Cut Hazard
Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.
Is the ice dispenser stalling while dispensing "crushed"
ice? Change the ice button from "crushed" to "cubed." If
cubed ice dispenses correctly, depress the button for
"crushed" ice and begin dispensing again.
Has the dispenser arm been held in too long? Ice will stop
dispensing when the arm is held in too long. Wait 3 minutes
for dispenser motor to reset before using again.
11

The water dispenser will not operate properly
Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."
Refrigerator connected to awater supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Is the water pressure at least 30 psi (207 kPa)? The water
pressure to the home determines the flow from the dispenser.
See "Water Supply Requirements."
Kink in the home water source line? Straighten the water
source line.
New installation? Flush and fill the water system.
Water filter installed on the refrigerator? The filter may be
clogged or incorrectly installed.
Is areverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements"
in either the Installation Instructions or the Use and Care
Guide.
Water is leaking from the dispenser
NOTE: One or two drops of water after dispensing is normal.
• Glass not being held under the dispenser long enough?
Hold the glass under the dispenser 2 to 3 seconds after
releasing the dispenser lever.
New installation? Flush the water system. See "Prepare the
Water System" or "Water and Ice Dispensers."
Recently changed water filter? Flush the water system. See
"Prepare the Water System" or "Water and Ice Dispensers."
The dispenser water is not cool enough
NOTE: Water from the dispenser is chilled to only 50°F (10°C).
• New installation? Allow 24 hours after installation for the
water supply to cool completely.
Recently dispensed large amount of water? Allow 24 hours
for water supply to cool completely.
Water not been recently dispensed? The first glass of water
may not be cool. Discard the first glass of water.
Refrigerator connected to a cold water pipe? Make sure
the refrigerator is connected to a cold water pipe. See "Water
Supply Requirements."
WATERFILTERCERTIFICATIONS
State of California
Department of Health Services
WaterTreatmentDevice
CertificaleNumber
05-1703
Date Issued: April 6, 2005
Date Revised: September 7, 2(X15
Trademark/Model Designation :Replacement Elements
((,) ....
)
Manutacture_!
116830 of tl
iili_
RatedServiceCapacity: 200gals RatedServieeFtow: 085gpm
Conditions of Certification:
Do not use with water that is microbthloglcally unsal_ or ol unknown quality, without adequate disth feclior_ before or
after the system
Trademark/Model Desian_tion
WhlrlpooI Deluxe TIWG2
Wiurlpoot DetuxeT1WG2L
State of Calilornia
Department of Health Services
WaterTreatmentDevice
CertificateNumber
05-1702
Dart: Issued: April 6, 2005
Date Revised: September 7, 2tX)5
Replacement Elelnel|t*
7f2RFWG2
ACCESSORIES
To order replacement filters, call 1-800-442-9991 and ask for the
part number listed below or contact your authorized Whirlpool
dealer. In Canada, call 1-800-807-6777.
Stainless Steel Cleaner and Polish:
Order Part #4396095
Standard Base Filter Cartridge:
Order Part #4396841 (T2RFWG2)
In Canada, Order Part #4396841 B (T2RFWG2)
RatedServiceCapaciIs: 200gals Rated Service FIow: ()5gpm
Conditions of Certification:
Do not use with water that is microbiologically unsafe or of unknown quality, without adequale disinibclion beibre or
after the system
12

PERFORMANCEDATASHEETS
Base Grille Water Filtration System
Model T2WG2L/T2RFWG2 Capacity 200 Gallons (758 Liters)
Model T2WG2/T2RFWG2 Capacity 200 Gallons (758 Liters)
System tested and certified by NSF International against NSF/ANSI
Standard 42 for the reduction of Chlorine Taste and Odor, Particulate
Class I1";and against NSF/ANSI Standard 53 for the reduction of Mercury,
Benzene, Toxaphene, O-dichlorobenzene, and Carbofuran.
This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the
permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.
Substance Reduction
Aesthetic Effects
Chlorine Taste/Odor
Particulate Class I1"
Contaminant
Reduction
Lead: @ pH 6.5***
Lead: @ pH 8.5***
Mercury: @ pH 6.5
Mercury: @ pH 8.5
Benzene
O-Dichlorobenzene
Toxaphene
Carbofuran
NSF Reduction
Requirements
50% reduction
85% reduction
NSF Reduction
Requirements
0.010 mg/L
0.010 mg/L
0.002 mg/L
0.002 mg/L
0.005 mg/L
0.6 mg/L
0.003 mg/L
0.04 mg/L
Average Influent Challenge Maximum Average
Influent Concentration Effluent Effluent
2.0182 mg/L 2.0 mg/L + 10% 0.06 mg/L ** 0.0536 mg/L
1333333 #/mL At east 10,000 part c es/mL 6600 #/mL 2325 #/mL
Average
Influent
0.1533 mg/L
0.1400 mg/L
0.0058 mg/L
0.0059 mg/L
0.0154 mg/L
1.7571 mg/L
0.015 mg/L
0.0819 mg/L
Influent Challenge
Concentration
0.15 mg/L_+ 10%
0.15 mg/L_+ 10%
0.006 mg/L _+10%
0.006 mg/L _+10%
0.015 mg/L _+10%
1.8 mg/L _+10%
0.015 mg/L _+10%
0.08 mg/L _+10%
Maximum
Effluent
0.0005 mg/L
0.0007 mg/L
0.0002 mg/L
0.0005 mg/L
0.0012 mg/L
0.0250 mg/L
0.001 mg/L
0.0400 mg/L
Average
Effluent
0.0005 mg/L
0.0006 mg/L
0.0002 mg/L
0.0003 mg/L
0.0006 mg/L
0.0066 mg/L
0.001 mg/L
0.0213 mg/L
Minimum %
Reduction
97.03
99.51
Minimum %
Reduction
99.67
99.50
96.54
91.57
92.22
98.58
93.33
51.13
Average %
Reduction
97.34
99.83
Average %
Reduction
99.67
99.57
96.54
94.92
96.34
99.63
93.33
74.00
Test Parameters: pH = 7.5 + 0.5 unless otherwise noted. Flow = 0.85 gpm (3.2 Lpm). Pressure =
Temp. = 68°F to 71.6°F (20°C to 22°C).
• It isessential that operational, maintenance, and filter •
replacement requirements be carried out for the product to
perform as advertised. •
Use replacement cartridge T2RFWG2, part #4396841.
In Canada, use replacement cartridge T2RFWG2, part
#4396841B. 2008 suggested retail price of $39.99 U.S.A./
$49.99 Canada. Prices are subject to change without notice.
Model T2WG2L: Style 1 - When the filter indicator reads 10%,
order a new filter. When the filter indicator reads 0%, it is
recommended that you replace the filter.
Style 2 - When the filter indicator light changes from green to
yellow, order a new filter. When the filter indicator light changes
from yellow to red, it is recommended that you replace the filter.
Style 3 - When the water filter status display changes from
"GOOD" to "ORDER," order a new filter. When the filter
indicator reads "REPLACE," it is recommended that you
replace the filter.
Model T2WG2: Change the water filter cartridge every
6 months depending upon your usage. If the water flow to the
water dispenser or ice maker decreases noticeably before
6 months have passed, replace the water filter cartridge more
often.
60 psig (413.7 kPa).
The product is for cold water use only.
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system.
Refer to the "Assistance or Service" section for the
Manufacturer's name, address and telephone number.
Refer to the "Warranty" section for the Manufacturer's limited
warranty.
Application Guidelines/Water Supply Parameters
Water Supply City or Well
Water Pressure 30 - 120 psi (207 - 827 kPa)
Water Temperature 33° - 100°F (0.6° - 37.8°C)
Service Flow Rate 0.85 gpm (3.2 Lpm) @ 60 psi
• These contaminants are not necessarily in your water supply.
While testing was performed under standard laboratory
conditions, actual performance may vary.
*Class II particle size: 1 um to <5 um
**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
***Compliant for Lead reduction requirements under NSF/ANSl Standard 53 as tested by Pace Analytical Services, Inc.
® NSF is a registered trademark of NSF International.
13

Base Grille Water Filtration System
Model TIWG2L/T2RFWG2 Capacity 200 Gallons (758 Liters)
Model TIWG2/T2RFWG2 Capacity 200 Gallons (758 Liters)
System tested and certified by NSF International against NSF/ANSI
Standard 42 for the reduction of Chlorine Taste and Odor, Particulate
Class I1";and against NSF/ANSI Standard 53 for the reduction of Mercury,
Benzene, Toxaphene, O-dichlorobenzene, and Carbofuran.
This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the
permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.
Substance Reduction
Aesthetic Effects
Chlorine Taste/Odor
Particulate Class I1"
Contaminant
Reduction
Lead: @ pH 6.5***
Lead: @ pH 8.5***
Mercury: @ pH 6.5
Mercury: @ pH 8.5
Benzene
O-Dichlorobenzene
Toxaphene
Carbofuran
NSF Reduction
Requirements
50% reduction
85% reduction
NSF Reduction
Requirements
0.010 mg/L
0.010 mg/L
0.002 mg/L
0.002 mg/L
0.005 mg/L
0.6 mg/L
0.003 mg/L
0.04 mg/L
Average Influent Challenge
Influent Concentration
2.0182 mg/L 2.0 mg/L + 10%
1333333 #/mL At east 10,000 part c es/mL
Average
Influent
0.1533 mg/L
0.1400 mg/L
0.0058 mg/L
0.0059 mg/L
0.0154 mg/L
1.7571 mg/L
0.015 mg/L
0.0819 mg/L
Influent Challenge
Concentration
0.15 mg/L_+ 10%
0.15 mg/L_+ 10%
0.006 mg/L _+10%
0.006 mg/L _+10%
0.015 mg/L _+10%
1.8 mg/L _+10%
0.015 mg/L _+10%
0.08 mg/L _+10%
Maximum Average
Effluent Effluent
0.06 mg/L ** 0.0536 mg/L
6600 #/mL 2325 #/mL
Maximum
Effluent
0.0005 mg/L
0.0007 mg/L
0.0002 mg/L
0.0005 mg/L
0.0012 mg/L
0.0250 mg/L
0.001 mg/L
0.0400 mg/L
Average
Effluent
0.0005 mg/L
0.0006 mg/L
0.0002 mg/L
0.0003 mg/L
0.0006 mg/L
0.0066 mg/L
0.001 mg/L
0.0213 mg/L
Minimum %
Reduction
97.03
99.51
Minimum %
Reduction
99.67
99.50
96.54
91.57
92.22
98.58
93.33
51.13
Average %
Reduction
97.34
99.83
Average %
Reduction
99.67
99.57
96.54
94.92
96.34
99.63
93.33
74.00
Test Parameters: pH = 7.5 + 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa).
Temp. = 68°F to 71.6°F (20°C to 22°C).
• It is essential that operational, maintenance, and filter •
replacement requirements be carried out for the product to
perform as advertised. •
Use replacement cartridge T2RFWG2, part #4396841.
In Canada, use replacement cartridge T2RFWG2, part
#4396841B. 2008 suggested retail price of $39.99 U.S.A./
$49.99 Canada. Prices are subject to change without notice.
Model TlWG2L: Style 1 - When the filter indicator reads 10%,
order a new filter. When the filter indicator reads 0%, it is
recommended that you replace the filter.
Style 2 - When the filter indicator light changes from green to
yellow, order a new filter. When the filter indicator light changes
from yellow to red, it is recommended that you replace the filter.
Style 3 - When the water filter status display changes from
"GOOD" to "ORDER," order a new filter. When the filter
indicator reads "REPLACE," it is recommended that you
replace the filter.
Model TlWG2: Change the water filter cartridge every
6 months depending upon your usage. If the water flow to the
water dispenser or ice maker decreases noticeably before
6 months have passed, replace the water filter cartridge more
often.
The product is for cold water use only.
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system.
Refer to the "Assistance or Service" section for the
Manufacturer's name, address and telephone number.
Refer to the "Warranty" section for the Manufacturer's limited
warranty.
Application Guidelines/Water Supply Parameters
Water Supply City or Well
Water Pressure 30 - 120 psi (207 - 827 kPa)
Water Temperature 33° - 100°F (0.6° - 37.8°C)
Service Flow Rate 0.5 gpm (1.9 Lpm) @60 psi
• These contaminants are not necessarily in your water supply.
While testing was performed under standard laboratory
conditions, actual performance may vary.
*Class II particle size: 1 um to <5 um
**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
***Compliant for Lead reduction requirements under NSF/ANSl Standard 53 as tested by Pace Analytical Services, Inc.
® NSF is a registered trademark of NSF International.
14

WHIRLPOOLCORPORATIONMAJORAPPLIANCEWARRANTY
LIM ITED WARRANTY
For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Parts
and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.
This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in
which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date
is required to obtain service under this limited warranty.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or
repair house fuses, or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty
coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is
contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage
results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.
6. Any food loss due to refrigerator or freezer product failures.
7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be
repaired in the home and only in-home service is covered by this warranty.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized Whirlpool servicer is not available.
10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance
with published installation instructions.
11. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty
is void if the factory applied serial number has been altered or removed from your major appliance.
The cost of repair or replacement under these excluded circumstances shall be borne by the customer.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE
TO PROVINCE.
If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. 9/07
For additional product information, in the U.S.A., visit www.whirlpool.com
In Canada, visit www.whirlpool.ca
If you do not have access to the Internet and you need assistance using your product or you would like to schedule service, you may
contact Whirlpool at the number below.
Have your complete model number ready. You can find your model number and serial number on the label, located on the inside wall of
the refrigerator compartment.
For assistance or service in the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.
If you need further assistance, you can write to Whirlpool with any questions or concerns at the address below:
In the U.S.A.: In Canada:
Whirlpool Brand Home Appliances Whirlpool Brand Home Appliances
Customer eXperience Center Customer eXperience Centre
553 Benson Road 1901 Minnesota Court
Benton Harbor, MI 49022-2692 Mississauga, Ontario L5N 3A7
Please include a daytime phone number in your correspondence.
Please keep this User Instructions and model number information for future reference.
15

LEAGRADECEMOSlacompradeesteproductodealtacalidad.Siustedexperimentaunproblemaquenosehayacubiertoen
SOLUClONDEPROBLEMAS,visitenuestrositiodeinternetenwww.whirlpool.comparaobtenerinformaci6nadicional.Si
consideraqueaQnnecesitaayuda,Ilamenosal1-800-253-1301.EnCanadA,visitenuestrositiodeintemetenwww.whirlpool.ca
oIlamenosal1-800-807-6777.
NecesitarateneramanosunQmerodemodeloydeserieubicadosenlaparedinferiordelcompartimientodelrefrigerador.
SEGURIDADDELREFRIGERADOR
Su seguridad y la seguridad de los demos es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual y en su electrodomestico. Lea y obedezca siempre
todos los mensajes de seguridad.
Este es el simbolo de advertencia de seguridad.
Este simbolo le llama la atenci6n sobre peligros potenciales que pueden ocasionar la muerte o una lesi6n a
usted y a los demas.
Todos los mensajes de seguridad iran a continuaci6n del simbolo de advertencia de seguridad y de la palabra
"PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted puede
morir o sufrir una lesibn grave.
Si no sigue las instrucciones, usted puede morir o sufrir
una lesibn grave.
Todos los mensajes de seguridad le diran el peligro potencial, le diran c6mo reducir las posibilidades de sufrir una lesi6n y Io que
puede suceder si no se siguen las instrucciones.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
ADVERTENC_A; Para reducir el riesgo de incendio, choque electrico, o lesiones personales al usar su refrigerador siga
estas precauciones basicas:
[] Conecte a un contacto de pared de conexidn a tierra de
3 terminales.
[] No use un adaptador.
[] No quite la terminal de conexidn a tierra.
[] No use un cable electrico de extensidn.
[] Desconecte el suministro de energia antes de darle servicio.
[] Vuelva a colocar todos los componentes y paneles antes de
hacerlo funcionar.
[] Remueva las puertas de su refrigerador viejo.
[] Use un limpiador no inflamable.
[] Mantenga los materiales y vapores inflamables, tales como
gasolina, alejados del refrigerador.
[] Use dos o mas personas para mover e instalar el
refrigerador.
[] Desconecte el suministro de energia antes de instalar la
fabrica de hielo (en aquellos modelos que incluyen el juego
de instalacidn de la fabrica de hielo).
[] Use un vaso resistente para recibir hielo del despachador
(en algunos modelos).
CONSERVAR ESTAS INSTRUCCIONES
16

Cbmo deshacerse adecuadamente de su
refrigeradorviejo
Peligro de Asfixia
Remueva las puertas de su refrigerador viejo.
No seguir esta instrucci6n puede ocasionar la muerte
o dafio al cerebro.
IMPORTANTE: El atrapamiento y asfixia de ni_os no es un
problema del pasado. Los refrigeradores tirados y abandonados
son un peligro, aOn si van a quedar ahi "por unos pocos dias". Si
Ud. esta por deshacerse de su refrigerador viejo, por favor siga
las instrucciones que se dan a continuacion para prevenir
accidentes.
Antes de tirar su viejo refrigerador o congelador:
• Saque las puertas.
• Deje los estantes en su lugar para que los ni_os no puedan
meterse con facilidad.
--AL
i
P
INSTRUCCIONESDEINSTALACION
Peligro de Peso Excesivo
Use dos o m_is personas para mover e instalar
el refrigerador.
No seguir esta instrucci6n puede ocasionar una
lesi6n en la espalda u otto tipo de lesiones.
Quite los materiales de empaque. No use instrumentos filosos,
alcohol para fricciones, liquidos inflamables, o productos de
limpieza abrasivos para eliminar los restos de cinta o goma. Estos
productos pueden da_ar la superficie de su refrigerador. Para mas
informacion, vea "Seguridad del refrigerador".
C6mo mover su refrigerador:
Su refrigerador es muy pesado. Cuando mueva su
refrigerador para limpiarlo o darle servicio, proteja el piso.
AI mover el refrigerador, siempre tire directamente hacia
afuera. No menee el refrigerador de lado a lado ni Io haga
"caminar" cuando Io trate de mover ya que podria da_ar
el piso.
Informaci6n importante para saber acerca de los estantes
y tapas de vidrio:
No limpie los estantes y tapas de vidrio con agua caliente
mientras esthn frios. Los estantes y tapas pueden romperse
si se exponen a cambios bruscos de temperatura o impacto,
como seria un golpe brusco. Para su protecci6n, el vidrio
templado se ha dise6ado para hacerse a_icos. Esto es normal.
Los estantes y tapas de vidrio son muy pesados. Tenga
mucho cuidado al sacarlos para evitar que se da_en al caer.
Peligro de Explosi6n
Mantenga los materiales y vapores inflamables,
tales como gasolina, alejados del refrigerador.
No seguir esta instrucci6n puede ocasionar la muerte,
explosi6n, o incendio.
Para asegurar la adecuada ventilacion para su refrigerador, deje
un espacio de V2"(1,25 cm) a cada lado y por encima. Si Ud.
instala el refrigerador proximo a una pared fija, deje como minimo
2" (5,08 cm) a cada lado (dependiendo del modelo) para permitir
que la puerta abra bien. Si su refrigerador tiene una fabrica de
hielo, asegOrese de que haya espacio adicional atrhs para la
conexion de la linea de agua.
/
1/2"(1,25 cm) (
,ira
/
2" (5,08 crn)
17

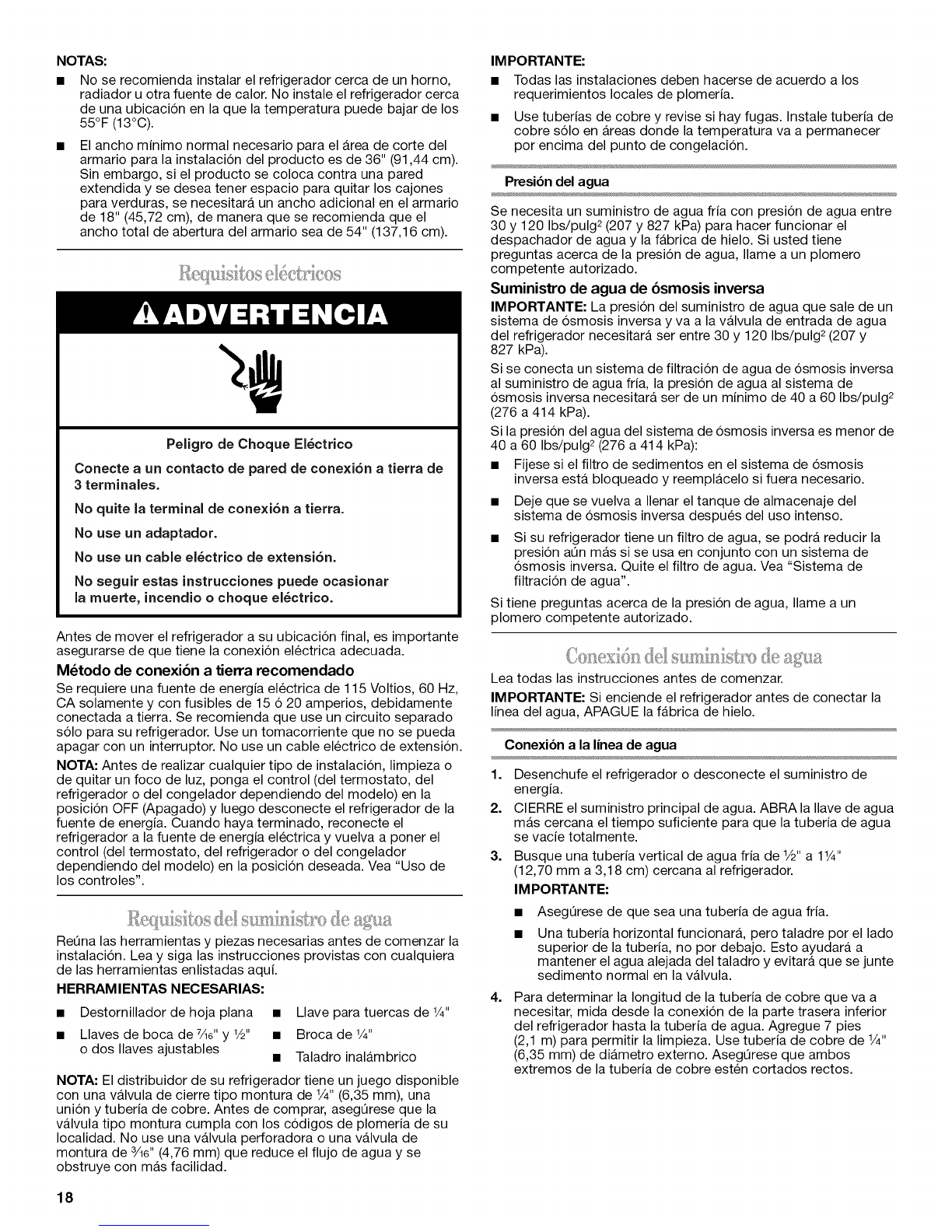

NOTAS:
No se recomienda instalar el refrigerador cerca de un horno,
radiador u otra fuente de calor. No instale el refrigerador cerca
de una ubicaci6n en la que la temperatura puede bajar de los
55°F (13°C).
El ancho minimo normal necesario para el Area de corte del
armario para la instalaci6n del producto es de 36" (91,44 cm).
Sin embargo, si el producto se coloca contra una pared
extendida y se desea tener espacio para quitar los cajones
para verduras, se necesitara un ancho adicional en el armario
de 18" (45,72 cm), de manera que se recomienda que el
ancho total de abertura del armario sea de 54" (137,16 cm).
PelJgro de Choque EI6ctrico
Conecte a un contacto de pared de conexi6n a tierra de
3 terminales.
No quite la terminal de conexi6n a tierra.
No use un adaptador.
No use un cable el_ctrico de extensi6n.
No seguir estas instrucciones puede ocasionar
la muerte, incendio o choque el6ctrico.
Antes de mover el refrigerador a su ubicaci6n final, es importante
asegurarse de que tiene la conexi6n electrica adecuada.
M_todo de conexi6n a tierra recomendado
Se requiere una fuente de energia electrica de 115 Voltios, 60 Hz,
CA solamente y con fusibles de 15 6 20 amperios, debidamente
conectada a tierra. Se recomienda que use un circuito separado
s61opara su refrigerador. Use un tomacorriente que no se pueda
apagar con un interruptor. No use un cable electrico de extensi6n.
NOTA: Antes de realizar cualquier tipo de instalaci6n, limpieza o
de quitar un foco de luz, ponga el control (del termostato, del
refrigerador o del congelador dependiendo del modelo) en la
posici6n OFF (Apagado) y luego desconecte el refrigerador de la
fuente de energia. Cuando haya terminado, reconecte el
refrigerador a la fuente de energia electrica y vuelva a poner el
control (del termostato, del refrigerador o del congelador
dependiendo del modelo) en la posici6n deseada. Vea "Uso de
los controles".
ReQna las herramientas y piezas necesarias antes de comenzar la
instalaci6n. Lea y siga las instrucciones provistas con cualquiera
de las herramientas enlistadas aqui.
HERRAMIENTAS NECESARIAS:
• Destornillador de hoja plana • Llave para tuercas de 1/4"
• Llaves de boca de 7/le"y 1/2" • Broca de 1/4"
o dos Ilaves ajustables • Taladro inalambrico
NOTA: El distribuidor de su refrigerador tiene un juego disponible
con una valvula de cierre tipo montura de 1/4"(6,35 mm), una
uni6n y tuberia de cobre. Antes de comprar, asegQrese que la
valvula tipo montura cumpla con los c6digos de plomeria de su
Iocalidad. No use una valvula perforadora o una valvula de
montura de 3_6" (4,76 mm) que reduce el flujo de agua y se
obstruye con mAs facilidad.
IM PORTANTE:
• Todas las instalaciones deben hacerse de acuerdo a los
requerimientos locales de plomeria.
• Use tuberias de cobre y revise si hay fugas. Instale tuberia de
cobre s61oen Areas donde la temperatura va a permanecer
por encima del punto de congelaci6n.
Presibn del agua
Se necesita un suministro de agua fria con presi6n de agua entre
30 y 120 Ibs/pulg 2(207 y 827 kPa) para hacer funcionar el
despachador de agua y la fabrica de hielo. Si usted tiene
preguntas acerca de la presi6n de agua, Ilame a un plomero
competente autorizado.
Suministro de agua de 6smosis inversa
IMPORTANTE: La presi6n del suministro de agua que sale de un
sistema de 6smosis inversa y va a la valvula de entrada de agua
del refrigerador necesitarA ser entre 30 y 120 Ibs/pulg 2(207 y
827 kPa).
Si se conecta un sistema de filtraci6n de agua de 6smosis inversa
al suministro de agua fria, la presi6n de agua al sistema de
6smosis inversa necesitarA ser de un minimo de 40 a 60 Ibs/pulg 2
(276 a 414 kPa).
Si la presi6n del agua del sistema de 6smosis inversa es menor de
40 a 60 Ibs/pulg 2 (276 a 414 kPa):
• Fijese si el filtro de sedimentos en el sistema de 6smosis
inversa esta bloqueado y reemplacelo si fuera necesario.
Deje que se vuelva a Ilenar el tanque de almacenaje del
sistema de 6smosis inversa despu6s del uso intenso.
Si su refrigerador tiene un filtro de agua, se podra reducir la
presi6n aQn mas si se usa en conjunto con un sistema de
6smosis inversa. Quite el filtro de agua. Vea "Sistema de
filtraci6n de agua".
Si tiene preguntas acerca de la presi6n de agua, Ilame a un
plomero competente autorizado.
Lea todas las instrucciones antes de comenzar.
IMPORTANTE: Si enciende el refrigerador antes de conectar la
linea del agua, APAGUE la fabrica de hielo.
Conexibn a la linea de agua
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. CIERRE el suministro principal de agua. ABRA la Ilave de agua
mas cercana el tiempo suficiente para que la tuberia de agua
se vacie totalmente.
3. Busque una tuberia vertical de agua fria de 1/2"a 11¼"
(12,70 mm a 3,18 cm) cercana al refrigerador.
IM PORTANTE:
AsegQrese de que sea una tuberia de agua fria.
Una tuberia horizontal funcionara, pero taladre por el lado
superior de la tuberia, no por debajo. Esto ayudara a
mantener el agua alejada del taladro y evitarA que se junte
sedimento normal en la valvula.
4= Para determinar la Iongitud de la tuberia de cobre que va a
necesitar, mida desde la conexi6n de la parte trasera inferior
del refrigerador hasta la tuberia de agua. Agregue 7 pies
(2,1 m) para permitir la limpieza. Use tuberia de cobre de 1/4"
(6,35 mm) de diametro externo. AsegQrese que ambos
extremos de la tuberia de cobre esten cortados rectos.
18

5. Usando un taladro inalambrico, haga un orificio de 1/4"
(6,35 mm) en latuberia de agua fria que Ud. eligio.
G_,.C
A. Tuberfa de agua frfa
B. Abrazadera para tuberfa
C. Tuberfa de cobre
D. Tuerca de compresi6n
E.Manga de compresi6n
F. V_lvula de cierre
G. Tuerca de presi6n
6. Ajuste la valvula de cierre a la tuberia de agua fria con una
abrazadera para tuberia. AsegOrese que el extremo de salida
este firmemente insertado en el orificio taladrado de 1/4"
(6,35 mm) en latuberia de agua y que la arandela este por
debajo de la abrazadera para tuberia. Ajuste la tuerca de
presion. Apriete los tornillos de la abrazadera para tuberia
lentamente yen forma pareja de manera que la arandela
provea un cierre hermetico. No apriete demasiado porque se
puede quebrar la tuberia de cobre.
7. Deslice la manga de compresion y la tuerca de compresion
sobre la tuberia de cobre como se muestra. Inserte el extremo
de la tuberia en el extremo de salida en forma recta, hasta
donde sea posible. Atornille la tuerca de compresion sobre el
extremo de salida con una Ilave ajustable. No apriete
demasiado.
8. Coloque el extremo libre de la tuberia en un recipiente o
fregadero y ABRA el suministro principal de agua. Enjuague la
tuberia hasta que el agua salga limpia. CIERRE la valvula de
cierre del agua en la tuberia de agua. Enrolle la tuberia de
cobre en espiral.
Conexibnal refrigerador
Estilo 1
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. Fije el tubo de cobre a la entrada de la valvula usando una
tuerca de compresion y manga de compresion como se
muestra. Ajuste la tuerca de compresion. No apriete
demasiado.
3.
4=
5.
Use la abrazadera para tuberia en la parte trasera del
refrigerador para afianzar la tuberia al refrigerador segOn se
muestra. Esto ayudara a evitar da_os en la tuberia cuando el
refrigerador se empuje nuevamente contra la pared.
ABRA la valvula de cierre.
Revise si hay fugas. Ajuste las conexiones (incluso las de la
valvula) o tuercas que tienen fugas.
__ B.......................A
D
A. Abrazadera para tuberfa C. Tuerca de compresi6n
B. Tuberfa de cobre D. Entrada de la v_lvula
6. La fabrica de hielo esta equipada con un filtro de agua
incorporado. Si las condiciones del agua local requieren un
segundo filtro de agua, se debe instalar en la linea de agua de
1¼,,(6,35 mm) en cualquiera de las conexiones de la tuberia.
Consiga un filtro de agua del distribuidor de
electrodomesticos m_s cercano a su domicilio.
Estilo 2
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. Retire y descarte el tapon de nylon negro del tubo de agua
gris en la parte trasera del refrigerador.
3. Si el tubo de agua gris suministrado con el refrigerador no es
suficientemente largo, se necesita un acoplamiento de
1¼,,x 1¼,,(6,35 mmx 6,35 ram) para conectar la tuberia de
agua a una linea domestica de agua existente. Enrosque la
tuerca provista sobre el acoplamiento en el extremo de la
tuberia de cobre.
NOTA" Apriete la tuerca a mano. Luego aprietela dos vueltas
adicionales con una Ilave de tuercas. No apriete demasiado.
4=
5.
A B C D E F G
A. Tuberfa de agua del
refrigerador
B. Tuerca (provista)
C. Bulbo
D. Acoplamiento (adquirido)
E.F_rula (adquirida)
F. Tuerca (adquirida)
G. Lfnea de agua de la casa
ABRA la valvula de cierre.
Revise si hay fugas. Apriete aquellas tuercas o conexiones
que tengan fugas (incluidas las conexiones en la valvula).
Estilo 3
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. Retire y descarte el tapon de nylon negro del tubo de agua
gris en la parte trasera del refrigerador.
3. Enrosque la tuerca provista sobre la valvula de agua como se
muestra.
NOTA: Apriete la tuerca a mano. Luego aprietela dos vueltas
adicionales con una Ilave de tuercas. No apriete demasiado.
A
I/ I B
4=
5.
A. Bulbo
B. Tuerca (provista)
ABRA la valvula de cierre.
Revise si hay fugas. Apriete aquellas tuercas o conexiones
que tengan fugas (incluidas las conexiones en la valvula).
19

Cbmo terminar la instalacibn
1.
2.
Peligro de Choque EI6ctrico
Conecte aun contacto de pared de conexi6n atierra de
3terminales.
No quite la terminal de conexi6n atierra.
No use un adaptador.
No use un cable el6ctrico de extensi6n.
No seguir estas instrucciones puede ocasionar
la muerte, incendio o choclue el6ctrico.
Conecte a un contacto de pared de conexion a tierra de
3 terminales.
Enjuague el sistema de agua. Vea "Prepare el sistema de
agua" o "Despachadores de agua y hielo".
NOTA: Deje transcurrir 24 horas para la produccion de la primera
tanda de hielo. Deje pasar 3 dias para que se Ilene
completamente el recipiente para hielo.
USODESUREFRIGERADOR
(}_@@5
Regulaci6n del control de temperatura y
Encendido/Apagado del enfriamiento
Los botones del control del refrigeradory del congelador estan
ubicados en el panel del despachador.
__._Cube '_ 500D 8 Fast IceFastCool
ICE LIGHT TEMPERATURE FILTER STATUS UNLOCKED FEATURES
Para apagar el enfriamiento, presione y sostenga los botones de
LOCK (Bloqueo) y FAST ICE/COOL (Hielo/Frio rapido) al mismo
tiempo, por 3 segundos. Presione y sostenga LOCK (Bloqueo) y
FAST ICE/COOL (Hielo/Frio rapido) nuevamente para encender el
enfriamiento. Su refrigerador y congelador no se enfriarhn cuando
el enfriamiento este apagado.
IMPORTANTE: Para evitar bloquear accidentalmente el
despachador o cambiar otros ajustes, asegQrese de presionar
ambos botones exactamente al mismo tiempo.
Para su comodidad, los controles de su refrigerador y congelador
vienen prefijados de fabrica. AI instalar su refrigerador por primera
vez, cerci6rese de que los controles a0n esten fijados en los
"ajustes medios".
Para ver los puntos fijos, presione el boton TEMPERATURE
(Temperatura) en el panel del despachador. Los puntos de ajuste
recomendados de fabrica son 0°F (-18°C) para el congelador y
37°F (3°C) para el refrigerador.
IMPORTANTE:
Espere 24 horas antes de colocar alimentos en el refrigerador.
Si agrega alimentos antes de que el refrigerador se haya
enfriado por completo, sus alimentos podrian echarse a
perder.
NOTA: El ajustar los puntos fijos a un ajuste mas alto (mhs
frio) que el ajuste recomendado no harh que los
compartimientos se enfrien mas rapido.
Si la temperatura esta demasiado caliente o demasiado fria en
el refrigerador o en el congelador, antes de regular los
controles, revise primero los conductos de ventilacion para
cerciorarse de que no esten obstruidos.
Los ajustes prefijados deben ser los correctos para un uso
domestico normal. Los controles estan ajustados
correctamente cuando la leche o los jugos estan tan frios
como Ud. desea y cuando el helado tiene consistencia firme.
• Espere por Io menos 24 horas entre ajustes. Vuelva a verificar
las temperaturas antes de realizar otros ajustes.
La pantalla que esta en el panel de control del despachador
tiene una luz de fondo que se apagara automaticamente
cuando los botones del control no se hayan usado durante
30 segundos o mas. Cuando esta apagada la luz de fondo, al
presionar por primera vez el boton de control se reactivara la
misma, sin cambiar ningQn ajuste. En menos de 30 segundos
despu6s de que se haya reactivado la luz de fondo, al
presionar mas veces los botones del control, se cambiarhn los
ajustes que sean aplicables.
Cbmo ajustar los controles
Para ajustar los puntos fijos, presione y sostenga el boton de
TEMPERATURE (Temperatura) por 3 segundos. Cuando el modo
de ajuste se activa, los puntos fijos y la informacion de ajuste
aparecerhn en la pantalla.
FREEZER U J i _EFRGERATOR
...!/
(• • ) SET/EXIT °F /°C f W • ]
NOTA: Para ver la temperatura en grados centigrados, oprima el
boton de FILTER (Filtro) cuando el modo de ajuste se activa. Para
volver a fijar el ajuste de la pantalla a grados Fahrenheit, presione
FILTER (Filtro) nuevamente.
Controles del refrigerador
Cuando el modo de ajuste se activa, los botones de LOCK
(Bloqueo) y FAST ICE/COOL (Hielo/Frio rhpido) regulan la
temperatura del compartimiento del refrigerador. El rango de
punto de ajuste para el refrigerador es de 33°F a 45°F (0°C a 7°C).
• Presione LOCK (Bloqueo) para bajar el punto fijo.
• Presione FAST ICE/COOL (Hielo/Frio rapido) para subir el
punto fijo.
20
