Whirlpool Freezer Refrigerator User manual

UseAndCare
Table of Contents
(complete) .................. 2
A Note to You ................ 2
Refrigerator Safety ....... 3
Parts and Features ....... 4
Before Using Your
Refrigerator ................... 6
Using Your
Refrigerator ................... 7
Caring for Your
Refrigerator ................. 19
Food Storage Guide ... 21
Troubleshooting ......... 22
Requesting Assistance
or Service .................... 23
Warranty ...................... 24
1-800-253-l 301
Call our Consumer Asslstence Center
with questlons or comments.
22’ TO 25’ NO-FROST TOP FREEZER REFRIGERATOR
PART NO. 2173999
“I
95

Table of Contents
Page
A Note to You.. .......................................................... 2
Refrigerator Safety ................................................... 3
Parts and Features ................................................... 4
Before Using Your Refrigerator ............................. 6
Using Your Refrigerator.. ......................................... 7
Setting the controls ............................................... 7
Changing the control settings.. .............................. 6
Adjusting the door bins ......................................... 8
Adjusting the cantilever refrigerator shelves ......... 9
Adjusting the EZ-TRACKTMrefrigerator shelf ...... 10
Removing the meat drawer and cover ................ 11
Removing the crispers and crisper cover.. .......... 12
Adjusting the crisper humidity control ................. 12
Removing the freezer shelf ................................. 13
Page
Removing the pull-out freezer floor ..................... 13
Using the optional automatic ice maker .............. 14
Attaching the ice maker to a water supply .......... 15
Removing the base grille ....................................
17
Changing the light bulbs .....................................
17

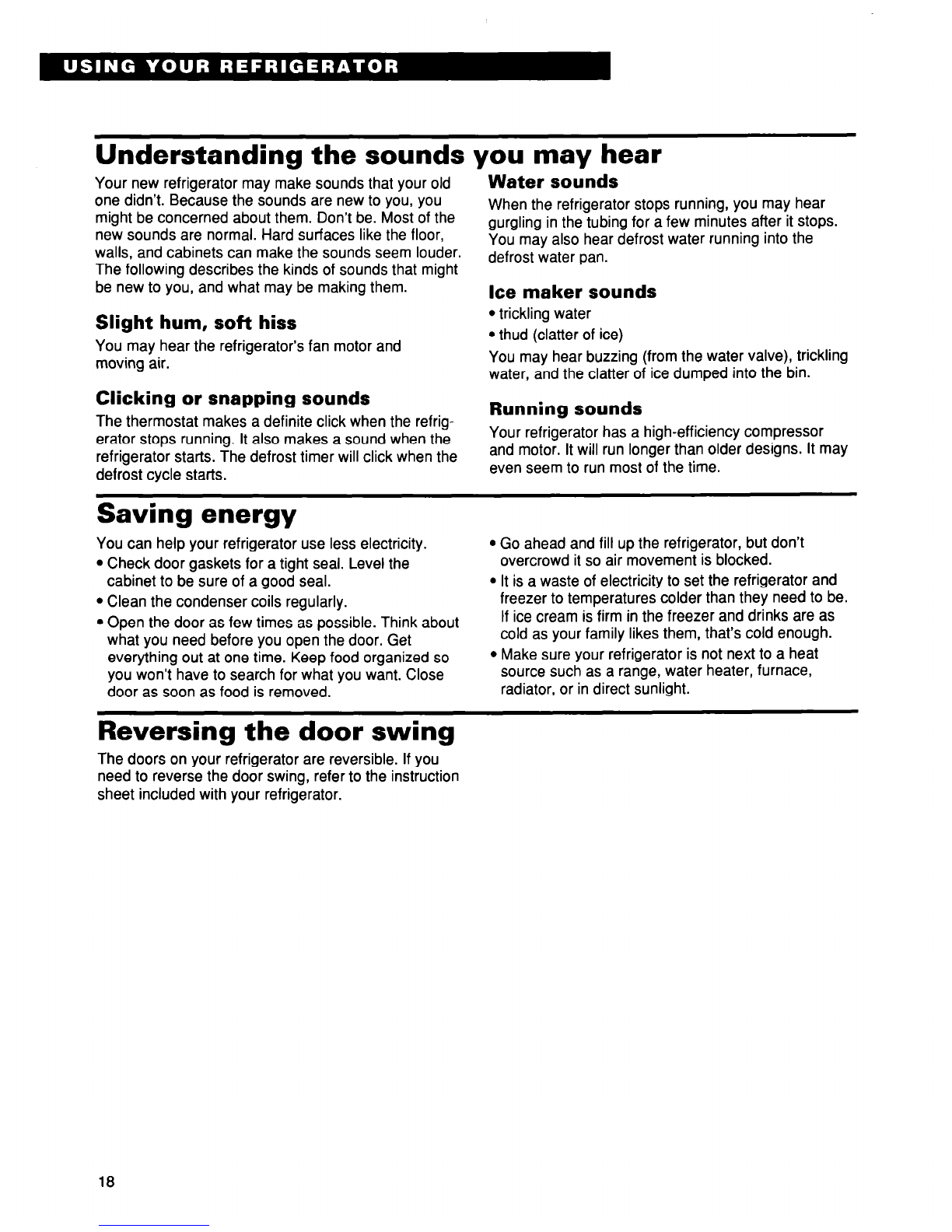

Understanding the sounds you
may hear .............................................................
18
Saving energy ..................................................... 18
Reversing the door swing ...................................
18
Caring for Your Refrigerator .................................. 19
Food Storage Guide ............................................... 21
Troubleshooting ..................................................... 22
Requesting Assistance or Service.. ...................... 23
Warranty .................................................................. 24
A Note to You
Thank you for buying a WHIRLPOOL@ appliance.
Because your life is getting busier and more complicated, WHIRLPOOL Refrigerators are easy to use, save time,
and help you manage your home better. To ensure you enjoy years of trouble-free operation, we developed this
Use and Care Guide. It contains valuable information about how to operate and maintain your appliance properly
and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided
with your appliance. This card helps us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service on your appli-
Model Number
ante, you need to know your complete model number
and serial number. You can find this information on the
Serial Number
model and serial number label (see diagrams on pages
Purchase Date
4 or 5 for location of label). - -
Dealer Name
Please also record the purchase date of your appli-
ance and your dealer’s name, address, and telephone
Dealer Address
number.
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference.
I
Our Consumer Assistance Center number is toll-
free from anywhere in the U.S.A. 24 hours a day.
1-800-253-1301 I

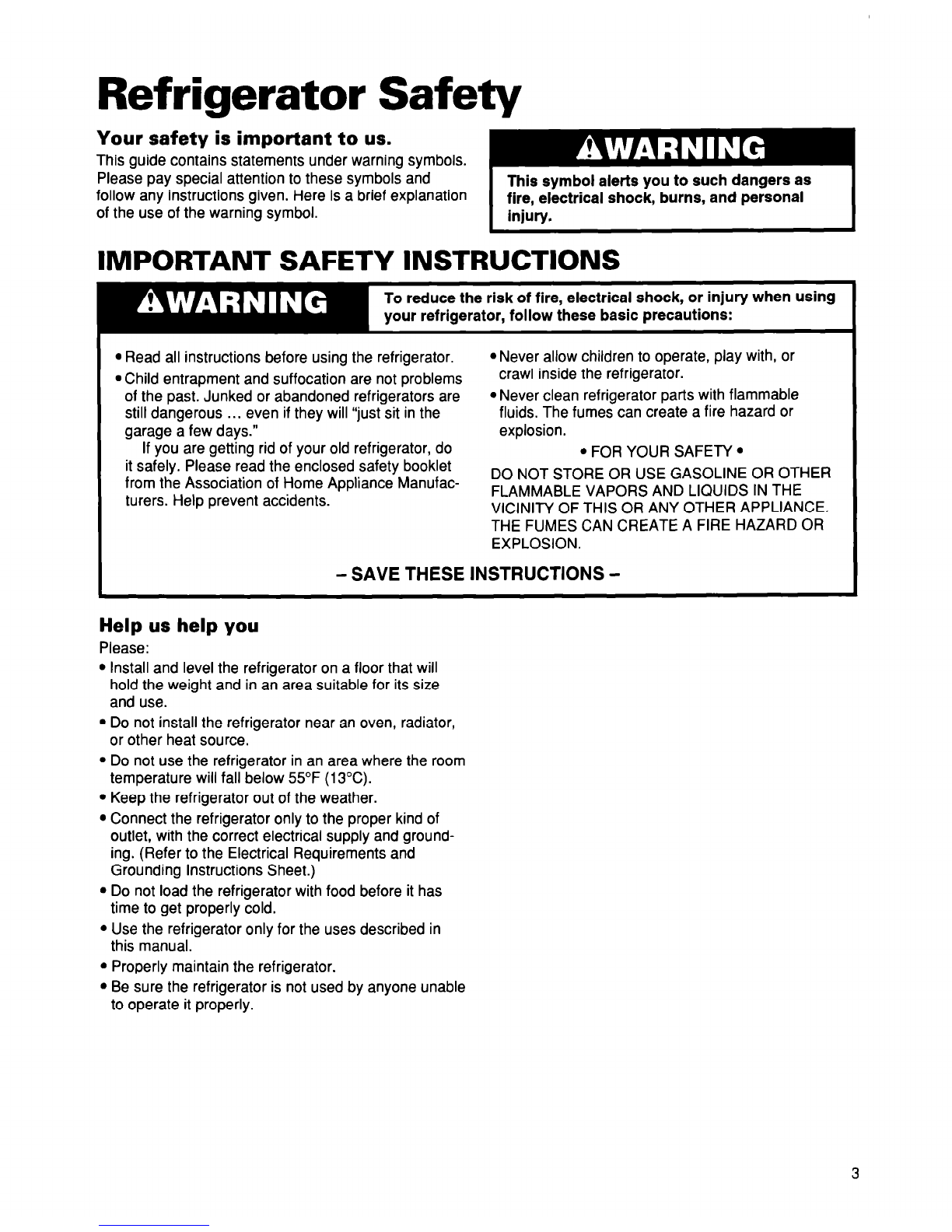

Refrigerator Safety
Your safety is important to us.
This guide contains statements under warning symbols.
Please pay special attention to these symbols and
I
This symbol alerts you to such dangers as
follow any instructions given. Here is a brief explanation
fire, electrical shock, burns, and personal
of the use of the warning symbol.
injury. I
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, or injury when using
your refrigerator, follow these basic precautions:
l Read all instructions before using the refrigerator.
@Childentrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are
still dangerous ... even if they will “just sit in the
garage a few days.”
If you are getting rid of your old refrigerator, do
it safely. Please read the enclosed safety booklet
from the Association of Home Appliance Manufac-
turers. Help prevent accidents.
l Never allow children to operate, play with, or
crawl inside the refrigerator.
l Never clean refrigerator parts with flammable
fluids. The fumes can create a fire hazard or
explosion. . FOR YOUR SAFETY
l
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FIRE HAZARD OR
EXPLOSION.
- SAVE THESE INSTRUCTIONS -
Help us help you
Please:
l Install and level the refrigerator on a floor that will
hold the weight and in an area suitable for its size
and use.
l Do not install the refrigerator near an oven, radiator,
or other heat source.
l Do not use the refrigerator in an area where the room
temperature will fall below 55°F (13°C).
l Keep the refrigerator out of the weather.
l Connect the refrigerator only to the proper kind of
outlet, with the correct electrical supply and ground-
ing. (Refer to the Electrical Requirements and
Grounding Instructions Sheet.)
l Do not load the refrigerator with food before it has
time to get properly cold.
l Use the refrigerator only for the uses described in
this manual.
l Properly maintain the refrigerator.
l Be sure the refrigerator is not used by anyone unable
to operate it properly.
3

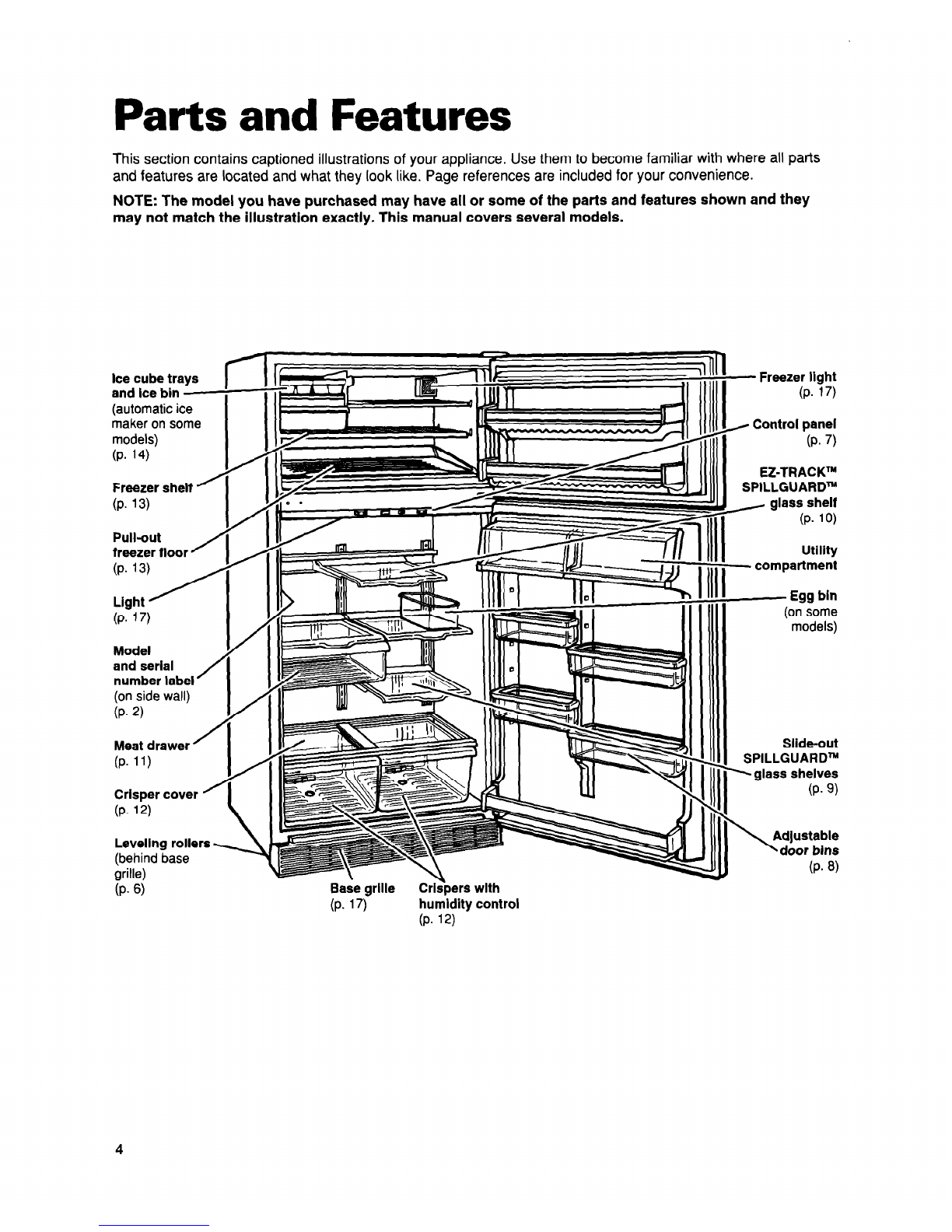

Parts and Features
This section contains captioned illustrations of your appliance. Use them to become familiar with where all parts
and features are located and what they look like. Page references are included for your convenience.
NOTE: The model you have purchased may have all or some of the parts and features shown and they
may not match the illustration exactly. This manual covers several models.
Levellng rollers
(behind base
wille)
ip.6j
Base grille Crlgpers wlth
(P. 17) humldity control
(P. 12)
Slide-oui
4

Ice cube tray,
and Ice bln -
(automatic ice
maker on som
models)
(P. 14)
Freezer shelf
(P. 13)
Pull-out
freezer floor4
(P. 13)
Llght /
(P. ‘7)
Model
and serial
number label
(on side wall)
(P.2)
Meat drawer *
(P. 11)
Crlsper cove!
(P. 12)
grille)grille)
(P.6)(P.6)
S
lele
//
T
-
I
0
I
/
I
0
/
/
0
1
Control panel
Base grille Crlsj>ers wlth
(P. 17) humidity control
(P. 12)
- Freezer light
(P. 17)
I Control panel
(P.7)
EZ-TRACKTU
SPILLGUARV’”
- glass shelf
(P. 10)
Utility
- compartment
- Egg bin
(on some
models)
Slide-out
SPILLGUARD”
+ glass shelves
(P.9)
\ Adjustable
door bins
(P.8)
REFRIGERATOR EmRloR wsTuRE corn FREEZER
QWER,
Refrlgerator control Exterlor moisture control Freezer control
5

Before Using Your Refrigerator
It is important to prepare your refrigerator for use. This section tells you how to clean it, connect it to a power
source, install it, and level it.
Cleaning your refrigerator
Removing packaging materials
Remove tape and any inside labels (except the model
and serial number label) before using the refrigerator.
To remove any remaining tape or label glue:
l Rub briskly with thumb.
OR
l Apply liquid hand-dishwashing detergent to area
before removing glue as described above. Do not use
sharp instruments, rubbing alcohol, flammable fluids,
or abrasive cleaners. These can damage the material.
See “Important Safety Instructions” on page 3.
NOTE: Do not remove any permanent instruction
labels inside your refrigerator. Do not remove the
Tech Sheet fastened under the refrigerator at
the front.
Cleaning it before use
After removing all packaging materials, clean your
refrigerator before using it, if necessary.
See cleaning instructions on page 19.
Plugging it in
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and
properly grounded electrical supply is required. It is
recommended that a separate circuit serving only this
appliance be provided. Use a receptacle which cannot
be turned off with a switch or pull chain. Do not use an
extension cord. See Electrical Requirements and
Grounding Instructions Sheet in your Literature
Package.
Installing it properly
1. Allow 1/2inch (1.25 cm) space on each side and at
the top of the refrigerator for ease of installation.
2. If the hinge side of the refrigerator is to be against
a wall, you might want to leave extra space so the
door can be opened wider.
3. The refrigerator can be flush against the back wall.
Leveling it
Your refrigerator has two front leveling screws - one
on the right and one on the left. To adjust one or both
of these, follow the directions below.
1. Remove base grille. (See page 17.)
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclockwise.
4. Check with level.
5. Replace base grille. (See page 17.)
Right to raise;
left to lower
Use a screw-
driver to adjust
6

Using Your Refrigerator
To obtain the best possible results from your refrigerator, it is important that you operate it properly. This section
tells you how to set the controls, remove and adjust the features in your refrigerator, and how to save energy.
Setting the controls
Controls for the refrigerator and freezer are in the
refrigerator. When you plug in the refrigerator for the
first time:
1. Set the Refrigerator Control to 4 (Recommended
Setting). Refrigerator Control settings range
from 1 (warmest) to 8 (coldest).
2. Set the Freezer Control to C (Recommended
Setting). Freezer Control settings range from
A (warmest) to D (coldest).
Give the refrigerator time to cool down completely
before adding food. This may take several hours. The
settings indicated above should be correct for normal,
household refrigerator usage. The controls are set
correctly when milk or juice is as cold as you like and
when ice cream is firm. If you need to adjust these set-
tings, see “Changing the control settings” on page 8.
Exterior moisture control
The Exterior Moisture Control operates electric heaters
around the door openings. These heaters help keep
moisture from forming on the outside of the refrigerator
cabinet.
l Use the OFF setting when humidity is low.
l Use the ON setting if moisture forms on the outside
of the refrigerator cabinet.
REFRIGERATOR
4 WARMER COWERS
EXTERIORMOISTURECONTROL
ON
7

Changing the control settings
If you need to adjust temperatures in the refrigerator
l Adjust the Refrigerator Control first.
or freezer, use the settings listed in the chart below as
a guide. If you have any questions, call our Consumer
l Wait at least 24 hours between adjustments.
Assistance Center number, l-600-253-1301, from
l Then adjust the Freezer Control if needed.
anywhere in the U.S.A.
CONDITION: REASON: RECOMMENDED SETTINGS:
Refrigerator Freezer
Refrigerator
l Door opened often
section too warm
l Large amount of food added
6 A
l Room temperature too warm
Freezer section
too warm
l Door opened often
l Large amount of food added
l Very cold room temperature
(can’t cycle often enough)
4 D
Refrigerator
section too cold
Ice not made
fast enough
l Controls not set correctly for your conditions
l Heavy ice usage
l Very cold room temperature
(can’t cycle often enough)
2 D
4 D
Both sections
too warm
l Door opened often
l Large amount of food added
l Very warm or very cold room temperatures
6 B
Adjusting the door bins
To remove door bins:
1. Lift bin up.
2. Pull bin straight out.
To replace door bins:
1. Slide bin in above desired support button.
2. Push down until it stops.
OII
Support button
8

Adjusting the cantilever refrigerator shelves
Adjust the shelves to match the way you use your
refrigerator. Glass shelves are strong enough to
hold bottles, milk, and other heavy food items.
To remove a shelf:
1. Remove items from shelf.
2. Tilt shelf up at front.
3. Lift shelf at back.
4. Pull shelf straight out.
To replace a shelf:
1. Guide the rear shelf hooks into the slots in the
shelf supports on the back liner wall.
2. Tilt front of shelf up until hooks drop into slots.
3. Lower front of shelf to a level position.
NOTE: Glass shelves are heavy. Handle them
carefully.
To slide shelf out
(on some models):
l Carefully pull front of shelf toward you.
To slide shelf In:
l Push shelf in until it stops.
9

Adjusting the EZ-TRACKTM refrigerator shelf
The EZ-TRACK shelf slides from side to side for more
flexible storage in your refrigerator.
To slide shelf slde to side:
1. Lift slightly on shelf front.
2. Slide to desired location.
3. Lower shelf front to level position.
NOTE: You do not have to remove small items from
the shelf before moving it side to side. You may need
to remove larger items.
To remove the shelf:
1. Remove all items from the shelf.
2. Hold back of shelf with one hand.
3. Lift front of shelf to 45” angle.
4. Lower shelf slightly to release shelf from upper
channel of track. Then pull shelf straight out.
NOTE: Shelf is heavy. Make sure you use both
hands when removing shelf.
To remove shelf track:
1. Lift both sides of track slightly.
2. Pull track straight out.
To replace shelf track:
1. Guide track hooks into the shelf support slots
on the back wall of the cabinet.
NOTE: Make sure both track hooks are in slots
and that the slots are parallel to each other.
2. Push track backward and down.
3. Check that track is completely seated in the
shelf supports.
slide to new location.
Upper channel
Hold with both hands
and lift front to 45” angle.
Make
sure
both
sets of
hooks
are in
suppo1
slots. t
Hold both sides and
lift up and out.
Shelf
’ support
10

To reinstall shelf:
1. Hold shelf at front and back.
2. Tilt front of shelf up to a 45” angle to track.
3. Insert both rear shelf slides into upper channel
of track.
4. Lower front of shelf to a level position.
NOTE: Make sure both rear shelf slides are securely
in the track before letting go of shelf.
Insert rear
slides into
upper chal
of track.
UDDerchannel
. .
nnei
Removing the meat drawer and cover
To remove the meat drawer:
1.
2.
3.
Slide meat drawer out to the stop.
Lift front of meat drawer and slide meat drawer out
the rest of the way.
Replace in reverse order.
To adjust the cover position:
1. Tilt front of cover up.
2. Lift back of cover.
3. Pull cover straight out.
To replace the cover:
1. Guide the cover’s rear hooks into the slots in the
shelf supports on cabinet wall.
2. Tilt cover up at front until the hooks drop into slots.
3. Lower front of cover to a level position.
Pull out to the stop, lift the front, and pull again.
11

Removing the crispers and crisper cover
To remove the crispers:
1. Slide crisper straight out to the stop.
2. Lift the front and slide out the rest of the way.
3. Replace in reverse order.
To remove the cover:
1. Push up the glass insert from the bottom, then slide
out with both hands.
2. Lift front of cover frame.
3. Lift cover frame up and out.
To replace the cover:
1. Fit back of cover frame into notch supports on back
wall of refrigerator, then lower the front into place.
2. Make sure the front cover metal support is in the
notches in the sides of the liner.
NOTE: If the support is not positioned properly, the
doors may not close all the way.
3. Slide back of glass insert into place, then lower front.
Pull out to the stop, ilft
the front, and pull agaln.
Remove the glass insert.
Lift the cover front, then
the back.
NOTE: Glass insert is
heavy. Handle it carefully.
Adjusting the crisper humidity control
You can control the amount of humidity in the
moisture-sealed crispers. Adjust the control to any
setting between LOW and HIGH.
l LOW (open) lets moist air out of the crisper for best
storage of fruits and vegetables with skins.
l HIGH (closed) keeps moist air in the crisper for best
storage of fresh, leafy vegetables.
Humidi tV Control
HGtl*~*.9LOW -
12

Removing the freezer shelf
To remove the shelf:
1. Lift right side of shelf off supports.
2. Slide shelf out of shelf support holes.
3. Replace in reverse order.
Removing the pull-out freezer floor
(on some models)
The freezer floor pulls out for easier access to foods
in the back of the freezer and for easier cleaning.
To remove the freezer floor:
1. Pull floor out about 1 inch (2.5 cm) with one hand
at center front.
2. Lift floor up at rear until hooks release from cabinet.
3. Pull floor out the rest of the way.
To replace the freezer floor:
1. Position back of floor into freezer opening.
2. Slide floor straight in until hooks drop into place
at rear of cabinet. -v-
13

Using the optional automatic ice maker
If your refrigerator has an automatic ice maker, or if
you plan to add one later (contact the dealer for ice
maker kit number), here are a few things you should
know.
l The ON/OFF lever is a wire signal arm.
DOWN to make ice automatically
UP to shut off the ice maker
IMPORTANT: Do not turn ice maker on until you
connect it to the water supply.
l If you remove the ice bin, raise the signal arm to shut
off the ice maker. When you replace the bin, push it in
all the way and lower the ice maker signal arm to the
ON position.
l Good water quality is important for good ice quality.
Try to avoid connecting the ice maker to a softened
water supply. Water softener chemicals (such as salt
from a malfunctioning softener) can damage the ice
maker mold and lead to poor ice quality. If you cannot
avoid a softened water supply, make sure the water
softener is operating properly and is well maintained.
Solving common ice maker problems
UP to
stop ice
maker.
DOWN to
start ice
maker.
PROBLEM POSSIBLE CAUSE/SOLUTION
Ice crescents attached
l This is normal. They break apart easily. Shake bin occasionally to keep cubes
at corners
separated.
Ice maker will not
l ON/OFF lever is in the OFF (up) position. Lower lever to the ON (down) position.
operate or ice is not
made fast enough
l Freezer is not cold enough. Adjust temperature controls and wait 24 hours.
(See “Changing the control settings” on page 8.)
Off-taste or odor in ice l New plumbing connections can cause discolored or off-flavored ice. Discard the
first few batches of ice.
l Cubes are stored too long. Throw them away and make a new supply.
l Food is not wrapped properly. See page 21.
l Freezer and ice bin need to be cleaned. See page 19.
l Water may contain minerals (such as sulfur). A filter may be required to
remove them.
14

Attaching the ice maker to a water supply
Read all directions carefully before you begin.
Electrical Shock Hazard
Unplug the refrigerator before installing ice
maker.
Failure to do so can result in death or electri-
cal shock.
IMPORTANT:
l Use copper tubing only and check for leaks.
l Install ice maker tubing in areas where temperatures
are above freezing.
Tools required:
l Standard screwdriver
l ‘As-inch and X-inch open-end wrenches or
two adjustable wrenches
l %-inch nut driver
l %-inch drill bit
l Hand drill or electric drill (properly grounded)
NOTE: Your appliance dealer has a kit available with
a Winch saddle type shut-off valve, a union, and
copper tubing. Before purchasing, make sure a saddle
type valve complies with your local plumbing codes.
Do not use piercing type or %-inch saddle valve
which reduces water flow and clogs more easily.
Cold water supply
The ice maker water valve contains a flow washer
which is used as a water pressure regulator. The ice
maker needs to be connected to a cold water line with
water pressure limitations of 20-l 20 psi. If a problem
occurs, call your utility company.
IMPORTANT:
l It may take up to 24 hours for your ice maker to
begin producing ice.
l If operating the refrigerator before installing the
water connection, turn ice maker to the OFF position
to prevent operation without water.
l All installations must be in accordance with local
plumbing code requirements.
INSTALLATION IS NOT WARRANTED
Connecting to water line
1. Find a %-inch to 1%-inch vertical COLD water pipe
near the refrigerator.
NOTE: Horizontal pipe will work, but the following
precaution must be taken: Drill on the top side of the
pipe, not the bottom. This will help keep water away
from the drill. This also keeps normal sediment from
collecting in the valve.
2. Measure from connection on rear of refrigerator to
water pipe. Add 7 feet (2.1 m) to allow for moving
refrigerator for cleaning. This is the length of X-inch
O.D. copper tubing you will need for the job (length
from connection to water pipe PLUS 7 feet [2.1 ml).
Be sure both ends of copper tubing are cut square.
3. Turn OFF main water supply. Turn ON nearest
faucet long enough to clear line of water.
4. Using a grounded drill, drill a X-inch hole on the cold
water pipe you have selected.
Vertical cold
water pipe
\f , Washer
%-inch O.D. copper
tubing (length from
inlet on rear of refrig-
erator to water pipe
plus 7 feet [2.1 m])
Compression
TO REFRIGERATOR +
l Some models may not feature this second compres-
sion nut and sleeve.
continued on next page
15

5. Fasten shut-off valve to cold water pipe with pipe
clamp. Be sure outlet end is solidly in the %-inch
drilled hole in the water pipe and that washer is
under the pipe clamp. Tighten packing nut. Tighten
the pipe clamp screws carefully and evenly so
washer makes a watertight seal. Do not overtighten
or you may crush the copper tubing, especially if soft
(coiled) copper tubing is used. Now you are ready to
connect the copper tubing.
6. Slip compression sleeve and compression nut on
copper tubing as shown in diagram. Insert end of
tubing into outlet end squarely as far as it will go.
Screw compression nut onto outlet end with adjust-
able wrench. Do not overtighten. Turn ON main
water supply and flush out tubing until water is clear.
Turn OFF shut-off valve on the water pipe. Coil
copper tubing.
Connecting to refrigerator
NOTE: The first step for connecting the water line to
your refrigerator is different depending on the type of
water valve provided with your refrigerator. See the
diagrams at right to determine the style of valve you
have. (On kit models, assemble water valve to refrig-
erator per kit instructions.)
1. For style #l, disconnect the tube clamp on the back
of the product and insert the copper tubing through
the clamp, as shown at the right. Remove the tape
label from the valve inlet and insert copper tubing
until it bottoms out (approximately V4inch). Tighten
nut by hand as much as possible; then turn the nut
an additional ‘12turn using a wrench. Do not over-
tighten. Re-attach the tube clamp and tube to the
back of the cabinet. Skip to step 2.
For style #2, disconnect the tube clamp on the
back of the product and insert copper tubing through
the clamp as shown at the right. Attach the copper
tube to the valve inlet using a compression nut and
sleeve as shown. Tighten the compression nut. Do
not overtighten. Re-attach the tube clamp and tube
to the back of the cabinet. Move to step 2.
2. Turn shut-off valve ON. CHECK FOR LEAKS.
TIGHTEN ANY CONNECTIONS (INCLUDING
CONNECTIONS AT THE VALVE) OR NUTS
THAT LEAK.
3. The ice maker is equipped with a built-in water
strainer. If local water conditions require periodic
cleaning or a well is your source of water supply, a
second water strainer should be installed in the YV
inch water line. Obtain a water strainer from your
nearest appliance dealer. Install at either tube
connection.
4. Reconnect electrical supply to refrigerator.
Style #l valve
Copper
III I II
I I ,I’11
Copper tubing
Water inlet
fitting
Style #2 valve
Use only %-inch
cold water line
%-inch compression
nut and sleeve
16

Removing the base grille
To remove the grille:
1. Open refrigerator door.
2. Pull base grille forward to release the support
tabs from the metal clips.
3. Do not remove Tech Sheet fastened behind
the grille.
To replace the grille:
1. Line up grille support tabs with metal clips.
2. Push firmly to snap into place.
3. Close refrigerator door.
See cleaning instructions for defrost pan and
condenser coils on page 19.
Condenser
Changing the light bulbs
Electrical Shock Hazard
Unplug the refrigerator before removing
a light bulb.
Failure to do so can result in death or
electrical shock.
To change the refrigerator light:
1. Unplug the refrigerator.
2. Reach behind the Control Panel to remove bulb.
3. Replace with a 60-watt appliance bulb.
4. Plug in the refrigerator.
To replace the freezer light:
1. Unplug the refrigerator.
2. Grasp the top and bottom of the light shield.
3. Squeeze and pull light shield out.
4. Replace with a 25watt appliance bulb.
5. Snap light shield into place.
6. Plug in the refrigerator.
NOTE: Not all commercial appliance bulbs will fit
your refrigerator. Be sure to replace a bulb with one
of the same size and shape.
17

Understanding the sounds you may hear
Your new refrigerator may make sounds that your old Water sounds
one didn’t. Because the sounds are new to you, you
might be concerned about them. Don’t be. Most of the When the refrigerator stops running, you may hear
new sounds are normal. Hard surfaces like the floor, gurgling in the tubing for a few minutes after it stops.
walls, and cabinets can make the sounds seem louder. You may also hear defrost water running into the
The following describes the kinds of sounds that might defrost water pan.
be new to you, and what may be making them.
Ice maker sounds
Slight hum, soft hiss
You may hear the refrigerator’s fan motor and
moving air.
l trickling water
l thud (clatter of ice)
You may hear buzzing (from the water valve), trickling
water, and the clatter of ice dumped into the bin.
Clicking or snapping sounds
The thermostat makes a definite click when the refrig-
Running sounds
erator stops running. It also makes a sound when the Your refrigerator has a high-efficiency compressor
refrigerator starts. The defrost timer will click when the and motor. It will run longer than older designs. It may
defrost cycle starts. even seem to run most of the time.
Saving energy
You can help your refrigerator use less electricity.
l Check door gaskets for a tight seal. Level the
cabinet to be sure of a good seal.
l Clean the condenser coils regularly.
l Open the door as few times as possible. Think about
what you need before you open the door. Get
everything out at one time. Keep food organized so
you won’t have to search for what you want. Close
door as soon as food is removed.
l Go ahead and fill up the refrigerator, but don’t
overcrowd it so air movement is blocked.
. It is a waste of electricity to set the refrigerator and
freezer to temperatures colder than they need to be.
If ice cream is firm in the freezer and drinks are as
cold as your family likes them, that’s cold enough.
l Make sure your refrigerator is not next to a heat
source such as a range, water heater, furnace,
radiator, or in direct sunlight.
Reversing the door swing
The doors on your refrigerator are reversible. If you
need to reverse the door swing, refer to the instruction
sheet included with your refrigerator.
18

Your refrigerator is built to give you many years of dependable service. However, there are a few things you can
do to help extend its product life. This section tells you how to clean your refrigerator and what to do when going
on vacation, moving, or during a power outage.
Cleaning your refrigerator $7/A\;I 2112
Both the refrigerator and freezer sections defrost auto-
q
matically. However, clean both about once
a month to help prevent odors from build-
ing up. Wipe up spills right away.
To clean your refrigerator, unplug it, 4
’ B take out all removable parts, and clean ,,,,l((ll~~~l,,,r(wll
the refrigerator according to the following directions.
Burn Hazard
Refrigeration system tubes are near the defrosl
pan and can become hot.
Remove and install defrost pan carefully.
Failure to do so can result in burns.
PART WHAT TO USE HOW TO CLEAN
Removable parts
Sponge or cloth with mild
l Hand wash, rinse, and dry thoroughly.
(shelves, crisper, etc.) detergent and warm water
Outside
Sponge, cloth, or paper
l Wash outside of cabinet. Do not use abrasive or
towel with mild detergent, harsh cleaners.
warm water, and a good
l Wipe and dry thoroughly.
appliance wax (or good
l Wax painted metal surfaces at least twice a year.
auto paste wax) Apply wax with a clean, soft cloth.
Waxing painted
metal surfaces provides rust protection.
Do not wax plastic parts.
Inside walls
Sponge, soft cloth, or paper
l Wash with mixture of warm water and:
(allow freezer to towel with baking soda or - mild detergent, or
warm up so cloth mild detergent and warm - baking soda (2 tbs to 1qt [26 g to .95 L] of water)
won’t stick) water
l Wipe and dry thoroughly.
Door liners
Sponge, soft cloth, or paper
l Wash, wipe, and dry thoroughly.
and gaskets
towel with mild detergent
DO NOT USE cleaning waxes, concentrated
and warm water
detergents, bleaches, or cleaners containing
petroleum on plastic parts.
Plastic parts
Soft, clean sponge or soft,
l Wash, wipe, and dry thoroughly.
(covers and panels) clean cloth with mild deter-
DO NOT USE paper towels, window sprays,
gent and warm water
scouring cleansers, or flammable fluids. These
can scratch or damage material. See “Important
Safety Instructions” on page 3.
Defrost pan
Sponge or cloth with mild
l Remove base grille. (See page 17.)
detergent and warm water
l Reach into small opening at right edge and remove
the defrost pan.
l Wash, rinse, and dry thoroughly.
l Replace defrost pan. Make sure to push it com-
pletely into the opening.
l Replace base grille.
Condenser Vacuum cleaner with l Remove base grille.
coils
extended narrow
l Vacuum coils when dusty or dirty. Coils may need
attachment to be cleaned as often as every other month.
l Replace base grille. 19

Vacation and moving care
Short vacations
No need to shut off the refrigerator if you will be away
for less than four weeks.
1. Use up any perishables.
2. Freeze other items.
3. If your refrigerator has an automatic ice maker:
l Raise signal arm to OFF (up) position.
l Shut off water supply to the ice maker.
Long vacations
If you will be gone a month or more:
1. Remove all food from the refrigerator.
2. Turn off the water supply to the ice maker at least
one day ahead of time.
3. When the last load of ice drops, turn off the ice
maker. Make sure all ice is dispensed out of the
ice maker mechanism.
4. Unplug the refrigerator.
5. Clean it, wipe, and dry thoroughly.
6. Tape rubber or wood blocks to the tops of both
doors to prop them open far enough for air to get
in. This stops odor and mold from building up.
To restart refrigerator, see page 6.
Moving
When you are moving the refrigerator to a new home:
1. Turn off the water supply to the ice maker at least
one day ahead of time.
2. Disconnect the water line.
3. After the last load of ice drops, lift the signal arm
to the OFF (up) position.
4. Remove all food from the refrigerator.
5. Pack all frozen food in dry ice.
6. Unplug the refrigerator.
7. Clean it thoroughly. Wipe and dry thoroughly.
6. Take out all removable parts, wrap them well, and
tape them together so they don’t shift and rattle.
9. Screw in the leveling rollers.
10. Tape the doors shut and tape the power supply
cord to the cabinet.
When you get to your new home, put everything back
and refer to page 6. Also, if your refrigerator has an
automatic ice maker, remember to reconnect the water
supply line (see page 15).
Power interruptions
If electricity goes off, call the power company. Ask
how long power will be off.
1. If service will be interrupted 24 hours or less, keep
both doors closed. This helps foods stay frozen.
2. If service will be interrupted longer than 24 hours:
(a) Remove all frozen food and store in a frozen
food locker.
OR
(b) Place 2 Ibs (907 g) of dry ice in freezer for
every cubic foot (liter) of freezer space. This
will keep food frozen for two to four days. Wear
gloves to protect your hands from dry ice
burns.
OR
(c) If neither a food locker nor dry ice is available,
use or can perishable food at once.
3. A full freezer stays cold longer than a partly filled
one. A freezer full of meat stays cold longer than a
freezer full of baked goods. If food contains ice cry-
stals, it may be safely refrozen, although the quality
and flavor may be affected. If the condition of the
food is poor, or if you feel it is unsafe, dispose of it.
Questions?
Call our Consumer Assistance Center telephone
number, l-800-253-1301, from anywhere in the U.S.A.
20
