CABINET PARTS
1
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
06−08 Printed In U.S.A. (jdc) (mek) Part No. W10205170 Rev. B
REFRIGERATOR

CABINET PARTS
2
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10194136 Energy Guide
W10162450 Owner’s Manual
W10181781 Service & Wiring
2303927 Sheet
2220407 Modular Icemaker
Service Sheet
W10168294 Instruction Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 488500 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
10 8281227 Screw
11 Hinge Cover (FC)
W10138581 White
W10138582 Black
W10138584 Apollo Gray
12
W10138965 Bottom Hinge (RC)
13 Filler, Wrapper
2304846 White
2304848 Black
W10143043 Apollo Gray
14 Grille
W10184886 White
W10184888 Black
W10184890 Midnight Grey
15 489497 Screw
16 489464 Screw
17 2304888 Drain Fitting
18 2304937 Extension Tube
19 2188739 Cover, Unit
20 Cabinet (Not A
Serviceable Part)
21 Hinge Cover (RC)
W10138576 White
W10138577 Black
W10138579 Apollo Gray
22 549193 Clamp, Service
Cord
23 489084 Screw
24 2155311 Door Closer, RC
25 489483 Screw
26 2260507 Housing, Water
Filter
27 4396841 Water Filter
28 Cap, Water
Filter
2260502W White
2260502B Black
2260502MG Midnight Grey
29 489500 Screw
30 3400113 Screw
31 2303141 Bottom Hinge (FC)
32 2260519 Block, Housing
Support
33 2255012 Tube, Filter
Outlet
34 2203770 Hinge Top (FC)
35 2319867 Tube, Filter
Inlet
36 Button, Water
Filter
2260503W White
2260503B Black
2260503MG Midnight Grey
37 2223751 Door Closer, FC

REFRIGERATOR LINER PARTS
3
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 1118894 Switch,
Rocker Arm
6 2319866 Shelf Ladder
7 489478 Screw
8
W10128734 Air Diffuser
Assembly
9 2162085 Socket
10 2307107 Reservoir
11 2255743 Light Bulb
12 2209769 Light Lens
13 488280 Screw
14 2256035 Bracket,
Dual Crisper
15 2311637 Wire Harness,
Dual Crisper
16
W10128735 Cover, Air
Diffuser
17 2310527 Wire Assy −
RC Light
18 2326209 Trim, Light RC
19 2223680 Shield, Heat
20 2223857 Socket, Light
21 2326255 Bulb, Light
22 489000 Screw
23 2223506 Lens, Light

REFRIGERATOR SHELF PARTS
4
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 2223517 Frame Assembly (2)
2 2223261 Snack Bin Asm
3 2223592 Cover, Crisper
4 2196485 Stud Assembly
5 3400894 Screw
6 2223714 Glass, Meat Cover
7 2223591 Glass, Cover
8 2223242 Cover, Meat Pan
9 2196483 Stud Assembly
10 2223235 Crisper Pan Asm
11 2223308 Slide, Humidity
Control
12 2223309 Knob, Humidity
Control
13 2223288 Shelf Pan Assembly
(Includes #18)
14 2223243 Meat Pan Assembly
15 8281158 Screw
16 2179350 Deflector
17 2255160 Shelf,
Slide Out (2)
18 2223320 Slide, Pan (2)

FREEZER LINER PARTS
5
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170

FREEZER LINER PARTS
6
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2211746K Shelf, Slide Out
(Lower)
3 2211742K Shelf, Slide−Out
(Upper)
4 3400893 Screw
5 2195905K Trim, Basket
6 Shelf Track
2301289 Right Side
2301290 Left Side
7 2205837K Shelf (2)
8 2301191 Basket, Sloped
9
W10004810 Screw (8)
10 842534 Clip, Air Duct (2)
11 Shelf Track, Dual
2301291 Right Side
2301292 Left Side
12 2198587 Cover, Emitter
13 2198635 Spring
14 2198634 Pin
15 1115373 Switch, Rocker Arm
16
W10193840 P.C. Board
Emitter
17 2255720 Cover, Ice Maker
18 2212321 Slide, Ice Maker
Mounting
19 489478 Screw
20 489214 Screw
21 2162085 Light Socket
22 2255743 Light Bulb
23 8281185 Screw
24 2198633 Flipper
25
W10173569 Cover, Receiver
26 2315398 Slide, Ice Maker
Shut Off
27
W10193666 P.C. Board,
Receiver
28 2198643 Lens
29 2198589 Light Shield
30 2212340 Light Lens
31 2198641 Bracket,
Ice Maker Cover
32 2155597 Socket
33 Light Ladder
2198609 Left Side
2198610 Right Side
34 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170

MOTOR AND ICE CONTAINER PARTS
8
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 W10174539 Ice Bin
2
W10175915 Crusher Bin
3 2317240 Auger
4 2258220 Washer, Auger
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2317277 Latch, Bin
20 2198608 Spring, Latch
21
W10139119 Wire Assembly,
IDI Motor
22 2322488 Enclosure, Motor
23 2188919 Holder
24 2198628 Seal
25 2188916 Drive Shaft
26 2322580 Dispenser, Motor
27 2212305 Cover
28 8281163 Screw (2)
29 2315559 Sleeve, Coupling
30 2317243 Wiper
31 2317250 Divider −
Chamber
100
W10174536 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170

REFRIGERATOR DOOR PARTS
10
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10174412 White
W10174415 Black
W10174417 Mono Satina
W10174419 Monochromatic
Stainless
2 2255421 Dairy Door
3
W10158506 Door Bin (3)
4 3400012 Screw
5 2255411 Clip
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
2326338 Apollo Grey
7 2156022 Trivet
8 Handle, Extr
W10127808 White
W10127809 Black
W10127811 Stainless, All
9
W10129563 Screw, Mounting
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2206629 Chrome
2206629B Black
13
W10155511 Screw
14 2308091 Thimble, Top
15 Handle, Endcap
W10127813 White
W10127814 Black
W10152864 Stainless, All
16 2255420 Door Compartment
17 2220214 Nameplate

FREEZER DOOR PARTS
11
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170

FREEZER DOOR PARTS
12
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10143625 White
W10143627 Black
W10143631 Mono Satina
W10143632 Monochromatic
Stainless
2 Handle, Extr
W10127808 White
W10127809 Black
W10127811 Stainless, All
3 2171157K Trivet (3)
4 2255411 Clip
5 2308091 Thimble, Top
6
W10162532 Wire Assy, Door
7
W10129563 Screw
8 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
2326339 Apollo Grey
9 Handle, Endcap
W10127813 White
W10127814 Black
W10152864 Stainless, All
10 2323535 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13
W10155511 Screw
14 3400012 Screw

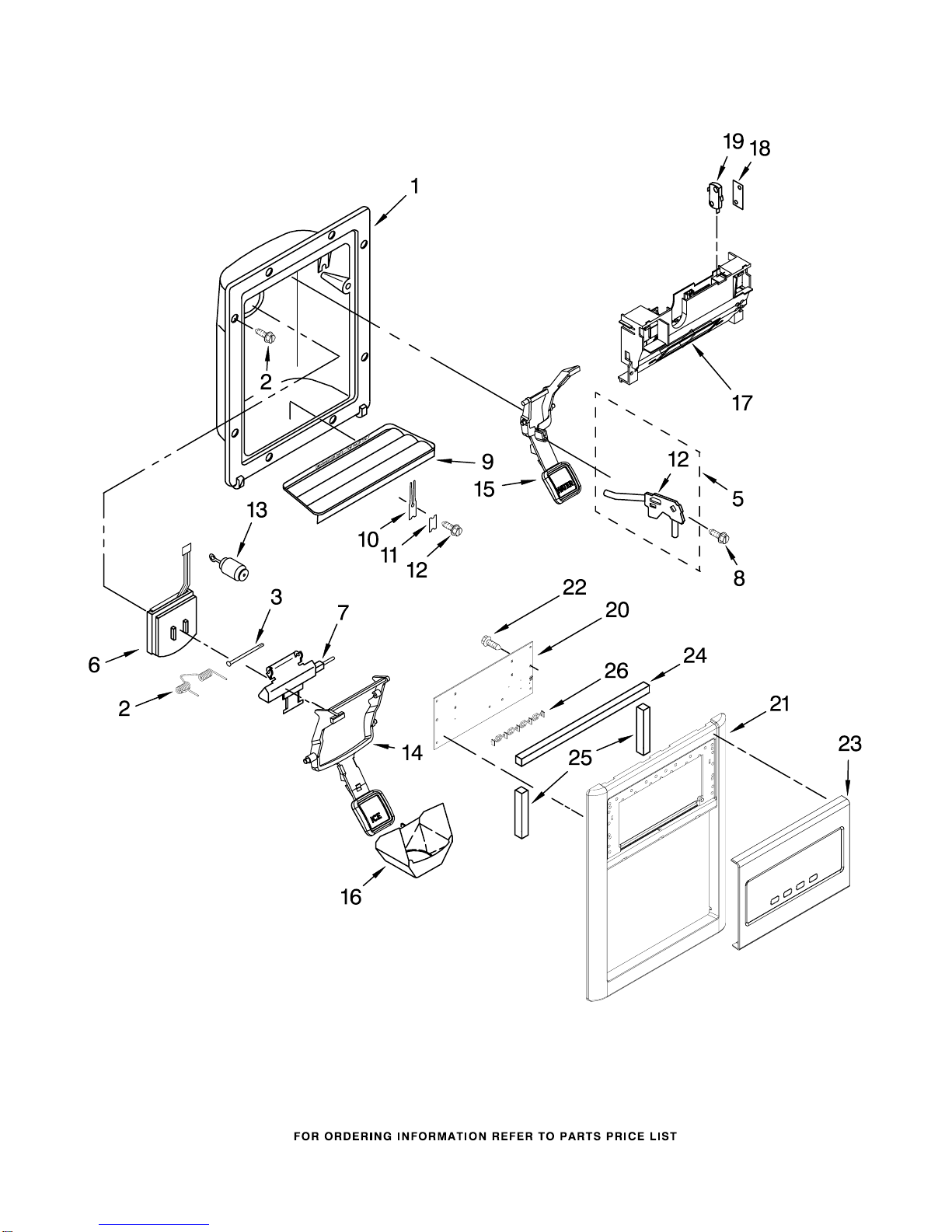

DISPENSER FRONT PARTS
13
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170

DISPENSER FRONT PARTS
14
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 2304772 Spring, Torsion
3 2196195 Pin, Ice Door
5 2304317 Water Fitting Assy
6 2180353 Door, Ice
7 2304355 Support, Ice Door
8 489000 Screw
9 Grille, Disp
2206670W White
2206670B Black
W10171993 Nickel One
10 2194719 Spring, Lever
11 2195051 Strain Relief
12 2304673 Bracket, Disp
13 2205686 Dashpot, Disp
14 Lever, Ice
W10152853 White
W10152854 Black
W10155161 Apollo Grey
15 Lever, Water
W10152858 White
W10152859 Black
W10155162 Apollo Grey
16 2180224 Guide, Ice
17
W10167537 Bracket, Control
18 625834 Spacer, Switch
19 2162361 Switch
20 2321751 Control, Elek
21 Bezel, Disp
W10136850 White
W10136851 Black
W10139842 Mono Satina
W10171988 Mono Stainless
22 489214 Screw (2)
23 Fascia, Disp
W10136808 White
W10139747 Black
W10144809 Mono Satina
W10171982 Mono Stainless
24 2305571 Gasket, Disp
25
W10194025 Gasket, Disp (2)
26
W10170412 Support, Window

UNIT PARTS
15
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170

UNIT PARTS
16
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 12825802 Fan, Blade
2
W10121484 Condenser Assembly
3 489464 Screw
4 2216914 Clip, Condenser
5 2304289 Heat Shield
And Drain Pan
6 2205765 Tube, Suction
7 8533993 Screw
8 2323188 Cover
9 2255199 Clip, Retaining
10 2304884 Start−Device,
Combination
(Start Relay and
Overload)
11 2264017 Capacitor
12
W10120818 Electronic Control
13
W10120821 Control, Elek
14 2323186 Control Box
15 2304899 Unit Cover, Bottom
16 489396 Clip
17 2188823 Evaporator
18 2161324 Clip
19 2188874 Motor, Fan
20 1105523 Tray, Evaporator
21 2310497 Harness, Unit
22 Drier
W10177049 Production
2317845 Service
23
W10120459 Compressor
(Includes Items
10, 11, 22, &
29)
(Also Order
876765 Tube Kit)
24 2304904 Unit Mounting
Frame
25 2181929 Bracket, Fan Motor
26 2323198 Heater, Defrost
27 2304287 Clip, Heater
28 489373 Screw
29 Grommet (4)
1100826 Production
4387558 Service
30 489340 Screw
31 2196202 Air Baffle
32 2155547 Clip, Heat
33 2305374 Unit Mounting
Rail
34 8281232 Screw
35 2161302 Sleeve
36 2172840 Wire Tie
37 489427 Screw
38 2261316 Clip, Wire & Tube
39 2320322 Union
40 8533859 Screw
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

ICEMAKER PARTS
17
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170

ICEMAKER PARTS
18
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2303216 Fitting, Water
Tube
3 628379 Clip, Fuse
4 489478 Screw (3)
5 2315534 Smart Valve
6 2305274 Clip, Tube
7 2174358 Cover
8 488649 Screw
9
W10122527 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
10 2304969 Cup−Water Fill
11 627843 Ejector
12 2198598 Ice Stripper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 2303583 Bracket, Ice Maker
Mounting
18 489276 Screw
19 2187467 Harness, Wiring
20 626691 Module Assembly
(Includes Items
21 & 22)
21 626683 Motor
22 489136 Screw
100
W10122502 Icemaker Assembly

AIR FLOW PARTS
19
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2313359 Air Duct, Upper
4 2198580 Air Duct Freezer
5 2321799 Bi−metal, Defrost
6 2315549 Fan Motor
7 2169142 Fan Blade
8 2304241 Gasket, Evaporator
Cover (2)
9 2176759 Fan Grommet (2)
10
W10129815 Harness, Fan
Evaporator
(Includes # 5)
11 2155789 Gasket, Fan Scroll
12 2172840 Strap
13 2203876 Gasket
14 2206314 Cover, Evaporator
(Includes #8)
15 8281159 Screw (6)
16 489478 Screw
17 2203595 Support, R.S.
18 2203596 Support, L.S.

OPTIONAL PARTS (NOT INCLUDED)
20
For Models: GD5DHAXVQ00, GD5DHAXVB00, GD5DHAXVY00, GD5DHAXVA00
(White) (Black) (Monochromatic Satina)(Monochromatic Stainless)
W10205170
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
PAINT, PRESSURIZED SPRAY
(12 oz.)
350942 Primer, White
350939 Black
350930 White
4392901 Biscuit
8171357 Graphite
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
72032 Black
80051 Graphite
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
PAINT, BULK (1 qt.)
799340 Black
799344 White
4392900 Biscuit
8171358 Graphite
Miscellaneous
8129 Coil Brush
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
ACCESSORIES
2217192 Cleaner, Stainless
Steel
TORX SCREW WRENCH
1117510 Torx Key
