CABINET PARTS
1
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
9−09 Printed In U.S.A. (jdc)(bay) Part No. W10204189 Rev. B
REFRIGERATOR

CABINET PARTS
2
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10194138 Energy Guide
W10162458 Use & Care Guide
W10156111 Service Sheet
W10156118 Wiring Sheet
2220407 Modular Icemaker
Service Sheet
W10168294 Instruction Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Rear Roller (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407B Black
2203407T Biscuit
2203407AP Apollo Grey
13
W10138965 Bottom Hinge (RC)
14 Filler, Wrapper
2304846 White
2304848 Black
2304849 Biscuit
W10143043 Apollo Grey
15 Grille
W10188054 White
W10188055 Black
W10188056 Biscuit
W10188057 Midnight Grey
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
21 2188739 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408B Black
2203408T Biscuit
2203408AP Apollo Grey
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer, RC
27 489483 Screw
28 2260507 Housing, Water Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502B Black
2260502T Biscuit
2260502MG Midnight Grey
31 489500 Screw
32 3400113 Screw
33 2303141 Bottom Hinge (FC)
34 2260519 Block, Housing
Support
35 2255012 Tube, Filter
Outlet
36 2203770 Hinge Top (FC)
37 2319867 Tube, Filter
Inlet
38 Button, Water
Filter
2260503W White
2260503B Black
2260503T Biscuit
2260503MG Midnight Grey
39 2223751 Door Closer, FC

REFRIGERATOR LINER PARTS
3
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 1118894 Switch,
Rocker Arm
6 2319866 Shelf Ladder
7 489478 Screw
8 2261601 Door Control Asm
9
W10128734 Air Diffuser
Assembly
10 2162085 Socket
11 2307107 Reservoir
12 2255743 Light Bulb
13 2209769 Light Lens
14 488280 Screw
15 2256035 Bracket,
Dual Crisper
16 2311637 Wire Harness,
Dual Crisper
17
W10128735 Cover, Air−
Diffuser
18 2310527 Wire Assembly,
RC−Light
19 2326209 Trim, Light RC
20 2223680 Shield, Heat
21 2223857 Socket, Light
22 2326255 Light Bulb
23 489000 Screw
24 2223506 Lens, Light

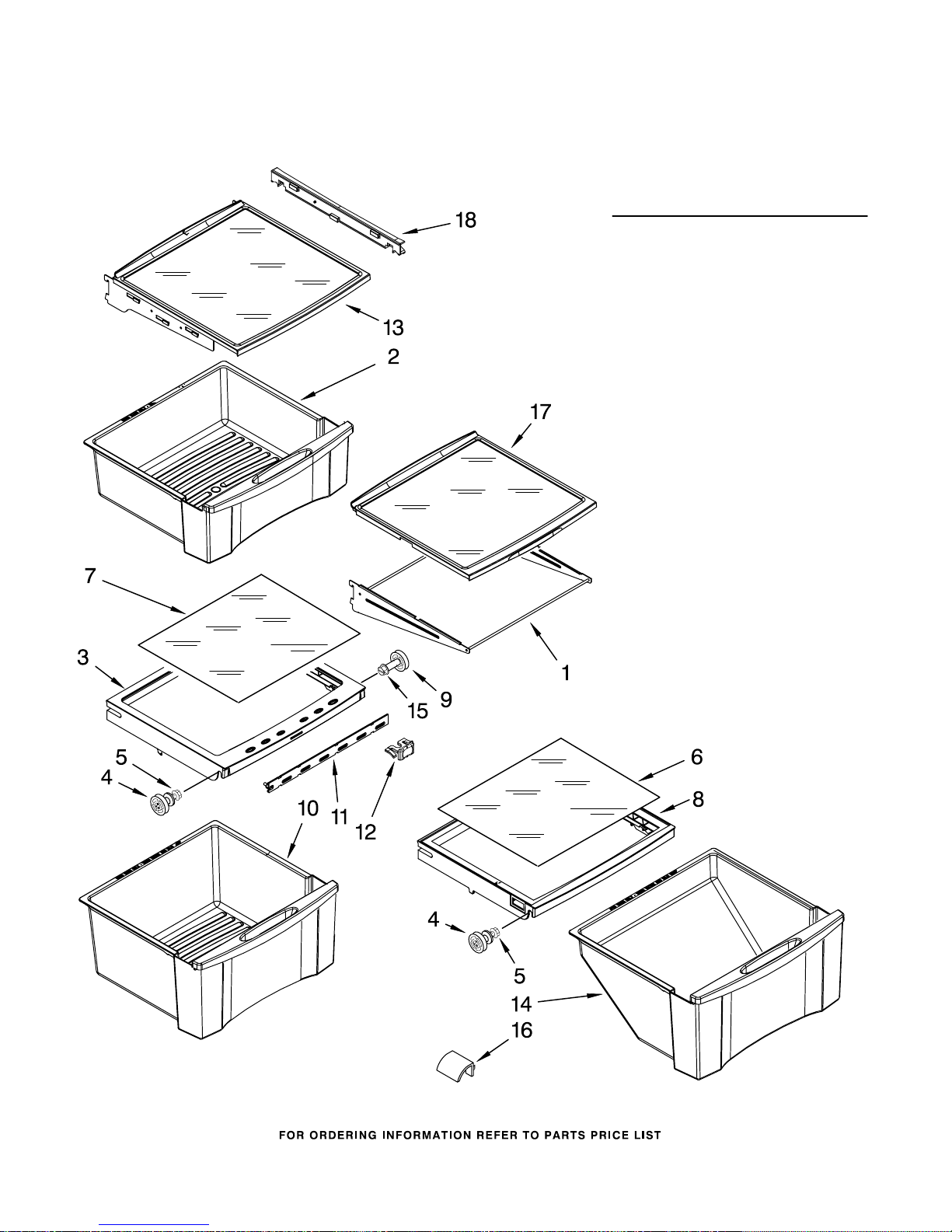

REFRIGERATOR SHELF PARTS
4
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION
1 2223517 Frame Assembly (2)
2 2223261 Snack Bin Asm
3 2223307 Cover, Crisper
(Includes 11 & 12)
4 2196485 Stud Assembly
5 3400894 Screw
6 2223714 Glass, Meat Cover
7 2223591 Glass, Cover
8 2223242 Cover, Meat Pan
(Includes 18)
9 2196483 Stud Assembly
10 2223235 Crisper Pan Asm
11 2223308 Slide, Humidity
Control
12 2223309 Knob, Humidity
Control
13 2223288 Shelf Pan Assembly
14 2223243 Meat Pan Assembly
15 8281158 Screw
16 2179350 Deflector
17 2255160 Shelf,
Slide Out (2)
18 2223320 Slide, Pan

FREEZER LINER PARTS
5
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189

FREEZER LINER PARTS
6
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2211746K Shelf, Slide Out
3 2301190 Basket, Tall
4 3400893 Screw
5 2195905K Trim, Basket
6 Shelf Track
2301289 Right Side
2301290 Left Side
7 2205837K Shelf (2)
8 2301191 Basket, Sloped
9
W10004810 Screw (8)
10 842534 Clip, Air Duct (2)
11 Shelf Track, Dual
2301293 Right Side
2301294 Left Side
12 2198587 Cover, Emitter
14 2198635 Spring
15 2198634 Pin
16 1115373 Switch, Rocker Arm
17
W10193840 P.C. Board
Emitter
18 2255720 Cover, Ice Maker
19 2212321 Slide, Ice Maker
Mounting
20 489478 Screw
21 489214 Screw
22 2162085 Light Socket
23 2255743 Light Bulb
24 8281185 Screw
25 2198633 Flipper
26
W10173569 Cover, Receiver
27 2315398 Slide, Ice Maker
Shut Off
28
W10193666 P.C. Board,
Receiver
29 2198643 Lens
30 2198589 Light Shield
31 2212340 Light Lens
32 2198641 Bracket,
Ice Maker Cover
33 2155597 Socket,
34 Light Ladder
2198609 Left Side
2198610 Right Side
35 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189

MOTOR AND ICE CONTAINER PARTS
8
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION
1 W10188746 Ice Bin
2
W10174543 Crusher Bin
3
W10140642 Auger
4 2258220 Washer, Auger
5 1119007 Spacer, Flat (4)
6
W10139321 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2323357 Grommet, Drive
Shaft
20
W10140685 Latch, Bin
21 2198608 Spring, Latch
22 2310401 Wire Assembly,
IDI Motor
23 2212369 Holder
24 2220458 Coupling, Bottom
25 2198628 Seal
26 2212370 Washer
27 2198607 Spring
28 2323355 Drive Shaft
29 2323603 Dispenser, Motor
30 2305208 Bracket, Motor
31 8281163 Screw
32 2212365 Sleeve, Coupling
33 2317243 Wiper
34 2317250 Divider−Chamber
100
W10188747 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189

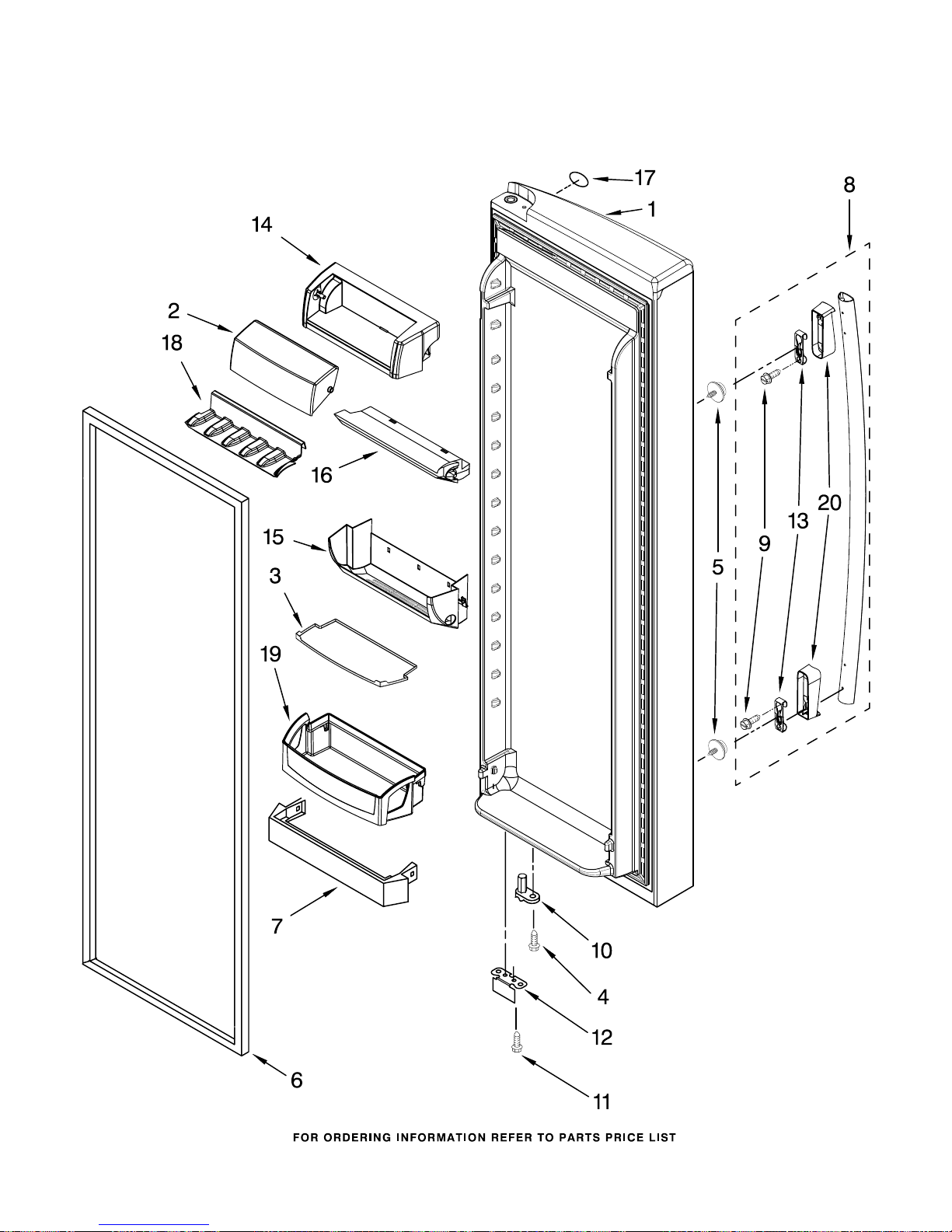

REFRIGERATOR DOOR PARTS
10
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10167185 White
W10167186 Black
W10169212 Biscuit
W10167187 Stainless
W10169214 Mono Satina
W10169213 Mono Stainless
2 2255421 Dairy Door
3 2223464K Mat, Bin (2)
4 3400012 Screw
5
W10129563 Screw
6 Door Gasket,
Magnetic
2221302 Mist
2221313 Black
2326338 Apollo Grey
7 2156022 Trivet
8 Handle
W10210942 White
W10210943 Black
W10210944 Biscuit
W10257120 Stainless
9
W10155511 Clip, Mounting
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2200082 Zinc
2200082B Black
13 2255411 Screw
14 2255420 Door Compartment
15 2255422 Frame, Can Rack
16 2255424 Air Diffuser Asm
17 2220214 Nameplate
18 2255423 Floor, Can Rack
19
W10158506 Door Bin
20 Endcap, Handle
W10127813 White
W10127814 Black
W10127815 Biscuit
W10152864 Stainless

FREEZER DOOR PARTS
11
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189

FREEZER DOOR PARTS
12
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #5
W10151313 White
W10151315 Black
W10151314 Biscuit
W10151318 Stainless
W10151317 Mono Satina
W10151319 Mono Stainless
2 Handle
W10210942 White
W10210943 Black
W10210944 Biscuit
W10257120 Stainless
4
W10129563 Screw, Handle
5 Door Gasket,
Magnetic
2221303 Mist
2221314 Black
2326339 Apollo Grey
6
W10155511 Screw
8 489420 Screw
9 Bracket, Door Stop
2323534 Zinc
2323534B Black
10 2255411 Clip, Mounting
11
W10142356 Bin,
Tilt−Out (2)
12 3400012 Screw
13 2223334 Trivet,
Tilt−Out (2)
14 2323581 Cover, Thimble
15 Endcap, Handle
W10127813 White
W10127814 Black
W10127815 Biscuit
W10152864 Stainless

DISPENSER FRONT PARTS
13
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189

DISPENSER FRONT PARTS
14
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 8281163 Screw (4)
3 2305202 Bracket, Motor
4 2305242 Connector, Door
Bracket
5 W1014111 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice Door
8 4449745 Screw (2)
9 Grille, Slide
2322626W White
2322626B Black
2322626T Biscuit
2322626AP Apollo Grey
10
W10187441 Spigot
11 Separator Assembly
2322658W White
2322658B Black
2322658T Biscuit
2322658S Stainless
2322658MG Midnight Grey
12 2323634 Cover, Dispenser
Motor
13 2223877 Latch
14
W10127842 Barrier,
Moisture
15 2310399 Wire Assembly,
Door
16
W10142384 Electronic
Control
(User Interface)
17 Pad, Ice & Water
2322750CG White Model
2322750GM Black, Stainless
Model
2322750AP Mono Stainless
Mono Satina
VCM and Biscuit
Models
18 2322743 Cover, Electronic
Control
19 Facia, Front
2322770W White
2322770B Black
2322770T Biscuit
2322770S Stainless
2322770NO Nickel One
20
W10143528 LED Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 Tray, Housing
2322645W White
2322645B Black
2322645T Biscuit
2322645NO Nickel One
W10139837 Stainless Steel
23 Front Cover
Assembly
(Includes Items
14, 16, 17, 18,
19, 20, & 21)
2322702W White
2322702B Black
2322702T Biscuit
2322702NO Nickel One
2322702S Stainless Steel
25 2323606 Tube, Door

UNIT PARTS
15
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189

UNIT PARTS
16
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2169104 Insulation, Sound
2 12825802 Fan, Blade
3 2324712 Condenser Assembly
4 489464 Screw
5 2216914 Clip, Condenser
6 2320323 Union
7 2217194 Heat Shield
And Drain Pan
8 2205765 Tube, Suction
10 8533993 Screw
11 8533859 Screw
12
W10120824 Control, Electronic
13 2323188 Cover
14 2255199 Clip, Retaining
15 2304884 Start−Device,
Combination
(Start Relay and
Overload)
16 2264017 Capacitor
17
W10120820 Electronic Control
18 2323186 Control Box
19 2304899 Unit Cover, Bottom
20 489396 Clip
21 2188823 Evaporator
22 2161324 Clip
23 2188874 Motor, Fan
24 1105523 Tray, Evaporator
25 2310441 Harness, Unit
26 Drier
W10177049 Production
2317845 Service
27
W10120459 Compressor
(Includes Items
15, 16, 26 & 35)
(Also Order
876765 Tube Kit)
29 2304904 Unit Mounting
Frame
31 2181929 Bracket, Fan Motor
32 2323198 Heater, Defrost
33 2304287 Clip, Heater
34 489373 Screw
35 Grommet (4)
1100826 Production
4387558 Service
36 489340 Screw
37 2196202 Air Baffle
38 2155547 Clip, Heat
39 2305374 Unit Mounting
Rail
40 8281232 Screw
42 2161302 Sleeve
43 2172840 Wire Tie
44 489427 Screw
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.3 oz.
(R−134A)

ICEMAKER PARTS
17
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189

ICEMAKER PARTS
18
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2303216 Fitting, Water
Tube
3 628379 Clip, Fuse
4 489478 Screw
5 2321753 Smart Valve
6 2208136 Clip, Tube
7 2174358 Cover
8 488649 Screw
9
W10122527 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
10 2304969 Cup, Water Fill
11 627843 Ejector
12 2198598 Ice Stripper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 2303583 Bracket, Ice Maker
Mounting
18 489276 Screw
19 2187467 Harness, Wiring
20 626691 Module Assembly
(Includes Items
21 & 22)
21 626683 Motor
22 489136 Screw
23
W10151311 Enclosure,
Secondary
100
W10122502 Icemaker Assembly

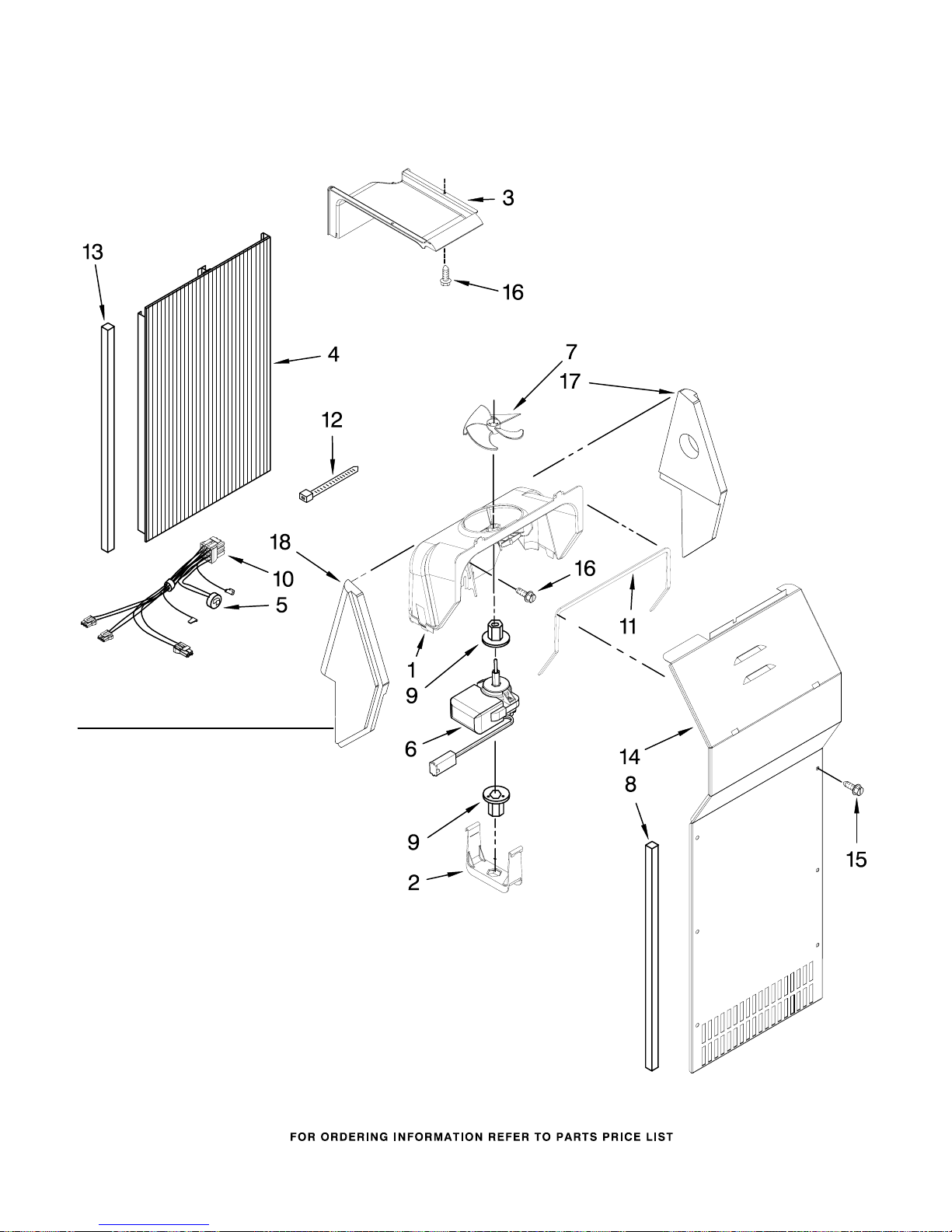

AIR FLOW PARTS
19
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2313359 Air Duct, Upper
4 2198580 Air Duct Freezer
5 2321799 Bi−metal, Defrost
6 2315549 Fan Motor
7 2169142 Fan Blade
8 2304241 Gasket, Evaporator
Cover (2)
9 2176759 Fan Grommet (2)
10
W10129815 Harness, Fan
Evaporator
(Includes #5)
11 2155789 Gasket, Fan Scroll
12 2172840 Strap
13 2203876 Gasket
14 2206314 Cover, Evaporator
(Includes #8)
15 8281159 Screw (6)
16 489478 Screw
17 2203595 Support, R.S.
18 2203596 Support, L.S.

OPTIONAL PARTS (NOT INCLUDED)
20
GS6NHAXVQ00, GS6NHAXVB00, GS6NHAXVT00, GS6NHAXVS00, GS6NHAXVA00, GS6NHAXVY00, GS6NHAXVK00
(White) (Black) (Biscuit) (Black/Stainless) (Monochromatic (Monochromatic (Stainless)
For Models:
Satina) Stainless)
W10204189
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
PAINT, PRESSURIZED SPRAY
(12 oz.)
350942 Primer, White
350939 Black
350930 White
4392901 Biscuit
8171357 Graphite
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
72032 Black
80051 Graphite
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
PAINT, BULK (1 qt.)
799340 Black
799344 White
4392900 Biscuit
8171358 Graphite
Miscellaneous
8129 Coil Brush
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
ACCESSORIES
2217192 Cleaner, Stainless
Steel
TORX SCREW WRENCH
1117510 Torx Key
