Whirlpool GSC25C4EYB00 User manual

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301.
In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.
You will need your model and serial number, located on the inside wall of the refrigerator compartment.
Para obtener acceso a "lnstrucciones para el usuario del refrigerador" en espa_ol, o para obtener informaci6n adicional acerca de
su producto, visite: www.whirlpool.coa.
Necesitara su nQmerode modelo y de serie, ubicado en el interior del compartimiento del refrigerador.
TableofContents/Tabledes matibres
REFRIGERATOR SAFETY ..................................................................... 1
REFRIGERATOR USE ........................................................................... 2
REFRIGERATOR CARE ......................................................................... 8
TROUBLESHOOTING ............................................................................ 9
ACCESSORIES .................................................................................... 11
WATER FILTER CERTIFICATIONS .................................................... 11
PERFORMANCE DATA SHEET .......................................................... 12
WARRANTY .......................................................................................... 13
SI_CURITI_ DU RI_FRIGI_RATEUR ..................................................... 14
UTILISATION DU RI_FRIGI_RATEUR ................................................. 15
ENTRETIEN DU RI_FRIGI_RATEUR ................................................... 22
DI_PANNAGE ........................................................................................ 23
ACCESSOIRES .................................................................................... 25
FEUlLLE DE DONNI_ES SUR LA PERFORMANCE .......................... 26
GARANTIE ............................................................................................ 27
REFRIGERATORSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10168325B

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
• Use two or more people to move and install refrigerator.
• Disconnect power before installing ice maker (on ice maker
kit ready models only).
• Use a sturdy glass when dispensing ice (on some models).
• Do not hit the refrigerator glass doors (on some models).
SAVE THESE INSTRUCTIONS
Proper Disposal of Your Old Refrigerator
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." Ifyou are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
• Takeoff the doors.
• Leave the shelves in place so that children may not easily
climb inside.
Important information to know about disposal of
refrigerants:
Dispose of refrigerator in accordance with Federal and Local
regulations. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with
established procedures.
REFRIGERATORUSE
On some models, your refrigerator's accessory packet includes
an air filter, which must be installed prior to use. On some models,
the air filter is already installed at the factory. Installing the Air Filter (on some models)
The filter should be installed behind the vented door, which is
located (depending on your model) along either the rear or left
interior wall near the top of the refrigerator compartment.
The air filter reduces the buildup of odors. This helps to maintain a
cleaner environment inside the refrigerator. 1. Remove the air filter from its packaging.
2. Lift open the vented door.
3. Snap the filter into place.
2

Installing the Filter Status Indicator (on some models)
The filter comes with a status indicator, which should be activated
and installed at the same time the air filter is installed.
The Produce Preserver pouches should be installed in their
housing, which is located along an interior side wall of the crisper
or convertible drawer.
1. Place the indicator face-down on a firm, flat surface.
2. Apply pressure to the bubble on the back of the indicator, until
the bubble pops to activate the indicator.
3. Lift open the vented air filter door. On some models, there are
notches behind the door.
4. On models with notches:
• Slide the indicator down into the notches, facing outward.
On
NOTE: The indicator will not easily slide into the notches
if the rear bubble has not been popped.
Close the air filter door, and check that the indicator is
visible through the rectangular hole in the door.
models without notches:
• Store the indicator in a visible place you will easily
remember - either inside the refrigerator, or elsewhere in
your kitchen or home.
Replacing the Air Filter
The disposable air filter should be replaced every 6 months, when
the status indicator has completely changed from white to red.
To order a replacement air filter, see "Accessories."
1. Remove the old air filter by squeezing in on the side tabs.
2. Remove the old status indicator.
3. Install the new air filter and status indicator using the
instructions in the previous sections.
On some models, your refrigerator's accessory packet includes a
Produce Preserver, which should be installed prior to use. On
some models, the Produce Preserver is already installed at the
factory.
The Produce Preserver absorbs ethylene, allowing the ripening
process of many produce items to slow down. As a result, certain
produce items will stay fresh longer.
Installing the Produce Preserver (on some models)
NOTE: For best performance, always use two pouches.
1. Remove the Produce Preserver pouches from their packaging.
FreshFlow TM
produce preserver
CAUTION ATTENTION
IRRITANT IRRITANT
Read cautions on back, Life les mises en garde au dos,
2. Lift up on the housing in order to remove it from its mounting
tab along the wall.
3. Open the housing by pulling up and out on the back of the top
of the housing.
4. Place both pouches inside the housing, then snap the housing
back together.
5. Place the housing back on the mounting tab along the wall.
Installing the Status Indicator (onsome models)
The Produce Preserver comes with a status indicator, which
should be activated and installed at the same time the pouch is
installed.
CAUTION: IRRITANT
MAY IRRITATE EYES AND SKIN. DANGEROUS FUMES
FORM WHEN MIXED WITH OTHER PRODUCTS.
Do not mix with cleaning products containing ammonia,
bleach or acids. Do not get in eyes, on skin or clothing. Do
not breathe dust. Keep out of reach of children.
FIRST AID TREATMENT: Contains potassium
permanganate. If swallowed, call a Poison Control Center or
doctor immediately. Do not induce vomiting. If in eyes, rinse
with water for 15 minutes. If on skin, rinse with water.
1. Place the indicator face-down on a firm, flat surface.
2. Apply pressure to the bubble on the back of the indicator, until
the bubble pops to activate the indicator.
3. Slide open the cap on the Produce Preserver housing.
4. Place the indicator in the top of the housing, facing outward.
5. Slide the cap closed, and check that the indicator is visible
through the rectangular hole in the cap.
NOTE: The cap will not easily close if the indicator's rear
bubble has not been popped.

Replacing the Produce Preserver (on some models)
The disposable pouches should be replaced every 6 months,
when the status indicator has completely changed from white to
red.
To order replacements, see "Accessories."
1. Remove the old pouches from the Produce Preserver housing.
2. Remove the old status indicator.
3. Install the new pouches and status indicator using the
instructions in the previous sections.
RECOMMENDED
FR,DGE "_1 --I °F
--I I
BACK UNITS SELECTZONE v ,A CO!,_ _/4
The refrigerator and freezer controls are located on the dispenser
panel.
IMPORTANT: The display screen on the dispenser control panel
will turn off automatically and enter "sleep" mode when the
control buttons and dispenser pads have not been used for
2 minutes or more. While in "sleep" mode, the first press of a
control button will only reactivate the display screen, without
changing any settings. After reactivation, changes to any settings
can then be made. If no changes are made within 2 minutes, the
display will re-enter "sleep" mode.
• Touch any control button on the dispenser panel to activate
the display screen. The home screen will appear as shown.
Adjusting the Controls
For your convenience, your refrigerator and freezer controls are
preset at the factory. When you first install your refrigerator, make
sure that the controls are still set to the "mid-settings." The factory
recommended set points are 37°F (3°C) for the refrigerator and
0°F (-18°C) for the freezer.
IMPORTAN1"."
• Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the set points to a colder than
recommended setting will not cool the compartments any
faster.
If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
The preset settings should be correct for normal household
usage. The controls are set correctly when milk or juice is as
cold as you like and when ice cream is firm.
Wait at least 24 hours between adjustments. Recheck the
temperatures before other adjustments are made.
To view and adjust the set points, press and hold the TEMP
button for 3 seconds. When adjust mode is activated, adjusting
information will appear on the display screen.
NOTE: To view Celsius temperatures, press the LIGHT button
when adjust mode is activated. To return the display setting to
Fahrenheit, press LIGHT again.
• When adjust mode is activated, the display screen shows the
refrigerator set point and "FRIDGE" appears.
Press LOCK to raise the set point, or press FAST ICE to lower
the set point.
When you have finished viewing (and adjusting if desired) the
refrigerator set point, press TEMP to change the display to
show the freezer set point. When the zone has been changed,
"FREEZER" appears on the display screen.
Press LOCK to raise the set point, or press FAST ICE to lower
the set point.
When you have finished viewing (and adjusting if desired) both
the refrigerator and freezer set points, press FILTER to save
the settings.
NOTE: To exit without saving changes, press ICE TYPE at any
time while in adjust mode, or allow about 60 seconds of
inactivity and adjust mode will turn off automatically.
When adjusting temperature set points, use the following chart as
a guide.
CONDITION: TEMPERATURE
ADJUSTMENT:
REFRIGERATOR too cold REFRIGERATOR Setting
1° higher
REFRIGERATOR too warm REFRIGERATOR Setting
1° lower
FREEZER too cold FREEZER Setting
1° higher
FREEZER too warm /FREEZER Setting
Too little ice 1° lower
The set point range for the refrigerator is 33°F to 45°F (0°C to
7°C). The set point range for the freezer is -5°F to 5°F (-21 °C to
-15°C).
Cooling On/Off
Your refrigerator and freezer will not cool when cooling is
turned off.
• To turn cooling off, press and hold the LOCK and FILTER
buttons at the same time for 3 seconds.
IMPORTANT: To avoid unintentionally locking the dispenser
or changing other settings, be sure to press both buttons at
exactly the same time.
When cooling is off, "COOLING OFF" will appear on the
display screen.
Press and hold LOCK and FILTER for 3 seconds again to turn
cooling back on.

Additional Features
Fast Ice
The Fast Ice feature assists with temporary periods of heavy ice
use by increasing ice production over a 24-hour period.
IMPORTANT: This feature only works if the ice maker is turned
on. See "Ice Maker and Storage Bin."
• Press FAST ICE to turn on the Fast Ice feature. When the
feature is on, the Fast Ice icon will appear on the dispenser
display screen. The Fast Ice setting will remain on for 24 hours
unless manually turned off.
%
• Tomanually turn off the Fast Ice feature, press FAST ICE again
or adjust the freezer temperature set point. The Fast Ice icon
will disappear when the feature is off.
NOTE: If increased ice production is desired at all times, change
the freezer set point to a lower setting. Setting the freezer to a
colder temperature may make some foods, such as ice cream,
harder.
6th Sense TM Temperature Management
The 6th Sense TM feature assists with regulating the temperature
inside the refrigerator. If a large quantity of warm food is placed in
the refrigerator or warm air enters the refrigerator while the door is
held open, the 6th Sense TM system activates to quickly restore the
temperature to the set point. 6
sense
NOTE: The 6th Sense TM system is always on when your
refrigerator is operating. You do not need to press any buttons to
activate it. The 6th Sense TM icon on the dispenser display screen
indicates that the feature is functioning properly.
Door Ajar Alarm
The Door Ajar Alarm feature sounds an alarm when the refrigerator
or freezer door is open for 5 minutes and the product cooling is
turned on. The alarm will repeat every 2 minutes. Close both
doors to turn it off. The feature then resets and will reactivate
when either door is left open again for 5 minutes.
NOTE: To mute the audible alarm while keeping the doors open,
such as while cleaning the inside of the refrigerator, press any
button on the control panel. The alarm sound will be temporarily
turned off, but the Door Ajar icon will still be displayed on the
dispenser control panel.
Dual Evaporator (on some models)
Some models come equipped with a dual sequential evaporation
system, which includes two separate evaporators for the
refrigerator and freezer compartments.
Dual evaporation results in higher humidity, which helps keep
foods in the refrigerator from spoiling as quickly and improves
food quality and freshness in the freezer due to decreased freezer
burn. In addition, the dual evaporation system helps keep food
smells in the refrigerator from transferring to ice in the freezer.
NOTE: The dual evaporation system is always activated when
your refrigerator is operating. You do not need to press any
buttons to turn it on.
The control can be adjusted to properly chill meats or vegetables.
The air inside the pan is cooled to avoid "spot" freezing and can
be set to keep meats at the National Livestock and Meat Board
recommended storage temperatures of 28° to 32°F (-2° to 0°C).
To store meat:
Set the control to one of the three MEAT settings to store meat at
its optimal storage temperature.
To store vegetables:
Set the control to VEG to store vegetables at their optimal storage
temperatures.
NOTE: If food starts to freeze, move the control to the right (less
cold), toward the VEG setting. Remember to wait 24 hours
between adjustments.
You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW and HIGH.
LOW (open) for best storage of fruits and vegetables with skins.
HIGH (closed) for best storage of fresh, leafy vegetables.
Cool air from the freezer is directed to the refrigerator door bin
directly beneath the vents.
NOTE: The dairy compartment and can rack are not associated
with the Chilled Door Bin feature.
Chilled Door BinControl
The chilled door bin control is located on the left-hand side of the
refrigerator compartment.
A"--
A. Chilleddoor bin control
Slide the door chill control to the left to reduce the flow of cold
air to the bin and make it less cold.
Slide the door chill control to the right to increase the flow of
cold air to the bin and make it colder.

IMPORTANT:Afterconnectingtherefrigeratortoawatersource
orreplacingthewaterfilter,flushthewatersystem.Useasturdy
containertodepressandholdthewaterdispenserpadfor
5seconds,thenreleaseitfor5seconds.Repeatuntilwater
beginstoflow.Oncewaterbeginstoflow,continuedepressing
andreleasingthedispenserpad(5secondson,5secondsoff)
untilatotalof3gal.(12L)hasbeendispensed.Thiswillflushair
fromthefilterandwaterdispensingsystem,andpreparethe
waterfilterforuse.Additionalflushingmayberequiredinsome
households.Asairisclearedfromthesystem,watermayspurt
outofthedispenser.
NOTES:
• Thedispensingsystemwillnotoperatewhenthefreezerdoor
isopen.
• Allow24hoursfortherefrigeratortocooldownandchill
water.
Allow24hourstoproducethefirstbatchofice.Discardthe
firstthreebatchesoficeproduced.Wait72hoursforfullice
production.
Thedisplayscreenonthedispensercontrolpanelwillturnoff
automaticallyandenter"sleep"modewhenthecontrol
buttonsanddispenserpadshavenotbeenusedfor2minutes
ormore.Whilein"sleep"mode,thefirstpressofacontrol
buttonwillonlyreactivatethedisplayscreen,without
changinganysettings.Afterreactivation,changestoany
settingscanthenbemade.Ifnochangesaremadewithin
2minutes,thedisplaywillre-enter"sleep"mode.
The Water Dispenser
IMPORTANT:
• Dispense at least 1 qt (1 L) of water every week to maintain a
fresh supply.
• If the flow of water from the dispenser decreases, it could be
caused by low water pressure.
With the water filter removed, dispense 1 cup of water. If
1 cup of water is dispensed in 8 seconds or less, the
water pressure to the refrigerator meets the minimum
requirement.
If it takes longer than 8 seconds to dispense 1 cup of
water, the water pressure to the refrigerator is lower than
recommended. See "Water Supply Requirements" or
"Troubleshooting" for suggestions.
To Dispense Water:
1. Press a sturdy glass against the water dispenser pad.
2. Remove the glass to stop dispensing.
The Ice Dispenser
Ice dispenses from the ice maker storage bin in the freezer when
the dispenser pad is pressed. To turn off the ice maker, see "Ice
Maker and Storage Bin."
Your ice maker can produce both crushed and cubed ice. Before
dispensing ice, select which type of ice you prefer by pressing the
ICE TYPE button.
The display screen indicates which type of ice is selected.
CRUSHED CUBED
For crushed ice, cubes are crushed before being dispensed. This
may cause a slight delay when dispensing crushed ice. Noise
from the ice crusher is normal, and pieces of ice may vary in size.
When changing from crushed to cubed, a few ounces of crushed
ice will be dispensed along with the first cubes.
To Dispense Ice:
1. Make sure the desired type of ice is selected. To switch
between cubed and crushed, press ICE TYPE.
Cut Hazard
Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.
2.
3.
Press a sturdy glass against the ice dispenser pad. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure to the
pad in order to activate the ice dispenser. Pressing hard will
not make the ice dispense faster or in greater quantities.
Remove the glass to stop dispensing.
NOTE: Ice may continue to dispense for several seconds after
removing the glass from the pad. The dispenser may continue
to make noise for afew seconds after dispensing.
The Dispenser Light
When you use the dispenser, the light will automatically turn on.
If you want the light to be on continuously, you may choose either
ON or DIM. The display screen indicates which mode is selected.
--©:-
Bm
ON DIM
ON: Press LIGHT to turn the dispenser light on.
DIM: Press LIGHT a second time to select DIM mode. The
dispenser light will remain on, but at a lower intensity.
OFF: Press LIGHT a third time to turn the dispenser light off.
The dispenser lights are LEDs that cannot be changed. If it
appears that your dispenser lights are not working, see
"Troubleshooting" for more information.
The Dispenser Lock
The dispenser can be turned off for easy cleaning or to avoid
unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the refrigerator,
to the ice maker, or to the dispenser light. It simply deactivates the
controls and dispenser pads. To turn off the ice maker, see "Ice
Maker and Storage Bin."
• Press and hold LOCK for 3 seconds to lock the dispenser.
• Press and hold LOCK a second time to unlock the dispenser.
6

The display screen indicates when the dispenser is locked.
LOCKED UNLOCKED
Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If a softened water supply cannot be avoided,
make sure the water softener is operating properly and is well
maintained.
Do not use anything sharp to break up the ice in the storage
bin. This can cause damage to the ice container and the
dispenser mechanism.
Do not store anything on top of or in the ice maker or storage
bin.
Style 1
Turning the Ice Maker On/Off:
The On/Off switch can only be accessed when the ice storage bin
has been removed. The switch is located on the freezer door, on
the left side of the wall that surrounds the ice storage bin. See the
following section for bin removal instructions.
OnO,;1
Ice Maker Control
• To turn on the ice maker, slide the control to the ON (left)
position.
• To manually turn off the ice maker, slide the control to the OFF
(right) position.
NOTE: The ice maker has an automatic shutoff to keep the
storage bin from overfilling during normal operation. The ice
maker sensors will automatically stop ice production, but the
control will remain in the ON (left) position.
Removing and Replacing Ice Storage Bin:
1. Press down the release lever and tilt the bucket outward. Use
both hands to hold the base of the storage bin, then lift it up
and out.
/
A. Releaselever
NOTE: It is not necessary to turn the ice maker control to the
OFF (right) position when removing the storage bin. The
sensor cover ("flipper door"), located on the right wall of the
freezer door, stops the ice maker from producing ice if the
door is open or the storage bin is removed.
A. On/Off switch
B. Sensor cover
2. Replace the bin by sliding it onto the door, then tilting it back
into an upright position. The release lever will click when the
bin is securely in place.
Style 2
Turning the Ice Maker On/Off:
• Toturn ON the ice maker,simply lower thewire shutoff arm.
• To manually turn off the ice maker, lift the wire shutoff arm to
the OFF (arm up) position and listen for the click. Ice can still
be dispensed, but no more can be made.
NOTE: The ice maker has an automatic shutoff to keep the
storage bin from overfilling during normal operation. As ice is
made, the ice cubes will fill the ice storage bin, and the ice cubes
will raise the wire shutoff arm to the OFF (arm up) position. Do not
force the wire shutoff arm up or down.
Removing and Replacing Ice Storage Bin:
1. Pull the covering panel up from the bottom.
2. Lift the wire shutoff arm so it clicks into the OFF (up) position.
3. Lift up the front of the storage bin and pull it out.

4=
5.
Replace the bin by pushing it in all the way or the dispenser
will not work.
To restart ice production, push the wire shutoff arm down to
the ON position. Make sure the door is closed tightly.
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
Water Filter Status Light
The water filter status light will help you know when to change
your water filter.
• When the dispenser control panel's water filter status display
changes to "ORDER," this tells you that it is almost time to
change the water filter cartridge.
• Replace the water filter cartridge when the water filter status
display changes to "REPLACE."
If water flow to your water dispenser or ice maker decreases
noticeably, change the filter sooner. The filter should be replaced
at least every 6 months, depending on your water quality and
usage.
• After changing the water filter, reset the status light by
pressing and holding the FILTER button for 3 seconds. When
the system is reset, the "ORDER" and "REPLACE" icons will
disappear from the display screen.
Changing the Water Filter
1. Locate the water filter in the top-right corner of the refrigerator
compartment.
2. Lift open the filter cover door. The filter will be released and
then eject as the door is opened.
3. When the door is completely open, pull the filter straight out.
NOTE: There may be some water in the filter. Some spilling
may occur. Use a towel to wipe up any spills.
4= Take the new filter out of its packaging and remove the covers
from the O-rings. Be sure the O-rings are still in place after the
covers are removed.
5. With the arrow pointing up, align the new filter with the filter
housing and slide it into place. The filter cover door will
automatically begin to close as the new filter is inserted.
6. Close the filter cover door completely in order to snap the filter
into place. You may need to press hard.
7. Flush the water system. See "Water and Ice Dispensers."
REFRIGERATORCARE
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid
buildup of odors. Wipe up spills immediately.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To avoid odor
transfer and drying out of food, wrap or cover foods tightly.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning waxes,
concentrated detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or other harsh
cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
3. Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water.
4. There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.
If you need to clean the condenser:
• Remove the base grille. See the "Door Removal"
instructions, either in the User Instructions or the separate
instruction sheet provided with your refrigerator.
• Use a vacuum cleaner with asoft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser.
• Replace the base grille when finished.
5. Plug in refrigerator or reconnect power.
8

NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the
bulb with one of the same size, shape and wattage.
• The dispenser lights are LEDs that cannot be changed.
• On some models, the interior lights are LEDs that cannot
be changed.
• On some models, the interior lights require a 40-watt bulb.
1. Unplug refrigerator or disconnect power.
2. Remove light shield when applicable.
NOTE: To clean the light shield, wash it with warm water and
liquid detergent. Rinse and dry the shield well.
3. Remove light bulb and replace with one of the same size,
shape and wattage.
4. Replace light shield when applicable.
5. Plug in refrigerator or reconnect power.
TROUBLESHOOTING
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call.
In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca
The refrigerator will not operate
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Power cord unplugged? Plug into a grounded 3 prong outlet.
Is outlet working? Plug in a lamp to see if the outlet is
working.
Household fuse blown or circuit breaker tripped? Replace
the fuse or reset the circuit breaker. If the problem continues,
call an electrician.
Are controls on? Make sure the refrigerator controls are on.
See "Using the Controls."
New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
NOTE: Adjusting the temperature controls to coldest setting
will not cool either compartment more quickly.
The motor seems to run too much
Your new refrigerator may run longer than your old one due to its
high-efficiency compressor and fans. The refrigerator may run
even longer if the room is warm, a large food load is added, doors
are opened often, or if the doors have been left open.
The refrigerator is noisy
Refrigerator noise has been reduced over the years. Due to this
reduction, you may hear intermittent noises from your new
refrigerator that you did not notice from your old model. Below are
listed some normal sounds with an explanation.
•Buzzing - heard when the water valve opens to fill the ice
maker
•Clicking/Snapping - valves opening or closing
•Pulsating - fans/compressor adjusting to optimize
performance
• Rattling - flow of refrigerant, water line, or from items placed
on top of the refrigerator
•Sizzling/Gurgling - water dripping on the heater during
defrost cycle
•Popping - contraction/expansion of inside walls, especially
during initial cool-down
• Water running - may be heard when ice melts during the
defrost cycle and water runs into the drain pan
• Creaking/Cracking - occurs as ice is being ejected from the
ice maker mold.
The doors will not close completely
•Door blocked open? Move food packages away from door.
• Bin or shelf in the way? Push bin or shelf back inthe correct
position.

The doors are difficult to open
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
•Are the gaskets dirty or sticky? Clean gaskets with mild
soap and warm water.
The refrigerator rocks and is not stable
What do I do if the refrigerator rocks and is not stable?
To stabilize the refrigerator, remove the base grille and lower
the leveling feet until they touch the floor. See the "Door
Removal" instructions, either in the User Instructions or the
separate instruction sheet provided with your refrigerator.
The lights do not work
•Is alight bulb loose in the socket or burned out? See
"Changing the Light Bulbs."
Is the dispenser light set to OFF? On some models, the
dispenser light will operate only when a dispenser lever/pad is
pressed. If you want the dispenser light to stay on
continuously, set the dispenser light to ON, or (on some
models) NIGHT LIGHT or AUTO or HALF or DIM. See "Water
and Ice Dispensers."
Is the dispenser light set to NIGHT LIGHT or AUTO? On
some models, if the dispenser is set to the NIGHT LIGHT or
AUTO mode, be sure the dispenser light sensor is not
blocked. See "Water and Ice Dispensers."
Temperature is too warm
New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
Door(s) opened often or left open? Allows warm air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
Large load of food added? Allow several hours for
refrigerator to return to normal temperature.
Controls set correctly for the surrounding conditions?
Adjust the controls a setting colder. Check temperature in
24 hours. See "Using the Controls."
There is interior moisture buildup
NOTE: Some moisture buildup is normal. Clean with a dry cloth.
• Humid room? Contributes to moisture buildup.
•Door(s) opened often or left open? Allows humid air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
The ice maker is not producing ice or not enough ice
•Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Ice maker turned on? Make sure wire shutoff arm or switch
(depending on model) is in the ON position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
Large amount of ice recently removed? Allow 24 hours for
ice maker to produce more ice.
Ice cube jammed in the ice maker ejector arm?
Remove ice from the ejector arm with a plastic utensil. (This
does not apply to models with the ice maker mounted at the
top of the freezer door.)
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
The ice cubes are hollow or small
NOTE: This is an indication of low water pressure.
• Water shutoff valve not fully open? Turn the water shutoff
valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
Questions remain regarding water pressure? Call a
licensed, qualified plumber.
Off-taste, odor or gray color inthe ice
•New plumbing connections? New plumbing connections
can cause discolored or off-flavored ice.
•Ice stored too long? Discard ice. Wash ice bin. Allow
24 hours for ice maker to make new ice.
Odor transfer from food? Use airtight, moisture-proof
packaging to store food.
Are there minerals (such as sulfur) in the water? A water
filter may need to be installed to remove the minerals.
Is there awater filter installed on the refrigerator? Gray or
dark discoloration in ice indicates that the water filtration
system needs additional flushing.
The ice dispenser will not operate properly
Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."
Ice bin installed correctly? Be sure the ice bin is firmly in
position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
10

Ice clogged in the ice storage bin or delivery chute?
Remove clogged ice, using a plastic utensil if necessary.
Clean chute and bottom of storage bin using a warm moist
cloth, and dry both thoroughly. To avoid clogging and maintain
a fresh supply of ice, empty the storage bin and clean both the
bin and delivery chute every two weeks.
Has the wrong ice been added to the bin? Use only cubes
produced by the current ice maker.
Has the ice melted around the auger (metal spiral) in the
ice bin? Empty the ice container. Use warm water to melt the
ice if necessary.
Cut Hazard
Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.
Is the ice dispenser stalling while dispensing "crushed"
ice? Change the ice button from "crushed" to "cubed." If
cubed ice dispenses correctly, depress the button for
"crushed" ice and begin dispensing again.
Has the dispenser arm been held in too long? Ice will stop
dispensing when the arm is held in too long. Wait 3 minutes
for dispenser motor to reset before using again.
The water dispenser will not operate properly
•Freezer door closed completely? Close the door firmly. If it
does not close completely, see "The doors will not close
completely."
Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Is the water pressure at least 30 psi (207 kPa)? The water
pressure to the home determines the flow from the dispenser.
See "Water Supply Requirements."
Kink in the home water source line? Straighten the water
source line.
•New installation? Flush and fill the water system.
• Water filter installed on the refrigerator? The filter may be
clogged or incorrectly installed.
• Is a reverse osmosis water filtration system connected to
your cold water supply? See "Water Supply Requirements."
Water is leaking from the dispenser
NOTE: One or two drops of water after dispensing is normal.
•Glass not being held under the dispenser long enough?
Hold the glass under the dispenser for 2 to 3 seconds after
releasing the dispenser lever/pad.
New installation? Flush the water system. See "Prepare the
Water System" or "Water and Ice Dispensers."
Recently changed water filter? Flush the water system. See
"Prepare the Water System" or "Water and Ice Dispensers."
The dispenser water is not cool enough (on some models)
NOTE: Water from the dispenser is chilled to only 50°F (10°C).
• New installation? Allow 24 hours after installation for the
water supply to cool completely.
Recently dispensed large amount of water? Allow 24 hours
for water supply to cool completely.
Water not been recently dispensed? The first glass of water
may not be cool. Discard the first glass of water.
Refrigerator connected to a cold water pipe? Make sure
the refrigerator is connected to a cold water pipe. See "Water
Supply Requirements."
ACCESSORIES
To order replacement filters, call 1-800-442-9991 and ask for the
part number listed below or contact your authorized Whirlpool
dealer. In Canada, call 1-800-807-6777.
Stainless Steel Cleaner and Polish:
Order Part #4396095
Water Filter:
Order Part #W10295370 (P4RFWB)
Air Filter:
Order Part #W10311524
Produce Preserver:
Order Part #W10346771
WATERFILTERCERTIFICATIONS
State of Calitbrnia
Department of Public Healfll
WaterTreatmentDevice
CertificateNumber
10- 2030
Date Issued: February 26, 2010
Trademark/Model Dcsienation
P5WB2L P4RFWB
M_nulhc_urer: WhMpool C_rporatiotl
Microbiological Contaminants and Turbidit_
AtrazineLindane
Rated Service Capacity': 200 gal -_tcd Service Flow: 05 gpm
Conditions of Certification:
Do not use where water is mJcrobiologJcally ul_safe or with water of ul_known _uality. except that systems certified
lbr cyst reduction may be used on disinfected waters that may contain filterable cysts.
11

PERFORMANCEDATASHEET
Water Filtration System
Model P5WB2L/P4RFWB Capacity 200 Gallons (757 Liters)
System tested and certified by NSF International against NSF/ANSI
Standard 42 for the reduction of Chlorine Taste and Odor, and Particulate
Class I*; and against NSF/ANSI Standard 53 for the reduction of Live
Cysts, Asbestos, Lead, Lindane, Toxaphene, Atrazine, and 2,4 - D.
This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the
permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.
Substance Reduction NSF Reduction Average Influent Challenge Maximum Minimum %Average %
Aesthetic Effects Requirements Influent Concentration Effluent Reduction Reduction
Chlorine Taste/Odor 50% reduction 2.0 mg/L 2.0 mg/L + 10% 0.20 mg/L ** 97 97.2
Particulate Class I* 85% reduction 7,300,000 #/mL At least 10,000 particles/mL 75,000 #/mL 99 99.4
Contaminant NSF Reduction Average Influent Challenge Maximum Minimum %Average %
Reduction Requirements Influent Concentration Effluent Reduction Reduction
Live Cysts t 99.95% 160,000/L 50,000/L min. 54/U 99.97 99.99
Asbestos 99% 87 MFL 107to 108fibers/U t 0.17 MFL 99 99
Lead: @ pH 6.5 0.010 mg/L 0.160 mg/L 0.15 mg/L + 10% 0.001 mg/L 99.4 99.4
Lead: @ pH 8.5 0.010 mg/L 0.140 mg/L 0.15 mg/L _+10% 0.005 mg/L 98.6 98.6
Lindane 0.0002 mg/L 0.0019 mg/L 0.002 mg/L _+10% 0.00002 mg/L 98.9 99
Toxaphene 0.003 mg/L 0.014 mg/L 0.015 mg/L _+10% 0.001 mg/L 93 93
Atrazine 0.003 mg/L 0.0094 mg/L 0.009 mg/L _+10% 0.0005 mg/L 94.5 94.7
2,4 - D 0.07 mg/L 0.220 mg/L 0.210 mg/L _+10% 0.028 mg/L 87.5 96.1
Test Parameters: pH = 7.5 _+0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa).
Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).
• It is essential that operational, maintenance, and filter
replacement requirements be carried out for the product to
perform as advertised.
• Use replacement filter P4RFWB, part #W10295370.
2011 suggested retail price of $39.99 U.S.A./S49.99 Canada.
Prices are subject to change without notice.
Style 1 - When the water filter status display changes from
"GOOD" to "ORDER," order a new filter. When the filter indicator
reads "REPLACE," it is recommended that you replace the filter.
Style 2 - When the filter indicator changes from green to yellow,
order a new filter. When the indicator changes from yellow to red,
it is recommended that you replace the filter.
Style 3 - When the filter indicator reads 10%, order a new filter.
When the indicator reads 0%, it is recommended that you
replace the filter.
Style 4 - Press FILTER to check the status of your water filter. If
the filter indicator light is yellow, order a new filter. If the filter
indicator light is red, it is recommended that you replace the filter.
• After changing the water filter, flush the water system. See
"Water and Ice Dispensers" or "Water Dispenser."
• These contaminants are not necessarily in your water supply.
While testing was performed under standard laboratory
conditions, actual performance may vary.
• The product is for cold water use only.
• The water system must be installed in compliance with state and
local laws and regulations.
• Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the
system. Systems certified for cyst reduction may be used on
disinfected waters that may contain filterable cysts.
• Refer to the "Warranty" section for the Manufacturer's name,
address and telephone number.
• Refer to the "Warranty" section for the Manufacturer's limited
warranty.
Application Guidelines/Water Supply Parameters
Water Supply City or Well
Water Pressure 30 - 120 psi (207 - 827 kPa)
Water Temperature 33° - 100°F (0.6° - 37.8°C)
Service Flow Rate 0.5 gpm (1.9 Lpm) @60 psi
%
*Class I particle size: >0.5 to <1 um
**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
tBased on the use of Cryptosporidium parvum oocysts
ttFibers greater than 10 um in length
® NSF is a registered trademark of NSF International.
12

WHIRLPOOLCORPORATIONMAJORAPPLIANCEWARRANTY
LIMITED WARRANTY
For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Parts
and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be
provided by a Whirlpool designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY
SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies
only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain
service under this limited warranty.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is
used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.
2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or
repair house fuses, or to correct house wiring or plumbing.
3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty
coverage.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage
results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.
6. Any food or medicine loss due to refrigerator or freezer product failures.
7. Pickup and delivery. This major appliance is intended to be repaired in your home.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized Whirlpool servicer is not available.
10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance
with Whirlpool's published installation instructions.
11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or
cannot be easily determined.
12. Discoloration, rust, or oxidation of stainless steel surfaces.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces
do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This
warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. 6/08
For additional product information, in the U.S.A., visit www.whirlpool.com
In Canada, visit www.whirlpool.ca
If you do not have access to the Internet and you need assistance using your product or you would like to schedule service, you may
contact Whirlpool at the number below.
Have your complete model number ready. You can find your model number and serial number on the label, located on the inside wall of
the refrigerator compartment.
For assistance or service in the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.
If you need further assistance, you can write to Whirlpool with any questions or concerns at the address below:
In the U.S.A.: In Canada:
Whirlpool Brand Home Appliances Whirlpool Brand Home Appliances
Customer eXperience Center Customer eXperience Centre
553 Benson Road 200 - 6750 Century Ave.
Benton Harbor, MI 49022-2692 Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
Please keep these User Instructions and the model number information for future reference.
13

NousvousREMERCIONSd'avoiracheteceproduitdehautequalit&Sivousrencontrezunproblemenonmentionnedansla
sectionDI_PANNAGE,veuillezvisiternotresiteWebwww.whirlpool.compourdesinformationssupplementaires.Sivousavez
toujoursbesoind'assistance,veuilleznoustel6phonerau1-800-253-1301.AuCanada,visiteznotresiteWebwww.whirlpool.ca
outel6phonez-nousau1-800-807-6777.
Vousaurezbesoindevosnum@osdemodeleetdes@iesituessurlaparoiinterneducompartimentderefrig@ation.
# # # #
SECURITEDUREFRIGERATEUR
Votre securite et celle des autres est tres importante.
Nous donnons de nombreux messages de s_curit_ importants dans ce manuel et sur votre appareil m_nager. Assurez-vous de
toujours lire tousles messages de s_curit_ et de vous y conformer.
Voici le symbole d'alerte de s_curit&
Ce symbole d'alerte de s_curit_ vous signale les dangers potentiels de d_c_s et de blessures graves & vous
eta d'autres.
Tousles messages de s_curit_ suivront le symbole d'alerte de s_curit_ et le mot "DANGER" ou
"AVERTISSEMENT". Ces mots signifient •
nRisque possible de d_cbs ou de blessure grave si vous ne
suivez pas imm_diatement les instructions.
Risque possible de d_cbs ou de blessure grave si vous
ne suivez pas les instructions.
Tousles messages de s_curit_ vous diront quel est le danger potentiel et vous disent comment r_duire le risque de blessure et
ce qui peut se produire en cas de non-respect des instructions.
IMPORTANTES INSTRUCTIONS DE SI_CURITI_
AVERTISSEMENT :Pour reduire les risques d'incendie, de choc electrique ou des blessures Iors de I'utilisation du
refrig6rateur, prendre quelques precautions fondamentales, y compris les suivantes •
• Brancher I'appareil sur une prise a 3 alveoles reliee a la terre. • Garder les materiaux et les vapeurs inflammables, telle
• Ne pas enlever la broche de liaison & la terre.
• Ne pas utiliser un adaptateur.
• Ne pas utiliser un c&ble de rallonge.
• Debrancher la source de courant electrique avant I'entretien.
• Replacer pieces et panneaux avant de faire la remise en marche.
• Enlever les portes de votre vieux r6frigerateur.
• Utiliser un produit de nettoyage ininflammable.
que I'essence, loin du r6frigerateur.
• Utiliser deux ou plus de personnes pour deplacer et
installer le refrig6rateur.
• Debrancher le refrig6rateur avant I'installation de la
machine a glagons (seulement pour modeles pr_ts
recevoir une machine a glagons).
• Utiliser un verre robuste pour prendre des glagons (sur
certains modeles).
• Ne pas heurter les portes en verre du r6frigerateur (sur
certains modeles).
CONSERVEZ CES INSTRUCTIONS
14

Miseau rebutappropri( e
devotre vieux r frig rateur
Risque de suffoquer
Enlever les portes de votre vieu× r_frig_rateur.
Le non=respect de cette instruction peut causer
un d_c_s ou des I_sions c_r_brales.
IMPORTANT : L'emprisonnement et I'etouffement des enfants ne
sont pas un probleme du pass& Les refrig6rateurs jetes ou
abandonnes sont encore dangereux, m_me s'ils sont laisses
abandonnes pendant "quelques jours seulement". Si vous vous
debarrassez de votre vieux refrig6rateur, veuillez suivre les
instructions suivantes pour aider &eviter les accidents.
Avant de jeter votre vieux r_frig_rateur ou cong_lateur :
• Enlever les portes.
• Laisser les tablettes en place de sorte que les enfants ne
puissent pas y pen6trer facilement.
Renseignements importants apropos de la raise au
rebut des fluides r_frig_rants :
Mettre le r_frig6rateur au rebut conform6ment & la
r_glementation f_d_rale et locale. Les fluides r6frig6rants
doivent _tre @acu6s par un technicien licenci6 et certifi6 par
I'EPA conform6ment aux procedures 6tablies.
# #
UTILISATIONDUREFRIGERATEUR
Sur certains modeles, le sachet d'accessoires du refrig6rateur 1. Retirer le filtre & air de son emballage.
comprend un filtre £ air qui doit 8tre installe avant d'utiliser le 2. Ouvrir la porte avec aerations en la soulevant.
refrig6rateur. Sur certains modeles, le filtre a air est preinstall6
I'usine. 3. Emboiter le filtre pour le mettre en place.
Installation du t_moin de statut de filtre (sur certains modules)
Le filtre comporte un temoin de statut qui doit _tre active et
installe en m_me temps que le filtre a air.
Le filtre &air reduit I'accumulation d'odeurs. Ceci aide &maintenir
un environnement plus propre a I'interieur du refrigerateur.
Installation du filtre a air (sur certains modules)
Le filtre doit _tre installe derriere la porte & aerations, situ_e (selon
le modele) le long de la paroi interieure gauche ou arriere,
proximite du sommet du compartiment de refrigeration.
1. Placer le temoin oriente vers le bas sur une surface ferme et
plane.
2. Appliquer une pression sur la bulle situ_e & I'arriere du temoin
jusqu'& ce que la bulle eclate - ceci active le temoin.
3. Ouvrir la porte du filtre & air avec aerations en la soulevant.
Sur certains modeles, I'arriere de la porte comporte des
encoches.
15

4. ModUles avec encoches :
• Faire glisser le temoin vers le bas, dans les encoches, en
I'orientant vers I'exterieur.
REMARQUE : Le temoin ne glissera pas facilement dans
les encoches si la bulle arriere n'a pas eclat&
Fermer la porte du filtre &air et verifier que le temoin est
visible & travers le trou rectangulaire de la porte.
ModUles sans encoches :
Conserver le temoin dans un endroit visible dont
I'utilisateur se souviendra facilement - soit & I'interieur du
refrig6rateur, soit dans un autre endroit de la cuisine ou du
domicile.
Remplacement du filtre a air
Le filtre & air jetable doit _tre remplace tousles 6 mois, Iorsque le
temoin de statut est entierement passe du blanc au rouge.
Pour commander un filtre & air de rechange, voir "Accessoires".
1. Retirer I'ancien filtre &air en serrant les onglets lateraux.
2. Retirer I'ancien temoin de statut.
3. Installer le filtre & air et le temoin de statut neufs & I'aide des
instructions des sections prec6dentes.
Sur certains modeles, le sachet d'accessoires du refrig6rateur
comprend un sachet de conservation pour produits frais, qui doit
_tre installe avant d'utiliser le refrig6rateur. Sur certains modeles,
le sachet de conservation pour produits frais est preinstall6 &
I'usine.
Le sachet de conservation pour produits frais absorbe I'ethylene,
permettant ainsi un ralentissement du processus de maturation
de nombreux produits frais. Ainsi, la fraicheur de certains produits
frais est prolongee.
Installation du sachet de conservation pour produits frais
(sur certains modules)
ATTENTION :IRRITANT
PEUT IRRITER LES YEUX ET LA PEAU. DI_GAGE DES
12MANATIONS DANGEREUSES LORSQUE MI2LANGI 2
AVEC D'AUTRES PRODUITS.
Ne pas m_langer avec d'autres agents de nettoyage tels
que I'ammoniaque, un agent de blanchiment ou des
acides. Eviter tout contact avec les yeux, la peau ou les
v6tements. Ne pas respirer les poussi_res. Tenir hors de la
port_e des enfants.
PREMIERS SOINS : Contient du permanganate de
potassium. En cas d'ingestion, appeler imm_diatement un
centre antipoison ou un m_decin. Ne pas provoquer le
vomissement. En cas de contact avec les yeux, rincer avec
de I'eau pendant 15 minutes. En cas de contact avec la
peau, bien rincer avec de I'eau.
Les sachets de conservation pour produits frais doivent _tre
installes dans leur Iogement, situ6 le long d'une paroi laterale
interne du bac & legumes ou du tiroir convertible.
REMARQUE : Pour une performance ideale, toujours utiliser les
deux sachets.
1. Retirer les sachets de conservation pour produits frais de leur
emballage.
FreshFlow
produce preserver
CAUTION ATTENTION
2. Soulever le Iogement pour I'extraire de la languette de
montage le long de la paroi.
3. Ouvrir le Iogement en soulevant I'arriere du sommet du
Iogement pour I'extraire.
4. Placer les deux sachets & I'interieur du Iogement puis
emboiter les deux parties du Iogement pour le refermer.
5. Reinstaller le Iogement sur la languette de montage le long de
la paroi.
Installation du t_moin lumineux (sur certains modules)
Le sachet de conservation pour produits frais comporte un temoin
lumineux qui doit _tre active et installe en m_me temps que le
sachet.
1. Orienter le temoin vers le bas en le pla£;ant sur une surface
ferme et plane.
2. Appliquer une pression sur la bulle situ6e & I'arriere du temoin
jusqu'& ce que la bulle eclate - ceci active le temoin.
3. Ouvrir le couvercle du Iogement du sachet de conservation
pour produits frais.
16

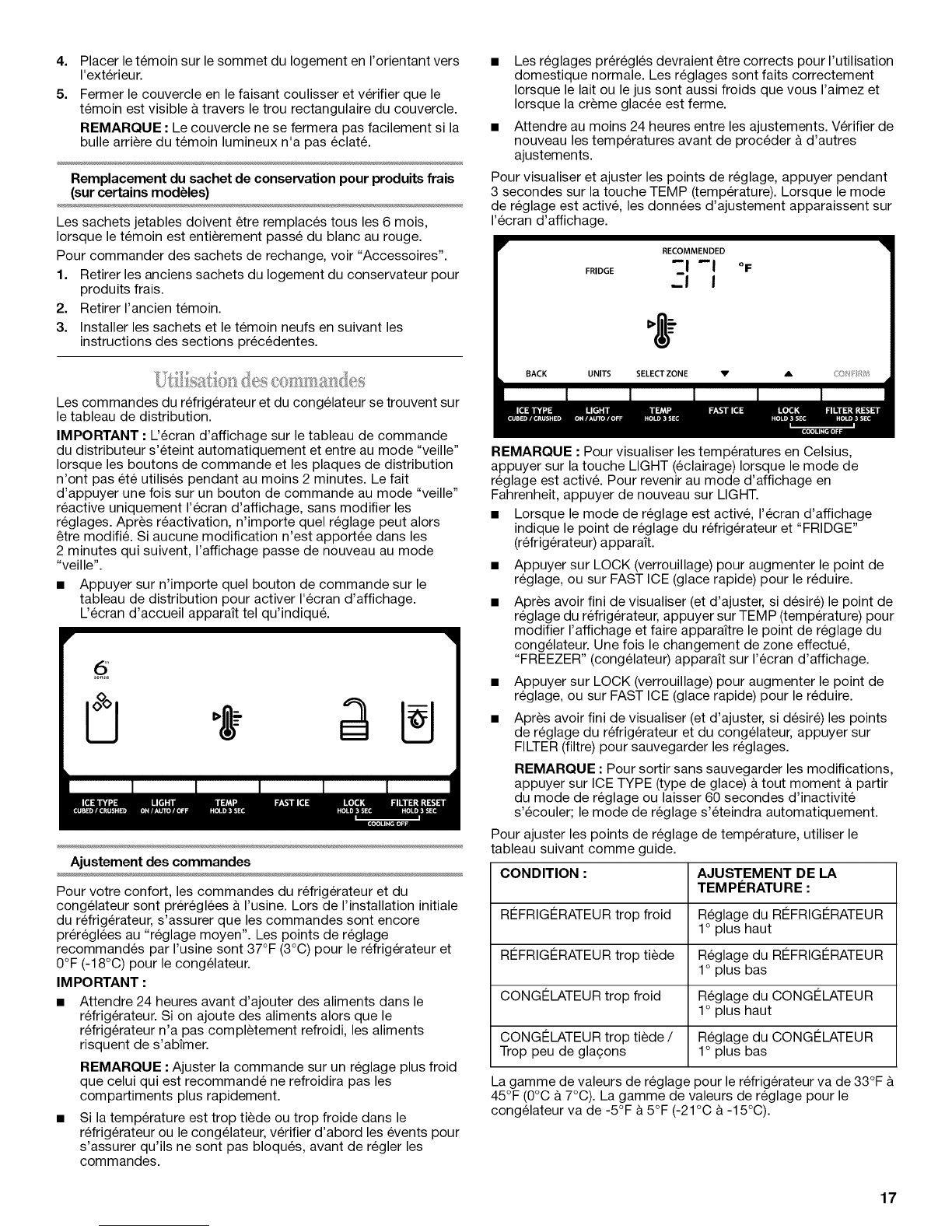

4=
5.
Placer le temoin sur le sommet du Iogement en I'orientant vers
I'exterieur.
Fermer le couvercle en le faisant coulisser et verifier que le
temoin est visible & travers le trou rectangulaire du couvercle.
REMARQUE •Le couvercle ne se fermera pas facilement si la
bulle arriere du temoin lumineux n'a pas eclat6.
Remplacement du sachet de conservation pour produits frais
(sur certains modules)
Les sachets jetables doivent etre remplaces tousles 6 mois,
Iorsque le temoin est entierement passe du blanc au rouge.
Pour commander des sachets de rechange, voir "Accessoires".
1. Retirer les anciens sachets du Iogement du conservateur pour
produits frais.
2. Retirer I'ancien temoin.
3. Installer les sachets et le temoin neufs en suivant les
instructions des sections precedentes.
_,,,_ ,, _,_o _-_ _, _ ,_ ,4 _ , ,_ x_, _r¸ _ _, _
Les commandes du refrigerateur et du congelateur se trouvent sur
le tableau de distribution.
IMPORTANT : Uecran d'affichage sur le tableau de commande
du distributeur s'eteint automatiquement et entre au mode "veille"
Iorsque les boutons de commande et les plaques de distribution
n'ont pas ete utilises pendant au moins 2 minutes. Le fait
d'appuyer une fois sur un bouton de commande au mode "veille"
reactive uniquement I'ecran d'affichage, sans modifier les
reglages. Apres reactivation, n'importe quel reglage peut alors
etre modifie. Si aucune modification n'est apportee dans les
2 minutes qui suivent, I'affichage passe de nouveau au mode
"veille".
• Appuyer sur n'importe quel bouton de commande sur le
tableau de distribution pour activer I'ecran d'affichage.
L'ecran d'accueil apparait tel qu'indique.
Ajustement des commandes
Pour votre confort, les commandes du refrigerateur et du
congelateur sont prereglees a I'usine. Lors de I'installation initiale
du refrigerateur, s'assurer que les commandes sont encore
prereglees au "reglage moyen". Les points de reglage
recommandes par I'usine sont 37°F (3°C) pour le refrigerateur et
0°F (-18°C) pour le congelateur.
IMPORTANT :
Attendre 24 heures avant d'ajouter des aliments dans le
refrigerateur. Si on ajoute des aliments alors que le
refrigerateur n'a pas completement refroidi, les aliments
risquent de s'abimer.
REMARQUE :Ajuster la commande sur un reglage plus froid
que celui qui est recommande ne refroidira pas les
compartiments plus rapidement.
Si latemperature est trop tiede ou trop froide dans le
refrigerateur ou le congelateur, verifier d'abord les events pour
s'assurer qu'ils ne sont pas bloques, avant de regler les
commandes.
Les reglages preregles devraient etre corrects pour I'utilisation
domestique normale. Les reglages sont faits correctement
Iorsque le lait ou le jus sont aussi froids que vous I'aimez et
Iorsque la creme glacee est ferme.
Attendre au moins 24 heures entre les ajustements. Verifier de
nouveau les temperatures avant de proceder a d'autres
ajustements.
Pour visualiser et ajuster les points de reglage, appuyer pendant
3 secondes sur la touche TEMP (temperature). Lorsque le mode
de reglage est active, les donnees d'ajustement apparaissent sur
I'ecran d'affichage.
RECOMMENDED
_,O_E --I --I o_
-I I
BACK UNITS SELECT ZONE _1_ A {} }_ l: _M
REMARQUE : Pour visualiser les temperatures en Celsius,
appuyer sur la touche LIGHT (eclairage) Iorsque le mode de
reglage est active. Pour revenir au mode d'affichage en
Fahrenheit, appuyer de nouveau sur LIGHT.
• Lorsque le mode de reglage est active, I'ecran d'affichage
indique le point de reglage du refrigerateur et "FRIDGE"
(refrigerateur) apparait.
Appuyer sur LOCK (verrouillage) pour augmenter le point de
reglage, ou sur FAST ICE (glace rapide) pour le reduire.
Apr_s avoir fini de visualiser (et d'ajuster, si desire) le point de
reglage du refrigerateur, appuyer sur TEMP (temperature) pour
modifier I'affichage et faire apparaitre le point de reglage du
congelateur. Une fois le changement de zone effectue,
"FREEZER" (congelateur) apparait sur I'ecran d'affichage.
Appuyer sur LOCK (verrouillage) pour augmenter le point de
reglage, ou sur FAST ICE (glace rapide) pour le reduire.
Apr_s avoir fini de visualiser (et d'ajuster, si desire) les points
de reglage du refrigerateur et du congelateur, appuyer sur
FILTER (filtre) pour sauvegarder les reglages.
REMARQUE : Pour sortir sans sauvegarder les modifications,
appuyer sur ICE TYPE (type de glace) a tout moment a partir
du mode de reglage ou laisser 60 secondes d'inactivite
s'ecouler; le mode de reglage s'eteindra automatiquement.
Pour ajuster les points de reglage de temperature, utiliser le
tableau suivant comme guide.
CONDITION : AJUSTEMENT DE LA
TEMPI_RATURE :
RI2FRIGI2RATEUR trop froid Reglage du RI2FRIGI2RATEUR
1° plus haut
RI2FRIGI2RATEUR trop tiede Reglage du RI2FRIGI2RATEUR
1° plus bas
CONGI2LATEUR trop froid Reglage du CONGI2LATEUR
1° plus haut
CONGI2LATEUR trop tiede /Reglage du CONGI2LATEUR
Trop peu de glagons 1° plus bas
La gamme de valeurs de reglage pour le refrigerateur va de 33°F
45°F (0°C a 7°C). La gamme de valeurs de reglage pour le
congelateur va de -5°F &5°F (-21°C a -15°C).
17

Refroidissement On/Off (marche/arr_t)
Nile refrig6rateur, nile congelateur ne refroidiront Iorsque le
refroidissement est desactiv&
• Pour desactiver le refroidissement, appuyer simultanement
sur les boutons LOCK (verrouillage) et FILTER (filtre) pendant
3 secondes.
IMPORTANT :Afin d'eviter de verrouiller le distributeur ou de
modifier des reglages involontairement, veiller & appuyer sur
les deux boutons exactement au m_me moment.
Lorsque le refroidissement est desactiv6, "COOLING OFF"
(refroidissement desactiv6) apparait sur I'ecran d'affichage.
Appuyer de nouveau pendant 3 secondes sur LOCK
(verrouillage) et FILTER (filtre) pour reactiver le refroidissement.
Caract_ristiques suppl6mentaires
Fast Ice (glace rapide)
La caracteristique Fast Ice est utile Iors de periodes temporaires
d'utilisation intense de gla£;ons en augmentant la production de
gla¢ons sur une periode de 24 heures.
IMPORTANT : Cette caracteristique ne fonctionne que si la
machine &gla(_ons est en marche. Voir "Machine a gla¢ons et bac
d'entreposage".
• Appuyer sur la touche FAST ICE pour activer la caracteristique
de glace rapide. Lorsque cette caracteristique est activee,
I'ic6ne "Fast Ice" apparaYt sur I'ecran d'affichage du
distributeur. Le reglage Fast Ice demeure active pendant
24 heures & moins d'etre annule manuellement.
%
Pour desactiver manuellement la caracteristique Fast Ice,
appuyer de nouveau sur FAST ICE ou ajuster le point de
reglage de temperature du congelateur. L'ic6ne Fast Ice
disparait Iorsque cette caracteristique est desactiv6e.
REMARQUE : Si I'on desire une production accrue de gla¢ons en
permanence, placer le point de reglage du congelateur &un
reglage inferieur. Le reglage du congelateur a une temperature
plus froide peut rendre certains aliments, comme la creme glacee,
plus durs.
Gestion de la temperature 6th Sense TM
La caracteristique 6th Sense TM aide &reguler la temperature &
I'interieur du refrigerateur. Si une grande quantite d'aliments
tiedes est placee dans le refrigerateur ou que de I'air tiede penetre
dans le refrig6rateur alors que la porte est maintenue ouverte, le
systeme 6th Sense TM est active pour retablir rapidement la
temperature a la valeur de reglage.
6
sense
REMARQUE : Le systeme 6th Sense TM est toujours active
Iorsque le refrig6rateur fonctionne. II n'est pas necessaire
d'appuyer sur un quelconque bouton pour I'activer. L'ic6ne
6th Sense TM sur I'ecran d'affichage du distributeur indique que
cette fonction est operationnelle.
Alarme de porte entrouverte
La caracteristique d'alarme de porte entrouverte fait entendre un
signal d'alarme Iorsque la porte du refrigerateur ou du congelateur
est ouverte pendant 5 minutes et que le systeme de
refroidissement fonctionne. L'alarme retentira toutes les
2 minutes. Fermer les deux portes pour I'arr_ter. La
caracteristique se reinitialise ensuite et se reactive si I'une des
deux portes est de nouveau laissee ouverte pendant 5 minutes.
REMARQUE :Pour que I'alarme sonore cesse de retentir tout en
gardant les portes ouvertes, comme Iors du nettoyage de
I'interieur du refrigerateur, appuyer sur n'importe quel bouton sur
le tableau de commande. Le son de I'alarme sera temporairement
supprime, mais I'ic6ne de porte entrouverte restera affichee sur le
tableau de commande du distributeur.
%
levaporateur double (sur certains modules)
Certains modeles sont equipes d'un double systeme
d'evaporation sequentiel, compose de deux evaporateurs
distincts pour les compartiments de refrigeration et de
congelation.
La double evaporation engendre un taux d'humidite superieur, qui
contribue a ralentir la deterioration des aliments dans le
refrigerateur eta ameliorer leur qualite et leur fraicheur dans le
congelateur en raison d'une brQlure de congelation moins vive.
En outre, le double systeme d'evaporation contribue a eviter que
les odeurs de nourriture presentes dans le refrigerateur ne se
transferent a la glace du congelateur.
REMARQUE :Le double systeme d'evaporation est toujours
active Iorsque le refrigerateur fonctionne. IIn'est pas necessaire
d'appuyer sur un quelconque bouton pour I'activer.
La commande peut _tre ajustee pour un refroidissement
approprie des viandes ou des legumes. L'air & I'interieur du
contenant est refroidi pour eviter les "petits espaces" de
congelation et peut _tre regle pour garder les viandes aux
temperatures de conservation de 28° &32°F (de -2° a 0°C)
recommandees par I'Office national du betail et des viandes.
Conservation de la viande :
Regler la commande sur I'un des trois reglages MEAT (viande)
pour conserver la viande a sa temperature de conservation
optimale.
Conservation des I_gumes :
Regler la commande &VEG (legumes) pour conserver les legumes
& leurs temperatures de conservation optimales.
REMARQUE :Si les aliments commencent & geler, deplacer la
commande vers la droite (moins froid) en I'orientant vers le
reglage VEG (legumes). Ne pas oublier d'attendre 24 heures entre
les ajustements.
On peut contr61er le degre d'humidite dans le bac & legumes
etanche. La commande peut _tre ajustee a n'importe quel reglage
entre LOW et HIGH.
LOW/bas (ouvert) pour une meilleure conservation des fruits et
legumes & pelures.
HIGH/haut (ferme) pour une meilleure conservation des legumes &
feuilles frais.
18

De I'air froid du congelateur passe directement dans le
compartiment de la porte du refrig6rateur situ6 sous les events.
REMARQUE : Le compartiment & produits laitiers et le porte-
canettes ne sont pas associes & la caracteristique Compartiment
fraicheur dans la porte.
Commande du compartiment fraicheur dans la porte
La commande du compartiment fra_cheur se trouve sur le c6te
gauche du compartiment de refrig6ration.
A_-
A. Commande du compartiment fraTcheur dans la porte
Deplacer le bouton de commande du compartiment fraicheur
vers la gauche pour reduire la circulation d'air froid dans le
compartiment et le rendre ainsi moins froid.
Deplacer le bouton de commande du compartiment fraicheur
vers la droite pour augmenter la circulation d'air froid dans le
compartiment et le rendre ainsi plus froid.
IMPORTANT: Apres avoir raccord6 le r6frig6rateur & une source
d'alimentation en eau ou remplace le filtre & eau, vidanger le
circuit d'eau. Utiliser un recipient robuste pour appuyer sur la
plaque du distributeur d'eau pendant 5 secondes, puis rel&cher la
plaque pendant 5 secondes. Rep6ter I'operation jusqu'& ce que
I'eau commence & couler. Une fois que I'eau commence a couler,
continuer d'appuyer puis de rel&cher la plaque du distributeur
(appui pendant 5 secondes, rel&chement pendant 5 secondes)
jusqu'& ce qu'un total de 3 gal. (12 L) soit distribu& Ceci evacue
I'air du filtre et du systeme de distribution d'eau et prepare le filtre
&eau pour utilisation. Une vidange supplementaire peut _tre
necessaire dans certains domiciles. Pendant I'evacuation de I'air
du systeme, de I'eau peut gicler du distributeur.
REMARQUES :
•Le systeme de distribution ne fonctionne pas Iorsque la porte
du congelateur est ouverte.
•Accorder 24 heures pour que le refrigerateur se refroidisse et
refroidisse I'eau.
Accorder 24 heures pour produire la premiere quantite de
glagons. Jeter les trois premieres quantites de glagons
produites. Attendre 72 heures pour une production complete
de glagons.
Uecran d'affichage sur le tableau de commande du
distributeur s'eteint automatiquement et entre au mode
"veille" Iorsque les boutons de commande et les plaques de
distribution n'ont pas ete utilises pendant au moins 2 minutes.
Le fait d'appuyer une fois sur un bouton de commande au
mode "veille" reactive uniquement I'ecran d'affichage, sans
modifier les reglages. Apres reactivation, n'importe quel
reglage peut alors _tre modifi& Si aucune modification n'est
apportee dans les 2 minutes qui suivent, I'affichage passe de
nouveau au mode "veille".
Le distributeur d'eau
IMPORTANT :
•Distribuer au moins 1 pte (1 L) d'eau chaque semaine pour
maintenir un approvisionnement en eau fraiche.
•Si le debit en provenance du distributeur diminue, cela peut
_tre dQ& une faible pression en eau.
Avec le filtre a eau retire, verser I'equivalent d'une (1)tasse
d'eau. Si I'equivalent d'une (1) tasse d'eau est distribu_ en
8 secondes ou moins, cela signifie que la pression en eau
alimentant le refrigerateur repond au critere minimal.
S'il faut plus de 8 secondes a la machine pour distribuer
I'equivalent d'une (1)tasse d'eau, cela signifie que la
pression en eau alimentant le refrigerateur est inferieure au
niveau recommand& Voir "Specifications de I'alimentation
en eau" ou "Depannage" pour des suggestions sur la
marche asuivre.
Distribution d'eau :
1. Appuyer un verre robuste contre la plaque du distributeur
d'eau.
2. Retirer le verre pour arr_ter la distribution.
Le distributeur de gla_ons
La glace tombe du bac d'entreposage de la machine &glagons
dans le congelateur Iorsqu'on appuie sur la plaque du distributeur.
Pour eteindre la machine a glagons, voir "Machine a glagons et
bac d'entreposage".
La machine & gla(_ons peut produire a la fois de la glace
concassee et des glagons. Avant toute distribution de glace,
selectionner le type de glace prefere avec le bouton ICE TYPE
(type de glace).
Uecran d'affichage indique le type de glace selectionn&
U @
CRUSHED CUBED
(Glaceconcass_e) (Glagons)
Pour de la glace concassee, les glagons sont concasses avant
d'etre distribu_s. Cette action peut causer un court delai Iors de la
distribution de glace concassee. Le bruit du broyeur de glagons
est normal et la dimension des morceaux de glace peut varier.
Lorsqu'on passe du mode glace concassee au mode glagons,
quelques onces de glace concassee sont distributes avec les
premiers glagons.
19

Distribution de glace :
1. S'assurer que le type de glagons desir6 est bien selectionn&
Pour passer de glagons a glace concassee, appuyer sur
ICE TYPE (type de glace).
Risque de coupure
Utiliser un verre robuste pour prendre des gJagons.
Le non=respect de cette instruction peut causer
des coupures.
2=
3=
Appuyer un verre robuste contre la plaque de distribution de
glagons. Tenir le verre pres de I'ouverture du distributeur pour
que les gla(;ons ne tombent pas &c6te du verre.
IMPORTANT :IIn'est pas necessaire d'exercer une pression
importante sur la plaque pour activer le distributeur de
glagons. Une pression forte ne donne pas une distribution
plus rapide de glagons ou des quantites plus grandes.
Retirer le verre pour arr_ter la distribution.
REMARQUE :La distribution de glagons peut se poursuivre
jusqu'& quelques secondes apres que le verre a et6 eloign6 de
la plaque. Le distributeur peut continuer a faire du bruit
pendant quelques secondes apres la distribution.
La lampe du distributeur
Lorsqu'on utilise le distributeur, la lampe s'allume
automatiquement. Pour avoir la lumiere allumee en permanence,
selectionner ON ou DIM. L'ecran d'affichage indique le mode
selectionn& [email protected]_;©.-_
ON DIM
(Marche) (FaibleluminositY)
ON (marche) :Appuyer sur LIGHT (lumiere) pour allumer la lampe
du distributeur.
DIM (faible luminositY) : Appuyer sur LIGHT une deuxieme fois
pour selectionner le mode DIM. La lampe du distributeur restera
allumee, mais a une intensite plus faible.
OFF (arr#_t) :Appuyer sur LIGHT une troisieme fois pour eteindre
la lampe du distributeur.
Les lampes du distributeur sont des DEL qui ne peuvent pas _tre
remplacees. Si les lampes du distributeur ne fonctionnent pas,
voir la section "Depannage" pour plus d'informations.
Le verrouillage du distributeur
Le distributeur peut _tre verrouille pour un nettoyage facile ou
pour eviter la distribution involontaire par de jeunes enfants ou
des animaux de compagnie.
REMARQUE :La caracteristique de verrouillage ne coupe pas le
courant electrique au refrig6rateur, & la machine & gla(;ons ou & la
lumiere du distributeur. Cela desactive tout simplement les
commandes et les plaques du distributeur. Pour eteindre la
machine &gla(;ons, voir "Machine a glagons et bac
d'entreposage".
• Appuyer sur LOCK pendant 3 secondes pour verrouiller le
distributeur.
• Appuyer a nouveau sur LOCK pour deverrouiller le
distributeur.
L'ecran d'affichage indique si le distributeur est verrouill&
LOCKED
(Verrouill_) UNLOCKED (D_verrouill_)
b,
Accorder 24 heures pour produire la premiere quantite de
glagons. Jeter les trois premieres quantites de glagons
produites.
La qualite de vos glagons depend de la qualite de I'eau fournie
&votre machine &gla(;ons. Eviter de brancher la machine &
glagons & un approvisionnement d'eau adoucie. Les produits
chimiques adoucisseurs d'eau (tels que le sel) peuvent
endommager des pieces de la machine & glagons et causer
une pietre qualite des glagons. Si une alimentation d'eau
adoucie ne peut pas _tre evit6e, s'assurer que I'adoucisseur
d'eau fonctionne bien et qu'il est bien entretenu.
Ne pas utiliser un objet pointu pour briser les glagons dans le
bac. Cette action peut endommager le bac et le mecanisme
du distributeur.
• Ne pas garder quoi que ce soit sur le dessus ou dans la
machine a glagons ou dans le bac &glagons.
Style I
Mise en marche/arr6t de la machine &glagons :
On ne peut acceder au commutateur marche/arr_t qu'une fois le
bac d'entreposage & gla(;ons retir& Le commutateur se trouve sur
la porte du congelateur, du c6te gauche de la paroi entourant le
bac d'entreposage & glagons. Voir la section suivante pour des
instructions sur le retrait du bac.
On Off
Ice Maker Control
• Pour mettre en marche la machine & glagons, glisser le
commutateur vers la position ON (vers la gauche).
• Pour arr_ter manuellement la machine & glagons, glisser le
commutateur vers la position OFF (vers la droite).
REMARQUE : La machine & glagons comporte un systeme
d'arr_t automatique pour eviter le debordement du bac
d'entreposage dans les conditions normales de fonctionnement.
Le detecteur de la machine &glagons arr_tera automatiquement
la production de gla(;ons mais le commutateur restera en position
ON (vers la gauche).
20
