Whirlpool 6AWTW5700X User manual

220–240V 50 Hz WASHER INSTALLATION INSTRUCTIONS
Table of Contents
WASHER SAFETY ..............................................................2
WASHER DISPOSAL..........................................................2
INSTALLATION REQUIREMENTS.....................................3
Tools and Parts..................................................................... 3
Location Requirements ....................................................... 3
Drain System ........................................................................ 4
Electrical Requirements ...................................................... 5
INSTALLATION INSTRUCTIONS.......................................5
Before you start: remove shipping materials .................... 5
Connect Drain Hose............................................................. 6
Connect Inlet Hoses............................................................. 7
Level Washer ........................................................................ 8
Complete Installation Checklist.......................................... 9
W10045638A
INSTALLATION NOTES
Date of purchase:_________________________________________
Date of installation: _______________________________________
Installer: _________________________________________________
Model number: ___________________________________________
Serial number:____________________________________________
Models
6AWTW5700X
6AWTW5550X

2
WASHER SAFETY
WASHER DISPOSAL

3
Optional tools:
Parts supplied:
NOTE: All parts supplied for installation are in
cardboard insert in the top of the washer.
LOCATION REQUIREMENTS
Select proper location for your washer to improve performance
and minimize noise and possible “washer walk.” Install your
washer in a basement, laundry room, closet, or recessed area.
1067 mm
(42")
686 mm
(27")
699 mm
(271/2")
Technical Specications
Your installation may require additional parts. For information on
ordering, contact your dealer.
n 8212656RP 3.0 m (10 ft.) Inlet hose, Black EPDM (2 pack)
n 8212641RP 1.5 m (5 ft.) Inlet hose, Black EPDM (2 pack)
n 8212646RP 1.2 m (4 ft.) Inlet hose, Black EPDM (2 pack)
n 8212545RP 1.5 m (5 ft.) Inlet hose, Red and Blue EPDM
(2 pack)
n 8212487RP 1.5 m (5 ft.) Nylon braided inlet hose (2 pack)
n 8212638RP 1.8 m (6 ft.) Nylon braided inlet hose, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
n 8212637RP 1.8 m (6 ft.) Inlet hose, Black EPDM, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
Alternate parts: (Not supplied with washer)
Your installation may require additional parts. For information on
ordering, contact your dealer.
If you have: You will need:
Overhead sewer Standard 76 L (20 gal.) 990 mm (39")
tall drain tub or utility sink, sump
pump, and connectors (available
from local plumbing suppliers)
25 mm (1") standpipe 51 mm (2") diameter to 25 mm (1")
diameter Standpipe Adapter
Part Number 3363920
Connector Kit Part Number 285835
Drain hose too short Extension Drain Hose Part
Number 285863
Connector Kit Part Number 285835
Lint clogged drain Drain Protector Part Number 367031
Connector Kit Part Number 285835
INSTALLATION REQUIREMENTS
Tools and Parts
Gather required tools and parts before starting installation.
102 mm
min
(4")
Wood block
Adjustable or open-end
wrench 14 mm (9/16")
Ruler or measuring tape
Level
Water inlet hose (2)
Pliers that open to 39.5 mm (19⁄16")
Flashlight Bucket
Beaded tie strap Drain hose with clamp
Tools needed:
220–240 V
~50 Hz. AC
IP24
Clothes Capacity
6AWTW5550: 8.0 Kg Max.
6AWTW5700: 8.0 Kg Max.
A Large flat washer (4)
B Inlet hose adapter (2)
C Small flat washer (2)
ABC

4
You will need:
n A water heater set to 60° C (140° F).
n An earthed electrical outlet located within 1.2 m (4 ft) of power
cord on back of washer.
n Hot and cold water faucets located within 0.9 m (3 ft) of
hot and cold water ll valves on washer, and water pressure
of 138–690 kPa (20–100 psi).
n A level oor with maximum slope of 25 mm (1") under entire
washer. Installing on carpet is not recommended.
n Floor must support washer’s total weight (with water and load)
of 143 kgs (315 lbs).
IMPORTANT: Do not install, store, or operate washer where it will
be exposed to weather or in temperatures below 0° C (32° F).
Water remaining in washer after use may cause damage in low
temperatures. See “Washer Care” in your “Use and Care Guide”
for winterizing information.
Proper installation is your responsibility.
Recessed area or closet installation
Dimensions show recommended spacing allowed, except for
closet door ventilation openings which are minimum required.
This washer has been tested for installation with spacing of
0 mm (0") clearance on the sides. Consider allowing more space
for ease of installation and servicing, and spacing for companion
appliances and clearances for walls, doors, and oor moldings.
Add spacing of 25 mm (1") on all sides of washer to reduce
noise transfer. If a closet door or louvered door is installed,
top and bottom air openings in door are required.
76 mm
(3")
76 mm
(3")
155 cm2
(24 in.2)
310 cm2
(48 in.2)
432 mm
(17")
25 mm
(1")
25 mm
(1")
126 mm
(5")
356 mm
max.
(14")
DRAIN SYSTEM
Drain system can be installed using a oor drain, wall standpipe,
oor standpipe, or laundry tub. Select method you need.
Minimum diameter for a standpipe drain: 51 mm (2"). Minimum
carry-away capacity: 64 L (17 gal.) per minute. Top of standpipe
must be at least 990 mm (39") high; install no higher than 2.44 m
(96") from bottom of washer. If you must install higher than
2.44 m (96"), you will need a sump pump system.
Wall standpipe drain system
Laundry tub drain system
Minimum capacity: 76 L (20 gal.). Top of laundry tub must be at
least 990 mm (39") above oor; install no higher than 2.44 m (96")
from bottom of washer.
IMPORTANT: To avoid siphoning, no more than 114 mm (4.5")
of drain hose should be inside standpipe or below the top of
wash tub. Secure drain hose with beaded tie strap.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285385), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. To order, contact your dealer.
Minimum siphon break: 710 mm (28") from bottom of washer.
(Additional hoses may be needed.)
Floor standpipe drain system
See requirements for oor standpipe drain system.

5
ELECTRICAL REQUIREMENTS
EARTHING INSTRUCTIONS
This washer must be earthed. In the event of a malfunction
or breakdown, earthing will reduce the risk of electric
shock by providing a path of least resistance for electric
current. This washer is equipped with a cord having an
equipment-earthing conductor and an earthing plug. The
plug must be plugged into an appropriate outlet that is
properly installed and earthed in accordance with all local
codes and ordinances.
WARNING: Improper connection of the equipment-
earthing conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly earthed.
Do not modify the plug provided with the appliance – if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
n
A 230 volt, 50 Hz., AC only, 10-amp, fused electrical supply is
required. A time-delay fuse or circuit breaker is recommended.
It is recommended that a separate circuit breaker serving only
this appliance be provided.
nThis washer is equipped with a power supply cord having
an earthing plug. The plug should be accessible for
disconnection from the supply.
nTo minimize possible shock hazard, the cord must be plugged
into a mating, earthing-type outlet, earthed in accordance with
local codes and ordinances. If a mating outlet is not available,
it is the personal responsibility and obligation of the customer
to have the properly earthed outlet installed by a qualied
electrician.
nIf codes permit and a separate earth wire is used, it is
recommended that a qualied electrician determine that the
earth path is adequate.
nDo not earth to a gas pipe.
nCheck with a qualied electrician if you are not sure the washer
is properly earthed.
nDo not have a fuse in the neutral or earth circuit.
nWhen in the installed position the mains plug must be
accessible for disconnection.
NOTE: In accordance with the European EMC Directive
(2004/108/EC), the maximum electricity supply system
impedance to which the electric washer should be connected
is declared to be 0.231 + j0.144 ohms.
INSTALLATION INSTRUCTIONS

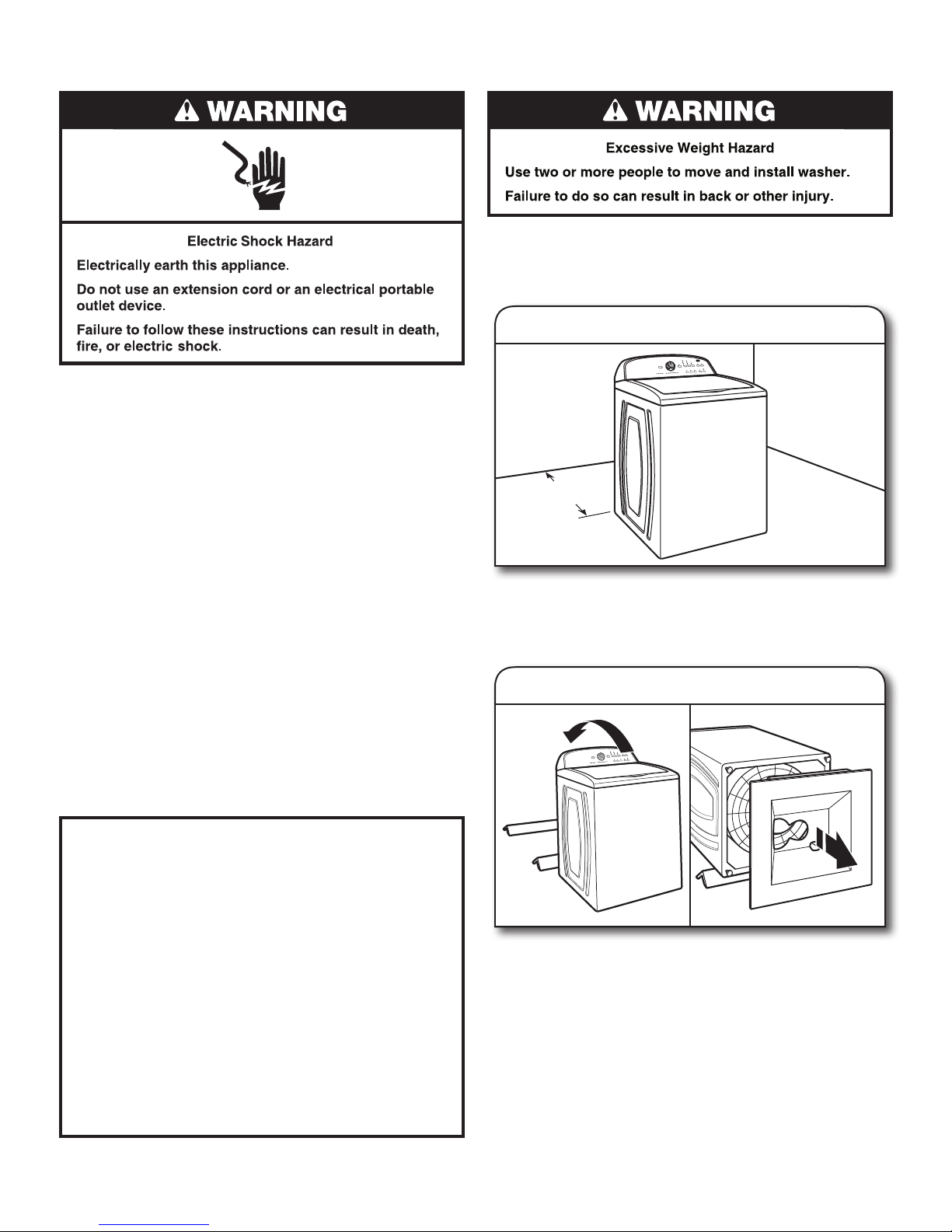

Before you start: remove shipping materials
It is necessary to remove all shipping materials for proper
operation and to avoid excessive noise from washer.
Move washer to within 1.2 m (4 ft) of its nal location; it must
be in a fully upright position.
NOTE: To avoid oor damage, set washer onto cardboard
before moving it and make sure lid is taped shut.
To avoid damaging oor, place cardboard supports from
shipping carton on oor behind washer. Tip washer back
and place on cardboard supports. Remove shipping base.
Set washer upright.
IMPORTANT: Removing shipping base is necessary for proper
operation. If your washer includes a sound shield, please refer
to the instructions included with the sound shield to install it at
this time.
1. Move washer
1.2 m
(48")
2. Remove shipping base

6
Remove tape from washer lid, open lid and remove cardboard
packing tray from tub. Be sure to remove all parts from tray.
NOTE: Keep tray in case you need to move washer later.
Firmly grasp power cord plug and pull to free from rear panel.
Gently place power cord over console to allow free access
to back of washer.
CONNECT DRAIN HOSE
If clamp is not already in place on elbow end of drain hose,
slide it over end as shown. Squeeze clamp with pliers and
slide black elbow end of drain hose onto black drain port
and secure with clamp.
For a laundry tub or standpipe drain, go to step 6.
For a oor drain, remove the preinstalled drain hose form as
shown in Step 7. You may need additional parts with separate
directions. See “Tools and Parts.”
Place hose into standpipe (shown in picture) or over side of
laundry tub.
IMPORTANT: 114 mm (4.5") of drain hose should be inside
standpipe; do not force excess hose into standpipe or lay on
bottom of laundry tub. Drain hose form must be used.
3. Remove packing tray from tub
4. Free power cord
5. Attach drain hose to drain port
6. Place drain hose in standpipe
114 mm
(4.5")
Drain
hose form
For oor drain installations, you will need to remove the drain
hose form from the end of the drain hose. You may need
additional parts with separate directions. See “Tools and Parts.”
7. Remove drain hose form
(oor drain installations only)

7
Run water for a few seconds through hoses into a laundry tub,
drainpipe, or bucket to prevent clogs. Water should run until clear.
Attach hot water hose to hot water inlet valve marked with a
red ring. Screw coupling by hand until it is snug. Use pliers to
tighten couplings an additional two-thirds turn. Repeat with
cold water inlet valve.
IMPORTANT: To reduce risk of hose failure, replace the hoses
every 5 years. Record hose installation or replacement dates
for future reference.
nPeriodically inspect and replace hoses if bulges, kinks, cuts,
wear, or leaks are found.
Turn on water taps to check for leaks. A small amount of
water may enter washer. It will drain later.
CONNECT INLET HOSES
The new inlet hoses supplied with this washer must be used.
Do not re-use old inlet hoses.
NOTE: Both hoses must be attached and have water owing
to inlet valves. If you are only connecting to a cold water
tap, you must use a Y-adapter (not provided).
Attach the end of the hose with the adapter, labeled hot, to
the hot water tap. Screw on coupling by hand until it is seated
on washer. Use pliers to tighten couplings an additional two-
thirds turn. Repeat this step with second hose for cold water
tap.
IMPORTANT: Do not overtighten or use tape or sealants on
valve when attaching to taps or washer. Damage can result.
HELPFUL TIP: Make note of which hose is connected to hot
water to help in attaching hoses to washer correctly. In most
standard congurations, hoses will cross over each other
when attached correctly.
9. Connect inlet hoses to water taps
12. Connect inlet hoses to washer
13. Check for leaks
10. Clear water lines
Insert one new large at washer into one end of each inlet
hose. Firmly seat the washers in the couplings. Screw on the
hose adapter by hand until it is seated on the washer. Using
pliers, tighten the hose adapter with an additional two-thirds
turn. NOTE: Do not overtighten.
Insert one new small at washer into the end of the hose
adapter. Firmly seat the washers in the couplings.
8. Connect hose adapter
Insert new large at washers (supplied) into the other ends of
the inlet hoses. Firmly seat the washers in the couplings.
11. Insert washers into hoses
Coupling Large flat
washer
Small
flat
washer
Adapter
Coupling Washer

8
Secure drain hose to laundry tub leg, drain standpipe, or inlet
hoses for wall standpipe with beaded tie strap.
LEVEL WASHER
IMPORTANT: Level washer properly to reduce excess noise
and vibration.
If washer is not level, use a 14 mm or 9/16" open-end or
adjustable wrench to turn jam nuts clockwise on feet until they
are about 13 mm (1/2") from the washer cabinet. Then turn the
leveling foot clockwise to lower the washer or counterclockwise
to raise the washer. Recheck levelness of washer and repeat
as needed.
HELPFUL TIP: You may want to prop up front of washer
about 102 mm (4") with a wood block or similar object that
will support weight of washer.
With washer in its nal location, place a level on top edges of
washer. Use side seam as a guide to check levelness of sides.
Check levelness of front using lid, as shown. Rock washer
back and forth to make sure all four feet make solid contact
with oor. If washer is level, skip to step 16.
When washer is level, use a 14 mm or 9/16" open-end or
adjustable wrench to turn jam nuts counterclockwise on
leveling feet tightly against washer cabinet.
HELPFUL TIP: You may want to prop washer with
wooden block.
15. Check levelness of washer
Place level here Place level here
16. Adjust leveling feet
Jam nut
17. Tighten leveling feet
Jam nut
Not Level LEVEL Not Level
14. Secure drain hose
4.5"
113 mm
(4.5")
113 mm
(4.5")
4.5"
113 mm
(4.5")
Laundry Tub Standpipe Wall

9
COMPLETE INSTALLATION
CHECKLIST
qCheck electrical requirements. Be sure you have correct
electrical supply and recommended earthing method.
qCheck that all parts are now installed. If there is an extra
part, go back through steps to see what was skipped.
qCheck that you have all of your tools.
qCheck that yellow shipping materials were completely
removed from back of washer.
qCheck that water taps are on.
qCheck for leaks around taps and inlet hoses.
qRemove protective lm from console and any tape
remaining on washer.
qCheck that washer is plugged into an earthed
3-prong outlet.
qDispose of/recycle all packaging materials.
qRead “Washer Use” in your “Washer User Instructions.”
qTo test and clean your washer, measure 1/2 of normal
recommended amount of powdered or liquid detergent
and pour it into washer basket or detergent dispenser
(on some models). Close lid. Select any cycle. Start washer
and allow to complete full cycle.
18. Plug into an earthed outlet

10
NOTES

11
NOTES

12
W10045638A
© 2011 04/11
All rights reserved. Printed in U.S.A.
