WASHER SAFETY
INSTALLATION NOTES
Date of purchase:_________________________________
Date of installation: _______________________________
Installer: ________________________________________
Model number: ___________________________________
Serial number: ___________________________________
Date d’achat: ______________________________________
Date d’installation: __________________________________
Installateur: _______________________________________
Numéro de modéle: _________________________________
Numéro de série: ___________________________________
NOTES CONCERNANT L’INSTALLATION

2
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Tools needed:
Adjustable or open end
wrench 9/16" (14 mm) Level
Wood block Ruler or measuring tape
Pliers that open to 19⁄16"
(39.5 mm)
Optional tools:
Flashlight Bucket
Parts supplied:
NOTE: All parts supplied for installation are in
cardboard insert in the top of the washer.
Beaded Tie Strap Drain hose with clamp
Alternate parts: (Not supplied with washer)
Your installation may require additional parts. To order, please refer to
toll-free numbers on back page of your Use and Care Guide.
If you have: You will need:
Overhead sewer Standard 20 gal. (76 L) 39"
(990 mm) tall drain tub or utility
sink, sump pump and connectors
(available from local plumbing suppliers)
1” (25mm) standpipe 2” (51 mm) diameter to 1” (25 mm)
diameter Standpipe Adapter Kit
Part Number 280130
Drain hose too short Kit Part Number 280131
Lint clogged drain Drain protector,
Part Number 367031
LOCATION REQUIREMENTS
Select proper location for your washer to improve performance and
minimize noise and possible “washer walk”. Install your washer in
a basement, laundry room, closet or recessed area.
4" min
(102 mm)
Gather required tools and parts before starting installation.
42"
(1067 mm)
27"
(686 mm)
271/2"
(648 mm)
Parts needed: (Not supplied with washer)
To order, please refer to toll-free phone numbers on back page of
your Use and Care Guide.
n8212656RP 10 ft. (3.0 m) Inlet hose, Black EPDM (2 pack)
n8212641RP 5 ft. (1.5 m) Inlet hose, Black EPDM (2 pack)
n8212646RP 4 ft. (1.2 m) Inlet hose, Black EPDM (2 pack)
n8212545RP 5 ft. (1.5 m) Inlet hose, Red and Blue EPDM
(2 pack)
n8212487RP 5 ft. (1.5 m) Nylon braided inlet hose (2 pack)
n8212638RP 6 ft. (1.8 m) Nylon braided inlet hose, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
n8212637RP 6 ft. (1.8 m) Inlet hose, Black EPDM, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
Inlet hoses with flat washers

3

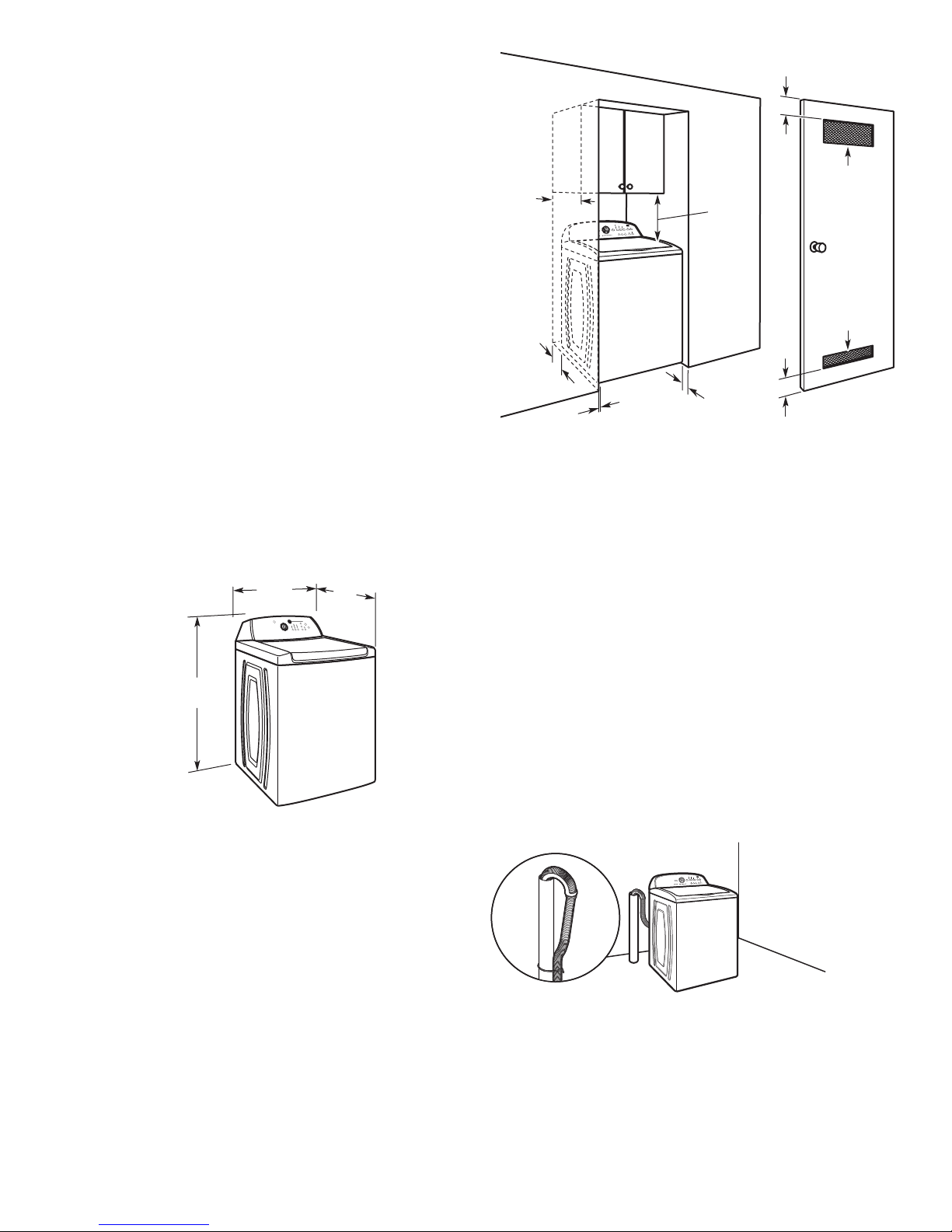

Recessed area or closet installation
Dimensions show recommended spacing allowed, except for
closet door ventilation openings which are minimum required.
This washer has been tested for installation with spacing of 0"
(0 mm) clearance on the sides. Consider allowing more space
for ease of installation and servicing; spacing for companion
appliances and clearances for walls, doors and oor moldings.
Add spacing of 1" (25 mm) on all sides of washer to reduce
noise transfer. If a closet door or louvered door is installed, top
and bottom air openings in door are required.
DRAIN SYSTEM
Drain system can be installed using a oor drain, wall standpipe,
oor standpipe, or laundry tub. Select method you need.
Minimum diameter for a standpipe drain: 2" (51 mm).
Minimum carry-away capacity: 17 gal. (64 L) per minute.
Top of standpipe must be at least 39" (990 mm) high; install
no higher than 96" (2.44 m) from bottom of washer. If you
must install higher than 96" (2.44 m), you will need a sump
pump system.
Wall standpipe drain system
Laundry tub drain system
Minimum capacity: 20 gal. (76 L). Top of laundry tub must
be at least 39" (990 mm) above oor; install no higher than 96"
(2.44 m) from bottom of washer.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
280129) and additional drain hose (Part Number 3357090)
that may be purchased separately. To order, please see
toll-free phone numbers in your Use and Care Guide.
Minimum siphon break: 28" (710 mm) from bottom of washer.
(Additional hoses may be needed.)
Floor standpipe drain system
IMPORTANT: To avoid siphoning, no more than 4.5" (113 mm)
of drain hose should be inside standpipe or below the top of
wash tub. Secure drain hose with beaded tie strap.
You will need:
nA water heater set to 120° F (49° C).
nA grounded electrical outlet located within 4 ft (1.2 m) of power
cord on back of washer.
nHot and cold water faucets located within 3 ft (0.9 m) of hot
and cold water ll valves on washer, and water pressure
of 20-100 psi (138-690 kPa).
nA level oor with maximum slope of 1" (25 mm) under entire
washer. Installing on carpet is not recommended.
nFloor must support washer’s total weight (with water and load)
of 315 lbs (143 kgs).
IMPORTANT: Do not install, store or operate washer where it will
be exposed to weather or in temperatures below 32° F
(0° C). Water remaining in washer after use may cause damage
in low temperatures. See “Washer Care” in your Use and Care
Guide for winterizing information.
Proper installation is your responsibility.
3"
(76 mm)
3"
(76 mm)
24 in.2
(155 cm2)
48 in.2
(310 cm2)
17"
(432 mm)
1"
(25 mm)
1"
(25 mm)
5"
(126 mm)
14" max.
(356 mm)
See requirements for oor standpipe drain system

4
INSTALLATION INSTRUCTIONS
It is necessary to remove all shipping materials for proper
operation and to avoid excessive noise from washer.
Before you start: remove shipping materials
36"
(914 mm)
1. Move washer
Move washer to within 3 ft (914 mm) of its nal location, it must
be in a fully upright position.
NOTE: To avoid oor damage, set washer onto cardboard
before moving it and make sure lid is taped shut.
To avoid damaging oor, place cardboard supports from
shipping carton on oor behind washer. Tip washer back and
place on cardboard supports. Remove shipping base. Set
washer upright.
IMPORTANT: Removing shipping base is necessary for proper
operation. If your washer includes a sound shield, please refer
to the instructions included with the sound shield to install it at
this time.
2. Remove shipping base
ELECTRICAL REQUIREMENTS
GROUNDING INSTRUCTIONS
For a grounded, cord-connected washer:
This washer must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electrical
shock by providing a path of least resistance for electric
current. This washer is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance – if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a permanently connected washer:
This washer must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
nA 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
breaker serving only this appliance be provided.
nThis washer is equipped with a power supply cord having
a 3 prong grounding plug.
nTo minimize possible shock hazard, the cord must be
plugged into a mating, 3 prong, grounding-type outlet,
grounded in accordance with local codes and ordinances.
If a mating outlet is not available, it is the personal
responsibility and obligation of the customer to have the
properly grounded outlet installed by a qualied electrician.
nIf codes permit and a separate ground wire is used, it is
recommended that a qualied electrician determine that
the ground path is adequate.
nDo not ground to a gas pipe.
nCheck with a qualied electrician if you are not sure the
washer is properly grounded.
nDo not have a fuse in the neutral or ground circuit.

5
Remove tape from washer lid, open lid and remove cardboard
packing tray from tub. Be sure to remove all parts from tray.
NOTE: Keep tray in case you need to move washer later.
Remove packing tray from drum
3.
Firmly grasp power cord plug and pull to free from rear panel.
Gently place power cord over console to allow free access
to back of washer.
4. Free power cord
CONNECT DRAIN HOSE
If clamp is not already in place on elbow end of drain hose,
slide it over end as shown. Squeeze clamp with pliers and
slide black elbow end of drain hose onto black drain port
and secure with clamp.
Attach drain hose to drain port
5.
Place hose into standpipe (shown in picture) or over side of
laundry tub.
IMPORTANT: 4.5" (113 mm) of drain hose should be inside
standpipe; do not force excess hose into standpipe or lay on
bottom of laundry tub. Drain hose form must be used.
6. Place drain hose in standpipe
4.5"
(113 mm)
For a laundry tub or standpipe drain, go to step 6.
For a oor drain, remove the preinstalled drain hose form as
shown in Step 7. You may need additional parts with separate
directions. See “Tools and Parts”.
Drain
hose form
