Whirlpool LA5590XP User manual

AUTOMATIC
WASHER
Design 2000”
Fore; Capacity
LA5590XP

Parts and features
LOAD LAUNDRY TEMPERATURE
INFORMATION SELECTOR
MAGIC CLEAN@
LINT FILTER
(not shown)
HES
RD
MODEL AND SERIAL
NUMBER PLATE
\
2
(not shown)
- AGITATOR
- BASKET
- TUB
Remove the Consumer
IBuy Guide label. It will be
easier to remove before
the washer is used.
You should wipe out the
basket with a damp cloth
Tir.r;rif;orn storing or
before using to remove
.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Model Number
1. Complete Model and Serial Num-
bers (from plate underthe lid nearthe
hinge). Serio, Number
2. Purchase date from sales slip
Copy this information in these spaces, Purchase Date
Keep this book in the Laundry Informa-
tion Center with your “Laundry Guide,”
sales slip and warranty. Service
Company/
Phone Number
There IS no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.

I
II
Your responsibilities
Read this “Use and Care Guide”
and your “Laundry Guide” care-
fully for important use and safety
information.
You are personally responsible
for making sure that your
washer...
l is installed by a qualified installer.
l is properly installed and
leveled on a floor that can
support the weight.*
l is connected to the right kind
of outlet, electric supply, water
supply and drain.”
l is properly grounded.*
l is used only for jobs normally
expected of home automatic
washers.
l is properly maintained.
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children or anyone
unable to operate it properly.
*See the “Installation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES. 2
YOUR RESPONSIBILITIES. 3
SAFETY FIRST 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH
CYCLE. 6
OTHER OPERATING
INSTRUCTIONS 10
For a Rinse and Spin 10
For a Drain and Spin 10
MAGIC CLEAN” Filter 10
CARING FOR YOUR WASHER 11
Winterizing 12
IF YOU NEED SERVICE OR
ASSISTANCE, 13
I. Before Calling for
Assistance 13
2. IfYou Need Assistance 14
3. If You Need Service 14
4. If You Have a Problem 14
01985 Whirlpool Corporation
-SAVE THESEINSTRUCTIONS - 3

I I I

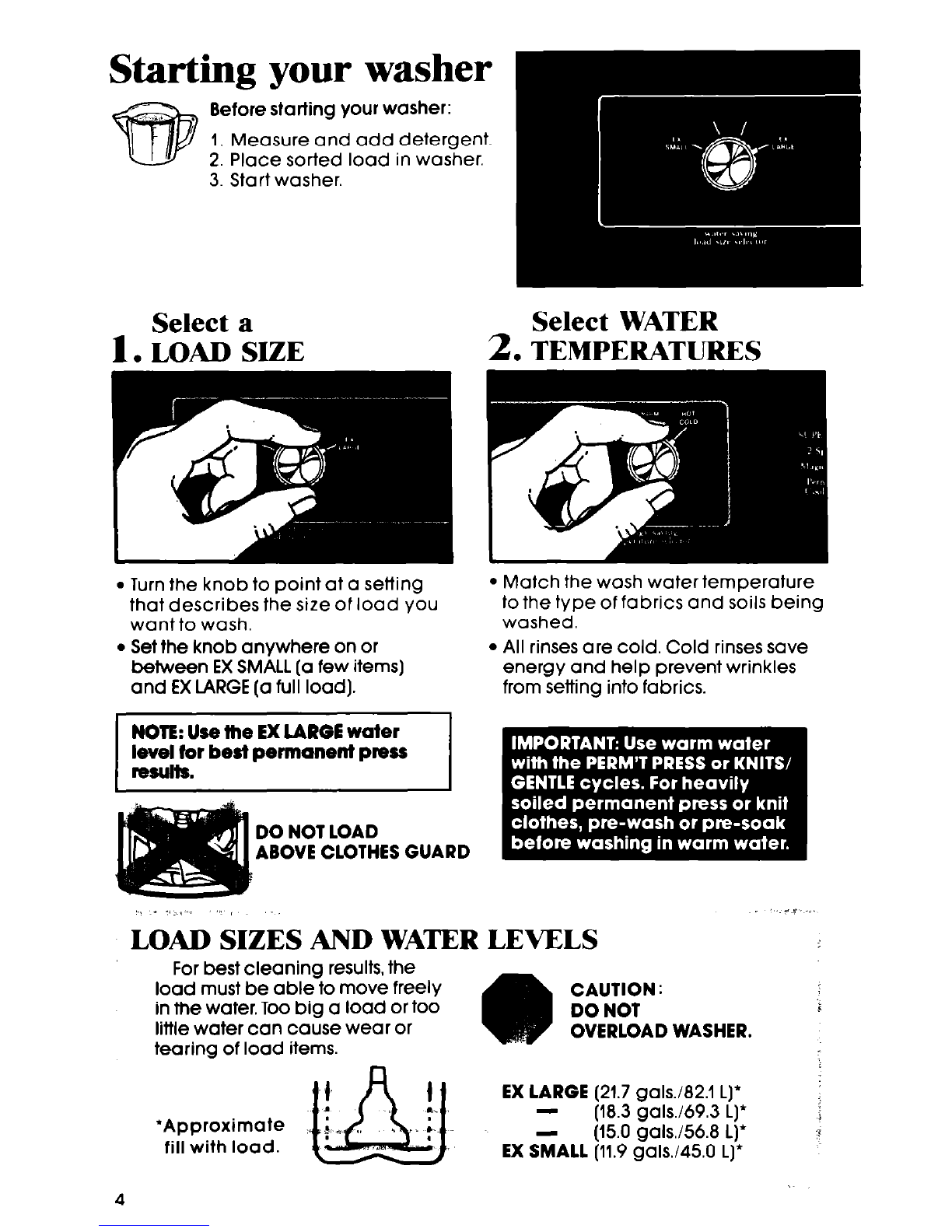

3. Start washer.
Select a
1. LOAD SIZE Select WATER
2. TEMPERATURES
l Turn the knob to point at a setting
l Match the wash watertemperature
that describes the size of load you to the type of fabrics and soils being
want to wash. washed.
l Set the knob anywhere on or
between EX SMALL [a few items)
and EX LARGE (a full load].
l All rinses are cold. Cold rinses save
energy and help prevent wrinkles
from setting into fabrics.
NOTE:Use the EXLARGE water
level tar best permanent press
results.
DO NOT LOAD
ABOVE CLOTHES GUARD
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too
little water can cause wear or
tearing of load items.
CAUTION :
DO NOT I
OVERLOAD WASHER.
EX LARGE (21.7 galsJ82.1 L)*
(18.3 galsI69.3 L)’
(15.0 galsI56.8 L)’
EX SMALL (11.9gals./450 L)*

3. Start the washer
A. Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwise.
B. Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows10 minutes of agitation in
the REGULAR Cycle.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes.
D. To stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.

What happens in each cycle*
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer
fills before aaitation and timina starts. After aaitation starts. the knob turns clock-
wise until it p’;ints to OFF and ttie cycle ends.-
REGULAR HEAVY Cycle
REGULAR Cycle
A cycle for sturdily con-
structed fabrics that are
heavily soiled.
A cycle for regular loads of
;otxi;y that are moderately
PERMANENT PRESS HEAVY Cycle
A special cycle for heavily
to moderately soiled per-
manent press items. The
cool down rinse helps
keep wrinkles from setting
into permanent press
and some synthetic items.

NOTE: You may hear the sound of water spraying during the spin parts of
some cycles. In some cycles, cold water is sprayed on the spinning load to help
with the rinsing.

II
PERMANENT PRESS LIGHT Cycle
A cycle designed for mod-
erately to lightly soiled per-
manent press and synthetic
items. The cool down rinse
helps keep wrinkles from
setting into permanent
press and some synthetic
items.
KNITS/GENTLE Cycle
A cycle that gently washers
and spins delicate items
and washable knits. The
cool down rinse helps
keep wrinkles from setting
into fabrics.
SOAK Cycle Brief periods of agitation
and soak time help remove
heavy soils and certain
stains that need extra
pretreatment. Use recom-
mended amount of
detergent or pre-soak
additive. The SOAK Cycle
should always be fol-
lowed by a Wash Cycle.
8

r ------ l
PARTIAL
DRAIN
[Pause)
I
I
1 SOAK 1 WASH SOAK I I WASH I DRAIN I SPIN I WASHER11
Minses
L
No
Agitation
I’
I
Special care is needed when soaking laundry.
See your “laundry Guide” for proper use of this cycle.

Other operating instructions
I
For a rinse and spin For a drain and spin
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra de-
tergent can require an extra rinse.]
l Push Control Knob in.
l Turn clockwise to any .on the dial
See above drawing.
l Pull Control Knob out.
l The washer will fill to selected
level; agitate 2 minutes; drain
and spin.
Your washer can be set to drain
and spin out water.
l Push Control Knob in.
l Turn clockwise to the bar just before
OFF in any cycle. See above
drawing.
l Pull Control Knob out.
l The washer will drain and spin.
For agitation and spin speeds in each cycle, see pages 6 - 9.
For a soak
pull s1ar1
‘To start soak with agitation, the Cycle
Control Knob must point to a number
in the SOAK Cycle.
For best results, use warm water
for soaking stained laundry. Hot
water can set stains.
l Use recommended amount of
detergent or pre-soak product.
l Push Control Knob in.
l Turn clockwise to point at a number
in the SOAK Cycle:
l Pull Control Knob out to start washer.
l When the cycle is over, add de-
tergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a Wash
Cycle.
Important: See additional care
information on page 7 of your
“Laundry Guide!’
l Set the washer and start the next
selected wash cycle.
MAGIC CLEAN@ lint filter
The lint filter in your washer cleans itself. Collected
lint is drained away with the wash and rinse water.
If your washer drains into a tub, remove any lint
,0 collected in the drain or strainer.

/
I I I
Caring for your washer
OF
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
and hoses.
REMOVE SHARP OBJECTS such as pins,
buckles, etc., from clothes before
washing. Close metal zippers.
AFlER WASHING, use a soft dry cloth
to wipe the outside and inside dry.
Leave the lid up until the basket is dry.
Wipe up spills right away. Spills can
dull or damage the finish.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools, etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials
consoles and finishes. Do not use
these products on or near your
washer or dryer.

Winterizing
Because some water stays in the washer, freez-
ing can cause a lot of damage. If your washer is
stored or moved during the cold weather..
I. Shut off both water 2. Put a quart of 3. Set the washer for a
faucets. Discon- automobile-type DRAIN and SPIN
nect and drain antifreeze in the [see page 10). Let it
water inlet hoses. basket. run for about 30
seconds to mix the
antifreeze and
water.
To use the washer again.. .
1. Flush water pipes and hoses.
2. Connect hoses to the washer.
3. Turn on the water faucets
4. Run the washer
through a com-
plete cycle with
one cup of deter-
gent to clean out
the antifreeze.
12

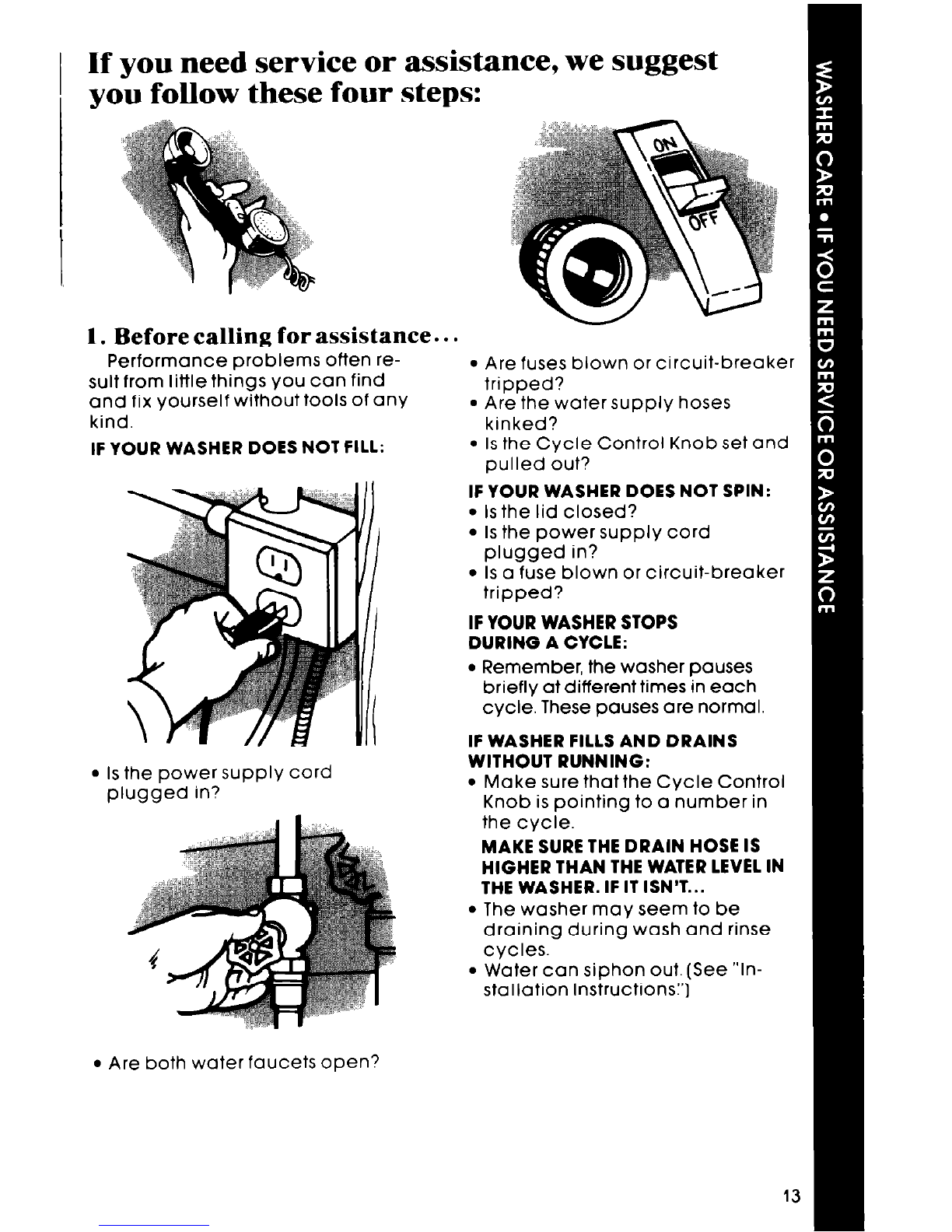

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for assistance.. .
Performance problems often re-
sult from little things you can find
and fix yourself without tools of any
kind.
IF YOUR WASHER DOES NOT FILL:
l Is the power supply cord
plugged in?
l Are fuses blown or circuit-breaker
tripped?
9 Are the water supply hoses
kinked?
l Is the Cycle Control Knob set and
pulled out?
IF YOUR WASHER DOES NOT SPIN:
l Is the lid closed?
l Is the power supply cord
plugged in?
l Is a fuse blown or circuit-breaker
tripped?
IF YOUR WASHER STOPS
DURING A CYCLE:
l Remember, the washer pauses
briefly at different times in each
cycle. These pauses are normal.
IF WASHER FILLS AND DRAINS
WITHOUT RUNNING:
l Make sure that the Cycle Control
Knob is pointing to a number in
the cycle.
MAKE SURE THE DRAIN HOSE IS
HIGHER THAN THE WATER LEVEL IN
THE WASHER. IF IT ISN’T...
l The washer may seem to be
draining during wash and rinse
cycles.
l Water can siphon out. (See “ln-
stallation Instructions?]
l Are both water faucets open?

I
I
2. If you need assistance *...
Call Whirlpool COOL-LINE@serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . (800) 2534301
Michigan . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of ourtrained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory op-
eration from your appliance or, if
service is necessary, recommend a
qualified service company in your
area.
3. If you need service*. ..
Whirlbool has
a nationwide net-
1 work of franchised
7
TECH-CARE@ Serv-
~ T&M-CARE
ice Companies.
iyb~~~SED SERVICE
TECH-CARE serv-
ice technicians are trained to fulfill
the product warranty and provide
after-warranty service, anywhere in
the United States. To locate TECH-
CARE service in your area, Call our
COOL-LINE service assistance tele-
phone number (see Step 2) or look in
your telephone directory Yellow
Pages under:
4. If you have a problem*. ..
Call our COOL-LINE service as-
sistance telephone number (see
Step 2) and talk with one of our Con-
sultants, or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33, North
Benton Harbor, Ml 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter resoond to your request for
assistarAce.
0
FSP
8
FSPISa regsiered trademark
of WhIrlpool Corporation for
quality parts Look for this
symbol of quallty whenever
you need a replacement part
for your Whlrlpcol appliance
FSPreplacement parts
WI/Ifit rlght and work right. because they are
made to the same exacting speclficatlons
used to build every new WhIrlpool appltance
14

I
I’
Notes

Maklng your world a llttle easier.
Part No. 387419
01985 Whirlpool Corporation Printed in U.S.A.
matlc Washers, Clothes Dryers, Freezers. Refrigerator-Freezers. Ice Makers. Dishwashers. Bwlt-In Ovens and Surlace Units. Ranges. Mlcr
