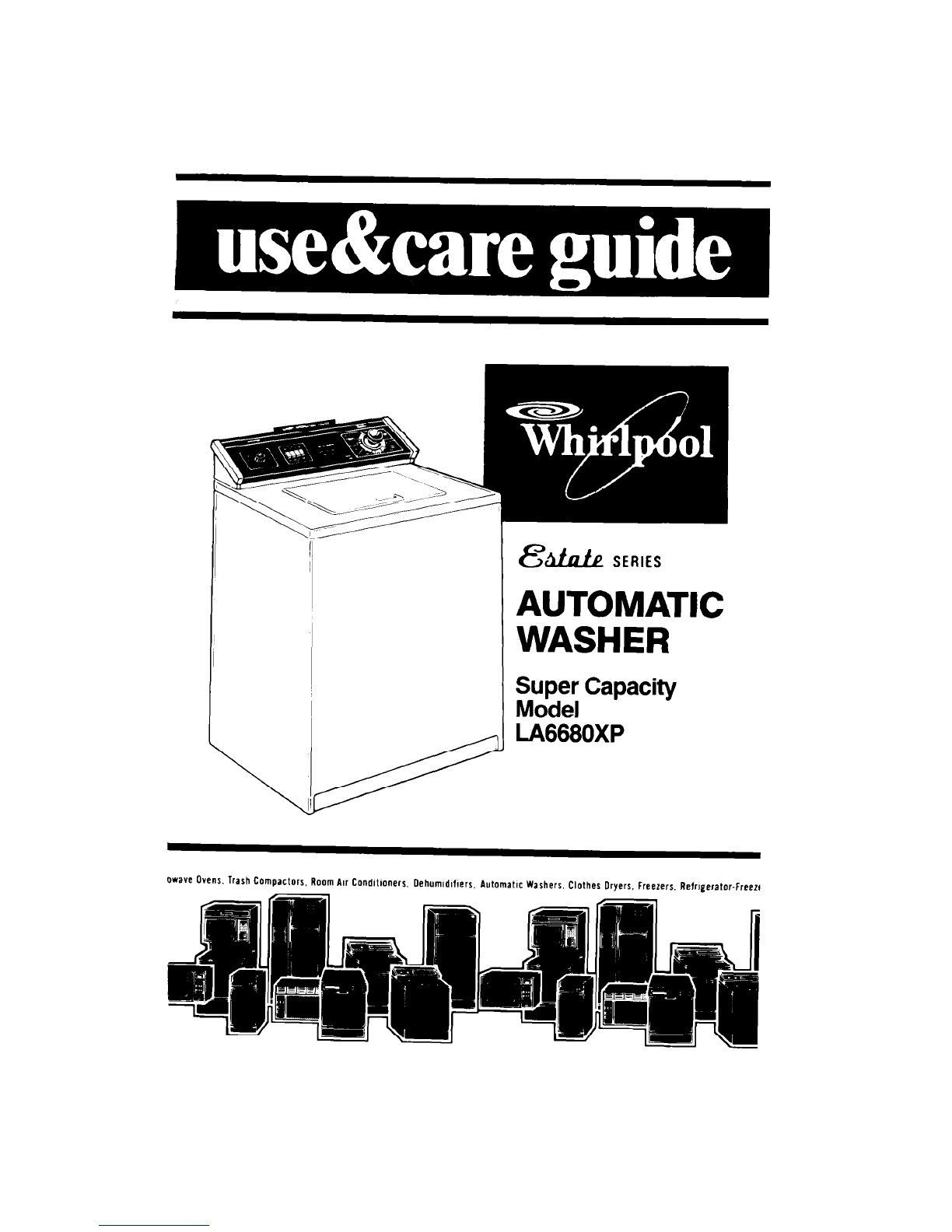

Whirlpool LA6680XP User manual

Eatate SERIES
AUTOMATIC
WASHER
SuoTe;Capacity
LA666OXP
owave Ovens. Trash Compactors. Room Air Condllmners. Oehumldlflers, Automatic Washers. Clothes Dryers, Freezers, Relrlgerator-Freeze

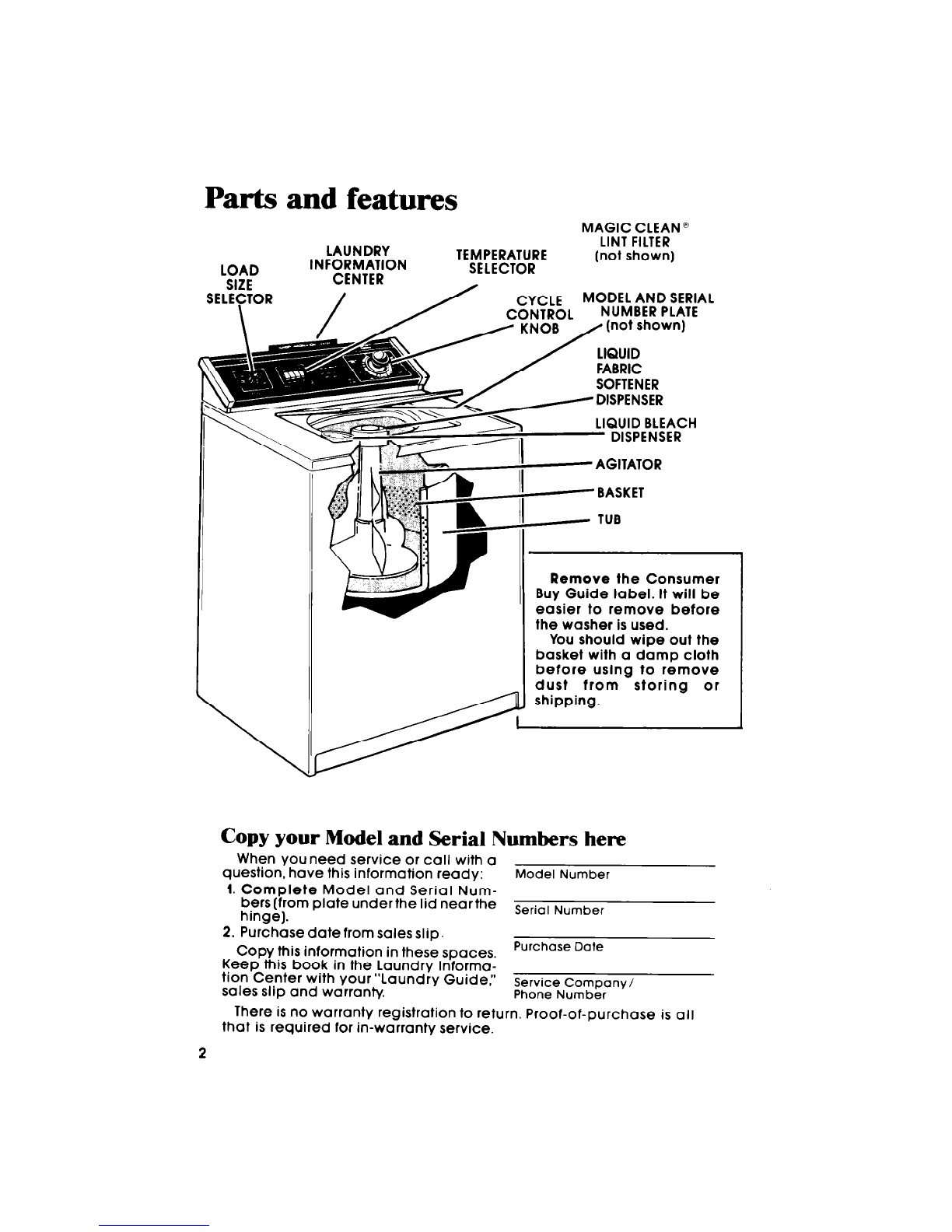

Parts and features
‘ssz^p
SELECTOR
\
LAUNDRY
INFORMATION TEMPERATURE
CENTER SELECTOR
\
\
MAGIC CLEAN’
LINT FILTER
(not shown)
MODEL AND SERIAL
NUMBER PLATE
/ (“Ot shown)
LIQUID
FABRIC
SOFTENER
-DISPENSER
LIQUID BLEACH
DISPENSER
-AGITATOR
- BASKET
- TUB
Remove the Consumer
Buy Guide label. It will be
easier to remove before
the washer is used.
You should wipe out the
basket with a damp cloth
before using to remove
dust from storing or
shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Model Number
1. Complete Model and Serial Num-
bers (from plate underthe lid nearthe
hinge). Serial Number
2. Purchase date from sales slip.
Copy this information in these spaces. Purchase Do’e
Keep this book in the Laundry Informa-
tion Center with your “Laundry Guide,”
sales slip and warrantv. service
Company/
Phone Number
There is no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.
2

Spol 1s
libilities
Read this “Use and Care Guide”
and your “Laundry Guide” care-
fully for important use and safety
information.
You are personally responsible
for making sure that your
washer...
l is installed by a qualifiedinstaller.
l is properly installed and
leveled on a floor that can
support the weight.
l is connected to the right kind
of outlet, electric supply, water
supply and drain.*
l is properly grounded.’
l is used only for jobs normally
expected of home automatic
washers.
l is properly maintained.
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children or anyone
unable to operate it properly.
*See the”lnstallation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES. 2
YOUR RESPONStBILtTtES. . . 3
SAFETY FIRST . . . 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH
CYCLE. . . . . . . . . . 6
OTHER OPERATING
INSTRUCTIONS . . . . . . . . . . . . . 10
For a Rinse and Spin . , 10
For a Drain and Spin . . . . 10
For a Soak or Pre-Wash . . . 10
Liquid Bleach Dispenser . 11
MAGIC CLEAN@ Lint Filter . 11
Liquid Fabric Softener
Dispenser . . . . . . 11
CARING FOR YOUR WASHER 12
IF YOU NEED SERVICE OR
ASSISTANCE.. . . . . . . . 14
1. Before Calling for
Assistance . . . . . . . . 14
2. If You Need Assistance . 15
3. If You Need Service . . . 15
4. If You Have a Problem . . 15
01985 Whirlpool Corporation

Starting your washer
Before starting your washer: B 1. Measure and add detergent
f 2. Place sorted load in washer.
3. Start washer.
Select a Select WATER
1. LOAD SIZE 2. TEMPERATURES
l To change the setting on the LOAD
SIZE SELECTOR, turn the knob to RESET.
l Then turn the knob to point at a
setting that describes the size of the
load you want to wash.
l Set the knob anywhere on or be-
tween HAND WASHABLE [a few small
items] and EX LARGE (a full load).
See your “Laundry Guide” for details
on load sizes.
l Select wash and rinse water tem-
peratures by pushing a button.
l This drawing shows a warm wash
(top temperature) and cold rinse
(bottom temperature) selection.
Recommended wash temperatures
can be found in your”Laundry Guide”
and printed under the washer lid.
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too 8
DO NOT
little water can cause wear or OVERLOAD WASHER.
tearing of load items.
*Approximate
fill with load.
EX-LARGE (20.5 gals.177.6 L)’
MEDIUM (13.9 gals./52.6 L)’
HAND WASHABLE (7.8 gals.129.5 L)’

3. Start the washer
A. Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwise.
B. Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows 10 minutes of agitation in
the REGULAR Cycle.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes.
b. lo stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.

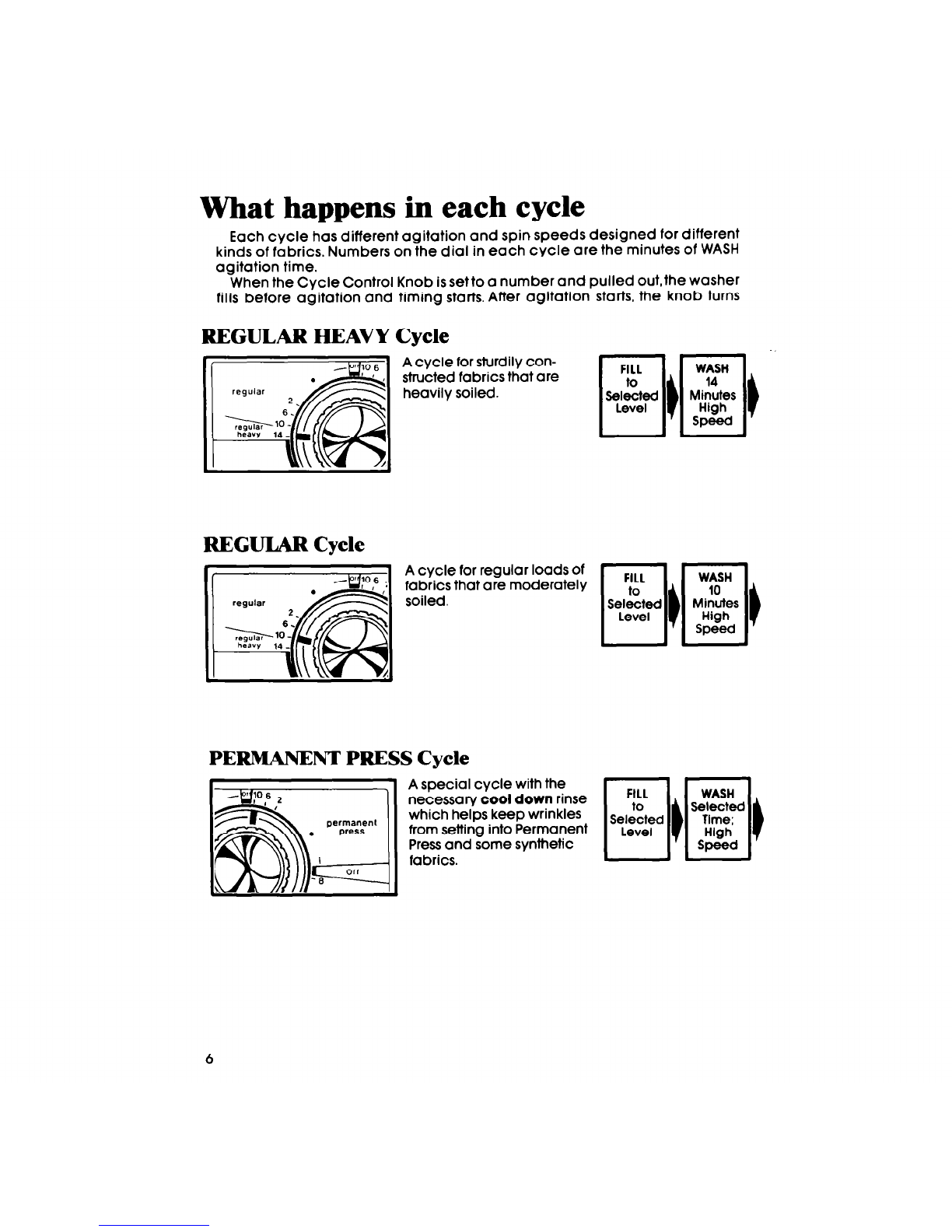

What happens in each cycle
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer
fills before agitation and timing starts, After agitation starts, the knob turns
REGULAR HEAVY Cycle
A cycle for sturdily con-
strutted fabrics that are
heavily soiled.
REGULAR Cycle A cycle for regular loads of
fabrics that are moderately
soiled.
PERMANENT PRESS Cycle
‘106 2
’ 8
- ’ permanenl
‘)
. press
IFfG!l
I
011
-6
i
A special cycle with the
necessary cool down rinse
which helps keep wrinkles
from setting into Permanent
Press and some synthetic
fabrics.
6

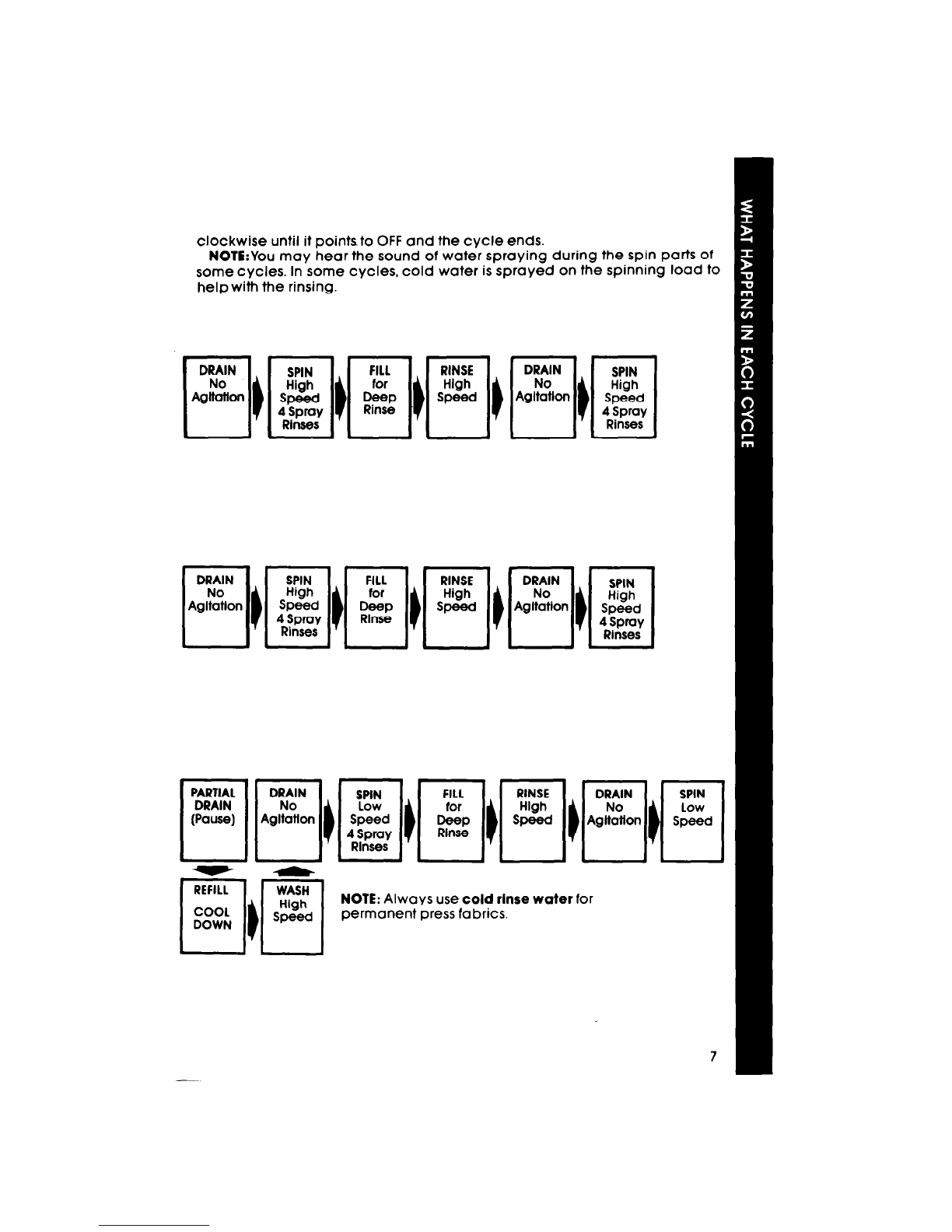

clockwise until it points.to OFF and the cycle ends.
NOTE:You may hear the sound of water spraying during the spin parts of
some cycles. In some cycles, cold water is sprayed on the spinning load to
help with the rinsing.
PARTIAL
DRAIN
(Pause)
DRAIN
No
n
Agltatton
NOTE: Always use cold rinse water for
permanent press fabrics.

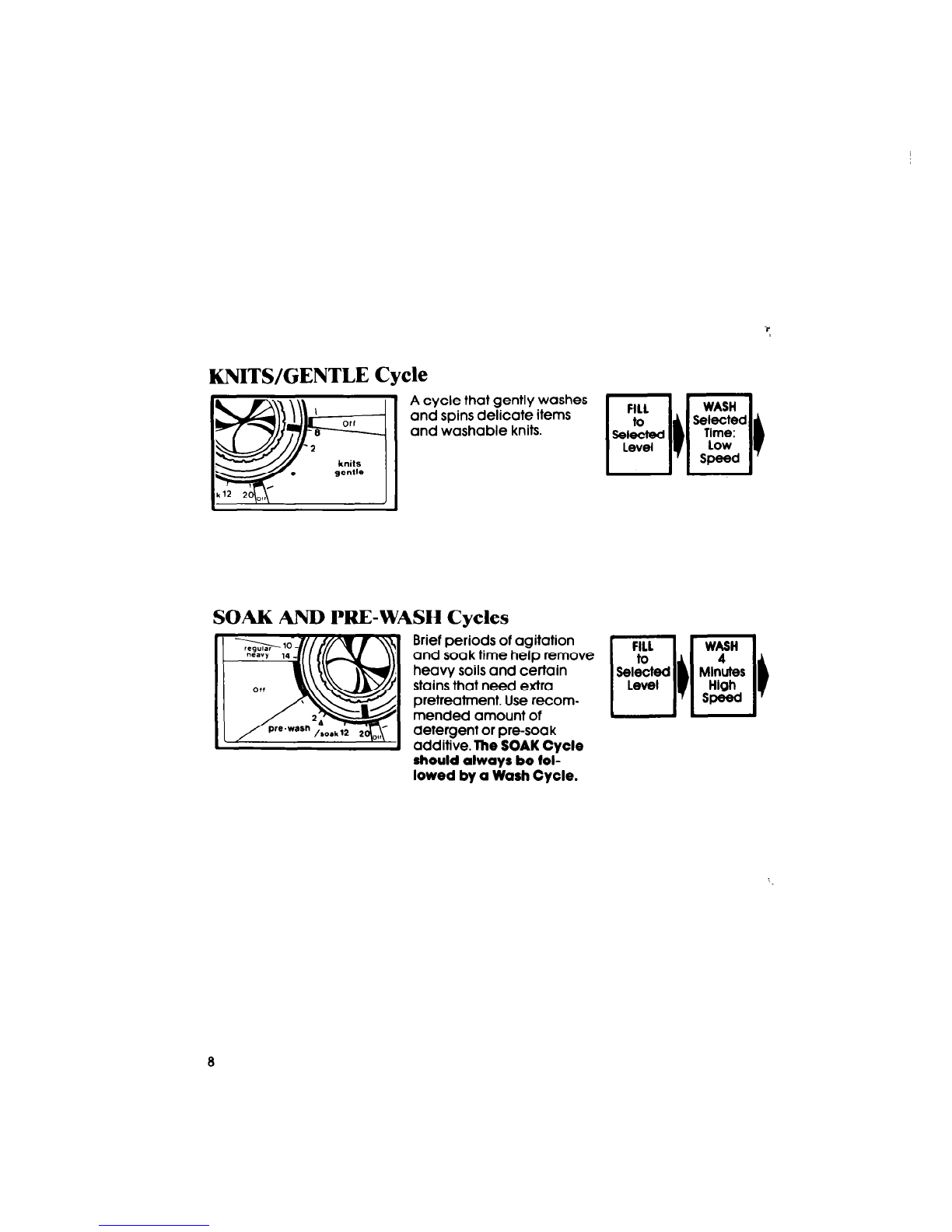

KNITS/GENTLE Cycle
A cycle that gently washes
and spins delicate items
and washable knits.
SOAK AND PRE-WASH Cycles
Brief periods of agitation
and soak time help remove
heavy soils and certain
stains that need extra
pretreatment. Use recom-
mended amount of
detergent or pre-soa k
additive. The SOAK Cycle
should always be fol-
lowed by a Wash Cycle.

-w--w--
l+ Pre-wash setting begins here, (see pagelo). .
Special care Is needed when soaking or pre-washing laundry,
See your “laundry Guide” tor proper use ot thls cycle.

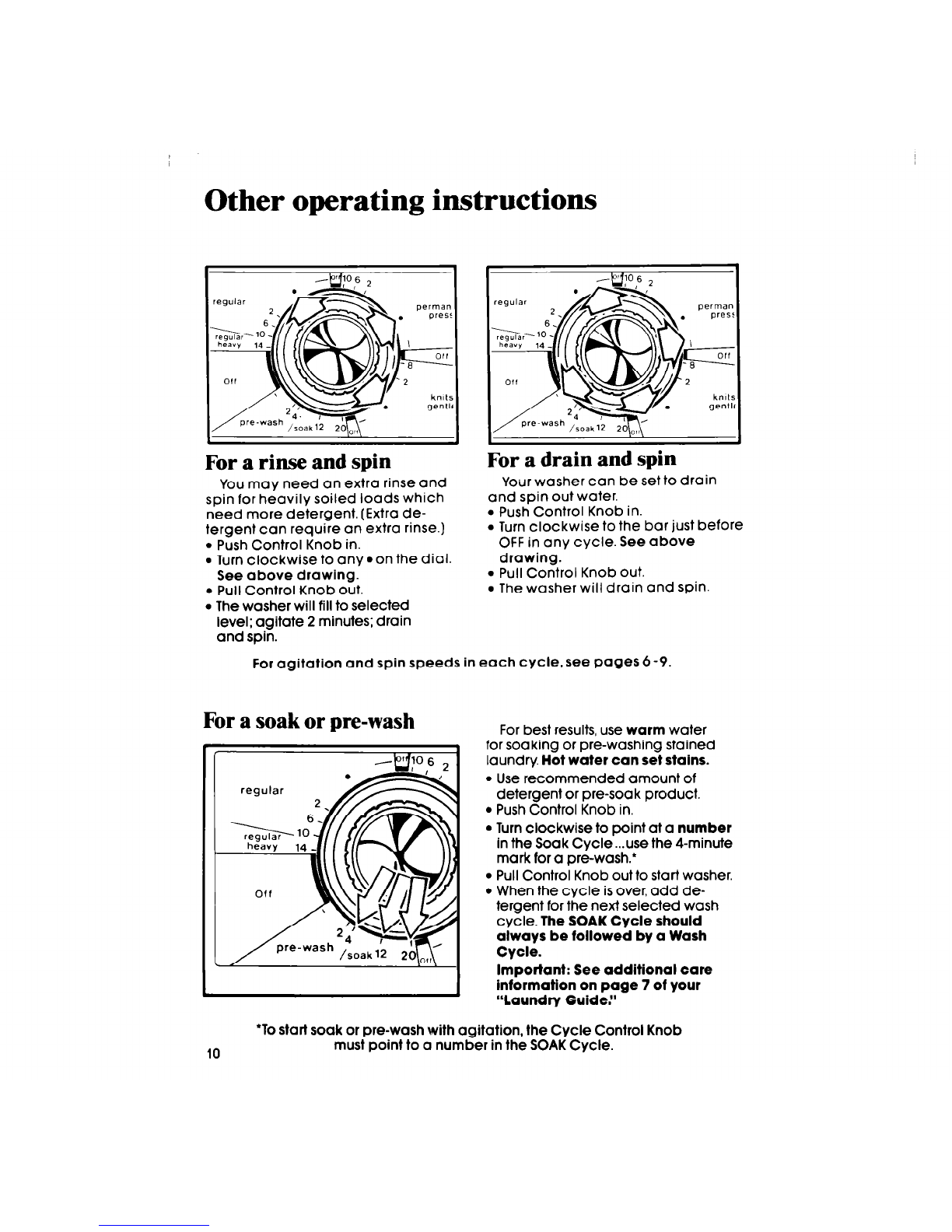

Other operating instructions
For a rinse and spin For a drain and spin
You may need on extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra de-
tergent can require an extra rinse.)
l Push Control Knob in.
l Turn clockwise to any l on the dial.
See above drawing.
l Pull Control Knob out.
l The washer will fill to selected
level: agitate 2 minutes; drain
and spin.
Your washer can be set to drain
and spin out water.
l Push Control Knob in.
l Turn clockwise to the bar just before
OFF in any cycle. See above
drawing.
l Pull Control Knob out.
l The washer will drain and spin.
For agitation and spin speeds in each cycle, see pages 6 -9.
For a soak or pre-wash For best results, use warm water
for soaking or pre-washing stained
laundry. Hot water can set stains.
l Use recommended amount of
detergent or pre-soak product.
l Push Control Knob in.
l Turn clockwise to point at a number
in the Soak Cycle ...use the 4-minute
mark for a pre-wash.’
l Pull Control Knob out to start washer.
l When the cycle is over, add de-
tergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a Wash
Cycle.
Important: See additional care
information on page 7 of your
“Laundry Guide:’
10
‘To start soak or pre-wash with agitation, the Cycle Control Knob
must point to a number in the SOAK Cycle.

Liquid bleach dispenser
Always measure bleach. Do not
guess. Never use more than 1 cup
(250 ml) for a full load. Use less with
lower water level settings. Follow
directions on bottle for safe use. Use
a cup with a pouring spout to avoid
spilling.
1. Load the washer first
2. Pour measured bleach carefully
into dispenser. DO NOT let bleach
splash, drip or run down into the
washer basket. Undiluted bleach
will damage any fabric if touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
For more information on bleaching, see “Laundry Guide” page 11.
MAGIC CLEAN@ lint filter
The lint filter in your washer cleans
itselt. Collected lint is drained away
with the wash and rinse water.
If your washer drains into a tub,
remove any lint collected in the drain
or strainer.
Liquid fabric softener dispenser
1. Add liquid fabric softener to the
dispenser using the amount rec-
ommended on the bottle. (Avoid
dripping or spilling any fabric
softener on the load.]
2. IMPORTANT: Always add wafer
(Y2to1 cup) to dilute fabric softener
to the FULL mark on the dispenser.
3. Diluted fabric softener will be
added to the load when the
washer stops spinning after the wash part of the cycle.
NOTE: Do not stop the washer during this spin. If you do, the fabric softener
will be added to the remaining soapy wash water. This can cause stains.
4. Clean the dispenser after each use with warm wafer. Do not use detergent,
if could cause dispenser to clog.
For more information on fabric softener, see page 12 in your “Laundry
Guide!’ 11

Caring for your washer
OF
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
and hoses.
REMOVE SHARPOBJECTS such as pins,
buckles, etc., from clothes before
washing. Close metal zippers.
AFlER WASHING, use a soft dry cloth
to wipe the outside and inside dry.
Leave the lid up until the basket is dry.
Wipe up spills right away. Spills can
dull or damage the finish.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools, etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials,
consoles and finishes. Do not use
these products on or near your
washer or dryer.
12

Winterizing
Because some water stays in the washer, freez-
ing can cause a lot of damage. If your washer is
stored or moved during the cold weather..
1. Shut off both water 2. Put a quart of
faucets. Discon- automobile-type
nect and drain antifreeze in the
water inlet hoses. basket.
To use the washer again.. .
1. Flush water pipes and hoses.
2. Connect hoses to the washer.
3. Turn on the water faucets.
3. Set the washer for a
DRAIN and SPIN
[see page 10). Let it
run for about 30
seconds to mix the
antifreeze and
water.
4. Run the washer
through a com-
plete cycle with
one cup of deter-
gent to clean out
the antifreeze.
13

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for assistance.. .
Performance problems often re-
sult from little things you can find
and fix yourself without tools of any
kind.
IF YOUR WASHER DOES NOT FILL:
l Is the power supply cord
plugged in?
l Are fuses blown or circuit-breaker
tripped?
l Are the water supply hoses
kinked?
l Is the Cycle Control Knob set and
pulled out?
IF YOUR WASHER DOES NOT SPIN:
l Is the lid closed?
l Is the power supply cord
plugged in?
l Is a fuse blown or circurt-breaker
tripped?
IF YOUR WASHER STOPS DURING THE
PERMANENT PRESS CYCLE:
0 Remember, the washer will stop for
about 2 minutes after the partial
drain during the cool-down period
in this cycle.
IF WASHER FILLS AND DRAINS
WITHOUT RUNNING:
l Make sure that the Cycle Control
Knob is pointing to a number in
the cycle.
MAKE SURE THE DRAIN HOSE IS
HIGHER THAN THE WATER LEVEL IN
THE WASHER. IF IT ISN’T...
l The washer may seem to be
draining during wash and rinse
cycles.
l Water can siphon out. (See “ln-
stallation Instructions:‘)
l Are both water faucets open?
14

2. If you need assistance*. ..
Call Whlrlpool COOL-LINE” serv-
ice atslttance telephone number.
Dial free from:
Contlnental U.S. . [phone]
Mlchlgan . . . . . . . [phone]
Alaska 6 Hawall [phone]
and talk with one of our trained Con-
sultants The Consultant can instruct
you in how to obtain satisfactory op-
eration from your appliance or, if
service is necessary, recommend a
qualified service company in your
area.
3. if you need service*. ..
Whirlpool has
a nationwide net-
1 work of franchised
1 (7 ~F;H;y;;;+g;
/ TECU-CARE
L FRANCHISEDSEIIVICE
-~ -J TECH-CARE serv-
ice technicians are trained to fulfill
the product warranty and provide
after-warranty service, anywhere in
the United States. To locate TECH-
CARE service in your area, call our
COOL-LINE service assistance tele-
phone number (see Step 2) or look in
your telephone directory Yellow
Pages under:
4. If you have a problem*. ..
Call our COOL-LINE service as-
sistance telephone number (see
Step 2) and talk with one of our Con-
sultants, or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter respond to your request for
assistance.
0
FSP
8
FSP ISa regIstered trademark
of Whirlpool Corpotat0n for
quality parts Look for this
symbol of quaMy whenever
ycu need a replacement part
for your Whlrlpco appliance
FSP replacement parts
WIN fit nght and wcxk right, because they are
made to the same exacting speclflcatlons
used to build every new Whirlpool appliance

Whirlpol
Home A /Appliances
Making your world a little easier
Part No. 387412
01985 Whirlpool Corporation Printed in U.S.A.
nallc Washers, Clothes Dryers, Freezers. Refrlgeralor.Freezers, Ice Makers. Olshwashers, Bwll-In Ovens and Surface Un~ls. Ranges. Mxr
