TECHNICAL MANUAL
Maytag® 3.5 cu. ft. Commercial-Grade
Residential Agitator Washer
W11441706

ii n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
FOREWORD
This Technical Manual W11441706 provides the In-Home Service Professional with service informaon of the
“Maytag® 3.5 cu. . Commercial-Grade Residenal Agitator Washer.” For specific operating information on the
model being serviced, refer to the “Quick Start Guide” and “Owner's Manual” provided with the top load washer.
Any poron of the wiring diagram used in this Technical Manual is typical and should be used for training
purposes only. Always use the Wiring Diagram supplied with the product Tech Sheet when servicing the top load
washer.
For specic operang and installaon informaon on the model being serviced, refer to the literature provided
with the top load washer.
GOALS AND OBJECTIVES
This Technical Manual provides informaon that will enable the In-Home Service Professional to properly
diagnose malfuncons and repair the “Maytag® 3.5 cu. . Commercial-Grade Residenal Agitator Washer.”
The objecves of this Technical Manual are to:
• Understand and follow proper safety precauons.
• Successfully troubleshoot and diagnose malfuncons.
• Successfully perform necessary repairs.
• Successfully return the top load washer to its proper operaonal status.
WHIRLPOOL CORPORATION assumes no responsibility for any repairs made on our
products by anyone other than authorized In-Home Service Professionals.
©2020 Whirlpool Corporaon. Benton Harbor, MI 49022

Maytag®3.5 cu. ft. Commercial-Grade Residential Agitator Washer n iii
TABLE OF CONTENTS
Maytag®3.5 cu. ft. Commercial-Grade Residential Agitator Washer
SECTION 1: GENERAL INFORMATION......................................................................... 
SAFETY ................................................................................................................................................ 
GENERAL THEORY OF OPERATION ..................................................................................................... 
MODEL AND SERIAL NUMBER LABEL LOCATION............................................................................... 
TECH SHEET LOCATION....................................................................................................................... 
MODEL AND SERIAL NUMBER NOMENCLATURE............................................................................... 
PRODUCT SPECIFICATIONS................................................................................................................. 
PRODUCT FEATURES........................................................................................................................... 
................................................ 
SAFETY ................................................................................................................................................ 
DIAGNOSTIC GUIDE............................................................................................................................ 
 .................................................................................................. 
FAILURE MODE ................................................................................................................................... 
SERVICE DIAGNOSTIC TEST MODES ................................................................................................... 
FAULT/ERROR CODES.......................................................................................................................... 
QUICK OVERVIEW TEST MODE ........................................................................................................ 
MANUAL OVERVIEW TEST MODE .................................................................................................... 
TROUBLESHOOTING GUIDE.............................................................................................................. 
SECTION 3:COMPONENT TESTING ............................................................................. 
SAFETY ................................................................................................................................................ 
WIRING DIAGRAM.............................................................................................................................. 
TROUBLESHOOTING TESTS................................................................................................................. 
COMPONENT LOCATION .................................................................................................................. 
...................................................................................................... 
COMPONENT ACCESS .............................................................................. 
CONSOLE OPEN AND COMPONENTS ................................................................................................ 
COMPONENTS ACCESSIBLE UNDER TOP PANEL ................................................................................ 
COMPONENTS ACCESSIBLE FROM THE BOTTOM ........................................................................... 

iv n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Notes

GENERAL INFORMATION
Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer n 1-1
Section 1:
General Information
This secon provides general safety, parts, and informaon for the
“Maytag® 3.5 cu. . Commercial-Grade Residenal Agitator Washer.”
■Safety
■General Theory of Operaon
■Model and Serial Label Locaon
■Tech Sheet Locaon
■Model and Serial Number Nomenclature
■Product Specicaons
■Product Features
• Control Panel

GENERAL INFORMATION (Cont.)
1-2 n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Safety
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING

GENERAL INFORMATION (Cont.)
Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer n 1-3
General Theory of Operation

The Maytag® 3.5 cu. . Commercial-Grade Residenal Agitator
Washer has several familiar features and some new designs
integrang them into this totally new design.
Drive System
Motor
Bi-direconal PSC (Permanent Split Capacitor) 120 VAC. Agitaon and
variable spin speeds are accomplished by applying power in pulses.
Transmission
The transmission is a non-serviceable belt driven component.
nInner sha top splines connect to the agitator.
nBoom splines connect to the splutch pulley.
nBoom splines connect to the inner splines of the splutch cam.
Splutch
The splutch is made up of ve parts:
nSpring
nHousing
nCam Ring
nBasket Drive Gear and Pulley
The pulley is connected to the agitator through the agitator sha.
The agitator always moves with the pulley. The basket drive gear is
connected to the basket by the inner splines contacng the outer splines
of the transmission. The cam ring raises and lowers the basket drive
gear. When the basket drive gear teeth are engaged to the pulley teeth
the basket will spin along with the agipellor.
Agitator sits over
splined inner sha�
Housing
Pulley and Belt
Cam
Motor Plate
PLANETARY
GEARS
Spring
Basket Drive Gear
Inner splines - connect to transmission (and basket)
Outer Teeth - connect to pulley
Cam Ring
Housing
Pulley

GENERAL INFORMATION (Cont.)
1-4 n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Shifter/Actuator
The actuator serves several funcons. It has a synchronous motor that
shis the splutch slider and monitors the posion of the splutch. It also
houses a transmission speed/posion opcal sensor.
A. Shifter/Actuator
The shifter motor rotates a cam, attached to the shifter arm which
moves between two positions. The shifter arm moves the transmission
lever which engages or disengages the transmission creating agitate and
spin. The washing machine is in spin when the shifter is up in this
position. The teeth of the splutch are engaged with the teeth of the
pulley and the motor turns the pulley in a direction for spin. When the
shifter pulls the lever down it disengages the teeth. The washing
machine is in agitate. The length of each stroke is controlled by the CCU.
There are three different patterns.
Agitator
Water Levels
Lid Lock
Since this washer does not ulize a brake, a lid lock is used to prevent
access during spin. During the spin cycles, a lid lock mechanism will lock
the lid. The lid must be closed for the washer to ll, wash, drain, or spin.
The lock mechanism houses a switch that senses the lid is down, a latch
solenoid and a magnec reed switch to conrm that the lid is locked.
A
Direction of
Clothes Movement
22 Gallon Wash and
Deep Rinse Cycle
All deep rinse
(except Eco
Wash Cycle)
25 Gallon Bulky
Towel Cycle
10.5 Gallon Normal
Eco Rinse
14 Gallon Normal
Eco Wash Cycle

GENERAL INFORMATION (Cont.)
Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer n 1-5
Model and Serial Number Label Location
Tech Sheet Location
Model and Serial
Number plate
Tech Sheet Locaon

GENERAL INFORMATION (Cont.)
1-6 n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Model and Serial Number Nomenclature
Maytag®Top Load Washer Model
MODEL NUMBER
INTERNATIONAL SALES OR
MARKETING CHANNEL
M VW P  K W
Brand
M = Maytag®
Categories
VW = Top Load Washer
Model
P = Professional
Feature Pack

(The higher the number the more features available.)
Year Model Introduced

Color
W= White

GENERAL INFORMATION (Cont.)
Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer n 1-7
Product Specifications
Maytag®
Dimensions
Capacity (DOE) US (cu. .) 31/2
Capacity IEC CAN (cu. .) 4
Depth With Door Open 90 Degree (IN, inches) 26
Depth (IN, inches) 26
Door Opening Height (IN, inches) 14
Door Opening Width (IN, inches) 17
Height with Lid Open 52
Maximum Height (IN, inches) 44
Minimum Height (IN, inches) 43
Width (IN,inches) 27
Exterior
Adjustable Feet Yes
Lid/Door Finish Painted
Lid/Door Lock Yes
Lid/Door Swing NA
Details
Automated Dispenser NA
Dispense System Detergent Fabric Soener
Drum Material Stainless Steel
Maximum G-Force 143
Motor Horsepower 1/2 HP
Motor RPM 700
Mount Type So
Operang Pressure (PSI) 20-125
Out of Balance Sensing Yes
Water Factor 61/2
Weight Load Capacity 20 lbs
Features
Sound Package Yes
Controls
Automac Temperature Controls Yes
Control Type Dials
Electronic Display Type Cycle Indicator Lights
End of Cycle Signal Yes
Feedback-Status Indicators Done
Fill
Rinse
Soak
Controls
Feedback-Status Indicators Wash
LED Color Green

GENERAL INFORMATION (Cont.)
1-8 n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Product Specifications (Continued)
Cycles
Number of Wash Cycles 7
Washer Cycle Selecons Bulky Items
Delicates
Drain and Spin
Mixed
Normal
Powerwash®
Rinse and Spin
Options
Number of Washer Opons 4
Washer Opon Selecons O
Presoak and Extra Rinse
Extra Rinse
Presoak
Modifiers
Number of Wash/Rinse Temperatures 5
Temperature Selecons Hot
Cold
Tap Cold
Cool
Warm
Features
Pedestal Opons No
Certifications
UL Yes
Electrical
Amps 15
Hz 60
Power Cord Included Yes
Power Cord Length (.) 6
Volts 120
Was 720
Water Inlet Hose-Drain Hose
Drain Hose Length (., feet) 41/2
Water Usage
Average Hot Water Usage Hot Water Cycle (GI, Gallons) 6.8
Average Hot Water Usage Warm Water Cycle (GI, Gallons) 2.4
Average Total Water Usage per Cycle (GI, Gallons) 22
Management System Features
Full Width Console Yes
Service Mode Acvaon Yes
Self-Diagnoscs Yes

GENERAL INFORMATION (Cont.)
Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer n 1-9
Product Features
Control Panel
1. Wash Cycle Knob
Use the Wash Cycle knob to select cycles on your washer. Knob does
not advance during the progress of the cycle see cycle status lights for
each stage of the process. See “Cycle Guide” for detailed descripons of
cycles.
Select the cycle most suitable for your load. Items need to move freely.
Tightly packing can lead to poor cleaning performance and may increase
wrinkling and tangling.
 Temperature
Temperature senses and maintains uniform water temperatures by
regulang incoming hot and cold water. Select a wash temperature
based on the type of fabric and soils being washed. For best results, and
following the garment label instrucons, use the warmest wash water
safe for your fabric.
nNormal, Warm, and Hot water may be cooler than your previous
washer. Deep Water cycles will provide higher temperatures for the
wash cycle.
nEven in a cold or cool water wash, some warm water may be added
to the washer to maintain a minimum temperature.
3. 
You may add or remove opons for each cycle. Not all opons can be
used with all cycles, and some are preset to work with certain cycles.
Extra Rinse
This opon can be used to automacally add a second rinse
to most cycles.
Presoak and Extra Rinse
Use this opon to add both an extra soak period to any cycle
and a second rinse to most cycles.
Presoak
Use this opon to add an extra soak period to any cycle to
help loosen tough stains. The washer will agitate briey, ll
and pause to soak, then begin the selected cycle.
 
Press to start the selected cycle. To unlock the lid during Final Spin, press
to pause the cycle. Press and hold for 3 seconds to cancel a cycle.
NOTE: If the washer is spinning, it may take several minutes to unlock
the lid.
5. Cycle Status Lights Indicator
The Cycle Status lights show the progress of a cycle. At each stage of
the process, you may noce sounds or pauses that are dierent from
tradional washers.
Fill
This LED remains illuminated during the Fill poron of the
cycle.
Soak/Wash
This LED remains illuminated during the Soak/Wash poron
of the cycle.
Rinse
This LED remains illuminated during the Rinse poron of the
cycle. Fabric soener can be added at this stage of the cycle.
Final Spin/Lid Locked
The Final Spin LED and the Lid Locked LED will both remain
illuminated during this poron of the cycle. If you need to
open the lid prior to cycle compleon, press and hold
START/PAUSE for 3 seconds.
Done
This LED illuminates when the cycle is complete and will turn
o when the lid is open.
5 4
2
13
STATUS FILL SOAK/
WASH RINSE DONE
FINAL
SPIN LID
LOCKED

GENERAL INFORMATION
1-10 n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Notes

DIAGNOSTICS AND TROUBLESHOOTING
Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer n 2-1
Section 2:
Diagnostics and
Troubleshooting
This secon provides diagnosc, fault codes, and troubleshoong
informaon for the “Maytag® 3.5 cu. . Commercial-Grade Residenal
Agitator Washer.”
■Safety
■Cycle Guide
■Diagnostic Guide
■Diagnostic LED – Main Control
■Failure Mode
■Service Diagnostic Test
Modes
■Fault/Error Codes
■Quick Overview Test Mode
■Manual Overview Test Mode
■Troubleshooting Guide

For Service Technician Use Only
DIAGNOSTICS AND TROUBLESHOOTING (Cont.)
2-2 n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Safety
DANGER
Electrical Shock Hazard
Only authorized technicians should perform
diagnostic voltage measurements.
After performing voltage measurements,
disconnect power before servicing.
Failure to follow these instructions can result in
death or electrical shock.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Voltage Measurement Safety Information
When performing live voltage measurements, you must do the following:
■Verify the controls are in the off position so that the appliance does not start when energized.
■Allow enough space to perform the voltage measurements without obstructions.
■Keep other people a safe distance away from the appliance to prevent potential injury.
■Always use the proper testing equipment.
■After voltage measurements, always disconnect power before servicing.
IMPORTANT:Electrostatic Discharge (ESD) Sensitive Electronics
ESD problems are present everywhere. ESD may damage or weaken the electronic control assembly. The new control
assembly may appear to work well after repair is finished, but failure may occur at a later date due to ESD stress.
■Use an antistatic wrist strap. Connect wrist strap to green ground connection point or unpainted metal in the
appliance
-OR-
Touch your finger repeatedly to a green ground connection point or unpainted metal in the appliance.
■ Before removing the part from its package, touch the antistatic bag to a green ground connection point or
unpainted metal in the appliance.
■ Avoid touching electronic parts or terminal contacts; handle electronic control assembly by edges only.
■ When repackaging failed electronic control assembly in antistatic bag, observe above instructions.
IMPORTANT SAFETY NOTICE — “For Technicians only”
This service data sheet is intended for use by persons having electrical, electronic, and
mechanical experience and knowledge at a level generally considered acceptable in the
appliance repair trade. Any attempt to repair a major appliance may result in personal
injury and property damage. The manufacturer or seller cannot be responsible, nor
assume any liability for injury or damage of any kind arising from the use of this data
sheet.

For Service Technician Use Only
DIAGNOSTICS AND TROUBLESHOOTING (Cont.)
Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer n 2-3
Cycle Guide
For best fabric care, choose the cycle that best ts the load being washed. Not all cycles and opons are available on all models.
Items to wash: Cycle: Wash
Temperature:*
Spin
Speed:
Cycle Details:
Mixed-garment loads Mixed Hot, Warm, Cool,
Cold,
Tap Cold
High Use this cycle for a wide variety of mixed-garment loads. This cycle
features a deep bath rinse.
Coons, linens Normal Hot, Warm, Cool,
Cold,
Tap Cold
High Use this cycle for normally soiled coons.
Swimsuits and items
requiring rinsing without
detergent
Rinse & Spin Cold High Use this cycle to wash swimsuits or items requiring rinsing without
detergent. The washer combines a rinse and a high-speed spin for
loads requiring an addional rinse cycle or to complete a load aer
a power interrupon. Also, use this cycle for loads that require
rinsing only.
Hand-washed items or
dripping wet items
Drain & Spin N/A High Use this cycle to drain the washer aer cancelling a cycle or
compleng a cycle aer a power interrupon. This cycle uses a
high-speed spin to reduce drying mes for heavy items or hand-
washed items.
Large items such as
sheets, sleeping bags,
small comforters, jackets,
small washable rugs
Bulky/Towels Hot, Warm, Cool,
Cold,
Tap Cold
High Use this cycle to wash large items such as jackets and small
comforters. This cycle features a deep bath rinse.
Sturdy fabrics, colorfast
items, towels, jeans
PowerWash® Hot, Warm, Cool,
Cold,
Tap Cold
High Use this cycle for heavily soiled or sturdy items. This cycle features
a deep bath rinse.
No-iron fabrics,
permanent press,
synthecs, machine-
wash silks, hand-washed
fabrics
Delicates Hot, Warm, Cool,
Cold,
Tap Cold
Low Use this cycle to wash lightly soiled loads of no-iron fabrics such
as sport shirts, blouses, casual business clothes, permanent press,
and blends. Also use to wash lightly soiled garments indicang
“Machine Washable Silks” or “Gentle” cycle on the care label.
Place small items in mesh garment bags before washing. This cycle
features a deep bath rinse.

For Service Technician Use Only
DIAGNOSTICS AND TROUBLESHOOTING (Cont.)
2-4 n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Diagnostic Guide
Before Servicing, check the following:
nMake sure there is power at the wall outlet.
nHas a household fuse blown or circuit breaker tripped? Was a regular
fuse used? Inform customer that a me-delay fuse is required.
nAre both hot and cold water faucets open and water supply hoses
unobstructed?
nMake sure drain hose is not sealed into drain pipe, and that there is
an air gap for venlaon. Ensure drain height is between 39" (0.991
m) and 8' (2.4 m) above the oor.
nAll tests/checks should be made with a VOM (volt-ohm-
milliammeter) or DVM (digital-voltmeter) having a sensivity of
20,000 Ω per volt DC or greater.
nResistance checks must be made with washer unplugged or power
disconnected.
IMPORTANT: Avoid using large diameter probes when
checking harness connectors as the probes may damage the
connectors upon inseron.
nCheck all harnesses and connecons before replacing components.
Look for connectors not fully seated, broken or loose wires and
terminals, or wires not pressed into connectors far enough to engage
metal barbs.
nA potenal cause of a control not funconing is corrosion or
contaminaon on connecons. Use an ohmmeter to check for
connuity across suspected connecons.
nTo properly check voltage:
1. Unplug appliance or disconnect power.
2. Aach voltage measurement probes to proper connectors.
3. Plug in appliance or reconnect power and verify voltage reading.
4. Unplug appliance or disconnect power aer compleng voltage
measurements.


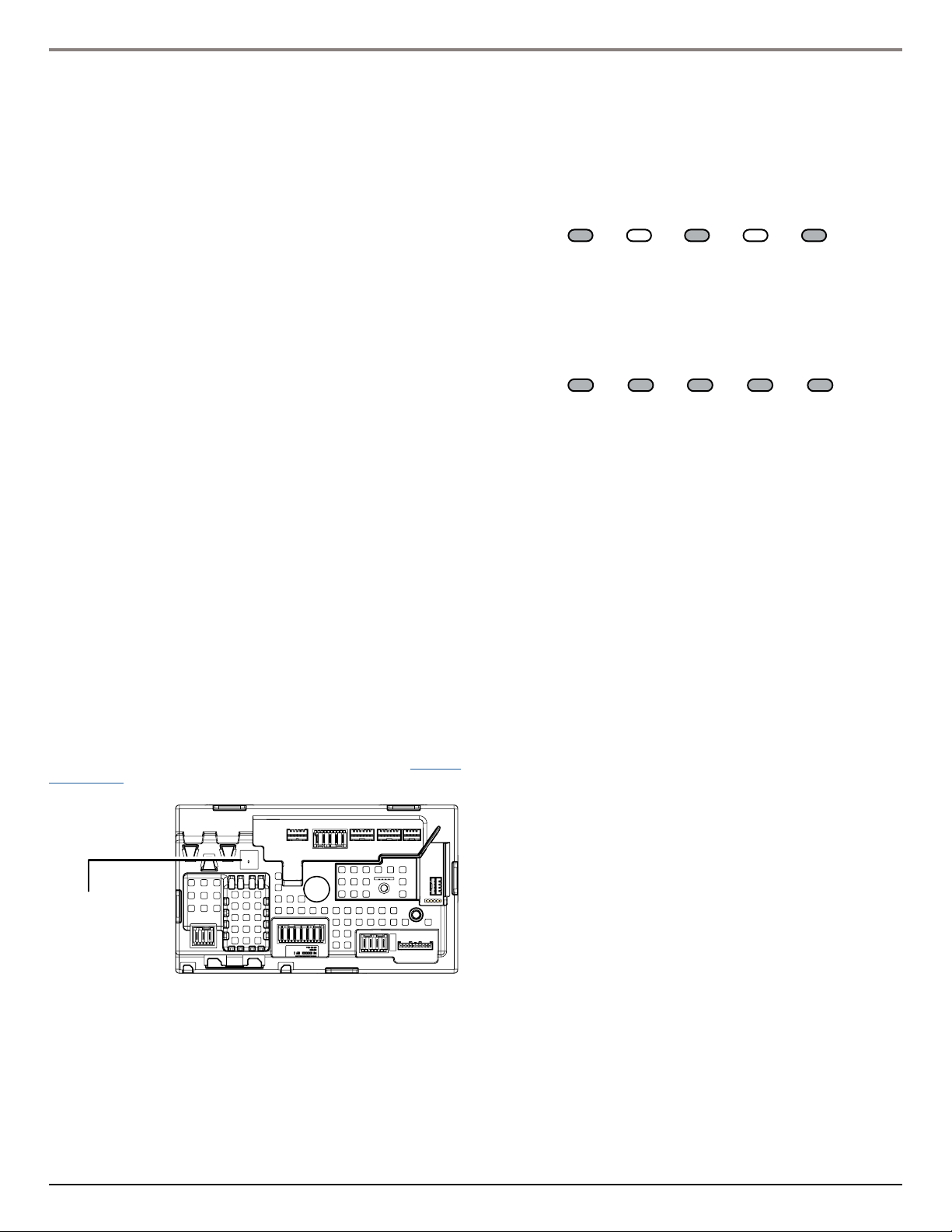

A troubleshoong tool has been implemented onto the main control
board—a diagnosc LED.
LED ON – The Control is detecng correct incoming line voltage and the
processor is funconing.
LED OFF – No power to control or control malfuncon. Perform TEST #1:
Main Control, to verify main control funconality.
Failure Mode
If the incoming water supply is restricted or o, the cycle will end and
the following three LEDs will be lit. Opening and closing the lid will reset
the control to the beginning of a new cycle. The incoming water supply
needs to be corrected prior to starng the next cycle or the risk of
another cancelled cycle is high.
n“FILL, RINSE, and DONE” LEDs On
All 5 LEDS lit and not ashing indicates that the washer is out of service.
Enter the Service Diagnosc Test Modes and then enter Fault Code
Display Mode to determine the mode of failure and to reset the control.
nAll ve LEDs On and Not Flashing
Service Diagnostic Test Modes
These tests allow factory or service personnel to test and verify
all inputs to the main control board. Ulize these performance
tests before connuing to specic component troubleshoong
tests.
Activating the Service Diagnostic Test Modes
1. Be sure the washer is in standby mode (plugged in with all
indicators o).
 Perform the following sequence of movement using the cycle
selector knob.
NOTE: Aer RESET, sequence “a” through “e” must be
completed within , stopping just briey between
each click (resulng in the following sequence: Le - Right -
Right - Le - Right, as indicated below).
RESET - Place cycle selector knob pointer at 12 o’clock
posion and wait 3–4 seconds before proceeding.
a. Rotate cycle selector knob counterclockwise one click.
b. Rotate cycle selector knob clockwise one click.
c. Rotate cycle selector knob clockwise one click.
d. Rotate cycle selector knob counterclockwise one click.
e. Rotate cycle selector knob clockwise one click.
LED Location
SOAK/ FINAL
FILLWASH RINSESPINDONE
SOAK/ FINAL
FILLWASH RINSESPINDONE

L

R

R

L

R

For Service Technician Use Only
DIAGNOSTICS AND TROUBLESHOOTING (Cont.)
Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer n 2-5
nSuccessful acvaon of Diagnosc Test Modes will be indicated by
all status LEDs (except for LID LOCKED) ashing ON and OFF in half-
second intervals.
NOTE: LED names may vary between makes and models.
nIf the status LEDs do not display as described above, the
sequence may not have been completed within 6 seconds.
Repeat step 2 to ensure this was not the cause. If sll
unsuccessful, see Unsuccessful Entry.
3. There are several accessible Diagnosc Test Modes shown
in the chart below. To select the desired Mode of Operaon,
toggle the cycle selector knob le and right one click in each
direcon, advancing through the Test Modes unl the status
LEDs match the mode desired to enter.
Diagnostic Test Modes
Mode Status LEDs
(Status LED names may vary
between makes and models)
Soak/Wash
Rinse
Final Spin
Done
Fault Code Display Mode 1
Quick Overview Test Mode 2
Manual Overview Test Mode 2 1
Calibraon Mode 4
Drain and Spin Cycle 4 1
UI Test Mode 4 2
SW Version Display Mode 421
Factory Diagnoscs Mode 8
Tachometer Vericaon Mode 8 1
Dry Factory Diagnoscs 8 2
Factory Cal Test Cycle 8 2 1
Clean Washer Cycle 8 4
 Press the START buon to enter desired mode of operaon.
Refer to the following pages for detailed informaon on each
mode of operaon:
nFault Code Display Mode
nQuick Overview Test Mode
nManual Overview Test Mode
n
nDrain and Spin Cycle
nUI Test Mode
nSW Version Display Mode
n: If accessed, washer must be re-calibrated (see
Calibraon Mode).
n
n
n
nClean Washer Cycle
Unsuccessful Entry
If entry into diagnosc test mode is unsuccessful, refer to the following
indicaon and acon:
: None of the LEDs turn on.
: Press START buon to enter seng mode.
nIf indicators come on, repeat steps 1 through 4 of Acvang the
Service Diagnosc Modes.
NOTE: Rotang the dial too fast or too slow will aect entry.
nIf no indicators come on aer pressing the START buon, go to TEST
#1: Main Control.

Modes
Press and hold the START buon for 3 seconds at any me to exit
diagnosc test modes.
Washer will exit diagnosc test modes aer 5 minutes of inacvity or
unplugging the power cord.
Fault Code Display Mode
To access Fault/Error Codes, perform steps 1 and 2 of Acvang the
Service Diagnosc Test Modes. Turn the cycle selector knob unl the
status LEDs correspond as follows:
n“DONE” LED On
Press the START buon to enter Fault Code Display Mode.
The status LEDs ash on and o.
1. To view last four fault codes:
nToggle cycle selector knob to view fault codes in the order of
most recent to oldest. (Refer to Fault/Error Code charts.)
NOTE: If only the FILL LED ashes ON and OFF, there are no
fault codes logged in the memory.
NOTE: A Fault/Error Code will be removed from memory if it
does not reoccur aer 10 consecuve wash cycles.
 To exit Fault Code Display Mode:
nToggle cycle selector knob unl the status LEDs ash ON and
OFF.
nPress and hold the START buon for 3 seconds to exit Fault Code
Display Mode.
Legend
= OFF
SOAK/ FINAL
FILLWASH RINSESPIN DONE
0.5 Seconds ON
0.5 Seconds OFF
= ON
SOAK/
WASH
FINAL
SPIN
FILL
RINSEDONE

For Service Technician Use Only
DIAGNOSTICS AND TROUBLESHOOTING (Cont.)
2-6 n Maytag®3.5 cu.ft. Commercial-Grade Residential Agitator Washer
Fault/Error Code Display Method
Fault/error codes are displayed by alternang the state of the Status
LEDs in one second intervals. All fault/error codes have an F# and an E#.
The F# indicates the suspect System/Category and the E# indicates the
suspect Component system.
If the FILL LED is ON, the Fault Number is represented; if OFF, the Error
Number is represented (see example below). The remaining LEDs (SOAK/
WASH, RINSE, FINAL SPIN, and DONE) represent the fault and error code
in binary. (See Fault/Error Code Charts for more informaon.)
Frame Number
STATUS LEDs
Fault Code
STATUS LEDs
Error Code
FILL
SOAK/WASH
RINSE
FINAL SPIN
DONE
FILL
SOAK/WASH
RINSE
FINAL SPIN
DONE
1F8421F2
2
3E8421E3
4
Repeat
LED names may vary between makes and models.
Check Fault/Error Code secon for order of tests.
Quick Overview Test Mode
To access Quick Overview Test Mode, perform steps 1 and 2 of Acvang
the Service Diagnosc Test Modes. Toggle the cycle selector knob unl
the status LEDs correspond as follows:
n“FINAL SPIN” LED On
NOTE: Status LED names may vary between makes and models.
Press the START buon to begin the Quick Overview test. Check the
Quick Overview Test Mode for more informaon on tests.
nUpon entering the Quick Overview test mode, the washer will
perform an automac test with water cycles to check major washer
funcons.
nPressing the START buon will manually advance to the next step.
nPress and hold the START buon for 3 seconds at any me to exit any
test mode.
IMPORTANT: Lid must be closed with lid lock enabled to perform test.
Manual Overview Test Mode
To access Manual Overview Test Mode, perform steps 1 and 2 of
Acvang the Service Diagnosc Test Modes. Toggle the cycle selector
knob unl the status LEDs correspond as follows:
n“FINAL SPIN and DONE” LEDs On
Press the START buon to enter Manual Overview Test Mode. Upon
entering the Manual Overview test mode, the washer will have all
outputs OFF.
nThe cycle selector knob is used to select the output to be tested.
nThe START buon will acvate/deacvate the selected output.
nWhen the selected output is acvated, the corresponding status LEDs
ash ON and OFF.
nPress and hold the START buon for 3 seconds at any me to exit any
test mode.
IMPORTANT: As a safety feature, the lid must be closed with lid lock
enabled to acvate either Agitate or Spin Test.
NOTE: Mulple outputs may be acvated simultaneously. Outputs le
on will me-out aer 5 minutes.
Calibration Mode
IMPORTANT: Calibraon must be performed when any of the following
components have been replaced: Main Control, Basket, Drive Assembly,
Suspension, Motor, and Capacitor. Calibraon should also be performed
when the washer is moved to a dierent locaon or, more specically, to
a dierent power outlet. Not performing calibraon may result in poor
wash performance.
To access Calibraon Mode, perform steps 1 and 2 of Acvang the
Service Diagnosc Test Modes. Toggle the cycle selector knob unl the
status LEDs correspond as follows:
n“RINSE” LED On
NOTE: Status LED names may vary between makes and models.
Press the START buon to begin washer calibraon. All status LEDs will
turn on.
nDo NOT interrupt calibraon, disturb washer, or remove power;
otherwise, calibraon must be repeated.
nLid must be down to perform test.
nBasket must be empty to perform test (no water or clothes).
nCalibraon cycle runs for approximately 2–4 minutes.
nCycle completes when door unlocks and washer enters standby
mode.
SOAK/
Wash
FINAL
SPIN
FILL RINSEDONE
SOAK/
Wash
FINAL
SPIN
FILL RINSEDONE
SOAK/
Wash
FINAL
SPIN
FILL RINSEDONE
