AUTOMATIC
WASHER
Super Capacity
Model LA98OOXP
Solid State
Mark II Series
Electronic Touch
Control
wave Ovens. Trash Compactors, Room Air Conditioners, Dehumldlfwrs, Automatvz Washers, Clothes Dryers, Freezers, Refrigerator-Freeze

Parts and features
POWER
ON/OFF LAUNDRY MAGIC CLEAN’
LOAD
SIZE LEVER INFORMATION LINT FILTER
SELECTOR I /
CENTER SOLID STATE (not shown)
ELECTRONIC
\ , TOUCH CONTROL
LIQUID
FABRIC SOFTENER
LIQUID BLEACH
MODEL AND SERIAL
NUMBER PLATE
-- (not shown)
- AGITATOR
- BASKET
-TUB
Remove the Consumer
Buy Guide label. It will be
easier to remove before
the washer is used.
You should wipe out the
basket with a damp cloth
before using to remove
dust from storing or
shipping.
See the”Laundry Guide”
for tips on detergents,
other laundry aids and in-
structions for washing spe-
cial items.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready.
Model Number
1. Complete Model and Serial Num-
bers [from plate under the lid near the
hinge). Ser,o, Number
2. Purchase date from sales slip.
Copy this information in these spaces. Purchase Date
Keep this book in the Laundry Informa-
tion Center with your “Laundry Guide,”
sales slip and warranty.
Service Company/
Phone Number
There is no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.
2

l-t%pOIl
lsibilities
Read this “Use and Care Guide”
and your “Laundry Guide” care-
fully for important use and safety
information.
You are personally responsible
for making sure that youi
washer...
l is installed by a qualified installer.
l is properly installed and
leveled on a floor that can
support the weight.*
l is connected to the right kind
of outlet, electric supply, water
supply and drain.’
l is properly grounded.-
. is used only for jobs normally
expected of home automatic
washers.
l is properly maintained.
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children or anyone
unable to operate it properly.
*See the “Installation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES.. 2
YOUR RESPONSIBILITIES. 3
SAFETY FIRST 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH
FABRIC SELECTION 8
WHAT HAPPENS IN EACH
WASH OPTION. . 10
Wash Time and
TemperatureOptions 12
WHAT HAPPENS IN EACH
RINSE OPTION 13
OTHER OPERATING
INSTRUCTIONS 14
Liquid Bleach Dispenser. 14
Liquid Fabric Softener
Dispenser 14
MAGIC CLEAN@ Lint Filter 14
CARING FOR YOUR WASHER
15
Winterizing . . . 16
IF YOU NEED SERVICE OR
ASSISTANCE. . . . . 17
01984 Whirlpool Corporation -SAVE THESE INSTRUCTIONS - 3

Starting your washer
Select a
1. LOAD SIZE Move POWER /
2. SWITCH TO ON.
l To change the setting on the
LOAD SIZE SELECTOR, move the tab
to RESET.
l Then move the tab to a setting that
describes the size of the load you
want to wash.
l Set the tab on or between HAND
WASHABLE (a few small items) and
EXTRA LARGE (a full load).
See the “Laundry Guide” for details
on load sizes.
l The REG/HEAVY Indicator Light will
come on. You will have 8 seconds
to touch a different FABRIC selector.
l If you do not touch a different
FABRIC selector, the washer will
automatically start in the REG/
HEAVY cycle.
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too 0
DO NOT
little water can cause wear or OVERLOAD WASHER.
tearing of load items.
*Approximate -’
fill with load.
EXTRA LARGE (20.5 gals/77.6L)’ e
MEDIUM (13.9 gals/52.6LJ*
HAND WASHABLE (7.8 gals/295L)*
4

/ Select a
3. FABRIC selector
A. Other selections. lf you want a
cycle other than REG/ HEAVY, touch
a different FABRIC selector within 8
seconds after turning on POWER
SWITCH.
B. For more time. Touch HOLD if
You want more time to decide on
another selection.
l HOLD will stop the washer while
you make another selection. Then
push RUN.
C. If an Indicator Light does
not glow after a Selector is
touched:
l The Selector was not touched on
the lower half. Only touch Selec-
tors in lower area beneath light.
l The Selector was not touched
before the 8 second selection
time ran out.
l The option you chose can’t be
combined with the FABRIC selec-
tion. See pages 6 and 7.
D. Changing a Selection. Before
the washer starts, touch another
selector. This cancels the selection
You don’t want.
If the washer has started, move the
POWER SWITCH to OFF.
l Then start back at Step 1 on
page 4.

Select WASH and
4. RINSE OPTIONS
A. The Electronic Controls are pre-
set for a warm wash and cold rinse
in every FABRIC selection.
6. Change wash and rinse tem-
peratures by touching WASH OPTION
gelectors.
l You must touch an OPTION within 8
seconds after touching a FABRIC
selection.
l See page 10 for more tips
on adding OPTIONS to FABRIC
selections.
5 Restarting
. your washer
Your washer will “remember” its
cycle if you touch HOLD. It will not
remember if there is a power
interruption such as a blown fuse.
If memory is lost at beginning
of wash cycle -
1. Move switch to POWER ON.
2. Touch FABRIC selector and
options.
3. The washer will finish filling [if
needed) and wash according
to the new selections.
It memory is lost at end of
wash cycle -
1. Move switch to POWER ON.
2. Touch SPIN ONLY to drain and spin
3. After the washer stops, again
move switch to POWER ON.
4. Touch RINSE SPIN to fill, rinse, drain
and spin the load.
If memory is lost at beginning
of rinse cycle -
1. Move switch to POWER ON.
2. Touch RINSE SPIN to finish filling or
to finish the rinsing cycle.
6

Using selections together
A. The Electronic Controls are
preset to help you choose
selections for the best washing
To protect some fabrics, your
washer will not accept certain
selections.
6. The indicator light glows and
stays glowing.
When this happens, your sei6ction
has been accepted. The washer will
use the FABRIC selection (and
OPTIONS) you selected.
l For example, the HOT WASH
if you touch option WIII not
KNITS/GENTLE, be accepted
l The Indicator lights will show
which selections are accepted.
C. One indicator light glows but
another goes off.
Your second selection cancelled
the first. For example, if you touched
REG/ HEAVY and decide you want
PERM’T PRESS,just touch the lower
area of PERM’T PRESS.The REG / HEAVY
Selection is cancelled and its indi-
cator light goes off.
Pages 8 through 13 of this book
explain what happens in each se-
lection. See details on which selec
tions con and can’t be used
together.

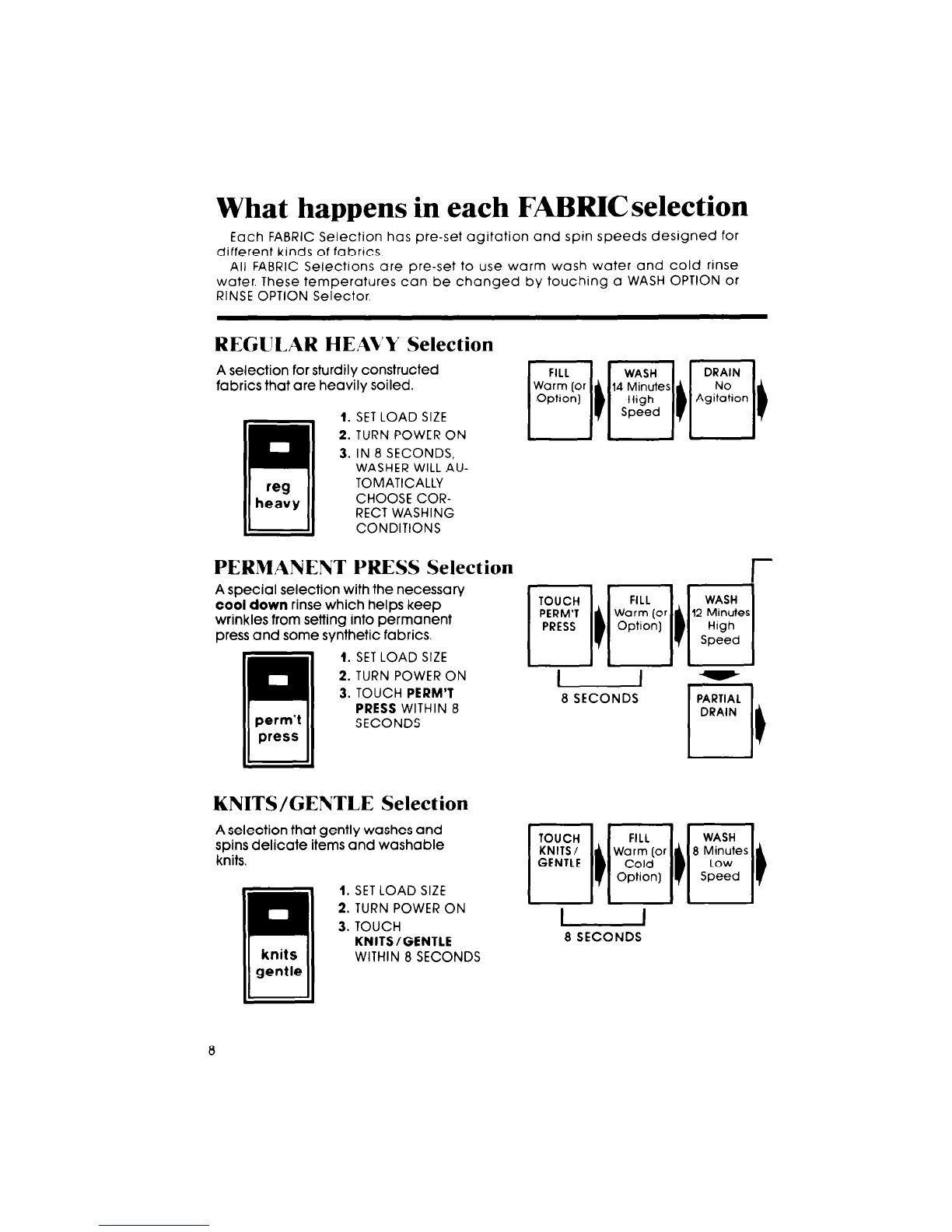

What happens in each FABRICselection
Each FABRIC Selection has pre-set agitation and spin speeds designed for
different kinds of fabrtcs.
All FABRIC Selections are preset to use warm wash water and cold rinse
water. These temperatures can be changed by touching a WASH OPTION or
RINSE OPTION Selector.
REGULAR HEAb’Y Selection
A selection for sturdily constructed
fabrics that are heavily soiled.
B
1. SETLOAD SIZE
2. TURN POWER ON
3. IN 8 SECONDS,
WASHER WILL AU-
-g TOMATICALLY
heavy CHOOSE COR-
RECT WASHING
CONDITIONS
PERMANENT PRESS Selection
A special selection with the necessary
cool down rinse which helps keep
wrinkles from setting into permanent
press and some synthetic fabrics.
B
1. SETLOAD SIZE
2. TURN POWER ON
3. TOUCH PERM’T
PRESS WITHIN B
perm’t SECONDS
press
KNITS/GENTLE Selection
A selection that gently washes and
spins delicate items and washable
knits.
1. SETLOAD SIZE
2. TURN POWER ON
3. TOUCH
KNITS/GENTLE
WITHIN 8 SECONDS
DRAIN
No
7
Agitation
r
8 SECONDS
PARTIAL
DRAIN
TOUCH
KNITS/
GENTLE
8 SECONDS

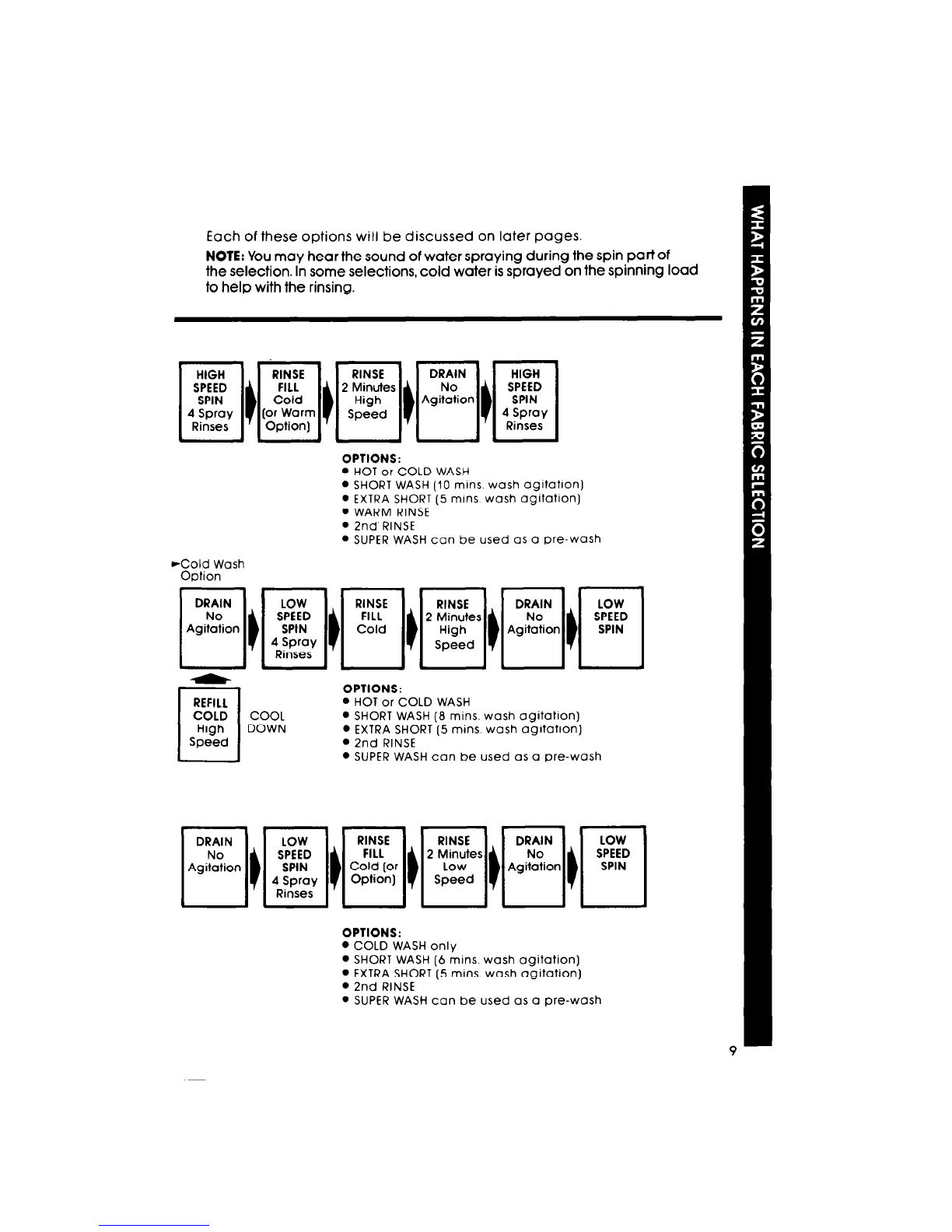

Each of these options will be discussed on later pages.
NOTE: You may hear the sound of water spraying during the spin padof
the selection. In some selections, cold water is sprayed on the spinning load
to help with the rinsing.
OPTIONS:
l HOT or COLD WASH
l SHORT WASH (IO mans wash ogltatlon)
l EXTRA SHORT (5 mans wash agitation]
. WARM RINSE
l Znd.RlNSE
l SUPER WASH can be used as a pre-wash
-Cold Wash
Option
OPTIONS:
COOL
DOWN
l HOT or COLD WASH
l SHORT WASH (8 mins. wash agitation)
l EXTRA SHORT [5 mins. wash agitation)
l 2nd RINSE
l SUPER WASH can be used as a pre-wash
OPTIONS:
l COLD WASH only
l SHORT WASH (6 mins. wash agitation)
l EXTRA SHORT (5 mins. wash agitation)
l 2nd RINSE
l SUPER WASH can be used OS a pre-wash

What happens for each WASH option
Use WASH Options to change the automatic settings in FABRIC selections.
WASH Options allow you to select different water temperatures, cycle
lengths and special wash cycles.
SOAK Option
Brief periods of agitation and soak
time help remove heavy soils and
certain stains that need extra pretreat-
ment. Use recommended amount
of detergent.
1. SET LOAD SIZE
2. TURN POWER ON I I
8 SECONDS
3. TOUCH OPTION
WITHIN 8 SECONDS
SUPER WASH as pre-wash
Use for pre-washing heavily soiled or
stained loads that you want to check
before ma king a FABRIC Selection. Use
recommended amount of detergent
for a single wash.
1. SET LOAD SIZE
2. TURN POWER ON
3. TOUCH SUPER
WASH WITHIN 8
SECONDS
SUPER WASH as a double wash
Use for washing heavily soiled loads
that require maximum soil removal.
Double the recommended amount of
detergent when using this option.
1. SETLOAD SIZE
2. TURN POWER ON
3. TOUCH SUPER
8 SECONDS
8 SECONDS 8 SECONDS
super
II II
wash
WASH WITHIN 8
SECONDS
-
10

NOTES:
. DISSOLVE DRY DETERGENT IN
QUART OF WARM WATER BEFORE
ADDING [OR USE LIQUID
DETERGENT)
l TURN POWER ON
. TOUCH FABRIC AND OPTIONS
l SOAK CYCLE automatically fills
with warm water unless you
touch COLD WASH.
l SOAK CYCLE cannot be used
with any other WASH Option or
FABRIC Selection.
l DISSOLVE DRY DETERGENT IN
QUART OF WARM WATER BEFORE
ADDING IOR USE LIQUID
l TOUCH FABRIC AND OPTIONS
WASH
FILL
Warm (or
Option)
PARTIAL
DRAIN
No
Agitatior
After the PARTIAL DRAIN, the
washer refills and washes ac-
cording to the FABRIC Selection
and OPTIONS touched. Be sure to
use enough detergent for the
double wash.

Wash time options Wash temperature options
If you touch a FABRIC selection
without touching a time option, the
washer will agitate for the time
pre-set in the FABRIC selection:
- REG/HEAVY 14 minutes
- PERMIT PRESS 12 minutes
- KNITS/GENTLE 8 minutes
If You touch a FABRIC selection
without touching a temperature
option, the washer will fill with warm
wash water. It will refill with cold
rinse water.
You can change the wash water
temperature by selecting one of
these options.
When You touch
SHORT WASH, the
pre-set agitation
time of each
FABRIC selector
is shortened to.
REG/HEAVY 10 mins.
PERMIT PRESS 8 mins.
KNITS/GENTLE 6 mins.
When You touch
EXTRA SHORT, the
pre-set agitation
time of each
FABRIC selection
IS shortened to:
REG/HEAVY 5 mins.
PERM’T PRESS 5 mins.
KNITS/GENTLE 4 mins.
B
Touch HOT WASH if
You want hot wash
water for REG/ HEAVY
or PERM’T / PRESS
selections. You can-
hot
not select HOT WASH
with KNITS/GENTLE,
wash
SOAK CYCLE or SUPER
WASH. This is to pro-
tect knits from shrink-
age or stretching and stains from
being heat set in fabrics.
Touch COLD WASH
if you want cold
wash water for
any FABRIC selec-
tion, SOAK CYCLE,
SUPER WASH or
RINSE SPIN.
12

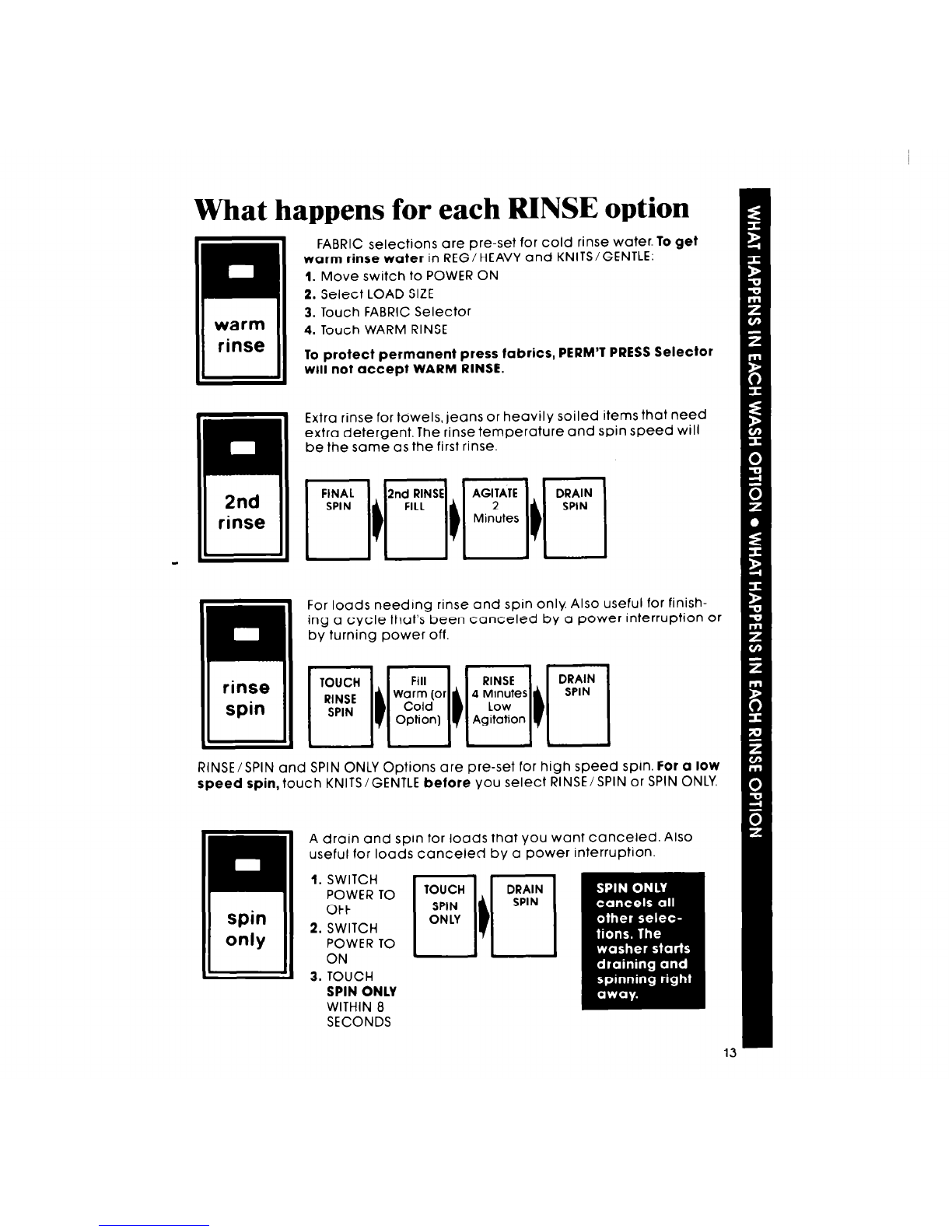

What happens for each RINSE option
a
warm
rinse
FABRIC selections are pre-set for cold rinse water. To get
warm rinse water in REG/HEAVY and KNITS/GENTLE:
1. Move switch to POWER ON
2. Select LOAD SIZE
3. Touch FABRIC Selector
4. Touch WARM RINSE
To protect permanent press tabrics, PERM’T PRESS Selector
will not accept WARM RINSE.
Extra rinse for towels, jeans or heavily soiled items that need
extra detergent. The rinse temperature and spin speed will
be the same as the first rinse.
For loads needing rinse and spin only. Also useful for finish-
ing a cycle that’s been canceled by a power interruption or
by turning power off.
RINSE/SPIN and SPIN ONLY Options are pre-set for high speed spin. For a low
speed spin, touch KNITS/GENTLE before You select RINSE/SPIN or SPIN ONLY
A drain and spin for loads that you want canceled. Also
useful for loads canceled by a power interruption.
1. SWITCH
POWER TO
OFF
2. SWITCH
POWER TO
ON
3. TOUCH
SPIN ONLY
WITHIN 8
SECONDS

Other operating inst ructions
Liquid bleach dispenser
Always measure bleach. Do not
guess. Never use more than 1 cup
(250 ml) for a full load. Use less with
lower water level settings. Follow
directions on bottle for safe use. Use
a cup with a pouring spout to avoid
spilling.
1. Load the washer first.
2. Pour measured bleach carefully
into dispenser. DO NOT let bleach
splash, drip or run down into the
washer basket. Undiluted bleach
will damage any fabric it touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
For more information on bleaching, see “Laundry Guide” page 11.
Liquid fabric softener dispenser
1. Add detergent and load to the
basket.
2. Add liquid fabric softener to
the dispenser using the amount
recommended on the bottle.
(Avoid dripping or spilling any
fabric softener on the load.)
3. IMPORTANT: Add enough hot
water to fill the dispenser to the
FULLmark.
4. Diluted fabric softener will be added to the load when the washer stops
spinning after the wash cycle. NOTE: Do not stop the washer during this spin.
If you do, the fabric softener will be added to the remaining soapy wash
water. This can cause stains.
5. Clean dispenser after each use with warm water. Do not use detergent, it
could cause dispenser to clog.
For more information on fabric softener, see page 12 in your “Laundry Guide!’
MAGIC CLEAN@ lint filter
The lint filter in your washer cleans itself. Collected
lint is drained away with the wash and rinse water.
If your washer drains into a tub, remove any lint
collected in the drain or strainer.
14

I Caring for vour washer
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
and hoses.
AFTER WASHING, use a soft dry cloth
to wipe the outside and inside dry.
Leave the lid up until the basket is drv
I’
Wipe up spills right away. Spills can
dull or damage the finish.
REMOVE SHARP OBJECTS such as pins,
buckles, etc., from clothes before
washing. Crose metal zippers.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools, etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials,
consoles and finishes. Do not use
these products on or near your
washer or dryer.

Winterizing
Because some water stays In the wosher, freez-
rng can cause a lot of damage If your washer IS
stored or moved durrng the cold weather
1. Shut off both water
faucets Drscon-
neck and drain
water Inlet hoses
2. Put a quart of
. automobrle-type
antrfreeze rn the
basket
ON
// I
3. Touch the SPIN
ONLY option (see
page 13) Let the
washer run for
about 30 seconds
to mrx the anti-
freeze and water
To use the washer again.. .
1. Flush water popes and hoses
2. Connect hoses to the washer
3. Turn on the water faucets
4. Run the washer
through a com-
plete cycle wrth
one cup of deter-
gent to clean out
the antrfreeze
16

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling
for assistance.. .
Performance problems often re-
sult from little things you can find
and fix yourself without tools of any
kind.
IF YOUR WASHER DOES NOT FILL:
l Is the power supply cord
plugged in?
Are fuses blown or circuit-breaker
tripped?
Are the water supply hoses
kinked?
IF YOUR WASHER DOES NOT SPIN:
l Is the lid closed?
l Is the power supply cord
plugged in?
l Is a fuse blown or circuit-breaker
tripped?
IF YOUR WASHER STOPS DURING THE
PERMANENT PRESS CYCLE:
l Remember, the washer will stop for
about 2 minutes after the partial
drain during the cool-down period
in this cycle.
MAKE SURE THE DRAIN HOSE IS
HIGHER THAN THE WATER LEVEL IN
THE WASHER. IF IT ISN’T...
l The washer may seem to be
draining during wash and rinse
cycles.
l Water can siphon out. (See “ln-
stallation Instructions:‘)
l Are both water faucets open?

2. If you need assistance*. . .
Call Whirlpool COOL-LINE” serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of ourtrained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory op-
eration from Your appliance or, if
service is necessary, recommend a
qualified service company in Your
area.
3. If you need service*. . .
TECH-CARE * Serv-
~ 7Fcff-CARE ice Companies.
LFPAHF!!!?~!?SERVICETECH-CARE serv-
ice technicians are trained to fulfill
the product warranty and provide
after-warranty service, anywhere in
the United States. To locate TECH-
CARE service in your area, call our
COOL-LINE service assistance tele-
phone number [see Step 2) or look in
your telephone directory Yellow
Pages under:
4. If you have a problem *.. .
Call our COOL-LINE service as-
sistance telephone number [see
Step 2) and talk with one of our Con-
sultants, or if you prefer, write to:
Mr. Robert F.Gunts, Vice President
Whirlpool Corporation
Administrative Center
2000 US-33, North
Benton Harbor, Ml 49022
*If you must call or write, please pro-
vide: model number, serial number,
dote of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter respond to your request for
assistance.
FSP ISo reglsiered trademark
0
of Whirlpool Corpofatlon for
quality parts Look for thts
FSP
symbol of quality whenever
you need a replacement part
@ for your WhIrlpool appliance
FSP replacement parts
WIII fit right and work rlght because they are
made to the same exacting speclftcatlons
used to build every new WhirlpcxI appliance
18

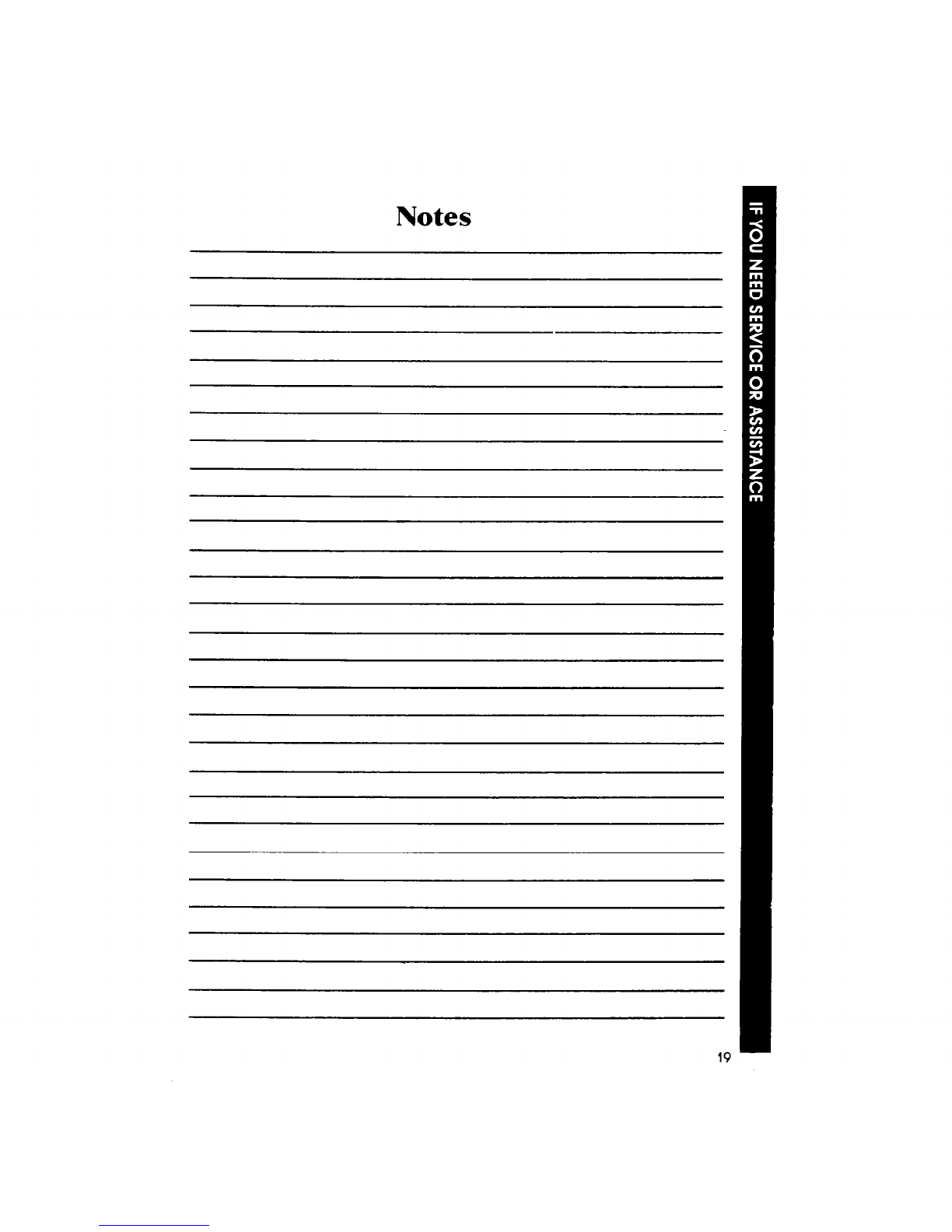

Notes

Home r Appliances
Maklng your world a llttle easier.
Part No. 385045
01984 Whirlpool Corporation Printed in U.S.A.
!.-,+.-;)w+“.> *.b ‘. .,,. ~I.- , .,, a &A__, ,_ i. _.,-r. .~ II,
amatlc Washers, Clothes Dryers. Freezers. Refrlgeralor-Freezers. Ice Makers DIshwashers. Built-In Ovens and Surlace Un~ls. Ranges. MI
