CONGRATULATIONS!
Congratulations on the purchase of your new washer. I am confident that our product will provide you with the
same quality, performance, and reliability on which our reputation has been built.
Please take the time to read this guide. It contains many valuable ideas and information that will help you enjoy
this product for many years to come.
Thank you for choosing one of our quality products. You have made an excellent choice.
Sincerely,
Dan Clifford
General Manager
Inglis Limited
If you need assistance or service, first see the “Troubleshooting” section of this book. After checking “Trouble-
shooting” additional help can be found by checking the “Requesting Assistance or Service” section.
When calling, you will need to know your appliance’s complete model number and serial number. You can find
this information on the model and serial number label (see diagram on “Parts and Features” section).
Keep this book and the sales slip together in a safe place for future reference. You must provide proof of
purchase or installation date for in-warranty service.
Model Number __________________________________
Serial Number ___________________________________
Date Installed ___________________________________
Builder/Dealer Name ____________________________
Address ________________________________________
Phone __________________________________________

3
WASHERSAFETY
IMPORTANT SAFETY INSTRUCTIONS
WARNING – To reduce the risk of fire, electric shock, or injury to persons when using
the washer, follow basic precautions, including the following:
•Read all instructions before using the
washer.
•Do not wash articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, other flammable, or explosive
substances as they give off vapours that
could ignite or explode.
•Do not add gasoline, dry-cleaning sol-
vents, or other flammable, or explosive
substances to the wash water. These
substances give off vapours that could
ignite or explode.
•Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for 2 weeks or
more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been used
for such a period, before using the wash-
ing machine, turn on all hot water faucets
and let the water flow from each for
several minutes. This will release any
accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an
open flame during this time.
– SAVE THESE INSTRUCTIONS –
•Do not allow children to play on or in the
washer. Close supervision of children is
necessary when the washer is used near
children.
•Before the washer is removed from service
or discarded, remove the door.
•Do not reach into the washer if the tub or
agitator is moving.
•Do not install or store the washer where it
will be exposed to the weather.
•Do not tamper with controls.
•Do not repair or replace any part of the
washer or attempt any servicing unless
specifically recommended in this Use and
Care Guide or in published user-repair
instructions that you understand and have
the skills to carry out.
•See Installation Instructions for grounding
requirements.
You will be killed or seriously injured if you don’t
follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
wDANGER
wWARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.

4
Load SizeLoad Size
Heavy Duty • Large CapacityHeavy Duty • Large Capacity
Extra
Large
Medium Large
Pull StartPull Start
Push StopPush Stop
Permanent
Press
Normal
Super WashSuper Wash
Hand WashablesHand Washables
Regular
Light
Normal
Light
Normal
Soft Wash
Heavy
Delicates
SpinSpin
Spin
SpinSpin
SpinSpin
SpinSpin
SpinSpin
Off
Off
Off
Off
Off
Off
Off
Rinse
Rinse
Cool
Down
Rinse
Rinse
Extra
RinseRinse
Extra
RinseRinse
X-RinseRinse
Pause
Pause
9
9
12
15
18
6
66
6
3
3
Temperature Options
Hot WarmWarm Cold WarmWarm
Wash
Cold Cold Cold Warm Cycle SignalCycle Signal ExtraRinseExtra Rinse
Rinse
OnOn OffOff
OnOn OffOff
8 Cycle - 2 Speed8 Cycle - 2 Speed
Small
PARTS AND FEATURES

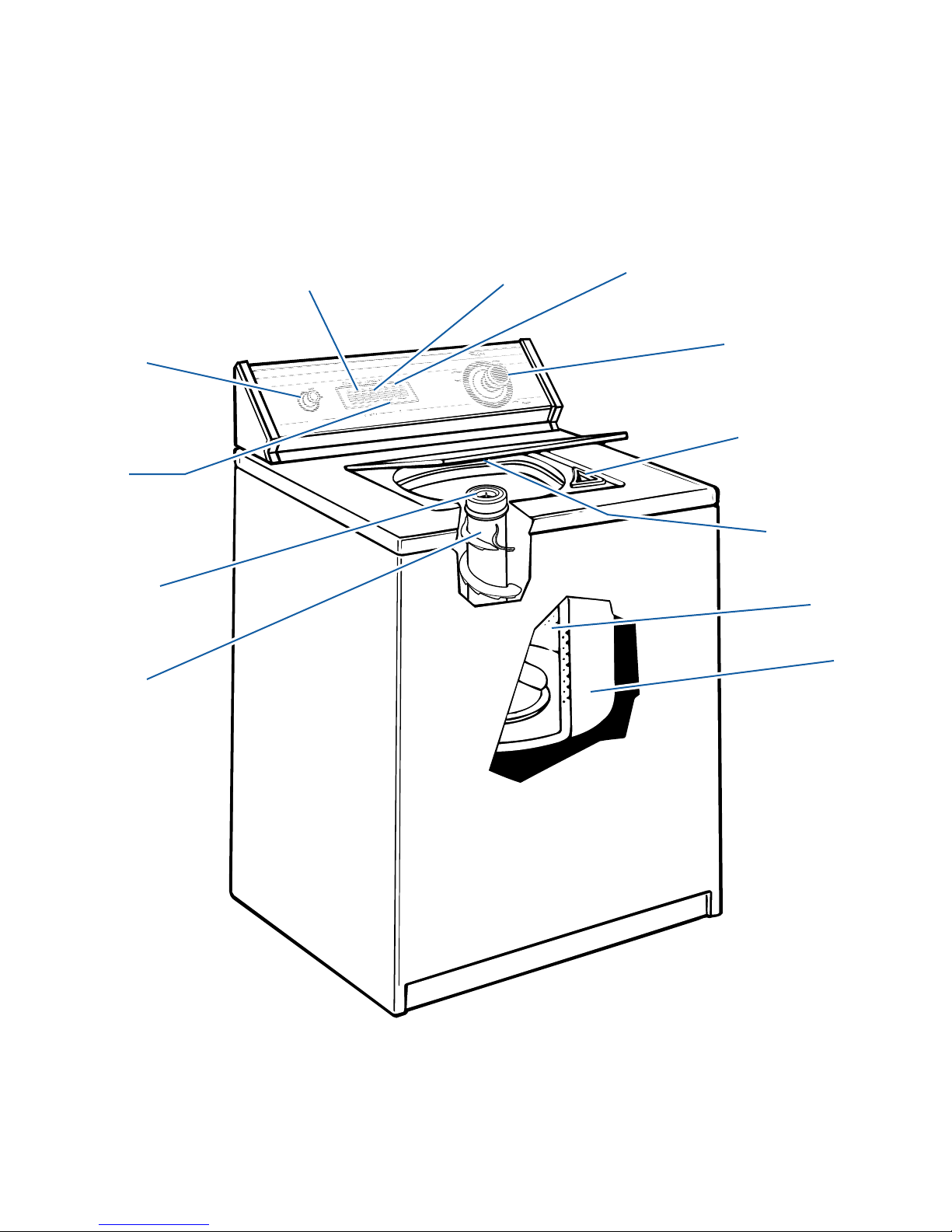

The parts and features of your washer are illustrated on this page. Become familiar with all parts
and features before using your washer. Page references are included next to some features. Refer
to those pages for more information about the features.
NOTE: The drawings in this book may vary from your washer model. They are designed to show
the different features of all models covered by this book. Your model may not include all features.
Cycle control knob
(pp. 7-10)
Liquid chlorine
bleach dispenser
(p. 5)
Model and serial
number label
(under lid)
Basket
Tub
Load size
selector
(p. 6)
CLEAN TOUCH*
panel
Liquid fabric
softener
dispenser
(pp. 6, 11)
Agitator
MAGIC CLEAN*
lint filter
(bottom of
washer basket)
(p. 9)
Cycle signal selector†
(p. 6)
Water temperature
selector†
(p. 6)
Extra rinse selector†
(p. 6)
†CLEAN TOUCH panel on some models;
other models have rotary knob.

5
To get the best washing results possible, you must use your washer correctly. This section tells
you how to use your washer properly and efficiently.
USING YOUR WASHER
OPERATING YOUR WASHER
wWARNING
Explosion Hazard
Never place items in the washer that are
dampened with gasoline or other
flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any
type of oil on it (including cooking oils).
Doing so can result in death, explosion,
or fire.
wWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.

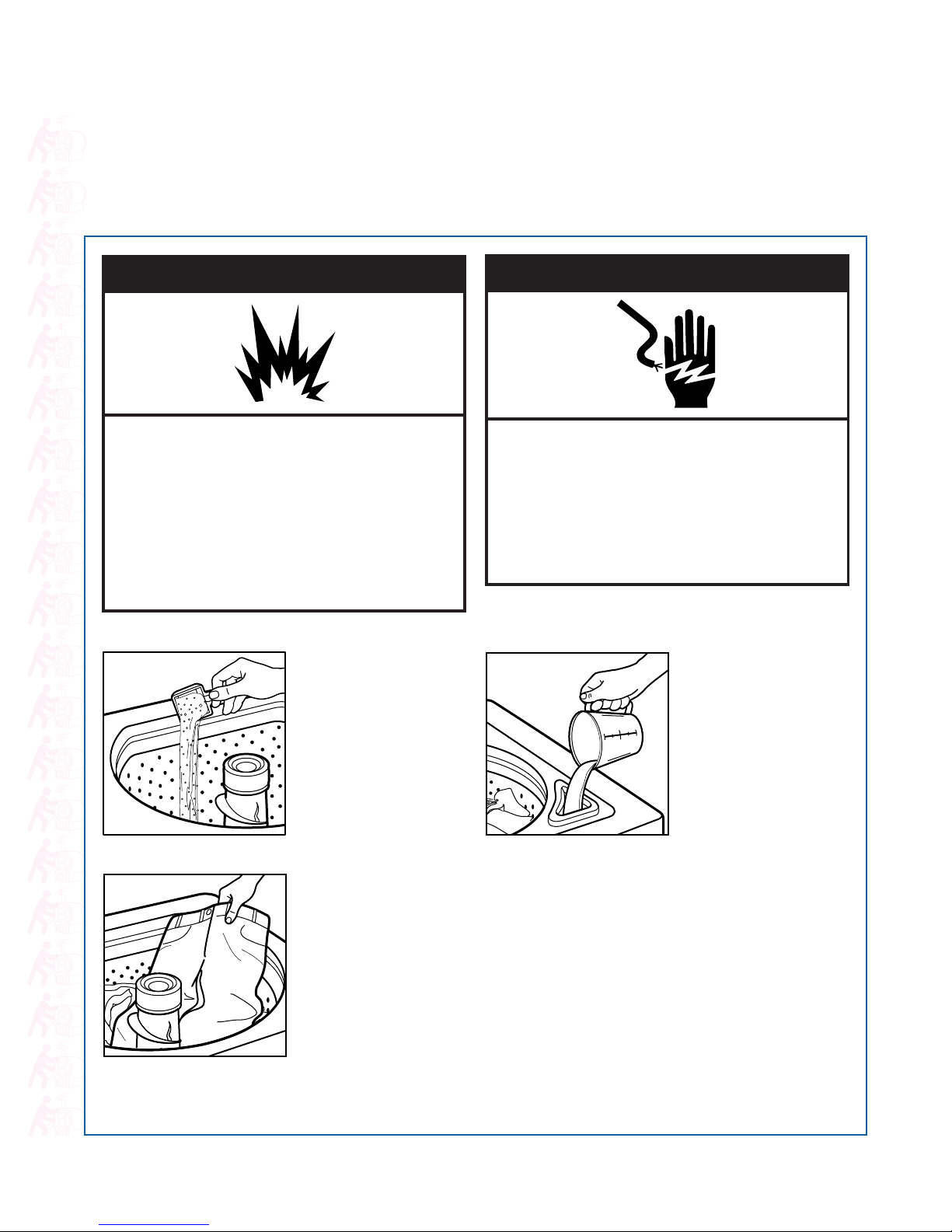

1. Measure detergent and pour it into the washer.
•If desired, you may
also add powder or
liquid colour safe
bleach.
•Add extra detergent
for the Super Wash
cycle.
2. Drop a sorted load of clothes loosely into your
washer, filling to the
top row of holes.
•Load evenly to main-
tain washer balance.
Mix large and small
items.
•Items should move
easily through the wash
water. Overloading can
cause poor cleaning.
•To reduce wrinkling
of permanent press clothes and some synthetic
knits, use a large load size to provide more space
(see step 6).
3. (OPTIONAL STEP) Pour measured liquid chlorine
bleach into the liquid
chlorine bleach dis-
penser. Bleach will
be diluted automatically
during the wash part of
the cycle.
•Never use more than
250 mL (1 cup) for a full
load. Use less with a
smaller load size.
•Follow the manufac-
turer’s directions for safe use.
•To avoid spilling, use a cup with a pouring spout.
Do not let bleach splash, drip, or run down into the
washer basket.
•Make sure you use only liquid chlorine bleach in
this dispenser.
continued on next page

6
6. Turn the Load Size selector to the correct setting
for your wash load and
the type of fabric being
washed.
•Your washer has five
load size settings.
•Choose a load size
that allows the load to
move freely for best
fabric care. See the
“Loading” section.
•Change the setting
after the washer has started filling by turning the
selector to a different setting.
OPERATING YOUR WASHER
USING YOUR WASHER (CONT.)

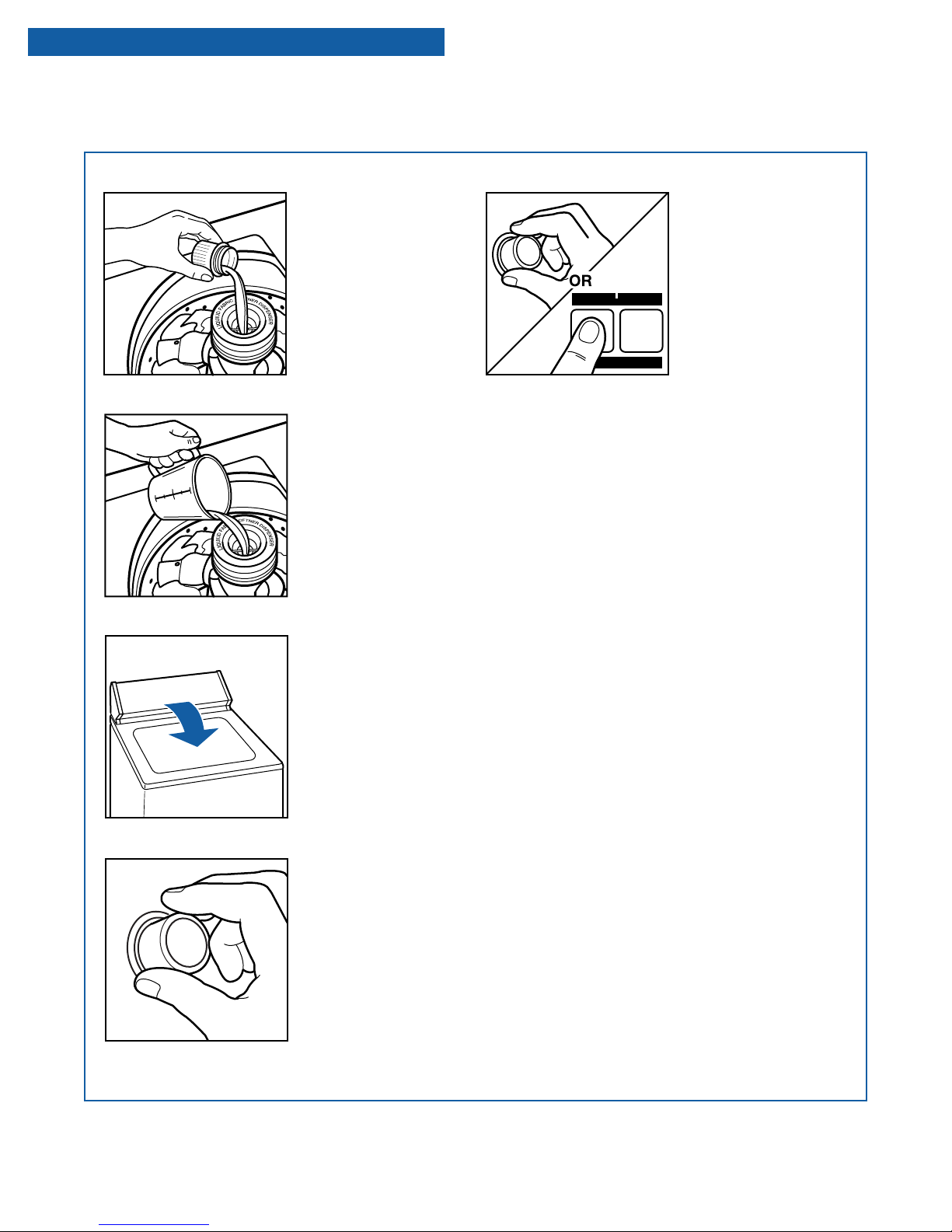

4. (OPTIONAL STEP) Pour measured liquid fabric
softener into the fabric
softener dispenser.
•Do not spill or drip
any fabric softener on
the clothes.
•Make sure you use
only liquid fabric
softener in this
dispenser.
7. Set the Water Temperature selector to the
correct setting for the
type of fabric and soils
being washed.
•Use the warmest
water safe for fabric.
•Follow garment label instructions.
HOT: 54°C (130°F) or above.
– Whites and pastels.
– Heavy and greasy soils.
WARM: 32 to 44°C (90 to 110°F).
– Bright colours.
– Moderate to light soils.
COLD: 21 to 32°C (70 to 90°F).
– Colours that bleed or fade.
– Light soils.
8. (OPTIONAL STEP) For an additional rinse and
spin at the end of a wash cycle, set the Extra
Rinse selector to On.
9. (OPTIONAL STEP) Set the Cycle Signal selector
to On if you want your washer to sound a signal
when the wash cycle is finished. This signal is
helpful when you are washing items that should
be removed from the washer as soon as the
cycle ends.
5. Close the washer lid.
•Dilute liquid fabric softener by filling the dis-
penser with warm
water until liquid
reaches the
crossbar in the
opening.
•Softener is added
automatically during
the rinse portion of
the cycle.

7
OPERATING YOUR WASHER
USING YOUR WASHER (CONT.)
10. Push in the Cycle Control Knob and turn it
clockwise to the wash
cycle you want. See
the “Cycle Descrip-
tions” section.
•Reduce the wash
time when using a
small load size setting.
11. Pull out the Cycle Control Knob to start the
washer.
NOTE: To stop the washer at any time, push in the
Cycle Control Knob. To restart the washer, close
the lid (if open) and pull out the Cycle Control Knob.
LOADING
Loading suggestions
For these suggested full-sized loads, set the Load Size selector to the highest load size setting.
SUPER CAPACITY PLUS WASHERS
Heavy Work Clothes
3 pair pants
3 shirts
4 pair jeans
1 coverall
1 overall
Towels
10 bath towels
10 hand towels
14 wash cloths
1 bath mat
Mixed Load
3 double sheets
4 pillowcases
8 T-shirts
6 pair shorts
2 shirts
2 blouses
8 handkerchiefs
Delicates
3 camisoles
1 quilted robe
4 slips
4 panties
2 bras
2 nighties
1 baby’s dress
SELECTING ACYCLE AND TIME
This section describes the available wash cycles
and will help you make the best cycle selections
for your wash loads. Each cycle is designed for
different types of fabric and soil levels.
•The washer pauses briefly throughout each cycle.
These pauses are normal. Refer to “Understanding
normal washer sounds” to learn more about the
sounds you may hear during a wash cycle.
•Refer to “Understanding what happens in each
cycle” to learn what happens during a wash cycle.

8
OPERATING YOUR WASHER
CYCLE DESCRIPTIONS
Super Wash cycle
The Super Wash cycle automatically prewashes
the laundry and advances
into the Normal cycle. (The
washer does not need to be
reset after the Super Wash
cycle.) Use this cycle when
washing heavily soiled loads
that need maximum soil
removal. Use two times the
recommended amount of
detergent for this cycle.
Normal cycle
The Normal cycle feature high speed agitation.
High spin speeds shorten
drying time. Use 9 (Regular)
or 12 (Heavy) minutes of
wash time for cleaning
sturdy cotton and linen
fabrics that are moderately
or heavily soiled. On some
models, for lightly soiled
cotton and linen fabrics,
use the 6-minute (Softwash) setting.
Permanent Press cycle
The Permanent Press cycle starts with high agita-
tion and then steps to low.
To reduce wrinkling, this
cycle features a cool-down
rinse and a low speed final
spin. Use the Permanent
Press cycle for cleaning
permanent press and some
synthetic fabrics that are
lightly or moderately soiled.
Delicates cycle
The Delicate cycle features a reduced agitation
speed for gentle soil
removal. Low spins reduce
wrinkling. Use this 6-minute
cycle for cleaning delicate
items and washable knits
that are lightly or moderately
soiled.
Hand Washables cycle
(on some models)
The Hand washables cycle features brief low
speed agitation and soak
time (2 seconds agitation,
28 seconds soak) which is
repeated for six minutes.
Low spin speed reduces
wrinkling. Use this cycle for
cleaning lightly soiled hand
washables.
Garments are labeled “Hand Wash” because:
•The fibre or construction may be sensitive to
agitation.
•The fabric contains sensitive dyes that may
bleed. Properly sort and then use your Hand
Washables cycle for gentle washing. Follow care
label directions for drying. Items that may shrink
should be dried flat. Block these items by gently
stretching to original measurements. Woolens
tend to shrink more the first time they are
washed.
•If items appear to be floating due to trapped air,
stop the washer by pushing in the Cycle Control
Knob. Push items down into the washer. Restart
the washer.
Soak cycle
(on some models)
The Soak cycle features a brief period of agitation
and soak time to help
remove heavy soils and
stains that need pretreat-
ment. The soak period will
continue as long as you like.
Thirty minutes or less is
recommended for most
situations.
•Use warm water when soaking laundry. Hot
water can set stains.
•Use the amount of detergent or presoak additive
recommended by the manufacturer.
•When you have decided to end the Soak cycle,
turn the Cycle Control Knob to Spin.
•Next, add detergent and start a new wash cycle.
Super Wash
18
Normal
Spin
Spin
Rinse
X-Rinse
6
9
12
Off
Off
Regular
Heavy
Softwash
Permanent
Press
Spin
Spin
Extra
Rinse
6
9
Cool
Down
Pause
Off
Off
Rinse
Regular
Light
Delicates
Spin
Rinse
Rinse
Extra
6
Off
Off
Hand WashablesHand Washables
Spin
Spin
Rinse
Rinse
Extra
6
Off
Off

9
OPERATING YOUR WASHER
RINSE/DRAIN AND SPIN
Rinse and Spin feature
When using extra detergent for heavily soiled
clothes, or washing special-care items, you may
find an extra rinse and spin is needed.
•For an additional rinse and spin, push in the
Cycle Control Knob and turn it clockwise to any
of the Rinse settings. The washer fills to the
selected load size, agitates, drains, and spins.
NOTE: An Extra Rinse option is also available. See
“Using your washer.”
Drain and Spin feature
A drain and spin may help shorten drying times for
some heavy fabrics or special-care items by remov-
ing excess water.
•For a drain and spin, push in the Cycle Control
Knob and turn it clockwise to any of the Spin
settings. Then pull out the Cycle Control Knob.
The washer drains, then spins.

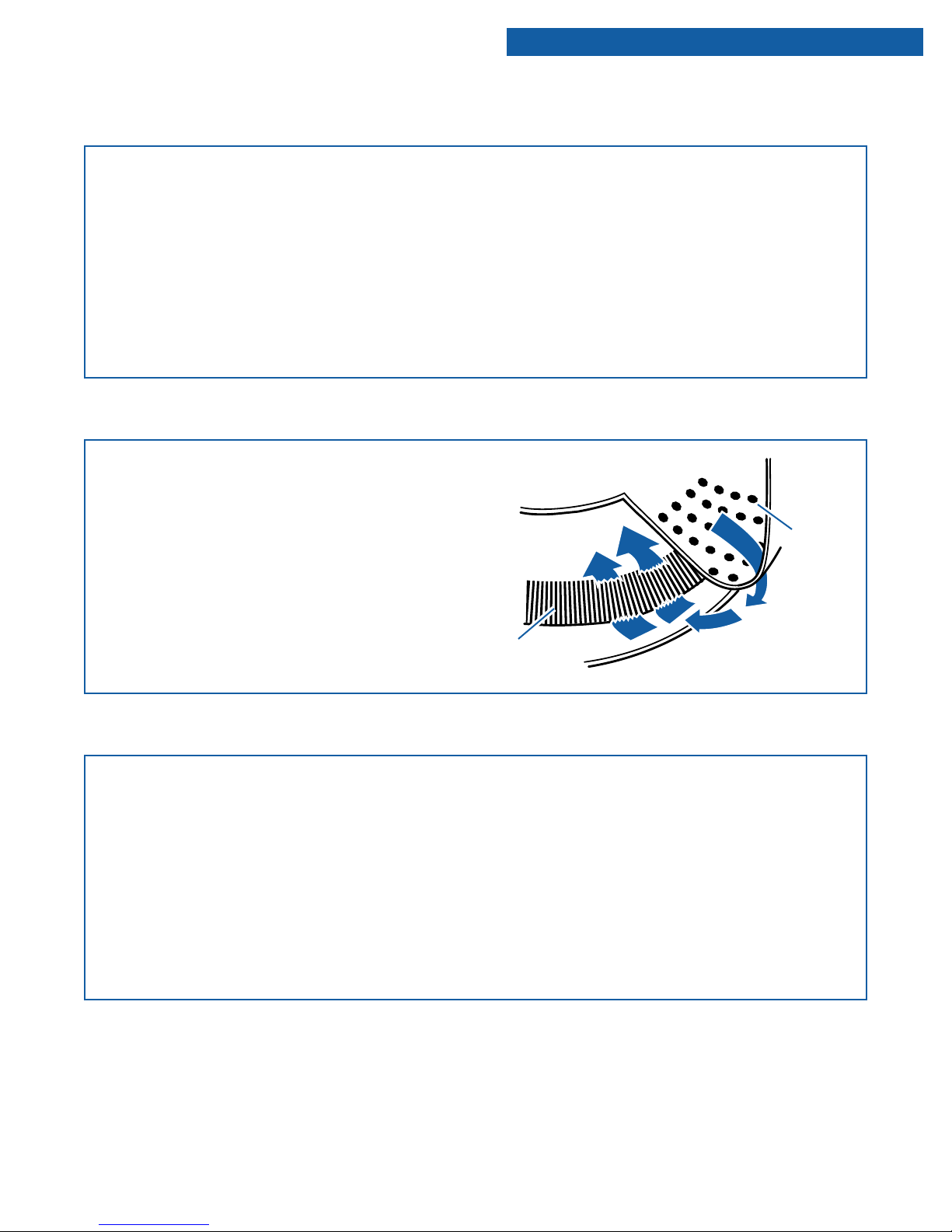

Your washer has a self-cleaning lint filter at the
bottom of the basket. Wash and rinse water flow
over the filter during agitation, separating the lint
from the water. The lint spins out of the system
during the spin part of the cycle.
If your washer drains into a tub, remove any lint
collected in the tub or strainer.
MAGIC CLEAN
lint filter
Basket
interior
MAGICCLEAN*LINT FILTER
UNDERSTANDING NORMAL WASHER SOUNDS
During drain
If water is drained quickly from your washer (depend-
ing on your installation), you may hear air being
pulled through the pump during the end of draining.
After drain and before spin
When the cycle changes from draining to spinning,
you may hear gears engaging.
Your new washer may make sounds your old one
didn’t. Because the sounds may be unfamiliar, you
may be concerned about them. Don’t be; most of
them are normal.
The following describes some of the sounds you
may hear and what causes them.
During washing
When you select a small load size setting, your
washer has a lower water level. This may cause a
clicking sound from the upper part of the agitator.

10

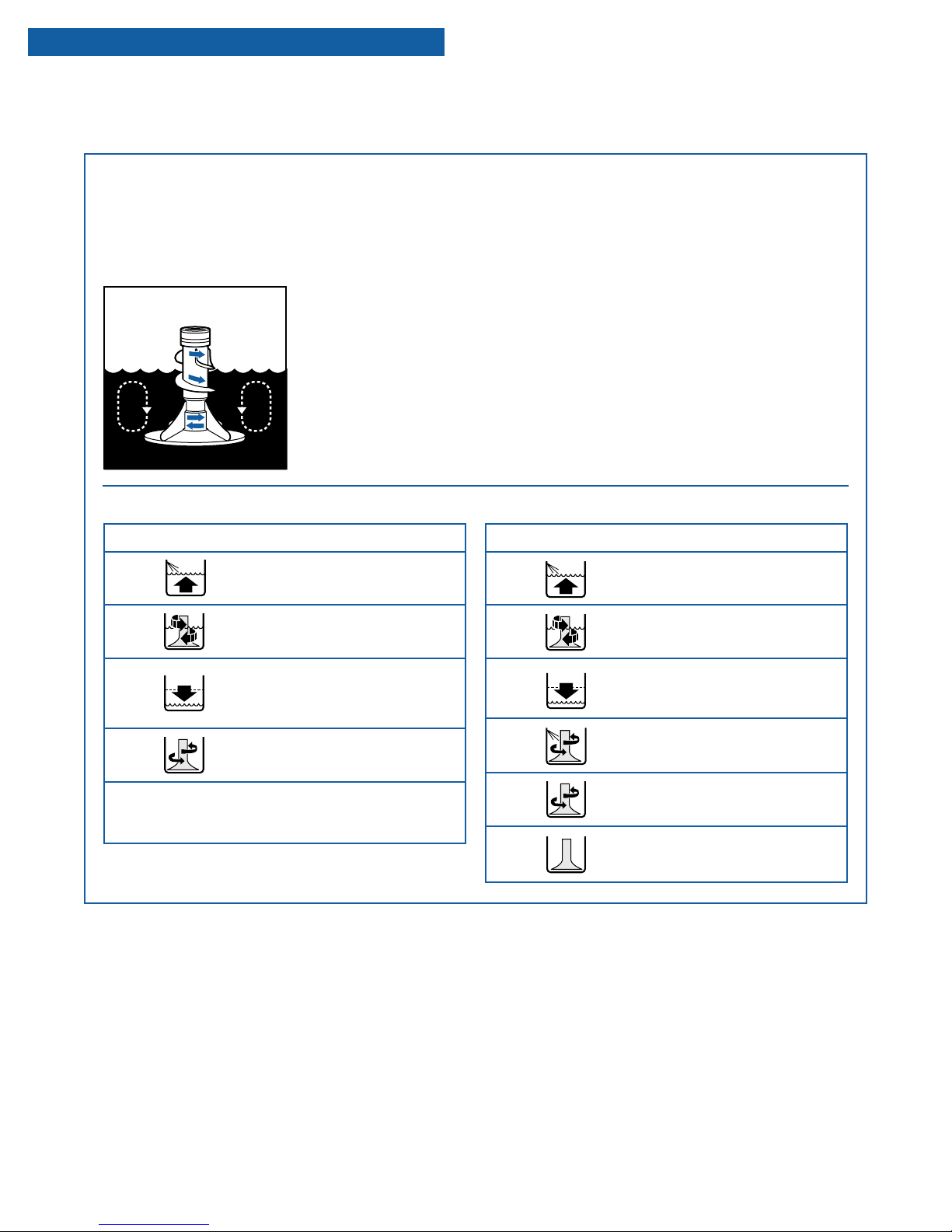

UNDERSTANDING WHAT HAPPENS IN EACH CYCLE
When the Cycle Control Knob is set to a number
and pulled out, the washer fills (to the selected load
size) before agitation and timing start. The washer
begins agitating immediately after filling; agitation
occurs with the washer lid up or down.
During agitation, the XTRA ROLLACTION* agitator
creates a continuous
rollover action that pro-
vides a thorough cleaning
of the wash load.
After agitation starts, the Cycle Control Knob turns
clockwise until it points to an Off area and the
cycle ends.
NOTE: The washer pauses briefly throughout
each cycle. These pauses are normal for washer
operation.
Sequence of cycles
Fill
▼
Rinse
▼
Drain-No agitation
▼
Spin-Spray rinse
▼
Spin
▼
Off
Fill
▼
Wash selected time
▼
Drain†
No agitation
▼
Spin
▼
WASH RINSE
†The Permanent Press cycle partially drains, fills, agitates
briefly, and drains.
OPERATING YOUR WASHER

11
C ARING FOR Y OUR W ASHER
Proper care of your washer can extend its life. This section explains how to care for your washer
properly and safely.
CLEANING YOUR WASHER
Cleaning the exterior
Use a soft, damp cloth or sponge to wipe up any
spills such as detergent or bleach.
Occasionally wipe the outside of
your washer to keep it looking new.
Cleaning the interior
Clean your washer interior by mixing 250 mL (1 cup)
of chlorine bleach and 500 mL (2 cups) of detergent.
Pour this into your washer and run it through a com-
plete cycle using hot water. Repeat this process if
necessary.
NOTE: Remove any hard water deposits using only
cleaners labeled as washer safe.
Cleaning the liquid fabric softener dispenser
Flush dispenser periodically with warm water, as
shown. Remove the dispenser by grasping the top
of the dispenser with both hands and squeezing
and pushing upwards with thumbs. Clean the
dispenser by rinsing it under a water faucet.
Replace it after cleaning.
NOTE: Do not wash clothes with this dispenser
removed. Do not add detergent or bleach to this
dispenser; it is for liquid fabric softener use only.
WINTER STORAGE,MOVING,VACATION CARE
Install and store your washer where it will not
freeze. Because some water may stay in the hoses,
freezing can damage your washer. If storing or
moving your washer during freezing weather,
winterize it.
To winterize washer:
1. Shut off both water faucets.
2. Disconnect and drain water inlet hoses.
3. Put 1 L (1 quart) of R.V.-type antifreeze in
the basket.
4. Run washer on a drain and spin setting (see,
the “Rinse/Drain and Spin” section) for about
30 seconds to mix the antifreeze and water.
5. Unplug the power supply cord.
To use washer again:
1. Flush water pipes and hoses.
2. Reconnect water inlet hoses.
3. Turn on both water faucets.
4. Reconnect power supply cord.
5. Run the washer through a complete cycle with
250 mL (1 cup) of detergent to clean out antifreeze.
Non-use or vacation care:
Operate your washer only when you are at home. If
you will be on vacation or not using your washer for
an extended period of time, you should:
•Unplug the power supply cord or turn off electrical
power to the washer.
•Turn off the water supply to the washer. This helps
avoid accidental flooding (due to a water pressure
surge) while you are away.

12
TROUBLESHOOTING
Most laundering problems are easily solved if you understand the cause. Check the following list
for common washing problems. If you need further assistance, see the “Requesting Assistance
or Service” section.
COMMON WASHING PROBLEMS
Problem...
Washer leaks
NOTE: After
checking these,
check household
plumbing.
Washer won’t
drain/spin
Wet loads
Washer continues
to fill/drain or
cycle stuck
NOTE: Washer
pauses briefly
throughout each
cycle. This is normal.
Washer makes noise
Solution...
•Tighten hoses. See Installation
Instructions.
•Reseat (reposition) washers. See
Installation Instructions.
•Clamp drain hose.
•Unclog drain. Sink and standpipe
must be able to handle 64.6 L
(17 gallons) of water per minute.
•Ensure tub is centred before
starting washer.
•Ensure front feet are installed and
nuts are tightened. Level washer.
•Redistribute the load, or reduce
load size.
•Unclog hose. See Installation
Instructions for proper installation
of drain hose.
•Close the lid.
•Lower drain hose.
•Use less detergent.
•Check electrical source or call
electrician. Do not use extension
cords.
•Choose a cycle with a higher spin
speed.
•Cold rinses leave loads wetter than
warm rinses. This is normal.
•Raise the drain hose. It must be
higher for proper operation.
•Adjust drain hose for loose yet
secure fit. See Installation
Instructions.
•Do not seal off drain hose with
tape. The hose needs an air gap.
•Redistribute load.
•Level washer. Reset rear leveling
legs. See Installation Instructions.
•Tighten nuts.
•See Installation Instructions.
Cause...
•Fill hoses not tight.
•Fill hose washers not properly seated.
•Drain hose clamp not properly installed
or is off.
•Drain is clogged.
•Tub moved forward during unloading,
causing water to deflect off of tub ring.
•Unit not level, causing water to deflect
off of tub ring.
•Fill or spray rinses are deflecting off of
load. Washer is overloaded or load is
unbalanced.
•Drain hose is clogged.
•Lid is open.
•End of drain hose more than 190.9 cm
(72 inches) above floor.
•Too much detergent – excessive sudsing.
•Low voltage or using an extension cord.
•Wrong cycle for load being washed.
•Cold rinses.
•Top of drain hose is lower than water
level in washer.
•Drain hose fits too tightly into standpipe.
•Drain hose taped into standpipe.
•Load is unbalanced.
•Washer is not level.
•Nuts on front feet not tight.
•Yellow shipping strap with cotter pins
not completely removed.

13
Solution...
•This is normal.
•This is normal.
•Plug in power cord.
•Turn timer knob to the right slightly
and pull to start.
•Clean screens.
•Turn on water.
•Reverse hoses.
•Straighten hoses.
•Plug in power cord.
•Check electrical source or call
electrician.
•Replace fuse or reset circuit breaker.
If problem continues, call electrician.
•Do not use extension cords.
•Turn timer to the right slightly and
pull to start.
•Set and pull out knob.
•Allow cycle to continue.
•Wash smaller loads.
•This is normal.
•This is normal.
•This is normal.
•Push tub to centre before
starting.
•This is normal.
•Ensure front feet are installed
and nuts tightened. Level washer.
Reset rear leveling legs. See
Installation Instructions.
COMMON WASHING PROBLEMS (CONT.)
Cause...
•Gears engaging after drain and
before spin.
•Upper part of agitator clicks
during wash.
•Power cord not plugged in.
•Timer dial is not lined up.
•Water inlet valve screens are plugged.
•Water is turned off.
•Hot and cold hoses are reversed.
•Inlet hose is kinked.
•Power cord not plugged in.
•No power at plug.
•Fuse blown or circuit breaker open.
•Using an extension cord.
•Timer dial is not lined up.
•Timer knob not pulled out.
•Washer at pause in Permanent Press
cycle (approximately 2 minutes).
•Machine is overloaded.
•The top of the agitator moves only in
one direction.
•The top of the agitator is loose.
•The top of the agitator is much higher
than the highest water level. This
creates a perception of the washer not
being full.
•Tub is pulled forward when unloading.
•Tub moves.
•Unit not level.
Problem...
Washer makes noise
(cont.)
Won’t fill/rinse/agitate
or wrong temperature
Washer stops
Agitator operation
Water level seems
too low or washer
not completely filling
Washer tub is crooked
TROUBLESHOOTING
continued on next page

14
TROUBLESHOOTING
COMMON WASHING PROBLEMS ( CONT. )
Solution...
•
Sort lint givers (towels, chenille) from
lint takers (corduroy, synthetics). Also
sort by colour.
•
Lint can be trapped in load if over-
loaded. Wash smaller loads.
•
Clean out pockets before washing.
•
Use enough detergent to hold lint
in water.
•
Use wash water warmer than
21°C (70°F).
•
Use wash water warmer than
21°C (70°F).
•
Loads should move freely during
wash. Wash smaller loads.
•
Do not pour chlorine bleach directly
on load. Wipe up bleach spills.
Undiluted bleach will damage fabrics.
•
Clean out pockets before washing.
Zip zippers before washing.
•
Mend rips and broken threads in
seams before washing.
•
Dilute fabric softener and add to rinse
portion of cycle only. Do not drip
fabric softener on clothes.
•
Install an iron filter.
•
Use enough detergent to remove soil
and hold it in suspension.
•
Sort dark clothing from whites and
lights.
•
Unload the washer as soon as it
stops.
•
Unload the washer as soon as it
stops.
•
Use the Permanent Press cycle or
another cycle with low spin speeds
to reduce wrinkling.
•
Loads should move freely during
wash. Wash smaller loads.
•
If safe for fabric, use warm or hot
wash water. Use cold rinse water.
•
Reverse hoses.
Cause...
•
Improper sorting.
•
Overloading.
•
Paper or tissue in pockets.
•
Not enough detergent.
•
Detergent not dissolving.
•
Wash water colder than 21°C (70°F).
•
Overloading. Improper use of washer.
•
Improper use of chlorine bleach.
•
Sharp items not removed from pockets;
fasteners not fastened.
•
Items damaged before washing.
•
Improper use of fabric softener.
•
Iron (rust) in water.
•
Under use of detergent causing soil to
be redeposited.
•
Dye transfer due to not sorting loads
properly.
•
Dye transfer due to not unloading
washer promptly.
•
Not removing load promptly.
•
Wrong cycle for fabrics being washed.
•
Overloading.
•
Wash water not warm enough to relax
wrinkles. Use warm rinses.
•
Hoses reversed.
Problem...
Residue or lint
on load
Tearing
Stains on load
Load is wrinkled

15
TROUBLESHOOTING
C OMMON WASHING PROBLEMS ( CONT . )
Problem...
Load is tangled/
twisted
Clogged dispensers
or bleach leaking
Gray whites,
dingy colours
Solution...
•
Loads should move freely during
wash. Wash smaller loads.
•
Do not wrap items around agitator.
•
Dilute fabric softener in the dispenser.
•
Add powder or liquid colour safe
bleach directly to the basket. Do not
use chlorine bleach dispenser for
colour safe bleach.
•
Always measure bleach before adding
to the dispenser. Carefully pour into
the dispenser. Wipe up bleach spills.
•
Sort dark clothes from whites and
lights.
•
Use hot or warm washes if safe for
fabric. Hot water should be at least
54°C (130°F) to clean heavy or
greasy soils.
•
Use more detergent for washing
heavy soils in cold or hard water.
•
Use more detergent when washing
in hard water.
Cause...
•
Overloading.
•
Clothes wrapped around agitator.
•
Not diluting softener.
•
Use of colour safe bleach in chlorine
bleach dispenser.
•
Improper use of chlorine bleach.
•
Dye transfer.
•
Wash temperature too low.
•
Not enough detergent.
•
Hard water.

16
REQUESTING ASSISTANCE OR SERVICE
Before calling for assistance or service, please check the “Troubleshooting” section. It may save
you the cost of a service call. If you still need help, follow the instructions below.
IFYOU NEED ASSISTANCE OR SERVICE
2. If you need service†...
Contact your nearest Inglis Limited Appliance Service
branch or authorized servicing outlet to service your
appliance. (See list below.)
1. If the problem is not due to one of the
items listed in “Troubleshooting”†...
Contact the dealer from whom you purchased your
appliance, or call the Inglis Limited
Consumer Assistance Centre
toll free, 8:30 a.m. – 6 p.m. (EST),
at 1-800-461-5681.
Please include a daytime phone
number in your correspondence.
InglisLimitedApplianceService-ConsumerServices
Direct service branches:
BRITISH COLUMBIA 1-800-665-6788
ALBERTA 1-800-661-6291
ONTARIO Ottawa area 1-800-267-3456
(except 807 area code) Outside the Ottawa area 1-800-807-6777
MANITOBA, SASKATCHEWAN 1-800-665-1683
and 807 area code in ONTARIO
QUEBEC Montreal (except South Shore) 1-800-361-3032
South Shore Montreal 1-800-361-0950
Quebec City 1-800-463-1523
Sherbrooke 1-800-567-6966
ATLANTIC PROVINCES 1-800-565-1598
FOR FURTHER ASSISTANCE
If you need further assistance, you can write to
Inglis Limited with any questions or concerns at:
Consumer Relations Department
Inglis Limited
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Please include a daytime phone number in your
correspondence.
†When asking for assistance or service, please
provide a detailed description of the problem,
your appliance’s complete model and serial
numbers, and the purchase date. (See the
“Congratulations” section.) This information
will help us respond properly to your request.

17
NOTES

18
NOTES

19
INDEX
This index is alphabetical. Look for the word or phrase you are interested in, then look for the
page number.
TOPIC PAGE
ASSISTANCE .............................................................16
CLEANING
Exterior ...................................................................11
Interior .................................................................... 11
Liquid fabric softener dispenser ............................. 11
CYCLES ................................................................... 8-9
DISPENSERS
Liquid chlorine bleach .............................................. 5
Liquid fabric softener ......................................... 6, 11
EXTRA RINSE .............................................................. 6
FEATURES/PARTS ......................................................4
LINT FILTER .................................................................9
LOADING .....................................................................7
OPERATING ........................................................... 5-10
TOPIC PAGE
PARTS/FEATURES ......................................................4
RINSE/DRAIN AND SPIN ............................................. 9
SAFETY ........................................................................3
SOUNDS ......................................................................9
STORAGE .................................................................. 11
TROUBLESHOOTING .......................................... 12-15
WARRANTY ...............................................................20
WASHER OPERATION
Selecting a cycle and time ................................... 7-9
Selecting a load size ................................................ 6
Selecting a temperature ...........................................6
Stopping/restarting .................................................. 7
Using the dispensers............................................ 5, 6
Using your washer.................................................... 5

20
This is the only warranty covering this appliance given by the manufacturer.
The provisions of this warranty are in addition to, and not a modification of, or subtraction from, the
statutory warranties and the other rights and remedies contained in any applicable legislation.
If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting”,
additional help can be found by checking the “Requesting Assistance or Service” section.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your washer.
2. Instruct you how to use your washer.
3. Replace house fuses or correct house wiring or plumbing.
B. Repairs when your washer is used in other than normal, single-family household use.
C. Pickup and delivery. Your washer is designed to be repaired in the home.
D. Damage to your washer caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by Inglis Limited.
E. Any labour costs during the limited warranties.
F. Replacement parts or repair labour costs for units operated outside Canada.
G.Repairs to parts or systems caused by unauthorized modifications made to the appliance.
H. Travel or transportation expenses for customers who reside in remote areas. 1/97
WHIRLPOOL WILL PAY FOR
FSP* replacement parts and repair labour to correct defects in materials or
workmanship. Service must be provided by an authorized Whirlpool
service company.
FSP replacement parts for any top and lid rust.
FSP replacement parts for outer tub should it crack, or fail to contain
water, due to defective materials or workmanship.
FSP replacement parts for any part of gearcase assembly if defective in
materials or workmanship.
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
FROM DATE OF PURCHASE
LIMITED FIVE-YEAR
WARRANTY
FROM DATE OF PURCHASE
LIMITED TEN-YEAR
WARRANTY
FROM DATE OF PURCHASE
1/97
Printed in U.S.A.
WHIRLPOOL*
AUTOMATIC WASHER WARRANTY
*Registered trademark of Whirlpool, U.S.A., Inglis Limited licensee in Canada
3366874
© 1997 Whirlpool Corporation
