WhisperGen PPS16-24MD User manual

commissioning guide
Part Number: WP-5012-003-00
For Authorised Personnel Only

Whisper Tech reserves the right to revise or change product specifications at
any time. This publication describes the state of this product at the time of its
publication and may not reflect the product at all times in the future.
Patents granted and pending worldwide.
Whisper Tech, WhisperGen, Personal Power Station, and WhisperGen
Personal Power Station are registered trademarks of Whisper Tech Limited.
Title Commissioning Guide - Models PPS16-12MD, PPS16-
24MD
Part No. WP-5012-003-00
Application WhisperGen
TM
PPS16-12MD
Diesel fired
12 V DC output
Marine
WhisperGen
TM
PPS16-24MD
Diesel fired
24 V DC output
Marine
WhisperGen is designed and manufactured by
Whisper Tech
224 Armagh St
P O Box 13-705
Christchurch
New Zealand
www.whispergen.com
Copyright ©2005 Whisper Tech Limited
All Rights Reserved
Printed in New Zealand

Conditions of use
Read this manual completely before commissioning
the WhisperGen
TM
.
The WhisperGen
TM
must be commissioned only by an
authorised WhisperGen
TM
representative. Whisper Tech
accepts no liability for personal injury or property damage
resulting from incorrect or unauthorised installation,
commissioning and servicing of the WhisperGen
TM
.
Unapproved installations may be dangerous, result in poor
performance and void any WhisperGen
TM
warranty.
Along with any warnings, instructions and procedures in
this manual, the user should also observe any such other
common sense procedures generally applicable to
equipment of this type.
Failure by the user to comply with any warnings,
instructions, procedures, or any such other common sense
procedures may result in injury, equipment damage,
property damage or poor performance of the
WhisperGen
TM
. The major hazards involved with operating
the WhisperGen
TM
include explosion, fire, carbon monoxide
fumes and electrical shock. These hazards can be avoided
if the user adheres to the procedures in this manual and
exercises all due care.
Whisper Tech accepts no liability for direct, indirect,
incidental, special, or consequential damages resulting
from failure by the user, installer or service technician to
follow any warnings, instructions and procedures in this
manual, or any such other common sense procedures
generally applicable to equipment of this type. The
foregoing limitation extends to damages to person or
property caused by the WhisperGen
TM
, or damages
resulting from the inability to use the WhisperGen
TM
,
including loss of profits, loss of products, loss of power
supply, the cost of arranging an alternative power supply
and loss of time, whether incurred by the user, its
employees, the installer, a service technician or any third
party.
Whisper Tech reserves the right to change the
specifications of its products, or the information in this
manual, without necessarily notifying its users.
Variations in installation and operating conditions may
affect the WhisperGen
TM
’s performance. Whisper Tech has
no control over each installation's unique operating
environment. Hence, Whisper Tech makes no
representations or warranties concerning the performance
of the WhisperGen
TM
under the actual operating conditions
prevailing at the installation. All operating parameters for
each application should be validated by a technical expert
of the user’s choosing.
Whisper Tech has made every effort to explain all
installation, commissioning, operating, maintenance,
troubleshooting procedures, warnings and safety
precautions as clearly and completely as possible.
However, due to the range of operating environments it is
not possible to anticipate every issue that may arise.
Therefore, Whisper Tech is not able to guarantee that this
manual will address every issue that may arise. This
manual is intended to provide general guidance. For
specific guidance and technical support, contact your
authorised WhisperGen
TM
supplier.
Information in this manual shall not be deemed a warranty,
representation or guarantee. For warranty provisions
applicable to your WhisperGen
TM
, please refer to the
warranty provided by the supplier of your WhisperGen
TM
.
Unless otherwise noted, reference to brand names, product
names or trademarks constitute the intellectual property of
the owner thereof. Subject to your right to use the
WhisperGen
TM
, Whisper Tech does not convey any right,
title or interest in its intellectual property, including, without
limitation, its patents, copyrights and know-how.
No part of this manual may be reproduced or transmitted in
any form or by any means without the express written
permission of Whisper Tech.
Every effort has been made to ensure the accuracy of this
document, however it may contain technical inaccuracies
or typographical errors. Whisper Tech assumes no
responsibility for and disclaims all liability of such
inaccuracies, errors, or omissions in this publication.
Use of the WhisperGen
TM
shall constitute your acceptance of the conditions above

Contents
Purpose of this manual..................................................................................................................................................... 1
Symbols in this manual.................................................................................................................................................... 1
Before you travel............................................................................................................................................................... 2
Equipment needed............................................................................................................................................................ 3
Guidelines to follow.......................................................................................................................................................... 4
Pre-start guidelines (Power OFF) .................................................................................................................................... 4
Visual check.............................................................................................................................................................4
Checking and adjusting nitrogen pressure............................................................................................................... 5
Determining battery type and capacity.....................................................................................................................6
Checking Battery Bank Connections........................................................................................................................7
Checking the Fuel....................................................................................................................................................8
Checking the Coolant...............................................................................................................................................9
Pre-start guidelines (Power ON) .................................................................................................................................... 10
Fill and bleed the primary coolant system..............................................................................................................10
Bleed the secondary cooling system......................................................................................................................12
Bleed the fuel system.............................................................................................................................................13
Battery charging overview......................................................................................................................................14
Connect and check Micromon................................................................................................................................15
Setting maintenance mode .................................................................................................................................... 17
Setting variables ....................................................................................................................................................18
Monitoring variables...............................................................................................................................................22
Test run guidelines......................................................................................................................................................... 24
Monitoring Micromon .............................................................................................................................................25
Run factor..............................................................................................................................................................26
Controller setting guidelines.......................................................................................................................................... 27
To operate the control panel..................................................................................................................................27
Setting the LCD display control and backlight........................................................................................................28
Setting the temperature and maximum run hours..................................................................................................28
Setting the auto-charge and external control .........................................................................................................32
Appendix A - Default Micromon Settings...................................................................................................................... 35
Appendix B - Commissioning Checklists ..................................................................................................................... 36

Purpose of this manual Visual check
1
Purpose of this manual
This manual details the correct commissioning procedure for the:
WhisperGen
TM
PPS16-12MD diesel-fired generator with 12 V DC
output
WhisperGen
TM
PPS16-24MD diesel-fired generator with 24 V DC
output
and their associated systems, into recreational craft. The WhisperGen
TM
must not be used in any other capacity.
Use the Commissioning Checklists in Appendix B with the Default Settings
in Appendix A of this guide to complete commissioning.
A separate Installation Manual and a User's Manual are available for
installation, general operation and maintenance of the WhisperGen
TM
.
This manual is for use by authorised WhisperGen
TM
representatives only.
This guide must not be passed onto any unauthorised party.
Symbols in this manual
Symbols are used in this manual to highlight information that is critical to
the safety of people and equipment, and to the safe and correct operation
of the WhisperGen
TM
.
An extreme hazard which may result in death or injury if proper
precautions are not taken.
A reminder of safety practices or unsafe practices which could
result in personal injury or damage to associated equipment.
A reminder of safety practices or unsafe practices which could
result in damage to the WhisperGen
TM
and/or void the warranty.
Important information essential to the installation and operation
of the WhisperGen
TM
.

Visual check Before you travel
2
Before you travel
Important actions for Commissioning Agents:
1. Take all required documentation, equipment and tools. Check that you
have current copies of the DC User's Manual, DC Installation Manual
and this DC Commissioning Guide. You can download and print PDF
format documentation from www.whispergen.com
2. Make an appointment with the client / installer for commissioning. Allow
plenty of time (at least 3 hours) to complete commissioning.
When making the appointment, confirm with the client /
installer that they have, to the best of their knowledge, completed the
installation correctly. Advise them that additional time, travel, or parts
costs taken to commission due to faulty installation will be charged to
them. You are responsible for directly charging the client for additional
costs incurred due to faulty installations.
3. Obtain a completed copy of the Installation checklist (from the last
page in the DC Installation Manual WP 5012-002-01).
4. Ensure that you take all equipment needed as listed. You may need to
arrange delivery of nitrogen to pressurise a WhisperGen
TM
.
5. Upon completion of Commissioning, copy the completed checklists and
fax to Whisper Tech NZ [phone]
or email a completed checklist to: [e-mail]
and copy your local WhisperGen
TM
distributor.
DC Marine Application
Key:
1. WhisperGen
TM
2. Battery bank
3. DC/AC inverter
4. Standard domestic appliances
5. Hot water for domestic use
6. Space heating
7. Excess heat removal
8. 12 or 24 V equipment
9. Cool exhaust vent
9
1
7
8
2
3
4
56
Correct installation is essential for the WhisperGen
TM
to run efficiently. In
particular, correct installation between (1) WhiperGen, (2) battery bank, (5)
hot water cylinder, (6) heating system and (9) exhaust are critical for any
successful commissioning.

Equipment needed Visual check
3
Equipment needed
The following equipment is essential for all Commissioning jobs:
1. Nitrogen pressure gauge and filler hose
(and a Nitrogen bottle if a top-up is required)
Whisper Tech Part number: WP-5028-000
Description: Nitrogen filling valve and gauge
A Running nut 1/4" SAE
B Primary valve
C 1/4" SAE
D Secondary valve
E Gauge
2. Laptop computer, software, and communication cabling:
Whisper Tech Part number: WP-9983-000
Description: Micromon monitoring service kit
3. Exhaust gas analyser:
Recommended Brand/Model: Kane 300/400
4. Flow Gauge
Optional Brand/Model: Bluewhite Industries F400 gauge
5. Tool kit
6. Documentation:
Current DC Installation Manual and DC User's Manual
This DC Commissioning Guide and checklists to complete and return
Manuals can be downloaded from www.whispergen.com
if you don't have current printed copies of these manuals available.

Visual check Guidelines to follow
4
Guidelines to follow
Follow the below procedures in sequence when commissioning:
1. Pre-start guidelines (Power OFF) on page 4.
2. Pre-start guidelines (Power ON) on page 10.
3. Test run guidelines on page 24.
4. Controller setting guidelines on page 27.
Allow time for commissioning. Allow up to 2 hours to setup and complete a
test run. Pre-start checks can take 30 minutes before starting a test run.
The system may take 30 minutes to be running at operating temperature.
The test run takes 60 minutes once started.
Time is needed after commissioning to check controller settings and to
complete a customer hand over. Remember to return copies of completed
checklists to WhisperTech and to your local distributor.
Pre-start guidelines (Power OFF)
Power OFF checks are performed with the main circuit breaker between the
WhisperGen
TM
and the battery bank in the OFF position.
The pre-start (Power OFF) process consists of the below procedures:
Installation check
(check that the installation has been completed as per
the Installation checklist in the DC Installation Manual)
Visual check
Checking and adjusting nitrogen pressure
Determining battery type and capacity
Checking Battery Bank Connections
Checking the Fuel
Checking the Coolant
Visual check
It is important to visually check the overall heating and electrical system into
which the WhisperGen
TM
has been installed. If the wider system does not
meet the design and component specifications defined in the Installation
Manual, then there could be risks to the safety of operators and to the
performance and reliability of the unit.
Only begin the commissioning if you are satisfied that the installation has
been carried out as described in the DC Installation Manual. The key areas
to check are highlighted in the Installation checklist at the back of the DC
Installation Manual, which should be signed and dated.
Request to see the completed installation checklist and installer declaration
from the WhisperGen
TM
DC Installation Manual. The installer should have
completed this checklist, certified installation according to the Installation
Manual and accepted liability for re-installation costs.

Pre-start guidelines (Power OFF) Checking and adjusting nitrogen pressure
5
Checking and adjusting nitrogen pressure
Overview The Nitrogen pressure at cold (before running), should be 24 bar, as set in
the factory. This should be checked, and the pressure topped up or
reduced if it is more than 2 bar from the target level. Ambient temperature
will vary nitrogen pressure. The Nitrogen pressure when hot (running at
preset Block temperature), should be 28 bar. You should check the
Nitrogen pressure both when cold and when hot.
Procedure
Checking Nitrogen pressure:
1. With the engine cover removed, remove the cap from the nitrogen
filling point located on the right-hand side of engine.
2. Ensure the valves on the hose assembly are closed.
3. Fit the hose (secondary valve end) to the regulator on the nitrogen
bottle.
4. Fit the running nut of the hose to the nitrogen filling point on the
WhisperGen
TM
as shown below:
5. Open the secondary valve and check the pressure on the gauge.
6. Close the secondary valve.
Adjusting Nitrogen pressure:
1. Fit the hose (secondary valve end) to the regulator on the nitrogen
bottle.
2. Open the isolating valve on the nitrogen bottle and set the regulator to
the desired charge pressure.
3. Open the secondary valve and check the pressure on the gauge.
Adjust the regulator if necessary.
4. Open the primary valve. The WhisperGen
TM
starts to pressurise. Allow
the pressure gauge to stabilise.
Introduce Nitrogen slowly. Add Nitrogen at a rate of 1 bar /
minute. Adding Nitrogen too quickly damages WhisperGen
TM
seals.

Determining battery type and capacity Pre-start guidelines (Power OFF)
6
5. Check the pressure.
6. Close the secondary valve and close the nitrogen bottle isolating valve.
7. Once the pressure is checked and confirmed to be at the correct level,
leave the pressure gauge attached to the WhisperGen
TM
as it will be
required again later in the commissioning process.
8. Remove the hose assembly from the WhisperGen
TM
charging point
and refit the cap to the charge point.
Determining battery type and capacity
Knowing the battery bank capacity is important as it affects the charging
characteristics and control parameters in the WhisperGen
TM
.
Because of the WhisperGen
TM
automatic battery monitoring functionality
the minimum battery bank capacity is 200Ah @ 12V and 100Ah @ 24V.
The WhisperGen
TM
is capable of charging a larger battery bank, such as a
1000Ah @ 12V or a 500Ah @ 24V battery bank.
A WhisperGen
TM
can reduce the need for a very large battery bank capacity
by regularly recharging a battery bank. Typically, battery bank capacity can
be half of that in more traditional installations.
The type and capacity of the battery bank can be determined from the
manufacturers' labels. If the labels are obscured from view, then obtain
documentation from the installer confirming the battery bank type and
capacity.
Incorrect capacity settings will result in incomplete charging and
may also damage the battery bank.
The figures and settings outlined in this guide relate to new
batteries or batteries that have been tested and can be demonstrated to be
in good condition.
Older batteries may have different or reduced charging
characteristics, so settings have to be modified to suit. Worn out batteries
take longer to charge and may never reach full capacity.

Pre-start guidelines (Power OFF) Checking Battery Bank Connections
7
Checking Battery Bank Connections
Overview
Power flows between the WhisperGen
TM
and battery bank via two power
cables connected to the terminals of the battery bank. The WhisperGen
TM
also monitors the battery bank voltage, current, and temperature via
electrical wires connected to the battery bank. The WhisperGen
TM
should
not be running when you check the connections.
If an electrical fault or warning occurs, electrical connections may need to be
checked – refer to the User Manual troubleshooting section.
Procedure

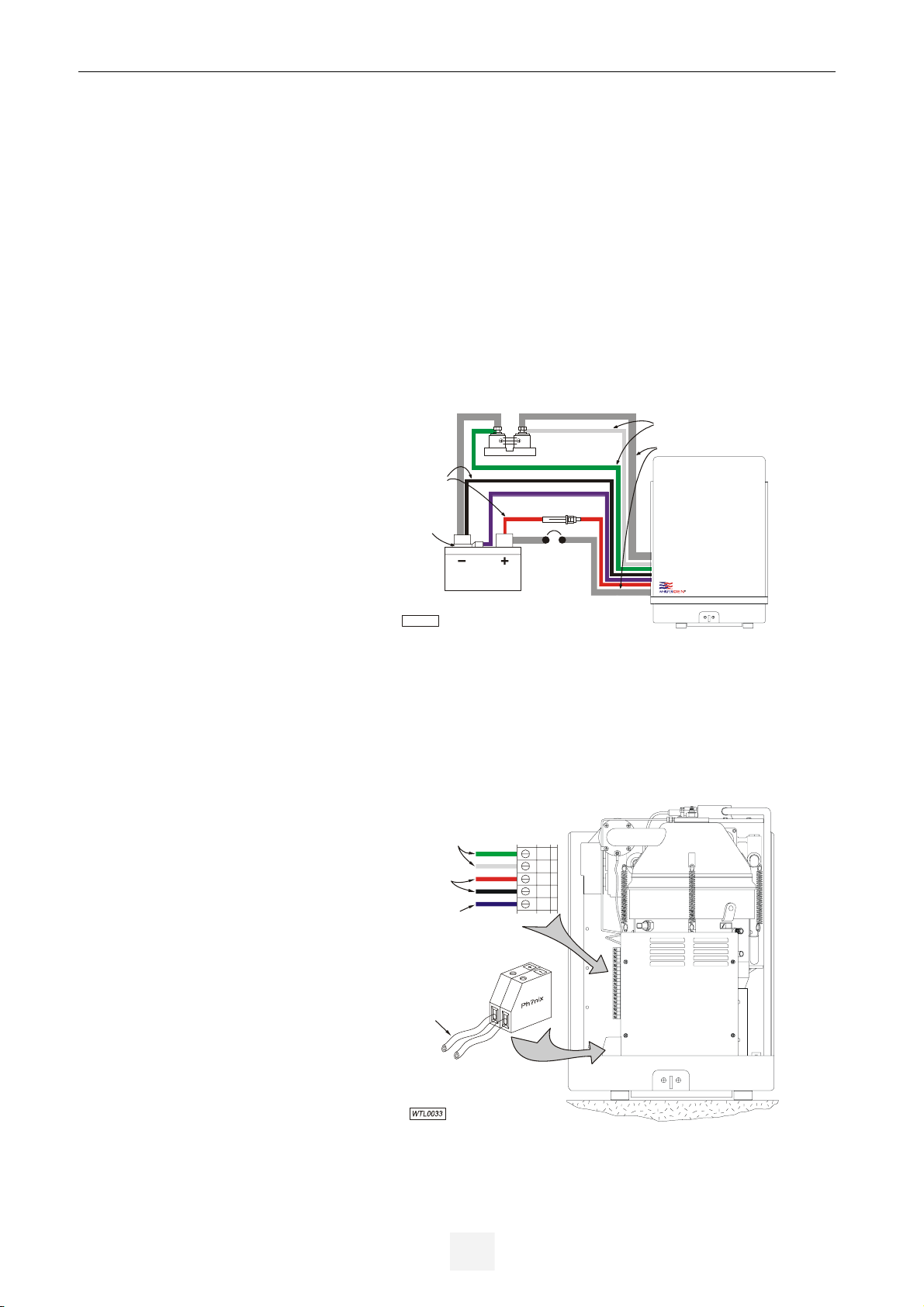

To check the battery bank connections:
1. Access the battery bank managed by the WhisperGen
TM
, and ensure
that the battery bank connections, as shown below, are intact and
clean.
FUEL OFF
ON
Current Shunt Current Sensing
Wires
Power Cables
Voltage Fuse
White
No assigned colour
No assigned colour
Green
Black
Violet
Red
Circuit
Breaker
Voltage
Sensing
Wires
Temperature
Sensor
Battery Bank
WTL0032
Personal Power Station
2. Check that the circuit breaker is open.
3. Check the voltage fuse is intact.
4. Check that the electrical insulation of the wires/cables is intact.
5. Remove the enclosure lid.
6. Check that the electrical connections on the side of the electronics
enclosure, as shown below, are intact.
FUEL OF F
ON
2
Green
White
Red
Black
Violet
Current Sensing
Wires
Power Cables
(No Assigned Colour)
Voltage Sensing
Wires
Temperature
Sensing Wires
7891011
7 8 9 10 111213141516171819123456
7. Replace the enclosure lid.

Checking the Fuel Pre-start guidelines (Power OFF)
8
Checking the Fuel
Overview
The fuel level should be checked regularly to ensure a constant fuel supply to
the WhisperGen
TM
. How often the fuel needs to be checked and replenished
depends on the operating conditions of the WhisperGen
TM
and the size of the
fuel tank.
In general, the WhisperGen
TM
consumes 0.5 to 0.85 litres of fuel per hour of
operation. This applies to machines using either diesel or kerosene fuel.
Use only good quality automotive diesel (EN590 or BS2869: 2000
burner fuel class A2, D, minimum flash point, closed 56°C). Do not use other
fuel types such as bio diesel, heating oil, petrol, aviation fuel, and LPG.
Procedure
To check the fuel level:
1. Remove the fuel tank cap. The fuel tank is located outside the
WhisperGen
TM
and is typically within five metres of it.

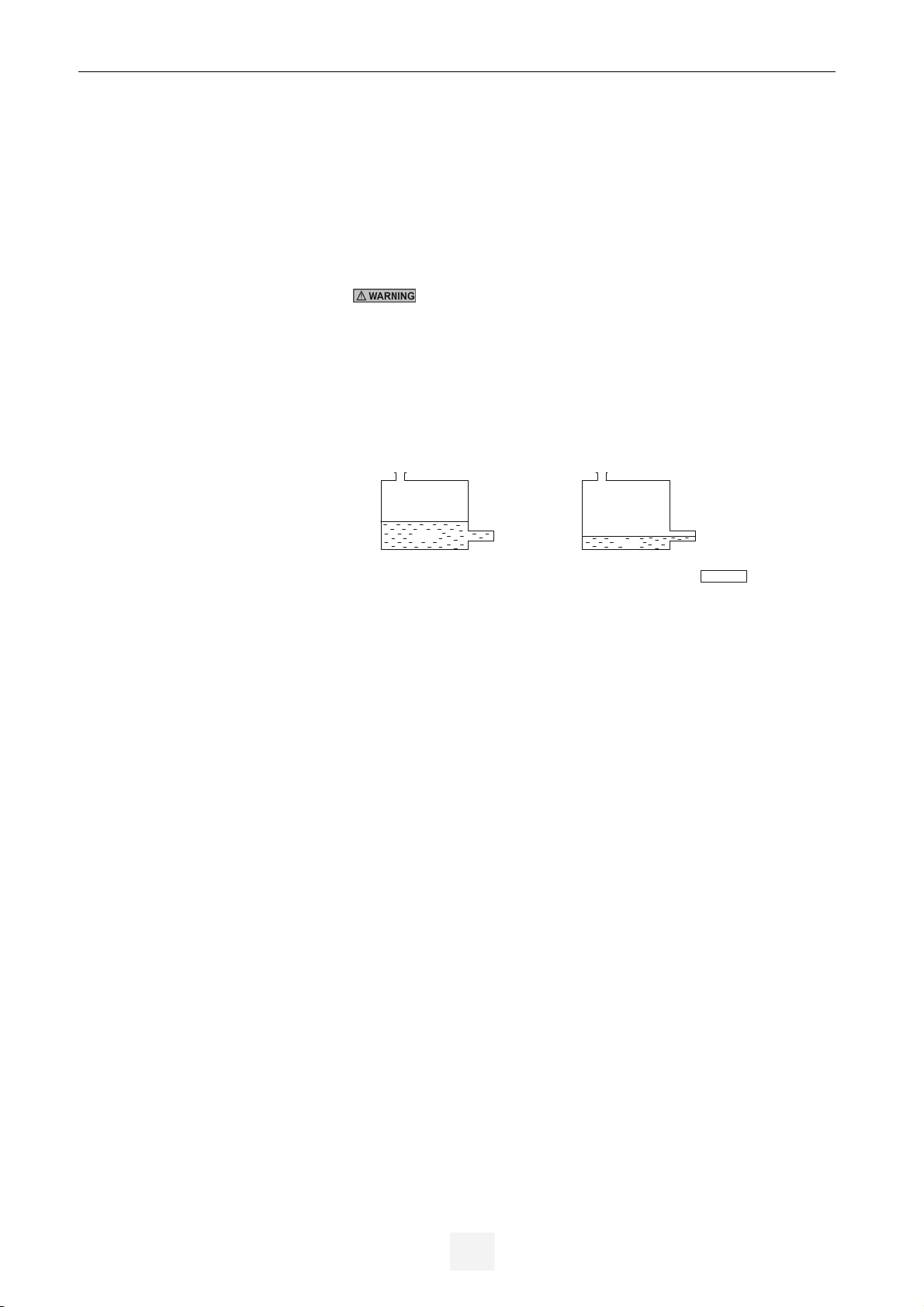

2. Ensure that the fuel level is adequate. The fuel level must be higher than
the fuel outlet point at all times.
WTL0020
Minimum Inadequate
Outlet Outlet
Fuel Fuel
3. Replenish fuel if necessary, taking care not to spill any on or in the
vicinity of the WhisperGen
TM
.
4. Replace the fuel tank cap.
If the fuel tank was empty and a fuel-related error message is displayed on
the control panel, you will need to bleed the fuel line before the
WhisperGen
TM
can be operated normally again.
If you need to bleed the fuel line then see bleed the fuel system on page 13.

Pre-start guidelines (Power OFF) Checking the Coolant
9

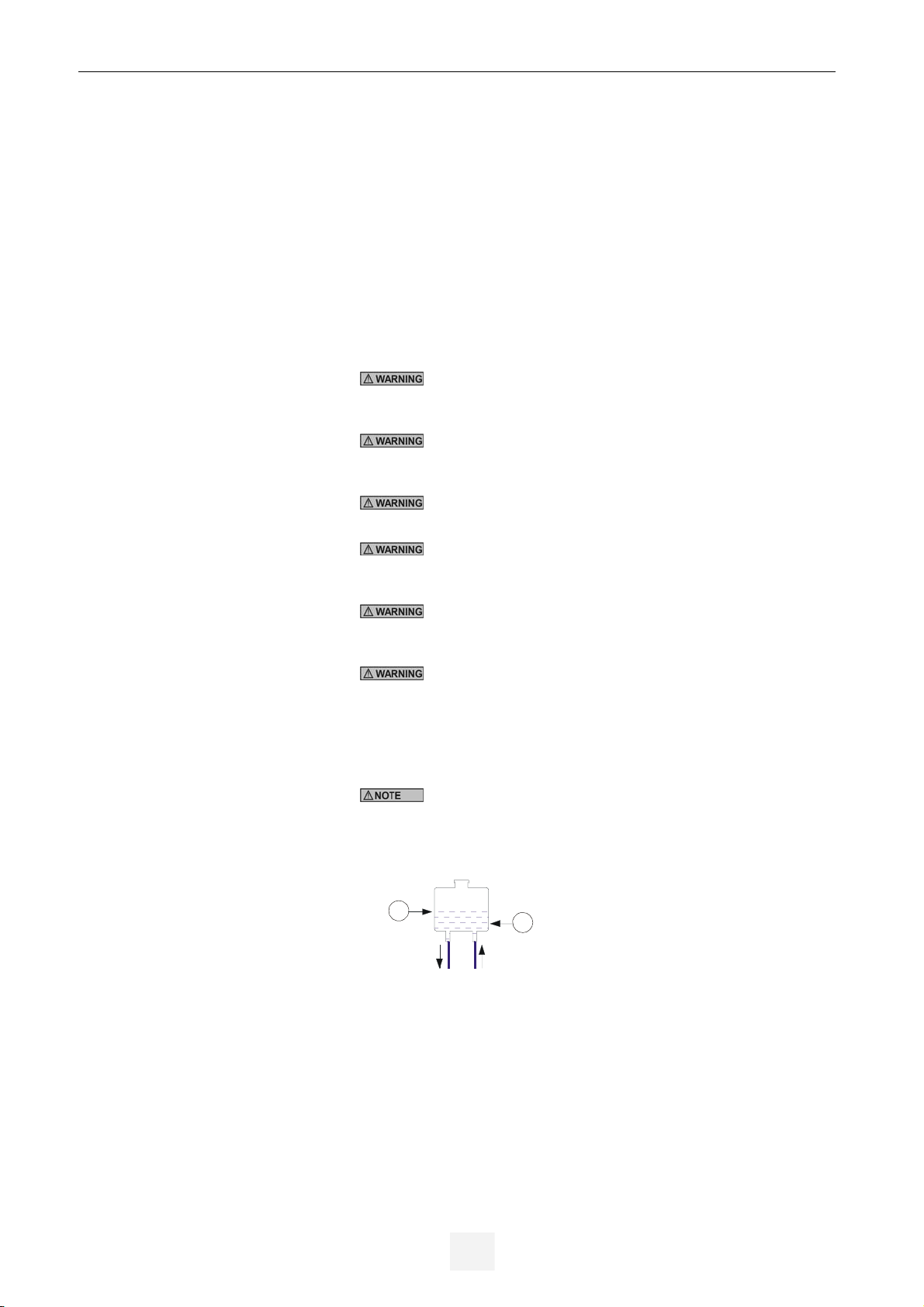

Checking the Coolant
Overview
The coolant level should be checked regularly to ensure a constant
circulation of coolant through the WhisperGen
TM
. How often the coolant
needs to be checked and replenished depends on the size of the coolant
header tank and the coolant circuit.
Use clean distilled water and high quality marine-grade corrosion inhibitor,
suitable for use with aluminium and any other metals that may be
encountered in the system (i.e. steel, copper).
If freezing conditions are expected, a marine-grade anti-freeze and
corrosion inhibitor is to be used. All additives must be pre-mixed. Follow the
dilution recommendation of the manufacturer.
The cooling system of the WhisperGen
TM
is vital to its
performance. If the coolant level is not maintained correctly, damage may
occur.
Glycol can be harmful if swallowed or inhaled. Do not store it in
open or unlabelled containers. Wash your hands thoroughly after handling
them.
Using an incorrect type of coolant can cause serious corrosion in
the WhisperGen
TM
- use only the recommended coolant.
Ensure that the coolant is free of particulate contaminants.
Foreign particles in the coolant can obstruct coolant passages in the engine,
resulting in damage to the WhisperGen
TM
.
Do not connect the boat's main engine cooling system to the
same circuit as the WhisperGen
TM
, as cast iron contaminants may damage
critical internal components.
If the coolant system is used to heat the vessel potable water
system, a compatible non-toxic corrosion inhibitor (and anti-freeze if
required) must be used.
Procedure
To check the coolant level:
1. Remove the coolant header tank cap.
The WhisperGen
TM
coolant header tank is typically located
outside and above the WhisperGen
TM
.
2. Ensure that the coolant level is adequate. The coolant level must be
between the maximum (1) and minimum (2) levels at all times.
12
3. Replenish coolant if necessary.
4. Replace the coolant header tank cap.

Fill and bleed the primary coolant system Pre-start guidelines (Power ON)
10
Pre-start guidelines (Power ON)
Power ON checks and settings are made with the main circuit breaker
between the WhisperGen
TM
and the battery bank in the ON position. Do not
attempt to start the WhisperGen
TM
at this point.
The pre-start (Power ON) process consists of the below procedures:
Fill and bleed the primary coolant system
Bleed the secondary cooling system
Bleed the fuel system
Connect and check Micromon
Set variables with Micromon
These tasks require power from the battery bank to be connected to the
WhisperGen
TM
. Provided the installation is correct, this should simply
require switching on the main circuit breaker.
Fill and bleed the primary coolant system
Overview The primary coolant system must be filled and then the pump operated via
the WhisperGen control panel to bleed air from the system.
Use only the specified coolant. Use of incorrect coolant will
result in corrosion to the WhisperGen.
Procedure When the coolant system is complete, the battery bank is installed and all
electrical wiring and connections have been made, the coolant system can
be filled and bled as follows:
1. Remove the engine enclosure. See Remove and re-fit the enclosure.
2. Fill the coolant system through the header tank with pre-mixed distilled
water and coolant additive. See specifications and warnings on
Primary cooling system/boat heating system.
3. From the default display on the control panel, press Right Arrow to
access the menus.
User Menu
4. Press Down Arrow to scroll down to the Installation Menu.
Installation Menu
5. Press Right Arrow to access the Installation Menu.
6. Press Down Arrow to Coolant 1 Bleed.
Coolant 1 Bleed
7. Press Right Arrow to edit the setting.
Press Up Arrow turn Coolant 1 Bleed ON.
See Step 11 for instructions for turning the Coolant Bleed to OFF.
Coolant 1 Bleed ON

Pre-start guidelines (Power ON) Fill and bleed the primary coolant system
11
After 5 minutes of user inactivity, the control panel reverts to the
default screen. If you need to go back to the default screen before this,
press Left Arrow until it is displayed.

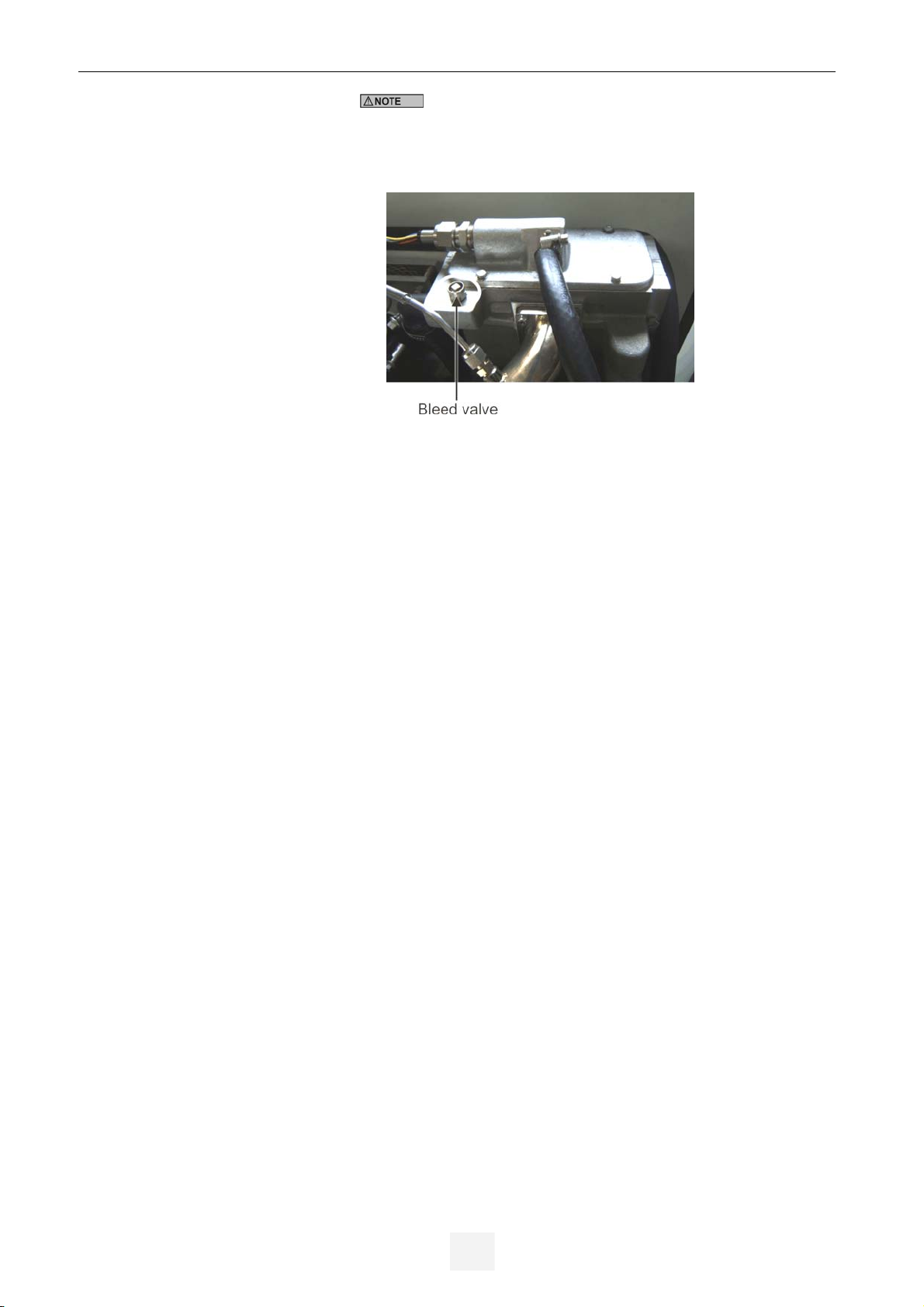

8. Slowly unscrew the bleed valve on the exhaust heat exchanger, until
air free coolant runs from the bleed. See picture below.
9. Bleed any other air bleed devices installed in the system in the same
way, starting with the lowest point in the system.
10. Make sure there is sufficient flow through the header tank. The flow
should be minimum 6 L/min, and should create a visible surge effect in
the tank.
11. Turn Coolant 1 Bleed to OFF. To do this:
From the default screen on the control panel, press Right Arrow
to access the menus.
Press Down Arrow to get to the Installation Menu.
Press Right Arrow to access the Installation menu and press
Down Arrow to Coolant 1 Bleed.
Press Right Arrow to edit the setting and press Down Arrow to
turn Coolant 1 Bleed OFF.
12. Check the complete system for leaks and if possible, pressure test the
primary coolant system to a maximum of 100 kPa.

Bleed the secondary cooling system Pre-start guidelines (Power ON)
12
Bleed the secondary cooling system
Overview Bleeding the secondary coolant system requires the opening (and
checking) of the seacocks, operation of the secondary coolant pump from
the control panel, and visual confirmation of the required flow from the
outlet.
Procedure To bleed the secondary cooling system:
1. Make sure the secondary cooling system hoses and connections are
secure.
2. Open the inlet, and outlet seacocks.
3. Check for leaks.
4. From the default display on the Control panel, press Right Arrow to
access the menus.
User Menu
5. Press Down Arrow to scroll down to the Installation Menu.
Installation Menu
6. Press Right Arrow to access the Installation Menu.
7. Press Down Arrow to Coolant 2 Bleed.
Coolant 2 Bleed
8. Press Right Arrow to edit the setting.
Press Up Arrow to turn Coolant 2 Bleed ON.
The primary coolant pump will also operate when you are
bleeding the secondary cooling system.
Coolant 2 Bleed ON
After 5 minutes of user inactivity, the control panel reverts to
the default screen. If you need to go back to the default screen before
this, press Left Arrow until it is displayed.
9. Check the outlet for flow. The flow rate should be 6 - 10 L/min.
If the flow cannot be observed due to the position of the
outlet, close the outlet seacock. Remove the outlet hose and observe
flow into a bucket.
10. Once the required flow is achieved, turn Coolant 2 Bleed to OFF. To
do this:
From the default screen on the control panel, press Right Arrow
to access the menus.
Press Down Arrow to get to the Installation Menu.
Press Right Arrow to access the Installation menu and press
Down Arrow to Coolant 2 Bleed.
Press Right Arrow to edit the setting and press Down Arrow to
turn Coolant 2 Bleed OFF.

Pre-start guidelines (Power ON) Bleed the fuel system
13
Bleed the fuel system
Overview Bleeding the fuel system requires the opening of the fuel valves, diversion
of the fuel line into an appropriate container, and operation of the fuel pump
from the control panel until the fuel flows clear of debris and bubbles.
Procedure To bleed the fuel system:
1. Turn the fuel switch on the front of the WhisperGen to ON.
2. Make sure the isolation valve at the fuel tank is OPEN.
3. Disconnect the fuel line from the evaporator.
4. Connect a clear plastic fuel compatible hose to the exposed end of the
fuel line and put the end of the hose in a bottle, or other container
suitable for holding fuel.
5. Forming a loop in the tube will help you to observe any air bubbles
present.
The flow rate of fuel, once the system has been bled, should
be 10cc per minute plus or minus 1.5cc
6. From the default display on the Control panel, press Right Arrow to
access the menus.
User Menu
7. Press Down Arrow to scroll down to the Installation Menu.
Installation Menu
8. Press Right Arrow to access the Installation Menu.
9. Press Down Arrow to Fuel Bleed.
Fuel Bleed
10. Bleed the system until it is clear of air. Allow the system to bleed for at
least 10 minutes.
Fuel Bleed ON
11. Turn Fuel Bleed to OFF. To do this:
From the default screen on the control panel, press Right Arrow
to access the menus.
Press Down Arrow to get to the Installation Menu.
Press Right Arrow to access the Installation menu and press
Down Arrow to Fuel Bleed.
Press Right Arrow to edit the setting and press Down Arrow to
turn Fuel Bleed OFF.
12. Reconnect the fuel line to the evaporator.

Battery charging overview Pre-start guidelines (Power ON)
14
Battery charging overview
Battery charging cycles
Every time the WhisperGen
TM
is operated, it charges the battery bank and
is in one of these three charging states depending on settings. There are
three states for a typical charging cycle as shown in the diagram below:
User controller settings affect the bulk-charging and auto-charging settings
only. Absorption and float charging are set up via Micromon.
Three stage charging
The default settings used in this manual relate to a standard sized battery
bank of 100Ah for 24V and 200Ah for 12V systems.
The WhisperGen
TM
has a three stage charging cycle.
1. Bulk Charge:
The battery is accepting all the available charging current. Cell voltage
jumps to approximately 2.1V per cell then slowly rises until the first
voltage limit is reached. A deeply discharged battery will accept a high
charge current until it is about 80% charged. This is when the
absorption level of the battery is reached.
2. Absorption Charge:
When the absorption level of the battery is reached charging is limited
to the amount of current that the battery will absorb at the absorption
voltage. During the absorption phase the current will steadily decrease
as the battery reaches its fully charged state.
3. Float Charge:
After the battery has been fully charged it is kept at a lower constant
voltage to compensate for self-discharge to keep the battery fully
charged.
