AIMS PWRINV1800W User manual

AIMS POWERINVERTER
2,000 WATT/4,000 WATT PEAK
ASSEMBLY AND OPERATING INSTRUCTIONS
PWRINV1800W
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.

Save This Manual
You will need the manual for the safety warnings and precautions, assem-
bly instructions, operating and maintenance procedures, parts list and diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the
front cover. Keep the manual and invoice inasafe and dry place for future refer-
ence.
Safety Warnings and Precautions
WARNING: When using this device, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Do not plug inabattery charger if the charger hasawarning that dangerous
voltages are present at the battery terminals.
2. Keep work area clean. Cluttered areas invite injuries.
3. Keep inverter away from any direct heat source or combustible material.
ME NT OI ITPIRCSED
rewoPsuounitn so tC taW000,2
rewoPka se tP taW0004,
over voltage protection)17V(CD
stloV21
egatloVtupt zu HO 60taCAstloV021
selcatpeceR sC tA eltuOdeziraloP,gnorP-3owT)2(
esuF
Input Voltage
.ytQ8,spmA0
3
10.75”Lx9.25”x3.75”
snoisnemiD
thgi se bW l8.38
srotacid n, Volt and Amp LED bar graphn oI rewop=DELneerG
hcti fw fS O/nO,epytrekcoR
erutarepmeTgnitare )nwodtuhscitamotuA(Fp °O 150-03
droCtupnIdednemmoceR elbacyrettaB
)dednemmocer;d 1 AWT (1 / 0)edulcniton(
serutaeF
noitcetorpdaolrevohtiwevawenisdeifidoM-
mralaegatlovwoL-
1
nwodtuhsdna
2
ffotuhsegatlovrevO-
3
1
;V5.01ta
2
;V01tuobata
3
Vdc 17tuobata
Specifications

3egaP
4. Observe work area conditions. Do not use machines or power tools in damp
or wet locations. Don’t expose to rain. Keep work area well lit. Do not
use electrically powered tools in the presence of flammable gases or liquids.
5. Keep children away. Children must never be allowed in the work area. Do
not let them handle machines, tools, or extension cords.
6. Store idle equipment. When not in use, tools must be stored in a dry location
to inhibit rust. Always lock up tools and keep out of reach of children.
7. Use the right tool for the job. Do not attempt to force a small tool or attach-
ment to do the work of a larger industrial tool. There are certain applications for
which this tool was designed. It will do the job better and more safely at the
rate for which it was intended. Do not modify this tool and do not use this tool
for a purpose for which it was not intended.
8.
9.
Use eye protection. Always wear ANSI approved impact safety goggles when
using tools.
10.
Do not overreach. Keep proper footing and balance at all times. Do not reach
over or across running machines.
11.
Maintain tools with care. Keep tools sharp and clean for better and safer
performance. Follow instructions for changing accessories. Inspect tool cords
periodically and, if damaged, have them repaired by an authorized technician.
12.
Disconnect power. Unplug inverter when not in use.
13.
Avoid unintentional starting. Be sure the switch is in the Off position when
not in use and before plugging in any appliance.
14.
Stay alert. Watch what you are doing, use common sense. Do not operate
any tool when you are tired.
15.
Check for damaged parts. Before using any tool, any part that appears dam-
aged should be carefully checked to determine that it will operate properly and
perform its intended function. Check for alignment and binding of moving parts;
any broken parts or mounting fixtures; and any other condition that may affect
proper operation. Any part that is damaged should be properly repaired or
replaced by a qualified technician. Do not use the tool if any switch does not
turn On and Off properly.
Servicing. This device should be serviced only by a qualified technician. This
item does not have any user-replaceable parts,except for fuses.

4egaP
16. Guard against electric shock.
Do not open the metal case; risk of electric shock.
Prevent body contact with grounded surfaces such as pipes, ra-
diators, ranges, and refrigerator enclosures during installation.
Connect all wires securely and cover the connections with insulat-
ing rubber boots (not included).
Store tools and metal objects away from the inverter.
17. Do not operate tool if under the influence of alcohol or drugs. Read warn-
ing labels on prescriptions to determine if your judgement or reflexes are impaired
while taking drugs. If there is any doubt, do not operate the tool.
18. People with pacemakers should consult their physician(s) before using
this product. Electromagnetic fields in close proximity to a heart pacemaker
could cause interference to or failure of the pacemaker.
19. Keep the Inverter well-ventilated. Do not place any objects on top of or next
to the Inverter or allow anything to cover the cooling fans; doing so can cause
the Inverter to overheat, causing a potential fire hazard and/or damage to the
Inverter. Leave adequate ventilation space underneath the Inverter as well;
thick carpets or rugs can obstruct air flow, causing the Inverter to overheat.
20. Read and adhere to all warnings and safety precautions in the owner’s
manual for the device that this inverter is used to power.
21. A vehicle’s engine must never be used in any sealed structure. Carbon
monoxide is produced during operation and is DEADLY in a closed envi-
ronment. Early signs of carbon monoxide poisoning resemble the flu, with
headaches, dizziness, or nausea. If you have these signs, get fresh air imme-
diately.
Note: Performance of this unit may vary depending on the available battery power
or appliance wattage.
Warning: The warnings, cautions, and instructions discussed in this instruc-
tion manual cannot cover all possible conditions and situations that may occur.
It must be understood by the operator that common sense and caution are
factors which cannot be built into this product, but must be supplied by the
operator.
Unpacking
When unpacking, check to make sure that the Inverter is in good condition.
If any parts are missing or broken, please call AIMS Power,Inc. at the number
found on the warranty card.

5egaP
Connection
For the power inverter to work properly, your power source must provide 12 volts
DC, and the power source must provide enough current (i.e., 46 amps to operate
the load of 560 Watts or under).
Caution: This inverter must only be connected to batteries withanominal
output voltage of 12 volts. Lower voltage will not operate the inverter prop-
erly, and more voltage could damage the inverter or the device being pow-
ered. If more than one 12 volt battery is to be used, the batteries must be
connected inaparallel circuit; 12 volt batteries connected in a series circuit
will produce too much voltage.
1. Placethe Power Inverter on a flatsurface. Make sure it has adequate ventilation
and is not in direct sunlight. Fasten the inverter securely to the surface, using
screws or some other means. If holes are to be drilled, follow safe, proper
installation techniques.
lugs to the (Positive) red and (Negative) black terminals on the back of the
Connect the Battery Cable(not included; 1 AWT(1/0) recommended)
2.
Inverter, see
BACK
above. ConnecttheGroundCable (notincluded;
#4 AWG or larger cable recommended) lug to the Ground terminal, see
BACK
above. Securely tighten.
3. The Power Invertercanbeusedeitherwhiletheengine is running or off.
Connect the Battery Cables (not included) to the Negative (black) and Positive
(red) terminals of the battery.
4. Connect the Ground Cable to an earth ground, such as a metal water pipe or
to the vehicle's ground when used in a vehicle.

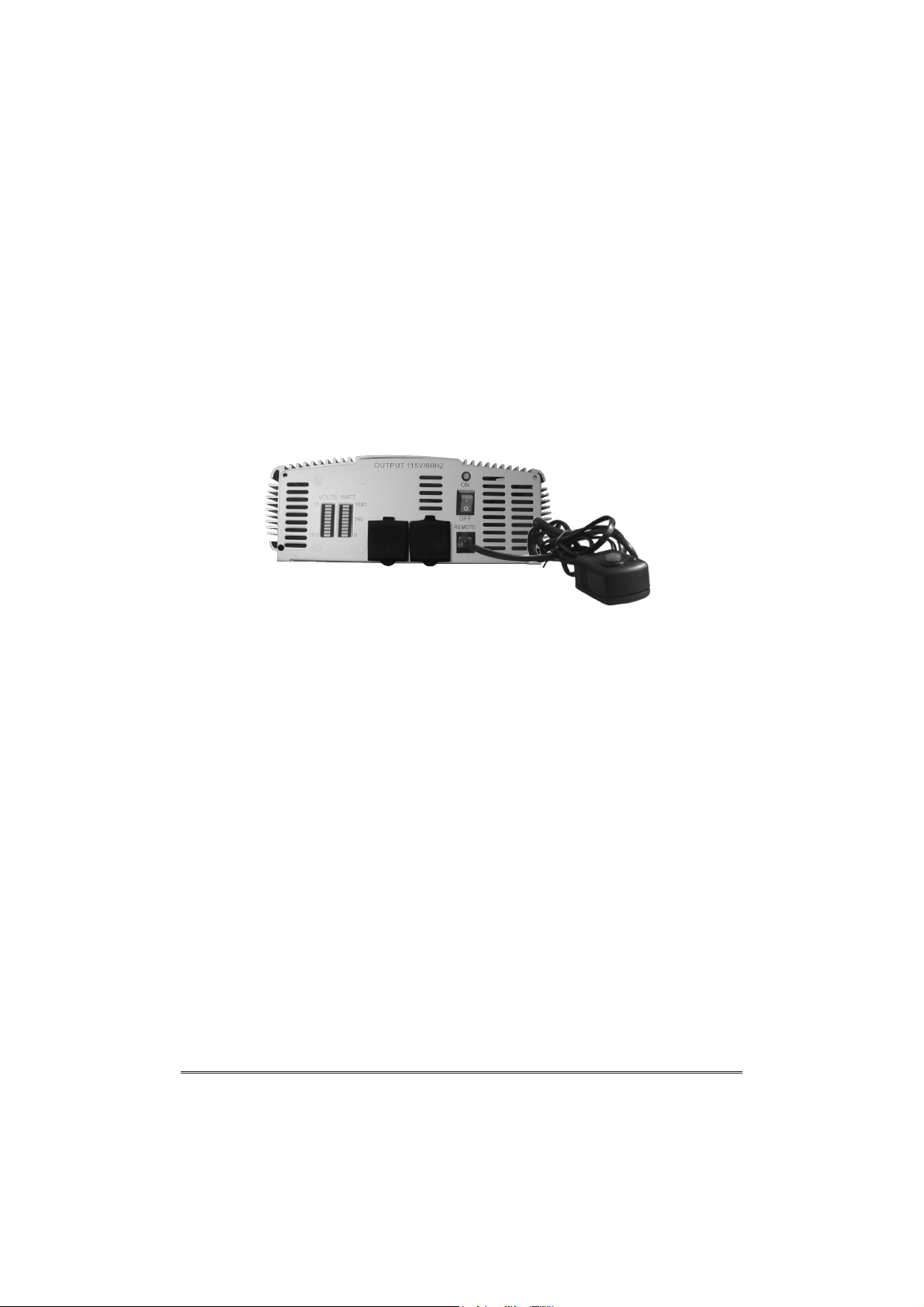

BACK
Negative
Ground
Positive

6egaP
Operation
Warning: NEVER operate this inverter unless it is properly grounded.
1. Open the rubber cover on the receptacle(s) and plugthe 115 VAC device(s) you
wish to power into the 3-prong AC Receptacles. See
FRONT
above. The
appliance(s) must not use more than 2,000 (total) watts during continuous
operation, otherwise it may overload the Inverter.
Caution: Some rechargeable appliances may damage the Power Inverter or
the appliance. When first using a rechargeable device, check the inverter’s
temperature for the first 10 minutes. If it becomes abnormally hot, do not use
this device with the Inverter. You should consider using a Pure Sine Wave
Inverter instead.
2. Flip the Power Switch to the On (I) position to turn on. Do not use the appliance
until the green power LED indicator is on.
3. Turn on appliance. If an alarm sound is heard, turn off the appliance.
Caution: It is recommended that the vehicle be started every hour to recharge
the battery system. Doing this will help prevent any unexpected shutdown of
the equipment. This will also help ensure that there will be enough battery
power to start the vehicle. Due to the risk of carbon monoxide inhalation (see
Warning
# 21 on page 4), do not run the vehicle’s engine within an enclosed
area.
4. Afteruse, disconnect the appliances, flip the Power Switch to the Off (O) position,
5.Display:
DC Input Voltage Indicator :
Output PowerIndicator :
8 Green LED indicate,step 200Watts,up to1800Watts
1 orangeLED indicate,step 1800Watts,up to 2000Watts
1 red LED indicating,The outputloadis more than 2000Watts
7 Green LED indicate11-15vRange step:0.5V
1 orange LED indicating lower than 11V
1 Red(Bottom) LED indicating lower than 10.5V
1 Red(Top) LED indicating above15V
and put the rubber covers back in place over the receptacles.
FRONT
Outlets
(covered)
Power
Indicator
Switch
Display
Remote

7egaP
Maintenance
6. Remote On/Off Switch
1. Keep this unit clean and dry. Unplug the unit before cleaning. Clean only the
ARemote On/Off Switch can be connected to the Remote Jack allowing you to
turn the inverter On or Off from a convenient location when the inverter is installed
in an out-of-reach location. Be sure to have your power inverter and Remote On/Off
Switch properly installed before attempting to turn the unit On(see “Installation”
page 6). Before connecting the remote switch you should ensure the inverter is
turned OFF (O). The plug the remote switch into the jack. The main power switch
of the inverter must be turned ON (I) for the remote switch to function properly.
You may now use the remote switch to turn the inverter ON (I) and OFF (O).
outside of this unit with a soft, dry cloth; never clean this unit with water or
harsh cleaners.
2. This device does not contain any other user replaceable parts.If it needs
service,contact your retailer or AIMS Power(see warranty page for details).
IndicatorLight

8egaP
Troubleshooting Tips
1. If the low battery alarm sounds, this means that the input voltage is below the
necessary 10.5 V. The battery needs recharging. You should stop using the
appliance and then recharge the battery. If this is not done, the Inverter will
shut off automatically at around 10 V.
2. If you are unsure if the inverter will have the proper amount of current to run
the device, use this rough guideline: Take the power consumption of the load
in watts and divide it by 12 (input voltage). The result will be the approximate
number of amps needed to power your device.
Example: Load is rated at 312 watts. 312 watts/12 V=26 amps needed. You
could use this device with the inverter.
3. If your televisionwill not start, it is important to keep in mindthat some appliances
(including many televisions) may require two to six times their wattage to start
up.
4. If your audio system buzzes while using this inverter, it is because some sound
systems can not filter out the modified sine wave produced by the inverter.
Use a sound system that incorporates a higher quality power supply.
5. This inverter is made to minimize the interference with TV signals. However,
especially with weak TV signals, some interference may still be visible. To
correctthis, placethe inverter as far away as possible fromthetelevision
antennaandit’s cables. Next,adjustthe orientation of the invertertotheantenna
cables and TV power cord to minimize the interference. Also use a shielded
antennacable.
6. If the low battery alarm is on all the time, try these corrective measures:
Recharge battery if in poor condition. Next, check the battery connection. You
may need to clean the connectors.
7. If you are gettingalow output voltage, try reducing the load to minimize watts.
You may have overloaded the inverter. Reduce your load to 2,000 watts. Also,
keep input voltage above 10.5 volts to maintain a constant flow of power.
8. If you are not getting any power output, turn the power switch Off and On
again, until the green power light comes on. Your devices may draw too much
power to operate them. The inverter may be in thermal shutdown. Let it cool
down and make sure there is adequate ventilation around the unit.
9. If the green light turns red one of the following has happened:
A. Input voltage is too low. B. imput voltage too high C. Short circuit D. Inverter
PLEASEREADTHE FOLLOWINGCAREFULLY
THEMANUFACTURERAND/OR DISTRIBUTOR HAS PROVIDEDTHE PARTS DIAGRAM IN
THIS MANUAL ASAREFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKEANYREPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO
REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURERAND/OR DISTRIBUTOR
EXPRESSLY STATESTHAT ALLREPAIRSAND PARTS REPLACEMENTSSHOULDBEUNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL
RISKANDLIABILITYARISINGOUT OF HISORHERREPAIRS TO THEORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACE-
MENT PARTS THERETO.
is nearoverload.

AIMS Operating Corp., Inc. dba AIMS Power Warranty Instructions:
This product is designed using the most modern digital technology and under very strict
quality control and testing guide lines. If however you feel this product is not performing
as it should, please contact us:
[email protected] or [phone]
We will do our best to resolve your concerns. If the product needs repair or
replacement, make sure to keep your receipt/invoice, as that will need to be sent back
along with the package and RA# prepaid to AIMS. You have a full 1 year from date of
purchase warranty.
This warranty is valid world wide with the exception that freight and duty charges
incurred outside the contiguous 48 United States will be prepaid by customer.
Except as provided above, AIMS makes no warranty of any kind, express or implied,
including without limitation the implied warranties of merchantability and fitness for a
particular purpose. In no event shall AIMS be liable for indirect, special or consequential
damages. This warranty only applies to AIMS Power branded products. All other name
brand products are warranted by and according to their respective manufacturer.
Please do not attempt to return non-AIMS Power branded products to AIMS Power.
For additional products such as:
- Modified sine wave inverters
- Pure sine wave inverters
- On Grid Inverters
- Inverter Chargers and Automatic transfer switches
- Custom cut cables
- Batteries
- Solar Products
Please visit our web site: www.aimscorp.net
To find out where to buy any of our products, you may also e-mail: [email protected]
or call [phone].
