Emerson Blue Wireless Comfort Interface - Homeowner User Guide
HOMEOWNER USER GUIDE
1F98EZ-1621
EMERSON
®
BLUE
™
Wireless Comfort Interface
All manuals and user guides at all-guides.com
all-guides.com
Message to Homeowners
Congratulations on choosing the Emerson Blue Wireless Control System!
This system features an intuitive Comfort Interface that utilizes wireless
technology for precise and reliable temperature control found in all
Emerson products.
The Emerson Blue Wireless Control System consists of a Comfort
Interface, Equipment Control Module, Return Air Sensor and optional
Indoor/Outdoor Remote Sensors (F145RF-1600). The Comfort Interface
provides a large, uncluttered display for adjustments to your home’s
it communicates wirelessly to the Equipment Control Module and
Return Air Sensor (located near your furnace and air handler). For added
3indoor
and 1outdoor Remote Sensor(s) (sold separately).
When “Change ”appears in the display, a new set of premium brand
for an extended period, it is recommended that new batteries be installed
before leaving.
Need Help? For assistance with this product, please call 800-284-2925.
Page
Overview............................................... 3
Quick Start Guide................................... 6
Set Current Time and Day ...................... 6
................... 8
ProgrammingYour Comfort Interface ...... 9
.......................... 9
........ 9
...........10
..........................11
..................................15
UsingYour Comfort Interface .................. 16
..........................16
................................16
Page
................17
................17
Auxiliary Heating ...................................18
Dual Fuel Setpoint .................................18
Averaging with Indoor Remote Sensor...18
System Diagnostics ...............................18
Control ..............................................18
Humidity and Outdoor Temperature
Display ..............................................19
Replacing Batteries................................20
................... 23
Homeowner Help Line............................ 28
Table of Contents
All manuals and user guides at all-guides.com

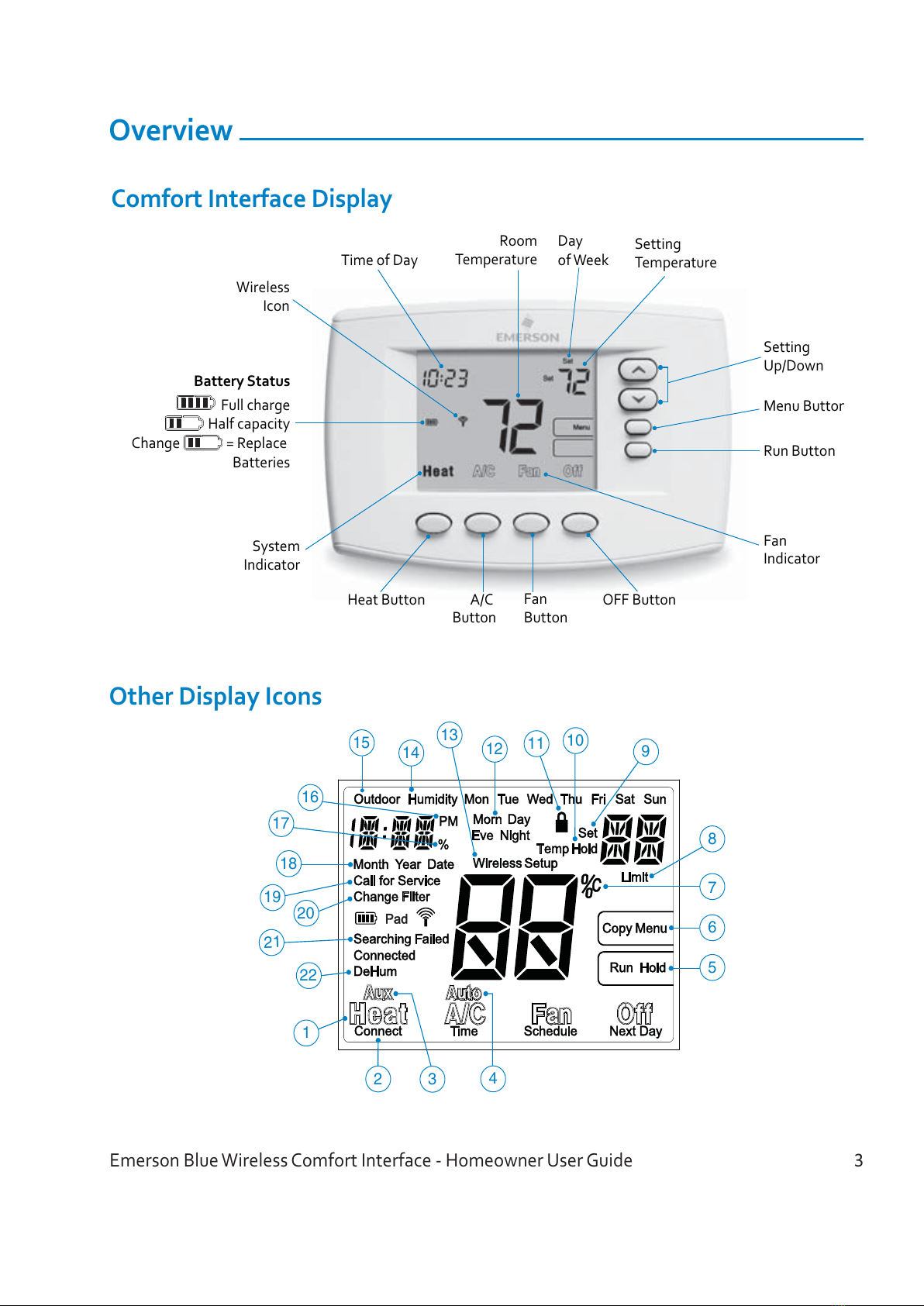

3Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Overview
Room
Temperature
Time of Day
System
Indicator
Heat Button A/C
Button
Setting
Temperature
Day
of Week
Fan
Indicator
Run Button
Menu Butto
n
Setting
Up/Down
Fan
Button
OFF Button
Wireless
Icon
Battery Status
Full charge
Half capacity
Change = Replace
Batteries
Comfort Interface Display
Other Display Icons
1
8
9
10
15 12
13
18
19
21
20
22
7
11
14
16
17
5
6
2
4
3
All manuals and user guides at all-guides.com

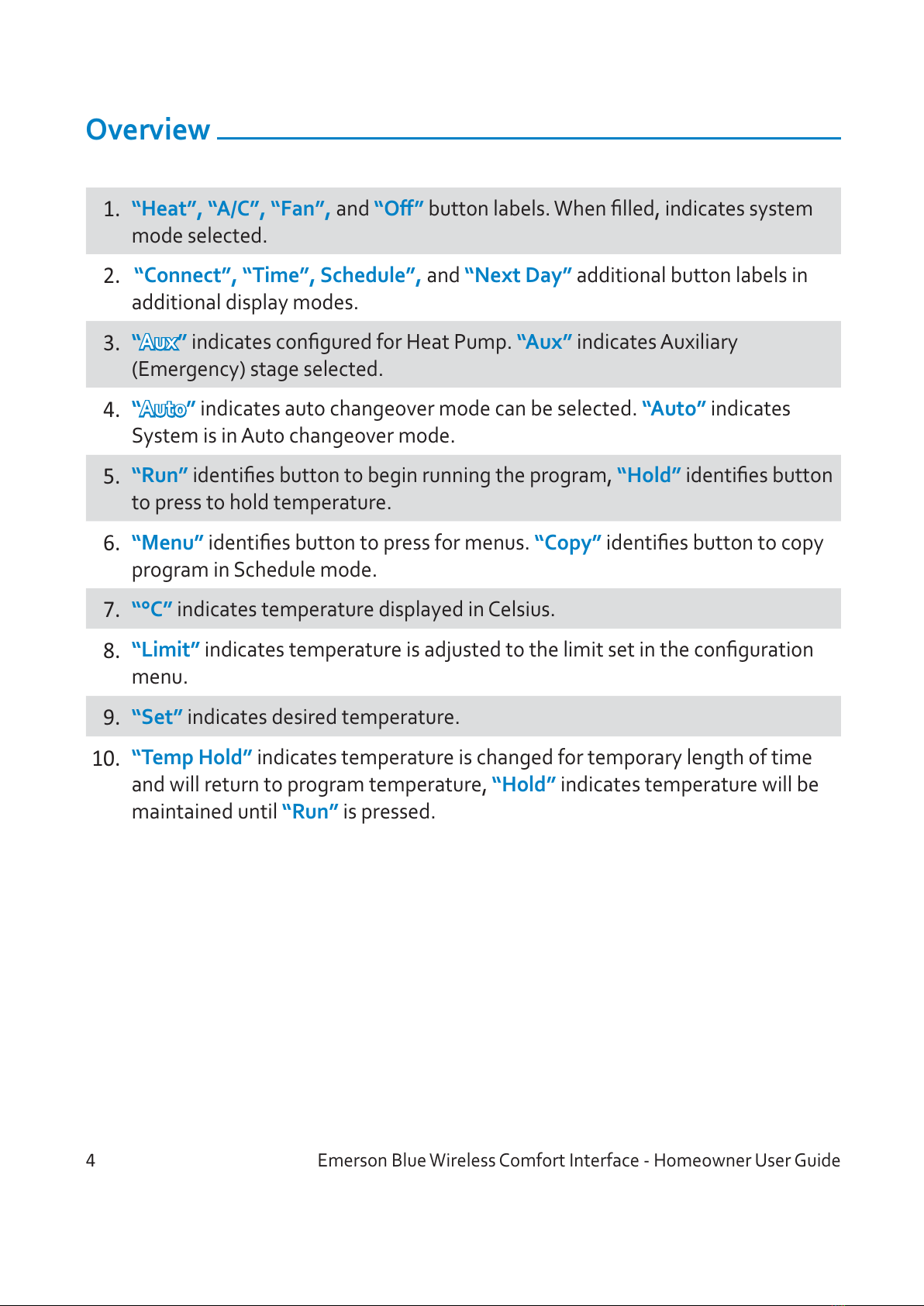

4Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Overview
1. “Heat”, “A/C”, “Fan”, and
mode selected.
2. “Connect”, “Time”, Schedule”, and “Next Day” additional button labels in
additional display modes.
3. “Aux”“Aux” indicates Auxiliary
(Emergency) stage selected.
4. “Auto”indicates auto changeover mode can be selected. “Auto” indicates
System is in Auto changeover mode.
5. “Run”“Hold”
to press to hold temperature.
6. “Menu”“Copy”
program in Schedule mode.
7. “°C” indicates temperature displayed in Celsius.
8. “Limit”
menu.
9. “Set” indicates desired temperature.
10. “Temp Hold” indicates temperature is changed for temporary length of time
and will return to program temperature, “Hold” indicates temperature will be
maintained until “Run” is pressed.
All manuals and user guides at all-guides.com
5Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Overview
11. “ ”
12. Indicates program period, “Morn” “Day” “Eve” or “Night”.
13. “Wireless Setup” appears when in the wireless set up mode.
14. “Humidity” indicates Humidity is being displayed instead of current time.
15. “Outdoor” indicates display is showing outdoor temperature (if outdoor
sensor is installed) instead of time.
16.
17. “%” display is showing Humidity setting instead of Time of Day.
18. “Month” “Year” “Date” displays when setting time and date.
19. “Call for Service” displays when a fault occurs in the system.
20. “Change Filter” “Change Pad”
and time has expired.
21. “Searching” in Wireless Setup appears when searching for components,
“Connected” displays to show connected to wireless component or “Failed”
appears to indicate loss of communication.
22. indicator.
All manuals and user guides at all-guides.com
6Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Quick Start Guide
Set Current Time and Day
1. On the Home screen, press Menu button to display additional selections.
2. Time button to display hour and “A”“P”
All manuals and user guides at all-guides.com
all-guides.com
7Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Quick Start Guide
3. or button to adjust the hour and “A”“P”
4. Time to display the minutes.
5. or button to adjust the minutes.
6. Time
or button to adjust.
Run to return to home screen.
All manuals and user guides at all-guides.com
8Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Energy Saving Pre-Program
This Comfort Interface is set up for 7independent day programming with 4time/
the “UsingYour Comfort Interface” section, page 15. If you wish to change the heat-
ing or A/C schedules, please proceed to the “ProgrammingYour Comfort Interface”
section on next page.
Factory Pre-Programmed schedule for two period Day / Night programs
Day Night
Heating Program 6:00 70°F 10:00 62°F
A/C Program 6:00 75°F 10:00 78°F
Factory Pre-Programmed schedule for four periods per day, all days of the week
Wake Up
(Morning)
Leave For
Work (Day)
Return Home
(Evening)
Go To Bed
(Night)
Heating
Program 6:00 70°F 8:00 62°F 5:00 70°F 10:00 62°F
A/C
Program 6:00 75°F 8:00 83°F 5:00 75°F 10:00 78°F
Quick Start Guide
If you prefer your Comfort Interface to be non-programmable, refer to the
, menu # 03, page 20.
All manuals and user guides at all-guides.com

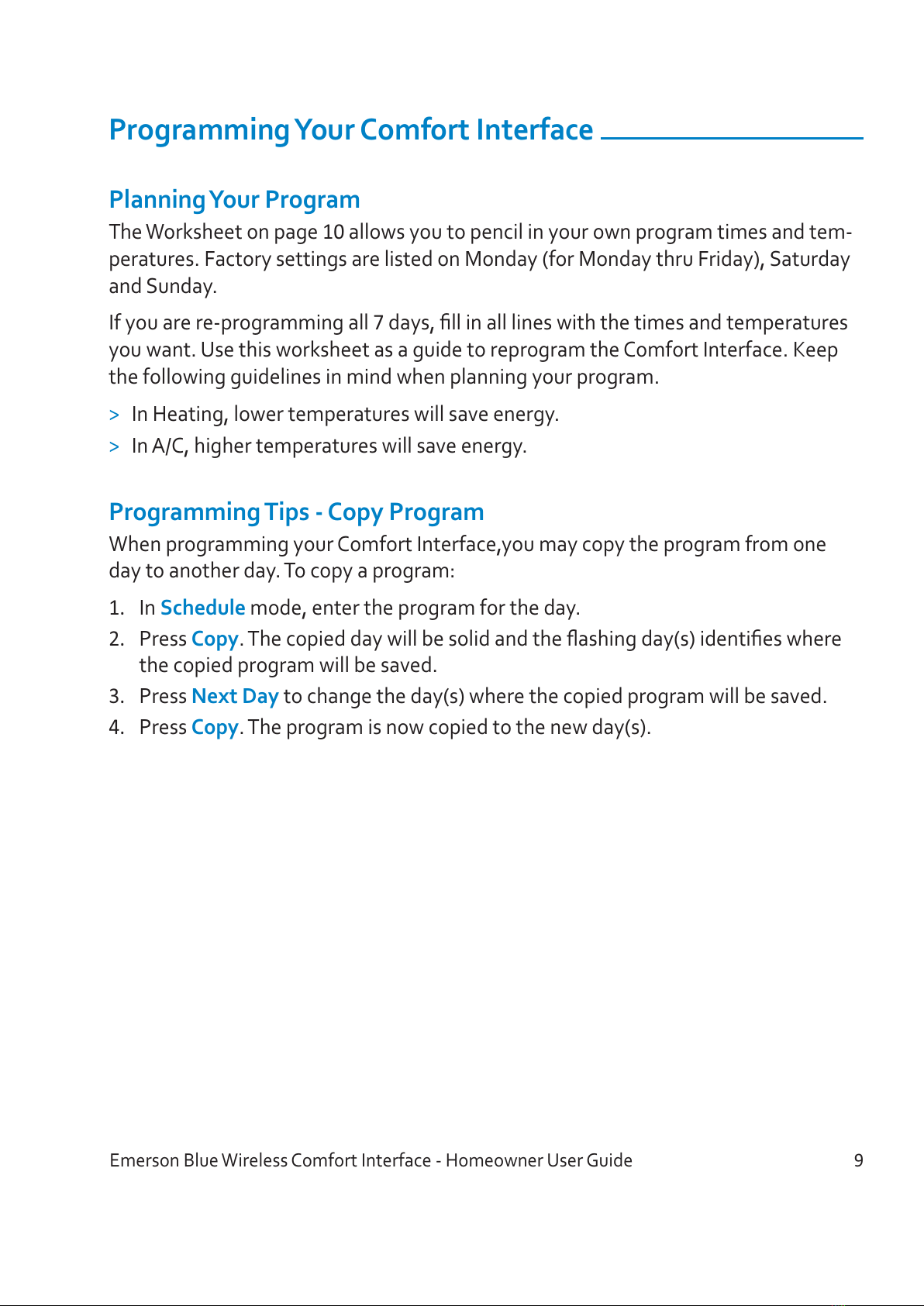

9Emerson Blue Wireless Comfort Interface - Homeowner User Guide
ProgrammingYour Comfort Interface
PlanningYour Program
10 allows you to pencil in your own program times and tem-
and Sunday.
If you are re-programming all 7
the following guidelines in mind when planning your program.
>In Heating, lower temperatures will save energy.
>In A/C, higher temperatures will save energy.
Programming Tips - Copy Program
When programming your Comfort Interface,you may copy the program from one
day to another day. To copy a program:
1. In Schedule mode, enter the program for the day.
2. Copy
the copied program will be saved.
3. Next Day to change the day(s) where the copied program will be saved.
4. Copy. The program is now copied to the new day(s).
All manuals and user guides at all-guides.com

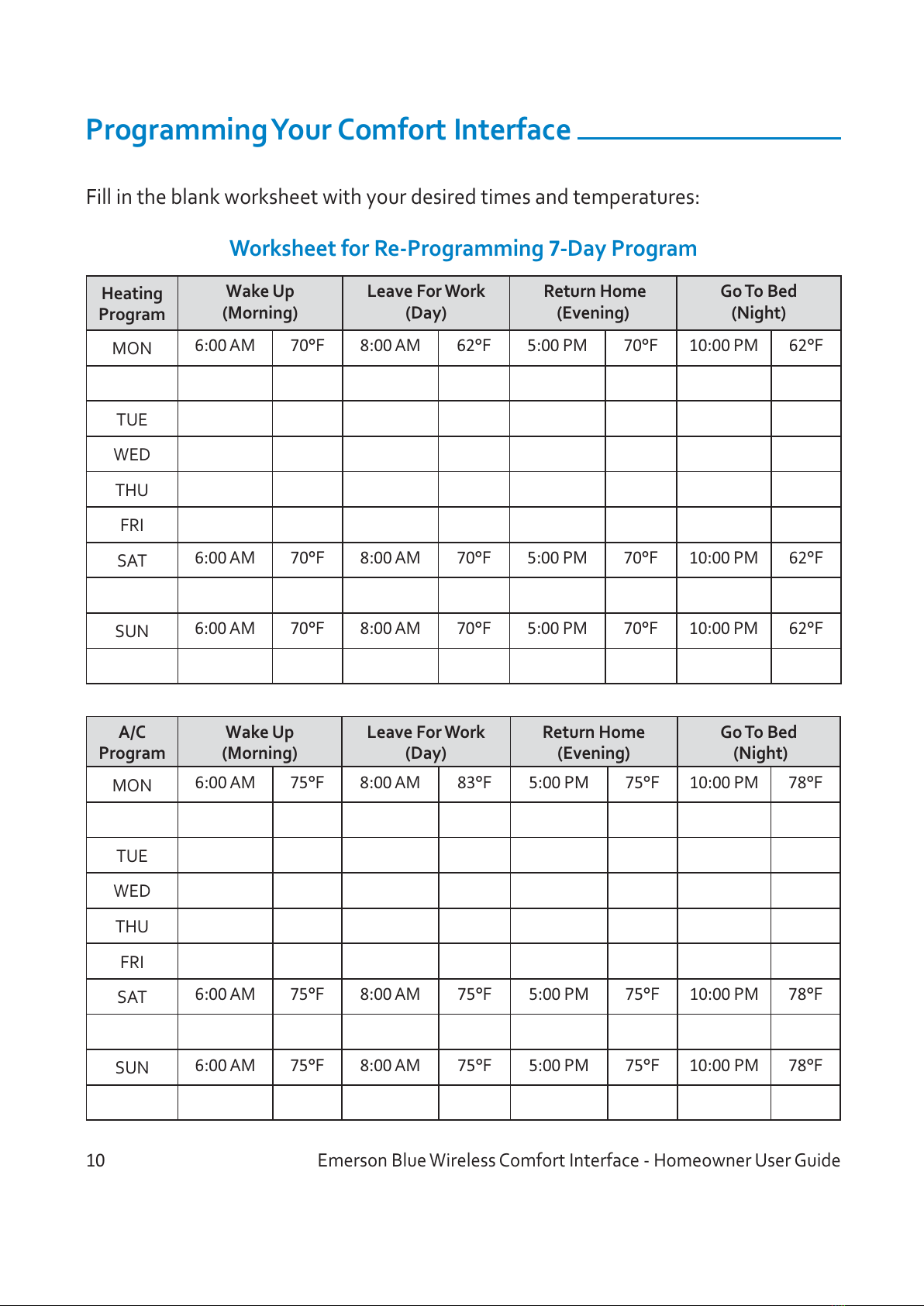

10 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
A/C
Program
Wake Up
(Morning)
Leave For Work
(Day)
Return Home
(Evening)
Go To Bed
(Night)
6:00 75°F 8:00 83°F 5:00 75°F 10:00 78°F
TUE
WED
THU
FRI
SAT 6:00 75°F 8:00 75°F 5:00 75°F 10:00 78°F
6:00 75°F 8:00 75°F 5:00 75°F 10:00 78°F
Worksheet for Re-Programming 7-Day Program
Heating
Program
Wake Up
(Morning)
Leave For Work
(Day)
Return Home
(Evening)
Go To Bed
(Night)
6:00 70°F 8:00 62°F 5:00 70°F 10:00 62°F
TUE
WED
THU
FRI
SAT 6:00 70°F 8:00 70°F 5:00 70°F 10:00 62°F
6:00 70°F 8:00 70°F 5:00 70°F 10:00 62°F
ProgrammingYour Comfort Interface
All manuals and user guides at all-guides.com
11Emerson Blue Wireless Comfort Interface - Homeowner User Guide
2. Schedule button. The display will show the day and period being
indicate it can be adjusted.
Enter Heating Program
1. In Heat mode, press the Menu button to display additional button selections.
Temperature
Flashing
ProgrammingYour Comfort Interface
All manuals and user guides at all-guides.com
all-guides.com

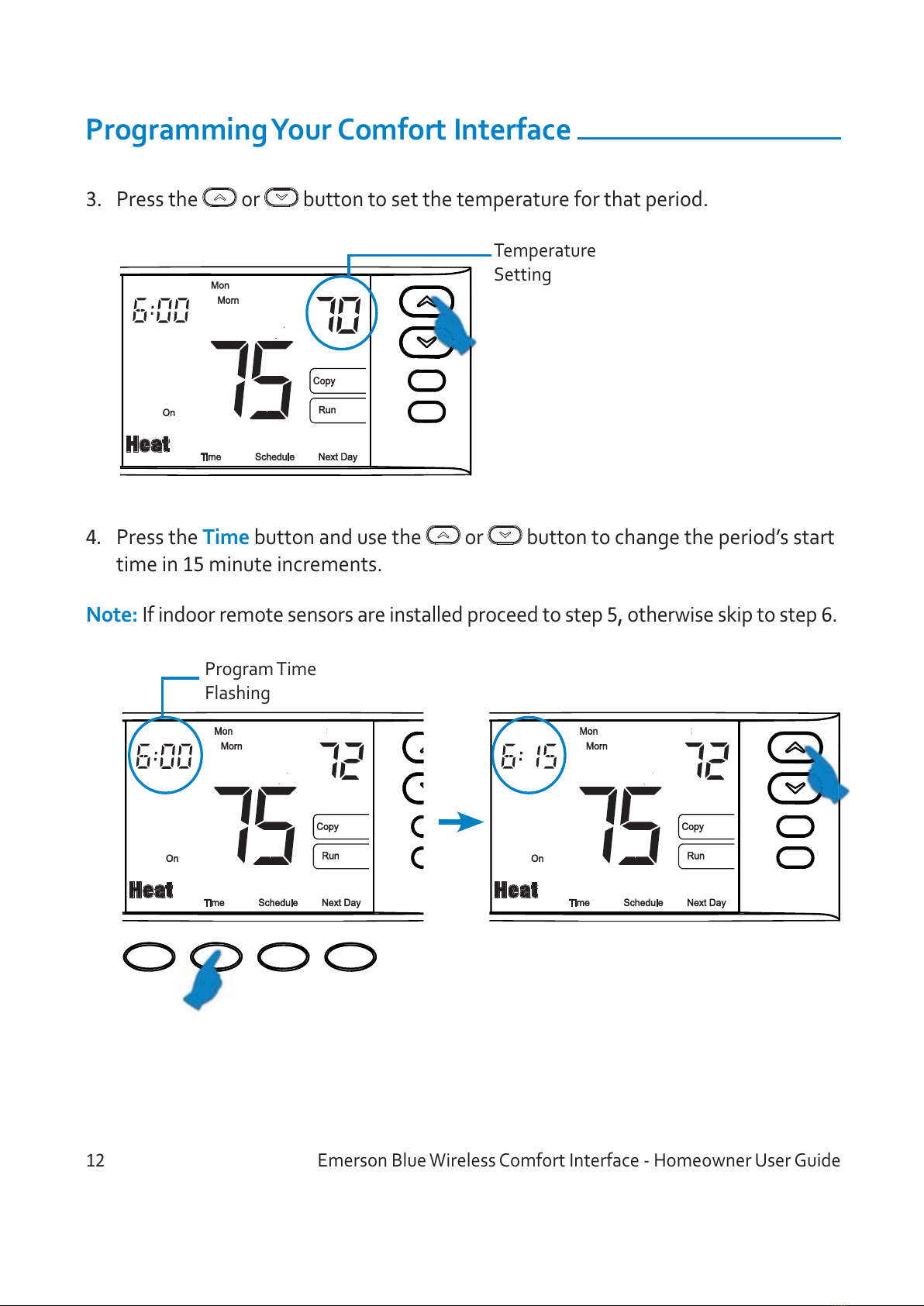

12 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
3. or button to set the temperature for that period.
4. Time button and use the or button to change the period’s start
time in 15 minute increments.
Note: If indoor remote sensors are installed proceed to step 56.
Temperature
Setting
Flashing
ProgrammingYour Comfort Interface
All manuals and user guides at all-guides.com
13Emerson Blue Wireless Comfort Interface - Homeowner User Guide
5.FOR INDOOR REMOTE SENSORS ONLY:Time again and use the
or button to deactivate or activate the Comfort Interface’s internal
temperature sensor. A display showing dashes (--) indicates it has been
the remote sensor(s) to control temperature.
ProgrammingYour Comfort Interface
Current Temperature
Flashing
Indicates Internal
Indicates Internal
Sensor is On
All manuals and user guides at all-guides.com
14 Emerson Blue Wireless Comfort Interface - Homeowner User Guide

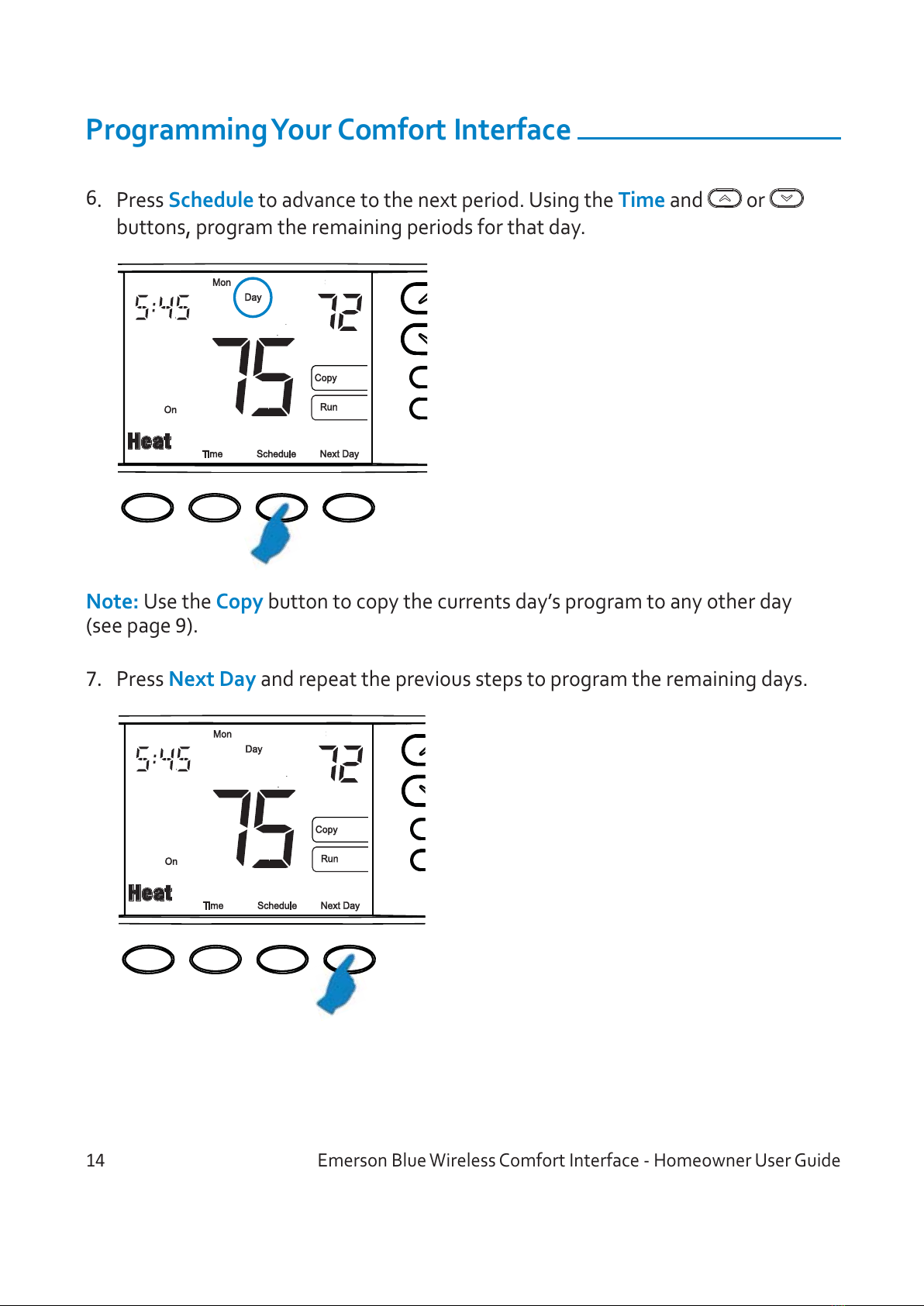

7. Next Day and repeat the previous steps to program the remaining days.
ProgrammingYour Comfort Interface
6. Schedule to advance to the next period. Using the Time and or
buttons, program the remaining periods for that day.
Note: Use the Copy button to copy the currents day’s program to any other day
(see page 9).
All manuals and user guides at all-guides.com

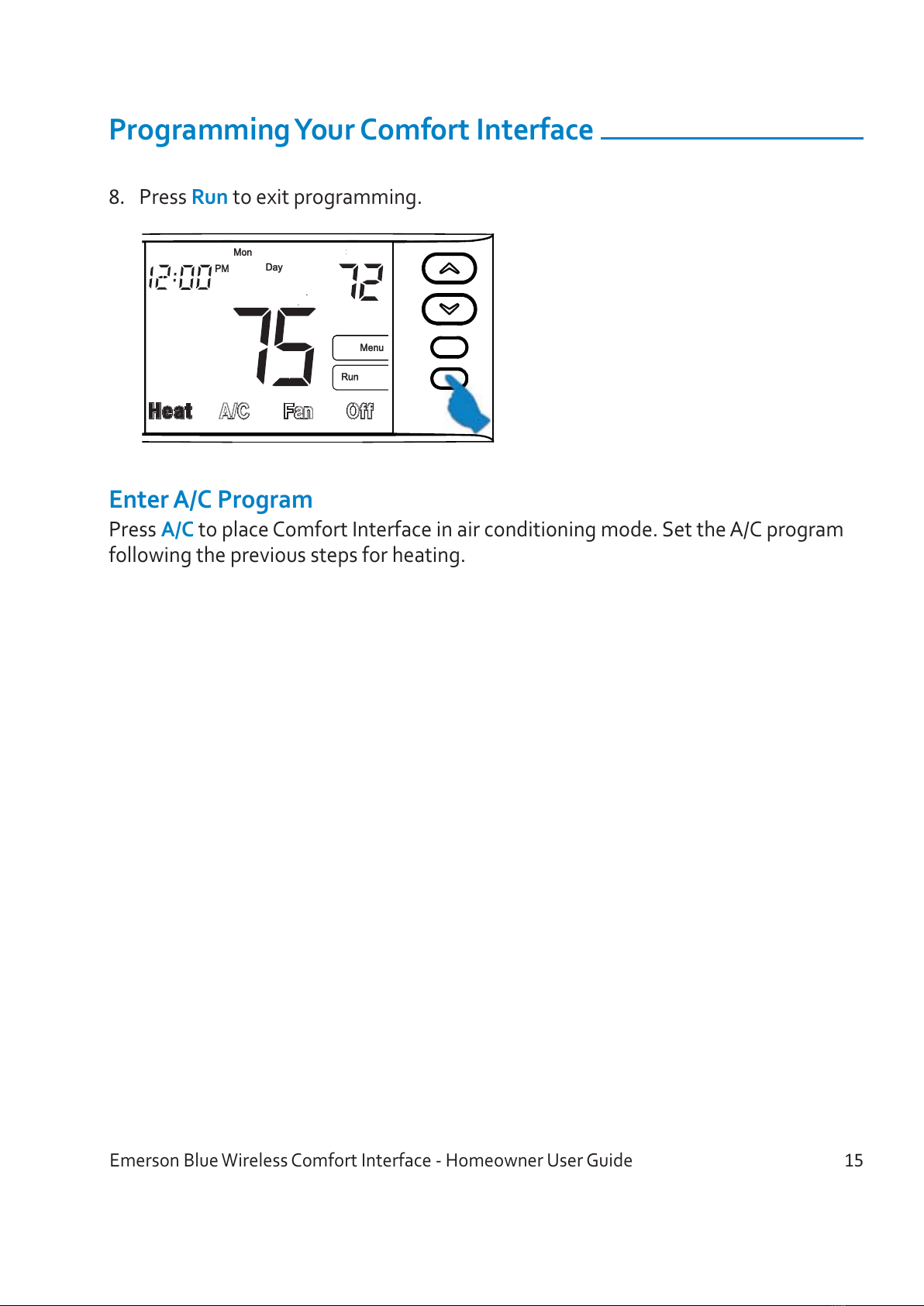

15Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Enter A/C Program
A/C to place Comfort Interface in air conditioning mode. Set the A/C program
following the previous steps for heating.
ProgrammingYour Comfort Interface
8. Run to exit programming.
All manuals and user guides at all-guides.com

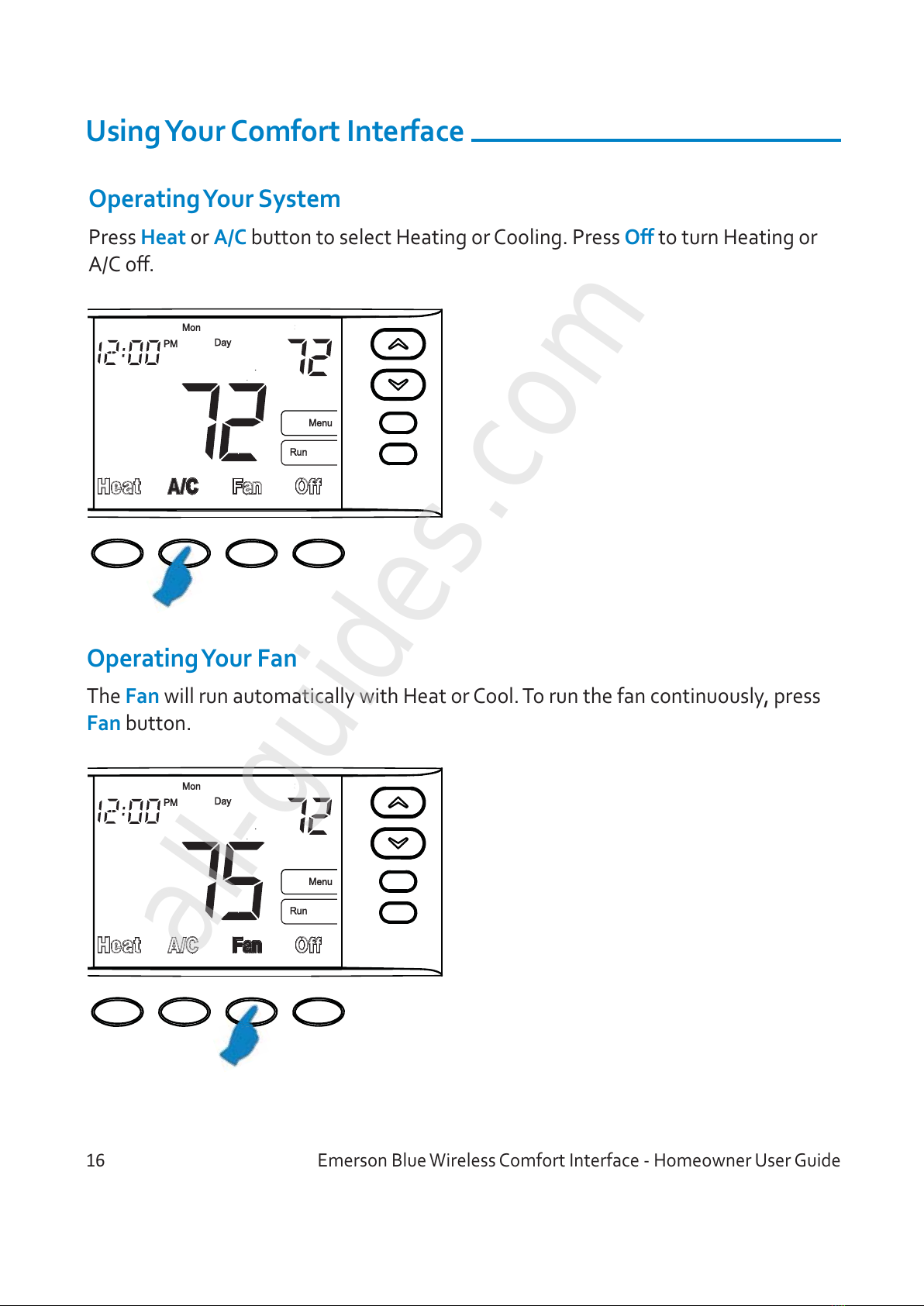

16 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
OperatingYour System
Heat or A/C to turn Heating or
UsingYour Comfort Interface
OperatingYour Fan
The Fan will run automatically with Heat or Cool. To run the fan continuously, press
Fan button.
All manuals and user guides at all-guides.com
all-guides.com
17Emerson Blue Wireless Comfort Interface - Homeowner User Guide
Temporary Program Override
or button to adjust the temperature. The display will show “Temp Hold” to
the left of the desired temperature. To cancel the temporary setting and return to the
program, press Run. Example: If you turn up the heat during the morning program, it
will automatically return to the programmed temperature two hours later.
UsingYour Comfort Interface
Permanent Temperature Hold
Hold button once. The display will show “Hold” to the left of the
or button to adjust the temperature you want.
To cancel the permanent hold setting at any time and return to the program, press
Run button. Displays after
pressing Hold
All manuals and user guides at all-guides.com

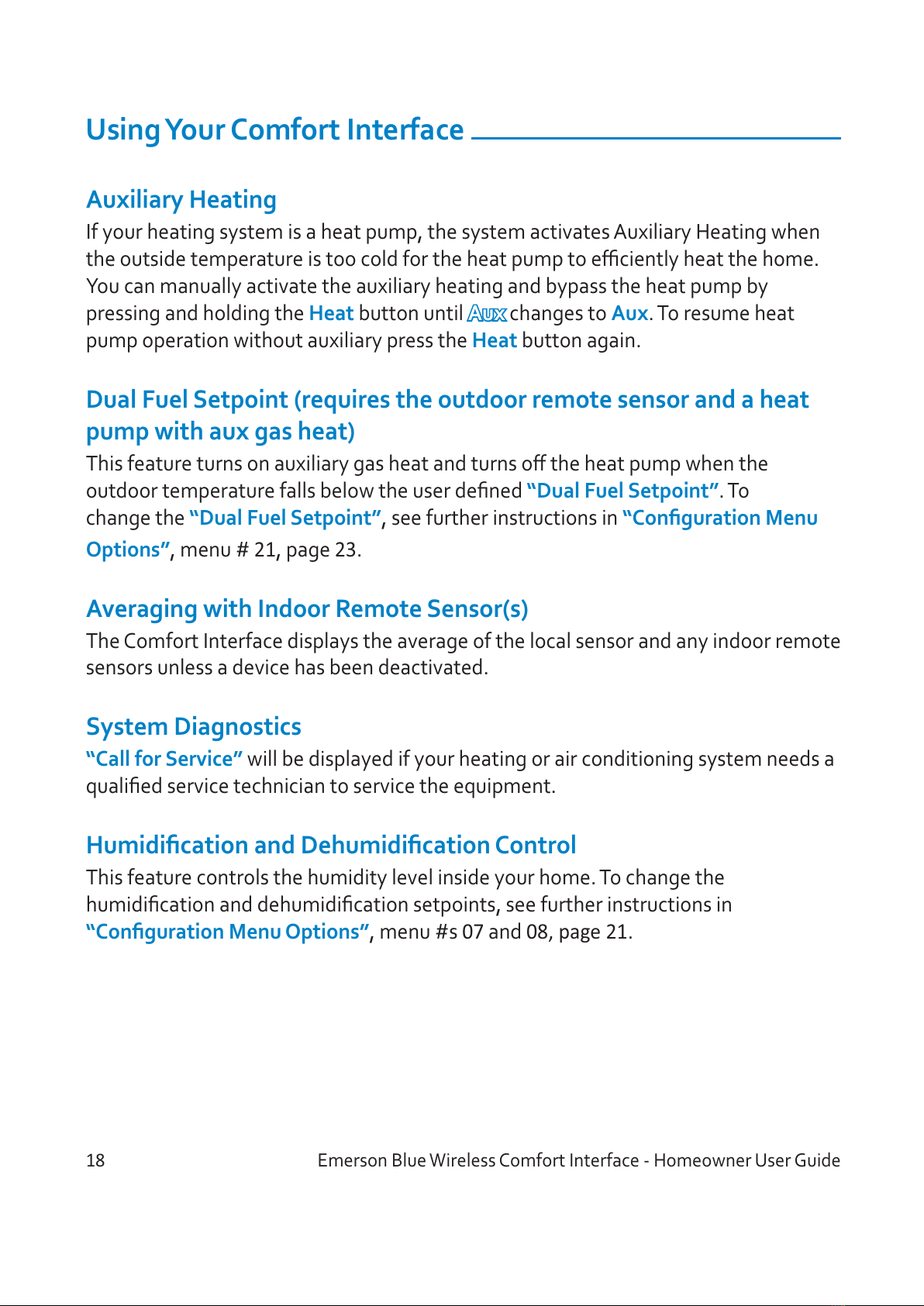

18 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
UsingYour Comfort Interface
Auxiliary Heating
If your heating system is a heat pump, the system activates Auxiliary Heating when
pressing and holding the Heat button until Aux changes to Aux. To resume heat
pump operation without auxiliary press the Heat button again.
Dual Fuel Setpoint (requires the outdoor remote sensor and a heat
pump with aux gas heat)
“Dual Fuel Setpoint”. To
change the “Dual Fuel Setpoint”, see further instructions in
Options”, menu # 21, page 23.
Averaging with Indoor Remote Sensor(s)
The Comfort Interface displays the average of the local sensor and any indoor remote
sensors unless a device has been deactivated.
System Diagnostics
“Call for Service” will be displayed if your heating or air conditioning system needs a
This feature controls the humidity level inside your home. To change the
, menu #s 07 and 08, page 21.
All manuals and user guides at all-guides.com
19Emerson Blue Wireless Comfort Interface - Homeowner User Guide
UsingYour Comfort Interface
Humidity and Outdoor Temperature Display
home and/or the current outdoor temperature (if outdoor sensor is installed). When
turned on, the display will cycle time, humidity, and/or outdoor temperature. See
, menu #s 11 and 12, page 21.
All manuals and user guides at all-guides.com
20 Emerson Blue Wireless Comfort Interface - Homeowner User Guide
UsingYour Comfort Interface
+
+
-
-
+
+
-
-
4“AA” Batteries
Rear view of Comfort Interface
Optional Indoor/Outdoor Remote Sensors
If a sensor is not communicating or the batteries are dead and need to be replaced,
sensor number (RS1, RS2, RS3or ORS)/two dashes (--).
Replacing Batteries
Replace batteries when “Change ” is
displayed.
All manuals and user guides at all-guides.com
Other manuals for 1F98EZ-1621
1
Table of contents
Other White Rodgers Recording Equipment manuals
