WHITE-RODGERS
OPERATION GUIDE
7 Day Multi-stage Electronic Digital
Thermostat with Programmable Fan
1F95-71
Operator: Save this booklet for future use!

2
Please read this manual thoroughly before operating or programming your thermostat. If you
have questions, you may write to our Technical Service Department at 9797 Reavis Road, St.
Louis, MO, 63123.
Your new Digital COMFORT SET II Multi-stage Thermostat uses the technology of a solid-state
microcomputer to provide precise time/temperature control. The COMFORT SET II Thermostat
offers you the flexibility to design heating and cooling programs that fit your needs.
About Your New Thermostat . . .

3
In This Guide . . .
YOUR NEW THERMOSTAT’S
FEATURES ............................................ 4
OPERATING YOUR THERMOSTAT ......... 5
PARTS OF THE THERMOSTAT
The Back Of the Thermostat Body
The Display
The Thermostat Buttons
OPERATING FEATURES
PROGRAMMING YOUR
THERMOSTAT .................................... 18
PLANNING FOR YOUR NEEDS
ENTERING YOUR PROGRAM
Set Current Time and Day
Program Heating and Cooling
Temperatures
Program Heating/Cooling Times
and Heating Temperatures
Program Cooling Temperatures
Using the COPY Button
CHECK YOUR PROGRAMMING
QUESTIONS AND ANSWERS................. 33
Operator: Save this
booklet for future use!

4
YOUR NEW THERMOSTAT’S FEATURES
• Computed Energy Management Recovery
(EMR)
• Automatic changeover
• Two hour temperature override
• Manual program override (HOLD tem-
perature)
•°F/°C convertibility
• Keypad lockout (optional)
• Simultaneous heat and cool program
storage
• Four separate time and two separate tem-
perature settings per 24-hour period
• Backlit LCD displays continuous set point,
time, and room temperature
• Adjustable cycle times
• 9 volt Energizer®alkaline battery backup
• Compressor short cycle protection
• Blower delay in the cooling cycle
• Up to 3 stages of heat and up to 2 stages
of cool
• Initial total system checkout
• Preprogrammed temperature control
• Separate setback programming for 7 inde-
pendent days
• Electric heat (optional)
• Audio and visual prompting for pro-
gramming
• Armchair programming capability
• Programmable blower control
• Temperature range 40°to 99°F
• CompatiblewithRemoteSensor(optional)

5
Before you begin programming your thermo-
stat,youshouldbefamiliarwithitsfeaturesand
withthedisplayand the location and operation
of the thermostat buttons. The information in
this section will help you become familiar with
your new thermostat so that you can easily
program it.
Your thermostat consists of two parts: the
thermostat body and the subbase.
Use
SYSTEM
SWITCH
to turn thermostat OFF
before removing or attaching the ther-
mostat body. Equipment damage and/
or personal injury could occur.
OPERATING YOUR THERMOSTAT
The subbase is attached to the wall, but you
can remove the thermostat body for easy pro-
gramming. To remove the thermostat body
from the subbase, grasp the thermostat body
and gently pull it out from the bottom of the
subbaseandpivotup.Toattachthethermostat
body,lineupthefourterminalpinsontheupper
section of the thermostat back with the match-
ing connector on the subbase. Insert these,
then gently pivot the thermostat body down to
connect the eight pin connectors on the lower
portion of the thermostat back. Gently push
until the snap connectors engage. DO NOT
FORCE OR PRY THE THERMOSTAT as this
may damage the unit.
CAUTION
!

6
PARTS OF THE THERMOSTAT
The Back of The Thermostat Body
Turnthethermostatbodyover.Onthebackare
the 9 volt Energizer®alkaline battery and the
option switches.
1. The 9 volt Energizer®alkaline battery
provides power to the thermostat when
the 24 VAC power is interrupted (for ex-
ample, when you remove the thermostat
from the wall for programming). A fresh
battery will maintain the stored program
forapproximately aweek.Ifpowerlossis
long enough for the program to be lost,
thethermostatwillautomaticallyreturnto
the factory programmed temperatures
(64°F heating and 82°F cooling) when
power is restored. You must reprogram
the thermostat if this happens.

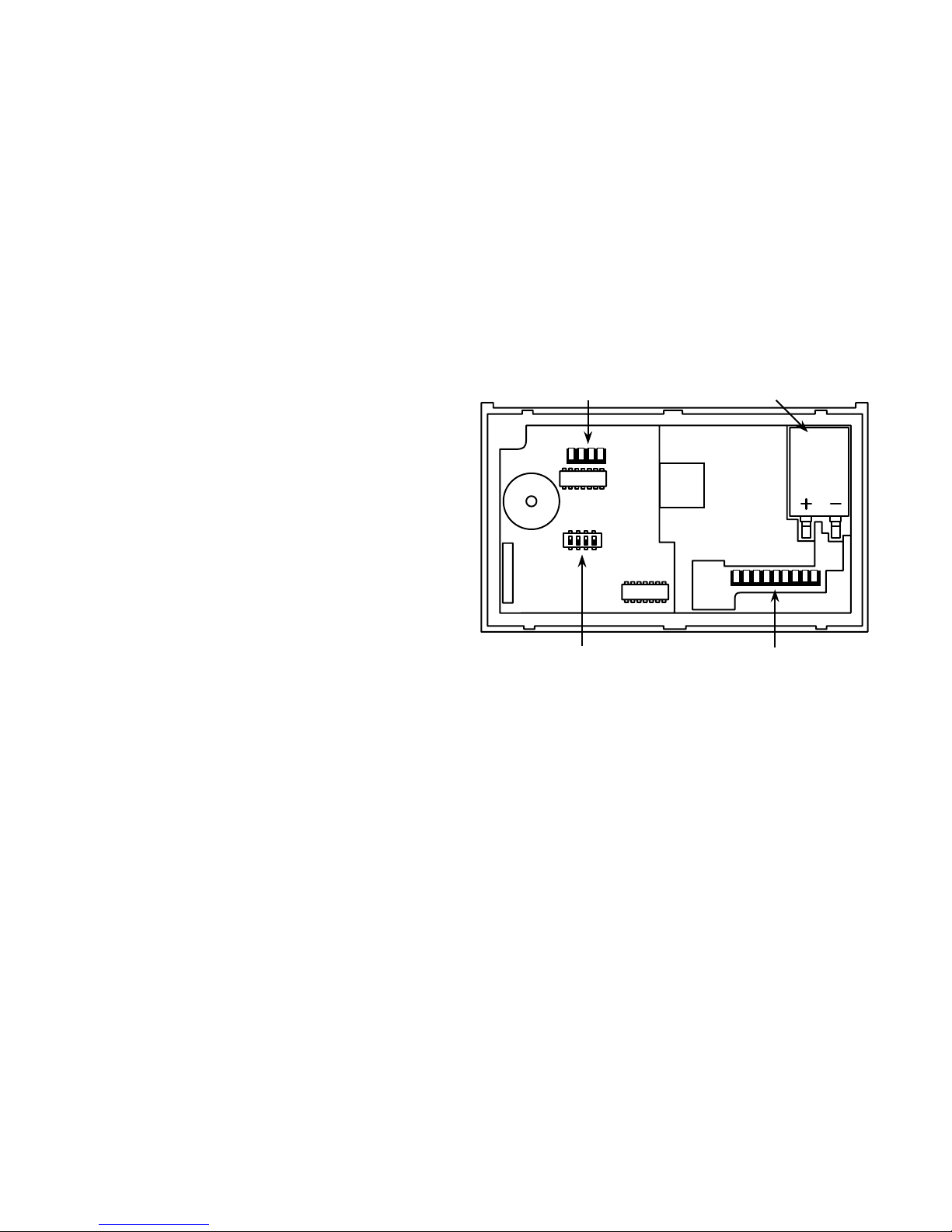

BACK OF THERMOSTAT BODY
Option switches 9-pin connector
4-pin connector Battery

7
If the word BATTERY is flashing in the
displaywindow,thebatteryislowandshould
be replaced with a fresh 9 volt Energizer®
alkaline battery. The battery will provide
power for all functions except the display
lightandaudiopromptingbeep,whichwork
only on 24 VAC power.
Use
SYSTEM
SWITCH
to turn thermostat OFF
before removing thermostat from the
wall to replace the battery.
CAUTION
!
2. You may adjust the option switches for
keypad lockout (see OPERATING FEA-
TURES).

8
The buttons (other than and ) are
located behind the thermostat door. To open
the door, use your fingernail in the indentation
at the top center of the door. Pull the door out,
then swing the door down on its hinges.
Following are brief descriptions of the display
and the thermostat buttons.
The Display
1
Continuously displays system mode
(HEAT,OFF, COOL,AUTO,HOLD).Dur-
ing programming, the day of the week is
displayed (MO, TU, WE, etc).
2Alternately displays room temperature (F
denotes degrees Fahrenheit and Cde-
notes degrees Celsius) and time of day (A
denotesAMtimeandPdenotesPMtime).
3Displays the setpoint temperature.
4When VIEW
TEMP ispressed,Aisdisplayedwhen
the setpoint temperature displayed (at the
far right) is the 1st programmed heating or
coolingtemperature(dependingonmode).
Bis displayed when the 2nd programmed
heating or cooling temperature is being
displayed.
5FAN ON is displayed when the blower is
operatingcontinuously.FAN AUTO is dis-
played during automatic fan operation
(whentheblowercycleswiththeheatingor
cooling system). PRG FAN is displayed
whenthefanhasbeenprogrammedtorun
continuously during the current program
period.
6
ThewordBATTERYflashesonthedisplay
when the 9 volt alkaline battery power is
weak and should be replaced.

9
SYSTEM
SWITCH
FAN
SWITCH
HEAT-OFF-COOL-AUTO
ON-AUTO
TIME
FWD
TIME
BACK
SET
CLOCK
ADV
DAY
VIEW
PRGM
VIEW
TEMP
HOLD
COPY
RUN
PRGM
SEVEN DAY DIGITAL COMFORT-SET II W H I T E - R O D G E R S
FAN AUTOA FAN ONB BATTERY
AFAN AUTO
4 5 4 5 2 6
1 2 3 34

10
The Thermostat Buttons
7
Sets the system mode (HEATing, OFF,
COOLing, or AUTOmatic changeover).
8
Selectsfanoperation(see#5,above).This
button is also used to program the fan to
run continuously during a program period.
9
Runsdisplayforwardorbackwardthrough
time, day, or anticipation settings during
programming.
10 Usedwith TIME
FWD and
TIME
BACK
tosetcurrenttime
and day of the week.
11 Usedduringprogrammingtosetthedayof
the week to be programmed.
12 Used to initiate programming or to review
programming for a given day (program
viewingautomaticallybeginswithMonday’s
program;use
ADV
DAY
toviewprogrammingfor
following days).
13 Used with and to select set-
point temperatures.
14 Usedtomanuallyoverrideprogrammingto
holdataselectedtemperature(whenHOLD
is displayed). Also used to copy one day’s
programmingtoanotherday(whenCOPY
is displayed).
15
Used to start program operation after pro-
gramming. Also used to return thermostat
to program operation after being in HOLD
mode.
16
(Red arrow) Raises temperature setting
(99°F or 37°C maximum).

11
17
(Blue arrow) Lowers temperature setting
(40°F or 4°C minimum).
18
Red indicator is lit whenever heating or
coolingisinoperation.Yellowindicatorislit
whenever the second or third stages of
heating or cooling are in operation.
SYSTEM
SWITCH
FAN
SWITCH
HEAT-OFF-COOL-AUTO
ON-AUTO
TIME
FWD
TIME
BACK
SET
CLOCK
ADV
DAY
VIEW
PRGM
VIEW
TEMP
HOLD
COPY
RUN
PRGM
SEVEN DAY DIGITAL COMFORT-SET IIW H I T E - R O D G E R S
FAN AUTO
9 10 11 12 13 14 15
16 17 18
7
8

12
OPERATING FEATURES
Now that you are familiar with the thermostat
display and buttons, read the following infor-
mation to learn about the many features of the
thermostat.
•COMPUTED ENERGY MANAGEMENT
RECOVERY (EMR) — The thermostat’s
microcomputerautomaticallycalculatesthe
time it will take to change the temperature
to the next program setting. Then the ther-
mostat will activate the heating or cooling
system to change the temperature so that
the desired temperature is reached at the
beginningofthenextprogramperiod.Asan
example of this feature, assume that you
have programmed your thermostat to pro-
vide an overnight heating temperature of
62°F, and that during the next program
period, beginning at 6:00 AM, you have
programmed a temperature of 70°F. The
thermostat will automatically activate the
heating system at about 5:00 AM, so that
the programmed 70°F temperature is
reached by about 6:00 AM.
•AUTOMATICCHANGEOVER—Youcan
setthethermostattoautomaticallyswitch
the system from heating to cooling as
needed. Use
SYSTEM
SWITCH
to set the thermo-
stat to AUTO (the setpoint display is
blank in the AUTO mode). The system
will now automatically switch between
heating and cooling depending on the
actual room temperature.
The thermostat will not allow the tempera-
ture separation between the highest heat
settingandthelowestcoolsettingtobeless
that 1°F. For example, if the highest heat

13
settingis 76°F, thelowest cool setting can-
not be below 77°F (see diagram below).
•TWO HOUR TEMPERATURE OVER-
RIDE — Press or until the
display shows the temperature you want.
The thermostat will override current pro-
gramming and keep the room temperature
at the selected temperature for two hours.
After two hours, the thermostat will auto-
matically revert to the program.
•HOLDTEMPERATURE—Thethermostat
can hold any temperature within its range
foran indefinite period, without reverting to
the program. Press
HOLD
COPY
. HOLD will be
displayed. Then choose the desired hold
temperature by pressing or .
Thethermostatwillholdtheroomtempera-
ture at the selected setting until you press
RUN
PRGM to start program operation again. This
feature is ideal for energy conservation
when the building is unoccupied for an
extended period of time.
•°F/°CCONVERTIBILITY—Press TIME
FWD and
TIME
BACK atthesametimeuntilthe temperature
display is in °C(Celsius). To display °F,
repeat the process.
79
78
77
76
75
74
COOLING TEMPERATURES
HEATING TEMPERATURES
DEAD BAND 1°F

14
•ADJUSTABLEHEATINGANDCOOLING
CYCLE TIMES (ANTICIPATION) — If the
heating/coolingsystemisturningonandoff
toooften (shortcycles)ornotoftenenough
(long cycles), you may want to adjust the
anticipation setting.
A cooling anticipation setting of less
than 10 may cause decreased com-
pressor life.
To adjust anticipation, press SET
CLOCK and
ADV
DAY
at the same time. The display will show
HEAT8(thisisthefactorypreprogrammed
heating anticipation setting). You may se-
lect any anticipation setting from 4 to 40. If
the heat cycles are too short, press TIME
FWD to
increase the cycle time. If the heat cycles
are too long, press
TIME
BACK
to decrease the
cycletime.Tosetcoolinganticipation,press
SET
CLOCK and
ADV
DAY
at the same time again. The
displaywillshowCOOL 14(factoryprepro-
grammed cooling anticipation). Use TIME
FWD
and
TIME
BACK
to adjust anticipation. Press RUN
PRGM
to return to your program.
•LOW BATTERY INDICATOR —Theword
BATTERY will flash on the display if the 9
volt alkaline battery is low and should be
replaced.
CAUTION
!

15
•AUDIO PROMPTING — Each time you
press a button, the thermostat will beep
(this feature works only when the thermo-
stat is attached to the wall and 24 VAC
power is present to the thermostat).
•BACKLIT DISPLAY — When you press
anybutton onthethermostat,thedisplayis
lit for approximately eight seconds (this
feature works only when the thermostat is
attached to the wall and 24 VAC power is
present to the thermostat).
•COMPRESSOR SHORT CYCLE PRO-
TECTION — To protect your compressor
frompotentialdamageduetorapidcycling,
this thermostat has a built-in delay of 5
minutes between cooling cycles. The fol-
lowing may cause a time delay in COOL:
a)Return of power after a power outage.
b)Pressing
SYSTEM
SWITCH
to change operating
modes.
c)Pressing or , creating a call
for COOL too soon after a previous call.
•SYSTEM INDICATOR LIGHTS —The red
indicatorlightcomesonwhenevertheheat-
ing or cooling system is operating. The
yellow indicator light comes on when the
secondorthirdstagesofheatingorcooling
are operating.

16
•TOTAL KEYPAD LOCKOUT —Whenop-
tion switch #3 is in the total keypad lockout
position (ON), programs cannot be altered
and all buttons are disabled.
Programming should be completed, desired
system operation should be selected (HEAT,
COOL, or AUTO), and battery should be in-
stalled before changing option switch #3.
Total Keypad Lockout (ON)
Switch #1 set at installation (DO NOT CHANGE)
Switch #2 set at installation (DO NOT CHANGE)
Switch #3 ON
Switch #4 OFF
Switches #1 and #2 are set at installation
andshouldnotbechanged.Toenabletotal
keypad lockout, move option switch #3 to
ON (ensure that option switch #4 is OFF).
To disable total keypad lockout, move op-
tion switch #3 to OFF.
•PARTIAL KEYPAD LOCKOUT — When
option switch #4 is in the partial keypad
lockout position (ON), programs cannot be
altered. All buttons except and
are disabled.
Programming should be completed, desired
system operation should be selected (HEAT,
COOL, or AUTO), and battery should be in-
stalled before changing option switch #3.
NOTE
ON
1234
NOTE

17
•PROGRAMMABLE BLOWER CON-
TROL — You may program the fan blower
to run continuously during any given pro-
gramperiod,regardlessofthecyclingofthe
heatingorcoolingsystem.Duringprogram-
ming, after entering the time and tempera-
ture for the time period, press
FAN
SWITCH
until
PRG FAN is displayed. To override con-
stant fan, press
FAN
SWITCH
until PRG FAN is
not displayed.
Partial Keypad Lockout (ON)
Switch #1 set at installation (DO NOT CHANGE)
Switch #2 set at installation (DO NOT CHANGE)
Switch #3 OFF
Switch #4 ON
Switches #1 and #2 are set at installation
and should not be changed. To enable
partial keypad lockout, move option switch
#4 to ON (ensure that option switch #3 is
OFF). To disable partial keypad lockout,
move option switch #4 to OFF.
ON
1234

18
Nowyouarereadytoprogramyourthermostat.
This section will help you plan and program
your thermostat to meet your needs.
Formaximumcomfortandefficiency,keepthe
following guidelines in mind when planning
your program.
• When heating (cooling) your building, pro-
gramthetemperaturestobecooler(warmer)
when the building is vacant or during peri-
ods of low activity.
• During early morning hours, the need for
cooling is usually minimal.
PLANNING FOR YOUR NEEDS
First, answer the following questions to help
you decide what your needs are. If you are
PROGRAMMING YOUR THERMOSTAT
usingthethermostatforacommercialapplica-
tion (a store, office building, etc.), answer
questions 1 through 4. If you are using the
thermostat in your home, answer questions 5
through 8.
FOR COMMERCIAL APPLICATIONS:
1a. What time does the first person arrive at
the building in the morning?
b. What temperature should the building be
at this time? (heating? cooling?)
2a. Whattimedothebuildingoccupantsreach
a maximum activity level (using lights,
equipment, meeting rooms, etc.)?
b. What temperature should the building be
at this time?

19
3a. Whattimedothebuildingoccupantsreach
aminimumactivitylevel(limitedpersonnel
in building)?
b. What temperature should the building be
at this time?
4a. What time does the building become
vacant?
b. What temperature should the building be
at this time?
IN YOUR HOME:
5a. What time does the first person get up in
the morning?
b. What temperature should the house be at
this time?
6a. What time does the last person leave the
house in the morning?
b. What temperature should the house be at
this time?
7a. What time does the first person arrive
home in the evening?
b. What temperature should the house be at
this time?
8a. Whattimedoesthelastpersongotobedat
night?
b. What temperature should the house be at
this time?
Now look at the factory preprogrammed times
andtemperaturesshownonthefollowingpage.
If this program will suit your needs, simply
press RUN
PRGM to begin running the factory preset
program.

20
Heating Program for ALL days of the Week:
FACTORY PREPROGRAMMING
Cooling Program for ALL Days of the Week:
PERIOD TIME TEMP PERIOD TIME TEMP
1
2
3
4
5:00 AM
8:00 AM
5:00 PM
10:00 PM
64
70
64
64
1
2
3
4
5:00 AM
8:00 AM
5:00 PM
10:00 PM
82
78
82
82
If you want to change the preprogrammed
times and temperatures, follow these steps.
1. Determine the heating and cooling tem-
peratures you want to use. You may select
up to two heating temperatures (HEAT A
and HEAT B), and up to two cooling tem-
peratures(COOLAandCOOLB).Usethe
following table to write down the tempera-
tures you have selected. Keep in mind that
you can program up to 4 temperatures (2
heating, 2 cooling) at a time.
To operate properly in the AUTO mode, there
must be a minimum 1°F separation between
the highest heat temperature and the lowest
cool temperature (see diagram below).
NOTE
79
78
77
76
75
74
COOLING TEMPERATURES
HEATING TEMPERATURES
DEAD BAND 1°F
