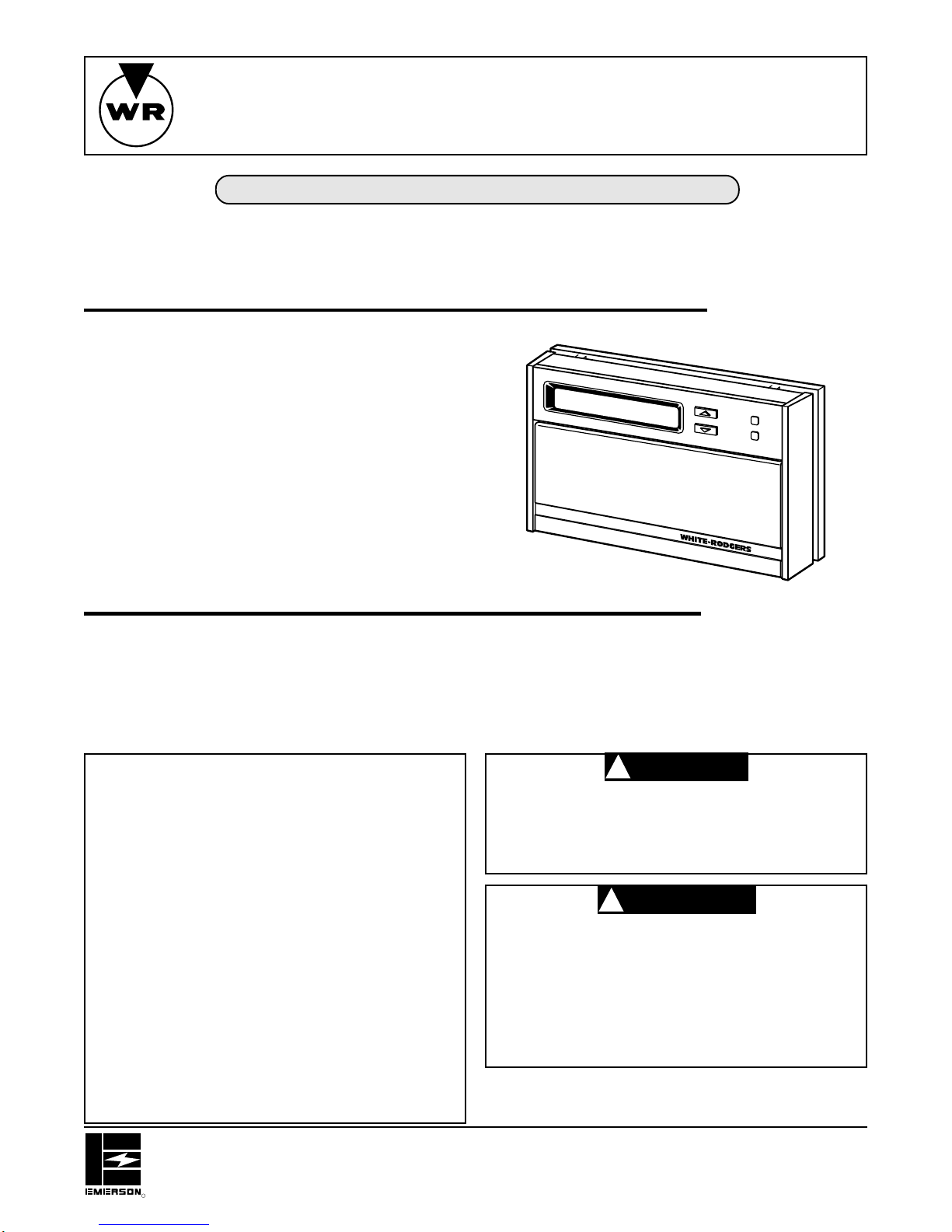

White Rodgers 1F95W-80 User manual

Printed in U.S.A.
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
PART NO. 37-5522A
9529
DESCRIPTION
PRECAUTIONS
1F95W-80
7 Day Multi-stage Electronic Digital Thermostat
with Programmable Fan
INSTALLATION INSTRUCTIONS
WHITE-RODGERS
All wiring must conform to local and national electrical
codes and ordinances.
This control is a precision instrument, and should be
handled carefully. Rough handling or distorting compo-
nents could cause the control to malfunction.
To prevent electrical shock and/or equipment
damage, disconnect electric power to system at
main fuse or circuit breaker box until installation
is complete.
Do not use on circuits exceeding specified volt-
age.Highervoltagewilldamagecontrolandcould
cause shock or fire hazard.
Donotshortoutterminalsongasvalveorprimary
control to test. Short or incorrect wiring will burn
out thermostat and could cause personal injury
and/or property damage.
R
This wall-mounted, low voltage thermostat maintains
room temperature by controlling the operation of multi-
stage systems. Use this thermostat for applications re-
quiring up to two stages of heat and/or cool. Indicator
lights show the system status. The user will program two
time/temperaturesettings(occupiedandunoccupied)per
24hourperiodandmayprogrameachdayindependently.
The thermostat will store both heating and cooling pro-
grams simultaneously. A 9 volt Energizer®battery will
maintainthestoredprogramforapproximatelyoneweek,
if incoming power should fail. If power failure is extensive
and the program is lost, after power restoration, the
thermostat will automatically maintain a factory
preprogrammedheatingtemperatureof64°Foracooling
temperature of 82°F.
Ifindoubtaboutwhetheryourwiringismillivolt,line,orlow
voltage, have it inspected by a qualified heating and air
conditioning contractor, electrician, or someone familiar
with basic electricity and wiring.
Do not exceed the specification ratings.
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS ROAD
ST. LOUIS, MISSOURI 63123-5398
CONTENTS
Description......................................................... 1
Precautions........................................................ 1
Specifications..................................................... 2
Installation.......................................................... 2
New Installation
Select Thermostat Location
Route Wires to Location
Replacement Installation
Remove Old Thermostat
Attach Subbase to Wall
Attach Thermostat to Subbase
Operation ........................................................... 6
System Configuration
Set Option Switches
Check Thermostat Operation
Fan Operation
Heating System
Cooling System
Additional Operation Notes
Troubleshooting
WARNING
!
CAUTION
!
Operator: Save these instructions for future use!

2
SPECIFICATIONS
THIS CONTROL IS DESIGNED FOR USE WHERE BOTH SIDES OF THE TRANSFORMER ARE PRESENT TO
THE THERMOSTAT (both the hot and common sides of the 24 VAC end of the transformer.)
ELECTRICAL DATA
Electrical Rating:
20 to 30 VAC 50/60 Hz.
0.01 to 1.5 Amps (Load per terminal)
2.5 Amps Maximum Total Load (All terminals com-
bined)
Anticipation:
Heating 4 to 40
Cooling 4 to 40
STAGING DATA
Up to 2 heating stages
Up to 2 cooling stages
THERMAL DATA
Setpoint Temperature Range:
40°F to 99°F (4°C to 37°C)
Operating Ambient Temperature Range:
32°F to 105°F
Operating Humidity Range:
0 to 90% RH (non-condensing)
Shipping Temperature Range:
-40°F to 150°F
ACCESSORIES
Remote Sense Kit W.R. Part No. F145-1049
Thermostat Guard W.R. Part No. F29-0198 (clear) or
F29-0238 (opaque)
}Reference Values
INSTALLATION
NEW INSTALLATION
WE RECOMMEND THAT YOU PROGRAM THE THER-
MOSTAT WITH BATTERY INSTALLED BEFORE AT-
TACHING ON SUBBASE. SEE OPERATION GUIDE
FOR PROGRAMMING INSTRUCTIONS.
SELECT THERMOSTAT LOCATION
Proper location insures that the thermostat will provide a
comfortable building temperature. Observe the following
general rules when selecting a location:
1. Locate thermostat about 5 ft. above the floor.
2. Install thermostat on a partitioning wall, not on an
outside wall.
3. Never expose thermostat to direct light from lamps,
sun, fireplaces or any temperature radiating equip-
ment.
4. Avoid locations close to windows, adjoining outside
walls, or doors that lead outside.
5. Avoid locations close to air registers or in the direct
path of air from them.
6. Makesure therearenopipesorductworkinthat part
of the wall chosen for the thermostat location.
7. Never locate thermostat in a room that normally
warmer or cooler than the rest of the building.
8. Avoid locations with poor air circulation, such as
behind doors or in alcoves.
ROUTE WIRES TO LOCATION
All wiring must conform with local and national electrical
codes and ordinances.
1. Probe for obstructions in partition before drilling 1⁄2”
hole in wall at selected location. Take up quarter
roundand drillasmall guideholefor sighting(seefig.
1). From basement, drill 3⁄4”hole in partitionfloor next
toguide hole.Inbuildingswithout basements,drill1⁄2”
holethroughceilingandintopartitionfromabove(see
fig. 1).
2. Through this hole drop a light chain, or 6” chain
attachedtoastrongcord.Snagcordinbasementwith
hooked wire. In buildings without basements, drop
cord through hole in ceiling and down partitioning;
snag cord at the thermostat location.
3. Attachthermostatwirestocordandpullwiresthrough
hole in wall so that 6” of wire protrudes.
NOTE
Approximately
5 feet from floor
1
⁄
2
” hole for
thermostat wire
Stout cord with 6”
chain attached
Baseboard
strip moulding
1
⁄
4
” guide hole
for sighting
Quarter round
removed
3
⁄
4
” hole in floor of partition
Hooked wire for snagging chain
Figure 1. Routing thermostat wires

3
TABLE 1. TERMINAL REFERENCE
LABEL
NUMBER
1F95
TERMINAL
DESIGNATION FUNCTION
OLD THERMOSTAT
TERMINAL
DESIGNATION
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
G
C
R
O
B
Y1
Y2
W1
W2
A1
Fan Output
Transformer 24 VAC Common
Transformer 24 VAC Hot
Changeover Output (Cooling)
Changeover Output (Heating)
Stage 1 Cool
Stage 2 Cool
Stage 1 Heat
Stage 2 Heat
Damper Control
Mounting
hole
Pull wires through
this opening
Connect wires under
terminal screws
Mounting
hole
4-pin connector
9-pin connector
O
B
Y1
Y2
C
G
W1
R
W2
W3
Screw
anchors

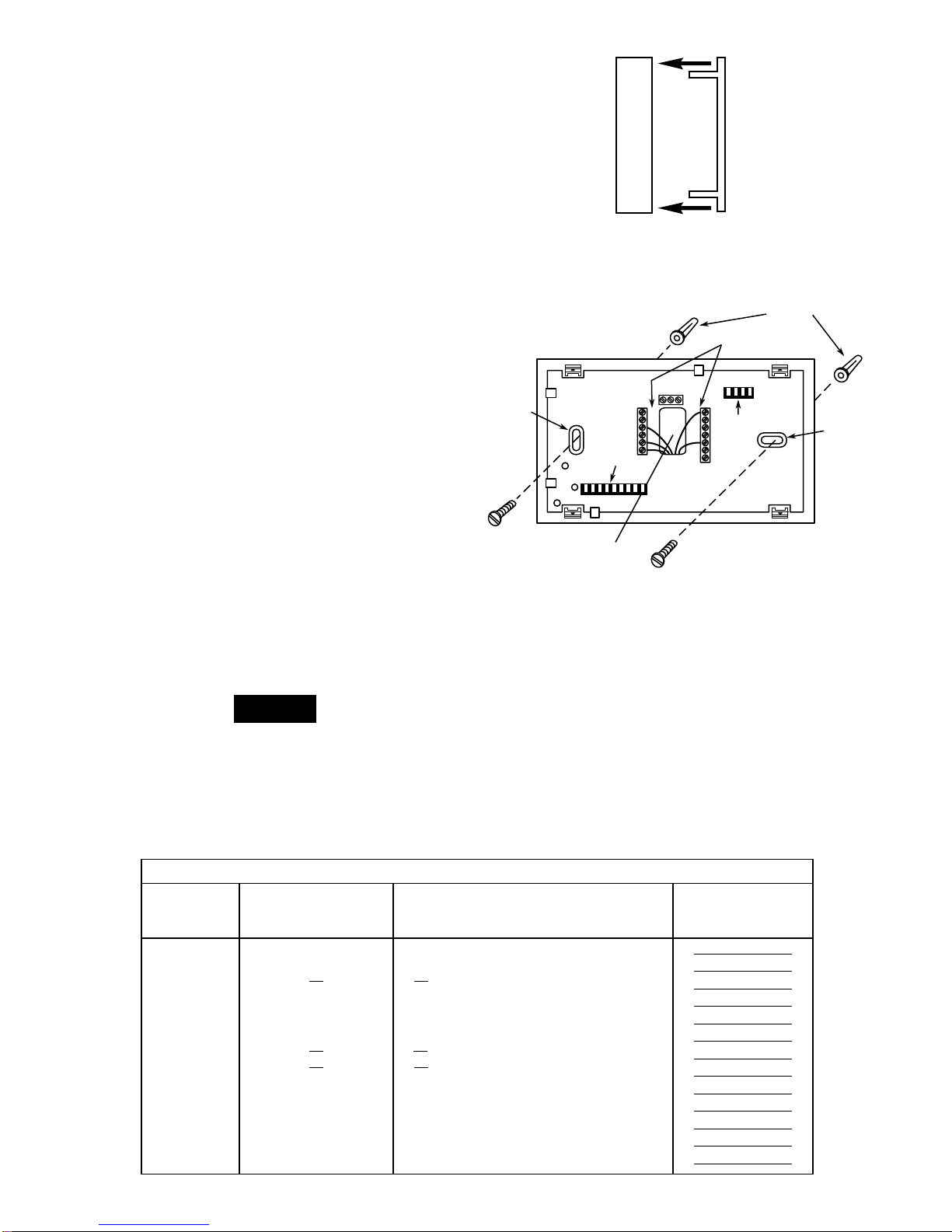

Figure 3. Subbase
S1 S2 S3
REPLACEMENT INSTALLATION
REMOVE OLD THERMOSTAT
1. Shut off electricity at the main fuse box until installa-
tion is complete. Verify power is off with a voltmeter.
2. Remove the front cover of the old thermostat. With
wiresstill attached, removewallplatefromthewall.
3. If the old thermostat has a wall mounting plate,
removethethermostatandthewallmountingplateas
an assembly.
4. UsetheCrossReferenceGuidetofindthethermostat
type you are replacing.
5. Identify each wire attached to the old thermostat
using the labels enclosed with the new thermo-
stat. Record the identification of the wire on the
corresponding blank in Table 1.
6. Disconnect the wires from old thermostat one at a
time.Pullat least6 inches ofwireoutofthewall. DO
NOT LET WIRES FALL BACK INTO THE WALL.
7. Install new thermostat using the following proce-
dures.
ATTACH SUBBASE TO WALL
1. Remove the packing material from the thermostat.
Place the fingers of one hand on the center top and
bottom portion of the thermostat. Grasp the subbase
in the other hand on the top and bottom center, and
gentlypullstraightout(seefig.2).Thethermostathas
pin and socket connectors. Forcing or prying on the
thermostat will cause damage to the unit.
THISTHERMOSTATREQUIRESBOTHTHEHOTAND
COMMONSIDESOFTHE24VACTRANSFORMERTO
BE PRESENT TO THE THERMOSTAT FOR OPERA-
TION.
2. Connect wires beneath terminal screws on subbase
using wiring schematic for your particular application
(see figs. 3 through 6).
3. Place subbase over hole in wall and mark mounting
hole locations on wall using subbase as a template.
4. Move subbase out of the way. Drill mounting holes.
5. Fasten subbase loosely to wall, as shown in fig. 3,
using two mounting screws. Place a level against
bottomofsubbase,adjustuntillevel,andthentighten
screws. (Leveling is for appearance only and will not
NOTE
PULL STRAIGHT OUT
Figure 2. Removing thermostat from subbase

4
WARNING
!
CRGBO
CHANGEOVER
ENERGIZED
IN HEAT
CHANGEOVER
ENERGIZED
IN COOL
COMPRESSOR
CONTACTOR
STAGE 1
FAN
RELAY
HEAT
RELAY
STAGE 1
HEAT
RELAY
STAGE 2
DAMPER
THERMOSTAT
CONTROL
CIRCUIT
COMPRESSOR
CONTACTOR
STAGE 2
24 VAC 120 VAC
HOT
NEUTRAL
THERMOSTAT
SYSTEM
Y1 Y2 W1 W2 A1

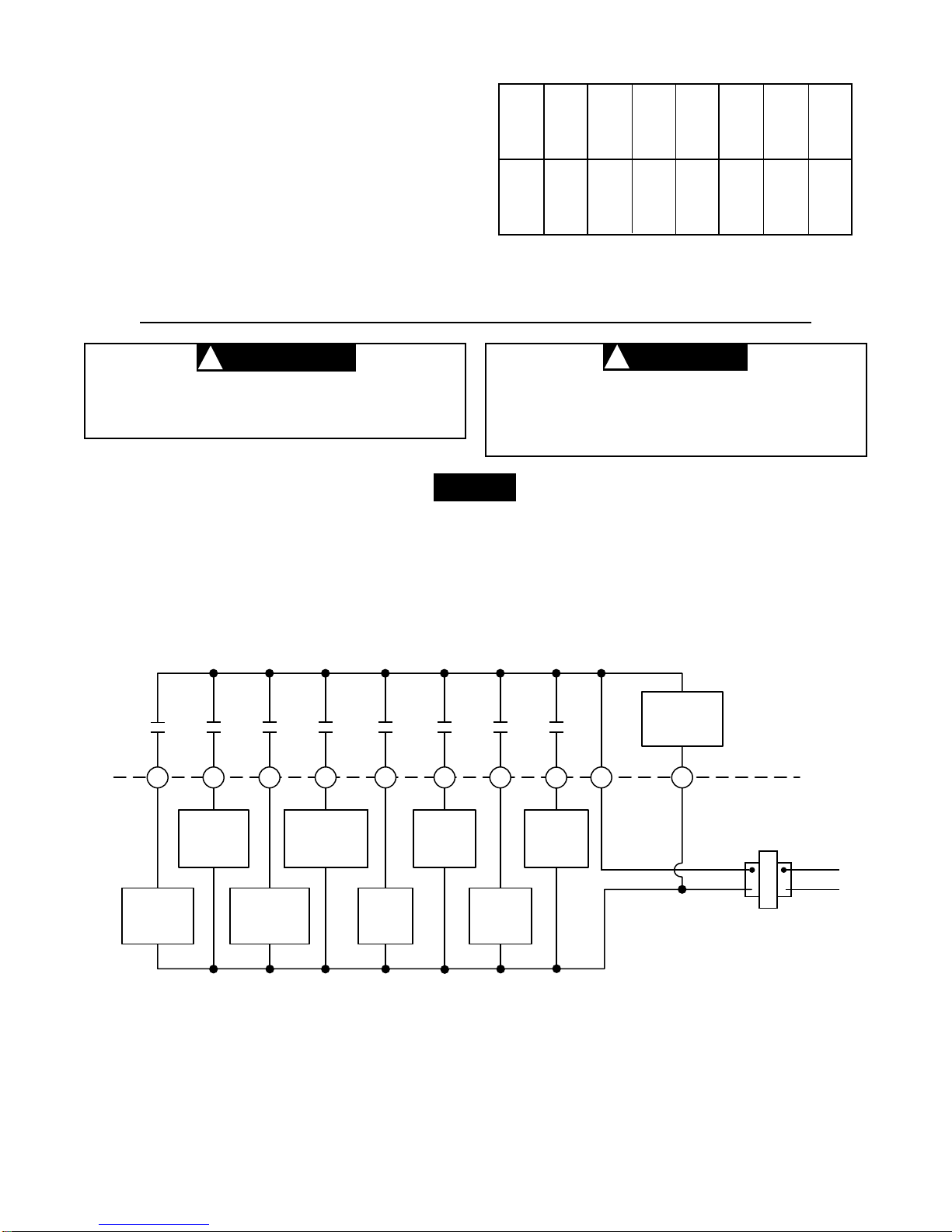

Figure 4. Typical wiring diagram for single transformer systems
affectthermostat operation.) If youare using existing
mountingholes,orifholesdrilledaretoolargeanddo
not allow you to tighten subbase snugly, use plastic
screw anchors to secure subbase.
6. Push excess wire into wall and plug hole with a fire-
resistant material (such as fiberglass insulation) to
prevent drafts from affecting thermostat operation.
TABLE 2. WIRE IDENTIFICATION LABELS
1
G
G
1
9
Y1
Y1
9
2
C
C
2
3
L
L
3
4
R
R
4
5
O
O
5
6
B
B
6
7
E1
E1
7
8
E2
E2
8
10
Y2
Y2
10
11
W1
W1
11
12
W2
W2
12
13
A1
A1
13
14
S1
S1
14
15
S2
S2
15
16
S3
S3
16
DONOTEXCEEDMAXIMUM VOLTAGEORCUR-
RENTRATINGS. FIRE,PERSONALINJURY,AND/
OR EQUIPMENT DAMAGE COULD RESULT.
CAUTION
!
To prevent electrical shock and/or equipment
damage,disconnect electrical power atthemain
fuse box until installation is complete. Verify
power is off with a voltmeter.
NOTE
The following wiring diagrams show typical terminal
identification and wiring. For proper installation, refer to
the original manufacturers' instructions.

5
CAUTION
!
NOTE
NOTE
CR O B
CHANGEOVER
ENERGIZED
IN HEAT
CHANGEOVER
ENERGIZED
IN COOL
G
FAN
RELAY
HEAT
RELAY
STAGE 1
HEAT
RELAY
STAGE 2
DAMPER
THERMOSTAT
CONTROL
CIRCUIT
24 VAC 120 VAC
HOT
NEUTRAL
THERMOSTAT
SYSTEM
COMPRESSOR
CONTACTOR
STAGE 1
Y1
COMPRESSOR
CONTACTOR
STAGE 2
Y2 W1 W2 A1
Figure 6. Typical wiring diagram for two-transformer systems with safety circuits in BOTH systems
TWO COMMONS MUST
BE JUMPERED TOGETHER!
HOT
NEUTRAL
120 VAC
LIMIT OR
SAFETY
SWITCHES
LIMIT OR
SAFETY
SWITCHES
LIMIT OR
SAFETY
SWITCHES
24 VAC
LIMIT OR
SAFETY
SWITCHES
COMMON
COMMON
HEATING
TRANSFORMER
COOLING
TRANSFORMER
24 VAC
ACCESSORY
RELAY N.O.
CONTACT
C
R
O B
CHANGEOVER
ENERGIZED
IN HEAT
CHANGEOVER
ENERGIZED
IN COOL
G
FAN
RELAY
HEAT
RELAY
STAGE 1
HEAT
RELAY
STAGE 2
DAMPER
THERMOSTAT
CONTROL
CIRCUIT
24 VAC 120 VAC
HOT
NEUTRAL
THERMOSTAT
SYSTEM
COMPRESSOR
CONTACTOR
STAGE 1
Y1
COMPRESSOR
CONTACTOR
STAGE 2
Y2 W1 W2 A1
Figure 5. Typical wiring diagram for two-transformer systems with NO safety circuits
TWO COMMONS MUST
BE JUMPERED TOGETHER!
HOT
NEUTRAL
120 VAC 24 VAC
CUT AND
TAPE OFF!
DEPENDING ON SYSTEM
REQUIREMENTS, REPLACE WITH
A 75VA TRANSFORMER, IF NEEDED
IF SAFETY CIRCUITS ARE IN ONLY ONE OF THE
SYSTEMS, REMOVE THE TRANSFORMER OF THE
SYSTEM WITH NO SAFETY CIRCUITS.
Relaycontactsshownarethermostaticallyoperated. The
accessory relay scheme is required when safety circuits
exist in both systems.
Polaritymust beobserved. Ifthe HOTsideof the
secondtransformerisjumperedtotheCOMMON
side of the first transformer a short will be made.
Damage to equipment will occur when power is
restored.

6
ATTACH THERMOSTAT TO SUBBASE
WERECOMMENDTHATYOUSETOPTIONSWITCHES
TO DESIRED POSITION BEFORE ATTACHING ON
SUBBASE (see OPERATION). WE ALSO RECOM-
MEND THAT YOU PROGRAM THE THERMOSTAT
WITH BATTERY INSTALLED BEFORE ATTACHING
ON SUBBASE (see OPERATION GUIDE for program-
ming instructions).
USE
SYSTEM
HEAT - OFF - COOL - AUTO
TO SET THERMOSTAT TO OFF BEFORE
ATTACHING THERMOSTAT TO WALL. FAILURE TO
TURN THERMOSTAT OFF BEFORE ATTACHING
THERMOSTAT MAY CAUSE EQUIPMENT DAMAGE
DUE TO RAPID COMPRESSOR CYCLING.
To attach thermostat to subbase, line up the plastic snap
guides at the top of the thermostat and the 4 connector
pins on the thermostat with the connectors near the top
rightsectionofthesubbase(whenviewedfromthefront).
Gently pivot the thermostat down until the 9-pin connec-
tors and the plastic snaps lock into place (see fig. 7). Be
gentle when attaching thermostat. If the thermostat
does not seem to be attaching to the subbase easily,
make sure that the connector pins and plastic snaps are
properly aligned, and that excess wire is pushed into the
wall. Damage to the thermostat may occur if force is
used.
OPERATION
SYSTEM CONFIGURATION
SET OPTION SWITCHES
1. For furnaces not requiring a Gterminal to energize
fan(systemswithfan/limitswitchorautomaticfanon/
off operation):
2. For systems with electric furnace, and where blower
is energized through fan relay (no sequence to ener-
gize blower):
3. For systems with an economizer for first stage
cooling:
4. To enable Energy Management Recovery (EMR):
In EMR mode, the thermostat will energize the sys-
tem before the next time period begins so that the
setpoint temperature for the next program period is
reached by the beginning of the program period.
ENGAGE TWO UPPER GUIDES;
PIVOT DOWN
Figure 7. Attaching thermostat to subbase
ON
1234
Switch #1 ON
Switch #2 (see step 3)
Switch #3 (see step 4)
Switch #4 (see step 5)
ON
1234
Switch #1 OFF
Switch #2 (see step 3)
Switch #3 (see step 4)
Switch #4 (see step 5)
ON
1234
Switch #1 (see steps 1 & 2)
Switch #2 ON
Switch #3 (see step 4)
Switch #4 (see step 5)
ON
1234
Switch #1 (see steps 1-2)
Switch #2 (see step3)
Switch #3
Switch #4 (see step 5)
ON
NOTE

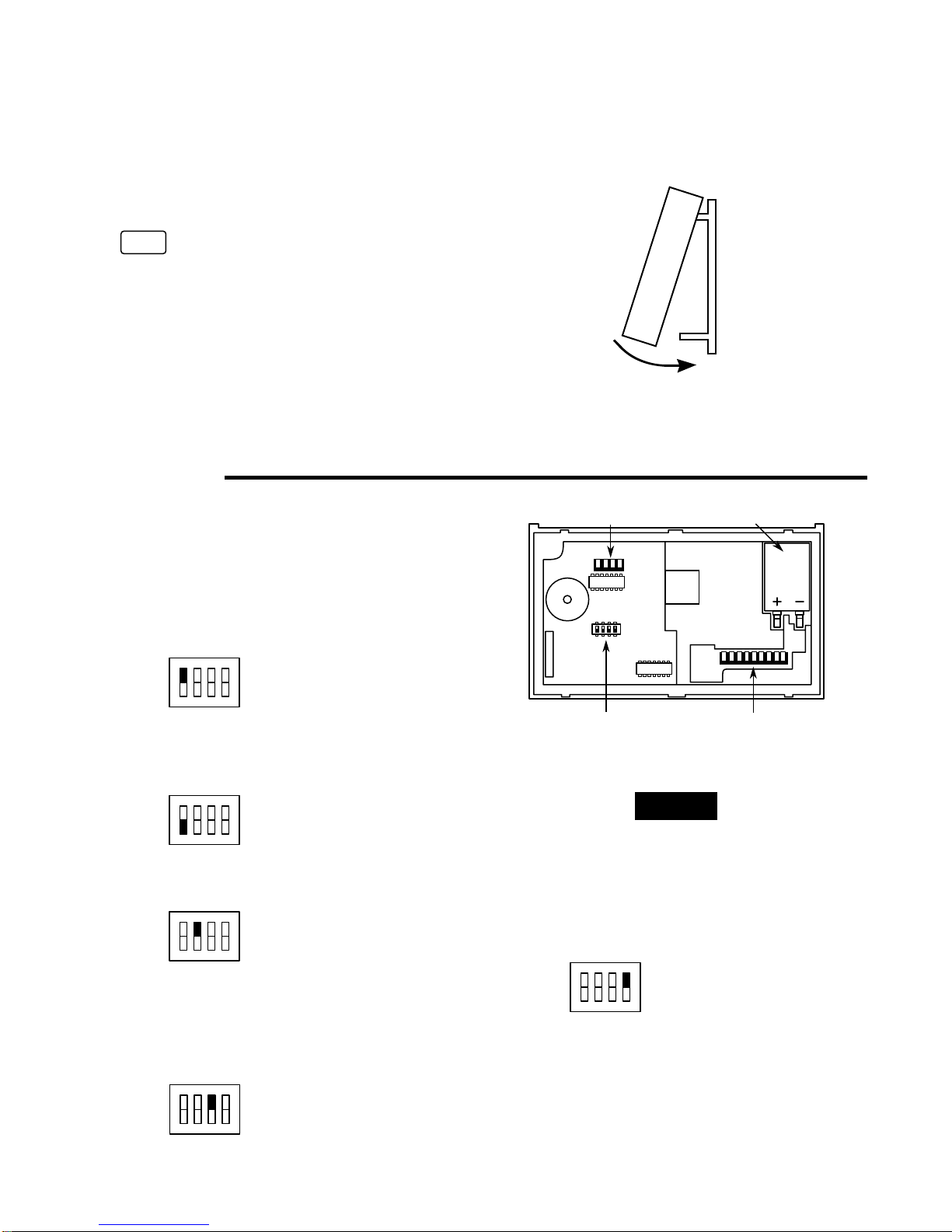

Figure 8. Back of thermostat
Option switches 9-pin connector
4-pin connector Battery
Set option switches #1, #2, and #3 and program the
thermostat before changing option switch #4.
5. Toenabletotalkeypadlockout(ALLbuttonswillbe
disabled and will not operate until configuration is
changed):
ON
1234
Switch #1 (see steps 1-2)
Switch #2 (see steps 3)
Switch #3 (see step 4)
Switch #4 ON

7
CAUTION
!
LOCKOUT BYPASS OPTION
FOR QUALIFIED SERVICE TECHNI-
CIANS’ USE ONLY. OPERATORS
SHOULD NOT USE THIS FEATURE DUE
TO POSSIBILITY OF EQUIPMENT OR
PROPERTY DAMAGE, OR PERSONAL
INJURY.
DO NOT USE THE LOCKOUT BYPASS
OPTIONUNLESSTHECOMPRESSOROIL
HEATERS HAVE BEEN OPERATIONAL
FOR 6 HOURS AND THE SYSTEM HAS
NOT BEEN OPERATIONAL FOR AT
LEAST 5 MINUTES.
COMPRESSOR SHORT TERM
CYCLE PROTECTION
This thermostat has a built-in short term (5-minute)
time delay. During this 5-minute period, the thermo-
stat will lock out the compressor to allow head pres-
sure to stabilize. If you want to override this feature
whiletestingthermostatoperation,simplypress
VIEW
TEMP
and
VIEW
PRGM
buttons at the same time at initial startup.
The battery maintains the stored program in the event of
a power failure. When attached to the wall with 24 VAC
powerapplied, the thermostatwill function normallywith-
out the battery. However, the program will be lost in the
event of power interruption or failure if the battery is not
installed. When power is restored, the thermostat will
automaticallymaintainatemperatureof64°Foracooling
temperatureof82°F(factorypreprogrammed)asneeded.
CHECK THERMOSTAT OPERATION
FAN OPERATION
1. Turn on power to the system. If the heat source has
a standing pilot, be sure to light it.
2. Press
FAN
ON - AUTO
until FAN ON is displayed. The blower
should begin to operate.
3. Press
FAN
ON - AUTO
until FAN AUTO is displayed. The
blower should stop operating within approximately
one minute.
HEATING SYSTEM
1. Press
SYSTEM
HEAT - OFF - COOL - AUTO
untilHEAT is displayed (it may already
be displayed).
2. Press toadjustthermostatto99°F.Allstagesof
theheatingsystemshouldbegintooperatewithinfive
minutes.
COOLING SYSTEM
To prevent compressor and/or property damage,
if power to the compressor has been off or inter-
rupted for more than 1 hour and the outdoor
temperature is below 50°F, DO NOT operate the
system for at least the amount of time the com-
pressor was off! This will allow the compressor
heaters to warm the compressor oils to avoid
damage due to slugging.
1. Press
SYSTEM
HEAT - OFF - COOL - AUTO
until COOL is displayed.
2. Press to adjust the thermostat to 40°F. All
stages of the cooling system should come on within
fiveminutes(ifthecompressorisnotoperating,itmay
be locked out. See LOCKOUT BYPASS OPTION).
CAUTION
!
NOTE ADDITIONAL OPERATION NOTES
Damper operation is linked to the occupied and unoccu-
pied temperature settings, rather than the time settings.
The default settings for the damper are:
• The damper is open (energized) for the occupied
program.
• Thedamper is closed (de-energized)for the unoccu-
pied program.
Refer to the OPERATION GUIDE if you need additional
information on thermostat operation.
TROUBLESHOOTING
Refer to the Question & Answer section of the OPERA-
TION GUIDE for information on troubleshooting the ther-
mostat.

If you need further information about this product, please write to
White-Rodgers Division, Emerson Electric Co.
9797 Reavis Road
St. Louis, MO 63123-5398
Attention: Technical Service Department
