White-Westinghouse WM106 User manual

LAVABIANCHERIA
MANUALE DELL’UTENTE
WASHING MACHINE
USER MANUAL
mode d’emploi de machine
à laver électronique

THE CONTENTS
SECTION 1:BEFORE USING
•Safety warnings
•Recommendations
SECTION 2:INSTALLATION
•Removal of transportation screws
•Adjustment of feet
•Electrical connection
•Water supply connection
•Water drain connection
SECTION 3:TECHNICAL SPECIFICATIONS
SECTION 4:CONTROL PANEL
•Start/Pause button
•Function indicator lights
•Function buttons
•Spin speed selector
•Program knob
SECTION 5:WASHING YOUR LAUNDRY
•Before washing
•Running the machine
SECTION 6:MAINTENANCE AND CLEANING
•Water inlet filters
•Pump filter
•Detergent drawer
•Siphon plug
•The cabinet
•The drum
•Remove of your machine from lime
SECTION 7: PRACTICAL INFORMATION
SECTION 8:AVOIDING MINOR FAULTS
SECTION 9:AUTOMATIC FAILURE DETECTION SYSTEM
SECTION 10:INTERNATIONAL WASHING SIGNS
31

SECTION 1:BEFORE USING
SAFETY WARNINGS
•Do not use a multiple socket or extension cord.
•Do not insert a plug with damaged or broken cord into the socket.
•If the cord is damaged it should be replaced by the manufacturer or
appointed service agent in order to avoid a hazard.
•Never remove the plug from the socket by pulling from the cord
section. Remove the plug by holding.
•Do not plug the power supply with wet hands.
•Never touch the machine with wet hands or feet.
•Never open the detergent drawer while the device is running.
•Never force to open the door of the machine while the machine is
running.
•Since the machine can reach high temperatures while running, do not
touch the drain hose and water during draining.
•In case of any failure, first unplug the device and close the water tap.
Do not attempt to repair.Please apply to the nearest authorized
service station.
•Do not forget that the packing material of your machine may be
hazardous for children.
•Do not let your children play with the washing machine.
•Keep your pet away from your machine.
•Your machine should only be used by adults within the information
written in this manual.
•Your machine is designed for use in house environment. Warranty
will be invalid if you use it for commercial purposes.
•The appliance should not be put on a carpet which can block the air
ventilation on the bottom side.
RECOMMENDATIONS
•The detergent or softener in contact with air for a long time will dry
and stick to your detergent drawer.To avoid this put your detergent
and softener into the detergent drawer just before washing.
•It is recommended that you use pre-washing program for only very
dirty clothes.
•Please do not exceed the maximum loading capacity.
•The appliance is not intended for use by people (including children)
with reduced physical,sensor yor mental capabilities , or lack of
experience and knowledge , unless they have been given supervision
or instruction concerning use of the appliance by a preson
responsible for their safety.Children should be supervised to ensure
that the
y
don’t
p
la
y
with the a
pp
liance.
32

•If you will not use your machine for a long time, unplug your machine,
close the water supply and leave the door open in order to keep the
inside of the machine dry and for prevention from unpleasant odour.
•As a result of the quality control procedures, a certain amount of
water may remain in your machine. This is not harmful for your
machine.
SECTION 2: INSTALLATION
You must pay attention to the following issues before using your washing
machine.
REMOVAL OF TRANSPORTATION SCREWS
•Transportation screws, which are located at the back side of the
machine, must be removed before running the machine.
•Loosen the screws by rotating counterclockwise by a suitable wrench.
(DIAGRAM-1)
•Remove the screws by pulling them.(DIAGRAM-2)
•To the holes where the transport screws have been removed, insert
the plastic transport screw taps found in the accessories bag.
(DIAGRAM-3)
•The transportation screws, that have been removed from the machine
should be kept in hand for any other transportation necessities.
DIAGRAM-2
DIAGRAM-1 DIAGRAM-3
ADJUSTMENT OF FEET
•Do not install your machine on rugs or similar surfaces.
•For your machine to work silently and without any vibration, it should
be settled on a flat, non-slippery and tough ground.
33

•You can adjust the balance of your machine from its feet.
•First, loosen the plastic adjustment nut.
•Adjust by rotating the feet upwards or downwards.
•After the balance has been reached, tighten the plastic adjustment
nut again by rotating it upwards.
•Never put cartons, wooden blocks or similar materials under the
machine to balance the irregularities on the level of the ground.
ELECTRICAL CONNECTION
•Your washing machine works with 220-240V and 50Hz.
•A special grounded plug has been attached to the network cable of
your washing machine. This plug must definitely be inserted to a
grounded socket with 10 ampere. The fuse flow value of the
electricity line attached to this should also be 10 ampere. If you have
no such sockets and fuses in your house, let it be made by a qualified
electrician.
•Our company will not be responsible for any damages that may
occur as a result of usage without grounding.
•Insert the machine’s plug to a grounded socket which you can
easly reach.

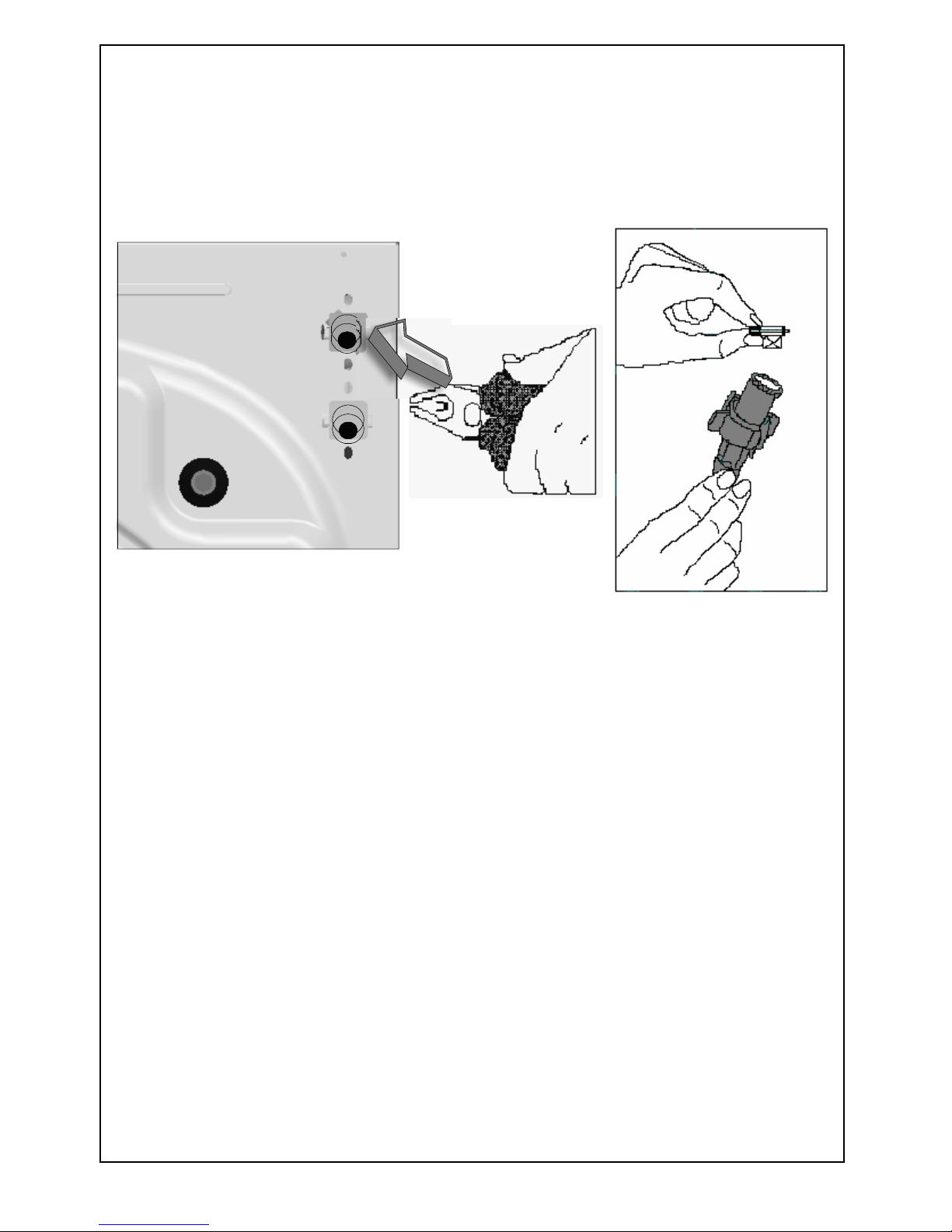

WATER SUPPLY CONNECTION
•Depending on the features your machine,may be with single water
inlet(cold) or double water inlet (cold/hot). The white headed hose is
for cold water inlet and red headed hose is for hot water inlet (valid
for machines with hot&cold water inlet).
•To prevent leakage from the connection joints, 1 (valid for cold water
inlet) or 2 (valid for machines with hot&cold water inlet) seals are
included in the hose packing. Fit these seals at the end of water inlet
hoses on the tap side.
•Connect the white headed hose to the water inlet valve with white
filter and connect the red headed hose to the water inlet valve with
red filter (latter is valid in machines with hot&cold water inlet). Tighten
the plastic parts of the connections with your hand.Please call a
qualified plumber for safer connections.
34

•Water pressure of 0,1-1 MPa from your tap will enable your machine
to work more efficiently.(0,1 MPa pressure means water flow of more
than 8 liters in 1 minute from a fully opened tap)
•After connections are completed, check for the non-leakage of the
connection joints by turning on your tap completely.
•Be sure that water inlet hoses are not folded, broken or crushed.
•Mount the water inlet hoses to a 3”/4, geared water tap.
Cold water inlet (White filter valve)
Hot water inlet (Red filter valve)
WATER DRAIN CONNECTION
•Be sure that water inlet hoses are not folded, twisted, crushed or
elongated by stretching.
•Water drain hose should be mounted at a height of minimum 60 cm,
maximum 100 cm from the ground.
•The end of the water drain hose may directly be fitted to the dirty
water outlet hole or a special apparatus mounted on the outlet
bracket of the wash-stand.
•Never attempt to extend the water drain hose by adding extra parts.
35

SECTION 3:TECHNICAL SPECIFICATIONS
WM60E WM86 WM106
Maximum dry
laundry
capacity (kg) 5 6 6
Recommended
loading (kg) 4,5 5,5 5,5
Height (cm) 85 85 85
Width (cm)) 59,6 59,6 59,6
Depth (cm) 51 54 54
Maximum spin
cycle ( rpm ) 600 800 1000
(*) Maximum spin cycles depend on the model you’ve chosen

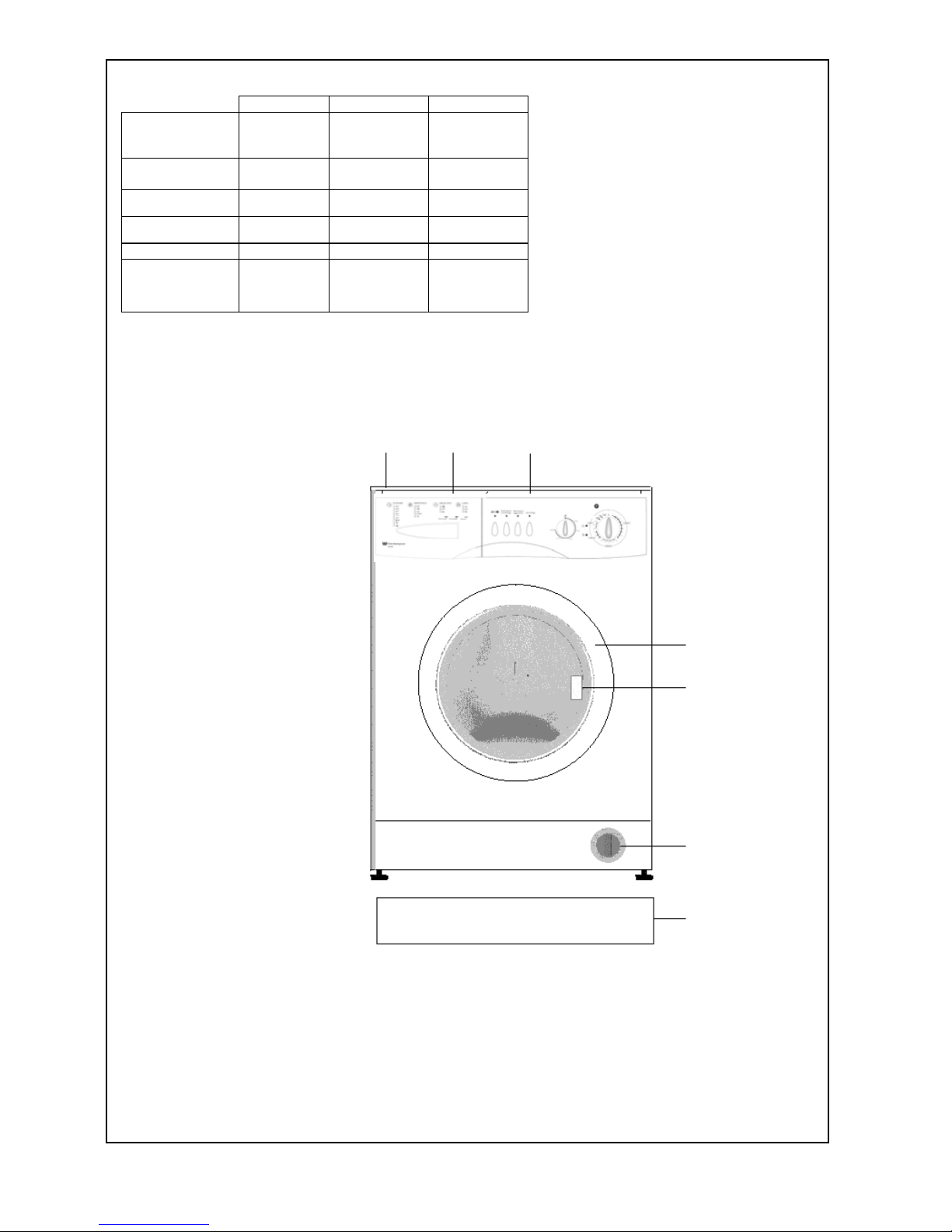

1 2 3
4
5
6
7
1-Upper tray 5-Handle
2-Detergent drawer 6-Filter cover
3-Control panel 7-Kickplate
4-Door
These technical specifications written above for single water inlet (cold) and
double water inlet (cold/hot) in machines.
36

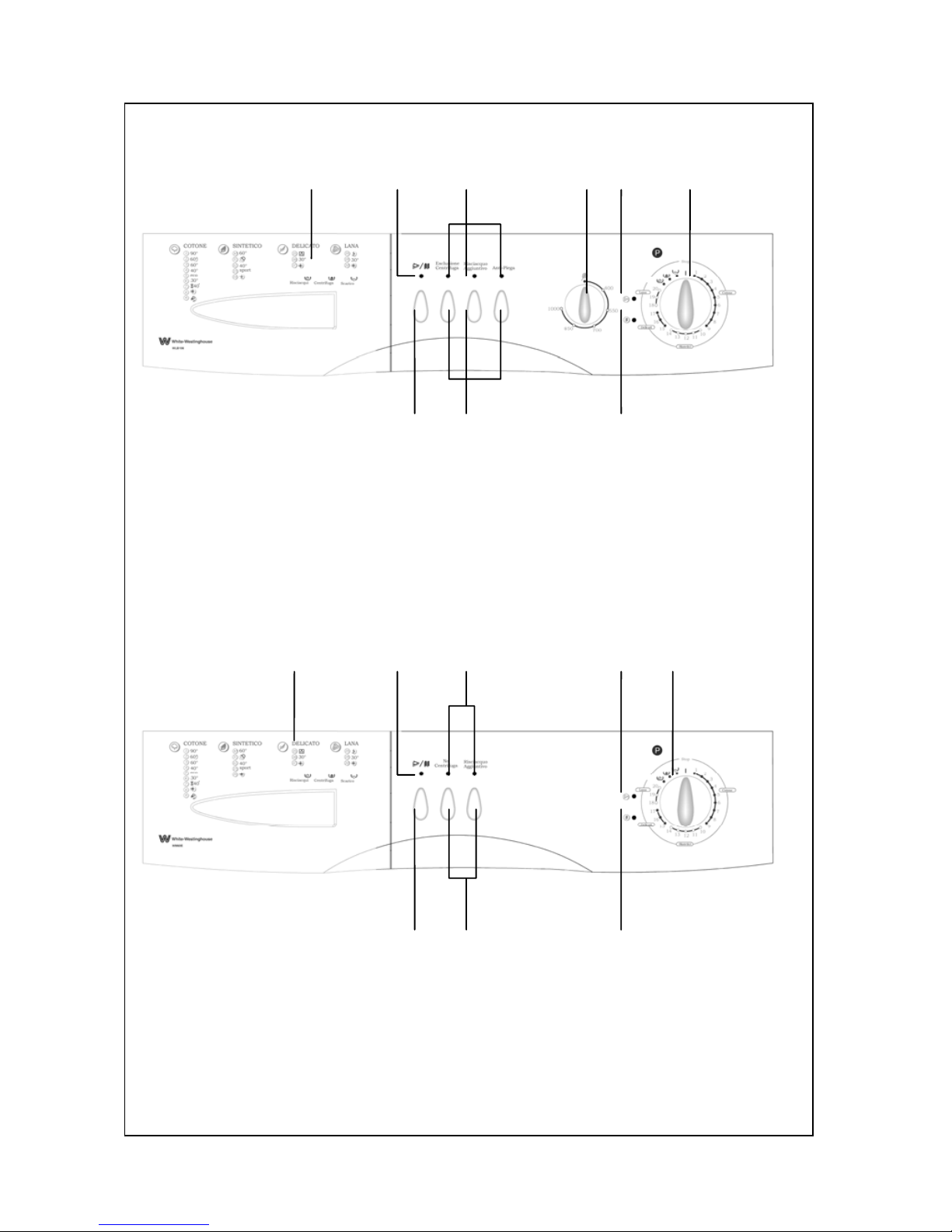

SECTION 4:CONTROL PANEL
WM86 / WM106
1 2 3 4 5 6
7 8 9
1-Detergent drawer 6-Program knob
2-Start/pause light 7-Start/pause button
3-Function indicator lights 8-Function buttons
4-Spin speed selector 9-Program end light
5-Program ready light
WM60E
1 2 3 4 5
6 7 8
1-Detergent drawer 5-Program knob
2-Start/pause light 6-Start/pause button
3-Function indicator lights 7-Function buttons
4-Program ready light 8-Program end light
Our product has electronic card and soft-touch buttons.To activate the
functions touch the buttons slightly.
37

START/PAUSE BUTTON
Used to start a selected program or pause during running.
WARNING!
It is required for the program knob to be brought to O(off)
position before selecting the program or changing a continuing
program.
FUNCTION INDICATOR LIGHTS
When the start/pause button or any function button is pressed,the
corresponding light turns on.The light turns off when the function
button or start/pause button is re-pressed, or when the process
the selected function is completed.
The function indicator lights are also used in failure detection system
mentioned in section 9.
FUNCTION BUTTONS
Rinse hold
This function is recommended to be used when the clothes cannot
be taken immediately after the end of the program.This will
prevent occurrence of wrinkles. When this button is pressed, the
last rinsing water is not drained. For the program to continue from
the same point, repress the same button.
38

If you do not want your sensitive clothes to be spinned or you
want them to be spinned sensitively, turn the program knob to O
(off) position. Bring the program knob on one of the draining or
spinning programs you desire and press the start/pause
button. If the program you have selected is a drain program, your
machine will draining the water inside.If you have selected a
spinning program, your machine will perform a spinning operation
and then end the program.
Extra rinse
You can have one more rinsing done in addition to the rinses
which your machine has made in all washing programs by using
this function.
No spin
This program is recommended to be used for your sensitive
clothes on which no spinning should be done. By pressing this
function button, you can cancel the spinning process which is
included in the program.
Easy ironing
By using this function, you can ensure your clothes to come out
less wrinkled after the washing.
WARNING!
Functions vary depending on the model you have chosen.If you
forgot to use additional function and your machine starts to wash
push the additional function button if the indicator light is on.
Additional function will be activated.If the indicator light is not
on,additional function will not be activated.
39

SPIN SPEED SELECTOR
By the spin speed selector knob, you can make the adjustment of speed for
the process of spinning your clothes.The speed adjustment interval is
between O (No spin) and the maximum spinning speed of your machine.
NOTE: Do the spinning process of your sensitive and delicate clothes in the
most appropriate mode.
PROGRAM KNOB
With the program knob, you can select the program with which you desire to
wash your clothes. You can adjust the program selection process by turning
the program knob in both directions. You must be careful that the adjustment
sign of the program knob is exactly on the program you want to select. When
you bring the program knob to O(off) position, while your machine is running,
your program will remain incomplete.
40

SECTION 5: WASHING YOUR LAUNDRY
•Plug the machine.
•Open the tap water.
First wash cycle
There may be water left inside your machine after factory tests and trials.It is
recommended that the first wash cycle should be made without any laundry
so that carry out this water; pour half a measuring cup of normal allpurpose
detergent into compartment 2 and select cotton program at 90°C.
BEFORE WASHING
Discrimination of your laundry
•Discriminate your clothes according to their types (cotton, synthetic,
sensitive, woolen, etc.),washing temperatures and level of dirtiness.
•Never wash your white and coloured clothes together.
•Since your new coloured clothes may shed dye on the first wash,
wash them separately.
•Be careful that no metal pieces are found on or in the pockets of your
clothes, remove if there is any.
•Zip and button your clothes.
•Remove the plastic or metal hooks of the curtains and laces or place
them inside a washing bag and tie.
41

•Pull the textiles like trousers,knitted fabric,t-shirt and sweat shirt
inside out.
•Wash your small clothes like socks and handkerchiefs in a washing
bag.
Wash up tol 90 ˚C Wash up to 60 ˚C Wash up to 30 ˚C Not washable in
washingmachine
Placement of the clothes into the machine
•Open the door of your machine.
•Fill your clothes in your machine in a well-spread manner.
•Place each cloth separately.
•When you shut the door of your machine, be careful that no cloth is
jammed between the cover and the gasket.
•Shut the door of your machine tightly otherwise your machine will not
start the washing process.
Filling detergent in the machine
The quantity of the detergent that you will fill in your machine depends on the
following criteria:
•Your detergent consumption will change according to the dirtiness
level of your clothes. For your slightly dirty clothes, do not pre-wash
and put a small amount of detergent in the compartment no.2 of the
detergent drawer.
•For your excessively dirty clothes, select a program with pre-
washing, fill ¼ portion of the detergent you will put in compartment
1 in the detergent drawer and the remaining portion in compartment
2.
•In your machine,use the detergents developed especially for
automatic washing machines. The quantities that will be used for
your clothes are written on the packing of the detergents.
•As the hardness of your water increases, the amount of the
detergent to be consumed will also increase.
•As the amount of your clothes increases, the amount of the
detergent to be consumed will also increase.
•Fill your softener in the softener compartment in your detergent
drawer. Do not exceed the MAX level. Otherwise, the softener will
diffuse in the washing water via the siphon.
•The softeners with high density should be diluted with some water
before filling in the drawer. That is because the softener with high
density obstructs the siphon and prevents the flow of the softener.
42

•You can use fluid detergents in all programs without pre-washing.
For this, mount the fluid detergent level plate in the second
compartment of the detergent drawer and arrange the amount of
fluid detergent according to the levels on this plate.
RUNNING THE MACHINE
Program selection and features
Select the program and additional functions appropriate for your clothes from
Table-1.
Start/Pause
By pressing this button, you can start the program you have selected or
pause a running program.
Starting the program
•Adjust the program knob to a program you desire.
•The program ready light will be on.
•If you want, you can select one or more additional functions.
•Run the program which you have selected by pressing the
Start/Pause button.
Changing the program
If you have selected a program and you do not want if to continue:
•Press the start/pause button.
•Bring the program knob to O(off) status.
•Adjust the program knob to the program you desire.(You can select
the program that you desire from Table-1).
•The program ready light will be on.
•By pressing the start/pause button, run the program which you have
selected.
Cancellation of the Program
If you desire to end a running program early:
•Press the start/pause button.
•Turn the program knob to O(off) status.
•Turn the program knob to “Draining” or “Spinning” programs.
•The program ready light will be on.
•Run the program you have selected by pressing the start/pause
button.
Program ending
•Your machine will automatically stop when the program you have
selected ends.
•The program end light will be on.
•Turn the program knob to O(off) position.
43

•The door will be unlocked in approximately two minutes after the
program ends.You can open the door by pulling the handle of the
door towards yourself and take out your clothes.
•After you unload your clothes leave the door open to dry the interior
of your machine.
•Unplug your machine.
•Close the water tap.
WARNING!
If the power is off end on again after a while on any stage of the washing
program, your machine will continue the program from the point where it was
interrupted. This is not harmful for your machine.
Child lock
Child lock is used in order to protect the washing cycle from the effects of
unwanted button activations during the cycle.Child lock is activated by
pressing the first and third button on the control panel at the same for more
than 3 sec.When child lock is activated,LEDs on the function buttons blink to
indicate that child lock is active.In order to deactive child lock, the same
buttons (1st and 3rd) should be pressed again for more than 3
seconds.Deactivation of child lock is shown by blinking of LED on Start/Pause
button.
WARNING!
Your machine will inactivate the spin speed selector (valid for A3 models) and
function buttons when the child lock is activated.
SECTION 6: MAINTENANCE AND CLEANING
•Unplug your machine.
•Close the water tap.
WATER INLET FILTERS
On the tap part of your machine’s water inlet hose and at the ends of water
inlet valves, there are filters to prevent entrance of the dirt and foreign
materials in the water to the machine. If the machine is unable to receive
sufficient water although your water tap is opened, these filters should be
cleaned.
44

MAX DRY LOAD
CAPACITY (kg)
PROGRAM DETERGENT
COMPART. ADDITIONAL FUNCTION BUTTON WM60E WM86 /
WM106
TYPE OF LAUNDRY EXPLANATIONS
1-COTTON 90˚2 5 6
Dirty, boil, cotton and
linen textile
2-COTTON 60˚
(PREWASH) 1+2 5 6
Very dirty, cotton,
coloured and linen textile
3-COTTON 60˚2 5 6
Dirty, cotton, coloured
and linen textile
4-COTTON 40˚2 5 6
Slightly dirty, paint to get
out, cotton, coloured and
linen textile
5-ECO
WASH 2 5 6
Dirty, cotton, coloured
and linen textile
6-COTTON 30˚2 5 6
Slightly dirty, cotton,
coloured and linen textile
7-QUICK WASH 2 2,5 3
Slightly dirty, cotton,
coloured and linen textile
8-COTTON
COLD 2 5 6
Slightly dirty cotton,
coloured and linen textile.
Washed without heating
the tap water.
9-MIX
WASH 2 5 6
Dirty or very dirty, stain ,
cotton, coloured and linen
textile
Underwears,
sheet, table cloth,
t-shirt, shirt, towel
10-SYNTHETIC 60˚2 3 3
Dirty, synthetic or
synthetic mixture textile Nylon socks, blouse
11-BABY
WASH 2 3 3
Baby laundry All baby laundry
12-SYNTHETIC 40˚2 3 3
Slightly dirty, synthetic or
synthetic mixture textile Nylon socks, blouse
TABLE-1
45

MAX DRY LOAD
CAPACITY (kg)
PROGRAM DETERGENT
COMPART. ADDITIONAL FUNCTION BUTTON WM60E WM86 /
WM106
TYPE OF LAUNDRY EXPLANATIONS
13-SPORT
CLOTHES 2 3 3
Sport clothes All spore clothes and
jeans
14-SYNTHETIC
COLD 2 3 3
Slightly dirty, synthetic or
synthetic mixture sensitive
laundry.Washed without
heating the tap water.
Nylon socks, blouse
15-CURTAIN
WASH 1+2 2 2
Tulle and curtain as
sensitive laundry Tulle, curtain, diolen, dralon
16-DELICATE 30˚2 2 2
Slightly dirty, cotton,
coloured, synthetic or
synthetic mixture sensitive
laundry
17-DELICATE
COLD 2 2 2
Very slightly dirty, cold
water with to wash cotton,
coloured, synthetic or
synthetic mixture sensitive
laundry
Silk mixture, shirt,
blouse, polyester,
poliamid, mixture
textile
18-HAND
WASH 2 2 2
Slightly dirty, wash in hand
cotton, coloured, synthetic
or synthetic mixture laundry
Hand wash to all
laundry
19-WOOL 30˚2 2 2
Dirty, hand and machine to
wash wool laundry
20-WOOL COLD 2 2 2
Very slightly dirty, cold
water, hand and machine to
wash wool laundry
All wool laundry
RINSING When you need an additional rinsing to be done to your clothes after the washing process, you can use this program for all kinds of clothes.
SPINNING When you need an additional spinning to be done to your clothes after the washing process, you can use this program for all kinds of
clothes.
DRAINING This program is used to drain the dirty water inside after the washing process of your machine. If you want the water inside your machine to
be drained before the program ends, you can use this program.
TABLE-1 CONTINUE
(*) You can use softeners in all programs (except spinning and draining programs) optionally. When you arrange the quantity of the softener, comply with the warning of
the softener producer. Fill your softener in its (softener) compartment of the detergent drawer.
* Energy label data based on programme tested in accordance with EN60456.
46

•Remove the water inlet hose.
•Remove the filters found on the water inlet valves by using a pincer
and wash thoroughly with a brush.
•Clean the filters of the water inlet hoses located on the tap side by
removing manually together with the seal.
•After you clean the filters, you can fit them the same way as you have
removed.
PUMP FILTER
The pump filter system elongates the life of your pump, which is used to drain
the dirty water. It prevents lint to enter the pump. Cleaning of your pump filter
in every 2-3 months is recommended. To clean your pump filter:
•Open the kickplate’s cover, by pulling the handle.
•Before opening the filter cover,place a cup in front of the filter cover
to prevent flow of the remaining water in the machine.
•Loosen the filter cover by rotating it counter clockwise and drain the
water.
•Remove the foreign materials from the filter.
•Check for the rotation of the pump manually.
•After you have cleaned the pump, fit the filter cover by rotating
clockwise.
•Put the kickplate cover into the place.
•Do not forget that if you do not fit in the filter cover properly, it will
leak water.
47

WARNING!
Danger of being scalded!
Since the water inside the pump maybe hot, wait for it to cool.
DETERGENT DRAWER
Detergents may form a sediment in your detergent drawer or in housing of the
detergent drawer in time. To clean the sediment, pull out the detergent drawer
from time to time.To pull out the detergentdrawer:
•Pull the detergent drawer to the end.(DIAGRAM-1)
•Siphon plug to tread of the drawer, continue to pull until the drawer is pull
out.(DIAGRAM-2)
•Wash will an old toothbrush and excessiveamount of water.
•Take off the leftover detergent avoid to drop into your machine.
•After drying the detergentdrawer put into the housing in the same manner
you pull out.
DIAGRAM-1 DIAGRAM-2
48

SECTION 7:PRACTICAL INFORMATION
Alcoholic beverages: The stain point, should first be washed
with cold water, than should be wiped with glycerine and water
and be rinsed with water mixed with vinegar.
Shoe Polish: The stain should be slightly scratched without
ruining the cloth, rubbed with detergent and rinsed. In case it is not
eliminated, it should be rubbed with 1 unit of pure alcohol (96
degrees) mixed in 2 units of water and then washed with
lukewarm water.
Tea and coffee: Stretch the stained area of your cloth on the top
of a container and pour water as hot as the type of your cloth can
endure on it. If the type of your cloth is suitable,wash it with lye.
Chocolate and cocoa: By leaving your clothes in cold water and
rubbing with soap or detergent, wash it in the highest temperature
that the type of your cloth can endure. If there is still a stain of oil
left, wipe with oxygenated water (in proportion of 3%).
Tomato paste:After scraping the dried pieces without ruining the
cloth, leave in cold water for about 30 minutes and wash by
rubbing with detergent.
Meat broth-egg: Eliminate the dried stain residues and wipe with
a sponge or soft cloth wetted in cold water. Rub with detergent
and wash with diluted lye.
Grease and oil stains: First wipe the residues. Rub the stain with
detergent and then wash with lukewarm soapy water.
Mustard: First apply glycerine to the stained area. Rub with
detergent and then wash. If the stain still does not disappear, wipe
with alcohol (On synthetic and coloured cloth, a mixture of 1 unit
alcohol, 2 units water should be used)
Blood stain: Lay your clothes in cold water for 30 minutes. If the
stain still does not disappear, lay in mixture of water and ammonia
(3 table-spoons of ammonia in 4 liters of water)for 30 minutes.
Cream, ice-cream and milk: Lay your clothes in cold water and
rub the stained area with detergent. If the stain has still not
disappeared, apply lye on the fabric of your clothes in proper
proportion.(Do not use lye on coloured clothes.)
50
