lnstallation
lnstructions
Full Size Automatic Washer
Before beginning installation, carefully read these instructions. This will simplify the
installation and ensure the washer is installed correctty and safely. Leave these instructions
near the washer after installataon for future reference.
NOTE: The electrical service to the washer must conform with local codes and ordinances
and the latest edition of the National Electrical Code, ANSUNFPA 70.
Contents
SUBJECT PAGE
Pre-lnstallation Requirements
Electrical Requirements
Grounding Requirements
Water Supply Requirements
Drain Requirements
Rough-ln Dimensions
Location
Unpacking
lnstallation
Replacement Parts
2
2
2
2
2
3
3
3
3-4
4
Printed in U.S.A. P/N 131465000 (9s05)

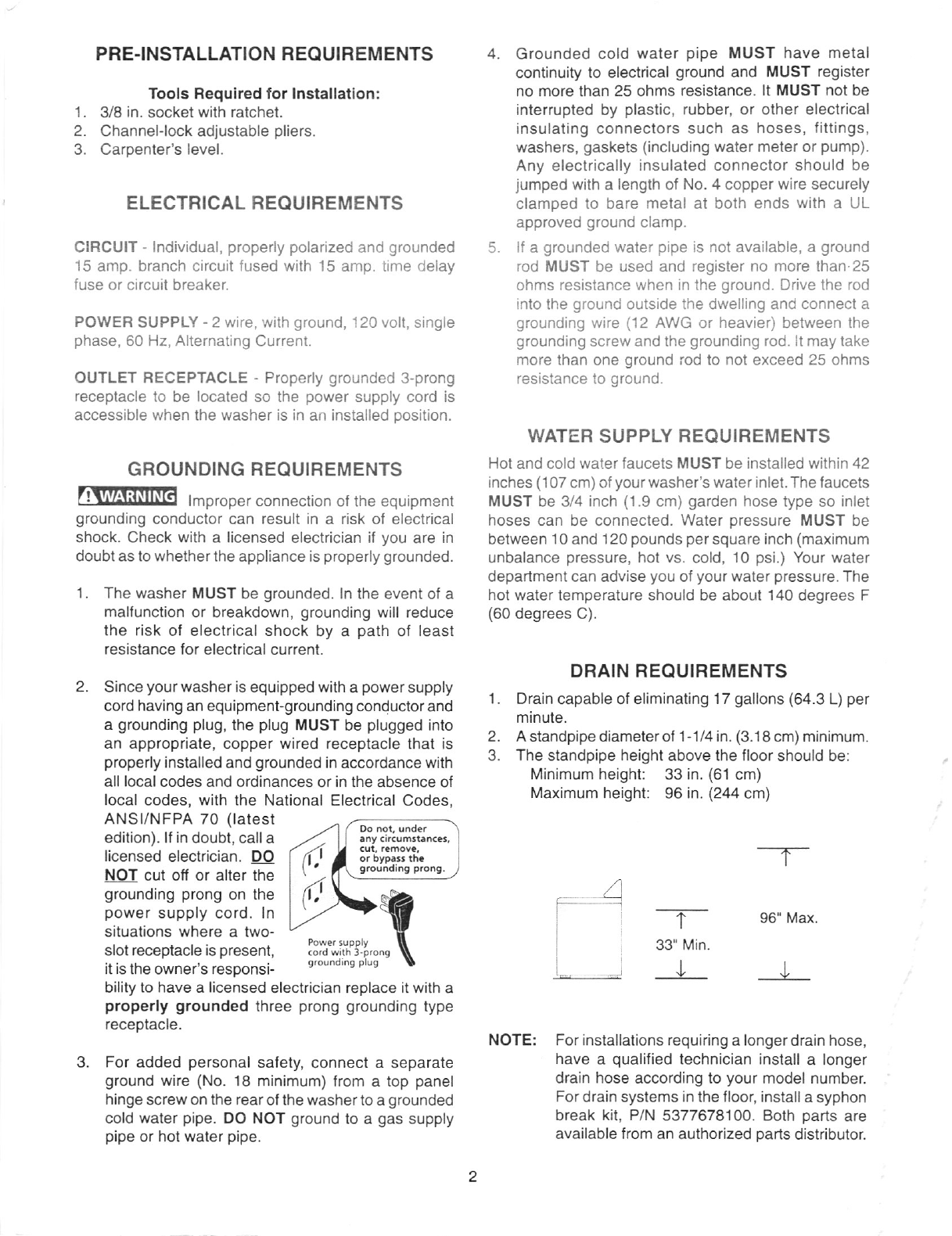

PR E-lNSTALLATION R EOUIREM ENTS
Tools Required lor lnstallation:
1. 3/8 in- socket with ratchet.
2. Channel-lockadjustable pliers.
3. Carpenter's level.
ELECTRICAL REOUIREMENTS
CIRCUIT - lndividual, properly polarized and grounded
15 amp. branch circuit fused with 15 amp. time delay
{use or circuit breaker.
POWEF SUPPLY - 2 wire, with ground, .120 volt, single
phase, 60 Hz, Alternating Current.
OUTLET RECEPTACLE - Properly grounded 3-prong
receptacle to be located so the power supply cord is
accessible when the washer is in ari installed position.
GROUNDING REQUIBEMENTS
lmproper connection of the equipment
grounding conductor can result in a risk of electrical
shock. Check with a licensed electrician if you are in
doubt as to whether the appliance is properly grounded.
The washer MUST be grounded. ln the event of a
malfunction or breakdown, grounding will reduce
the risk of electrical shock by a path ol least
resistance for electrical current-
2. Since your washer is equipped with a power supply
cord having an equipmenfgrounding conductor and
a grounding plug, the plug MUST be plugged into
an appropriate, copper wired receptacle that is
properly installed and grounded in accordance with
all local codes and ordinances or in the absence of
local codes, with the National Electrical Codes,
ANSI/NFPA 70 (latest
edition). lf in doubt, call a
licensed electrician. E0
NOT cut otf or alter the
grounding prong on the
power supply cord. ln
situations where a two-
slot receptacle is present,
it is the owner's responsi-
bility to have a licensed eleclrician replace it with a
p.operly grounded three prong grounding type
receptacle.
3. For added personal safety, connect a separate
ground wire (No. 18 minimum) lrom a top panel
hinge screw on the rear of the washer to a grounded
cold water pipe. DO NOT ground to a gas supply
pipe or hot water pipe.
4. Grounded cold water pipe MUST have metal
continuity to electrical ground and MUST register
no more lhan 25 ohms resistance. lt MUST not be
interrupted by plastic, rubber, or other electrical
insulating connectors such as hoses, fittings,
washers, gaskets (including water meter or pump).
Any electrically insulated connector should be
iumped with a length ol No. 4 copper wire securely
clamped to bare metal at both ends with a UL
approved ground clamp.
5. lf a grounded water pipe is not available, a ground
rod MUST be used and regisler no more than 25
ohms resistance when in the ground. Drive the rod
into the ground outside the dwelling and connect a
grounding wire ('12 AWG or heavier) between the
grounding screw and the grounding rod. lt may take
more than one ground rod to not exceed 25 ohms
resistance to qround.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be inslalled within 42
inches (107 cm) of your washer's water inlet. The laucets
MUST be 3/4 inch (1.9 cm) garden hose type so inlet
hoses can be connected. Water pressure MUST be
between 10 and '120 pounds per square inch (maximum
unbalance pressure, hot vs. cold, 10 psi.) Your water
department can advise you of your water pressure. The
hot water temperature should be about 140 degrees F
(60 degrees C).
DRAIN REOUIREMENTS
'I . Drain capable ol eliminating 1 7 gallons (64.3 L) per
minute.
2. A standpipe diameter of 1-1l4 in. (3.18 cm) minimum.
3. The slandpipe height above the floor should be:
Minimum height: 33 in. (61 cm)
Maximum height: 96 in. (244 cm)
96" Max.
33" [/in
a
i-_,JJ
For installations requiring a longer drain hose,
have a qualilied technician install a longer
drain hose according to your model number.
For drain systems in the tloor, install a syphon
break kit, P/N 5377678100. Both parts are
available lrom an authorized parts distributor.
2
Awanrutruc
NOTE:

ROUGHiN DIMENSIONS
Lto oPEN 90"-,
J_- _-_ - _-
PLASTIC
SPACER
BLOCK
SHIPPING BLOCKS
WATER
}NLETS<:t
(REAR)
MECHANISM
SHIPPING
BOLT
51
ORAIN
OUTLET
(REAR) 29-7^6"
44
< 3-3/4"
FOAM
DRAIN
OUTLET-i.,]
-'1 SHIPPING
PAD
111.7t16'
POWEB
COFD
FRONT VIEW
27"
SIDE VIEW
LOCATION OF YOUR WASHER
DO NOT INSTALL YOUB WASHER:
'1. ln an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60 degrees F (15.6 degrees
C) for proper washer operation.
2. ln an area where it will come in contact with curtains
or drapes.
3. ln an area (garage or garage-type building) where
gasoline of other llammables are kept or stored
(including automobiles).
4. On carpet. Floor MUST BE SOLID with a maximum
slope of 1 in. To ensure vibration or movement does
not occur, BEINEOBCEIVIENI of the floor may be
necessary.
IMPORTANT MINIMUM INSTALLATION CLEARANCES
(inches)
When installed in alcove: Sides = 0", Rear = 0",
Top = 29".
When installed in closet: Sides = 0", Rear = 0",
Top = 29", Front = 1".
Closet door ventilation openings required: 2 louvers
each 60 square inches - 3 inches lrom bottom and top
ol door.
UNPACKING
1 . Using the four shipping carton corner posts (two on
each side), carefully lay the washer on its left side
and remove foam shipping base.
2. Using a ratchel with 3/8" socket, remove the
mechanism shipping bolt and plastic spacer block
lrom the center of the base.
NOTE: ll the washer is to be vansported at a later
date, the tub blocking pad, shipping bolt'
and plastic spacer block should be retained.
SHIPPING CARTON DRAIN HOSE
CORNEFI POSTS
3. Return the washer to an upright position.
4. Bemove the tape holding the lid shut and open the
tid.
5. Remove the foam tub blocking pad
6. Remove the inlet hoses (some models have inlet
hoses already attached to the water valve) and
enclosure package lrom the tub.
7. From the back of the washer, remove the wire
shipping clips securing the drain hose and power
cord. On some models. PLASTIC CLAMPS secure
the drain hose to the right side of the washer
backsheet. These clamps Iorm a standpipe to
prevent water siphoning. DO NOT HEMOVE THESE
CLAMPS,
8. Carefully move the washer to within 4 leet of the
final location lor the start of the installation.
INSTALLATION
1. Bun some water from the hot and cold faucets to
Ilush the water lines and remove particles that might
clog up the water valve screens.
2. Check inlet hoses to ensure that the rubber washers
are installed in each end (lf your washer has inlet
hoses already attached to the water valve, proceed
to step 4).
3. Carelully connect lhe inlet
hoses to the water valve
(on the left side ol the
washer cabinet), tighten bY
hand, then tighten another
2/3 turn with pliers.
DO NOT
CBOSS THBEAD OB
OVERTIGHTEN THESE
CONNECTIONS.
0
0
d
3
Acaurtoru
P/N 13146s000 (9505)

AcAU oN
4Determine which water ,aucet is the HOT water
faucet and carerully connect the bottom inlet hose
to the HOT watertaucet, tighten by hand, then tighten
another 2y3 lurn with pliers. Carelully connect lhe
top inlet hose to the COLD water faucet, tighten by
hand, then tighten another 2/3 turn with pliers.
OVERTIGHTEN THESE CONNECTTONS. Turn rhe
water on and check tor leaks at both connections.
5. Carefully move the washer to its ,inal location
NOTE: Keep the leg extension at a minimum to
prevent excessive vibration. The farther out
lhe legs are extended the more the washer
will vibrate.
To ensure the washer is level and solid on all four
legs, open lhe lid, grasp the top panet and tilt the
washer forward so the rear legs are off the ground.
Gently set the washer back down to allow the rear
legs to self adjust. Place a level on top of the washer
Check it side to side, then front to back. Screw the
front leveling legs up or down to ensure the washer
is resting solid on all lour legs (no rocking of the
washer should exist).
8. Plug the power cord into a grounded outlet
NOTE: Check to ensure the power is of, at a
circuit breaker/fuse box berore plugging
the power cord into an ouflet.
10. Bead the Operating lnstructions and Owner,s Guide
provided with the washer. They contain valuable and
helpful information that will save you time and
money.
NOTE: A wiring diagram is located inside the washer
console-
11. Run lhe washer through a complete cycle. Check
for water leaks and proper operation.
12. lf your washer does not operate, please review the
"Avoid Service Checklist', located in your Owner's
Guide before calling for service.
13. Place these instructions in a location near the
washer for future reference.
DO NOT CROSS THREAD OR g. Turn on the power at a circuit breaker/ruse box.
6
lf replacements parts are needed lor your washer,
contact the source where you purchased your washer
or call 1-800-451-7007 tot the Frigidaire Company
Authorized Parts Distributor nearest you.
EEEEIIEI Destroy the carton and prastic bags afler
the washer is unpacked. Children might use them for
play. Cartons covered with rugs, bedspreads, or plastic
sh,eets.can_.become arrtight chambers causing
sutfocation. Place all materials in a garbage containe;
or make materials inaccessible to children_
CABLE TIE
7. Form a "U" shape on the end ol the drain hose with
the hose pointed toward the drain. On some models,
a wire retainer needs to be assembled on the hose
in that position. place the lormed end in a laundry
tub or a slandpipe and secure with a cable ti;
provided in the enclosure package.
NOTE: The standpipe inside diameter must be
1-1/4- (3.18 cm) minimum. There must
be an air gap around the drain hose in
the standpipe. A snug hose fit can cause
a siphoning action.
REPLACEMENT PARTS
other literature iThe instructions in this manual and all
ncluded with this washer are not meant
Maximum benefits and enioyment are achieved
when all the Safety and Operating instructions are
underslood and practiced as a routine with your
laundering tasks.
CABLE TIE
to cover every possible condition and situation that may
occur. Good safe practice and caution MUST be applied
when installing, operating and maintaining any appliance.
4
