LAVABIANCHERIA
MANUALE DELL’UTENTE
WASHING MACHINE
USER MANUAL
mode d’emploi de machine
à laver électronique

THE CONTENTS
SECTION 1:BEFORE USING
•Safety warnings
•Recommendations
SECTION 2:INSTALLATION
•Removal of transportation screws
•Adjustment of feet
•Electrical connection
•Water supply connection
•Water drain connection
SECTION 3:TECHNICAL SPECIFICATIONS
SECTION 4:CONTROL PANEL
•Start/Pause button
•Function indicator lights
•Function buttons
•Spin speed selector
•Program knob
SECTION 5:WASHING YOUR LAUNDRY
•Before washing
•Running the machine
SECTION 6:MAINTENANCE AND CLEANING
•Water inlet filters
•Pump filter
•Detergent drawer
•Siphon plug
•The cabinet
•The drum
•Remove of your machine from lime
SECTION 7: PRACTICAL INFORMATION
SECTION 8:AVOIDING MINOR FAULTS
SECTION 9:AUTOMATIC FAILURE DETECTION SYSTEM
SECTION 10:INTERNATIONAL WASHING SIGNS
28

SECTION 1:BEFORE USING
SAFETY WARNINGS
•
••
•Do not use a multiple socket or extension cord.
•Do not insert a plug with damaged or broken cord into the socket.
•If the cord is damaged it should be replaced by the manufacturer or
appointed service agent in order to avoid a hazard.
•
••
•Never remove the plug from the socket by pulling from the cord
section. Remove the plug by holding.
•
••
•Do not plug the power supply with wet hands.
•
••
•Never touch the machine with wet hands or feet.
•
••
•Never open the detergent drawer while the device is running.
•
••
•Never force to open the door of the machine while the machine is
running.
•
••
•Since the machine can reach high temperatures while running, do not
touch the drain hose and water during draining.
•
••
•In case of any failure, first unplug the device and close the water tap.
Do not attempt to repair.Please apply to the nearest authorized
service station.
•
••
•Do not forget that the packing material of your machine may be
hazardous for children.
•
••
•Do not let your children play with the washing machine.
•
••
•Keep your pet away from your machine.
•
••
•Your machine should only be used by adults within the information
written in this manual.
•
••
•Your machine is designed for use in house environment. Warranty
will be invalid if you use it for commercial purposes.
•
••
•The appliance should not be put on a carpet which can block the air
ventilation on the bottom side.
RECOMMENDATIONS
•
••
•The detergent or softener in contact with air for a long time will dry
and stick to your detergent drawer.To avoid this put your detergent
and softener into the detergent drawer just before washing.
•
••
•It is recommended that you use pre-washing program for only very
dirty clothes.
•
••
•Please do not exceed the maximum loading capacity.
29

•
••
•If you will not use your machine for a long time, unplug your machine,
close the water supply and leave the door open in order to keep the
inside of the machine dry and for prevention from unpleasant odour.
•
••
•As a result of the quality control procedures, a certain amount of
water may remain in your machine. This is not harmful for your
machine.
SECTION 2: INSTALLATION
You must pay attention to the following issues before using your washing
machine.
REMOVAL OF TRANSPORTATION SCREWS
•
••

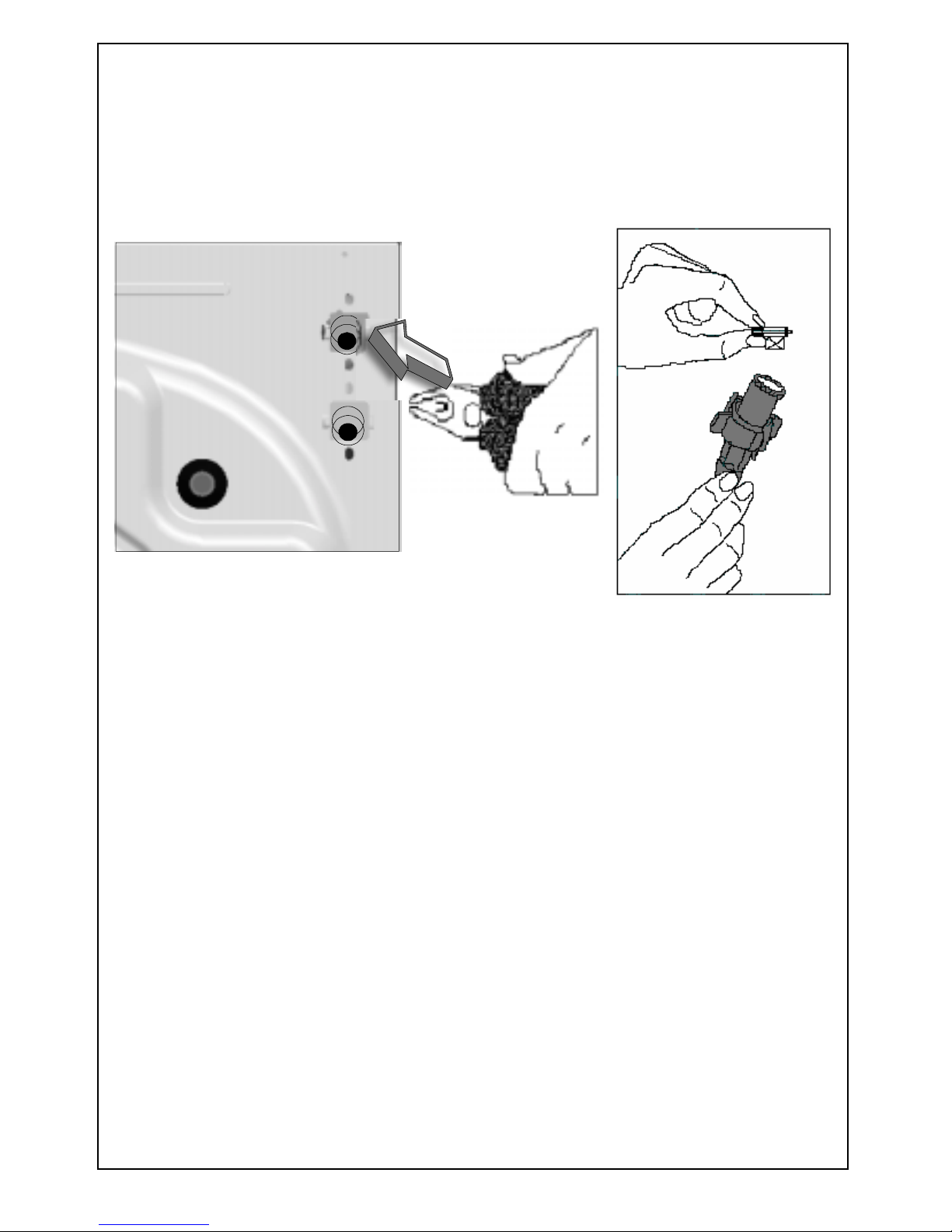

•Transportation screws, which are located at the back side of the
machine, must be removed before running the machine.
•
••
•Loosen the screws by rotating counterclockwise by a suitable wrench.

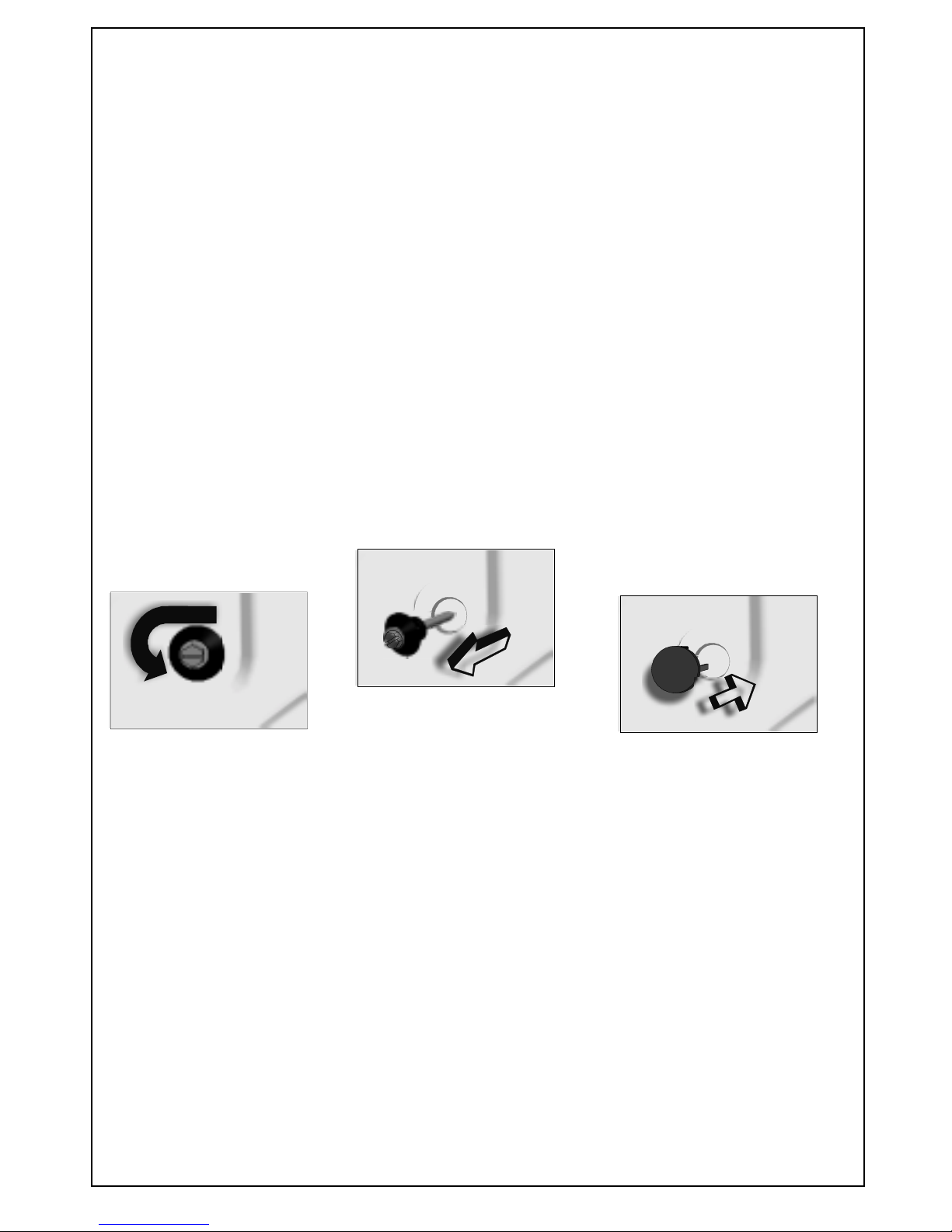

(DIAGRAM-1)
•
••
•Remove the screws by pulling them.(DIAGRAM-2)
•
••
•To the holes where the transport screws have been removed, insert
the plastic transport screw taps found in the accessories bag.
(DIAGRAM-3)
•
••
•The transportation screws, that have been removed from the machine
should be kept in hand for any other transportation necessities.
DIAGRAM-2
DIAGRAM-1 DIAGRAM-3
ADJUSTMENT OF FEET
•
••
•Do not install your machine on rugs or similar surfaces.
•
••
•For your machine to work silently and without any vibration, it should
be settled on a flat, non-slippery and tough ground.
30

•
••

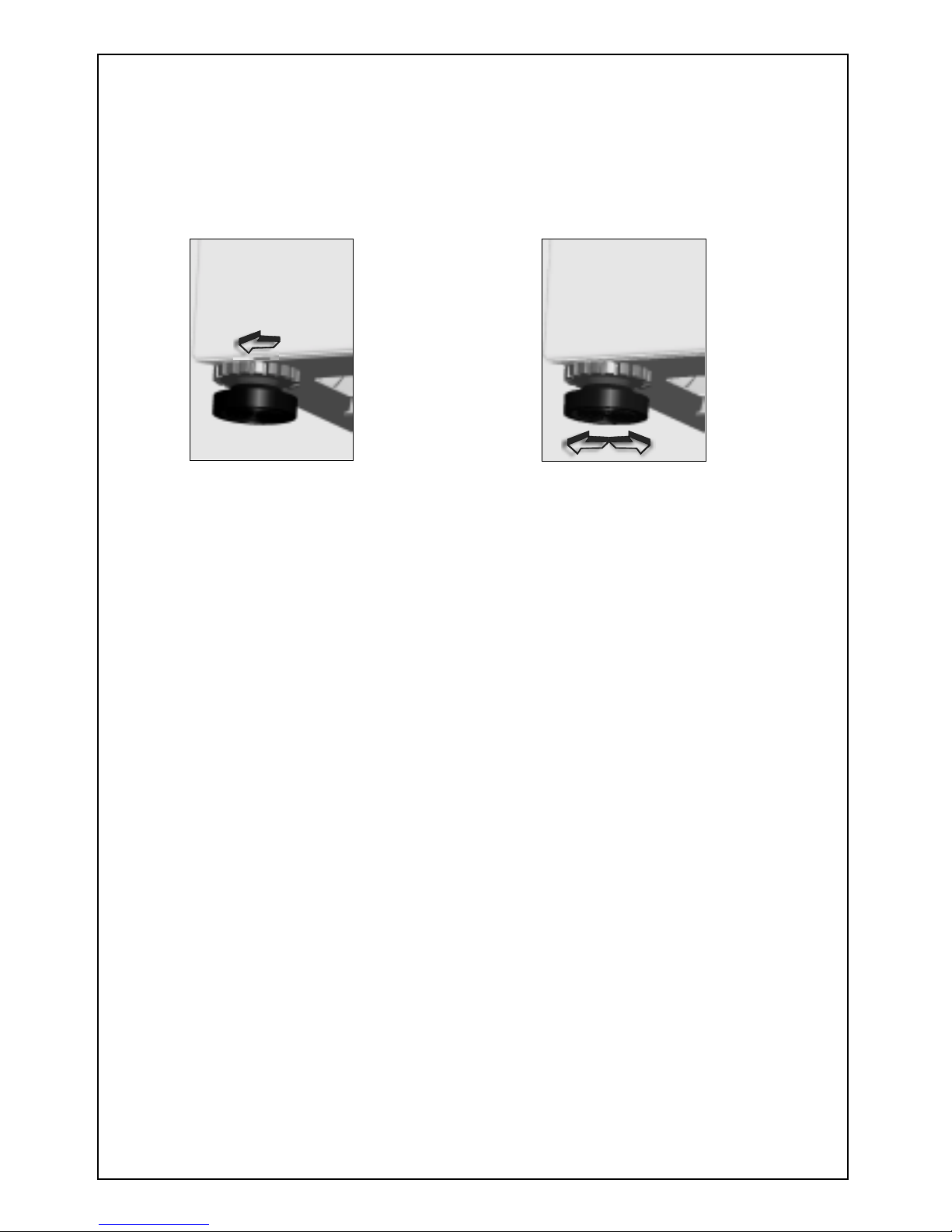

•You can adjust the balance of your machine from its feet.
•
••
•First, loosen the plastic adjustment nut.
•
••
•Adjust by rotating the feet upwards or downwards.
•
••
•After the balance has been reached, tighten the plastic adjustment
nut again by rotating it upwards.
•
••
•Never put cartons, wooden blocks or similar materials under the
machine to balance the irregularities on the level of the ground.
ELECTRICAL CONNECTION
•
••
•Your washing machine works with 220-240V and 50Hz.
•
••
•A special grounded plug has been attached to the network cable of
your washing machine. This plug must definitely be inserted to a
grounded socket with 10 ampere. The fuse flow value of the
electricity line attached to this should also be 10 ampere. If you have
no such sockets and fuses in your house, let it be made by a qualified
electrician.
•Our company will not be responsible for any damages that may
occur as a result of usage without grounding.
WATER SUPPLY CONNECTION
•Your machine has a single water (cold) inlet.
•To prevent from the leakages on the connection joints, 1 seal is
included in the hose packing.(Fit this seal on the end of the water
inlet hose at the tap side.)
•Connect the end with bracket of the water inlet hose to the water inlet
valve at the rear of the machine and the other end to your tap. In
situations where you are not assured, let a qualified plumber make
the connection works.
•Water pressure of 1-10 bars from your tap will enable your machine
to work more efficiently.(1 bar pressure means water flow of more
than 8 liters in 1 minute from a fully opened tap).
•After connections are completed, check for the non-leakage of the
connection joints by turning on your tap completely.
•Be sure that water inlet hoses are not folded, broken or crushed.
•Mount the water inlet hoses to a 3”/4, geared water tap.
31

Cold water inlet
WATER DRAIN CONNECTION
•Be sure that water inlet hoses are not folded, twisted, crushed or
elongated by stretching.
•Water drain hose should be mounted at a height of minimum 60 cm,
maximum 100 cm from the ground.
•The end of the water drain hose may directly be fitted to the dirty
water outlet hole or a special apparatus mounted on the outlet
bracket of the wash-stand.
•Never attempt to extend the water drain hose by adding extra parts.
32

SECTION 3:TECHNICAL SPECIFICATIONS
WM50T-1
Maximum dry laundry capacity (kg) 5
Recommended loading (kg) 4,5
Height (cm) 85
Width (cm) 59,6
Depth (cm) 51
Maximum spin cycle ( rpm ) 500
(*) Maximum spin cycles depend on the model you’ve chosen
1 2 3
4
5
6
7
1-Upper tray 5-Handle
2-Detergent drawer 6-Filter cover
3-Control panel 7-Kickplate
4-Door
33

SECTION 4:CONTROL PANEL
WM50T-1
1 2 3 4 5 6
7 8 9
1-Detergent drawer 6-Program knob
2-Start/pause light 7-Start/pause button
3-Function indicator lights 8-Function buttons
4-Temperature adjustment knob 9-Program end light
5-Program ready light
34

START/PAUSE BUTTON
Used to start a selected program or pause during running.
WARNING!
It is required for the program knob to be brought to O(off)
position before selecting the program or changing a continuing
program.
FUNCTION INDICATOR LIGHTS
When the start/pause button or any function button is pressed,the
corresponding light turns on.The light turns off when the function
button or start/pause button is re-pressed, or when the process
the selected function is completed.
The function indicator lights are also used in failure detection system
mentioned in section 9.
FUNCTION BUTTONS
No spin
This program is recommended to be used for your sensitive
clothes on which no spinning should be done. By pressing this
function button, you can cancel the spinning process which is
included in the program.
Easy ironing
By using this function, you can ensure your clothes to come out
less wrinkled after the washing.
35

WARNING!
Functions vary depending on the model you have chosen.If you
forgot to use additional function and your machine starts to wash
push the additional function button if the indicator light is on.
Additional function will be activated.If the indicator light is not
on,additional function will not be activated.

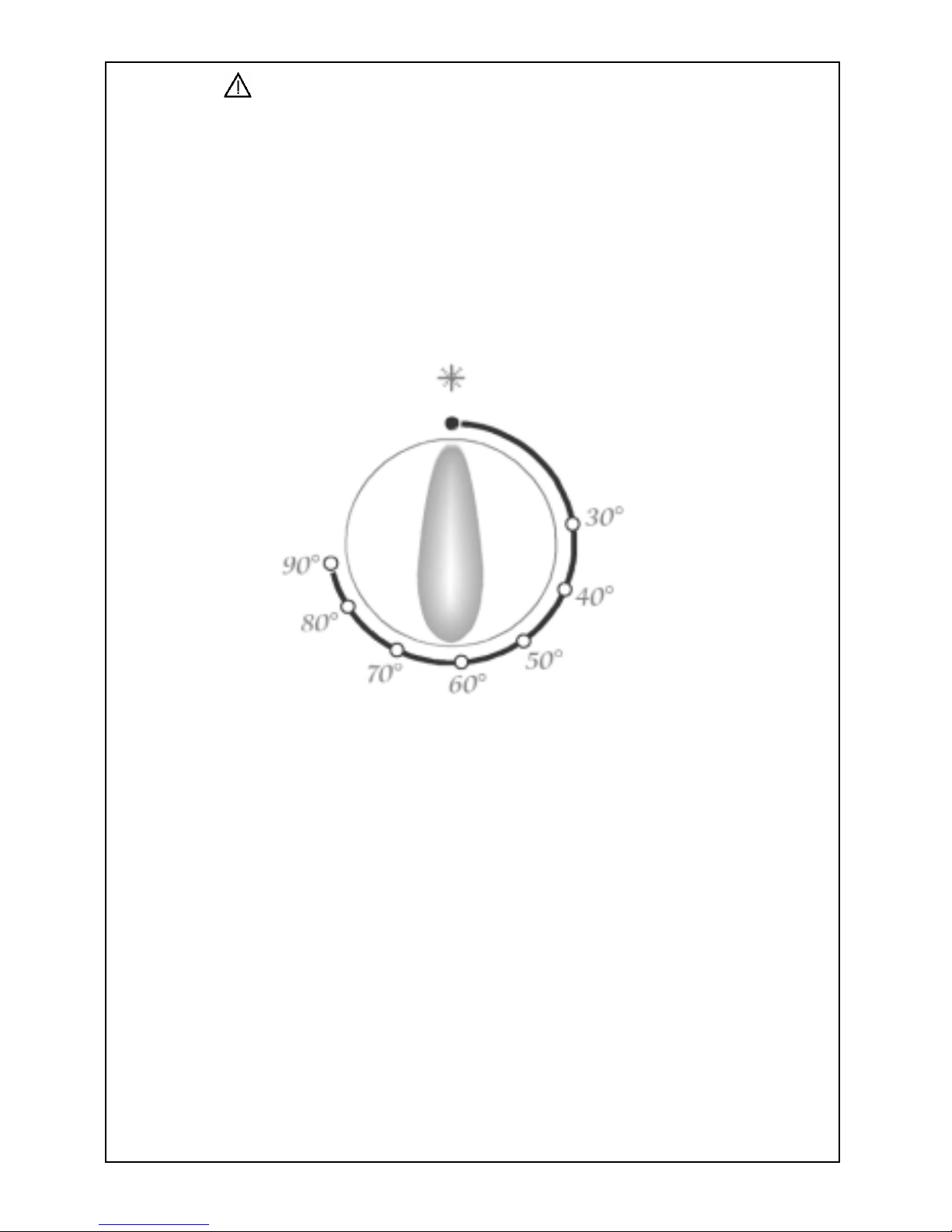

TEMPARATURE ADJUSTMENT KNOB
By the temparature adjustment knob, you can adjust the washing water
temparature of your clothes between O(cold wash) and 90 ˚C. When you are
selecting the washing water temparature, pay attention to the international
washing signs on your clothes.
PROGRAM KNOB
With the program knob, you can select the program with which you desire to
wash your clothes. You can adjust the program selection process by turning
the program knob in both directions. You must be careful that the adjustment
sign of the program knob is exactly on the program you want to select. When
you bring the program knob to O(off) position, while your machine is running,
your program will remain incomplete.
36

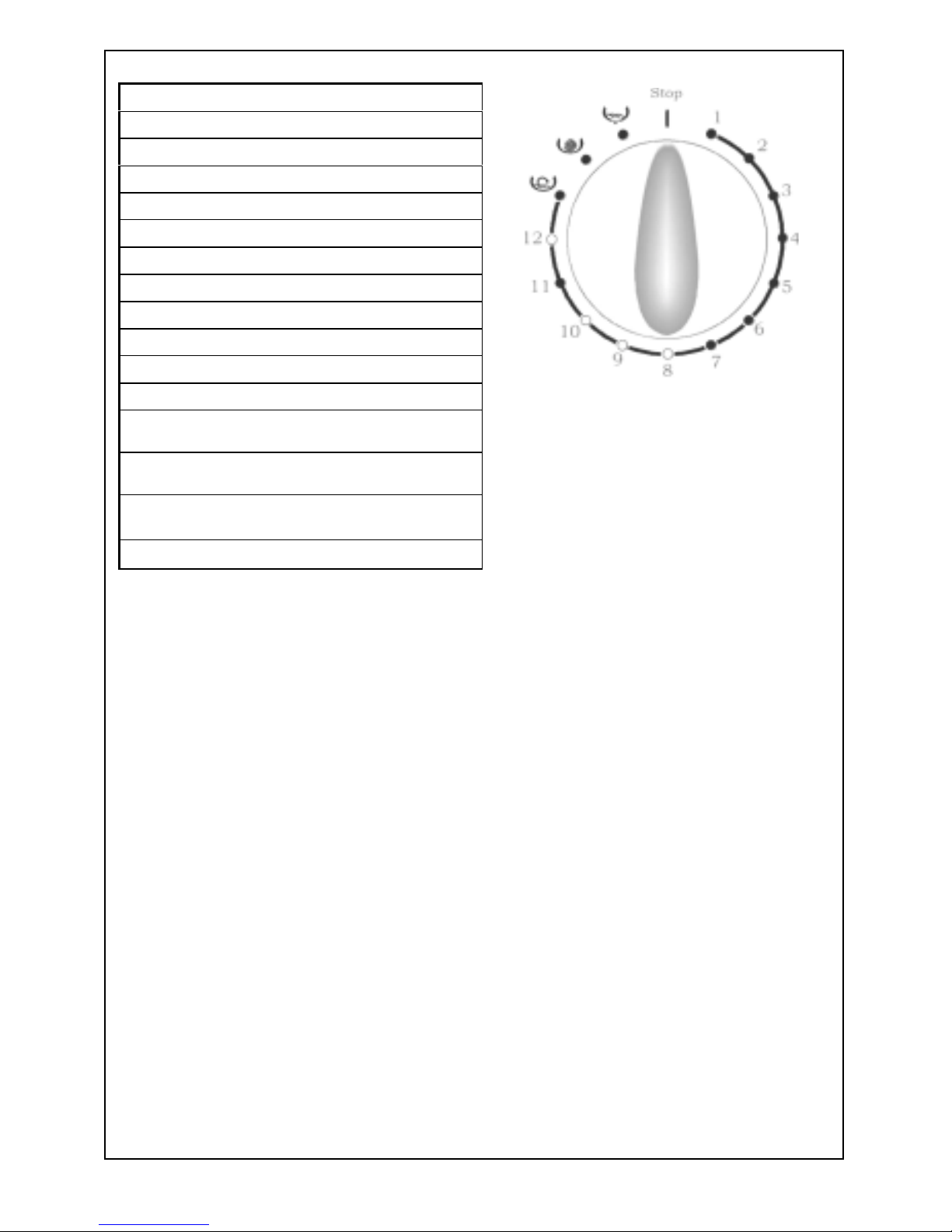

1-Cotton 90°C
2- Cotton 60°C with prewash
3- Cotton 60°C
4- Cotton 40°C
5- Eco wash
6- Quick wash
7- Cotton cold
8- Synthetic 60°C
9- Synthetic 40°C
10- Synthetic cold
11- Delicate 30°C
12- Wool 30°C
Rinsing
Spin
Draining
OFF
SECTION 5: WASHING YOUR LAUNDRY
•Plug the machine.
•Open the tap water.
First wash cycle
There may be water left inside your machine after factory tests and trials.It is
recommended that the first wash cycle should be made without any laundry
so that carry out this water; pour half a measuring cup of normal allpurpose
detergent into compartment 2 and select cotton program at 90°C.
BEFORE WASHING
Discrimination of your laundry
•Discriminate your clothes according to their types (cotton, synthetic,
sensitive, woolen, etc.),washing temperatures and level of dirtiness.
•Never wash your white and coloured clothes together.
•Since your new coloured clothes may shed dye on the first wash,
wash them separately.
•Be careful that no metal pieces are found on or in the pockets of your
clothes, remove if there is any.
•Zip and button your clothes.
•Remove the plastic or metal hooks of the curtains and laces or place
them inside a washing bag and tie.
37

•Pull the textiles like trousers,knitted fabric,t-shirt and sweat shirt
inside out.
•Wash your small clothes like socks and handkerchiefs in a washing
bag.
Wash up tol 90 ˚C Wash up to 60 ˚C Wash up to 30 ˚C Not washable in
washingmachine
Placement of the clothes into the machine
•Open the door of your machine.
•Fill your clothes in your machine in a well-spread manner.
•Place each cloth separately.
•When you shut the door of your machine, be careful that no cloth is
jammed between the cover and the gasket.
•Shut the door of your machine tightly otherwise your machine will not
start the washing process.
Filling detergent in the machine
The quantity of the detergent that you will fill in your machine depends on the
following criteria:
•Your detergent consumption will change according to the dirtiness
level of your clothes. For your slightly dirty clothes, do not pre-wash
and put a small amount of detergent in the compartment no.2 of the
detergent drawer.
•For your excessively dirty clothes, select a program with pre-
washing, fill ¼ portion of the detergent you will put in compartment
1 in the detergent drawer and the remaining portion in compartment
2.
•In your machine,use the detergents developed especially for
automatic washing machines. The quantities that will be used for
your clothes are written on the packing of the detergents.
•As the hardness of your water increases, the amount of the
detergent to be consumed will also increase.
•As the amount of your clothes increases, the amount of the
detergent to be consumed will also increase.
•Fill your softener in the softener compartment in your detergent
drawer. Do not exceed the MAX level. Otherwise, the softener will
diffuse in the washing water via the siphon.
•The softeners with high density should be diluted with some water
before filling in the drawer. That is because the softener with high
density obstructs the siphon and prevents the flow of the softener.
38

•You can use fluid detergents in all programs without pre-washing.
For this, mount the fluid detergent level plate in the second
compartment of the detergent drawer and arrange the amount of
fluid detergent according to the levels on this plate.
RUNNING THE MACHINE
Program selection and features
Select the program and additional functions appropriate for your clothes from
Table-1.
Start/Pause
By pressing this button, you can start the program you have selected or
pause a running program.
Starting the program
•Adjust the program knob to a program you desire.
•The program ready light will be on.
•If you want, you can select one or more additional functions.
•Run the program which you have selected by pressing the
Start/Pause button.
Changing the program
If you have selected a program and you do not want if to continue:
•Press the start/pause button.
•Bring the program knob to O(off) status.
•Adjust the program knob to the program you desire.(You can select
the program that you desire from Table-1).
•The program ready light will be on.
•By pressing the start/pause button, run the program which you have
selected.
Cancellation of the Program
If you desire to end a running program early:
•Press the start/pause button.
•Turn the program knob to O(off) status.
•Turn the program knob to “Draining” or “Spinning” programs.
•The program ready light will be on.
•Run the program you have selected by pressing the start/pause
button.
Program ending
•Your machine will automatically stop when the program you have
selected ends.
•The program end light will be on.
•Turn the program knob to O(off) position.
39

•The door will be unlocked in approximately two minutes after the
program ends.You can open the door by pulling the handle of the
door towards yourself and take out your clothes.
•After you unload your clothes leave the door open to dry the interior
of your machine.
•Unplug your machine.
•Close the water tap.
WARNING!
If the power is off end on again after a while on any stage of the washing
program, your machine will continue the program from the point where it was
interrupted. This is not harmful for your machine.
Child lock
The Child Lock prevents unauthorised changes on the control panel while the
machine is in operation. The child lock will be activated after the start/pause
button on the control panel is pressed for a period longer than 2 seconds. To
inactivate it, you have to press the same button for a period of longer than 2
seconds. At the end of the program, take the program knob to the “0” point for
canceling the “Child Lock” option.
WARNING!
Your machine will inactivate the spin speed selector and function buttons
when the child lock is activated.
SECTION 6: MAINTENANCE AND CLEANING
•Unplug your machine.
•Close the water tap.
WATER INLET FILTERS
On the tap part of your machine’s water inlet hose and at the ends of water
inlet valves, there are filters to prevent entrance of the dirt and foreign
materials in the water to the machine. If the machine is unable to receive
sufficient water although your water tap is opened, these filters should be
cleaned.
40

MAX DRY LOAD
CAPACITY (kg)
PROGRAM DETERGENT
COMPART. ADDITIONAL FUNCTION BUTTON WM50T-1 TYPE OF LAUNDRY EXPLANATIONS
1-COTTON 90˚2 5 Dirty, boil, cotton and linen
textile
2-COTTON 60˚
(PREWASH) 1+2 5 Very dirty, cotton, coloured
and linen textile
3-COTTON 60˚2 5 Dirty, cotton, coloured and
linen textile
4-COTTON 40˚2 5 Slightly dirty, paint to get
out, cotton, coloured and
linen textile
5-ECO
WASH 2 5 Dirty, cotton, coloured and
linen textile
Underwears, sheet,
table cloth, t-shirt,
shirt, towel
6-QUICK WASH 2 2,5 Slightly dirty, cotton,
coloured and linen textile
7-COTTON
COLD 2 5 Slightly dirty cotton,
coloured and linen textile.
Washed without heating the
tap water.
8-SYNTHETIC 60˚2 3 Dirty, synthetic or synthetic
mixture textile Nylon socks, blouse
9-SYNTHETIC 40˚2 3 Slightly dirty, synthetic or
synthetic mixture textile Nylon socks, blouse
10-SYNTHETIC
COLD 2 3 Slightly dirty, synthetic or
synthetic mixture sensitive
laundry.Washed without
heating the tap water.
Nylon socks, blouse
11-DELICATE 30˚2 Slightly dirty, cotton,
coloured, synthetic or
synthetic mixture sensitive
laundry
Silk mixture, shirt,
blouse, polyester,
poliamid, mixture
textile
12-WOOL 30˚2 Dirty, hand and machine to
wash wool laundry All wool laundry
TABLE-1
41

MAX DRY LOAD
CAPACITY (kg)
PROGRAM DETERGENT
COMPART. ADDITIONAL FUNCTION BUTTON WM50T-1 TYPE OF LAUNDRY EXPLANATIONS
RINSING When you need an additional rinsing to be done to your clothes after the washing process, you can use this program for all kinds of clothes.
SPINNING When you need an additional spinning to be done to your clothes after the washing process, you can use this program for all kinds of
clothes.
DRAINING This program is used to drain the dirty water inside after the washing process of your machine. If you want the water inside your machine to
be drained before the program ends, you can use this program.
TABLE-1 CONTINUE
(*) You can use softeners in all programs (except spinning and draining programs) optionally. When you arrange the quantity of the softener, comply with the warning of
the softener producer. Fill your softener in its (softener) compartment of the detergent drawer.
42

•Remove the water inlet hose.
•Remove the filters found on the water inlet valves by using a pincer
and wash thoroughly with a brush.
•Clean the filters of the water inlet hoses located on the tap side by
removing manually together with the seal.
•After you clean the filters, you can fit them the same way as you have
removed.
PUMP FILTER
The pump filter system elongates the life of your pump, which is used to drain
the dirty water. It prevents lint to enter the pump. Cleaning of your pump filter
in every 2-3 months is recommended. To clean your pump filter:
•Remove the kickplate by pushing with your hand upwards from the
lower claws and pulling towards yourself.
•Before opening the filter cover,place a cup in front of the filter cover
to prevent flow of the remaining water in the machine.
•Loosen the filter cover by rotating it counter clockwise and drain the
water.
•Remove the foreign materials from the filter.
•Check for the rotation of the pump manually.
•After you have cleaned the pump, fit the filter cover by rotating
clockwise.
•Fit in the kickplate by holding from the claws and push it.
•Do not forget that if you do not fit in the filter cover properly, it will
leak water.
43

WARNING!
Danger of being scalded!
Since the water inside the pump maybe hot, wait for it to cool.
DETERGENT DRAWER
Detergents may form a sediment in your detergent drawer or in housing of the
detergent drawer in time. To clean the sediment, pull out the detergent drawer
from time to time.To pull out the detergentdrawer:

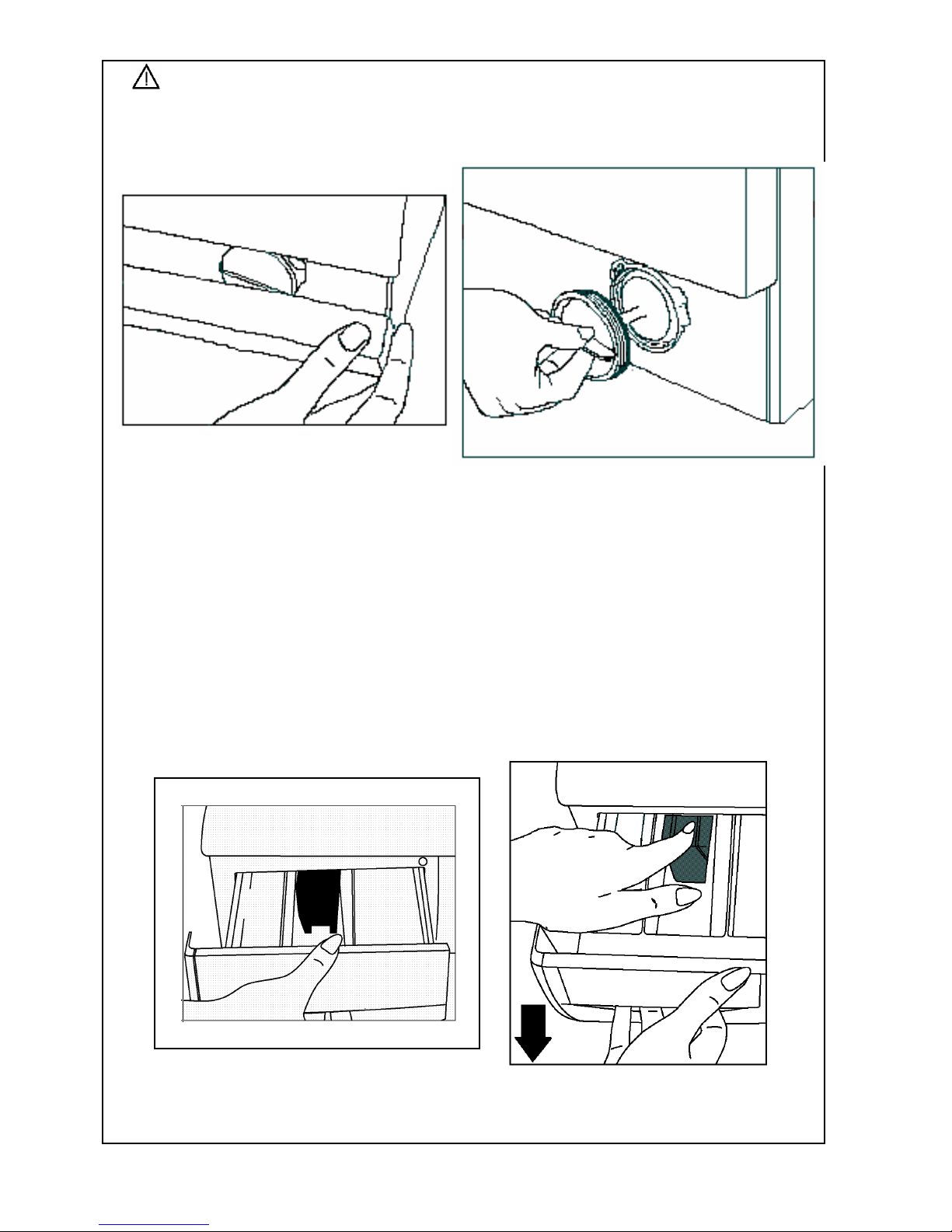

•Pull the detergent drawer to the end.(DIAGRAM-1)
•Lift the front of the drawer, continue to pull until the drawer is pull
out.(DIAGRAM-2)
•Wash will an old toothbrush and excessiveamount of water.
•Take off the leftover detergent avoid to drop into your machine.
•After drying the detergentdrawer put into the housing in the same manner
you pull out.
DIAGRAM-1 DIAGRAM-2
44

SIPHON PLUG
Pull out the detrgent drawer. Remove the siphon plug and clean the residues
of the softener thoroughly. Fit the cleaned siphon plug in its location. Check if
it placed properly.
THE CABINET
Clean the exterior surface of the cabinet of your machine with lukewarm water
and a cleaning substance that will not irritate the cabinet. After rinsing with
clean water, wipe it with a soft and dry cloth.
WARNING!
If the machine is installed in a location where the ambient temperature can fall
below 0 ˚C, do the following when it will not be in use:
•Plug in the machine.
•Close the water tap and pull out the water inlet hose or hoses from
the tap.
•Place the ends of the water drain and water inlet hoses in a cup on
the ground.
•Adjust the program knob to “Draining” program.
•The program ready light will be on.
•Run the program by pressing the start/pause button.
•Unplug your machine when the program is over (program end light is
on).
When you complete these proces, the remaining water inside the machine will
be drained and thus formation of ice in the machine will be prevented. When
you operate your machine again, be sure that the ambient temperature is
above 0 ˚C.
THE DRUM
Do not leave metal parts like needles, staples or coins inside your machine.
These pieces cause formation of rust stains in the drum. To eliminate these
stains of rust, use a cleaning substance without chlorium and follow the
warnings of the cleaning substance producer. For cleaning of the rust stains,
never use dish-washing wires or similar rough objects.
REMOVE OF LIME FROM YOUR MACHINE
If you arrange the amount of the detergent you use in your machine properly,
there will be no need for lime removal. However, if you desire to apply the
removal procedure, use the lime protectors in the market and pay attention to
their warnings.
WARNING!
The lime eliminating substances contain acids and this may cause colour
modifications in your clothes along with an adverse effect on your machine.
45

SECTION 7:PRACTICAL INFORMATION
Alcoholic beverages: The stain point, should first be washed
with cold water, than should be wiped with glycerine and water
and be rinsed with water mixed with vinegar.
Shoe Polish: The stain should be slightly scratched without
ruining the cloth, rubbed with detergent and rinsed. In case it is not
eliminated, it should be rubbed with 1 unit of pure alcohol (96
degrees) mixed in 2 units of water and then washed with
lukewarm water.
Tea and coffee: Stretch the stained area of your cloth on the top
of a container and pour water as hot as the type of your cloth can
endure on it. If the type of your cloth is suitable,wash it with lye.
Chocolate and cocoa: By leaving your clothes in cold water and
rubbing with soap or detergent, wash it in the highest temperature
that the type of your cloth can endure. If there is still a stain of oil
left, wipe with oxygenated water (in proportion of 3%).
Tomato paste:After scraping the dried pieces without ruining the
cloth, leave in cold water for about 30 minutes and wash by
rubbing with detergent.
Meat broth-egg: Eliminate the dried stain residues and wipe with
a sponge or soft cloth wetted in cold water. Rub with detergent
and wash with diluted lye.
Grease and oil stains: First wipe the residues. Rub the stain with
detergent and then wash with lukewarm soapy water.
Mustard: First apply glycerine to the stained area. Rub with
detergent and then wash. If the stain still does not disappear, wipe
with alcohol (On synthetic and coloured cloth, a mixture of 1 unit
alcohol, 2 units water should be used)
Blood stain: Lay your clothes in cold water for 30 minutes. If the
stain still does not disappear, lay in mixture of water and ammonia
(3 table-spoons of ammonia in 4 liters of water)for 30 minutes.
Cream, ice-cream and milk: Lay your clothes in cold water and
rub the stained area with detergent. If the stain has still not
disappeared, apply lye on the fabric of your clothes in proper
proportion.(Do not use lye on coloured clothes.)
46
