ADSL Loop Extender and
ADSL Loop Extender Power Supply
AER800-1P/2P & AEC-B1P
Installation Manual
Version: 004
Please read this
document carefully
before installation!

ADSL Loop Extender Installation Manual Page 1
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
Preface
This manual provides information on how to use this product. To
make the best use of the product, read this manual thoroughly before
use. Please keep this manual handy for ease of reference.
The contents of this document may be changed in the future,
without prior notice.
This booklet was created with thorough attention to the content. If,
however, you have a question, spot an error, or find a description
lacking, please contact us according to the information in the bottom
of the booklet.
All brand names and trademarks are the property of their
respective owners.

ADSL Loop Extender Installation Manual Page 2
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
Contents
1.Unpack............................................................................................ 3
2.Technical Features .......................................................................... 3
3.Installation Environment................................................................. 4
4.Installation Steps............................................................................. 6
5.Troubleshooting.............................................................................11
6.Techical Assistance & Customer ServiceError! Bookmark not defined.
Abbreviations
CO Center Office
CPE Customer Point Equipment
DSLAM Digital subscriber line access multiplexer

ADSL Loop Extender Installation Manual Page 3
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
1.Unpack
Unpack equipment carefully; check for completeness against the purchase order.
Notify supplier if items are missing.
Note: Save packing material. All equipment returned must be packed in the
original packing material.
Inspect equipment for shipping damage, including bent or loose hardware, and
broken connectors.
If equipment was damaged in transit, contact supplier.
Product list
AER800-1P/AER800-2P, one
AEC-B1P, one
Ф6mm×30mm nut, one
2.Technical Features
Table 1 –Technical Specifications of AER800-1P/2P
Input Voltage
Powered by ADSL Loop Extender Power Supply
Power Consumption
AER800-1P
1.3W
AER800-2P
2.6W
Operating Environment
Temperature
-35℃~+50℃
Relative Humidity
5%~95% (Non-condensing)
Number of supported users
AER800-1P
1 ADSL subscriber
AER800-2P
2 ADSL subscribers
Table 2 - Technical Specifications of AEC-B1P

ADSL Loop Extender Installation Manual Page 4
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
Operating Environment
Temperature
-35℃~+50℃
Relative Humidity
5%~95% (Non-condensing)
Input Voltage
AC 110V or AC220V
or DC -48V
Output Voltage
DC 116V
Output Current
Less than 50mA
Fuse Rating
0.5A
3.Installation Environment
1) the actual lines connecting of equipment

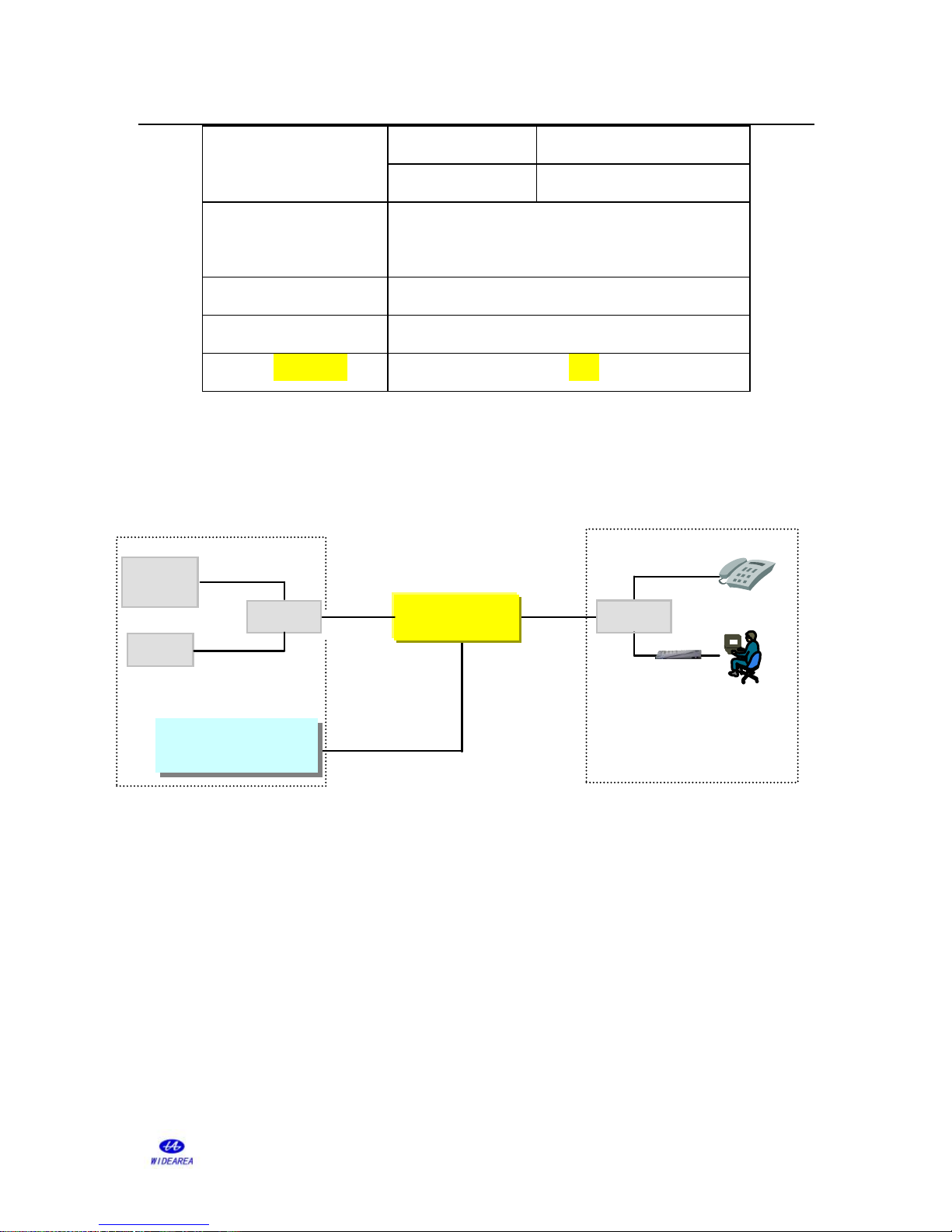

Figure 1 actual lines connecting
L1: The signal twist pair connecting ADSL Loop Extender to DSLAM.
L2: The signal twist pair connecting ADSL Loop Extender to Modem.
L3: The power twist pair connecting ADSL Loop Extender to power supply.
2) Ensure the upstream/downstream rate is no less than 128kbps/512kbps.
3) resistance and distance demand
Modem
CPE
L2
ADSL+PO
TS
ADS
L
L
3
Power supply
L1
ADSL+PO
TS
ADSL Loop Extender
Power Supply
DSL
AM
switch
splitter
POT
S
ADS
L
CO
ADSL
Loop Extender
splitter

ADSL Loop Extender Installation Manual Page 5
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
Figure 2 lines connecting sketch map
The recommended installation conditions are as follows.
①26 AWG twist pair
The demand about resistance and distance is as follows:
Route
Loop resistance
demand Ohms
(Min.-Max.)
distance demand
(Min.-Max.)
kfeet
km
L1(CO-Extender)
450-1260
5.0-13.0
1.5-4.0
L2(Extender-CPE)
200-900
2.0-9.5
0.5-3.0
L(CO-Extender-CPE)
800-1600
6.5-22.5
2.0-7.0
②24 AWG twist pair
The demand about resistance and distance is as follows:
Route
Loop resistance
demand Ohms
(Min.-Max.)
distance demand
(Min.-Max.)
kfeet
km
L1(CO-Extender)
270-1050
5.0-20.0
1.5-6.0
L2(Extender-CPE)
170-1050
3.0-20.0
0.9-6.0
L(CO-Extender-CPE)
550-1550
10.0-29.0
3.0-8.5
If the loop resistance between Extender and Modem is lower than the demand
value, the LA800 which you could choose and buy from our company can be
CO
CPE
ADSL Loop Extender
L

ADSL Loop Extender Installation Manual Page 6
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
added to increase loop resistance. The option LA800 is to be installed
between splitter and Modem when used on a line with analog voice. Here is
the application of LA800 below:
Figure 3 the application of LA800
4.Installation Steps
The AER800-4P is deployed with AEC-B1P. Commonly, the ADSL Loop
Extender is installed in the junction cabinet, or on the pole at the middle locality.
The Power Supply is installed either at CO or at CPE with remote supply. The
details about ADSL Loop Extender and Power Supply installation are as follows:
4.1 Install the Power Supply for ADSL Loop Extender(AEC-B1P)
1) the actual lines connecting of equipment
Modem
copper line
ADSL+POTS
ADSL
copper line
power supply
copper line
ADSL+POTS
DSLAM
switch
splitter
ADSL
ADSL
splitter
POTS
ADSL
Loop Extender
ADSL Loop Extender
Power Supply
POTS
ADSL
LA800
Modem
B CPE
L2
ADSL+PO
TS
ADS
L
Power Supply
L1
ADSL+PO
TS
ADSL Loop Extender
Power Supply
DSL
AM
switch
splitter
POT
S
ADS
L
A CO
ADSL
Loop Extender
splitter
ADSL Loop Extender
Power Supply
Power Supply

ADSL Loop Extender Installation Manual Page 7
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
Figure 4 A or B way remote power supply
Generally , the Power Supply can be installed either at CO or at CPE with remote
supply, just as the follow Fig5. In the way of A or B, AC110V,AC220V or
DC48V can be selected, and two Spare copper pairs are needed for deliver the
output voltage to ADSL Loop Extender.
Connect tails

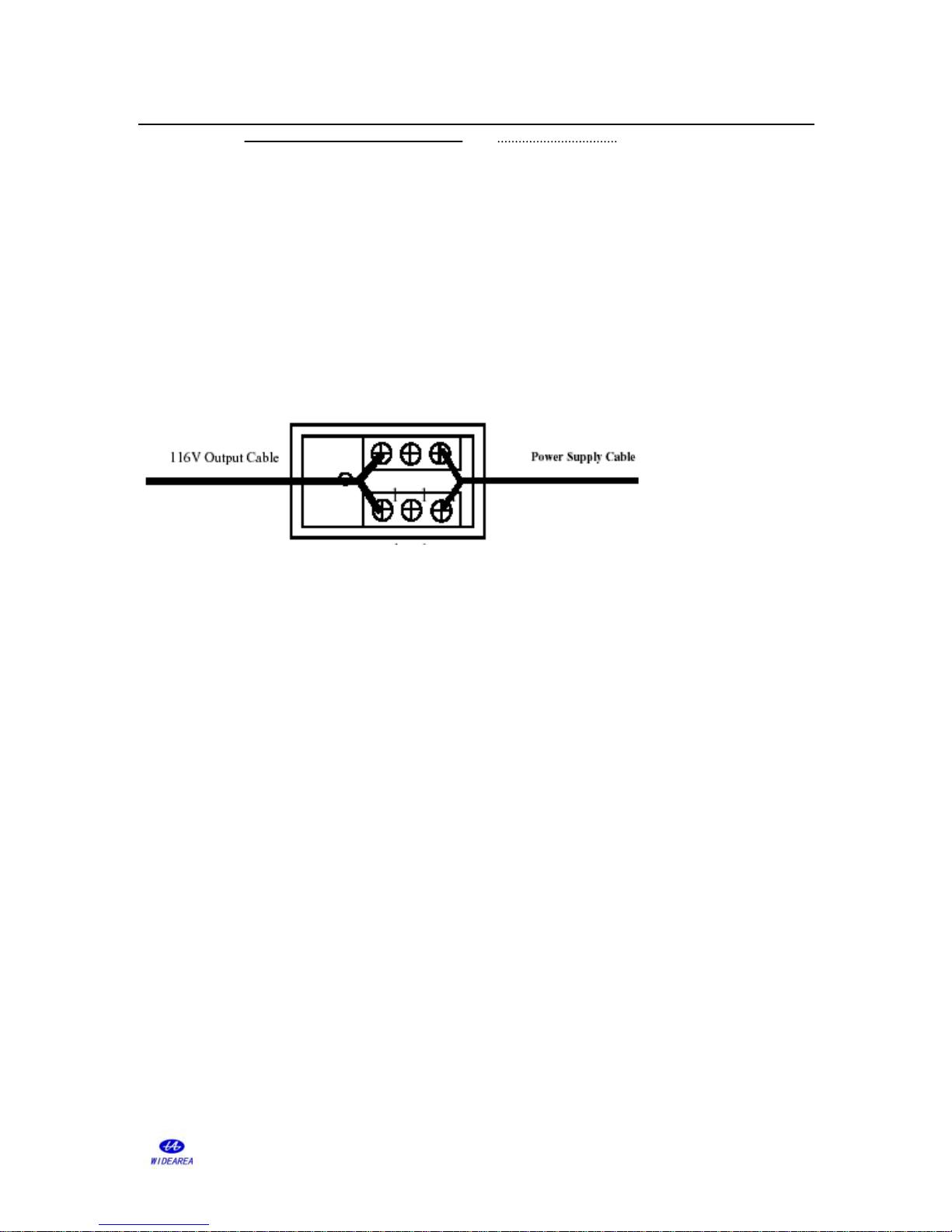

Figure5 AEC-B1P Connector Wiring Diagram
Three-core power cord without plug: used for DC48V power input, no polarity.
Three-core power cord with plug: used for AC110-240V power input.
Power output: 155V power output cable which is already connected to the
terminal in wiring box by factory.
Protection ground: Black protection ground wire should be connected to the
protection ground terminals.
○
1Connect the power supply tail(L3)
There is an additional copper pair which powering the ADSL Loop Extender.
Now, the supply voltage from wiring box will go through an additional copper
pair and into the ADSL Loop Extender directly.
The detail way is as follows:
The Power Supply is installed in the cabinet, and the power supply cable connect
L
3
L
3

ADSL Loop Extender Installation Manual Page 8
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
with an separate copper twist pair, at the placement of ADSL Loop Extender, the
ADSL Loop Extender’blue/white lines connect with the same copper wire pair.
For one thing, the cable pair must be free of DC type faults. All shorts, grounds,
cross, battery-crosses, and open cable pairs must be identified and repaired.
②Ground
Connect the Power Supply equipment’s ground to CO’s grounding terminal
directly.
③Connect power cord
The supplied accessories include power cord for AC 110V、AC220V or DC 48V.
Connect it to the AC 110V、AC220V or DC 48V power source with good
connection. To easy the installation, DC power source connection is no polarized.
After power supply is connected, the power indicator should be solid on. Flashing
indicator indicates short circuits or over-current alarm condition.
Attention: ADSL Loop Extender’s Power Supply should NOT be turned on
until the ADSL Loop Extender installation is finished.
4.2 Place the ADSL Loop Extender
①ADSL Loop Extender can be placed in the junction cabinet if there is inner
room available. Or ADSL Loop Extender can be mounted in the box through
supplied mounting brackets.
Attention: Copper-core wire with no less than 1.5mm2 section area is
required as ground wire. One end of the wire should connect to Loop

ADSL Loop Extender Installation Manual Page 9
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
Extender’s ground terminal. The other end of the wire should connect to a
good grounding point.

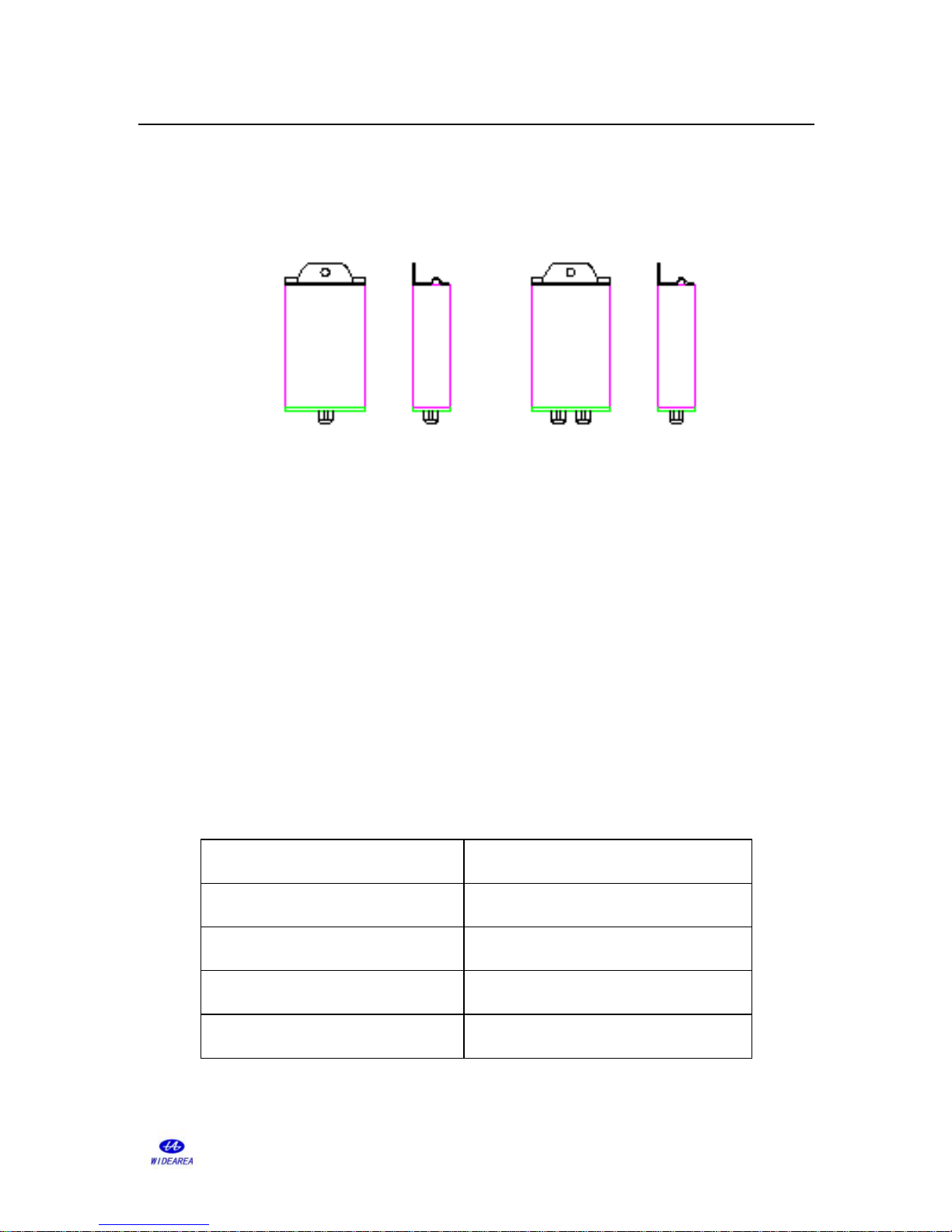

Figure 6 AER800-1P/2P installing Outdoors
Just as the structure above, the ADSL Loop Extender is fixed in the wire rope or
in the wall with a fixity.
②Connect the cables
Wiring sockets on front panel for DSLAM and Modem side signal
wiring and power supply wiring. Metal bolt on front panel for ground
connection.
Table 4 - Twist-wires Connection Description of AER800-1P
Color
Connection
Blue/White
Remote PWR
Orange/White
to DSLAM
Green/White
to Modem
Brown/White
unused

ADSL Loop Extender Installation Manual Page 10
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
CAUTION: MUST BE GROUNDED RELIABLY.
Table 5 - Twist-wires Connection Description of AER800-2P
CAUTION:MUST BE GROUNDED RELIABLY.
After power on, the “STATUS”LED should be lightened in a few seconds and
remain on during normal system operation.
③Power up
After confirming that all the twist-pair cables are connected correctly and
enclosure is securely installed, power up the system. The ADSL Loop Extender
will work in 20 seconds after power is supplied stead
Attention:
a) “A” and “B” represent A and B wire of the twist-pair. No polarity.
b) Before power up the system, please make sure all the connections are
correct.
c) When the power supply wire is active, do NOT operate the A and B
wire of the supply pair simultaneously. The A wire and B wire should
be isolated.
Cable II
Cable I
Color
Connection
Color
Connection
Blue/White
unused
Blue/White
Remote PWR
Orange/White
to DSLAM.
Orange/White
to DSLAM.
Green/White
to Modem.
Green/White
to Modem.
Brown/White
unused
Brown/White
unused

ADSL Loop Extender Installation Manual Page 11
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
5.Troubleshooting
If the ADSL Loop Extender can’t work well, please compare to the Table5
and Table6 to find out the problems.
Table 6 AEC-B1P Troubleshooting
Problem Description
Possible Reason
Suggested Resolution
Equipment does not work
after power-up. Status
LED is OFF.
Power supply cable is
not correctly
connected.
Check power supply cable connection.
Power indicator flashes.
Power output
circuitry fails.
Check whether the connection is shorted.
Or check whether the connection between
Extender and Modem is OK.
Output is OK but the
Extender does not work.
Power output cable
connection is error or
short.
Correct the power output connection or
check cable. Or check whether the
distance between DSLAM, Extender,
Modem is proper.

ADSL Loop Extender Installation Manual Page 12
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
Table 7 ADSL Loop Extender Troubleshooting
Problem Description
Possible Reason
Suggested Resolution
Extender does not work
after power-up. Status LED
is OFF.
Power supply cable is not
connected properly.
Check power supply and
power cable.
No
connection
Status LED
is always
on.
Cables at DSLAM side or
Modem side are not connected
properly.
Correct the cable connection.
Line quality is worse between
CO and CPE side.
Change good quality cable.
There is telephone before the
splitter on CPE side.
Discard the telephone before
the splitter on CPE side.
Status LED
flashes.
Cables linked ADSL Loop
Extender are not connected
properly.
Correct the cable connection.
Or check whether the distance
between DSLAM, Extender,
Modem is proper.
There is noise in user’s
telephone
Cable is connected to ground
or the insulation is not good
caused by men during the
construction process.
Check the cables.
Cable is too near to some
electric equipments with strong
magnetic field, such as high
Make cable far from the strong
magnetic field.

ADSL Loop Extender Installation Manual Page 13
This publication may not be reproduced in whole or in part without the express written permission
of Widearea. Tel:8628-84207501 8628-84207506
power sounder, selenium
rectifier and high power motor.
Internet is slow, frequent
off-line problem
Affection of computer
hardware failures, system
failures and virus.
Check computer or take with
PC, testers and so on to deal
with.
The parallel cable at CPE side
is too long or the connector is
oxidation.
It is better to change the
parallel cable to copper twist
cable.
The cable to CPE side is
connected with too many
connectors.
Avoid exposed connectors, use
good quality cable instead
scattered connectors.
This manual suits for next models
1
Table of contents
Other Widearea Telecommunication Extender manuals
