Wideye SABRE I User manual

Table of Contents
Prefixs............................................................................................................................................1-3
Chapter 1 Product Overview
1.1 Key Features...................................................................................................................5
1.2 Unpacking....................................................................................................................5-6
1.3 Contents of Product CD...............................................................................................7
1.4 System Requirement................................................................................................7-8
Chapter 2 Getting To Know The SABRETM I
2.1 The SABRE™ I................................................................................................................8
2.2 Icons Used On The Display...................................................................................9-10
2.3 Input Methods............................................................................................................11
Chapter 3 Setting Up The SABRETM I
3.1 Inserting The SIM Card............................................................................,,......12
3.2 Installing The Battery.......................................................................................12
3.3 Charging The Battery..........................................................................................12
3.4 Powering Up And Registering To Network..............................................13-14
3.5 Connection Diagram..........................................................................................15

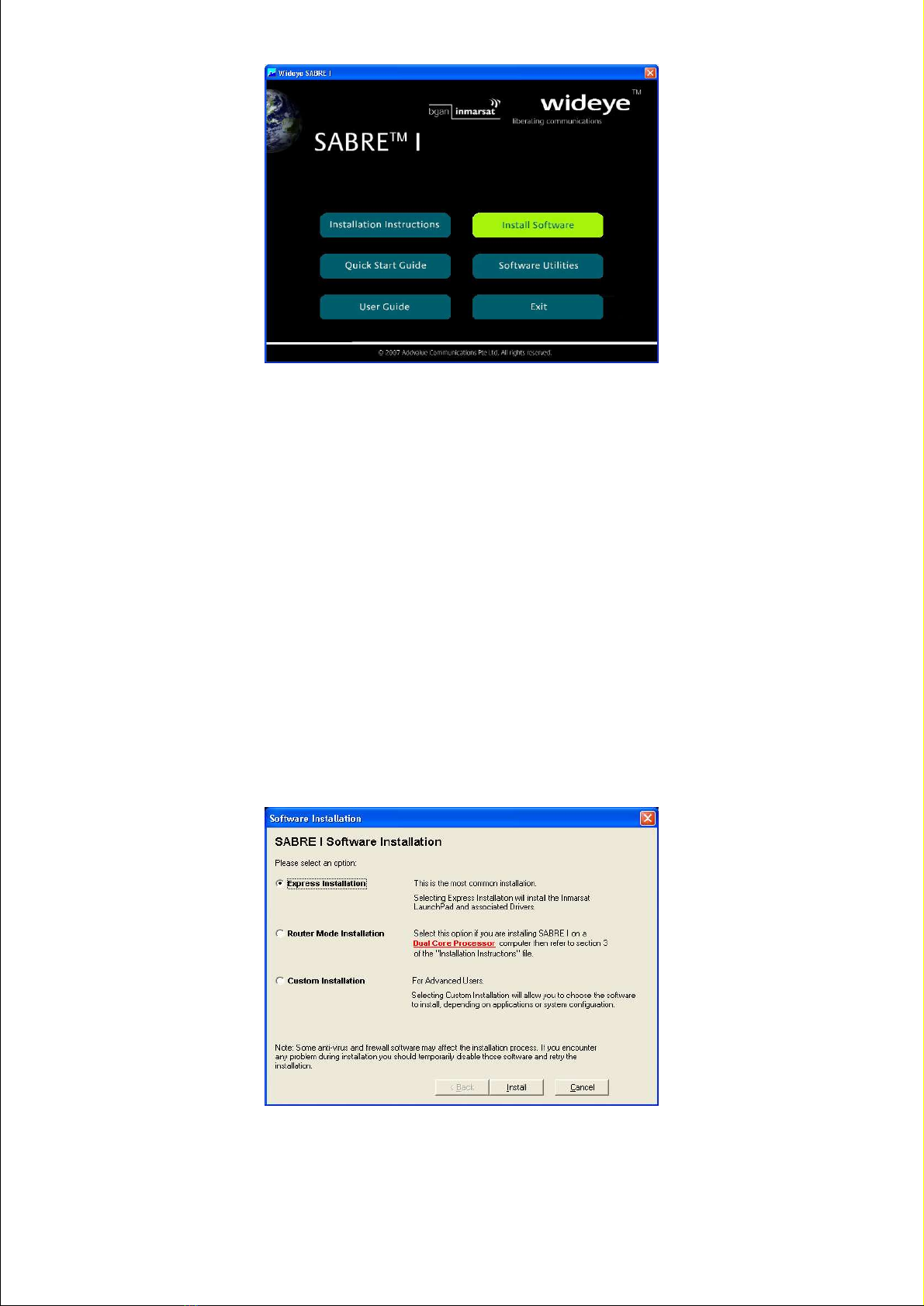

3.6 Installation of Drivers and Applications on PC.......................................16-21
3.7 SABRE™ I Software Utilities.......................................................................22-27
3.8 DUN Client Installation..............................................................................27-30
(Optional if using Launchpad)-Window XP
3.9 DUN Client Installation...............................................................................30-32
(Optional if using Launchpad)-Window 2000
Chapter 4 Using The SABRETM I
4.1 Call Functions...................................................................................................34
4.2 Call Register.....................................................................................................34
4.3 Bluetooth Settings on SABRE™ I...............................................................35-36
4.4 Using Wireless Devices with SABRE™ I....................................................37-38
4.5 Configuring the SABRE™ I for Network Access.......................................38-41
(via built in LCD Interface)-(Configuring for standard connection)
4.6 Settings........................................................................................................42-46
4.7 Firmware Upgrade.....................................................................................47-48

Appendix 1
Technical Specifications........................................................49-50
Appendix 2
The BGAN System.........................................................................52
Appendix 3
SABRE™ I LCD Menu Tree Flow Chart...................................53-60
Appendix 4
Accessories..............................................................................61-62
Appendix 5
Accessory User Guide.............................................................63-68
Appendix 6
Voice Mail Access.............................................................................69
Appendix 7
Troubleshooting Guide...........................................................70-71
Table of Contents
DNS setting Dynamic
Static
LCD display
“Settings saved”
Primary
DNS IP

FCC Identifier: QY9-SABRE1WE
USE CONDITIONS:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two Conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT NOTE :
EXPOSURE TO RADIO FREQUENCY RADIATION
This Device complies with FCC & IC radiation exposure limits set forth for an uncontrolled environment. The Antenna
used for this transmitter must be installed to provide a separation distance of atleast 100cm from all persons and
must not be co-located or operating in conjunction with any other antenna or transmitter
FCC CAUTION: Any Changes or modifications not expressly approved by the manufacturer could void the user's
authority, which is granted by FCC , to operate this satellite terminal Wideye SABRE I
Prefix
IC Identifier : 5023A-SABRE1WE
This device complies with Radio standard specification RSS –210 & RSS –170 of Industry Canada Rules. Operation
is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE :
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This antenna
used for this transmitter must be installed to provide a separation distance of at least 100cm from all persons and
must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada Statement:
Federal Communication Commission Notice
01

Addvalue Communications Pte Ltd, 190 Changi Road , #02-02 MDIS Building ,Singapore-419974 declares under
our sole responsibility that the Product, brand name as Wideye and model : SABRE I (Satellite Broadband Communicator)
a GMPCS Terminal to which this declaration relates, is in conformity with the following standards and/or other
normative documents:
ETSI EN 301 681, ETSI EN 301 489-1, ETSI EN 301 489-17, ETSI EN 301 489-20, ETSI EN 300 328, EN 50385, EN 50371 ,
IEC 60950-1 AND EN 60950-1, ITU-R M.1480
We hereby declare that all essential radio test suite have been carried out and that the above named product is
in conformity to all the essential requirements of Directive 1999/5/EC.
The Conformity Assessment procedure referred to Article 10 and detailed in Annex [III] or [IV] of Directive 1999/5/EC
has been followed with involvement of the following notified body(ies):
TIMCO ENGINEERING,INC. , P.O BOX 370,NEW BERRY ,FLORIDA 32669.
Identification mark: 1177 (Notified Body number)
The technical documentation relevant to the above equipment wil be held at :
• Addvalue Communications Pte Ltd, 190 Changi road,#02-02 MDIS Building, Singapore-419974.
• Signed by Tan Khai Pang ( Chief Technology Officer, March 27, 2007) and Prabakar Kuttaniseeri ( Assistant
Manager-Quality Engineering, March 27, 2007).
Safety Summary
Keep Away from Active Antenna Front
This device emits radio frequency energy when in transmit mode.
To avoid injury, keep a minimum safety distance of 1meter from
the antenna front. See also the below section Antenna Safety Instructions.
The following general safety precautions must be observed during all phases of operation, service and repair of
this equipment.
Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards
of design, manufacture and intended use of the equipment.
Addvalue assume no liability for the customer's failure to comply with these requirements.
Do Not Operate in an Explosive Atmosphere
Do not operate the equipment in the presence of flammable gases or fumes.
Operation of any electrical equipment in such an environment constitutes a definite safety hazard.
Keep Away from Live Circuits
Operating personnel must not remove equipment covers. Component replacement and internal adjustment must
be made by qualified maintenance personnel. Do not replace components with the power cable connected.Under
certain conditions, dangerous voltages may exist even with the powercable removed. To avoid injuries, always
disconnect power and discharge circuits before touching them.
Do Not Service Alone
Do not attempt internal service or adjustments unless another person, capable of rendering first aid resuscitation,
is present.
Do Not Substitute Parts or Modify Equipment
Because of the danger of introducing additional hazards, do not substitute parts or perform any unauthorized
modification to the equipment.
Declaration of Conformity:
02

CAUTION
Risk of Explosion if Battery is Replaced by an Incorrect Type.
Dispose of Used Batteries According to the Instructions.
Radiation Warning
High levels of radio frequency radiation are considered health hazardous. Although no single value of “ safe radiation
level “ has been agreed upon by all countries ,the American National Standards Institute ( ANSI/LEEE C 95.1-1992)
recommends that people should not exposed to radiation stronger than 1 milliwatt per square centimeterat the
frequencies used in the Addvalue’s Wideye SABRE I terminal. Accordingly ,the operator of the terminal should
ensure that the area extending 1meter from the Front of the antenna be kept clear of personnel when the terminal
is transmitting.
The antenna is built-in within SABRE™ I. You, as the qualified end-user of this radio device must control the exposure
conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna
and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the
requirements of Occupational/Controlled Exposure Environment, for work-related use. Transmit only when person(s)
are at least the minimum distance from the front face of the antenna.
WARNING! Maintain a separation distance from the antenna to a person(s) of at least 100 cm.
OBTAINING LICENSING FOR INMARSAT TERMINALS
Under rights given under ITU Radio Regulations, local telecommunications administrations establish and enforce
national rules and regulations governing types of emissions, power levels, and other parameters that affect the
purity of signal, which may be radiated in the various frequency bands of the radio spectrum.
To legally operate an Inmarsat terminal , it is necessary to obtain permission from the local telecommunications
regulatory authorities of the country you are oerating ith in. using your terminal in any country without permission
causes you to run the risk of confiscation of the terminal or legal authorities. Normal proactice for taking
telecommunications into another country is to apply for a license before travel.If a license has not been obtained
before travel, the equipment may be put in to storage by local authorities until such time license is obtained.
Release date: 28th February 2007
Information in this document is subject to change without notice and does not represent a commitment on the
part of Addvalue Communications Pte Ltd
Copyright
© 2007 Addvalue Communications Pte Ltd All rights reserved.
Addvalue Communications Pte Ltd
190 Changi Road
#02-02 MDIS Building Singapore 419974
T: [phone]
F: [phone]
www.wideye.com.sg
Antenna Safety Instructions 2
Antenna Minimum Safe Distance: 100 cm
Batteries and Accessories
Use Addvalue approved batteries and accessories only. Use of non-approved batteries and accessories may result
in loss of performance, damage to Satellite Terminal, explosion, fire, electrical shock or injury.
03

SABRE™ I is a satellite broadband modem
that is designed for portable use. It utilizes
the Inmarsat-4 satellite to provide virtual
global coverage for voice and data services.
The SABRE™ I is equipped with an integrated
Bluetooth access point plus Ethernet and
RJ11 Corded Analog Handset ports,
delivering voice and data services through
different choices of interfaces.
1Product Overview
Configuration Interface
The user may configure SABRE™ I via several different configuration interfaces:
1) Inmarsat LaunchPad,
2) the Web Console (not available in this release),
3) the build in Front panel LCD
4) the optional BT Handset (not available in this release).
While LaunchPad and Web Console (not available in this release) provide full configuration and setup functions
over the computer screen, the built-in, front panel LCD user interface and the BT Handset support mandatory
functions on an LCD that is built into SABRE™ I and BT Handset respectively.
Ethernet
The Ethernet interface of SABRE™ I supports two operating modes, the Bridge Mode and the Router Mode.
In Bridge Mode, the user is required to configure the computer with account information and to perform
Bridge Mode authentication using dial-up networking. In Router Mode, the user uses standard TCP/IP over
Ethernet to connect to the Internet.
Bluetooth
Ethernet
RJ11
Yes
Yes
No
Yes
Yes
Yes
Data Service Voice Service
Bluetooth Access Point
SABRE™ I is integrated with a Class 1 Bluetooth Access Point, supporting Bluetooth devices within up to 100
meters in range. The user may pair SABRE™ I with optional Bluetooth Headset, Handset or Data Dongle for
wireless connectivity.
RJ11 Corded Analog Handset
With the support for external analog phone, the user can easily connect the prescribed Wideye Corded
Analog Handset (with Complex Impedance – ETSI EG201 188) to SABRE™ I for making a voice call. It is simple
and straightforward.
CAUTION
While the Router Mode provides convenience to connect to the Internet, it is important for the user to be aware that
the last terminal that is configured with Router Mode would allow any user to connect to the Internet via the Ethernet
port and airtime would be consumed in the owner’s account.
04

I.
II.
III.
IV.
V.
VI.
VII.
VII.
IX.
X.
1.1 Key Features
When unpack the following items should be in the package. If any of the items are missing from the package,
please contact your reseller from whom you purchased the equipment.
Package Contents:
1.2 Unpacking
Simultaneous voice & data communications
Data rate of up to 384 kbps
Built-in Ethernet, Bluetooth and RJ11 interfaces
Supports voice, email, messaging, VPN, FTP, VoIP, FoIP and video media streaming
Designed for the non-technical user
Swiveled antenna mount which facilitates easy pointing
Built-in menu driven graphical user interface for use without a laptopa
Supplied with a support kit – primary battery, communication cables (RJ 11, RJ 45), power
cord and power adapter.
Light weight, robust and reliable
Wide range of accessories to meet your needs.
1.
2.
3.
4.
5.
6.
1
1
1
1
1
1
Description QuantityIndex
SABRE™ I Main Unit
Primary Battery Pack
IP54-compliant 6P4C RJ11
Telephone Cord (1.8m)
IP54-compliant 8P4C RJ45
Cat.5 Network Cable (1.5m)
AC/DC Power Adapter
2-pin Euro-type Power Cord
05

SABRETM I
Product CD
Rev 1.0
w w w . w i d e y e . c o m . s g
SABRETM I
Product CD
w w w . w i d e y e . c o m . s g
©2006Addvalue Communications Pte Ltd. All rights reserved.
ThisCD may contain unintended erros or omission and is subject to change without notice. It is provided as is and without any
expressedor implied warranties, including merchandability, fitness for a particular purpose and non-infingement. Addvalue shall
notbe liable for any special, indirect, incidental or consequential damage as a result of its use.
Addvalue.Addvalue Enabled logo, Wideye and Wideye logo are trademarks or registered trademarks of Addvalue Communications
PteLtd in Singapore and other countries. Inmarsat and Via Inmarsat logos are registered trademarks of Inmarsat Global Limited
inUnited Kingdom and other countries, and are used by Addvalue Communications Pte Ltd under license. Microsoft, Windows
andWindows logos are the registered trademarks of Microsoft Inc. Other marks and trademarks are the properties of their respective
owners.
7.
8.
9.
10.
1
1
1
1
2-pin US-type Power Cord
3-pin UK-type Power Cord
Product CD (inclusive of drivers,
LaunchPad & all documentations)
Quick Start Guide (printed)
I.
II.
III.
IV.
The SABRE™ I product CD comes with the following contents:
SABRE™ I Serial/Ethernet device driver
Inmarsat® LaunchPad Application
SABRE™ I User Manual
SABRE™ I Quick Start Guide
1.3 Contents of Product Cd
1.4 System Requirement
For data connection using computer for Bridge Mode:
a) You must have a desktop or laptop computer running one of the following operating systems:
i. Microsoft® Windows® 2000.
ii. Microsoft® Windows® XP.
b) Your computer must be installed with one of the following web browsers:
i. JAVA-enabled Internet Explorer 6.0 or above.
ii. JAVA-enabled Netscape Navigator 6.0 or above.
c) Your computer must support one of the following interfaces:
i. RJ45 Ethernet.
ii. USB Interface (for Recommended Bluetooth Dongle).
For data connection using standard TCP/IP over Ethernet (Router Mode):
a) You must have a desktop or laptop computer with an Ethernet interface, running one of the
following operating systems:
i. Microsoft® Windows® 95/98/98SE/ME/NT/2000/XP.
ii. Mac OS® 10.1 or above.
iii.Linux with TCP/IP properly configured.
I.
II.
06

b) Your computer must be installed with one of the following web browsers:
i. JAVA-enabled Internet Explorer 6.0 or above.
ii. JAVA-enabled Netscape Navigator 6.0 or above.
The following interfaces could be used for making a voice call:
a) A Corded Analog Handset, or
b) Bluetooth Handset supporting cordless telephone profile (CTP), or
c) Bluetooth Headset.
III.
07

08

A text showing the name of the BGAN service provider.
A Soft Menu icon to allow for user to browse the
SABRE™ I Menu Tree.
A Soft Menu icon to allow for user to browse the
SABRE™ I Phone Book.
An animated icon to show the status of the Battery.
An icon to show that the Primary Battery of the
SABRE™ I is undergoing charging while the SABRE™ I
is operational.
An animated icon to show the Primary Battery power
of the SABRE™ I.
An animated icon to show the External Battery power
level of the SABRE™ I.
An icon to show that the Primary Battery of the
SABRE™ I has completed charging while the SABRE™ I
is non-operational (switched off).
An icon to show that the Primary Battery of the SABRE™ I
is undergoing charging while the SABRE™ I is
non-operational (switched off).
An animated icon to show the status of spot beam
reception.
An icon to show the status of Bluetooth I/F of SABRE™ I.
This icon shows that Bluetooth is currently enabled.
An icon to show the status of Short Message(SMS).
This icon shows that new SMS has been received.
An icon to show the status of PS services. This icon
shows that PS service is attached.
An icon to show the status of the Tones. This icon
shows all tones are currently disabled.
2.2 Icons Used On The Display
[Service Provider Name]
DescriptionIcon/Text Object
09

An icon to show Ethernet service is currently enabled.
An icon to show that the Ethernet physical connection
is disconnected with the SABRE™ I.
An icon to show that a call is initiated or still in
progress on the SABRE™ I.
An icon to show that the SABRE™ I is receiving power
from the mains.
An icon to show that ciphering has been enabled on
the SABRE™ I.
An icon indicating the location of one of the three
Satellites.
An icon indicating the location of one of the three
Satellites.
An icon indicating the location of one of the three
Satellites.
An icon to show that the PSTN Corded Telephony
feature on the SABRE™ I has been disabled.
An icon to represent the Call feature in the Phone
Book on the SABRE™ I.
An icon to represent the Delete feature in the Phone
Book on the SABRE™ I.
An icon to show that the SABRE™ I is currently using
the New GPS coordinates.
An icon to show that the SABRE™ I is currently using
the Stored GPS coordinates.
An icon to show that the Call has been placed on hold
in the SABRE™ I.
An icon to show that packet switching is active on the
SABRE™ I.
An icon to indicate that the temperature of the
SABRE™ I is too high.
TABLE 2.2-1: Table showing the list of Icons that are used in the LCD display.
10

2.3 Input Methods
Set of Numbers and Special Letters that could be used by the on-board built-in user interface.
TABLE 2.3-1: Table showing the available characters that could be used by the on board
built in user interface.
Use the “Up” and “Down” Arrow buttons on the keypad to scroll up and down for the particular number or
special letter.
When the particular number or special letter has been found, the user presses the ENTER button to confirm.
When “Bs” is selected, the cursor will backspace to the previous location.
Number from 0 to 9
Full Stop
Confirm
Back space
0 to 9
.
OK
Bs
11

Note:
It takes approximately 3 hours to fully charge the battery.
The charging time will be longer when SABRE™ I is switched ON during the time when the battery is undergoing charging.
An icon to show that the Primary Battery of SABRE™ I has completed charging while SABRE™ I is non-operational (switched off).
An icon to show that the Primary Battery of SABRE™ I is undergoing charging while SABRE™ I is non-operational (switched off).
3Setting Up The SABRETM I
3.3 Charging The Battery
Insert the Power Adapter connector fully into the
Power socket.
Do not remove the battery from the SABRETM I
during charging.
FIGURE 3.3-1: Figure showing the position
of the Charger socket on SABRE™ I.
Power
socket
AC/DC Power
Adapter
connector
Insert the SIM card (gold-contacts facing the left as
shown in Figure 3.1-1) into the SIM slot. Ensure the
SIM card is inserted in the position as shown.
(To remove SIM card, press on the SIM card and
remove from the slot.)
FIGURE 3.1-1: Figure showing the location
of the SIM Card in SABRE™ I.
3.1 Inserting The SIM Card
SIM Card
FIGURE 3.2-1: Figure showing the installation position of the Primary Battery.
3.2 Installing The Battery
Battery
12

LCD display will indicate the new estimated
azimuth direction and elevation angle that the
antenna should point. A indicator will be
displayed on the Top Right corner of the LCD display
to indicate that a New GPS coordinate is in use.
3.4 Powering Up and Registering to Network
3.4.1 Powering Up
Press and hold the On/Off switch for 3 seconds
The LCD display will show the “wideye” Logo.
FIGURE 3.4.1-1: LCD display showing the “wideye” logo
I.
II.
For first time use, SABRE™ I needs to acquire the
GPS coordinates, go to an outdoor location and
face the SABRE™ I up to the sky. The terminal
shall perform the GPS acquisition automatically.
3.4.3 GPS Fix
I.
FIGURE 3.4.3-2: LCD display indicating that SABRE™ I
has obtained a New GPS Fix.
FIGURE 3.4.3-1: LCD display indicating that SABRE™ I is
acquiring a New GPS Fix.
FIGURE 3.4.3-3: LCD display indicating the azimuth
direction and elevation angle of the GPS coordinates.
III.
II. When acquisition is done, the LCD display will show
New GPS fix for 2 seconds.
3.4.2 Terminal and SIM PINs (4 to 8 digits)
Enter the Terminal PIN number.
(Default Terminal PIN: 0000)
(Note: If the PIN is entered incorrectly or if user forgets the
Terminal’s PIN number, send the unit back to the distributor.)
FIGURE 3.4.2-2: LCD display showing SABRE™ I request
for SIM PIN.
Enter the SIM PIN number
(Note: If the SIM PIN is entered incorrectly after 3 attempts,
the PIN will be locked. Use the PUK (Personal Unblocking Key)
code to enter new SIM PIN. If the PUK code is entered
incorrectly after 10 attempts, the SIM will be disabled. Contact
the Service Provider.)
Note: A SIM Card is not required to make an emergency call.
SIM PIN number will not be required in the event of an
emergency call.
FIGURE 3.4.2-1: LCD display showing SABRE™ I
request for Terminal PIN.
I.
II.
GPS
13

For subsequent use, the SABRE™ I will not acquire
a new GPS, it will prompt the user if the previously
stored GPS coordinates should be used.
To use the stored GPS coordinates, use the
Up/Down buttons to select Yes and press ENTER.
A indicator will indicate the use of the stored
GPS coordinates.
To re-acquire a new GPS, select No and press
ENTER. SABRE™ I will repeat Step I to III.
FIGURE 3.4.3-4: LCD display indicating the system’s
query to user if user would like to use the stored
GPS coordinates.
FIGURE 3.4.3-5: LCD display indicating the Signal
Strength Bar
Press the ENTER button and the LCD will show the
signal strength bar.
IV.
V.
3.4.4 Antenna Pointing
SABRE™ I is now in Antenna Pointing state.
To obtain the maximum possible signal strength,
adjust the antenna by turning and tilting it. For
an acceptable service to commence, a signal
strength of minimum 45 dBHz is required. Press
ENTER when the maximum possible signal
strength is obtained.
FIGURE 3.4.4-1: SABRE™ I exhibiting two degrees of
freedom to enable adjustment for optimum signal
strength.
SABRE™ I will start the registration with the network.
FIGURE 3.4.4-2: LCD display indicating that the
SABRE™ I is in the state of Network Registration.
When registration is successful, the service
provider’s name will be displayed.
FIGURE 3.4.4-3: LCD display indicating the “Ready
State” of SABRE™ I. In this state, the terminal is
ready for On Air deployment.
I.
III.
II.
IV.
Location of
Antenna
GPS
14

15
3.4.5 Emergency Call
FIGURE 3.4.5-1: Figure showing the location of the
“Menu” icon on the LCD display.
FIGURE 3.4.5-2: Figure showing the Emergency Call
feature on the LCD display.
FIGURE 3.5-1: Figure showing the various
applications of the SABRE™ I.
Figure 3.4.4-3 shows the “Ready State” of the LCD display. Use the navigator buttons
to access the “Menu” icon. The location of the “Menu” icon is shown in Figure 3.4.5-1.
The Emergency call feature on SABRE™ I is shown on Figure 3.4.5-2.
Location of
the menu Icon
3.5Connection Diagram
PDA

16
3.6Installing Drivers and Applications on PC
SABRE™ I Product CD includes an application software called ‘BGAN LaunchPad’, its associated device drivers and
other software utilities. You can use ‘BGAN LaunchPad’ to open and manage data connections, manage and monitor
SABRE™ I (the Terminal) operations and monitor the status of the connections between you’re the Terminal and
your computer.
Device drivers are required only if the Terminal is to be connected to the PC/Laptop via the Ethernet interface and
to operate the Terminal in “Bridge Mode”.
Follow the instructions below to install the BGAN LaunchPad and/or associated device drivers on the PC/Laptop
based on your preferred mode of operation (Bridge/Router) and your PC/Laptop configurations.
I. Insert the SABRE™ I Product CD in your PC/Laptop running on Windows 2000/XP. It will automatically bring up
the following screen with SABRE™ I “Main Setup Menu”.
3.6.1 Install Software
3.6.1.1 Installation of the SABRE I BGAN LaunchPad and/or Ethernet Serial Device Driver
From the SABRE™ I “Main Setup Menu”, Select Install Software option as shown below and follow instructions
accordingly.
II. The following Software and Utilities are available on the CD for installation:
a) Install Software (Includes BGAN LaunchPad and device drivers for Ethernet Interface) (refer to Section 3.6.1)
b) Software Utilities (includes, Bluetooth Modem Installer, Firmware Upgrade Utility and Ethernet Interface
Configuration Utility) (refer to Section 3.6.2)

17
3.6.1.1.1 Express Installation
Express Installation will first configure the Terminal and then install BGAN LaunchPad and its associated device
drivers to operate the Terminal using Ethernet Interface in Bridge Mode (as default).
I. Before starting the Terminal Configuration process, please do the following:
a) Insert the SIM into the Terminal.
b) Place the Terminal at a location where it is exposed to the sky to acquire GPS information for the first time
upon power ON.
c) Connect the Terminal to the PC/Laptop using an Ethernet cable (Cat-5 cable) provided.
d) Switch ON the Terminal.
II. To start the express installation process, select “Express Installation” option and click on “Install” as
shown below.
There are three installation options available for users to choose from. It is recommended to use "Express Installation"
option unless your PC/Laptop is built-in with "Dual Core CPU”. For PC/Laptops with "Dual Core CPU", please select
"Router Mode Installation" option. If you are an advanced user, you may select "Custom Installation" option.
