Wido WD030520013 User manual

Drill Press
WD030520013
350W

WD030520013
Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality
of the product and you will be entirely satisfied with your purchase. Please read carefully the
user safety and operating instruction on how to operate this product correctly within safety
norms and regulations.
2

1
2
3
5
6
7
4
11
12
14
13
10
15
16
17
18
23
3
321
654
WD030520013

4
WD030520013
13mm
22
8
20
19
21
9
987
121110
151413
16

13MM DRILL PRESS ENG

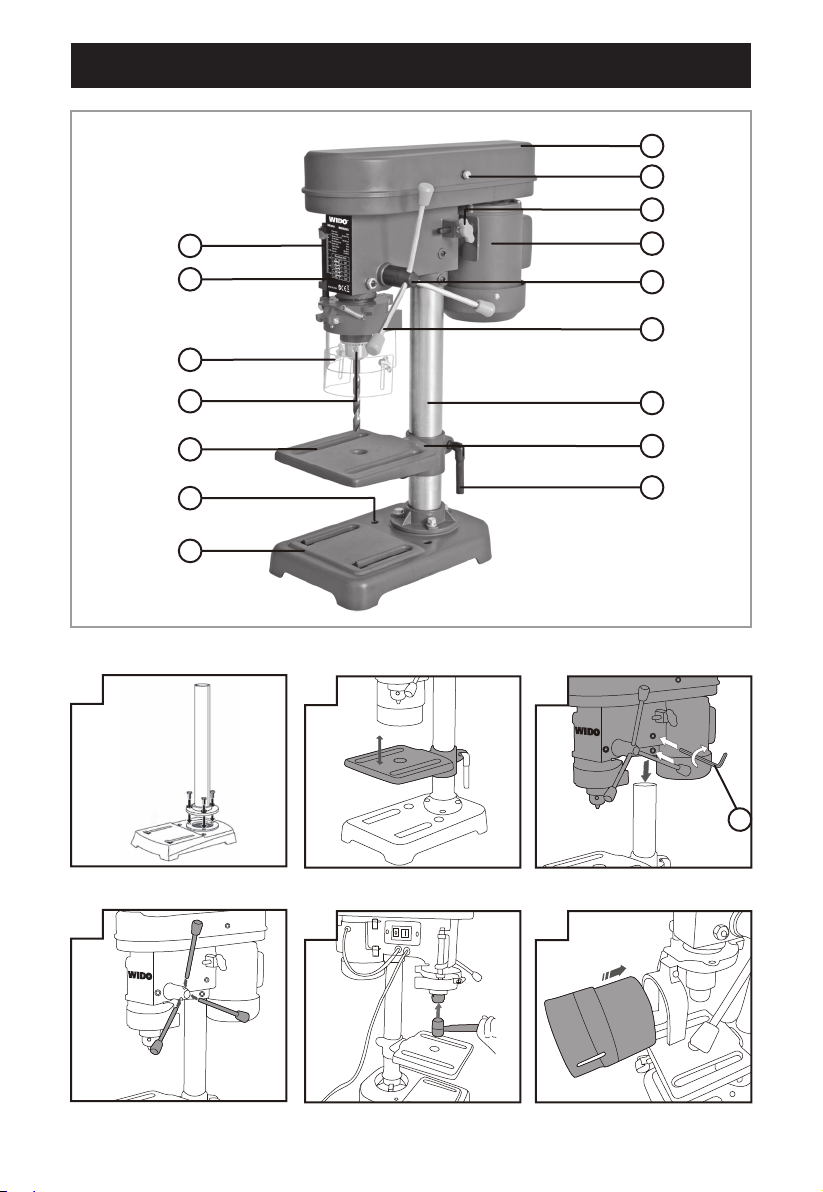

COMPONENT LIST
1) Base plate
2) Mounting holes
3) Work table
4) Drill chuck
5) Guard
6) Nameplate
7) Depth stop
8) ON/OFF switch
9) Spring housing
10)Pulley cover
11) Screw of pulley cover
12) Tension lock knob
13) Motor unit
14)Pinion shaft
15) Feed handle
16) Drilling column
17) Angle indication of work table
18)Table clamp
19) Speed diagram
20) Belt
21) Drilling-depth indication
22) Chuck key
23) Allen key
NORMAL ACCESSORIES
1) Chuck key: 1pc
2) Allen key: 2pcs
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according to the
work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can
assist you and offer advice.
5

13MM DRILL PRESS ENG
GENERAL POWER TOOL SAFETY WARNINGS
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructionsfor future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication.A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached toarotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.This enables better control of
the power tool in unexpected situations.
6

13MM DRILL PRESS ENG
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR POWER TOOL
1) Always wear protective glasses when using this machine.
2) Wear proper apparel. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other
apparel that could possibly become caught in the moving parts of the machine. When working in a shop
environment around power tools, wear nonslip footwear. Use protective hair covering to contain long
hair.
3) Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing
loss of control.
4) Fasten the machine on a firm, level and horizontal surface. If the machine can slip off or wobbles,
the application tool cannot be uniformly and securely guided.
5) Keep bystanders, children, and visitors at a safe distance from the machine while it is in operation.
Distractions can cause inadvertent misuse resulting in possible injury to the bystanders or to the
operator.
6) Maintain a proper work environment. Do not operate the machine in damp or wet locations or
expose it to rain. Water can cause the electrical components to malfunction resulting in damage to the
machine and/or serious injury or death tothe operator.
7

13MM DRILL PRESS ENG
7) Keep the work area clean at all times. Cluttered areas around the machine can cause unexpected
accidents if the debris comes in contact with the moving parts of the machine.
8) Keep the working surface clean to the workpiece being worked. Sharp-edged drilling chips/swarf
and objects can lead to injuries. Material mixtures are particularly dangerous. Light-alloy dust can burn
or explode.
9) Use clamping devices, the quick-clamping device or a machine vice to clamp the workpiece. Do
not drill workpieces that are too small to clamp. When holding the workpiece by hand, you cannot
secure it sufficiently against being turned, and injure yourself.
10)Adjust the work table before each use. The work table should be tightened and placed at the
proper angle for the drilling job before the machine is put into use. If not properly adjusted, the
workpiece can unexpectedly move causing the drill bit to seize resulting in damage to it or possible
severe injury to the operator.
11)Set the correct speed before beginning to work. The speed must be appropriate for the drilling
diameter and the material being drilled. When the speed is set incorrectly, the application tool can
become caught or jam in the workpiece.
12)Do not use a drill bit that wobbles or vibrates. Visually inspect the drill bits before they contact the
work piece ensuring there are no side-to-side movements. Should the drill bit wobble from side-to-side
or if the tip appears broken, replace them immediately. If the vibration still exists, check the bearings
and the motor shaft and repair or replace them as soon as possible. Excessive vibration can cause
severe damage to both the work piece and the machine.
13)Remove chuck keys and other adjustment tools from the areas around the machine before turning
the power switch to the “on” position.
14)Guide the application tool toward the workpiece only when switched on. Otherwise, there is danger
of the application tool becoming caught or jamming in the workpiece, and the workpiece being dragged
along. This can lead to injury.
15)Do not overload the machine. Allow the machine to run at full speed or close to full speed during
use
16)Keep your hands out of the drilling area while the machine is running. Danger of injury in case of
contact with the application tool.
17)Never remove drilling chips/swarf from the drilling area whilethe machine is running. Always guide
the motor unit to the idle position first, and then switch the machine off.
18)Do not remove forming drilling swarf/shavings with your bear hands. Danger of injury in particular
through hot and sharp-edged metal swarf/shavings
19)Break off long drilling swarf/shavings by interrupting the drilling procedure through brief reversing
of the feed handle. Danger of injury from long drilling swarf/shavings.
20)Do not touch the application tool directly after the working process until after it has cooled down.
Application tools become very hot while working.
21)Never leave the machine before it has come to a complete stop. Cutting tools that are still running
can cause injuries.
22)Switch the machine off immediately when the application tool blocks.
23)Properly support extra long or extra wide workpieces. Workpieces that are too long or extra wide
can tip and cause the drill bit to seize resulting in a sudden whipping motion resulting in damage to the
workpiece and machine as well as possible severe injury tothe operator.
24)Never perform drilling operations near flammable gas or liquids. The resulting fire and/or explosion
could cause permanent serious injuries to the operator and damage to the machine and surrounding
8

13MM DRILL PRESS ENG
work area.
25)Thoroughly clean the machine before changing types of workpieces. Combining wood and metal
dust can result in an explosion or fire. Consult expert advice before drilling in work pieces made of
magnesium. The friction generated by the drill bit could the magnesium to ignite resulting in a very
intense fire that could cause severe burns tothe operator and/or seriously damage the machine.
26)Turn the ON/OFF switch on the machine to the off position and unplug the power cord from the
electrical receptacle when the drilling operations are finished. Thoroughly clean the area surrounding
the machine making it ready for the next use.
27)Store the machine in a safe manner when not being used. The storage location must be dry and
lockable. This prevents the machine from storage damage, and from being operated by untrained
persons.
28)If an extension cord is required, use only three-wire extension cords that have three-prong
grounding-type plugs and three-pole receptacles that accept the power tool’s plug. Use only an
approved extension cord suitable for the power input of this tool (see technical data). An undersized
cord will cause a drop in line voltage resulting in loss of power and overheating. When using a cord reel,
always unwind the cord completely. Fully unwind extension cords to avoid potential overheating.
GROUNDING INSTRUCTIONS
This power tool should be grounded while in use to protect the operator from electric shock. The power
tool is equipped with a three-core cable and grounding type plug to fit the proper grounding type
receptacle. The green and yellow (or green) conductor in the cord is the grounding wire. Never connect
the green and yellow (or green) wire to a live terminal.
IMPORTANT NOTE
Be sure the supply is the same as the voltage and frequency given on the rating plate.
Remove the main plug from socket before carrying out any adjustment or servicing.
9

13MM DRILL PRESS ENG
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
TECHNICAL DATA
Note: For power tool specifications refer to the nameplate on your power tool.
Model WD030520013
Voltage 110-120V AC 220-240V AC
Frequency 60Hz 50Hz
Power input 350W 350W
No load speed: 5 speeds 760-3070/min 580-2650/min
Max, drilling steel capacity Ф1/2″Ф13mm
Chuck capacity Ф1/16″-1/2″Ф1.5-13mm
Spindle travel 1-31/32 50mm
Spindle taper MT2# MT2#
Table size 6-19/64″x 6-19/64″160x160mm
Protection class I I
Machine weight 12.4Kg 12.4Kg
10
″

13MM DRILL PRESS ENG
OPERATING INSTRUCTIONS
Note: Before using the power tool, readthe instruction manual carefully.
1. Intended use
The machine is intended for drilling in wood, metal, and plastic etc.
2. Assembly
1) Installing the column assembly to the base:
a) Place the base on a firm level surface.
b) Secure the column assembly to the base using the three hex-head screws provided (See Fig 1).
2) Installing the work table
a) Slide the work table and table clamp bracket onto the column assembly.
b) Position the work table to the desired height and tighten the support lock handle (See Fig 2).
3) Installing the machine head
a) Place the machine head onto the column assembly. Press the machine head downward on the
column assembly as far as it will go.
b) Align the machine head with the worktable and the base.
c) Tighten the two head locking screws with the Allen keysupplied (See Fig 3).
4) Installing handles
Insert the three machine feed handles into the tapped holes on the pinion shaft (See Fig 4).
5) Installing the drill chuck
a) Open the jaws of the drill chuck as wide as possible by turning the chuck sleeve.
b) Holding the chuck on the tapered end of the spindle shaft, use a soft tip (rubber) hammer or a block
of wood and a hammer.
c) Tap the chuck onto the spindle shaft (See Fig 5)
Note: To avoid damage to the chuck and the spindle shaft, do not drive the chuck onto the spindle shaft
with a metal hammer. Damage to the chuck will occur.
6) Installing the guard
a) Loose the three screws on the support of guard.
b) Turn over the support to 900.
c) Insert the guard into groove of support (See Fig6).
d) Tighten the three screws on the support.
e) Set guard depth required, and then tighten wing nut on the guard.
3. Mounting the machine
During operation of the machine, there may be instances where the machine could tip over, slide, or
walk on the supporting surface. To secure the machine:
a) Place the machine on the workbench as desired.
b) Fasten the machine to the workbench using two suitable bolts, washers, and nuts through the holes
in the machine base (See Fig 7).
4. Removing and installing drill bits
Use only the chuck key provided by the manufacturer with the machine.
1) Use the chuck key to loosen the chuck.
11

13MM DRILL PRESS ENG
2) Inserting the smooth end of the drill bit into the chuck as far as it will go.
3) Ensure the drill bit is centered in the chuck jaws before tightening.
4) Use the chuck key and tighten the chuck locking the drill bit in place (See Fig 8).
Note: Lock all three jaws in the chuck, so it doesn’t slip while drilling.
5) Ensure the check key is removed from the chuck before applying power to the machine.
5. Using the ON/OFF switch
1) To save energy, only switch the machine on when using it.
2) The machine “ON/OFF” switch is located on the left of the machine head. To turn the machine on,
simply press down the green switch. To turn the machine off, press down the red switch (See Fig 9).
Note: Ensure there are no tools or work pieces in contact with the drill bits, cutting tools, or sanding
drum when the machine is turned on. Failure to observe these procedures could result in damage to
the machine, tools, work pieces, and/or serious personal injury tothe operator or bystanders.
6. Adjusting the work table
1) The work table can be raised or lowered on the machine column by loosening the table clamp (See
Fig 10).
2) After the table is positioned at the desire height, lock the table in place by tightening the table clamp.
3) The work table can be rotated 360 degrees around the column by loosening the table clamp. Rotate
the table to the desired position and lock the table in place by tightening the table clamp.
7. Tilting the work table
1) The work table can be tilted to the left or right by loosening the pivot bolt mounted beneath the work
table (See Fig 11).
2) Tilt the work table to the desired position and tighten the pivot bolt.
3) When returning the table to the level position, line up the register mark on the table with the tilt scale.
4) A tilt scale is provided on the table bracket to indicate the degree of tilt.
8. Adjusting the machine spindle speed
The correct drilling speed is determined by type of material being drilled, the size of the hole, the type of
the drill bit or cutter, and the desired quality of the hole.
A spindle speed and pulley/belt arrangement chart is posted inside the pulley cover. Refer to this chart
whenever spindle speeds need to be changed.
1) Using a screwdriver, loosening the screw on the pulley cover, and lift up the pulley cover.
2) Release the belt tension by loosening the tension locking knob located on the side of the machine
head.
3) Pivot the motor towards the front of the machine.
4) While holding the motor pivoted to the front of the machine, position the belt on the desired step of
the motor pulley and the spindle pulley (See Fig 12).
5) After attaining the desired spindle speed, pivot the motor to the rear of the machine and securely
tighten the tension locking knob.
6) The belt should be tight enough to prevent any slippage. If the belt is over tightened, the life of the
belt will be noticeably reduced.
7) To gauge proper belt tension, use pressure to push down with the thumb on the belt at midway point
betweenthe two pulleys. The belt should push down no more than 13mm (See Fig 13).
12

13MM DRILL PRESS ENG
8) Close the pulley cover, using a screwdriver, screwing the screw on the pulley cover.
Reference list of drill, revolution and various materials to be drilled:
Drill Dia (mm)
Material
Steel Cast iron Gun metal Aluminium Plastic Wood
Rotate speed (min-1)
Ф3 2650 2650 2650 2650 2650 2650
Ф4
2650
2650
2650
2650
2650
2650
Ф5 1650 2650 2650 2650 2650 2650
Ф6
1650
2650
2650
2650
2650
2650
Ф7 1220 1650 2650 2650 2650 2650
Ф8
1220
1650
2650
2650
2650
2650
Ф9 8501220 1650 2650 2650 2650
Ф10
850
1220
1650
1650
2650
2650
Ф11 5808501220 1650 1650 2650
Ф12
580
850
1220
1220
1650
1650
Ф13 5805808501220 1220 1650
9. Drilling holes to specified depths
A depth stop is provided on the pinion shaft, allowing multiple holes to be drilled to a specific depth.
1) Insert drill bit into drill chuck.
2) Lower the spindle until the pointer is in line with the mark on the scale.
3) Tighten the lock nut.
4) Return the spindle to the up position (See Fig 14).
5) Place the workpiece on the work table and securely clamp it in place.
6) Raise the work table until the workpiece justtouches the end of the drill bit.
7) Drill a test hole and check the depth. Make any adjustments as necessary.
10. Adjusting the spindle return spring
The spindle return spring is automatically returned to its upper position when the pinion shaft handles
are released. It is recommended thatthe pinion shaft handles be allowed to return tothe upper position
slowly. Do not let go of the handles after the hole has been drilled. This action will cause excessive
wear and tear on spindle return spring. To adjust the spindle return spring, follow the steps below (See
Fig 15):
1) Loosen the two nuts. Ensure the housing stays engaged with the head casting.
2) While firmly holding the spring housing, pull out the housing until the boss is engaged with the next
notch on the housing.
3) Turn the spring housing counterclockwise to increase the spring tension or clockwise to decrease
the spring tension.
4) Turn nut until it contacts the spring housing. Back nut out 1/4 turn and tighten it against nut to hold
the spring housing in place.
Note: The inside nut should not touch the spring housing after it has been tightened.
11. Operating the machine
13

13MM DRILL PRESS ENG
1) Use a clamping device, secure the workpiece to the work table. To protect the top surface of the
workpicec, use a piece of scrap wood between the vise and the workpiece(See Fig 16).
2) Select the proper drill bit based on the holes size desired. For large holes, drill a pilot holes first,
using a smaller diameter bit.
3) Select and set the recommended spindle speed.
4) Set work table to desired height.
5) If desired, set feed shaft at desired spindle depth.
6) Make sure the work table is free of all loose objects and the bit is not in contact with the workpiece
7) If drilling a through hole, make sure that the bit will not drill into the work table after moving through
the workpicec.
8) Plug electrical cord into power supply andturn switch on. Make sure spindle rotates freely.
9) For drilling, slowly turn feed handle with uniform feed until the desired drilling depth is reached.
10)Once the desired drilling depth is reached, guide feed handle back until the feed handle is back in
the starting position.
11) Switch the machine off
Warning:Always use clamps or a vise when drilling metal. The workpiece should never
be held in place by hand.
WORKING HINTS FOR YOUR POWER TOOL
1) If the hole is deeperthan it is wide, back off occasionallyto clear the chips
2) When drilling metal, lubricate the bit with oil to improve drilling action and increase bit life
3) When drilling wood, to prevent splintering on the bottom of the workpiece, clamp a scrap piece of
wood beneath the workpiece and allow the drill bit to enter it resulting in a clean hole on the workpiece.
This also protects the point of the drill bit.
4) When drilling a large hole in tough material (i.e. steel), we recommend drilling a small pilot hole first
before using a large drill bit.
5) As you increase the drill size, you may need to reduce the spindle speed.
6) When the drill bit comes out of the workpiece, it can become caught or jam in the workpiece, and
drag the workpiece along. Therefore, reduce the feed at the end of the drilling phase
MAINTENANCE
Warning: Remove the plug from the socket before carrying out any adjustment, servicing
or maintenance.
1.Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use clean cloth to remove dirt,
dust, oil, grease, etc.
2.After using the machine, clean it completely and lubricate all sliding and moving parts.
3.Should you feel an unusually high level of vibration, the pulleys may not be tightly secured on the
motor and/or spindle shafts. To make sure the pulleys are properly seated and tight, locate the set
screw on each of the pulleys. Tighten each set screw with the Allen key supplied
4.Regularly check that all the fixing screws are tight. They may vibrate loose over time.
5. Always store your machine in a dry place.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
14

13MM DRILL PRESS ENG
TROUBLESHOOTING
Problem Possible Cause Solution
Noisy operation Incorrect belt tension
Dry spindle
Loose spindle pulley or motor
pulley.
Adjust belt tension.
Lubricate spindle.
Tighten set screws in pulleys.
Bit burns or smokes Incorrect speed.
Chips not coming out of hole.
Dull bit.
Feeding too slowly.
Not lubricated.
Change speed.
Retract bit frequently to clear
chips
Sharpen or replace bit
Feed fast enough, allow drill to
cut
Lubricate bit for metal work
Excessive drill runout or
wobble
Bent bit
Bit not properly installed in
chuck
Chuck not properly installed
Worn spindle bearings
Replace bit
Install bit properly
Install chuck properly
Contact authorized service
center
Drill bit binds in workpiece Excessive feed pressure
Improper belt tension.
Reduce feed pressure
Adjust belt tension
Workpiece support loosens Workpiece not supported or
clamped properly
Check support and/or reclamp
workpiece
If afault can’t be rectified, return the machine to an authorized dealer for repair.
ENVIRONMENT PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
15

13MM DRILL PRESS ENG
EXPLOSIVE VIEW
16

13MM DRILL PRESS ENG
PART LIST
NO
DESCRIPTION
Q’TY
NO
DESCRIPTION
Q’TY
1 Base 1 38 Circlip 1
2 Base collar 1 39 Bush 1
3 Washer 5 40 Circlip 2
4 Spring washer 3 41 Bearing 2
5 Bolt 3 42 Baffle 1
6 Knob of feed handle 3 43 Cable and plug 1
7 Feed handle 3 44 Nut 2
8 Pinion shaft 1 45 Spring housing 1
9 Column 1 46 Disk spring 1
10 Socket head screw 2 47 Screw 1
11 Locking knob of belt tension 1 48 Box 1
12 Round pin 1 49 Faceplate 1
13 Plate 1 50 Screw 2
14 Screw 4 51 Nameplate 1
15 Motor unit 1 52 Circlip 1
16 Pulley of motor 1 53 Bearing 2
17 Socket head screw 2 54 Spindle 1
18 Belt 1 55 Spindle sleeve 1
19 Bolt 2 56 O-ring 1
20 Cushion pad 1 57 Key chuck 1
21 Bolt 1 58 Bolt 1
22 Spring 1 59 Spring washer 1
23 Fairlead 2 60 Work table 1
24 Switch 1 61 Support of work table 1
25 Screw 2 62 Locking handle 1
26 Dentiform washer 2 63 Angle label 1
27 Grounding connection 2 64 Nut 1
28 Spring washer 2 65 Eye-protective device 1
29 Anti-vibration pad 4 66 Depth stop 1
30 Pulley cover 1 67 Nut 2
31 Washer 5 68 Pointer 1
32 Screw 4 69 Screw 1
33 Screw 1 70 Nut 1
34 Spring 1 71 Screw 1
35 Washer 1 72 Allen key 1
36 Circlip 1 73 Allen key 1
37 Pulley of spindle 1
17

18
WD030520013

19
WD030520013

MADE IN CHINA
Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com
