Ozito ROU-5000 User manual

ROUTER
850W
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 230-240V ~ 50Hz
Input: 850W
No Load Speed: 11,500-32,000/min
Collet Size: 6.35mm (1/4”)
Plunge Depth: 30mm
Turret Stops: 3
Weight: 3.3kg
ROU-5000
WHAT’S IN THE BOX
Router
ozito.com.au
Guide Fence
Dust Extraction
Adaptor
Template Guide

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

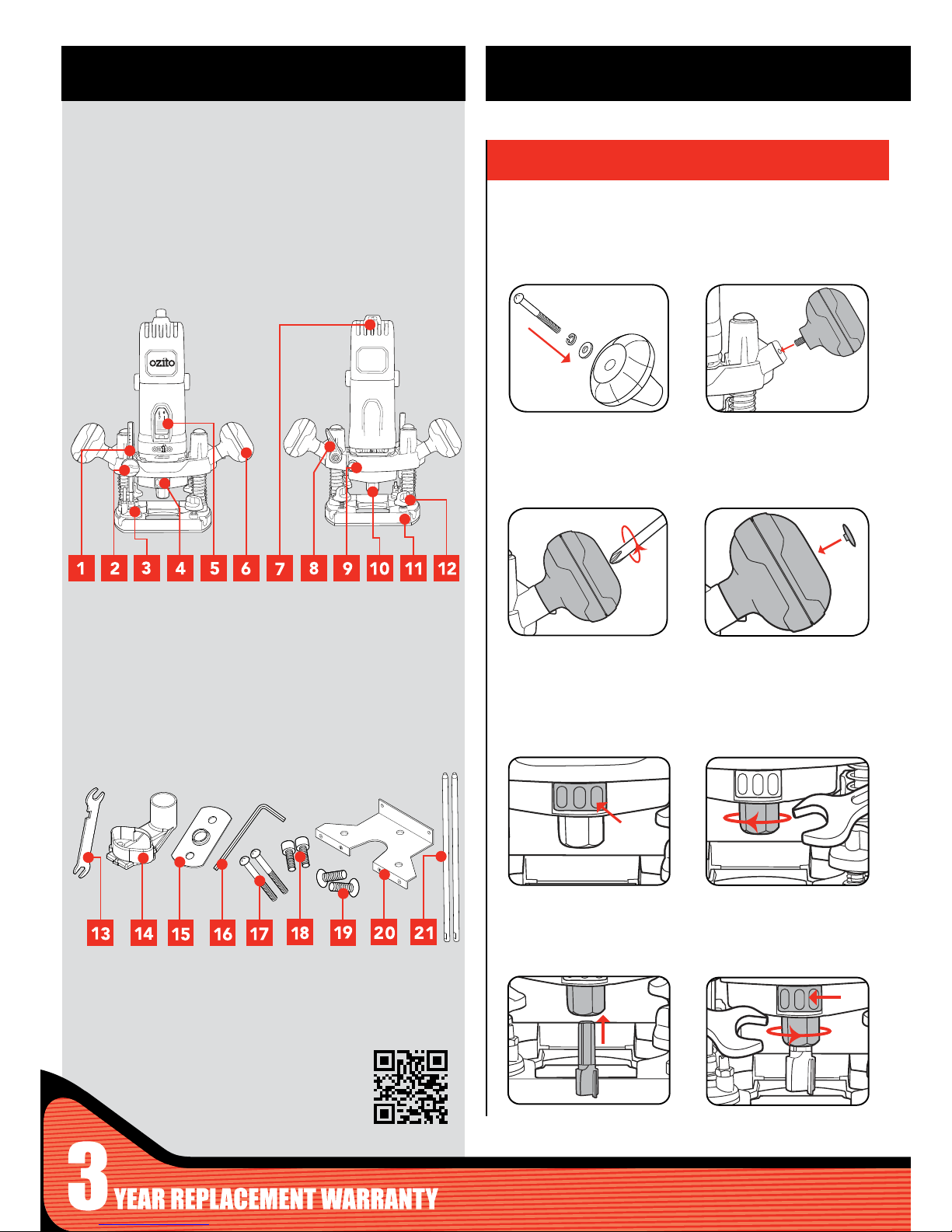

1 Depth Rod
2 Depth Rod Adjustment Knob
3 Turret Depth Stop
4 Spindle Lock Button
5 Lock On Slide Switch
6 Handles
7 Variable Speed Dial
8 Plunge Lock Lever
9 Router Fixing Nut
10 Collet Nut
11 Base
12 Fence Locking Knob
ROUTER
KNOW YOUR PRODUCT
1. ASSEMBLY
1. Put together the side handle
assembly: screw, spring
washer, washer, side handle.
2. Loosen the collet nut with
provided spanner. Do not
remove completely.
13 Spanner
14 Dust Extraction Adaptor
15 Template Guide
16 Hex Key
17 Side Handle Screws
18 Guide Fence Rod Screws
19 Dust Extraction Adaptor Screws
20 Guide Fence
21 Guide Fence Rods
ACCESSORIES
SETUP & PREPARATION
2. Align the handles to the
xing square on sides of
router.
1. Depress and hold the
spindle lock button.
press
& hold
3. Fully insert the router bit
into the collet.
4. Tighten collet nut using
the spindle lock button
and spanner.
hold
Side Handles
4. Insert cover buttons to
cover the screws.
Fitting Router Bits
3. Fasten into place by
tightening screw with a no 2
Phillips head screwdriver.

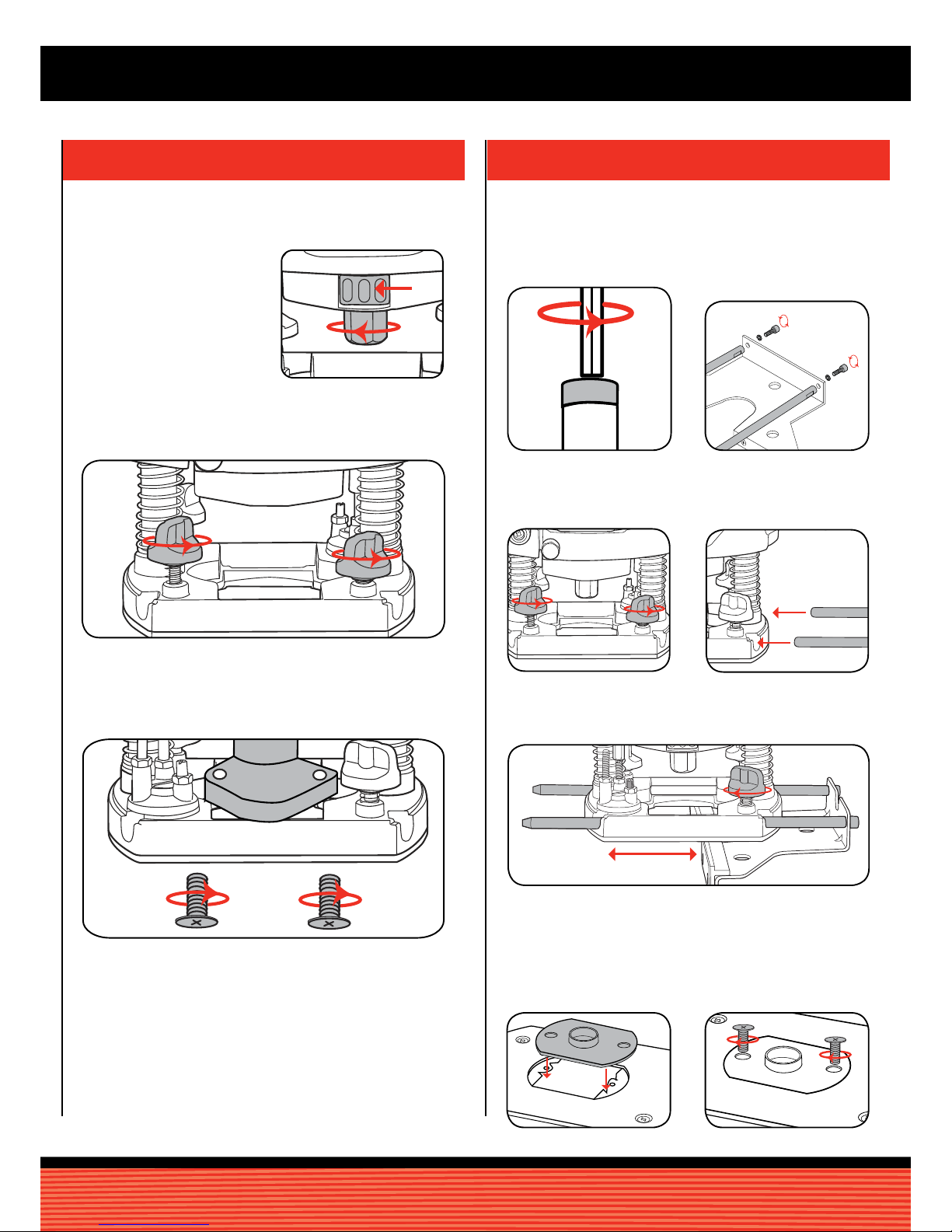

2. DUST EXTRACTION ADAPTOR 3. GUIDE FENCE & TEMPLATE GUIDE
1. Depress spindle lock button
and loosen collet nut.
Remove the collet nut and
collet completely.
1. Loosen screws on the end
of guide rods with hex key.
2. Remove the 2 fence locking knobs from the rear of the router.
The dust extraction adaptor allows you to connect a vacuum cleaner
or dust extractor to the router.
hold
3. Insert the dust extraction adaptor from the rear of the tool. Secure
with the two dust extraction adaptor screws.
5. Re-assemble the router and replace the router bit.
2. Line the guide rods up with
the holes in the guide fence.
Secure in place with the
fence screws.
4. Loosen guide fence locking
knobs.
6. Adjust the guide fence until it is the correct distance from the
router bit and the cut to be made. Tighten guide fence locking
knobs to fasten guide fence in place.
Adjust Distance
The guide fence is an effective aid when cutting in a straight line
when chamfering or grooving.
The template guide makes it possible for you to easily cut in the
shape of any template. It must be tted in conjunction with the
dust extractio adaptor.
1. Fit the template guide to
the bottom of the router.
2. Secure using the two dust
extraction adaptor screws.
5. Feed the guide fence rods
through the holes in the
router base.

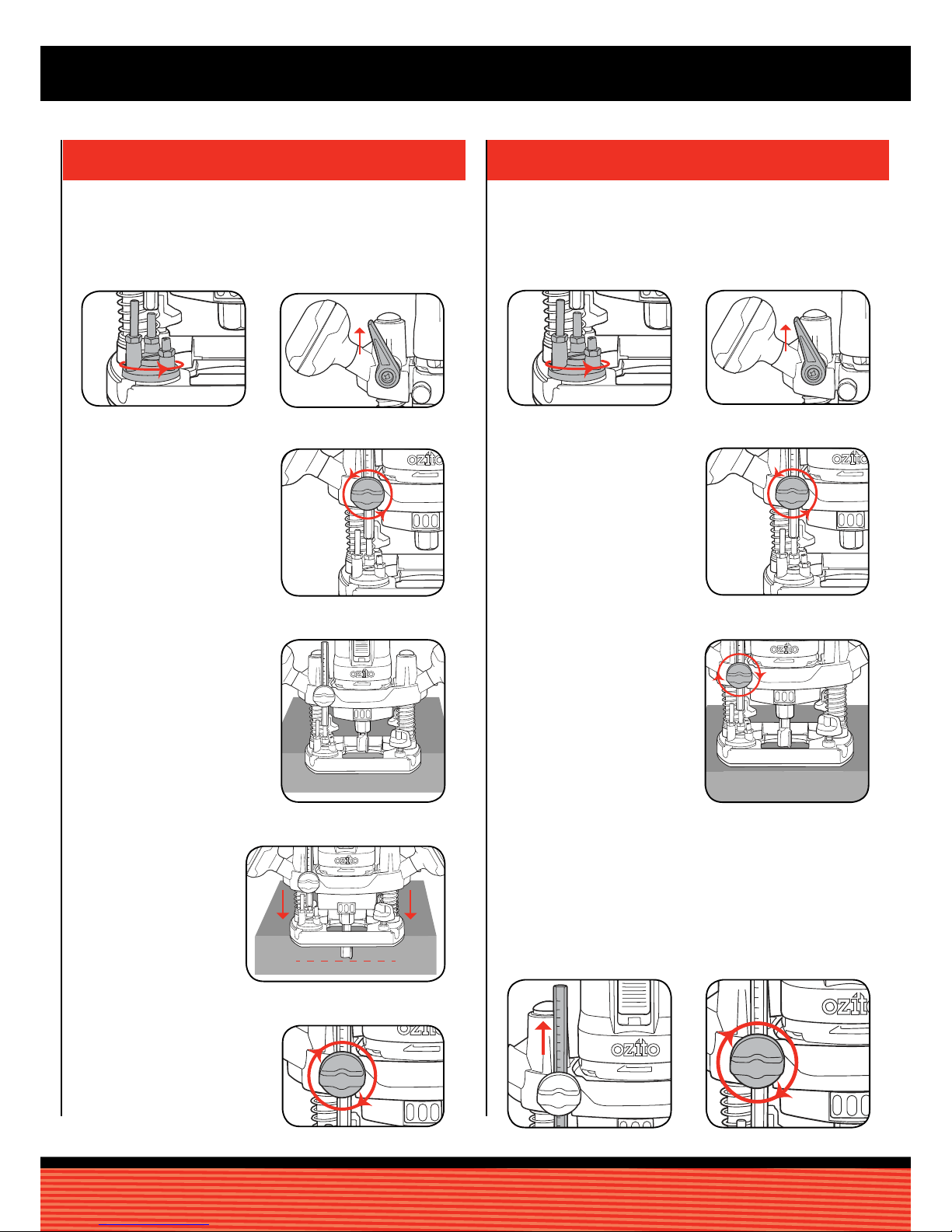

4. ADJUSTING DEPTH OF CUT 5. ADJUSTING DEPTH OF CUT
OPERATION
1. Set the turret stop to the
lowest setting.
3. Loosen the depth rod
adjustment knob until the
depth rod drops down to
the turret stop.
5. Plunge the router
down until the
router bit reaches
your desired depth
of cut.
6. Hold the router in this
position while tightening the
depth rod adjustment knob.
Visually By Measurement
1. Set the turret stop to the
desired setting.
3. Loosen the depth rod
adjustment knob until the
depth rod drops down to
the turret stop.
4. Plunge the router down until
the router bit touches the
workpiece then tighten the
depth rod adjustment knob.
5. Raise the depth rod up until
you reach your desired
cutting depth.
2. Ensure the plunge lock lever
is released.
4. Place the router on the
workpiece so that the router
bit over hangs the work
edge.
Desired Depth of Cut
This method is best suited when routing the outside edge of a workpiece. This method is best suited when routing the inside the workpiece.
2. Ensure the plunge lock lever
is released.
Note: Each millimeter you RAISE the depth rod from this position is
a millimeter lower that the router will plunge (and cut). For example,
if you require a cutting depth of 6mm, you would raise the depth rod
6mm from the position that is set in step 4.
6. Tighten the depth rod
adjustment knob to set this
cutting depth.

ROU-5000
To turn on, push the slide on/
off switch down toward the “I”
position.
Turning On/Off
To turn off, press on the rear
of the on/off switch so that it
slides back to the “0” position.
Scroll through the variable
speed dial to select the
appropriate speed for the
working material.
Vairbale Speed Control
To release the plunge lock
mechanism, pull the lever up.
Plunge Lock Lever
To engage the plunge lock,
push the lever down.
6. CONTROLS
1. Place the base plate on the
workpiece, ensuring the bit
is not in contact with the
material to be cut.
3. Lower the router body
into the work piece.
2. Turn the router on and wait
for the bit to reach full speed.
5. Follow the below guide to assist you when routing your
workpiece.
4. Lock the router in
position at the desired
cutting depth.
7. MAKING A CUT
Direction of the router travel
When routing the outside
of your workpiece
When routing the inside of
your workpiece
On very hard woods it may be necessary to make more than one
pass at progressive cutting depths until the desired cutting depth is
achieved.

V GROOVE BITS
Used to create V shaped
channels or utes in a
workpiece.
ROUTER BITS
Below is a list of common router bits and their uses.
FLUSH TRIM BITS
Suited to triming the
edge of one piece ush
with the edge of another
piece. A common use
is using a pattern or
template to create
multiple identical shapes
of the pattern.
ROUND NOSE BITS
Similar to the V-groove
bit in that it creates
channels or utes in a
workpiece.
DOVE TAIL
Most commonly used to
create tails for dovetail
joinery. Plunge cuts a
at bottom with angled
sides into a workpiece.
CHAMFER
Cuts a 45-degree
angle on a square
edge.
COVE BIT
Used to create a
concave, rounded
edge to a piece of
timber. Often used
in conjunction with a
roundover bit.
ROUND OVER BIT
Creates a rounded edge
on a piece.
STRAIGHT BITS
Straight router bits a ideal
for making plunge cuts into
a material to form a groove
or to hollow out an area for
a mortise or inlay.

MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
• Keep the ventilation vents of the router clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the router housing to ensure it is free from
all dust particles which may build up. Build up of dust particles may cause the
router to overheat and fail.
• If the enclosure of the router requires cleaning, do not use solvents but a
moist soft cloth only. Never let any liquid get inside the router; never immerse
any part of the router into a liquid.
Carbon Brushes
When the carbon brushes wear out, the router will spark and/or stop.
Discontinue use as soon as this happens. They should be replaced prior to
recommencing use of the router. Carbon brushes are a wearing component of
the router therefore not covered under warranty. Continuing to use the router
when carbon brushes need to be replaced may cause permanent damage to
the router. Carbon brushes will wear out after many uses but when the carbon
brushes need to be replaced, take the router to an
electrician or a power tool repairer for a quick and
low cost replacement. Always replace both carbon
brushes at the same time.
Note: Ozito Industries will not be responsible for any
damage or injuries caused by the repair of the router
by an unauthorised person or by mishandling of the
router.
Collet Nut SPROU5000-59
6.35mm Collet SPROU5000-58
Collet Spring SPROU5000-57
Carbon Brushes (set) SPROU5000-15
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
Read instruction manual Warning
noNo load speed
SYMPTOM POSSIBLE CAUSE REMEDY
Router will not
operate No supply of power Check that power is available at source
Router runs slowly
Blunt or damaged
router bits
Re-sharpen or replace
router bits
Variable speed set low Increase variable speed
setting
Motor is overloaded Reduce excessive load
or force on router
Excessive vibration Bent router bit shaft Replace router bit
Sparking visible
through the
housing vents
This is normal and
does not indicate a
problem
No action is required
Heavy sparking
occurs inside motor
housing
Brushes not moving
freely
Disconnect power,
remove brushes, clean
or replace

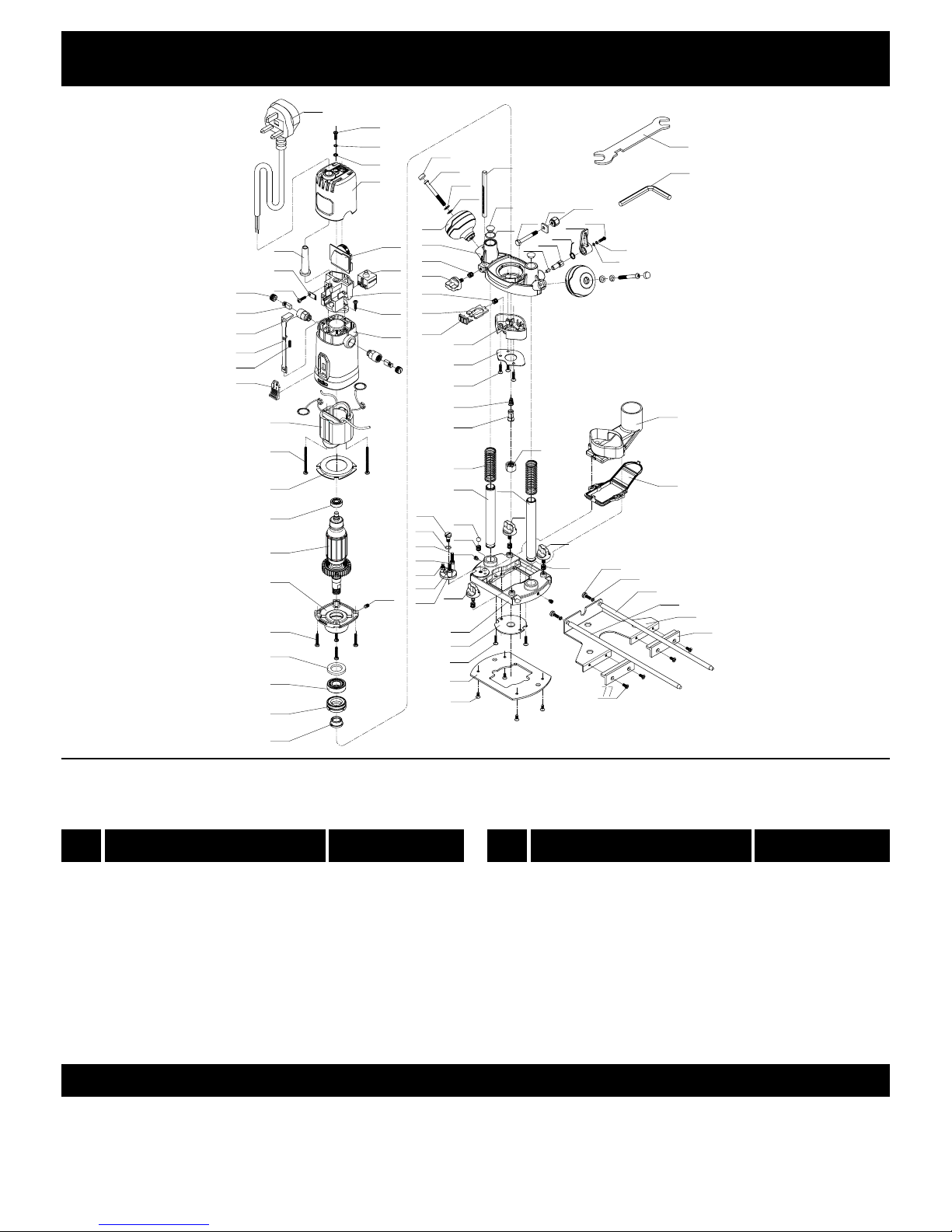

SPARE PARTS Tool: 850W Router
Model No. ROU-5000
Item
No. Description Part No.
How To Order
15
57
58
59
Carbon Brush (pair)
Pressure Spring
Collet (6.35mm)
Collet Nut
SPROU5000-15
SPROU5000-57
SPROU5000-58
SPROU5000-59
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
1
2
32
36
37
38 39
40 41
46
3
87
86
85
84
59
62
50
50
49 78
79
80
81
82
83
4
45
44
43
42
33
34
35
47
48
49
50
51
52
53
54
55
56
57
58
60
61
66 63
64
65
50
73
74
75
76
77
67
68
69
70
71
72
3
4
5
67
9
11
12
13
8
10
14
15
16
17
18
19
20
21
22
23
24
25
27
28
29
30
31
26
Item
No. Description Part No.

ROUTER SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60745-1;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Recommendations for the use of a residual current device (RCD) with a rated residual current
of 30mA or less.
Hold power tool by insulated gripping surface, because the cutter may contact its own cord.
Cutting a “live” wire may make exposed metal parts of the power tool “live” and shock the operator.
Use clamps or another practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against the body leaves it unstable and may lead to loss of
control.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect
the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged
or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension
lead not suitable for the power input of the tool or which is damaged of defective may result in a risk
of re and electric shock.
It is recommended that the extension lead is a maximum of 25m in length. Do not use multiple
extension leads.
• Wear safety glasses or goggles when operating this tool.
• Only use router bits with a shank diameter equal to the size of the collet installed in the tool.
• Only use router bits suitable for the no-load speed of the tool.
• Do not use the tool in an inverted position.
• Do not attempt to use the tool in a stationary mode.
• Take special care when routing MDF or surfaces coated with lead-based paint.
• Wear a dust mask specically designed for protection against lead paint dust and fumes and
ensure that persons within or entering the work area are also protected.
• Do not let children or pregnant women enter the work area.
• Do not eat, drink or smoke in the work area.
• Dispose of dust particles and any other debris safely.

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes
consumable parts, for example: carbon brushes, hex key, etc
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0713
