Wiha Dht0001 User manual

Pos.-Nr. DHT0001 / 4129-3

EN................ 2

DE................. 20

BEDIENUNGSANLEITUNG

INSTRUCTION MANUAL

ELECTRIC SCREWDRIVER

SCHRAUBENDREHER ELECTRIC

2CordlessE-Screwdriver-DHT0001-EN-01

Overview of Contents

1 General safety warnings............................................................................................................................3

2 Symbols and explanation of terms............................................................................................................8

3 Contents.......................................................................................................................................................10

4 Know your tool ...........................................................................................................................................10

5 Technical data.............................................................................................................................................12

6 Use...............................................................................................................................................................13

7 Storage, cleaning and maintenance.........................................................................................................17

8 Troubleshooting ..........................................................................................................................................18

9 Waste disposal ...........................................................................................................................................18

10 Warranty .....................................................................................................................................................19

11 CE conformity declaration.........................................................................................................................19

15/06/21 Original instruction manual

General safety warnings

1 General safety warnings

To reduce the risk of injury, the user must read and understand the instruction manual.

WARNING: Read all safety warnings, instructions, illustrations and speciﬁcations pro-

vided with this tool. Failure to follow all instructions listed below may result in electric shock, ﬁre and/or

serious injury.

Keep all warnings and instructions for future reference.

1.1 Work area safety

›Keep work area clean and well lit. Cluttered or dark areas invite accidents.

›Do not operate power tools in explosive atmospheres, such as in the presence of ﬂammable liquids, gases

or dust. Power tools create sparks, which may ignite the dust or fumes.

›Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

4CordlessE-Screwdriver-DHT0001-EN-01

General safety warnings

1.2 Electrical safety

›Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools. Unmodiﬁed plugs and matching outlets will reduce risk of electric shock.

›Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

›Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of

electric shock.

›Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the

cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of

electric shock.

›When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suita-

ble for outdoor use reduces the risk of electric shock.

›If operating a power tool in a damp location is unavoidable, use a RESIDUAL CURRENT DEVICE (RCD)

protected supply. Use of an RCD reduces the risk of electric shock.

1.3 Personal safety

›Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a

power tool if you are tired or under the inﬂuence of drugs, alcohol or medication. A moment of inattention

while operating power tools may result in serious personal injury.

›Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask,

non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce the risk of

injury.

›Prevent unintentional starting. Ensure the switch is in the oﬀ-position before connecting to a power source

and/or BATTERY pack, picking up or carrying the tool. Carrying power tools with your ﬁnger on the switch

or energising power tools that have the switch on invites accidents.

15/06/21 Original instruction manual

General safety warnings

›Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal injury.

›Do not overreach. Keep proper footing and balance at all times. This enables better control of the power

tool in unexpected situations.

›Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from

moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

›If devices are provided for the connection of dust extraction and collection facilities, ensure these are con-

nected and properly used. Use of dust collection can reduce dust-related hazards.

›Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool

safety principles. A careless action can cause severe injury within a fraction of a second.

1.4 Power tool use and care

›Do not force the power tool. Use the correct power tool for your application. The correct power tool will do

the job better and more safely at the rate for which it was designed.

›Do not use the power tool if the switch does not turn it on and oﬀ. Any power tool that cannot be controlled

with the switch is dangerous and must be repaired.

›Disconnect the plug from the power source and/or remove the BATTERY pack, if detachable, from the pow-

er tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

›Store idle power tools out of the reach of children and do not allow persons unfamiliar

with the power tool or these instructions to operate the power tool. Power tools are dange-

rous in the hands of untrained users.

›Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of

parts and any other condition that may aﬀect the power tool's operation. If damaged, have the power tool

repaired before use. Many accidents are caused by poorly maintained power tools.

6CordlessE-Screwdriver-DHT0001-EN-01

General safety warnings

›Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely

to bind and are easier to control.

›Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account

the working conditions and the work to be performed. Use of the power tool for operations diﬀerent from

those intended could result in a hazardous situation.

›Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and gras-

ping surfaces do not allow for safe handling and control of the tool in unexpected situations.

1.5 BATTERY tool use and care

›Recharge only with the charger speciﬁed by the manufacturer. A charger that is suitable for one type of BAT-

TERY pack may create a risk of ﬁre when used with another BATTERY pack.

›Use power tools only with speciﬁcally designated BATTERY packs. Use of any other BATTERY packs may

create a risk of injury and ﬁre.

›When the BATTERY pack is not in use, keep it away from other metal objects such as paper clips, coins,

keys, nails, screws or other small metal objects that can make a connection from one terminal to another.

Shorting the BATTERY terminals together may cause burns or a ﬁre.

›Under abusive conditions, liquid may be ejected from the BATTERY; avoid contact. If contact accidentally

occurs, ﬂush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the BAT-

TERY may cause irritation or burns.

›Do not use a BATTERY pack or tool that is damaged or modiﬁed. Damaged or modiﬁed batteries may exhi-

bit unpredictable behaviour resulting in ﬁre, EXPLOSION or risk of injury.

›Do not expose a BATTERY pack or tool to ﬁre or excessive temperature. Exposure to ﬁre or temperature

above 130 °C may cause explosion.

15/06/21 Original instruction manual

General safety warnings

›Follow all charging instructions and do not charge the BATTERY pack or tool outside the temperature range

speciﬁed in the instructions. Charging improperly or at temperatures outside the speciﬁed range may dama-

ge the BATTERY and increase the risk of ﬁre.

1.6 Service

›Have your power tool serviced by a qualiﬁed repair technician using only identical replacement parts. This

will ensure that the safety of the power tool is maintained.

›Never service damaged BATTERY packs. Service of BATTERY packs should only be performed by the manu-

facturer or authorised service providers.

1.7 Speciﬁc safety rules for cordless screwdriver

›Hold the power tool by insulated gripping surfaces when performing an operation where the fastener may

contact hidden wiring. Fasteners contacting a“ live” wire may make exposed metal parts of the power tool“

live” and could give the operator an electric shock.

›Be sure to hold this tool ﬁrmly. When tightening and loosening screws, there may be a brief strong kickback.

›Secure the workpiece. Clamping devices or a vise will hold the workpiece in place better and more safely

than holding it by hand.

›Keep your hands away from the working part of the bits to avoid injury. Do not remove dust, debris or waste

by hand near the bits during operating.

›Be sure to turn oﬀ the switch and wait for the tool to stop completely before putting it down.

›Do not touch bits and screws immediately after use. They may be very hot and could burn skin when tou-

ching them after use.

›Do not expose this tool to rain or snow.

›Do not burn this tool or leave it in the ﬁre; it will cause explosion.

8CordlessE-Screwdriver-DHT0001-EN-01

General safety warnings

›Before turning screws on walls, ﬂoors, and ceilings, carefully check whether there are wires, cables, natural

gas pipes, or water pipes that may be damaged.

WARNING: ALWAYS use SAFETY EQUIPMENT such as safety glasses, hearing protection and breat-

hing protection during operating.

1.8 Important safety rules for the charger

›Do not expose the charger to rain or wet conditions. Water entering will increase the risk of electric shock.

›Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

›Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the

risk of electric shock.

›Make sure children don't play with the charger.

›Check the charger, charging cord and plug before charging. Do not use a damaged charger or charging

cord, which may cause a short circuit and electric shock.

›Do not disassemble the charger. Take it to a service center when service or repair is required. Incorrect re-

assembly may result in a risk of electric shock, electrocution or ﬁre.

›When not in use, remove the charger from the power supply to reduce the risk of electric shock.

›To prevent electric shock, do not touch the uninsulated part of the socket.

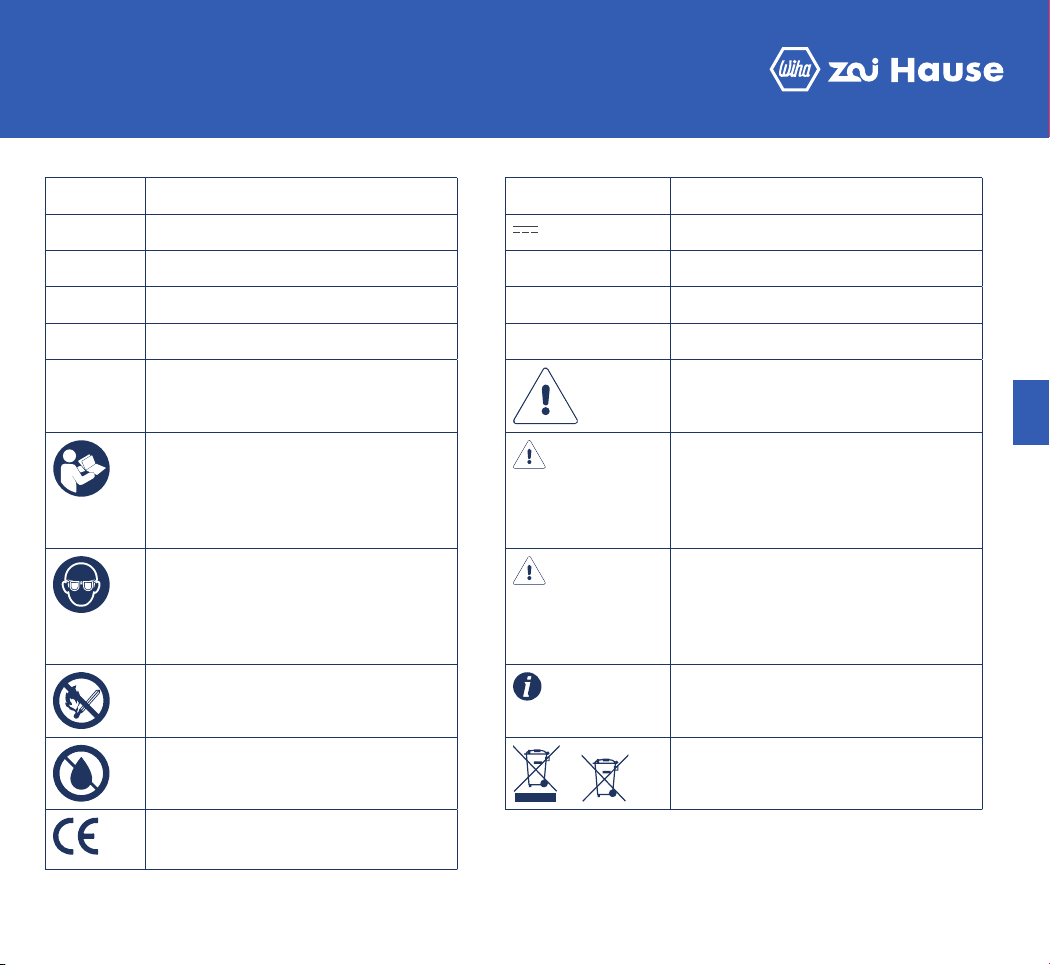

2 Symbols and explanation of terms

Some of the following symbols may be used on the tool. Please familiarise yourself with them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely.

15/06/21 Original instruction manual

Symbols and explanation

V volts ~ alternating current

A amperes direct current

Hz hertz Ah ampere-hours

Wh watts-hours Li-ion lithium-ion battery

n0no-load speed Ø diameter

/min revolutions per minute safety alert symbol

To reduce the risk of injury, the

user must read the instruction

manual (this manual).

WARNING Read carefully. Warnings must

be followed – not doing so could

endanger your and others' lives and

health.

Always wear eye protection. CAUTION Read carefully – when using the

tool, this information could be

important with regard to health,

safety and regional regulations.

Do not throw it in ﬁre. NOTE Important hints for using and set-

ting the tool

Do not throw it into water.

The tool should be recycled; do

not throw into the waste container.

Conformity with EU safety stan-

dards

10 CordlessE-Screwdriver-DHT0001-EN-01

3 Contents

›1 cordless screwdriver

›1 USB charging cord (USB-C)

›8 bits

›1 extension rod

›1 instruction manual (this manual)

4 Know your tool

Read the instruction manual (this manual) and all warnings and instructions.

4.1 Intended use

This power tool is intended for tightening and loosening screws. This tool has a hex drive chuck that accepts

only standard 6.35 mm accessories.

DO NOT use under wet conditions or in presence of ﬂammable liquids or gases. DO NOT let children come

into contact with the tool.

Contents / Know your tool

15/06/21 Original instruction manual

Know your tool

4.2 Overview

󾙓

󾙔

󾙕

󾙖󾙗 󾙘

󾙙

󾙚

󾙛

Fig. 1: Overview

Hex drive chuck Torque mode selector

LED illuminating light USB charging cord

LED indicator

(0.5 Nm = green, 1.0 Nm = red)

TYPE C charging socket

Forward direction button Extension rod

Reverse direction button

1 6

2 7

3 8

4 9

12 CordlessE-Screwdriver-DHT0001-EN-01

Technical data

5 Technical data

Item No. DHT0001

Model No. 4129-3

Rated voltage 3.6 V DC

No-load speed 200 /min

Maximum soft torque 0.5 Nm / 1.0 Nm

Hex-drive chuck 6.35 mm

Charging environment temperature 4~40 °C

Battery capacity 1.5 Ah

Number of battery 1

Recommended charger 5 V / 1 A

15/06/21 Original instruction manual

Use

6 Use

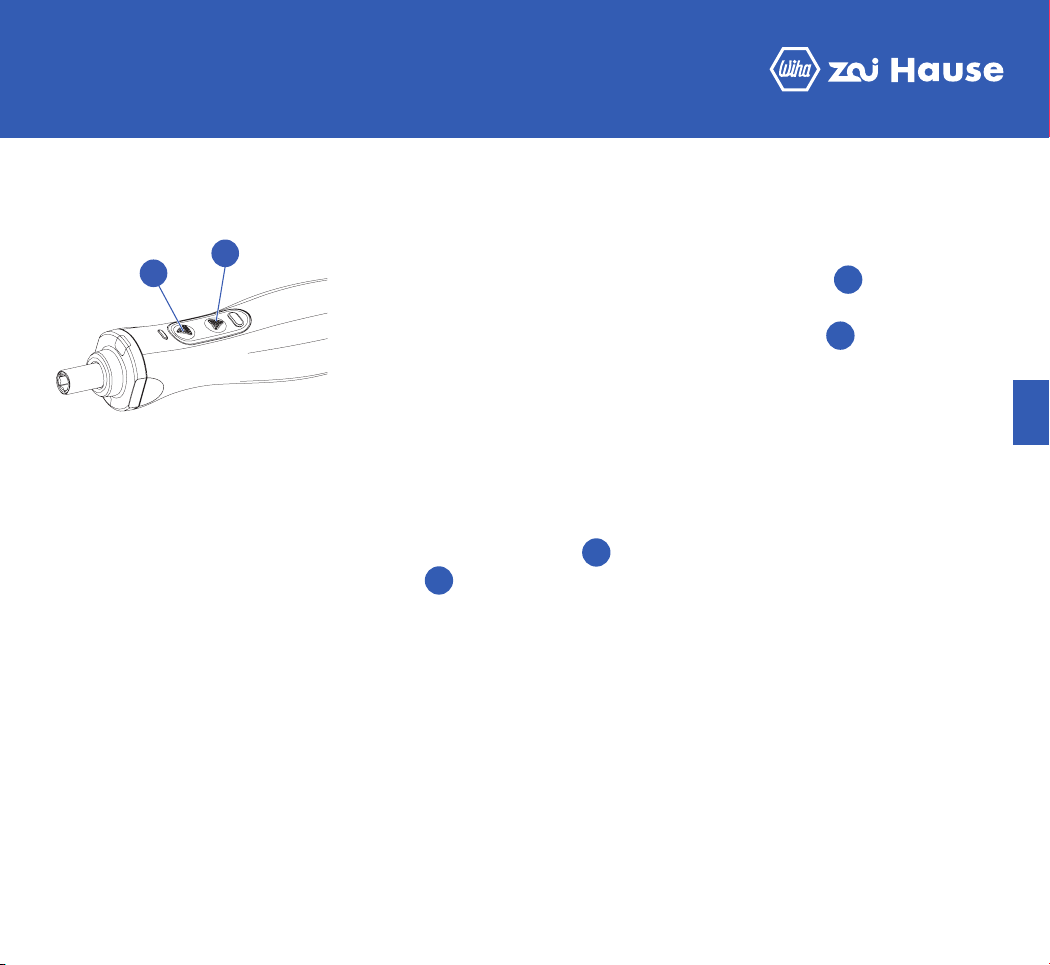

6.1 Installing the bits or extension rod

Fig. 2: Hex drive chuck

CAUTION: To prevent accidental injury, do not touch the forward/

reverse and main switch while installing or removing the bits.

1. To install the bits push the bit or extension rod directly into the hex

drive chuck (Fig. 1/ 1) until it is installed in place.

2. To remove the bit pull out the bit or extension rod directly (Fig. 2).

14 CordlessE-Screwdriver-DHT0001-EN-01

Use

6.2 Charging procedure

NOTE: The tool is not fully charged when it leaves the factory. Fully charge the tool before ﬁrst use.

Fig. 3: USB charging cord

1. Insert the charging plug (Fig.1/ 7) into the charging

socket (Fig.1/ 8) and ensure that they are connected

correctly (Fig. 3).

2. Insert the USB plug into the computer's USB port, or plug

in the power adapter and connect the power adapter to

the power socket.

3. When the green light of the charging indicator ﬂashes, it

means the tool is charging.

4. When the green light of the charging indicator remains lit;

this means the charging is completed. Please unplug the

power adapter and USB charging cable.

NOTE: Unplug the power adapter and USB charging

cord in time. Do not charge for more than 24 hours continu-

ously.

NOTE: During the charging process, the heating at the tool housing is normal. The tool does not work

during charging. If there is no response when the direction buttons are pressed during charging, it is not a tool

fault.

NOTE: The tool works best at normal room temperature, not in extremely cold or hot places for charging.

15/06/21 Original instruction manual

Use

6.3 Forward/reverse buttons

󾙓

󾙔

Fig. 4: Forward/reverse buttons

The forward/reverse button determines the rotation direction of the tool

and is also the switch button. Please hold the tool ﬁrmly when starting up.

1. To tighten the screw, press the forward button (Fig.1/ 4), and the

tool will turn forwards into the screw.

2. To loosen the screw, press the reverse button (Fig.1/ 5) and the tool

will reverse rotate to loosen the screw.

6.4 Switching the frontside LED on/oﬀ

›There are two white LED lights at the front of the tool (Fig.1/ 2), which can be switched on and oﬀ by

pressing the mode selector button (Fig.1/ 6).

›When the forward/reverse switch button is activated, the lighting is on. When the forward/reverse switch

button is released, the lights will turn oﬀ immediately.

›When the battery is low, the frontside LEDs ﬂash. The battery is exhausted and the tool needs to be char-

ged.

16 CordlessE-Screwdriver-DHT0001-EN-01

Use

6.5 Mode selector button

1. Short press the mode selector button (Fig.1/ 6) to turn on/oﬀ LED light.

2. Long press 2s to switch the high and low torque mode.

6.6 LED indicator

›The green light ﬂashes (Fig.1/ 3) breathlessly when charging, and the green light always on shows full

charge.

›When the tool starts up, red light means high torque mode (1.0Nm) and green light means low torque

mode (0.5Nm).

›Red light ﬂashing indicates reaching the protection current set value.

6.7 Manual operation mode

When the torque generated by the tool in the electric state cannot completely tighten or loosen the screw due

to the exhaustion of battery power, the screw speciﬁcation is too large, the hardness of the screwed material is

too high, or the screw is hard to loosen due to rust, etc., the tool can be used as a regular screwdriver. Install

the bit into the tool chuck, and you can directly tighten or loosen the screw manually.

15/06/21 Original instruction manual

Storage, cleaning and maintenance

7 Storage, cleaning and maintenance

Your tool does not need lubricating oil or other maintenance. Avoid using solvents when cleaning plastic parts.

Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by

their use.

Use clean cloths to remove dirt, dust, oil, grease, etc. Keep tool handles clean, dry and free of oil or grease.

This tool is equipped with a lithium-ion rechargeable battery. To obtain the longest possible battery life, the

following is recommended:

›Store the tool where the temperature is below 26 °C and free of moisture.

›Store the tool in a 30–50% charged condition.

›Every six months of storage, fully charge the tool and then use it.

WARNING: Do not store the tool in an environment with temperature higher than 40 °C.

WARNING: To avoid serious personal injury, always unplug the charger before cleaning or performing

any maintenance. Never disassemble the tool. Contact your service dealer/distributor or [email protected]ech

for all repairs.

CAUTION: To prevent accidental injury, make sure that you carry the product safely stored.

NOTE: The battery is not replaceable.

18 CordlessE-Screwdriver-DHT0001-EN-01

Troubleshooting / Waste disposal

8 Troubleshooting

Issue Solution

Tool does not start/is not operational Check battery status and charge the tool by using the

USB charging cord (Fig. 1/ 7) and plugging it into

the TYPE C charging socket

(Fig. 1/ 8).

Tool is too weak to tighten the screw Check the torque setting (Fig. 1/ 6).

Check the battery status and charge the battery if the

level is low.

Tool is working in the wrong direction Check forward/reverse buttons and use the right

button (Fig. 4, chapter 6.3).

9 Waste disposal

CAUTION: Battery-operated units that no longer work should not be disposed of with house-

hold waste. They are to be collected separately, in accordance with the 2012/19/EU directive for

the disposal of electrical and electronic waste, and 2006/66/EC as well as 2013/56/EU direc-

tive for the batteries and accumulators and waste batteries and accumulators and sent for proper

and environmentally friendly recycling.

15/06/21 Original instruction manual

Warranty / CE conformity declaration

10 Warranty

The warranty period is 2 years and starts on the date of sale to the customer.

We will remedy all kind of defects caused by material damage and/or manufacturing faults. The warranty will

be met by repair or replacement of defective parts at our own discretion. Claims under warranty will only be

accepted if the product is sent fully assembled and well packaged complete with cash voucher or invoice to

the appropriate dealer within the ﬁrst six months. Improper use voids the warranty.

11 CE conformity declaration

We declare and assume sole responsibility that the product described under „Technical speciﬁcations“

complies with the following standards and directives: EN 62841-1:2015, EN 62841-2-2:2014 and EN

60335-1:2012, EN 60335-2-29:2019. According to the provisions of directives 2011/65/EU, 2014/35/EU,

2014/30/EU, 2006/42/EG.

The technical documents (2006/42/EG) are available from:

daheim.tech GmbH

Waldstraße 14

78078 Mönchweiler

Germany

Wilhelm Hahn

Director

Mönchweiler, 06/10/2020

CordlessE-Screwdriver-DHT0001-DE-0120

Inhaltsverzeichnis

1 Allgemeine Sicherheitshinweise ................................................................................................................21

2 Symbole und Begriﬀsbestimmungen.........................................................................................................28

3 Inhalt............................................................................................................................................................30

4 Ihr Werkzeug..............................................................................................................................................30

5 Technische Daten........................................................................................................................................32

6 Gebrauch ....................................................................................................................................................33

7 Lagerung, Reinigung und Wartung...........................................................................................................37

8 Fehlerbehebung..........................................................................................................................................38

9 Entsorgung...................................................................................................................................................38

10 Gewährleistung...........................................................................................................................................39

11 CE-Konformitätserklärung ..........................................................................................................................39
