RAMMER 455 User manual

Original instructions
1/13
OPERATOR'S MANUAL
OM455ENG.113
HYDRAULIC HAMMER
RAMMER 455

OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. Foreword . . . . . . . . . . . . . . . . . . . . . . . . 4
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . 4
This manual . . . . . . . . . . . . . . . . . . . . . . 4
Important safety information . . . . . . . . . 5
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 6
Spare part orders. . . . . . . . . . . . . . . . . . . 6
2. Machine numbers . . . . . . . . . . . . . . . . . . 7
Model and serial number . . . . . . . . . . . . 7
3. Product introduction. . . . . . . . . . . . . . . . 8
Overview. . . . . . . . . . . . . . . . . . . . . . . . . 8
Removal from package . . . . . . . . . . . . . . 8
Lifting instructions . . . . . . . . . . . . . . . . . 8
Main parts . . . . . . . . . . . . . . . . . . . . . . 10
Environmental protection and recycling
policy . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4. Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 12
General safety . . . . . . . . . . . . . . . . . . . . 12
Safety instructions . . . . . . . . . . . . . . . . . 12
5. Operation . . . . . . . . . . . . . . . . . . . . . . . 21
Operating instructions. . . . . . . . . . . . . . 21
Daily operation . . . . . . . . . . . . . . . . . . . 23
Mounting and dismounting the
hammer. . . . . . . . . . . . . . . . . . . . . . . . . 29
Movement. . . . . . . . . . . . . . . . . . . . . . . 31
Special conditions of use . . . . . . . . . . . . 31
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 32
LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . 33
1. Hammer tool greasing. . . . . . . . . . . . . . 34
Recommended greases. . . . . . . . . . . . . . 34
Manual greasing . . . . . . . . . . . . . . . . . . 34
2. Carrier hydraulic oil . . . . . . . . . . . . . . . 36
Requirements for hydraulic oil . . . . . . . 36
Oil cooler . . . . . . . . . . . . . . . . . . . . . . . 38
Oil filter . . . . . . . . . . . . . . . . . . . . . . . . 39
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . 41
1. Routine maintenance . . . . . . . . . . . . . . 42
Overview. . . . . . . . . . . . . . . . . . . . . . . . 42
Inspection and maintenance by the
operator . . . . . . . . . . . . . . . . . . . . . . . . 42
Inspection and maintenance by the
dealer . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Maintenance intervals in special
applications. . . . . . . . . . . . . . . . . . . . . . 43
Other maintenance procedures . . . . . . . 43
2. Removal of tool . . . . . . . . . . . . . . . . . . 44
Wear limits and lubricants for tool
removal . . . . . . . . . . . . . . . . . . . . . . . . . 44
Removal of tool . . . . . . . . . . . . . . . . . . 44
Installation of tool. . . . . . . . . . . . . . . . . 45
3. Tool bushing. . . . . . . . . . . . . . . . . . . . . 47
Wear limits and lubricants for
lower tool bushing . . . . . . . . . . . . . . . . 47
Removal of tool bushing. . . . . . . . . . . . 47
Installation of tool bushing. . . . . . . . . . 48
4. Troubleshooting. . . . . . . . . . . . . . . . . . 49
The hammer does not start . . . . . . . . . . 49
The hammer operates irregularly
but the blow has full power . . . . . . . . . 49
The hammer operates irregularly
and blow has no power . . . . . . . . . . . . 50
Impact rate slows down . . . . . . . . . . . . 50
The hammer does not stop or
has run-on . . . . . . . . . . . . . . . . . . . . . . 51
Oil overheats . . . . . . . . . . . . . . . . . . . . 51
Recurrent tool failure . . . . . . . . . . . . . . 51
Further assistance . . . . . . . . . . . . . . . . . 52
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . 53
1. Hammer specifications . . . . . . . . . . . . . 54
Technical specifications . . . . . . . . . . . . 54
Main dimensions . . . . . . . . . . . . . . . . . 55
2. Tool specifications . . . . . . . . . . . . . . . . 56
3. CE mark and EC Declaration of
Conformity . . . . . . . . . . . . . . . . . . . . . 57

Operation - Page 3COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
455
OPERATION

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 4 - Operation
Foreword 455
1. FOREWORD
1.1 PREFACE
Congratulations on having purchased this product. A properly installed attachment
should prove to be a productive machine requiring maintenance only at regular
intervals.
1.2 THIS MANUAL
This manual is arranged to give you a good understanding of the equipment and its
safe operation. It also contains maintenance information and technical
specifications. Read this manual from front to back before installing, operating or
maintaining the attachment for the first time.
In this manual, the units of measurement are metric. For example, weights are given
in kilograms (kg). In some cases the other unit follows in parenthesis (). For
example 28 litres (7.4 US gal).
The specifications and designs presented in this manual are subject to change
without prior notice.
SYMBOLS USED IN THIS MANUAL
This symbol identifies important safety messages within this manual. Carefully read
the message that follows. Failure to understand and obey this safety warning could
result in injury to you or others, and could also cause damage to equipment. See
illustration 1.

Operation - Page 5COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
Foreword455
This symbol identifies prohibited action or hazardous location. Failure to
understand and obey this safety warning could result in injury to you or others, and
could also cause damage to equipment. See illustration 2.
This symbol identifies correct and recommended action. See illustration 3.
This symbol identifies environmental and recycling matter. See illustration 4.
1.3 IMPORTANT SAFETY INFORMATION
Basic safety precautions are outlined in the "Safety" section of this manual and in

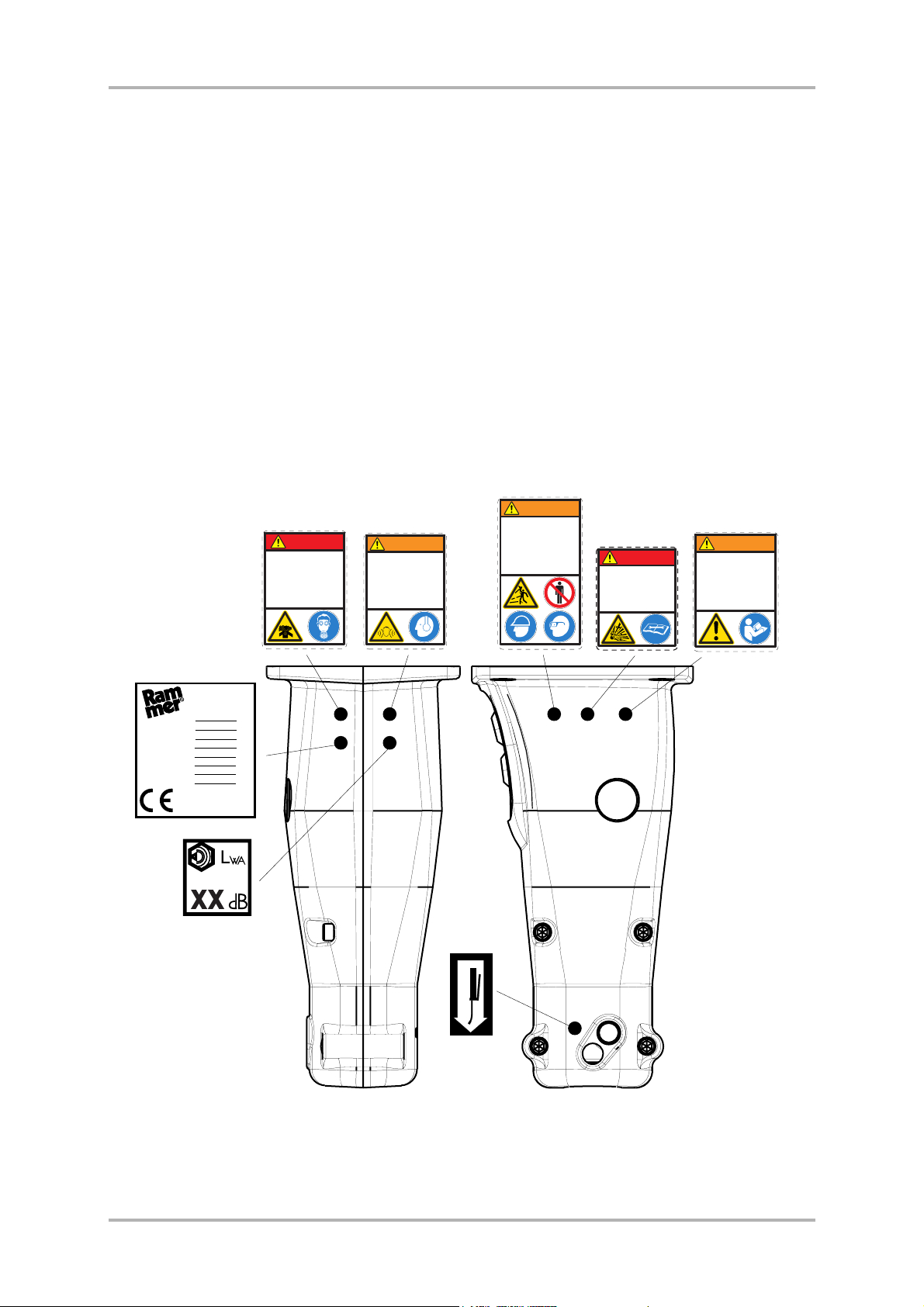

the description of operations where hazards exist. Warning labels have also been put
on the machine to provide instructions and to identify specific hazards which if not
observed could cause bodily injury or death to you or other persons. These warnings
in the guide and on the machine labels are identified by the warning symbol.
To use the attachment correctly, you must also be a competent operator of the carrier
machine. Do not use or install it if you can not use the carrier machine properly. The
attachment is a powerful tool. If used without proper care, it can cause damage.
Do not rush when you are learning to use the product. Take your time and most
importantly, take it safely. Do not guess. If there is anything you do not understand,
ask your local dealer. He will be pleased to advise you.
Improper operation, lubrication or maintenance of this machine can be dangerous
and could result in injury.
R010265

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 6 - Operation
Foreword 455
Do not operate this machine until you read and understand the instructions in this
manual.
Do not perform any lubrication and maintenance on this machine until you read and
understand the instructions in this manual.
1.4 WARRANTY
The customer is provided with a separate warranty sheet, where the export warranty
terms are explained. Check always that this warranty sheet is provided with the
attachment. If not, contact your local dealer immediately.
WARRANTY REGISTRATION CARD
A warranty registration card is filled out after the installation inspection by the
dealer and a copy of it is sent to the manufacturer. This card is very important
because no warranty claims are handled without it. Make sure that you get a copy
of it after the installation inspection and that it is correctly filled out.
INSTALLATION INSPECTION
An installation inspection must be carried out after the product has been installed on
the carrier. In the installation inspection certain specifications (operating pressure,
oil flow, etc.) are checked so that they are within given limits. See “Hammer
specifications” on page 54.
1.5 SPARE PART ORDERS
When you need spare parts or some information concerning maintenance to your
machinery, please contact your local dealer. Quick deliveries are ensured by exact
orders.
Required information:
1. Name of customer, contact person
2. Order number (when available)
3. Delivery address
4. Mode of delivery (air mail, etc.)
5. Required delivery date
6. Invoicing address
7. Model and serial number of product
8. Name, number and required amount of spare parts

Operation - Page 7COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
Machine numbers455
2. MACHINE NUMBERS
2.1 MODEL AND SERIAL NUMBER

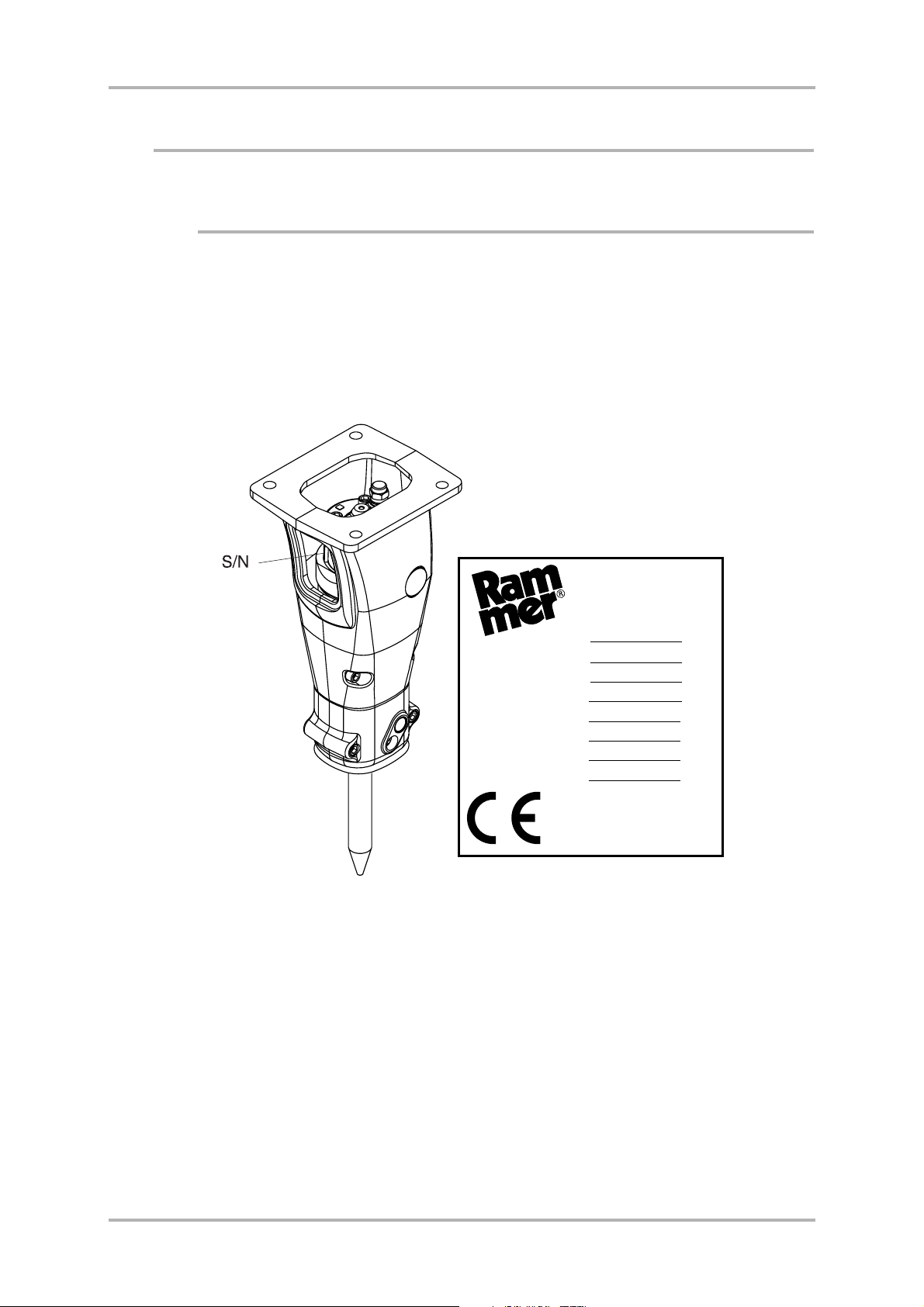

The equipment serial number is stamped on the valve body. The model and serial
number are also located on the CE marking. Check that the model corresponds to
the one given on the cover of this manual.
It is important to make correct reference to the serial number of the attachment when
making repairs or ordering spare parts. Identification of the serial number is the only
proper means of maintaining and identifying parts for a specific product.
R010414
Hydraulic Hammer
Model:
Serial Number:
Hammer weight:
Min. working weight:
Operating pressure:
Oil flow:
Manufactured:
Version:
kg
kg
bar
l/min
Manufacturer:
Address:
Sandvik Mining and
Construction Oy
Taivalkatu 8, 15170 Lahti, Finland

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 8 - Operation
Product introduction 455
3. PRODUCT INTRODUCTION
3.1 OVERVIEW
The product is a hydraulically operated breaker. It can be used on any carrier which
meets the necessary hydraulic and mechanical installation requirements. The unit
functions by repeatedly raising a steel piston and driving it down onto the head of a
removable breaking tool.
No additional pressure accumulators are necessary since the integrated pressure
accumulator absorbs hydraulic pressure peaks. The impact energy of the hammer is
almost constant and independent of the carrier's hydraulic system.
3.2 REMOVAL FROM PACKAGE
Remove all the steel belts from the package. Open the package and remove all
plastics covering the product.
Recycle all package materials (steel, plastic, wood) properly.
Check that the product is in good condition and that there is no visible damage.
Check that all ordered parts and accessories have been enclosed with the product.
Some options may be provided by your local dealer like installation kits; including
hoses and mounting bracket.
3.3 LIFTING INSTRUCTIONS
Use a hoist when lifting components which weigh 23 kg (50 lb) or more, to avoid
back injury. Make sure all chains, hooks, slings etc., are in good condition and are
in the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not
to be side loaded during a lifting operation. Do not use the hammer's tools for lifting
objects.

Operation - Page 9COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
Product introduction455

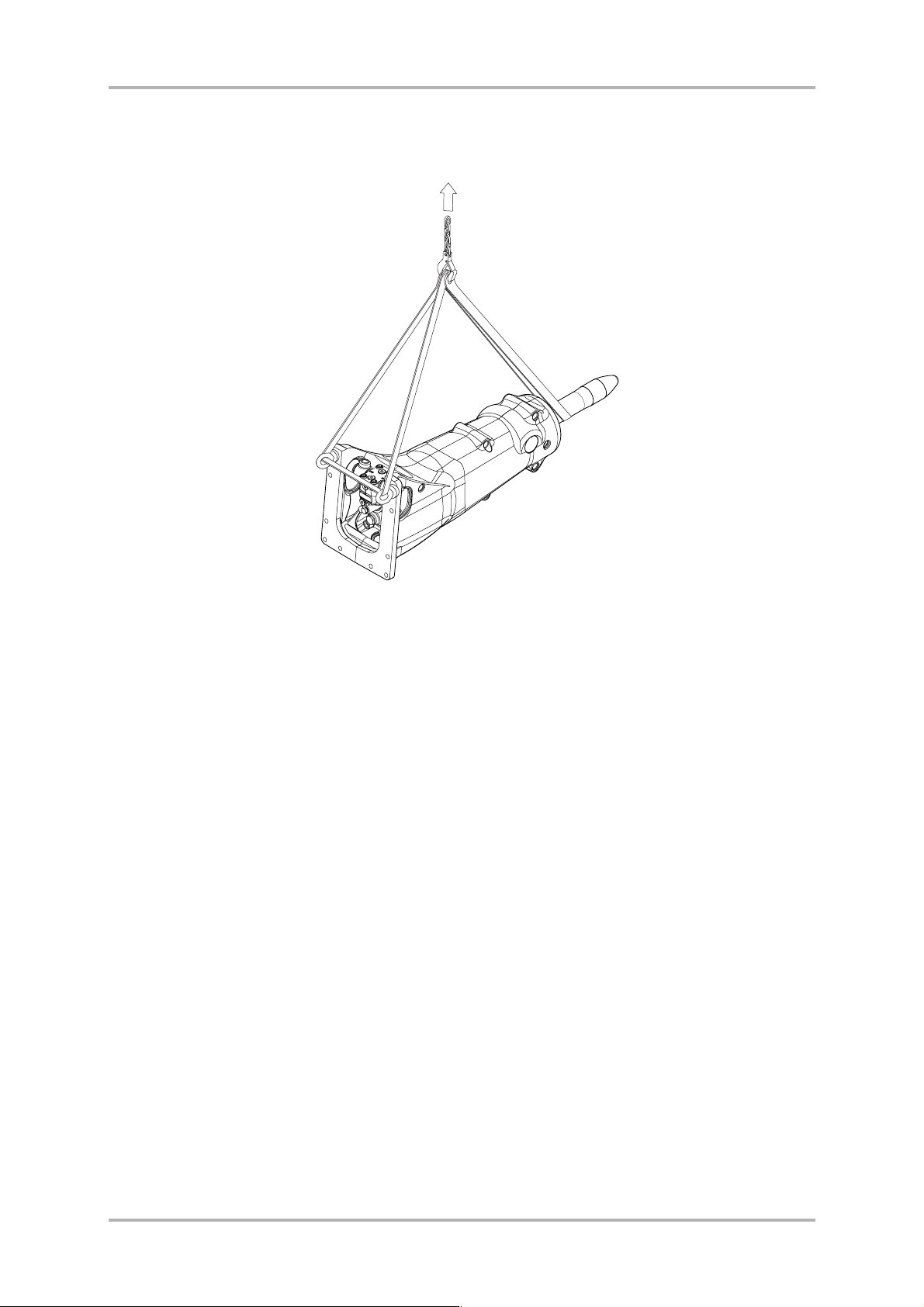

Lifting devices must safely carry the working weight of the product. See “Hammer
specifications” on page 54. Place chains or slings, as shown by the illustration, to
lift the product.
SAFETY INSTRUCTIONS FOR LIFTING
Below are some common safety instructions concerning lifting operations. In
addition to this, the local, national standards for machines and lifting-equipments
must always be strictly observed. Please note that the list below is not all inclusive,
you must always ensure the procedure you choose is safe for you and others.
■Do not lift load over people. No one shall be under the hoisted load.
■Do not lift people and never ride the hoisted load.
■Keep people clear from lift area.
■Avoid side pull of the load. Make sure you take up the slack slowly. Start and
stop carefully.
■Lift load a few centimeters and verify it before proceeding. Make sure the load
is well balanced. Check for any loose items.
■Never leave the suspended load unattended. Maintain load control at all times.
■Never lift the load over the rated capacity (see product's operating weight from
specification page).
■Inspect all lifting equipment before use. Do not use twisted or damaged lifting
equipment. Protect lifting equipment from sharp corners.
■Obey all local safety instructions.
R010358

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 10 - Operation
Product introduction 455

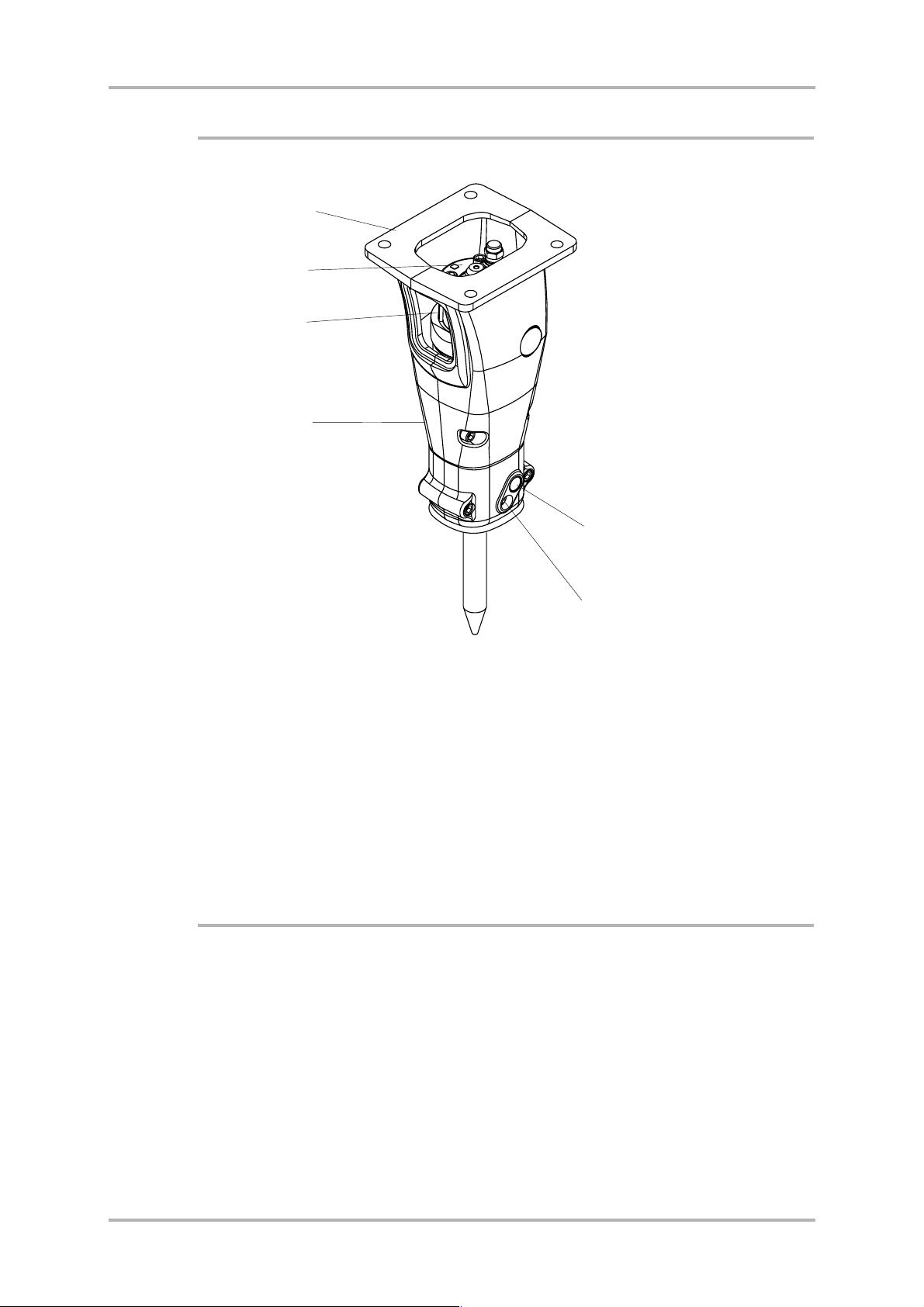

3.4 MAIN PARTS
The main parts of the hammer are shown below.
A. Side plates
B. Mounting flange
C. Hammer mechanism
D. Hose connections
E. Grease nipple
F. Tool and tool bushing retaining mechanism
3.5 ENVIRONMENTAL PROTECTION AND RECYCLING POLICY
Rammer products contribute to the recycling of materials to help customers achieve
their environmental objectives. During the manufacturing, all the necessary
precautions are taken to make sure that no harm is done to the environment.
Every effort is made to foresee and minimize the risks that might be associated with
the operation and maintenance of Rammer products, and which could pose danger
to humans or the environment. We support customers in their efforts to consider the
environmental protection in their everyday work.
R010416
B
A
D
C
F
E

Operation - Page 11COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
Product introduction455
When working with a Rammer product please follow these guidelines:
■Dispose of packaging materials properly. Wood and plastic can be burned or
recycled. Deliver the steel belts to metal recycling center.
■Protect environment from oil spills.
In case of hydraulic oil leaks, the equipment should be serviced immediately.
Follow the product's greasing instructions and avoid excessive greasing.
Be careful when handling, storing and transporting oils.
Dispose of empty oil or grease containers appropriately.
Consult local authorities for detailed instructions.
■All metal parts of the product can be recycled by delivering them to an
authorized scrap metal collection facility.
■Comply with local waste classification rules when disposing of used rubber or
plastic parts (buffers, wear plates, seals).
■When scrapping the whole product or pressure accumulator, consult your local
Rammer dealer for instructions on depressurizing the accumulator.
■Do not bring the product or accumulator to a scrap metal collection center
before depressurizing the accumulator first.
Consult with your local dealer for more information.

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 12 - Operation
Safety 455
4. SAFETY
4.1 GENERAL SAFETY
All mechanical equipment can be hazardous if operated without due care or correct
maintenance. Most accidents involving machine operation and maintenance are
caused by failure to observe basic safety rules or precautions. An accident can often
be avoided by recognizing potentially hazardous situations before an accident
occurs.
Because it is impossible to anticipate every possible circumstance that might
involve a potential hazard, the warnings in this guide and on the machine are not all
inclusive. If a procedure, tool, working method or operating technique not
specifically recommended by manufacturer is used, you must satisfy yourself that
it is safe for you and others. You should also ensure that the product will not be
damaged or made unsafe by the method of operation or maintenance procedures you
choose.
Safety is not just a matter of responding to the warnings. All the time you are
working with your attachment you must pay attention to what hazards there might
be and how to avoid them. Do not work with the product until you are sure that you
control it. Do not start any job until you are sure that you and those around you will
be safe.
Warning! Read the following warning messages carefully. They tell you of
different hazards and how to avoid them. If proper precautions are not taken
you or others could be seriously injured.
4.2 SAFETY INSTRUCTIONS
MANUALS
Study this manual before installing, operating or maintaining the product. If there is
anything you don't understand, ask your employer or your local dealer to explain it.
Keep this manual clean and in good condition.
The related safety label on the hammer and the text on the label are shown below.
"IGNORING INSTRUCTIONS HAZARD
Faulty handling practice could cause death or serious injury.
Read and follow the instructions in the operator's manual."

Operation - Page 13COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
Safety455
CARE AND ALERTNESS
All the time you are working with the product, take care and stay alert. Always be
alert for hazards. The possibility of a serious or even fatal accident is increased
when you are intoxicated.
CLOTHING
You can be injured if you do not wear proper clothing. Loose clothing can get
caught in the machinery. Wear protective clothing to suit the job.
Examples are: a safety helmet, safety shoes, safety glasses, well-fitting overalls,
ear-protectors and industrial gloves. Keep cuffs fastened. Do not wear a necktie or
scarf. Keep long hair restrained.
PRACTICE
You and others can be killed or injured if you perform unfamiliar operations without
practising them first. Practice away from the job site, in a clear area.
Keep other people away. Do not perform new operations until you are sure you can
do them safely.
REGULATIONS AND LAWS
Obey all laws, work site and local regulations which affect you and your equipment.
R010348
IGNORING
INSTRUCTIONS HAZARD
Faulty handling practice could
cause death or severe injury.
Read and follow the instructions
in the operator’s manual.
WARNING
169410_ENG-3

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 14 - Operation
Safety 455
COMMUNICATIONS
Bad communications can cause accidents. Keep people around you informed of
what you will be doing. If you will be working with other people make sure they
understand any hand signals you will be using.
Work sites can be noisy. Do not rely only on spoken commands.
WORK SITE
Work sites can be hazardous. Inspect the site before working on it.
Check for potholes, weak ground, hidden rocks etc. Check for utilities (electric
cables, gas and water pipes etc.). Mark the positions of underground cables and
pipes if you will be breaking the ground.
Poor visibility can cause accidents and damage. Make sure that visibility and
lighting of the working area are adequate.
BANKS AND TRENCHES
Banked material and trenches can collapse. Do not work too close to banks and
trenches where there is a danger of collapse.
SAFETY BARRIERS
Unguarded equipment in public places can be dangerous. Place barriers around the
machine to keep people away.
AIRBORNE POLLUTANTS
The related safety label on the hammer and the text on the label are shown below.
"DUST HAZARD
Breathing dust will cause death or severe injury.
Always wear approved respirator."

Operation - Page 15COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
Safety455
Airborne pollutants are microscopic particles, which will damage your health, when
inhaled. Aiborne pollutants on construction sites can be e.g. silica dust, oil fumes or
diesel exhaust particles, visible or invisible. Especially in demolition sites, there
may be other dangerous substances, such as e.g. asbestos or lead paints or other
chemical substances.
The effect of airborne pollutants may be immediate if the substance is poisonous.
The main danger with airborne pollutants comes from long term exposure, where
particles are inhaled but not removed from the lungs. The disease is called e.g.
silicosis, asbestosis or other and will result in death or serious injury.
To protect yourself from airborne pollutants, always keep excavator doors and
windows closed during operation. Excavators with pressurized cabins should be
utilized in hammer operation. Proper maintenance of fresh air filters of the
excavator is essential. Where pressurized cabins are not available, proper respirators
must be utilized.
Stop working, when bystanders are in the area of airborne pollutants and make sure
they have proper respirators. Respirators are as important for bystanders as hard
hats.Respirators for both operator and bystanders must be approved by the
respirator manufacturer for the application in question. It is essential that the
respirators protect from the tiny dust particles which cause silicosis and which may
cause other serious lung diseases. You should not use the equipment until you are
sure the respirators are working properly. This means the respirators must be
checked to make sure that it is clean, that its filter has been changed, and to
otherwise make sure the respirator will protect in the way it is meant to.
Always make sure dust has been cleaned off your boots and clothes when you leave
your shift. The smallest particles of dust are the most harmful. They may be so fine
that you can not see them. Remember, you MUST protect yourself and bystanders
from the danger of breathing or inhaling dust.
Always follow local laws and regulations for airborne pollutants in the working
environment.

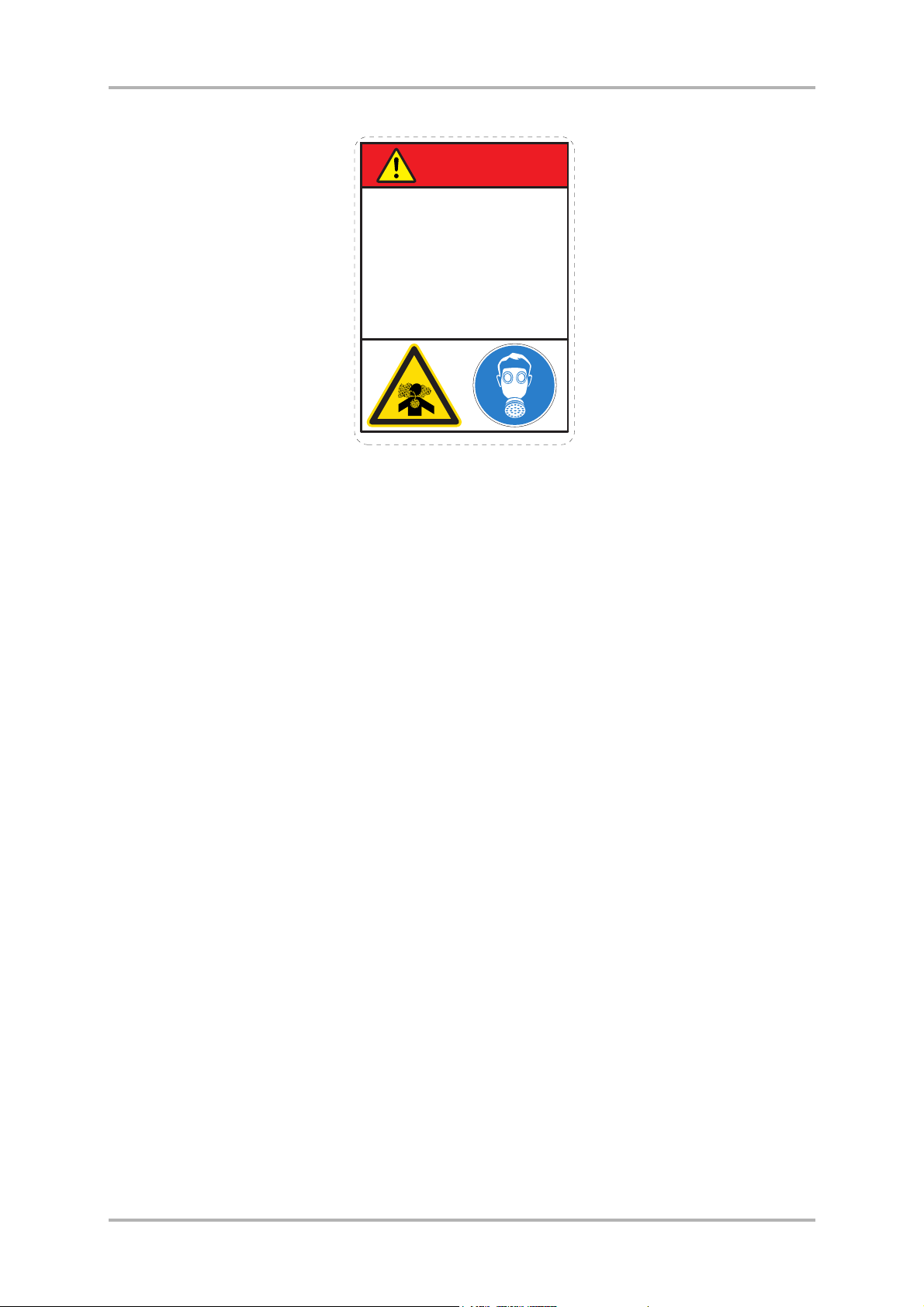

R010349
DUST HAZARD
Breathing dust will cause death
or severe injury.
Always wear approved
respirator.
DANGER
169410_ENG-1

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 16 - Operation
Safety 455
FLYING CHIPS OF ROCK
The safety label on the hammer is shown below:
"FLYING OBJECTS HAZARD
Fragments fly up to 40 m (130 ft) and could cause death or serious injury.
Stop operation when a person enters hazard zone.
Wear approved personal protective equipment."
Protect yourself and your neighbourhood against flying chips of rock. Do not
operate the product or carrier if someone is too close.
The European standard EN 474-1 on safety of earth-moving machinery requires that
adequate operator's protection, such as bullet proof glass, mesh guard or an
equivalent protection is used.
Keep the cabin windows and doors closed during operation. Window bars are
recommended to protect the windows from flying chips of rock.
HIGH NOISE LEVEL
A hammer in operation creates a high noise level. Always wear ear protection to
prevent personal injury.
The safety label on the hammer is shown below:
"NOISE HAZARD
Continuous exposure to noise above 80 dB(A) will cause hearing impairment.
Wear approved hearing protectors."
R010350
FLYING OBJECTS HAZARD
Fragments fly up to 40 m (130 ft)
and could cause death or severe
injury.
Stop operation when a
person enters hazard zone.
Wear approved personal
protective equipment.
WARNING
169410_ENG-2

Operation - Page 17COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
Safety455
EQUIPMENT LIMITS
Operating the product beyond its design limits can cause damage. It can also be
dangerous. See “Hammer specifications” on page 54.
Do not try to enhance the product's performance by unapproved modifications.
HYDRAULIC FLUID
Fine jets of hydraulic fluid at high pressure can penetrate the skin. Do not use your
fingers to check for hydraulic fluid leaks. Do not put your face close to suspected
leaks. Hold a piece of cardboard close to suspected leaks and then inspect the
cardboard for signs of hydraulic fluid. If hydraulic fluid penetrates your skin seek
medical help immediately.
Hot hydraulic fluid can cause severe injuries.
HYDRAULIC HOSES AND FITTINGS
Ensure all hydraulic components will withstand maximum pressure and mechanical
stresses caused by operation of the attachment. Consult your local dealer for
instructions.
FIRE HAZARD
Most hydraulic fluids are flammable and might ignite when contacting hot surface.
Avoid spilling hydraulic fluid to hot surfaces.
Working with the product on certain materials can cause sparks and hot splinters to
get loose. These can ignite flammable materials around working area.
Ensure that adequate extinguisher is available.
R010351
NOISE HAZARD
Continuous exposure to noise
above 80 dB(A) could cause
hearing impairment.
Wear approved hearing
protectors.
WARNING
169410_ENG-4

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 18 - Operation
Safety 455
HYDRAULIC PRESSURE
Hydraulic fluid at system pressure can injure you. Before disconnecting or
connecting hydraulic hoses, stop the carrier engine, operate the controls to release
pressure trapped in the hoses and wait ten (10) minutes. During the operation, keep
people away from the hydraulic hoses.
There might be pressurized oil trapped inside the product even if it is disconnected
from the carrier. Be aware of possible blank firing while greasing or removing and
installing hammer tools. See “Removal of tool” on page 44.
PRESSURE ACCUMULATORS
The safety label on or near the accumulator is shown below.
"HIGH PRESSURE HAZARD
Improper handling of pressurized accumulator will cause death or severe injury.
Read workshop manual before disassembly.
Release pressure before disassembly.
Recharge with nitrogen (N2) only."
The hammer incorporates one or two pressure accumulators, depending on the
model. The accumulators are pressurized even when there is no hydraulic pressure
to the hammer. Attempting to dismantle the accumulators without first releasing the
pressure can cause injury or death. Do not try to dismantle pressure accumulators,
contact your local dealer first.
LIFTING EQUIPMENT
You can be injured if you use faulty lifting equipment. Make sure that lifting
equipment is in good condition. Make sure that the lifting equipment complies with
all local regulations and is suitable for the job. Make sure that the lifting equipment
is strong enough for the job and you know how to use it.
R010357
169400_ENG-9
HIGH PRESSURE HAZARD
Improper handling of pressurized
accumulator will cause death or
severe injury.
Read workshop manual before
disassembly.
Release pressure before disassembly.
Recharge with nitrogen (N2) only.
DANGER

Operation - Page 19COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OY
Safety455
Do not use this product or any of its parts for lifting. See “Lifting instructions” on
page 8. Contact your carrier dealer to find out how to lift with your carrier.
SPARE PARTS
Use only genuine spare parts. Use only genuine tools with hydraulic hammers. The
use of other spare part or hammer tool brands may damage the product.
EQUIPMENT CONDITION
Defective equipment can injure you or others. Do not operate equipment which is
defective or has missing parts.
Make sure the maintenance procedures in this manual are completed before using
the product.
REPAIRS AND MAINTENANCE
Do not try to do repairs or any other maintenance work you do not understand.
MODIFICATIONS AND WELDING
Non-approved modifications can cause injury and damage. Contact your local
dealer for advice before modifying the product. Before welding on the product
while it is installed on the carrier, disconnect the carrier alternator and battery. Note
that welding of the hammer tools will render them useless and make the warranty
void.
METAL SPLINTERS
You can be injured by flying splinters when driving metal pins in and out. Use soft-
faced hammer or drifts to remove and fit metal pins, such as pivot pins. Always wear
safety glasses.
LABELS ON THE PRODUCT
Safety labels communicate the following four things:
■The severity level of the risk (i.e. signal word "DANGER" or "WARNING").
■The nature of the hazard (i.e. the type of hazard: high pressure, dust, etc.).
■The consequence of interaction with the hazard.
■How to avoid the hazard.
You must ALWAYS follow the instructions of the safety messages and symbols of
the product safety labels and the instructions set forth in the manuals to avoid death
or severe injury!

COPYRIGHT © 2013 SANDVIK MINING AND CONSTRUCTION OYPage 20 - Operation
Safety 455
Keep the safety labels clean and visible at all times. Check the condition of safety
labels daily. Safety labels and instructions which have disappeared, been damaged,
painted over, come loose or do not meet the legibility requirements for safe viewing
distance, must be replaced before operating the product.
If a safety label is attached to a part that is replaced, install a new safety label on the
replacement part. If this manual is available in your language, then the safety labels
should be available in the same language.
There are several specific safety labels on this hammer. Please become familiarized
with all safety labels. The location of the safety labels is shown in the illustration
below.
When you clean the safety labels, use a cloth, water and soap. Do not use solvent,
gasoline or other harsh chemicals to clean the safety labels.
Solvents, gasoline or harsh chemicals could loosen the adhesive that secures the
safety labels. Loose adhesive will allow the safety label to fall.
R010413
IGNORING
INSTRUCTIONS HAZARD
Faulty handling practice could
cause death or severe injury.
Read and follow the instructions
in the operator’s manual.
WARNING
169410_ENG-3
DUST HAZARD
Breathing dust will cause death
or severe injury.
Always wear approved
respirator.
DANGER
169410_ENG-1
FLYING OBJECTS HAZARD
Fragments fly up to 40 m (130 ft)
and could cause death or severe
injury.
Stop operation when a
person enters hazard zone.
Wear approved personal
protective equipment.
WARNING
169410_ENG-2
NOISE HAZARD
Continuous exposure to noise
above 80 dB(A) could cause
hearing impairment.
Wear approved hearing
protectors.
WARNING
169410_ENG-4
169400_ENG-9
HIGH PRESSURE HAZARD
Improper handling of pressurized
accumulator will cause death or
severe injury.
Read workshop manual before
disassembly.
Release pressure before disassembly.
Recharge with nitrogen (N
2
) only.
DANGER
Hydraulic Hammer
Model:
Serial Number:
Hammer weight:
Min. working weight:
Operating pressure:
Oil flow:
Manufactured:
Version:
kg
kg
bar
l/min
Manufacturer:
Address:
Sandvik Mining and
Construction Oy
Taivalkatu 8, 15170 Lahti, Finland
