Gourmet Coffee Grinders - Instructions
FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO
WWW.WILBURCURTIS.COM
This appliance is designed for commercial use. Any servicing other than cleaning and maintenance should be performed by an
authorized Wilbur Curtis service center.
• Do NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, do NOT open top panel. No user serviceable parts inside. Repair should be done
only by authorized service personnel.
• Keep hands and other items away from hot parts of unit during operation.
• Never clean with scouring powders or harsh implements.
Important Safeguards/Conventions
ConventionsConventions
ConventionsConventions
Conventions
WW
WW
WARNINGS –ARNINGS –
ARNINGS –ARNINGS –
ARNINGS – TT
TT
To help ao help a
o help ao help a
o help avoid personal injurvoid personal injur
void personal injurvoid personal injur
void personal injuryy
yy
yImportant Notes/Cautions – from the factorImportant Notes/Cautions – from the factor
Important Notes/Cautions – from the factorImportant Notes/Cautions – from the factor
Important Notes/Cautions – from the factoryy
yy
y
Quick Start & SetupQuick Start & Setup
Quick Start & SetupQuick Start & Setup
Quick Start & Setup
SETUPSETUP
SETUPSETUP
SETUP
1. Read this manual before attempting to operate the GSG coffee grinder.
2. Unpack the carton contents carefully. Inspect the container at the time of delivery for visual or concealed
damage. The carrier must be notified immediately in case of punctured or damaged cartons.
3. Install the grinder on a firm, level base in a location where it can be connected to a grounded electrical outlet of 120VAC,
rated at 15 amps.
4. Test the unit by running some whole bean coffee through the grinder. If any problems are encountered, refer to the
troubleshooting section complete at www.wilburcurtis.com or call Technical Service at 800-995-0417.
Changing a Broken Shear DiskChanging a Broken Shear Disk
Changing a Broken Shear DiskChanging a Broken Shear Disk
Changing a Broken Shear Disk
1. Unplug the power cord.
2. Empty the hopper of beans.
3. Remove the housing cover, held in place by two
slotted screws.
4. Take off the shear cap. Pull out the feed worm/
grinding burr assembly. These parts are slipped
together and usually come out in one piece.
5. Discard the broken shear disk.
6. Clean out the housing. Look for and remove any
debris that may have caused the shear disk to snap.
7. Reinsert the feed worm/grinding burr assembly on
the motor shaft.
8. Slide the shear drive through the center hole on the
feed worm/grinding burr assembly. The end with the
large slot goes in first. Align this slot with the
tongue on the motor shaft as you push in the shear
drive.
9.Rotate feed worm/grinding burr assembly to align the narrow slot with the narrow slot on the shear drive.
10. Insert a new shear disk into this slot and cover with the shear cap.
11. Clean off the inside surfaces of the housing cover. Replace the housing cover. If the housing cover doesn't seat properly, the
shear drive is probably not aligning with the motor shaft (repeat step 8).
12. Plug in the power cord.
WW
WW
WILBURILBUR
ILBURILBUR
ILBUR CC
CC
CURTISURTIS
URTISURTIS
URTIS CC
CC
COMPOMP
OMPOMP
OMPANYANY
ANYANY
ANY, I, I
, I, I
, INCNC
NCNC
NC..
..
.
Models Included
••
••
• GSG-3BLK
••
••
• GSG-3RED
Operating the GSG GrinderOperating the GSG Grinder
Operating the GSG GrinderOperating the GSG Grinder
Operating the GSG Grinder
Select the kind of grind
desired by turning the
selector knob on the face of
the grinder.
Pour whole bean coffee
through the door on top of
the grinder.
Place your coffee bag under
the spout. Lift the bag
upward.
Push the start switch. When
coffee beans are finished
grinding, lowering the bag
will stop the motor.
SELECTOR
KNOB
HOUSING
COVER
SHEAR
DISK
GRIND
HOUSING
SHEAR
CAP GRINDING
BURR
ADJUSTMENT
SCREW
SET SCREWS
2
Adjusting the Grind TextureAdjusting the Grind Texture
Adjusting the Grind TextureAdjusting the Grind Texture
Adjusting the Grind Texture
1. Empty the hopper of coffee beans.
2. Turn the selector knob clockwise as far as you can, to the ESPRESSO position.
3. Locate the two set screws, under the selector knob. Use an 1/8th inch Allen wench; loosen these screws one turn to free the knob from the adjusting screw.
4. Run the grinder. Turn the adjusting screw slowly clockwise until you hear the grinding burrs making a clicking noise. Back off on the adjusting screw 1/8th turn.
5. Tighten the set screws on the selector knob, your finest adjustment on the selector scale, ESPRESSO, is now set and the rest of the dial positions will be accurate.
CleaningCleaning
CleaningCleaning
Cleaning
1. Clean the painted outside case of the grinder with a cloth dampened with dishwashing detergent and water. Dry thoroughly with a soft cloth.
2. Clean the stainless steel front area of the grinder with a stainless steel polish.
3. Clean the inside of the hopper with a dry cloth.
4. Use a stiff brush to remove debris from the housing (see REPLACING A BROKEN SHEAR DISK for opening the grind housing). Keep moisture out of this area.

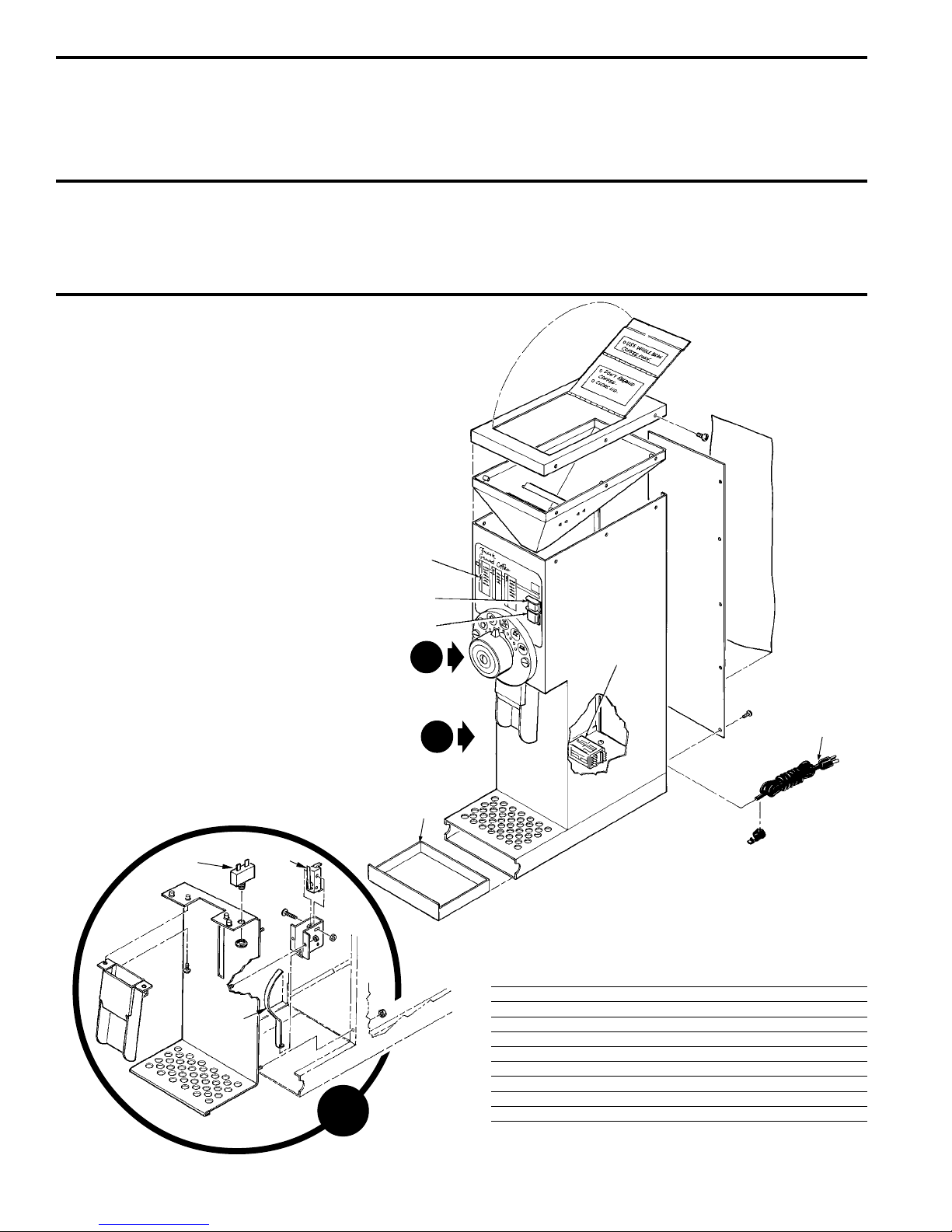

PARTS DIAGRAM
Item Part No. Description
LABEL, SWITCH PANEL GSG
SWITCH, PUSH BUTTON GREEN 120V N.O.
SWITCH, PUSH BUTTON RED 120V N.O.
DRAWER, GSG
RELAY, 120V, 3 POLE 15A
POWER CORD, 6 FT
CIRCUIT BREAKER 10A 120/220VAC
SWITCH, MICRO GSG
LEVER, BAG SWITCH GSG
WC-38036
WC- 149
WC- 150
WC-9177
WC- 435
WC-1200
WC-1504
WC- 151
WC-6487
1
2
3
4
5
6
7
8
9
1
3
2
5
6
4
7
9
8
CONTINUED, PAGE 3
A
A
B
3
ELECTRICAL SCHEMAELECTRICAL SCHEMA
ELECTRICAL SCHEMAELECTRICAL SCHEMA
ELECTRICAL SCHEMATICTIC
TICTIC
TIC
Item Part No. Description
MOTOR ASSY, HOUSING./FEEDWORM/SHEAR GSG
SPRING, TENSIONING
FEED WORM ASSY, CCG
SHEAR DRIVE GRINDER
DISK, SHEAR COFFEE GRINDERS
SCREW, CAP 10-32 BINDER HEAD
CAP, SHEAR DISK GRINDERS
BURR, SET CRUSH FINE COFFEE GRINDERS GSG
SCREW, 5/16-18 X 1” SLOT PAN HEAD
SPRING, CAP DETENT
CAP, SPRING DETENT
LABEL, SELECTOR RING GSG
SCREW, ADJUSTING ASSY GSG
RING, DETENT GSG
SCREW, 10-32 X 3/8 PAN HEAD
WASHER, #10 FLAT, SS
KNOB, SELECTOR
SCREW, 1/4-20 X 1” SET SLOTTED
LABEL, SELECTOR KNOB GSG
COVER, HOUSING
SPOUT ASSY, HOUSING GSG
WC-91063
WC-9106
WC-9102
WC-9109
WC-9107
WC-4826
WC-9108
WC-91019
WC-4613
WC-9175
WC-9174
WC-39045
WC-9199
WC-9172
WC-4512
WC-4309
WC-9171
WC-4832
WC-39046
WC-9170
WC-6671
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
15
13
12
14
PARTS DIAGRAM
MOTOR ASSEMBLY
11
10
16
17
22
21
20 19
18
23
29
28
27
26
25
24
30
B
FOR THE LATEST SPECIFICATION INFORMATION GO TO WWW.WILBURCURTIS.COM
4
12/03/01.15.0 . edr 3210 Rev NC
Printed in U.S.A. 12/01 F-2041-S Rev NC
WILBUR CURTIS CO., INC.
6913 Acco St., Montebello, CA 90640-5403 USA
Phone: 800/421-6150
Fax: 323-837-2410
Web Site: www.wilburcurtis.com
Product Warranty Information
The Wilbur Curtis Company certifies that its products are free from defects in material and workmanship under normal use. The following limited warranties
and conditions apply:
3 Years, Parts and Labor, from Original Date of Purchase on digital control boards.
2 Years, Parts, from Original Date of Purchase on all other electrical components, fittings and tubing.
1 Year, Labor, from Original Date of Purchase on all electrical components, fittings and tubing.
Additionally, the Wilbur Curtis Company warrants its Grinding Burrs for Forty (40) months from date of purchase or 40,000 pounds of coffee, whichever
comes first. Stainless Steel components are warranted for two (2) years from date of purchase against leaking or pitting and replacement parts are
warranted for ninety (90) days from date of purchase or for the remainder of the limited warranty period of the equipment in which the component is
installed.
All in-warranty service calls must have prior authorization. For Authorization, call the Technical Support Department at 1-800-995-0417. Effective date
of this policy is April 1, 2003.
Additional conditions may apply. Go to www.wilburcurtis.com to view the full product warranty information.
CONDITIONS & EXCEPTIONS
The warranty covers original equipment at time of purchase only. The Wilbur Curtis Company, Inc., assumes no responsibility for substitute replacement
parts installed on Curtis equipment that have not been purchased from the
Wilbur Curtis Company, Inc. The Wilbur Curtis Company will not accept any responsibility if the following conditions are not met. The warranty does not
cover and is void under the following circumstances:
1) Improper operation of equipment: The equipment must be used for its designed and intended purpose and function.
2) Improper installation of equipment: This equipment must be installed by a professional technician and must comply with all local electrical,
mechanical and plumbing codes.
3) Improper voltage: Equipment must be installed at the voltage stated on the serial plate supplied with this equipment.
4) Improper water supply: This includes, but is not limited to, excessive or low water pressure, and inadequate or fluctuating water flow rate.
5) Adjustments and cleaning: The resetting of safety thermostats and circuit breakers, programming and temperature adjustments are the
responsibility of the equipment owner. The owner is responsible for proper cleaning and regular maintenance of this equipment.
6) Damaged in transit: Equipment damaged in transit is the responsibility of the freight company and a claim should be made with the carrier.
7) Abuse or neglect (including failure to periodically clean or remove lime accumulations): Manufacturer is not responsible for variation in
equipment operation due to excessive lime or local water conditions. The equipment must be maintained according to the manufacturer’s
recommendations.
8) Replacement of items subject to normal use and wear: This shall include, but is not limited to, light bulbs, shear disks, “0” rings, gaskets,
silicone tube, canister assemblies, whipper chambers and plates, mixing bowls, agitation assemblies and whipper propellers.
9) Repairs and/or Replacements are subject to our decision that the workmanship or parts were faulty and the defects showed up under normal
use. All labor shall be performed during regular working hours. Overtime charges are the responsibility of the owner. Charges incurred by delays,
waiting time, or operating restrictions that hinder the service technician’s ability to perform service is the responsibility of the owner of the
equipment. This includes institutional and correctional facilities. The Wilbur Curtis Company will allow up to 100 miles, round trip, per in-warranty
service call.
RETURN MERCHANDISE AUTHORIZATION: All claims under this warranty must be submitted to the Wilbur Curtis Company Technical Support
Department prior to performing any repair work or return of this equipment to the factory. All returned equipment must be repackaged properly in
the original carton. No units will be accepted if they are damaged in transit due to improper packaging. NO UNITS OR PARTS WILL BE AC-
CEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA). RMA NUMBER MUST BE MARKED ON THE CARTON OR
SHIPPING LABEL. All in-warranty service calls must be performed by an authorized service agent. Call the Wilbur Curtis Technical Support
Department to find an agent near you.
