Williams AV PPA T46 User manual

Customer Service
If you experience diculty with your system, call Toll-Free
for Customer Assistance:
1-800-843-3544 (U.S.A.) or
[phone] (Outside the U.S.A.)
If it is necessary to return the system for service, your
Customer Service Representative will give you a Return
Authorization Number (RA) and shipping instructions.
This is a quick setup guide. For a
detailed user manual, please visit
our website.
[e-mail] / www.williamsav.com
800-843-3544 / INTL: [phone]
©2021 Williams AV, LLC MAN 170I

System Specifications
FM Transmitter, Model PPA T46
Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline
batteries (BAT 001-2), 75 mA nominal current
drain, up to 30 hours battery life, or
Two (2) AA 1.5 V rechargeable NiMH batteries
(BAT 026-2), 75 mA nominal current drain, up
to 20 hours battery life per charge, recharges
in 14–16 hours, uses CHG 3502 or CHG 3512
Charger
Operating Frequencies: Selectable, 17 wideband channels, 72.1 – 75.9
MHz (channels 1-8 correspond with R37-8 receiver
channels)
Transmit Antenna: Integral with microphone cord (required)
External/Menu Controls: Top: Momentary push button - push and hold 3
seconds for power On/O, push and release for
microphone mute On/O
Front: Left Arrow, Menu, Right Arrow buttons for
accessing/changing the transmitter settings
Display: 1” OLED, for viewing transmitter settings
Mic Input: 3.5 mm mono phone jack with electret mic bias,
adjustable gain with 25 dB range (in menu)
Aux Input: 2.5 mm stereo phone jack, adjustable gain with
60 dB range (in menu)

System Specifications (Continued)
FM Transmitter, Model PPA T46
Audio Compression: 1:1 (o) or 2:1 (on) ratio, selectable in menu
Compatible Microphones: MIC 044, MIC 090, MIC 100
Compatible Receivers: PPA R37, PPA R37-8, PPA R38
Approvals/Directives: FCC, Industry Canada, RoHS, WEEE
Warranty: Lifetime PLUS Limited Warranty

Safety Information
HEARING SAFETY
CAUTION!
This product is designed to amplify sounds to a high
volume. To protect your hearing and the hearing of others:
1. Make sure the unit is OFF or the volume is turned down
before putting on the earphones.
2.Set volume level at the minimum setting you need to
hear.
3. Do not allow children or other unauthorized persons to
have access to this product.
BATTERY SAFETY
CAUTION!
Do not attempt to recharge alkaline or other non-
rechargeable batteries, which may explode, release
dangerous chemicals, cause burns, or cause other serious
harm to the user or product.
MEDICAL DEVICE SAFETY
CAUTION!
Before using this product with a pacemaker or other
implantable medical device, consultant your physician
or the manufacturer of the device to make sure that you
are using this product in accordance with their safety
guidelines.

Recycling Instructions
Help Williams AV protect the environment!
Please do not dispose of equipment or used batteries in
the household trash. Take the equipment to an electronics
recycling center or return to the factory. Take batteries to a
retail or community recycling location.
Battery Information
The PPA T46 uses 2 AA batteries. We recommend using
Williams AV Alkaline batteries (BAT 001-2) or rechargeable
batteries (BAT 026-2) for longer battery life than other
brand batteries.
Low Battery Indicator
The “On” indicator on top of the unit will flash to indicate
low battery.
Multi Charger CHG 3512
This optional charger is ideal for customers using
rechargeable batteries. It will charge up to 12 receivers at
one time. See our website or call us for ordering information.
Accessories
To order accessories including microphones, batteries, and
chargers, contact Williams AV at 800-843-3544 or order on-
line at: www.williamsav.com.
Note on Interference
Channels which are too close together or produce similar
harmonics create interference.Williams AV channel
numbers 1-8 have been carefully selected so that they
don’t interfere with each other. Other frequencies, nearby
devices or other transmitters may cause interference.

PPA T46
Personal PA®FM 72-76 MHz Body Pack Transmitter
QUICK SETUP GUIDE
MAN 170I

Operating Instructions
1. Open the battery compartment. Slide the battery selection
switch to the correct position for the type of batteries that
will be used. Use “Alkaline” for non-rechargeable batteries,
“NiMH” for rechargeable NiMH batteries (only). (FIG. A)
IMPORTANT: If the battery switch is not in the correct position,
damage may be caused to the unit.

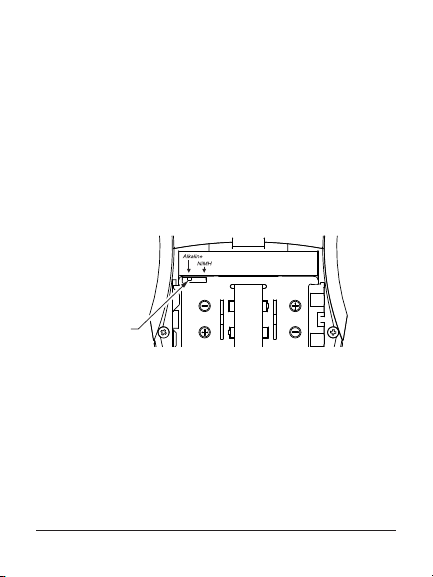

FIG. A: Battery Compartment
A311
ALKALINE/NiMH
BATTERY SWITCH
CAUTION: RECHARGE
ONLY NiMH BATTERIES
BATTERY REMOVAL
FABRIC STRIP
2.Install the AA batteries. Be sure to observe proper polarity
(+/-). Damage due to improper battery installation may void
the warranty on the product. The “Power On” LED on top
of the unit will flash when the batteries are getting low;
you may continue to use until the unit quits operating, then
replace or recharge the batteries. (FIG. A)

3. Plug in the microphone cord (sold separately) using the
“Mic Jack” on top of the transmitter (FIG. B). Do not curl or
wrap the microphone cable. The microphone cable is
also the transmitting antenna.
4. Optionally, plug in a desired audio source such as a CD or
MP3 player using the “Auxiliary Input” jack (WCA 087 stereo
auxiliary input cable included). If mic and auxiliary sources
are used together, the audio will be mixed. If only an
auxiliary source is desired, the mic can be muted. Do not
remove the mic from the “Mic Jack” as the cable is also
the transmitting antenna (FIG. B)
5. Turn the unit on: press and hold the “ON/OFF/MUTE”
button for three seconds. The “Power On” indicator will
illuminate green. (FIG. B)

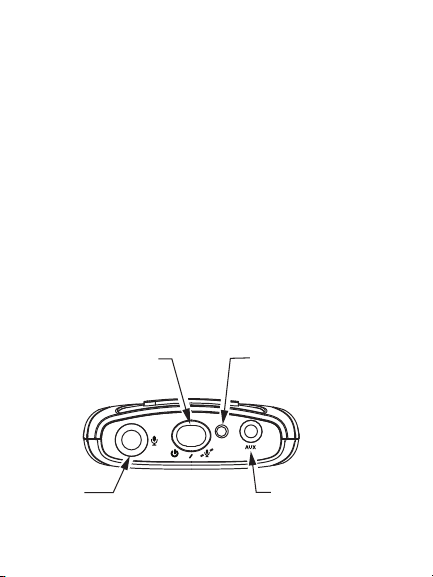

FIG. B: Top of Transmitter
T46 TOP
POWER ON/OFF,
MUTE BUTTON
AUXILIARY
INPUT JACK
MIC
JACK
POWER "ON",
LOW BATTERY
LED
A310

6.Select the desired operating frequency. Refer to the
following channel selection chart. Make sure the transmitter
and receiver channels match.
Up to eight T46’s can operate simultaneously on dierent
channels. These channels must be used to avoid
interference (see “Note on Interference” on page 4.)
See 8-Ch. Mode in the chart below for recommended
channels. (FIG. C)
FIG. C: Channel Selection Chart
17-Ch. Mode Freq (MHz) 8-Ch. Mode
1 72.1 1
2 72.3 2
3 72.6 3
4 72.8 4
5 74.7 5
6 75.4 6
775.7 7
875.9 8
972.5
10 72.2
11 72.4
12 72.7
13 72.9
14 75.3
15 75.6
16 75.8
17 75.5

7. Change the transmitter to the desired operating frequency.
Use the Menu to select any of the 17 available channels
on 72-76 MHz. To access the channel setting, push the
menu button until you see the channel displayed. Change
the channel by pushing the left or right arrow buttons.
To access additional settings, push the menu button
repeatedly until you see the setting you want. If no buttons
are pushed for 30 seconds, the display returns to the main
screen and then shuts o to conserve battery power.
(FIG. D, FIG. E)

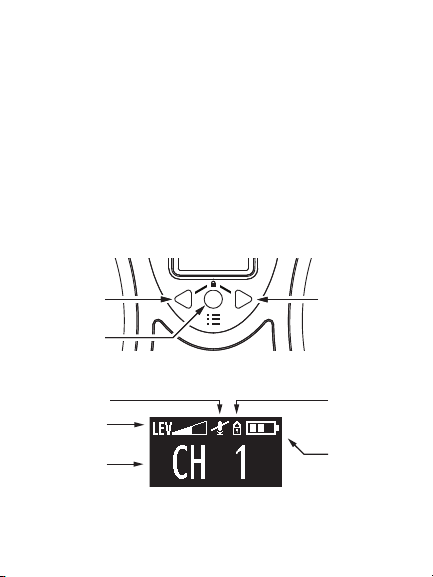

FIG. D: Menu Buttons
T46 FRONT
LEFT
ARROW
BUTTON RIGHT
ARROW
BUTTON
MENU
BUTTON
OLED
DISPLAY
A309
FIG. E: Main Screen
A312
MIC + AUX
AUDIO LEVEL
MIC MUTED SETTINGS
LOCKED
TRANSMIT
CHANNEL
BATTERY
LIFE

8.To install the belt clip on the rear of the T46, position the
belt clip on the back of transmitter. Turn the belt clip 180˚
left or right to secure the clip. The transmitter can now be
clipped onto a belt. To remove, turn the belt clip 180˚ so the
open end of the clip points up, and gently pull the belt clip
o. (FIG. F)
FIG. F: Belt Clip Installation
A119
9. Position the headset microphone boom as close to the
speaker’s mouth as possible without actually touching.
Lapel clip microphones should be attached to a collar or
lapel, as close to the speaker’s mouth as possible
10. When you pause from speaking, mute the microphone by
pressing the “ON/OFF/MUTE” button once momentarily.
The button will flash. The front display will also indicate the
mic is muted. To unmute the mic, press the button once
momentarily again.
11. When the T46 transmitter is not being used, turn the unit
OFF by pressing and holding the “ON/OFF/MUTE” button
for three seconds. The Power On indicator will go o.

Limited Lifetime PLUS Limited Warranty
Williams AV products are engineered, designed, and
manufactured under carefully controlled conditions to
provide many years of reliable service. Williams AV warrants
the T46 against defects in materials and workmanship.
Microphones, earphones, headphones, batteries, chargers,
cables, carry cases, and all other accessory products carry
a 90-day warranty.
If you experience diculty with your system, call toll-free for
customer assistance:
1-800-843-3544 (U.S.A.)
or [phone] (outside the U.S.A.)
If it is necessary to return the system for service, your
Customer Service Representative will give you a Return
Authorization Number (RA) and shipping instructions.
Pack the system carefully and send it to:
Williams AV
Attn: Repair Dept.
10300 Valley View Road
Eden Prairie, MN 55344 USA
