Williams 6S.5T03 Owner's manual
1
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
6S01T036S.5T03
MODEL: 6S.5T03 & 6S01T03
6S.5T03-M0 _012019
Hydraulic Spreader
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
OWNER/ OPERATOR MANUAL
2
Save these instructions. For your safety, read and
understand the information contained within. The owner and
operator shall have an understanding of this product and safe
operating procedures before attempting to use this product.
Make certain that the operator thoroughly understands the
inherent dangers associated with the use and misuse of the
product. If any doubt exists as to the safe and proper use of
this product as outlined in this factory authorized manual,
remove from service immediately.
Inspect before each use. Do not use if broken, bent,
cracked or otherwise damaged parts are noted. If any
component of this product has been or suspected to have
been subjected to a shock load (a load dropped suddenly,
unexpectedly upon it), discontinue use until checked out by
a Williams authorized service center. Owners and operators
of this equipment shall be aware that the use and subsequent
repair of this equipment may require special training and
knowledge. It is recommended that an annual inspection
be done by qualied personnel and that any missing or
damaged parts, decals, warning / safety labels or signs be
replaced with factory authorized replacement parts only.
Any spreader that appears to be damaged in any way, is
worn or operates abnormally shall be removed from service
immediately until such time as it can be repaired/replaced.
Instruction Manuals are available from manufacturer.
Williams Hydraulic Spreaders are designed for rated capacity
pushing and spreading. A wide variety of applications exist
for this category of product.
Special skill, knowledge and training may be required for
a specic task and the product may not be suitable for all
the jobs described above. Unsuitable applications would
include applications that call for a device to move, level
or support persons, animals, hazardous materials, mobile
homes/dwellings in general, mirrors and/or plate glass, and/
or to connect/secure hatches, components, etc. between
bulkheads. The user ultimately must make the decision
regarding suitability of the product for any given task and
therefore accept responsibility for that decision. Immediately
after lifting, loads must be supported by appropriate
mechanical means.
PRODUCT DESCRIPTION
NEVER rely upon a hydraulic spreader as a support
device! Immediately after lifting, loads must be
supported by appropriate mechanical means.
Always check connections before using. Alteration
of these products is strictly prohibited. Use only
those adapters and attachments provided and approved
by the manufacturer.
To reduce the risk of personal injury and/or property
damage, ensure that the rated working pressure of
each pressurized attachment be equal to or greater than the
rated working pressure developed by the hydraulic pump.
!
!
!
GENERAL SAFETY INFORMATION
1. Ensure that both spreader jaws fully engage the load
and that the load is centered on the serrated portion of
each spreader jaw before pressurizing spreader. Do not
load off center.
2.
Always monitor the hyraulic pressure pressure developed
in the spreader ram by using an inline pressure gauge.
These spreaders are designed to develop 10,000 psi
at rated capacity.
BEFORE USE
1. Before using this product, read the owner's manual
completely and familiarize yourself thoroughly with the
product, its components and recognize the hazards
associated with its use.
2. Verify that the product and the application are compatible.
If in doubt, call Williams Technical Service 1-866-460-
7995. Inspect before each use. Do not use if bent, broken,
leaking or damaged components are noted.
4.
Replace worn or damaged parts and assemblies with
Williams authorized replacement parts only. Lubricate
as instructed in Maintenance Section.
5. Use ANSI compliant eye protection when operating or
near this equipment.
6. Ensure method of conrming load is accurate and working
properly. Have gauge or load cell accuracy veried by
qualied personnel on a yearly basis.
7. Spreaders should be stored where protected from the
elements, abrasive dust, and damage. These devices
may be stored in virtually any position.
!
If bowing or bending of the spreader jaws occurs,
STOP, immediately release pressure! Evaluate
the set-up and consider a higher capacity system.
Bowing or bending of components indicates that the
spreader is overloaded.
3/8”-18NPTF coupler
spreader jaws
serrated portion, centrally load
at arrow(s)
Figure 1- Typical Spreader Nomenclature
(6S.5T03 shown)
3
Do not pull, position or move ram setup by the
hose. Use carrying handle or other means of
safe transport.
Do not handle pressurized hoses. Never attempt
to grasp a leaking pressurized hose. Ensure to
release the system pressure before disconnecting
hydraulic hose or connections.
Hydraulic uid can ignite and burn. Keep
hydraulic
equipment away from ames and heat.
Excessive
heat will soften seals, resulting in uid leaks. Heat
also weakens hose materials.
Ram must be on a stable base which is able
to support the load while pushing or lifting. Use
shims, friction material or constrains to prevent
slippage of the base or load. Ensure ram is
fully engaged into/onto adapters, extension
accessories.
Center load on ram. Distribute load evenly across
the entire saddle surface. Do not off-center loads
on a ram. The load can tip or the ram can “kick out”.
Never try to disassemble a hydraulic ram, refer
repairs to qualied, authorized personal. Contact
Williams tech service for authorized service center.
Do not subject hose to sharp objects or heavy
impact.
Hose material or seals must not come in contact
with corrosive materials such as battery acid,
creosote-impregnated objects and wet paint.
Never paint a coupler or hose.
•
No alteration shall be made to the ram.
•
Use only factory authorized fasteners, accessories
and hydraulic uid.
Failure to comply with the following warnings
may
result in personal injury as well as property
damage.
•
Study, understand, and follow all instructions
provided with and on this device before use.
• The user must be a qualied operator familiar
with the correct operation, maintenance, and
use of rams.
Wear protective gear when
operating hydraulic equipment.
This device is NOT suitable for use as support
device! As the load is lifted, use blocking and
cribbing to guard against a falling load.
Stay clear
of a lifted load before it is properly
supported
.
Never rely on hydraulic pressure to support
a load.
Crush Hazard. Keep hands and feet
away from ram and workpiece during
operation.
•
Do not exceed rated capacity of the ram or
any
equipment in the system. The ram is
designed for
a max. pressure of 10,000 psi.
•
Do not connect a ram to a pump with higher pressure rating.
• Do not subject ram to a shock loads, a load dropped
suddenly, causing the system pressure to exceed rated
pressure.
The system operating pressure must not exceed
the pressure rating of the lowest rated component
the system. Install a pressure gauge or other load
measuring instrument to monitor the operating
pressure. Burst hazard exists if hose, connection or any other
component in the system exceed its rated pressure.
Avoid damaging hydraulic hose. Do not allow hose
to kink, twist, curl, crush, cut or bend so tightly that
uid ow within the hose is blocked or reduced.
Periodically inspect the hose for wear.
SPECIFICATIONS
Model
No.
Spreader
Capacity
(Ton)
Cylinder
Effective Area
(Sq. In.)
Oil Capacity
(Cu. In.)
Tip
Clearance
(In.)
Max.
Spread
(In.)
Overall
Length
(In.)
Weight
(Lbs.)
6S.5T03 0.5 1.22 0.58 0.51 3.54 9.82 4.8
6S01T03 1.0 1.09 0.86 0.47 3.9 8.82 5.1
WARNING
!
4
Figure 2 - Horizontal and Vertical position
OPERATION
ALWAYS monitor pressure, load or position using
suitable equipment. Pressure may be monitored by means
of an optional manifold and gauge. Load may be monitored
by means of a load cell and digital indicator.
Note: Any attachment that is not loaded centrally, as through
the centerline of the ram, is considered to be “offset”.
When
extension tubes and/or offset attachments are used, the
rated capacity is always reduced by 50% for each tube or
offset attachment connected.
1. Pump may be used in horizontal and vertical position as
illustrated on gure 2 below.
Changing Hydraulic Oil
For best performance and increased system life, replace the
complete uid supply at least once per year.
1. With ram fully lowered, remove the oil ller screw from the
pump reservoir as above.
2. Lay the pump on its side and drain the uid into a suit-
able container.
Note: Dispose of hydraulic uid in accordance with local
regulations.
3. Set pump in its level upright position.
4. Fill with good quality jack oil to within 3/8" of the oil ller
screw hole opening. Reinstall oil ller screw.
Lubrication
A coating of light lubricating oil to pivot points and hinges
will help to prevent rust and assure that pump assemblies
move freely.
Cleaning
Periodically check the pump piston and ram for signs of rust
or corrosion. Clean as needed and wipe with an oily cloth.
Note: Never use sandpaper or abrasive material on these
surfaces!
Storage
When not in use, store with the pump piston and ram fully
retracted.
How to remove faulty coupler:
If ram does not retract,:
1. Secure load by other means.
2. Depressurize pump and hose
3. Remove the ram from application.
4. Disconnect and replace with new coupler.
Important: Do not attempt to grasp ram with pliers or
wrench without rst wrapping the jaws of such tool with
rags or similar padding.
How to bleed air from system:
1. Place pump at a higher elevation than the hose and ram
as shown in gure 3 below.
2. Operate pump to fully extend and retract the ram 2 or 3
times. The objective is to force the air bubbles up hill and
back to the pump reservoir.
3. To bleed the air from pump reservoir, simply open the oil
ller screw. Re-install after bleeding.
!
2. Locate and close release valve by turning it clockwise until
rmly closed. (Do not over tighten)
3. Operate by pumping handle. This will send uid from the
pump reservoir into the high pressure hose assembly and
into the ram assembly.
4. Continue pumping until ram reaches desired position.
NEVER operate pump with release valve closed and
disconnected from application. If operated in this condition,
the hose and connections become pressurized. This
increases burst hazard. Damage may occur to pump and
its components.
5. To Release Pressure on work piece: Slowly, carefully turn
the release valve counter-clockwise until ram retracts
to desired position. Never turn release valve more than
1/2 full turn. The ram return system is spring loaded and
the release valve system is metered, allowing controlled
retraction of the ram.
MAINTENANCE
1. Inspect hoses and connections daily. Replace damaged
components immediately with Williams Replacement
Parts only.
2. Tighten connections as needed. Use pipe thread sealing
compound when servicing connections.
3. Use only good quality hydraulic uid. We recommend
Williams 8H1G or equivalent. Never use brake uid,
transmission uid, turbine oil, motor oil, alcohol, glycerin
etc. Use of other than good quality hydraulic oil will void
warranty and damage the pump, hose, and application.
Adding Hydraulic Oil
1. With ram fully lowered, set pump unit in its normal, level
position. Locate and remove oil ller screw.
2. Fill until oil is within 3/8" of the oil ller screw hole opening,
re-install oil ller screw.
!
5
TROUBLESHOOTING GUIDE
The following information is intended as an aid in determining if problem exists. Pump and ram should be repaired only by
authorized Williams Service Center. For repair service, contact service center in your area.
Symptom Possible Causes Corrective Action
Erratic action •
Air in system or pump cavitation.
• External leakage in ram.
• Ram sticking or binding.
• Vent the system (refer to gure 2).
• Contact service center.
• Contact service center.
Ramr will not extend, or
respond to pressurized uid
•
Overload condition.
• Loose/Faulty couplers.
• Oil level in pump is low.
• Remedy overload condition.
• Tighten/Replace couplers.
• Fill and bleed the system.
Ram extend only partially • Oil level in pump is low.
•
Overload condition.
• Ram is sticking or binding.
• Pump malfunction.
• Fill and bleed the system.
• Remedy overload condition.
• Contact service center.
• Contact service center.
Ram move slower than normal • Loose connection or coupler.
•
Restricted hydraulic line or tting.
• Pump not working correctly.
• Ram seals leaking.
• Tighten connection or coupler.
• Clean and replace if damaged.
• Check pump’s operating instructions.
• Contact service center.
Ram responds to pressurized uid, but
system does not maintain pressure
• Overload condition.
• Pump malfunctioning.
• Ram seals leaking.
• Remedy overload condition.
• Contact service center.
• Contact service center.
Oil leaking from ram • Worn or damaged seals. • Contact service center.
Ram will not retract or retracts slower
than normal
• Malfunctioning coupler, damaged
application.
• Pump reservoir overlled.
• Ram damage internally.
• Secure load by other means.
Depressurize pump and hoses,
remove application and replace
coupler.
• Secure load by other means.
Depressurize pump and hoses,
remove application, then drain uid to
proper level.
• Contact service center.
Poor performance • Oil level in pump is low.
• Air trapped in system.
• Ensure proper oil level.
• Vent the system (refer to gure 3).
6
Note: To ensure safe and reliable performance, replace worn or damaged parts with Williams Authorized Replacement
Parts only.
Item Part Number Description Qty
1 Spreader Base N/A 1
2 Spreader Jaw,
Upper
N/A 1
3 C-Clip 5304-00013-000 2
4 Pin F040-42004-000 1
5 Torsion Spring F040-42005-000 1
6 Piston N/A 1
7 Back -Up Ring 5904-00257-001 1
8 U-Cup 5902-00330-000 1
9 Washer 5904-00250-002 1
10 Top Nut N/A 1
11 Female Coupler 8RH38DF 1
12 Dust Cap CDC38 1
Note: Not all components are replacement items, but are illustrated as a convenient reference of location and position in the
assembly sequence. To ensure safe and reliable performance, replace worn or damaged parts with Williams authorized repair
parts only.
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
1-866-460-7995

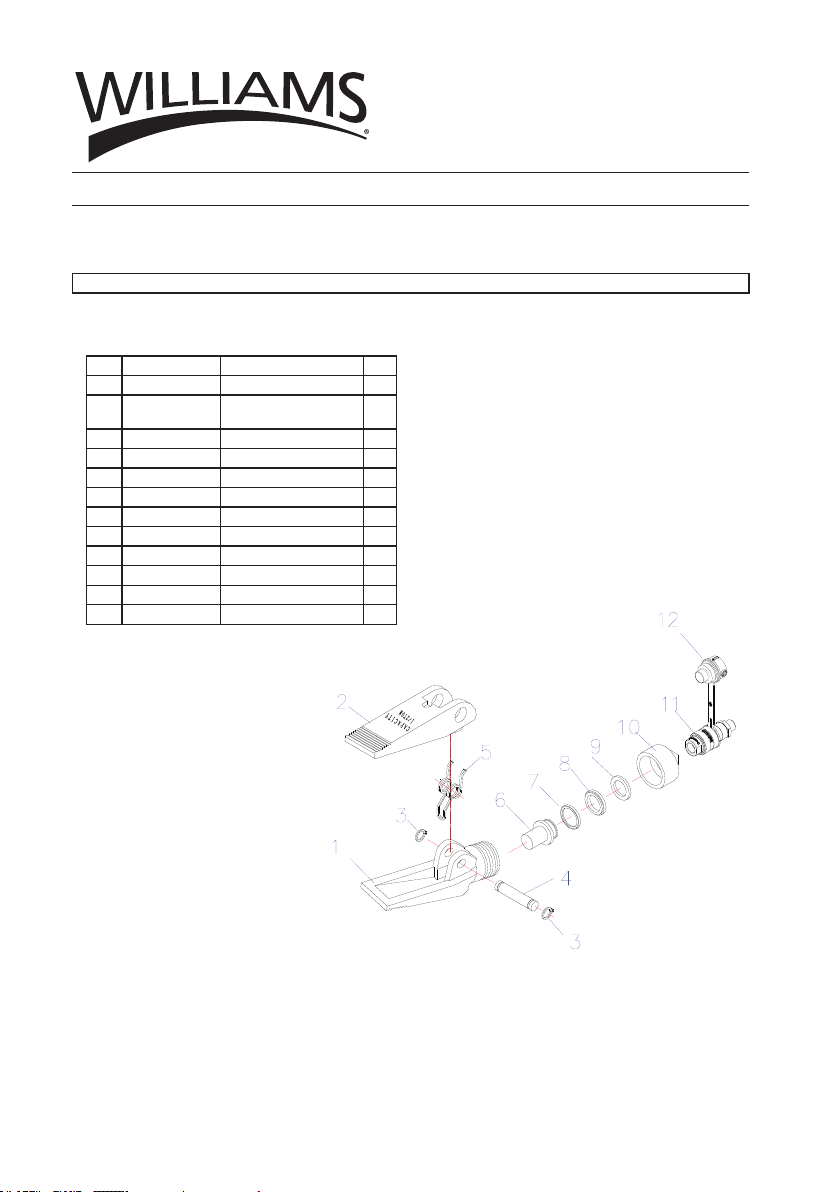

REPLACEMENT PARTS & ILLUSTRATION
MODEL: 6S.5T03
7
Note: To ensure safe and reliable performance, replace worn or damaged parts with Williams Authorized Replacement
Parts only.
Item Part Number Description Qty
1 Spreader Jaw,
Upper
N/A 1
2 Spreader Base N/A 1
3 Return spring 521-2-0060-109 1
4 Return spring 521-2-0090-108 1
5 Spring pin 601-4-0030-059 2
6 Piston rod N/A 1
7 O-ring * 1
8 Unloading pin H51-6-1202-104 1
9 O-ring * 1
10 Back-up Ring * 1
11 Retaining ring H51-6-1004-100 1
12 Pin H51-6-1003-108 1
13 Coupler 8RH38DF 1
14 Dust cap assy. CDC38 1
* Repair kit H51-3-9900-100 1
1
11 5
10
5
Note: Not all components are replacement items, but are illustrated as a convenient reference of location and position in the
assembly sequence. To ensure safe and reliable performance, replace worn or damaged parts with Williams authorized repair
parts only.
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
1-866-460-7995
REPLACEMENT PARTS & ILLUSTRATION
MODEL: 6S01T03
8
J.H. Williams Tool Group
6969 Jamesson Road,
Midland, GA 31820
LIMITED LIFETIME WARRANTY
J.H. Williams Tool Group warrants this product to be free from defects in material and workmanship for the life of the product as
long as the original purchaser owns the product. The warranty is non-transferable and is subject to the terms, exclusions, and
limitations described below:
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as
well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and Williams will not provide
any warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not performed
by Williams or one of its authorized personnel), improper uid use, or use of the product in any manner for which the product was
not intended or the use of which is not in accordance with the instructions or warnings provided with the product.
• In the unlikely event that a Williams product fails due to material defect in workmanship, you may contact J.H. Williams Tool
Group for disposition. In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach of warranty
is limited to the repair or replacement of the defective product.
• Under no circumstances is Williams liable for any consequential or incidental damage or loss whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED DISTRIBUTORS AND OTHER
CHANNELS DESIGNATED BY WILLIAMS. NO AGENT, EMPLOYEE OR OTHER REPRESENTATIVE OF WILLIAMS IS
AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A FITNESS FOR A PARTICULAR
PURPOSE.
• Components not manufactured by Williams including certain motor systems, gasoline engines, and other are not covered by this
warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty provided in the package.
• Williams’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.
This manual suits for next models
1
Table of contents
