Willoughby Industries, Inc. E1L1 User manual

Installation &
Operation Manual
Rev. 6/2019
Willoughby Industries, Inc.
5105 West 78th Street
Indianapolis, IN 46268
Toll Free: [phone]
Local: [phone]
Fax: [phone]
www.willoughby-ind.com MADE IN THE U.S.A.
Material:
2 Of 3
Part Number: E1L11
2 Places +/- �03
3 Places +/- �015
Fractions +/- 1/32" B
Willoughby Industries Inc.
Indianapolis, Indiana
Sheet:
Tolerances
Except as N/A
Noted
Date:
Title or Part Description: Drawing #:
Revision #:
E1L11 SINGLE TEMP ELECTRONIC VALVE ASSEMBLY O&M PAGE 2 ISO
TRB STANDARD DWG�
980576
Job Name:
3/15/11
Drawn By:
N/A
Scale: 1:8 Qty:
Angle +/- 1 11/13/12
3
2
1
5 6
7
4
8
9
10
OPTIONAL 3/8" x 3/8" ELBOW
8
WILLOUGHBY
Table of Contents
Pre-Installation Information������������������������������������� 3
General Specications��������������������������������������������4
Physical Dimensions ������������������������������������������������
E1L1 Single Temp Solenoid Valve Assembly
#980408��������������������������������������������������������������5
E1L11 Valve Breakdown�������������������������������������6
E1L12 Manifold Valve Breakdown����������������������7
E1L21 Valve Breakdown�������������������������������������8
E1L22 Manifold Valve Breakdown����������������������9
Checking Contents ����������������������������������������������� 11
Installation Instructions �����������������������������������������12

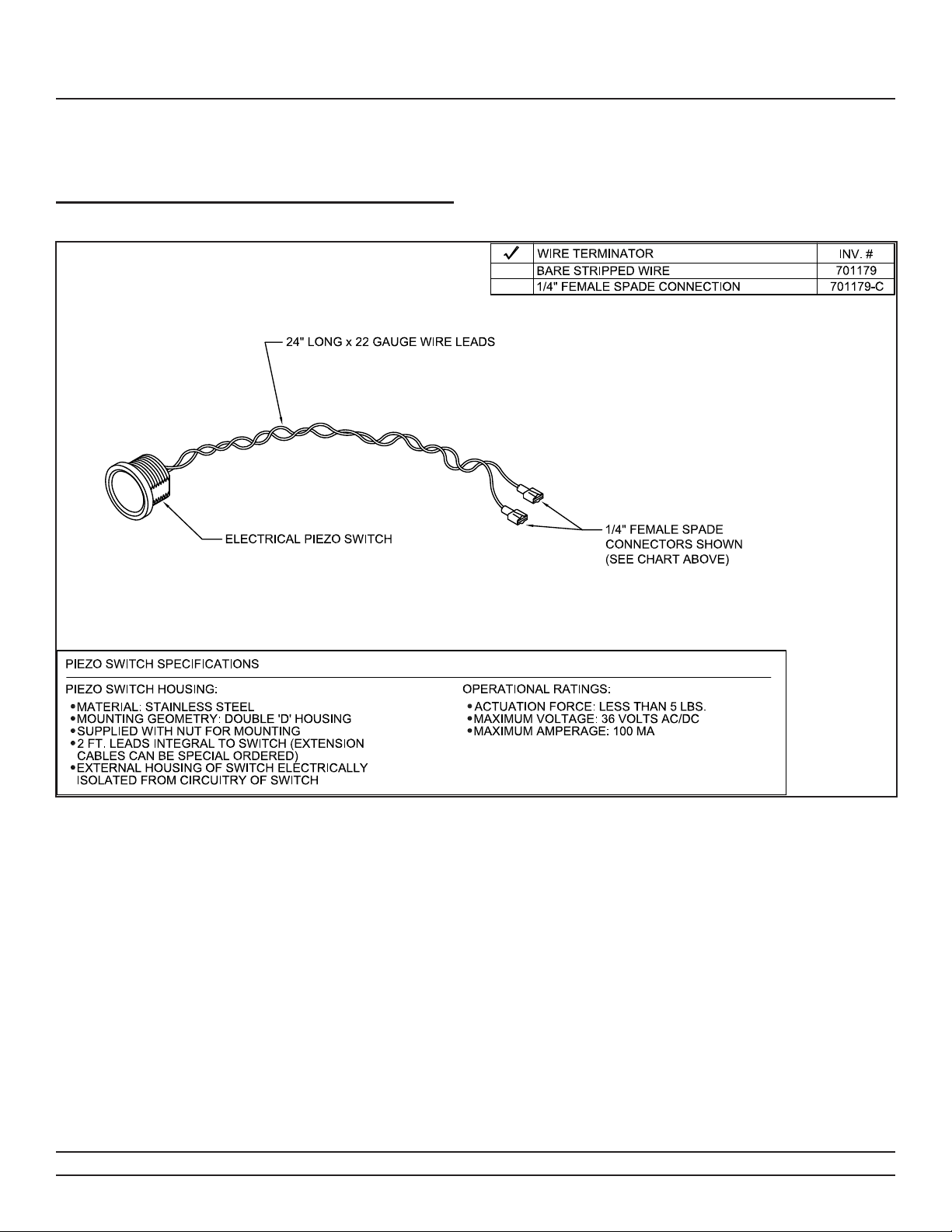

Electronic Piezo Switch Detail ��������������������������13

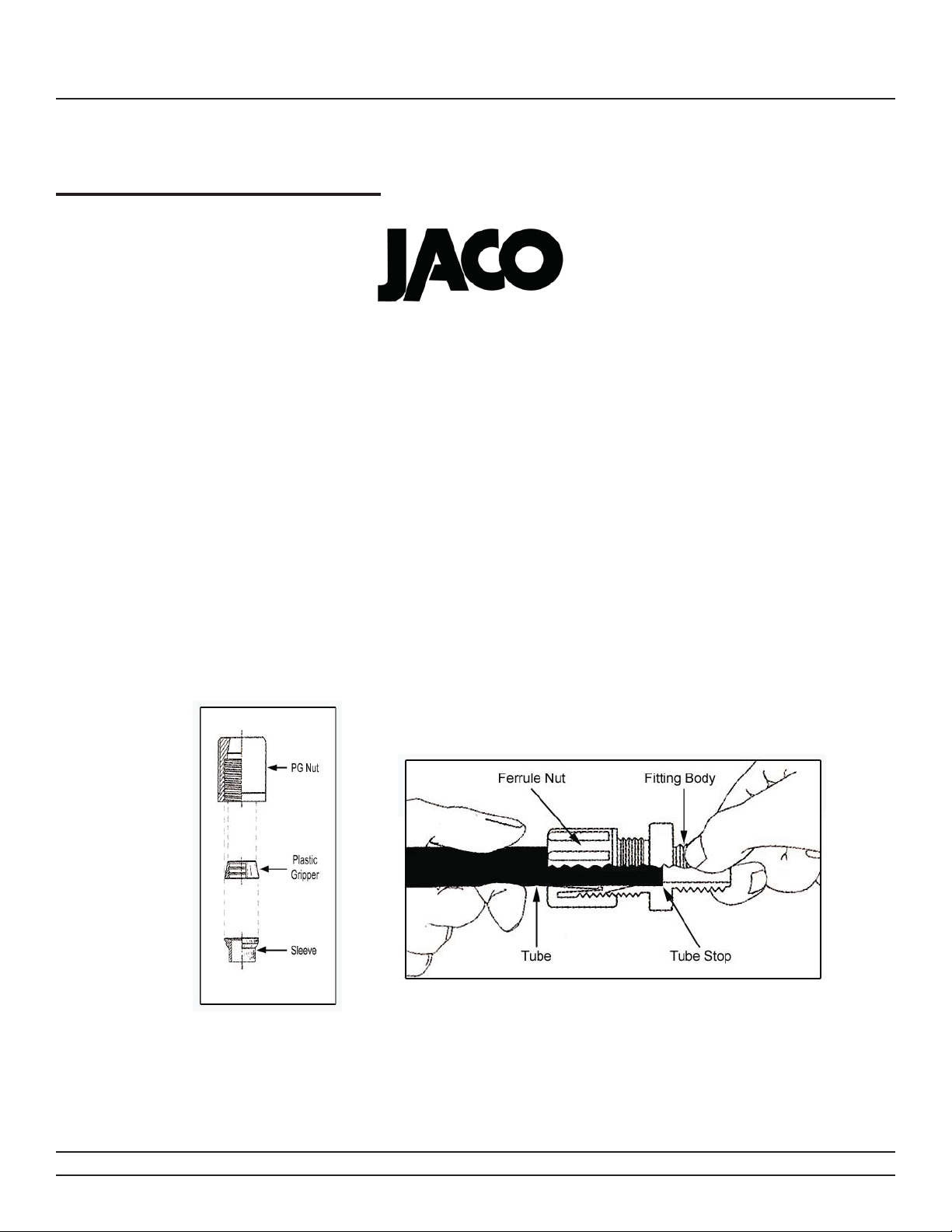

Jaco Fitting Instructions������������������������������������14
Care and Maintenance ���������������������������������������������
Electronic Valve Assembly Operation and
Maintenance �����������������������������������������������������15
Cleaning Instructions ����������������������������������������16
Troubleshooting Electronic Valves �����������������������17
Replacement Part Numbers�������������������������������������
E1L1 Single Temp Solenoid Valve Assembly
#980408������������������������������������������������������������18
Checkstop Breakdown P/N 980183������������������19
Drawings ������������������������������������������������������������������
Pushbutton Assembly #600313 ������������������������20
Pushbutton Assembly #600314LR �������������������21
Warranty���������������������������������������������������������������22
E1L1 and E1L2
Lead-Free Electronic Series
Valves
(Plastic Bodied)
E1L1
E1L2
10
7
8
6
1
10
11
5
4
3
2
9
OPTIONAL 3/8" x 3/8"
ELBOW
N/A
Noted
2 Places +/- �03
3 Places +/- �015
Fractions +/- 1/32"
Willoughby Industries Inc.
Indianapolis, Indiana
Tolerances
Except as
Title or Part Description:
Material: N/A
Job Name:
Drawn By: Date: Revision #:
E1L21 DUAL TEMP ELECTRONIC VALVE ASSEMBLY O&M PAGE 4 ISO
TRB
Drawing #:
A
980610
Approved By:
Part Number: E1L21
5/1/12
Scale: 1:8 Qty:
Sheet: 2 Of 3
Angle +/- 1
WILLOUGHBY

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 2www.willoughby-ind.comRev. 6/2019
(Page left intentionally blank)

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 3www.willoughby-ind.comRev. 6/2019
INSTALLATION INSTRUCTIONS
Visit our website at http.//www.willoughby-ind.com
2210 West Morris Street • P.O. Box 21217 • Indianapolis, IN 46221
[phone] • Fax: [phone] • [phone]
© Rev. 11/2007 Page 3
Installation notice!
Check Rough-in location and flush lines prior to hook up!
When installing the Willoughby Industries’ WAW, WAF, or WWF series
washfountains or lavatory deck systems:
Before Step 1 of the installation instructions, ensure that rough-ins are in the correct
location.
It is essential that the water supply lines be thoroughly flushed prior to making final
connection to the hot and cold water supply lines. These lines must be flushed
sufficiently to remove the small particles of debris that are inherent with new
construction projects. If this debris is not removed, the valving in these units will be
damaged. Do not attempt to remove aerators to flush debris into the lavatory. The
damage can only be fixed by replacing the valves. Damage to valves caused by debris
will not be covered by the manufacturers warranty.
Installation notice!
Check Rough-in location and flush lines prior to hook up!
© Rev. 5/2010
When installing the Willoughby Industries' E1L1 and E1L2 Lead-free Electronic Series Valves:
Before step 1 of the installation instructions, ensure that rough-ins are in the correct location�
The valve assembly, including the spray head, MUST NOT BE connected until after
all lines have been ushed to remove the small particles of debris that are inherent
with new construction projects and all chemicals that are used in ushing are purged
from the system�
Chemicals used in ushing plumbing systems can attack the internal components of
the valve and spray head and severely damage them, so any ushing of the system
must be followed by a full ushing with pure water to clear any harsh chemicals
remaining in the system� Debris in the system if allowed to enter the valve assembly
and spray head can cause poor performance or outright failure�
Again DO NOT attempt to connect the valve assembly and spray head until after all
ushing is complete and pure water is the only media that will be passing through the
system� Damage to the valve assembly or spray head caused by harsh chemicals or
debris will not be covered by the manufacturer's warranty�
INSTALLATION INSTRUCTIONS
Visit our website at http.//www.willoughby-ind.com
2210 West Morris Street • P.O. Box 21217 • Indianapolis, IN 46221
[phone] • Fax: [phone] • [phone]
© Rev. 11/2007 Page 3
Installation notice!
Check Rough-in location and flush lines prior to hook up!
When installing the Willoughby Industries’ WAW, WAF, or WWF series
washfountains or lavatory deck systems:
Before Step 1 of the installation instructions, ensure that rough-ins are in the correct
location.
It is essential that the water supply lines be thoroughly flushed prior to making final
connection to the hot and cold water supply lines. These lines must be flushed
sufficiently to remove the small particles of debris that are inherent with new
construction projects. If this debris is not removed, the valving in these units will be
damaged. Do not attempt to remove aerators to flush debris into the lavatory. The
damage can only be fixed by replacing the valves. Damage to valves caused by debris
will not be covered by the manufacturers warranty.
Installation notice!
Check Rough-in location and flush lines prior to hook up!
© Rev. 5/2010
Check Rough-In location PRIOR to installation
Flush lines thoroughly PRIOR to hook-up
Check Rough-In location PRIOR to installation
Flush lines thoroughly PRIOR to hook-up
Pre-Installation Information

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 4www.willoughby-ind.comRev. 6/2019
Electronic valve assembly shall be Willoughby Model No� E1L1 or E1L2 as noted� Valve shall be con-
structed of plastic and stainless steel materials and complies with NSF-61 standard�
Stainless steel pushbutton switches on the xture shall be wired to an appropriate electronic valve
control (select from the list of control choices)� The vandalproof pushbuttons shall be keyed and
non-removable from the front of the xture. The pushbuttons shall require less than 5 lbs. of force to
operate�
The single temperature solenoid valve assembly shall include a stainless steel screwdriver stop and
an integral mounting bracket. Replaceable stainless steel strainer and optional 0.5 GPM ow
control shall be eld serviceable. The connection to the ller/bubbler/showerhead shall be 3/8" O.D.
exible tubing. The water inlet shall be 1/2" FPT (S/S exible supply line) and shall be reversible for
either top or bottom supply� Valve assembly shall be accessible from the pipe chase only�
Flexible tubing shall be supplied for walls up to 8 inches thick� Recommended operating pressure
shall be 35-70 psi� The valve shall withstand pressures up to 90 psi� Cost reducing manifolded
valves shall consist of multiple valve assemblies served by a common supply line� A 24 volt AC
source shall be required for timer and valve operation.
General Specications

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 5www.willoughby-ind.comRev. 6/2019

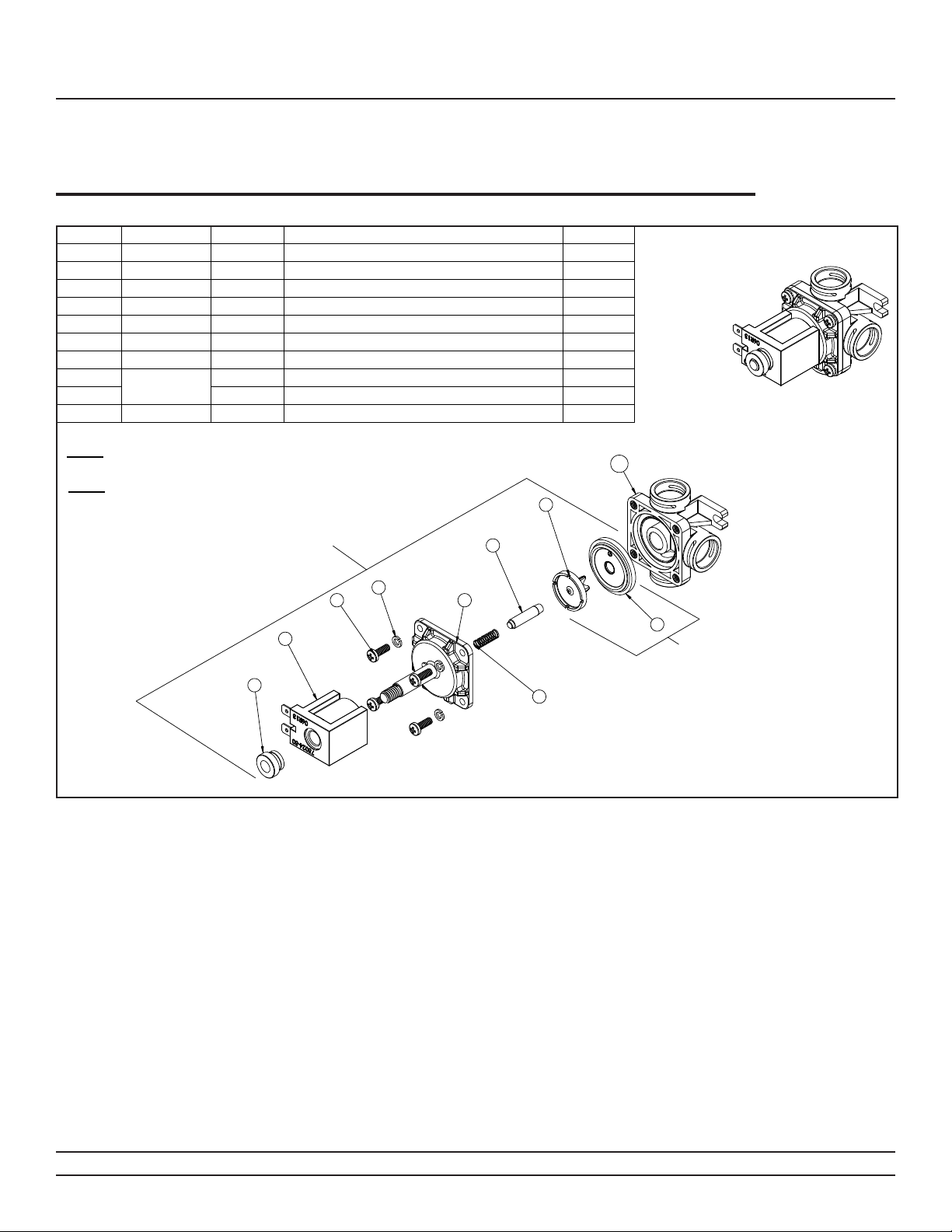

Physical Dimensions
E1L1 Single Temp Solenoid Valve Assembly #980408
3 Places +/- �015 3/15/11
Willoughby Industries Inc.
Indianapolis, Indiana
Tolerances
Except as
Title or Part Description:
Material: Drawn By: Date: Revision #:
Drawing #:
Fractions +/- 1/32"
Approved By:
TRB
Sheet:
980408
Job Name: Part Number:
N/A
Scale: Qty:
E1L VALVE ASSEMBLY
1 Of 1
E
Noted
2 Places +/- �03
Angle +/- 1
PVK-3
(8,9)
9
(1-9) PLUS (*) BELOW
EVK-4 KIT
10
4
6
8
1
3
7
5
2
* EVK-4 KIT INCLUDES
380897 VALVE SEAT W/ 0-RING (NOT SHOWN)
ASSEMBLED VIEW
ITEM # SUB-ASSY# PART # DESCRIPTION QTY�
1 N/A 980534 NYLON NUT, 5/16-18 1
2 N/A 980532 COIL, 24V DC 1
3 N/A 980170 #8-32 x 1/2 " SCREW 4
4 N/A 980002 SPLIT LOCK WASHER 4
5 N/A 980530 ARMATURE CAP, 24v VALVE 1
6 N/A 980533 SPRING, 5/8 24v VALVE 1
7 N/A 980565 ARMATURE BUMPER ASSEMBLY, EL VALVE 1
8980305 980128 3 PRONGED INSERT 1
9 980129 WATER SIDE DIAPHRAGM 1
10 N/A 980420 SINGLE TEMP BASE W/INSERTS 1
REPAIR KIT ORDERING #'S ARE
LISTED IN THE EXPLODED VIEW�
PARTS LISTED IN THE PVK REPAIR
KITS ARE NOT SOLD INDIVIDUALLY
NOTE:
NOTE:
WILLOUGHBY

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 6www.willoughby-ind.comRev. 6/2019
E1L11 Valve Breakdown
Physical Dimensions
Material:
2 Of 3
Part Number: E1L11
2 Places +/- �03
3 Places +/- �015
Fractions +/- 1/32" B
Willoughby Industries Inc.
Indianapolis, Indiana
Sheet:
Tolerances
Except as N/A
Noted
Date:
Title or Part Description: Drawing #:
Revision #:
E1L11 SINGLE TEMP ELECTRONIC VALVE ASSEMBLY O&M PAGE 2 ISO
TRB STANDARD DWG�
980576
Job Name:
3/15/11
Drawn By:
N/A
Scale: 1:8 Qty:
Angle +/- 1 11/13/12
3
2
1
5 6
7
4
8
9
10
OPTIONAL 3/8" x 3/8" ELBOW
8
WILLOUGHBY
ITEM NO� PART # DESCRIPTION QTY
1 980408PR E1L VALVE ASSEMBLY, RIGHT-PLUGGED PORT 1
2 980140 SPRING CLIP 2
3 980183 CHECKSTOP ASSEMBLY 1
4 800133 #10-16 SELF TAP TYPE B HEX HEAD SCREW 4
5 980506 (OPTIONAL) 6" STAINLESS STEEL FLEX HOSE 1
5 980520 (OPTIONAL) 20" STAINLESS STEEL FLEX HOSE 1
6 600523 FLEXIBLE TUBING 3/8" (10mm) O�D� 20 FT� TOTAL PERFOOT
7 980600A VALVE FITTING ASSEMBLY, 3/8" ELBOW 1
8 320566 (OPTIONAL) CONNECTOR, 3/8" TUBE x 3/8" MPT 1
8 320577 (OPTIONAL) ELBOW, 3/8" TUBE x 3/8" MPT 1
9 380138 FLOW CONTROL 0�5 GPM (RED) 1
10 980501 PM1 VALVE BRACKET 1

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 7www.willoughby-ind.comRev. 6/2019

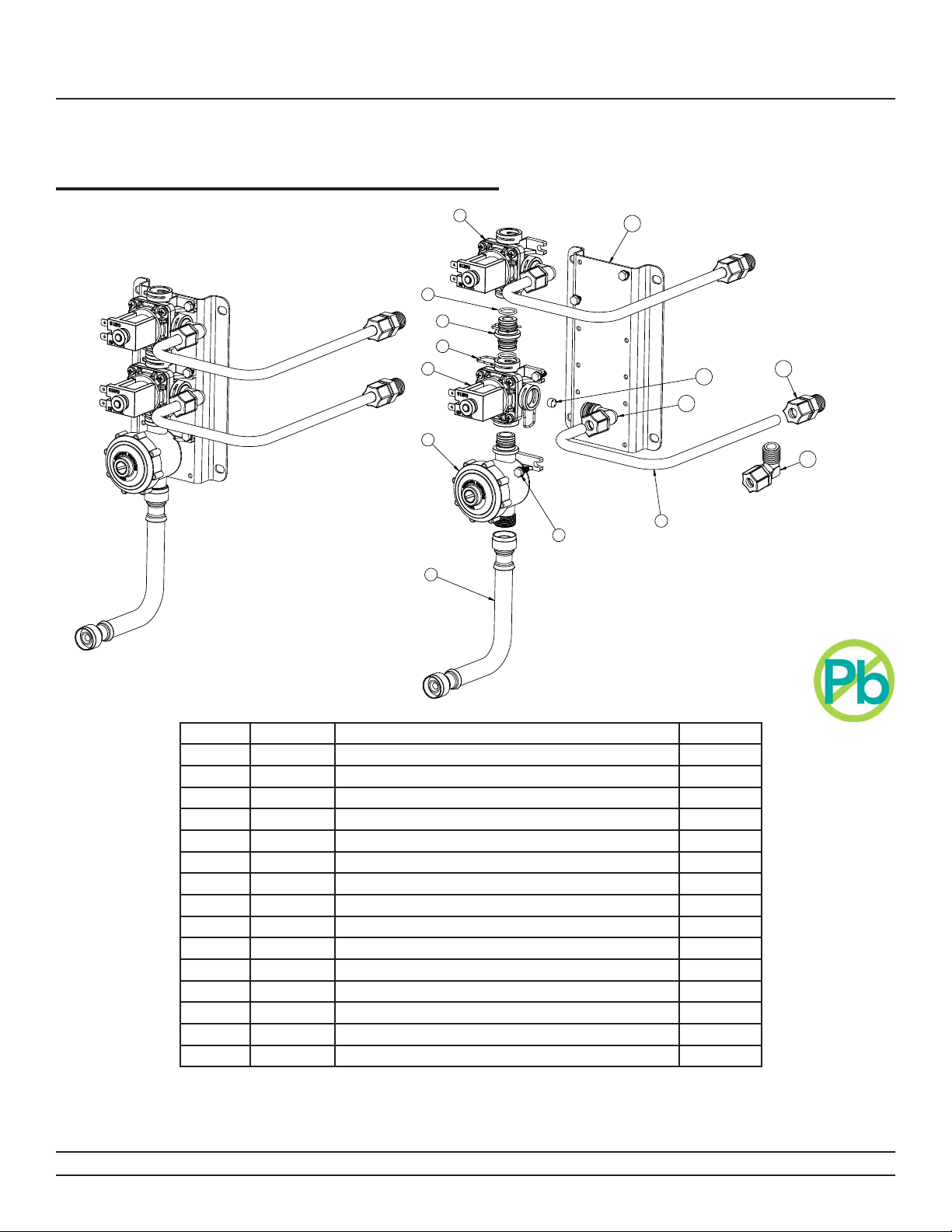

E1L12 Manifold Valve Breakdown
Physical Dimensions
10512
1
2
3
4
11
6
7
8
9
13
OPTIONAL 3/8" x 3/8" ELBOW
10
ITEM NO� PART # DESCRIPTION QTY
1 980408PR E1L VALVE ASSEMBLY, RIGHT-PLUGGED PORT 1
2 980164 'O'-RING, #015 2
3 980197 PLASTIC VALVE COUPLING 1
4 980140 SPRING CLIP 5
5 980408 E1L VALVE ASSEMBLY 1
6 980183 CHECKSTOP ASSEMBLY 1
7 980506 (OPTIONAL) 6" STAINLESS STEEL FLEX HOSE 1
7 980520 (OPTIONAL) 20" STAINLESS STEEL FLEX HOSE 1
8 800133 #10-16 SELF TAP TYPE B HEX HEAD SCREW 6
9 600523 FLEXIBLE TUBING 3/8" (10mm) O�D� 20 FT� TOTAL PER FOOT
10 320566 (OPTIONAL) CONNECTOR, 3/8" TUBE x 3/8" MPT 2
10 320577 (OPTIONAL) ELBOW, 3/8" TUBE x 3/8" MPT 2
11 980600A VALVE FITTING ASSEMBLY, 3/8" ELBOW 2
12 380138 FLOW CONTROL 0�5 GPM (RED) 2
13 9805012 PM1-MA2 VALVE BRACKET-PLASTIC 1

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 8www.willoughby-ind.comRev. 6/2019
E1L21 Valve Breakdown
Physical Dimensions
10
7
8
6
1
10
11
5
4
3
2
9
OPTIONAL 3/8" x 3/8"
ELBOW
N/A
Noted
2 Places +/- �03
3 Places +/- �015
Fractions +/- 1/32"
Willoughby Industries Inc.
Indianapolis, Indiana
Tolerances
Except as
Title or Part Description:
Material: N/A
Job Name:
Drawn By: Date: Revision #:
E1L21 DUAL TEMP ELECTRONIC VALVE ASSEMBLY O&M PAGE 4 ISO
TRB
Drawing #:
A
980610
Approved By:
Part Number: E1L21
5/1/12
Scale: 1:8 Qty:
Sheet: 2 Of 3
Angle +/- 1
WILLOUGHBY
ITEM NO� PART # DESCRIPTION QTY
1 980409 DUAL TEMP, WILLOUGHBY SOLENOID PARTS ASSY (E1L2) 1
2 380138 FLOW CONTROL 0�5 GPM (RED) 1
3 321010 CONNECTOR, 3/8" TUBE x 1/4" MPT 1
4 600523 FLEXIBLE TUBING 3/8" (10mm) O�D� 20 FT� TOTAL PER FOOT
5 980506 (OPTIONAL) 6" STAINLESS STEEL FLEX HOSE 2
5 980520 (OPTIONAL) 20" STAINLESS STEEL FLEX HOSE 2
6 980183 CHECKSTOP ASSEMBLY 2
7 800133 #10-16 SELF TAP TYPE B HEX HEAD SCREW 8
8 980164 'O'-RING #015 2
9 980140 SPRING CLIP 2
10 320566 (OPTIONAL) CONNECTOR, 3/8" TUBE x 3/8" MPT 1
10 320577 (OPTIONAL) ELBOW, 3/8" TUBE x 3/8" MPT 1
11 980502 PM2 VALVE BRACKET-PLASTIC 1

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 9www.willoughby-ind.comRev. 6/2019

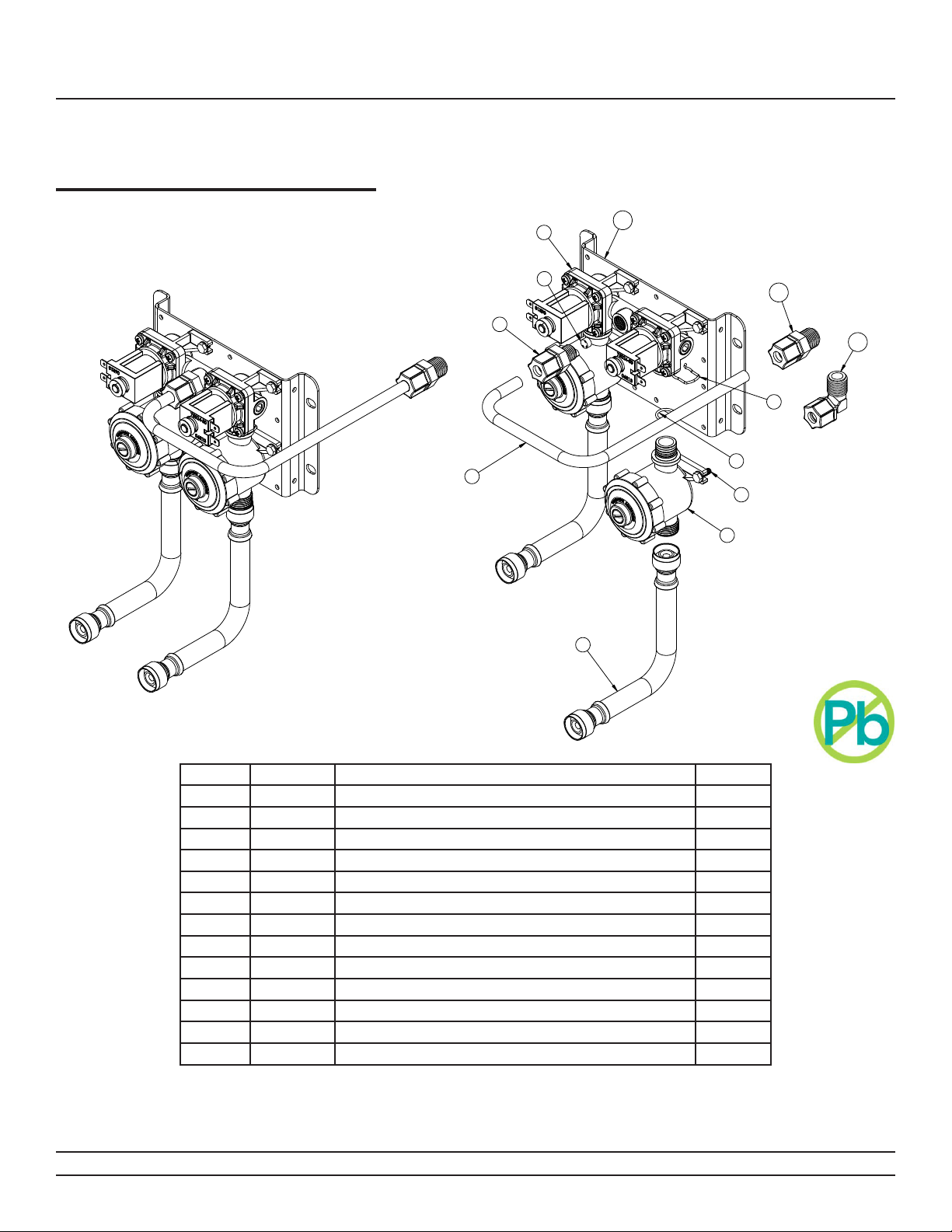

E1L22 Manifold Valve Breakdown
Physical Dimensions
13
1
2
3
4
5
6
7
8
9
10
11
14
14
OPTIONAL 3/8" x 3/8" ELBOW
13
ITEM NO� PART # DESCRIPTION QTY
1 980409 DUAL TEMP, WILLOUGHBY SOLENOID PARTS ASSY (E1L2) 1
2 980197 PLASTIC VALVE COUPLING 2
3 980140 SPRING CLIP 8
4 980408 E1L VALVE ASSEMBLY 2
5 321010 CONNECTOR, 3/8" TUBE x 1/4" MPT 2
6 980183 CHECKSTOP ASSEMBLY 2
7 980506 (OPTIONAL) 6" STAINLESS STEEL FLEX HOSE 2
7 980520 (OPTIONAL) 20" STAINLESS STEEL FLEX HOSE 2
8 380138 FLOW CONTROL 0�5 GPM (RED) 2
9 980196 PLASTIC VALVE 'T' 1
10 980164 'O'-RING, #015 3
11 9805022 PM22 VALVE MOUNTING PLATE 1
12 800133 #10-16 SELF TAP TYPE B HEX HEAD SCREW 12
13 600523 FLEXIBLE TUBING 3/8" (10mm) O�D� 20 FT� TOTAL PER FOOT
14 320566 (OPTIONAL) CONNECTOR, 3/8" TUBE x 3/8" MPT 2
14 320577 (OPTIONAL) ELBOW, 3/8" TUBE x 3/8" MPT 2

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 10www.willoughby-ind.comRev. 6/2019
(Page left intentionally blank)

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 11www.willoughby-ind.comRev. 6/2019
Check Contents
• Separate all parts from packaging and make sure all parts are accounted for before discarding
any packaging material� If any parts are missing, do not attempt to install E1L1 or E1L2 Lead-free
Electronic Series Valves until you obtain the missing parts�
NOTE: Before beginning installation, all supply, drain and waste piping for the
E1L1 and E1L2 Lead-free Electronic Series Valves must be completed according to speci-
ed rough-ins. If you have not received rough-in details, please contact Willoughby Indus-
tries, Inc. [phone]
 IMPORTANT: Flush all the water supply lines
before making connections.

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 12www.willoughby-ind.comRev. 6/2019
Installation Instructions
(1) Clear and ush all supply lines to valves.
(2) Mount the valves at any convenient location. Make sure to have su󰀩cient length of wire
leads to reach between the electrical piezo switches and the valves�
(3) Connect water supply lines to valves� Close the check stop valves�
(4) Assemble the push buttons to the xture backsplash. Connect the push button wire leads to
the timer assembly or Water Management System�
(5) Connect the valve wires from the timer or Water Management System to the solenoid valves�
(6) Install 3/8" MPT x comp. plastic adapter into ller/bubbler or shower head, on xture.
(7) Insert one end of plastic tube into adapter on ller/bubbler or shower head, and the other
end into adapter on valve assembly�
(8) Open water supply stops and checkstop valves, checking for leaks�
(9) Connect the power supply transformer into a 110 volt power source�
(10) Actuate push buttons several times to clear water lines and valves of trapped air� Check for
leaks at all connections�
(11) Adjust hot and cold water mixing valve, if applicable, by pressing pushbutton and realeasing
to start the water owing.

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 13www.willoughby-ind.comRev. 6/2019
Installation Instructions (cont.)

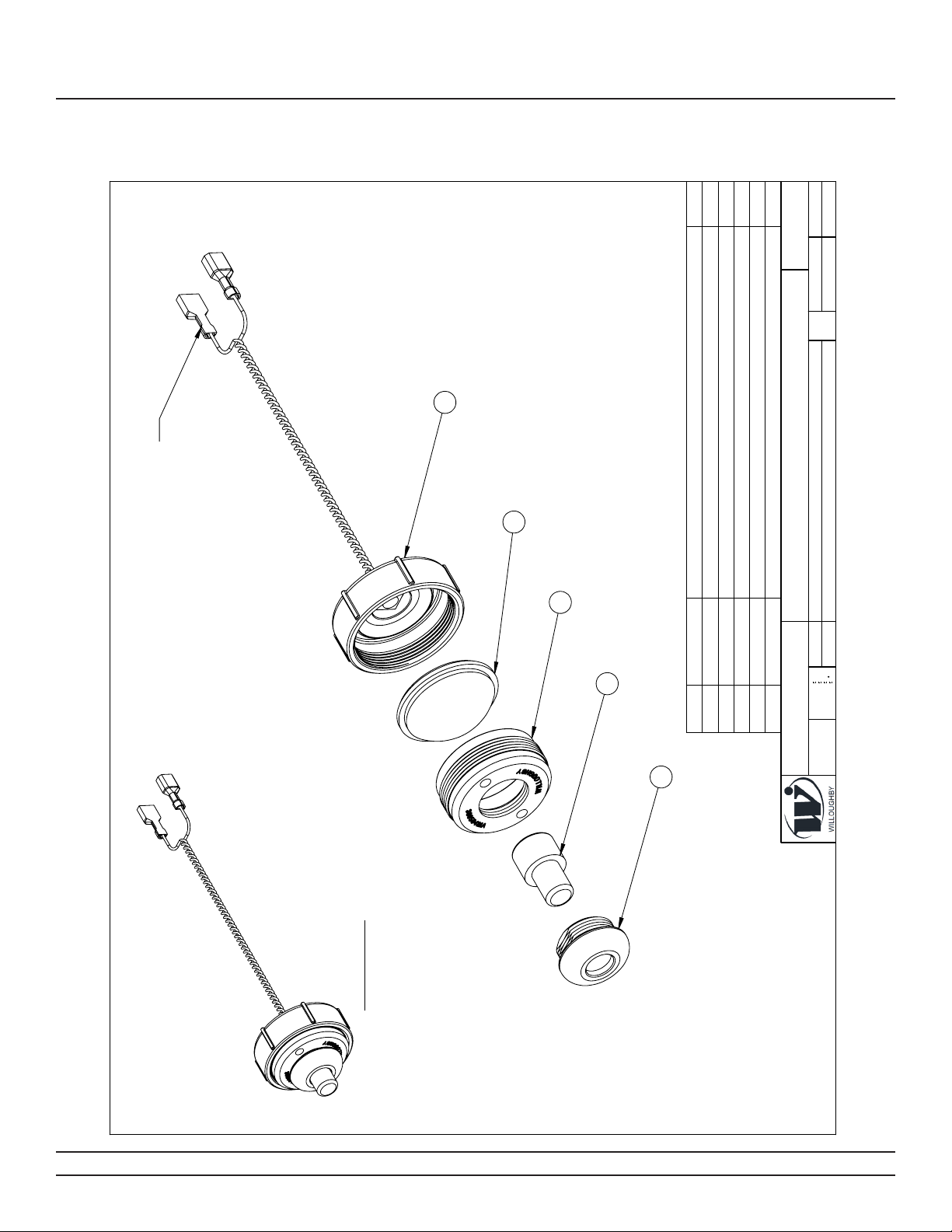

Electronic Piezo Switch Detail

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 14www.willoughby-ind.comRev. 6/2019
Operation and Maintenance Manual
visit our website at http./ /www.willoughby-ind.com
5105 West 78th Street � Indianapolis, IN. 46268
[phone] � Fax: [phone] � [phone]
Rev. 3/2012 Page 11
Fitting Instructions
Note: It is not necessary to disassemble this fitting for application. Merely insert tubing to stop and
tighten seal.
1. Cut tubing end squarely and remove the internal burrs.
2. Insert the tubing through the back of the nut all the way through the nut assembly to the tube stop
in the fitting body (see illustration). If the tubing does not enter the nut easily, loosen the nut one turn
and reinsert the tubing all the way to the tube stop in the fitting body.
3. Turn the nut hand tight.
4. Wrench tighten the nut 1½ - 2 turns.
5. All nuts must be retightened when the system reaches projected operating temperature.
Note: To ensure proper assembly, tubing MUST be fully inserted into the fitting body all the way to
the tube stop.
Note: Squeaking sound when tightening nut is normal. For pipe threaded connections, Teflon tape
must be used.
Installation Instructions (cont.)
Jaco Fitting Instructions

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 15www.willoughby-ind.comRev. 6/2019
Electronic Valve Assembly Operation and Maintenance
Care and Maintenance
The Willoughby Electronic Valve Assembly is designed as an electrically operated, normally closed
valve, low voltage valve� This type of valve is used for lavatories as well as showers�
A strainer/checkstop is an integral part of the valve assembly and provides a means of shutting o󰀨 the
water if the valve needs servicing. A check valve in the checkstop eliminates cross ow of hot or cold
water into the opposite supply line� Fine mesh stainless steel strainers keep normal line debris from
interfering with the mechanical components of the valves�
By virtue of its design, the electronic valve is a 24 VAC operated valve and is a normally closed valve�
The operating sequence of the valve begins with pressing the push button. Based upon what the
valve is connected to, a timer or a water management system, the valve will open and stay open until
the voltage stops�
The valve contains a valve seat, water side diaphragm, an armature and a coil� When voltage is
applied to the coil, the armature is pulled upwards� The water pressure will then push up against the
rubber diaphragm and water will ow thru to the outlet side of the valve.
The bypass hole is the rubber diaphragm assist the valve in closing. The bypass orices are molded
in the edge of the diaphragm. Both of these orices must be clear for the valve to function properly.

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 16www.willoughby-ind.comRev. 6/2019
Cleaning Instructions
Care and Maintenance

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 17www.willoughby-ind.comRev. 6/2019
Troubleshooting Electronic Valves
VALVE LEAKS, WILL NOT OPEN, OR WILL NOT SHUT OFF:
(1) Make sure the checkstop/strainer on the supply line to the valve is fully open� Do not partially close
the checkstop for any reason as it is not a throttling valve� The check stop should be fully open
(normal operation) or fully closed (when servicing the valve)�
(2) Close the check stop, then remove the cap� Remove and inspect the strainer in the supply line to
make sure the strainer is not blocked or partially blocked and prohibiting water ow.
(3) Check the voltage at the valve for 24 VAC after pressing the pushbutton�
(4) Verify that the appropriate DIP switches are in the "ON" position on the timer (if applicable)�
(5) If the above steps do not solve the problem, follow the steps below to disassemble and inspect the
valve:
a) Separate valve motor from valve base by removing the four (4) #8 screws�
b) Inspect the water diaphragm assembly to see if bypass hole in diaphragm is blocked� Remove
any debris by blowing on diaphragm or using compressed air� DO NOT use any tool (such as
a straight pin) to remove any debris� Enlarging the hole will shorten the valve cycling, cause
erratic behavior, and possibly shorten the life of the valve�
c) Inspect seating area on valve base to make sure no debris, pitting, or scoring is present� Clean
seat as necessary�
d) Inspect seating area on diaphragm for debris and clean as necessary� If debris has caused
permanent indentations in the rubber, it may have to be replaced�
e) Check the rubber bumper on the end of the solenoid armature for any debris, marks,
indentations, scratches, or deformations� Replacement may be necessary�
f) Ensure that the armature spring is in place and not missing�
g) Using the exploded view provided with this manual, reassemble the valve and test it's operation
to determine if the problem has been xed.

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 18www.willoughby-ind.comRev. 6/2019

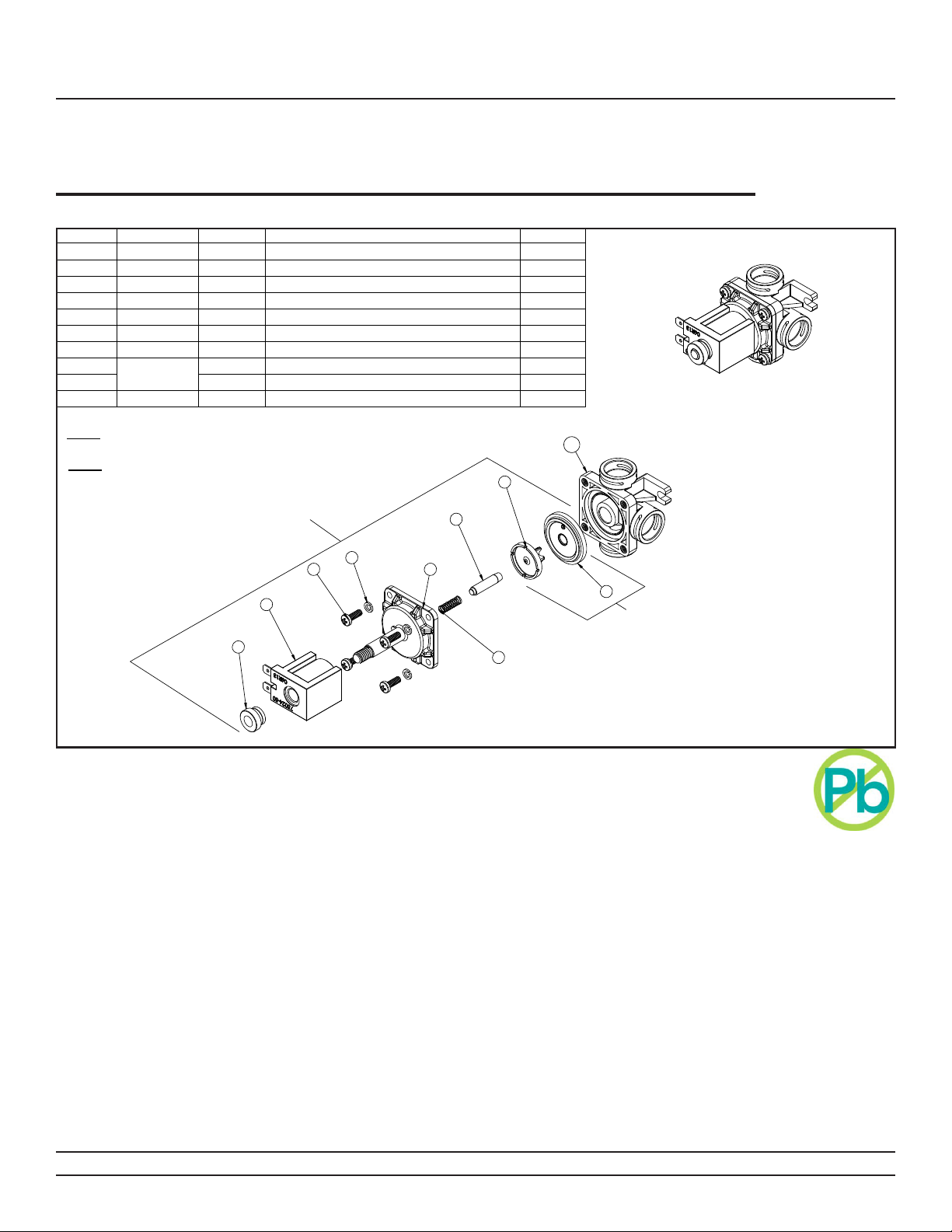

E1L1 Single Temp Solenoid Valve Assembly #980408
Replacement Part Numbers
3 Places +/- �015 3/15/11
Willoughby Industries Inc.
Indianapolis, Indiana
Tolerances
Except as
Title or Part Description:
Material: Drawn By: Date: Revision #:
Drawing #:
Fractions +/- 1/32"
Approved By:
TRB
Sheet:
980408
Job Name: Part Number:
N/A
Scale: Qty:
E1L VALVE ASSEMBLY
1 Of 1
E
Noted
2 Places +/- �03
Angle +/- 1
PVK-3
(8,9)
9
(1-9) PLUS (*) BELOW
EVK-4 KIT
10
4
6
8
1
3
7
5
2
* EVK-4 KIT INCLUDES
380897 VALVE SEAT W/ 0-RING (NOT SHOWN)
ASSEMBLED VIEW
ITEM # SUB-ASSY# PART # DESCRIPTION QTY�
1 N/A 980534 NYLON NUT, 5/16-18 1
2 N/A 980532 COIL, 24V DC 1
3 N/A 980170 #8-32 x 1/2 " SCREW 4
4 N/A 980002 SPLIT LOCK WASHER 4
5 N/A 980530 ARMATURE CAP, 24v VALVE 1
6 N/A 980533 SPRING, 5/8 24v VALVE 1
7 N/A 980565 ARMATURE BUMPER ASSEMBLY, EL VALVE 1
8980305 980128 3 PRONGED INSERT 1
9 980129 WATER SIDE DIAPHRAGM 1
10 N/A 980420 SINGLE TEMP BASE W/INSERTS 1
REPAIR KIT ORDERING #'S ARE
LISTED IN THE EXPLODED VIEW�
PARTS LISTED IN THE PVK REPAIR
KITS ARE NOT SOLD INDIVIDUALLY
NOTE:
NOTE:
WILLOUGHBY

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 19www.willoughby-ind.comRev. 6/2019
Checkstop Breakdown P/N 980183
Replacement Part Numbers
ASSEMBLED VIEW
8
9
1
5
2
3
6
7
4
EXPLODED VIEW
ITEM # PART # DESCRIPTION QTY�
1 980580 CHECKSTOP BASE AND FLOW RESTRICTOR ASSY 1
2 980194 STRAINER PLUNGER 1
3 980201 SPRING, CHECKSTOP/STRAINER 1
4 980192 STRAINER CAP 1
5 980168 SCREEN, STRAINER 1
6 980200 CHECKSTOP SCREW 1
7 980163 O-RING, #012 1
8 980165 O-RING, #130 1
9 980164 O-RING, #015 1
1
Indianapolis, Indiana
EEF
EEF 1/19/15
1/19/15
A1 OF 1
980183
1:2
N/A
PART #:
CHECKSTOP ASSEMBLY
SHEET:REV�:
ORIG�:REVISION:
SCALE: REF�:
MAT'L:
2 PLCS: A
ANGLE:
SIZE:
TITLE / DESC�:
FRACTIONS:
3 PLCS:
EXCEPT AS
TOLERANCES
NOTED
0�03
0�015
1/32"
Willoughby Industries, Inc.
STANDARD
WILLOUGHBY

Installation & Operation Manual
E1L1 and E1L2
Electronic Series Valves
Willoughby Industries, Inc. TOLL FREE [phone] ● LOCAL [phone] ● FAX [phone]
Page 20www.willoughby-ind.comRev. 6/2019
5
4
3
1
2
1/4" FEMALE SPADE CONNECTORS
(IF CONNECTORS ARE NOT NEEDED
FOR INSTALLATION, CUT OFF AND
STRIP WIRES AS NEEDED
ASSEMBLED VIEW
(NOT TO SCALE)
ITEM #
PART #
DESCRIPTION
QTY.
1 380124
SLEEVE, DIAPHRAGM PUMP PUSHBUTTON
1
2 600057
PUSHBUTTON, DIAPHRAGM PUMP
1
3
380504MA
CAP, DIAPHRAGM PUMP, MOLDED
1
4 600201
DIAPHRAGM, PNEUMATIC PUMP
1
5 600320
BODY, EL DIAPHRAGM PUMP, ASSEMBLY
1
TB JDR 8/2/19
1/22/15
A
1 OF 1
1:4
AS NOTED
PART #:
ELECTRONIC PUSHBUTTON ASSEMBLY
SHEET:
REV.: ORIG.:
REVISION:
SCALE:
REF.: MAT'L: TITLE / DESC.:
TOLERANCES
EXCEPT AS
NOTED
2 PLCS: 3 PLCS:
FRACTIONS:
ANGLE:
0.03 0.015 1/32" 1
A
SIZE:
Willoughby Industries, Inc.
Indianapolis, Indiana
STANDARD
600313
Drawing- Pushbutton Assembly #600313
