Winco Spectrum EICS-18 Supplement

ELECTRIC COUNTERTOP
COMMERCIAL INDUCTION COOKER
Installation and Operating Instruction Manual
BEFORE OPERATING ANY EQUIPMENT, READ AND FAMILIARIZE YOURSELF WITH THESE USE AND SAFETY INSTRUCTIONS
Congratulations on your purchase of this SPECTRUM commercial equipment. When used as intended, and with
proper care and maintenance, you are sure to experience years of reliable operation from this equipment. To ensure
best results, it is important that you read and follow the instructions in this manual carefully. It is important to
keep these instructions in a safe place for future reference.
Model Voltage Frequency Power Amperage Plug Ty pe
Overall Dimensions
Weight
Length Depth Height
EICS-18
120V 60 Hz 1800W 15 A
NEMA 5-15P
17.7"
(450mm)
14.2"
(360mm)
5.1"
(129mm)
14.8 lbs
6.7 kgs
EICS-18C NEMA 5-20P
EICS-34 240V 3400W 14 A NEMA 6-20P
Form No. EICS-Series Manual - 01/21
EICS-18C
EICS-34
EICS-18
For California Customers
WARNING: Cancer and Reproducve Harm -
www.P65Warnings.ca.gov

2
Electric Countertop Induction Cooker
Important For Future Reference
Introduction
Congratulations on the purchase of the SPECTRUM™ Commercial
Induction Cooker. Please take time to carefully read through this
manual to ensure the machine is operated and maintained properly, to
ensure the best possible performance from the product for many years.
SPECTRUM will not accept liability for the following if:
• The instructions in this manual have not been followed correctly.
• Non-authorized personnel have tampered with the machine.
• Non-original spare parts are used.
• The machine has not been handled and cleaned correctly.
• There is any use damage to the unit.
Immediately Inspect for Shipping Damage
All containers should be examined for damage before and during
unloading. The freight carrier has assumed responsibility for its safe
transit and delivery. If equipment is received damaged, either apparent
or concealed, a claim must be made with the delivering carrier.
A. Apparent damage or loss must be noted on the freight bill
at the time of delivery. It must then be signed by the carrier
representative (Driver). If this is not done, the carrier may refuse
the claim. The carrier can supply the necessary forms.
B. If concealed damage or loss is not apparent until after equipment
is uncrated, a request for inspection must be made to the carrier
within 15 days. The carrier should arrange an inspection. Be certain
to keep all contents and packaging material.
Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or parts, this information is required.
Model Number Serial Number Date Purchased
! !
WARNING: IMPROPERINSTALLATION,ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE
PROPERTY DAMAGE, INJURY, OR DEATH. READ THE
INSTALLATION, OPERATION, AND MAINTENANCE
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING
OR SERVICING THIS EQUIPMENT.
AVERTISSEMENT: TOUTE INSTALLATION, RÉGLAGE,
MODIFICATION, RÉPARATION OU ENTRETIEN
INCORRECT PEUT OCCASIONNER DES DOMMAGES
MATÉRIELS, DES BLESSURES GRAVES OU LA MORT.
LIRE LES INTRUCTIONS D'INSTALLATION, D'UTILISATION ET
D'ENTRETIEN ATTENTIVEMENT AVANT D'INSTALLER OU DE
RÉPARER CET APPAREIL.
! !
CAUTION: THESEMODELSAREDESIGNED,BUILT,AND
SOLD FOR COMMERCIAL USE ONLY. IF THESE MODELS
ARE POSITIONED SO THE GENERAL PUBLIC CAN USE
THE EQUIPMENT, MAKE SURE THAT CAUTION SIGNS,
WARNINGS, AND OPERATING INSTRUCTIONS ARE
CLEARLY POSTED NEAR EACH UNIT SO THAT ANYONE
USING THE EQUIPMENT WILL USE IT CORRECTLY AND
NOTINJURETHEMSELVESORHARMTHEEQUIPMENT.
ATTENTION: CES MODÈLES SONT CONÇUS, FABRIQUÉS,
ET VENDUS POUR UN USAGE COMMERCIAL SEULEMENT.
SI CES MODÈLES SONT PLACÉS POUR QUE LE GRAND
PUBLICPUISSELESUTILISER,ASSUREZ-VOUSQUELESCONSIGNES
D’ATTENTION, D'AVERTISSEMENT, ET LES INSTRUCTIONS
D'UTILISATION SOIENT CLAIREMENT AFFICHÉES PRÈS DE
CHAQUEUNITÉDE SORTEQUE N'IMPORTEQUELUTILISATEURDE
L'APPAREIL L'EMPLOIE CORRECTEMENT ET NE SE BLESSE PAS OU
N'ENDOMMAGE PAS L'APPAREIL.
! !
WARNING: A FACTORY AUTHORIZED SERVICE
PROVIDER SHOULD HANDLE ALL MAINTENANCE
AND REPAIR. BEFORE DOING ANY MAINTENANCE
OR REPAIR, FOLLOW SERVICE SET UP ARRANGEMENT
ON PAGE 11.
AVERTISSEMENT: UN TECHNICIEN AUTORISÉ PAR
L'USINE DEVRA EFFECTUER TOUT L'ENTRETIEN ET LES
RÉPARATIONS. AVANT DE FAIRE TOUT ENTRETIEN OU
RÉPARATION, VEUILLEZ CONTACTER WINCO.

3
Electric Countertop Induction Cooker
Table of Contents
Specications....................................................................................... 1
Warnings .............................................................................................. 2
Introduction ........................................................................................ 2
Packaging ............................................................................................ 3
Installation .......................................................................................... 4
Operation ............................................................................................ 5
Cleaning, Care & Maintenance ......................................................... 6
Safety ................................................................................................... 6
Troubleshooting ................................................................................. 7
Service & Repair .................................................................................. 7
Exploded View .................................................................................... 8
Spare Parts List .................................................................................... 9
Electrical Diagram ............................................................................ 10
Limited Warranty .............................................................................. 11
Package Contents
All units come with an Operating Instruction Manual and the following:
• (1) SPECTRUM™ Commercial Induction Cooker
SPECTRUM prides itself on quality and service, ensuring that at the
time of packing, all products are supplied fully functional and free
of damage. Should you nd any damage as a result of freight, please
contact your SPECTRUM dealer immediately.
Unpacking the Equipment
DISPOSE OF ALL PACKAGING MATERIALS IN AN
ENVIRONMENTALLY RESPONSIBLE MANNER.
1. Remove all packing materials and tape, as well as any protective
plastic and cardboard, from the unit.
2. Clean any glue residue left over from the plastic or tape.
3. Place the unit in the desired position and height.
Please keep this manual in a safe place for future use!
Installation and start-up must be performed by a qualified installer who has thoroughly read, understands and follows these instructions.
NOTE
Please remember that this manual and the warning labels do not replace the need to be alert, to properly train and
supervise operators, and to use common sense when using this equipment.

4
Important Safeguards
5. DO NOT operate this device or any other electrical equipment
with a damaged cord or plug, or after the unit malfunctions,
is dropped or damaged in any manner. Return to the nearest
WINCO Authorized Service Center for examination, repair and/or
adjustment.
6. The use of accessory attachments not recommended by WINCO
may cause re, electric shock or injury.
7. Not intended for outdoor installation.
8. DO NOT let the cord hang over the edge of a table or counter,
or touch hot surfaces.
9. DO NOT place on or near a hot gas or electric burner, or in a
heated oven.
10. This appliance should always be on a stable and steady countertop
or table. Allow sucient space around the cooking area. Never use
the unit on/near low-heat-resistant materials (carpet, vinyl).
11. This appliance is not intended for use by individuals (including
children) with reduced or impaired physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have
been given proper supervision or instruction concerning the use of
this appliance by a person responsible for their safety.
12. Do not place any object between the pot/pan and the glass surface
of the unit.
13. DO NOT cook on a broken cooktop – if the cooktop should break,
cleaning solutions and spillovers may penetrate the broken or
damaged surface and create a risk of electrical shock.
14. Clean the cooktop with caution – if a wet sponge or cloth is used
to wipe spills on a hot cooking surface, exercise caution to avoid
steam burns. NOTE: some cleaners may produce noxious ames
when applied to a hot surface.
15. DO NOT place metal objects such as knives, forks, spoons and lids
on the glass surface, as they can get very hot.
16. Items with a magnetic eld, including radios, televisions,
automatic banking cards, and audio/video equipment may aect
the operation of the unit.
17. It is not recommended to heat pots/pans when empty. Pots/Pans
will heat up very quickly.
18. If an extension cord power-supply is used,
a. The marked electrical rating of the extension cord should be
rated the same or greater than the electrical rating of the unit.
b. The cord should be located so that it will not drape over the
countertop or tabletop where it can be damaged or moved
unintentionally.
These instructions should be followed at all times. Failure to follow
these instructions could result in injury to yourself and others.
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY
PRECAUTIONS AND COMMON SENSE SHOULD BE FOLLOWED,
INCLUDING BUT NOT LIMITED TO THE FOLLOWING:
1. Read all instructions carefully. Do not use this appliance for
anything other than its intended use.
2. DO NOT touch any surfaces that may be hot.
3. Unplug from outlet when not in use prior to installing or removing
parts and before cleaning. Allow for the device to cool rst before
handling.
4. To protect against the risk of electrical shock, do not immerse the
appliance, cord or plug in water, or other liquids.
Electrical Shock Hazard
Keep water and other liquids
from entering the inside of the
unit. Liquid inside the unit could
cause an electrical shock.
Risque de choc électrique
Conserver l'eau et d'autres liquides
de pénétrer à l'intérieur de l'appareil.
Liquide à l'intérieur de l'appareil pourrait
provoquer un choc électrique.
Do not spray water or cleaning
products. Liquid could contact
the electrical components
and cause a short circuit or an
electrical shock. Do not use unit
if power cord is damaged or has
been modied.
Ne pas pulvériser de l'eau ou des produits
de nettoyage. Le liquide pourrait contacter
avec les composants électriques et causer
un court-circuit ou un choc électrique.
Ne pas utiliser l'appareil si le cordon
d'alimentation est endommagé.
ou a été modié.
WARNING AVERTISSEMENT
Fire Hazard.
Correct installation precautions,
procedures and regulations
must be followed. Operation
and safety training is necessary
for all users of this equipment.
Risque d'incendie
La surchaue des vapeurs d'huile ou de
l'huile peut s'enammer et provoquer
un incendie. Surveillez la température,
la qualité et le niveau d’huile. Utilisez et
entretenez le système d'élimination des
vapeurs d'huile.
WARNING AVERTISSEMENT
Proper Grounding · Mise à la terre correcte
This machine is provided with a three-pronged
grounding plug. The outlet to which this plug
is connected must be properly grounded. If the
receptacle is not the proper grounding type, contact an
electrician. DO NOT, under any circumstances, cut
or remove the third ground prong from the power cord
or use any adapter plug.
Cette machine est équipée d'une che à trois broches.
La prise sur laquelle cette che est branchée doit être
correctement mise à la terre. Si la prise n'est pas le type de
mise à la terre, contactez avec un électricien. NE PAS, en
aucun cas couper ou enlever la troisième broche de terre à
partir du cordon d'alimentation ou utiliser un adaptateur.
USE A GROUNDED OUTLET
DO NOT ADD AN ADAPTOR
TO THE PLUG
UTILISER UNE PRISE AVEC MISE
À LA TERRE NE PAS AJOUTER UN
ADAPTATEUR SUR LA FICHE

5
Note
The WINCO
®
Spectrum Commercial Induction Cooker has three (3) different cooking modes:
(G) Timer Mode, (H) Temperature Mode, (I) Power Mode.
Operation
Note
Induction Cookers require induction-ready cookware.
Power Mode (Wattage)
1. Place cookware containing ingredients on the cooktop.
2. Turn the Induction Cooker "ON" by touching the "ON/OFF" button.
3. Touch "POWER" and adjust the power by touching "+" or "-".
4. To turn the cooktop o, touch the "ON/OFF" button until the LED
display no longer illuminates.
Control Panel
Temperature Mode
1. Place cookware containing ingredients on the cooktop.
2. Turn the Induction Cooker "ON" by touching the "ON/OFF" button.
3. Press the "Temperature Mode" button to switch to temperature
adjustment.
• After one press, the temperature will be displayed in "F"
Fahrenheit.
• Press the "Temperature Mode" button a second time to display the
temperature in "C" Celsius.
4. Press the “+” or “-“ buttons and set until the desired cooking
temperature appears on the LED display. The temperature
displayed will change from the set temperature to the desired
temperature.
5. To turn the cooktop o, press the "ON/OFF" and the LED display is
no longer illuminated.
Timer Mode
1. Place cookware containing ingredients on the cooktop.
2. Turn the Induction Cooker "ON" by touching the "ON/OFF" button.
3. Press the "Timer Mode" button (0-24 hours).
4. Press “+” or “-“ buttons to set in 1-minute increments (0-60 min),
long press “+” or “-“ buttons to set in 5-minute increments.
Press Timer button again and use “+” or “-“ buttons to adjust in
1-hour increments (0-24 hours).
Press Timer button for a third time will shut o the timer.
5. To turn the cooktop o, press the "ON/OFF" and the LED display is
no longer illuminated.
A
FE
C
D
B
G H I J

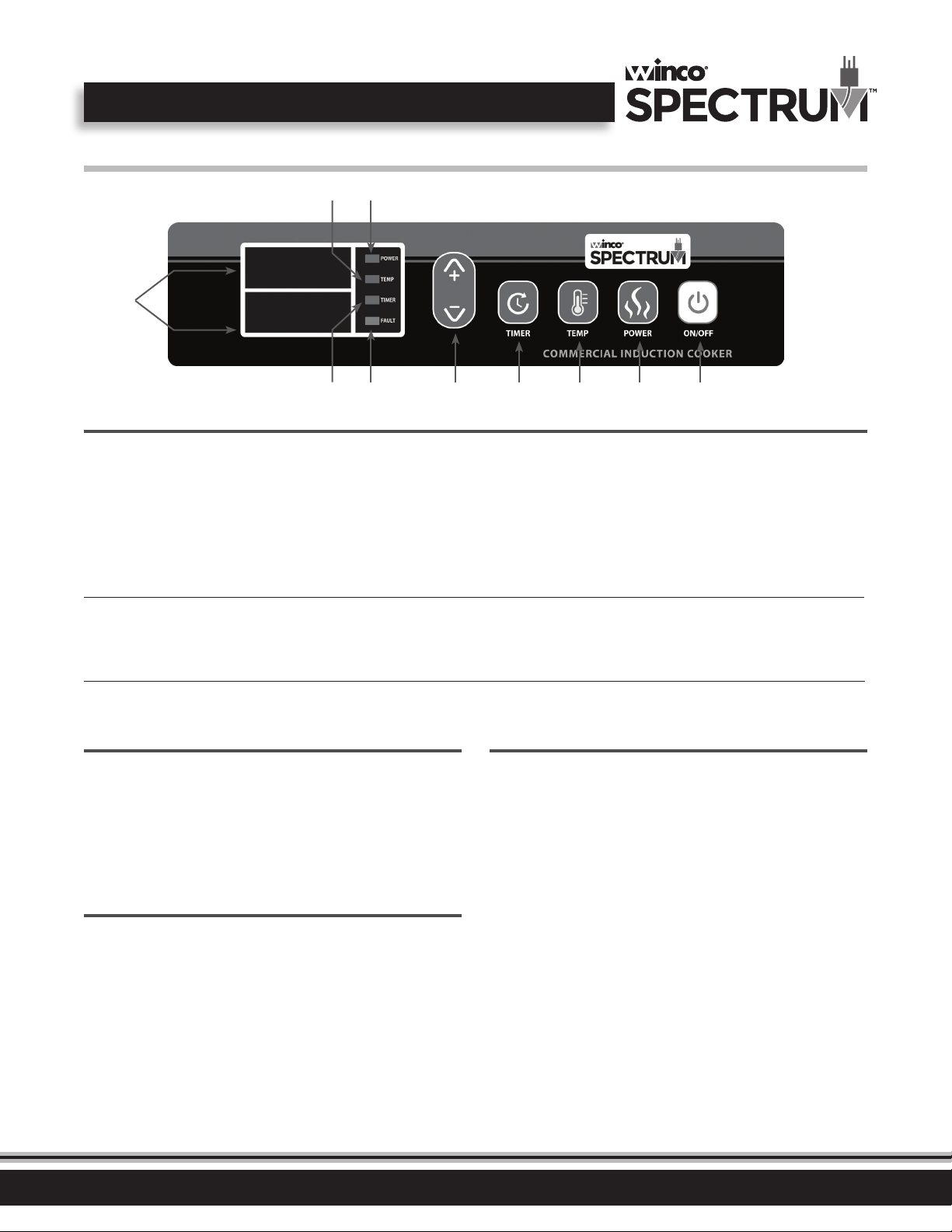

A. LED Display Screen
B. Temperature Indicator Light
C. Power Indicator Light
D. Timer Indicator Light
E. Fault Indicator Light
F. Adjustment Buttons "+" and "-"
G. Timer Mode Button
H. Temperature Mode Button
I. Power Mode Button
J. "ON/OFF" Button

6
Cleaning, Care & Maintenance
To maintain the appearance and increase the service life,
clean your unit daily.
The SPECTRUM™ Commercial Induction Cooker should be
cleaned after each day’s operation; however, the unit may
require more frequent cleaning, depending on the volume
of production.
Safety
SAFETY PRECAUTIONS
Before installing and operating this equipment be sure
everyone involved in its operation are fully trained and
aware of all precautions. Accidents and problems can
result from a failure to follow fundamental rules and
precautions.
• A WINCO® Approved Recommended Qualied Service Technician
should carry out repairs if necessary. Do not remove any
components or service panels on this product.
• Before handling, allow the cooktop to cool down after use - it may
be hot from the heated pot that was on it.
• Before cleaning, switch o power and disconnect power cord from
the outlet.
• Do not immerse unit in water or use hose to clean.
Ne jamais immerger l'appareil dans l'eau ni utilisez un jet
d'eau pour le nettoyer.
• If the power cord is damaged, it must be replaced by a WINCO®
Approved Recommended Qualied Service Technician in order to
avoid a hazard.
1. Switch power o and disconnect from the outlet before cleaning.
2. The Induction Cooker should be cleaned regularly throughout use,
and thoroughly cleaned after each meal period.
3. When the unit has cooled down, wipe the surface and body with
damp cloth.
4. To clean the stainless steel housing, use a mild scouring agent to
remove greasy or resistant soil. DO NOT use lye-based cleaners
such as oven cleanerm as it may damage the cooktop.
5. To clean the glass surface, use a mild detergent or glass cooktop
cleaning cream.
6. Do not immerse in water.
Ne jamais immerger dans l'eau.
7. Do not use a hose to clean.
Electrical Shock Hazard
Keep water and other liquids
from entering the inside of the
unit. Liquid inside the unit could
cause an electrical shock.
Risque de choc électrique
Conserver l'eau et d'autres liquides
de pénétrer à l'intérieur de l'appareil.
Liquide à l'intérieur de l'appareil pourrait
provoquer un choc électrique.
Do not spray water or cleaning
products. Liquid could contact
the electrical components
and cause a short circuit or an
electrical shock. Do not use unit
if power cord is damaged or has
been modied.
Ne pas pulvériser de l'eau ou des produits
de nettoyage. Le liquide pourrait contacter
avec les composants électriques et causer
un court-circuit ou un choc électrique.
Ne pas utiliser l'appareil si le cordon
d'alimentation est endommagé.
ou a été modié.
WARNING AVERTISSEMENT
Burn Hazard.
When in operation, the
appliance surfaces will be HOT!
Please take extreme caution.
Risque de brûlure.
En fonctionnement, les surfaces de
l'appareil seront CHAUDES!
S'il vous plaît prendre une extrême
prudence.
USE CAUTION WHEN
TOUCHING THE UNIT.
Ne touchez pas le liquide chaud
ou les surfaces de chauage
lorsque l’appareil chaue ou en
fonctionnement.
WARNING AVERTISSEMENT
HOT
Note
The Induction Cooker uses and can radiate radio
frequency energy. If not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this unit does
cause harm to radio or television reception, which can
be determined by turning the unit off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect unit to an outlet that’s on a dierent circuit than the
receiver.
• Consult the dealer or an experienced radio/TV technician for help.
• Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

7
If the SPECTRUM™ Commercial Induction Cooker does not operate, please check the following before placing a service call:
Troubleshooting
Service and Repair
THIS EQUIPMENT MUST ONLY BE SERVICED BY AN AUTHORIZED AGENT.
NOTE
Parts protected by the manufacturer or its agent are not to be adjusted by the installer unless the installer is an authorized service agent.
If you have any questions or problems DO NOT send unit to WINCO® without rst contacting our customer service department.
See "Limited Warranty" section on page 11 for details.
ERROR CODES DESCRIPTION OF ERROR RECOMMENDED SOLUTION
EC/E16 Main board cannot connect with control panel.
Check the wire connection between the main PCB board and display control
board.
Replacement must be done by an authorized service provider.
E0 Circuit failure Check the coil for an open circut.
Replacement must be done by an authorized service provider.
E1 Empty cookware protection
Place cookware containing ingredients on the induction cooker.
Make sure cookware is induction cooker compatable.
Check diameter of the cookware . It must have a at bottom that is at least
4-1/2" in diameter.
E2 Low voltage protection Check electrical specications of power source.
E3 High voltage protection
E4 Temperature sensor open circut
Check the temperature sensor on heating sink for an open circuit (broken or
unplug).
Replacement must be done by an authorized service provider.
Check the temperature sensor on heat sink for broken insulated exposed
metal wire. Check if the outlet is broken.
Replacement must be done by an authorized service provider.
E7 IGBT sensor open circut Check the IGBT sensor on heat sink for an open circuit (broken or unplug).
Replacement must be done by an authorized service provider.
E8 Temperature sensor is overheated.
Check the fans under the coil.
Replacement must be done by an authorized service provider.
Check the surrounding temperature. If temperature is too high (above 122°F
/ 50°C), the induction cooker will stop heating.
Replacement must be done by an authorized service provider.
E9 IGBT sensor is overheated.
Check the fans in main board to see if they are broken or air inlets are
blocked, resulting in poor heat dissipation.
Replacement must be done by an authorized service provider.
Unit is not
turning on
Power supply error Check that power supply cord is correctly plugged in and the outlet is
working properly.
Plug/Cord external wiring damage Remove and replace power cord.
Replacement must be done by an authorized service provider.

8

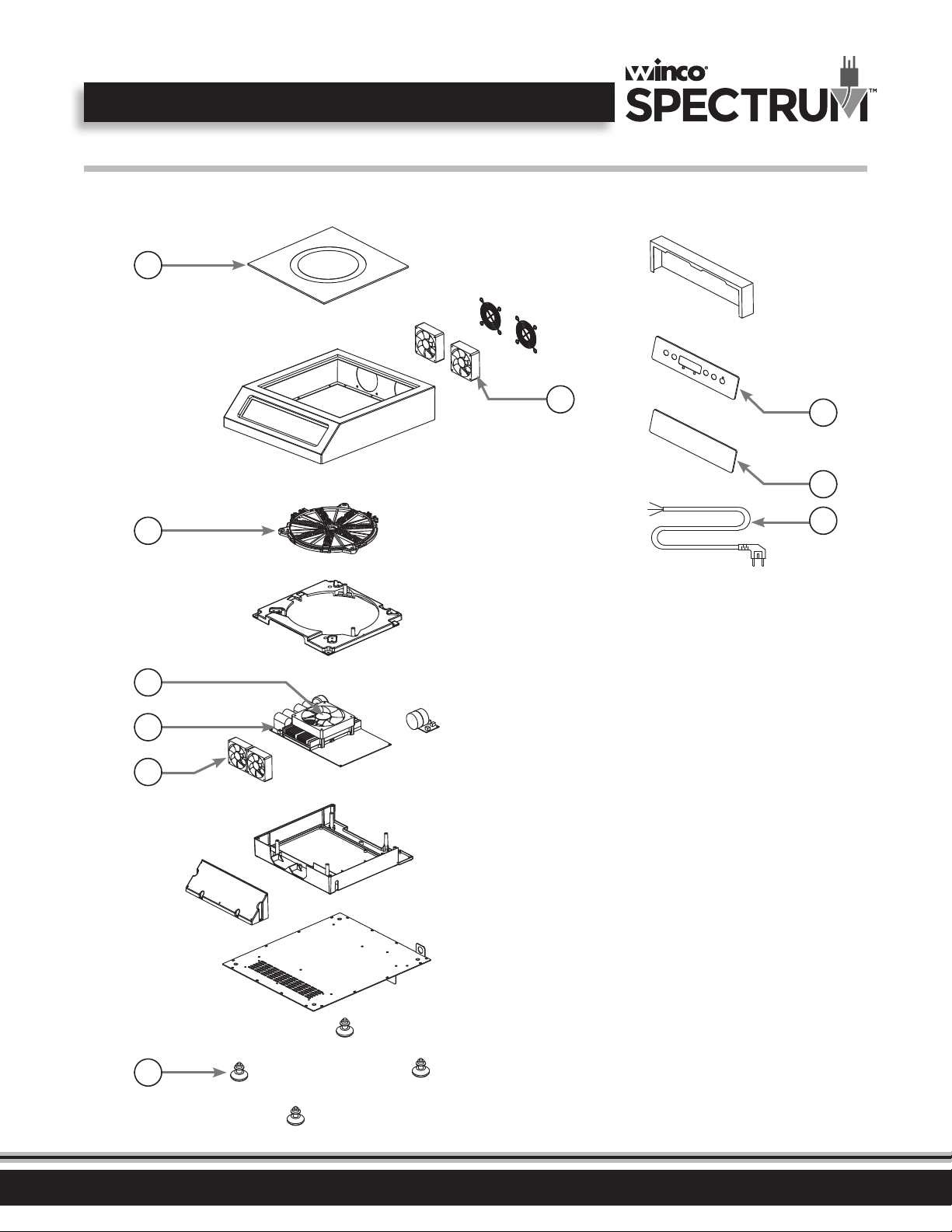

Exploded Views
MODELS: EICS18 / EICS18C / EICS34
1
2
4
6
5
78
9
3
10

9
Parts List
MODELS: EICS18 / EICS18C / EICS34
#Description EICS-18 EICS-18C EICS-34
1Flat Glass Plate EICS-P1 EICS-P1 EICS-P1
2Flat Coil EICS-P2 EICS-P2 EICS-P3
3Fans on Heat Sink EICS-P4 EICS-P4 EICS-P4
4Main PCB Board EICS-P5 EICS-P5 EICS-P6
5Fans on Main Board Cover EICS-P7 EICS-P7 EICS-P7
6Alloy Foot EICS-P8 EICS-P8 EICS-P8
7Back Fans EICS-P9 EICS-P9 EICS-P9
8PCB Control Board EICS-P10 EICS-P10 EICS-P12
9Glass Control Panel EICS-P11 EICS-P11 EICS-P11
10 Power Cord EI-PC18 EI-PC18C EI-PC34
Please contact factory for special order parts not listed.

10

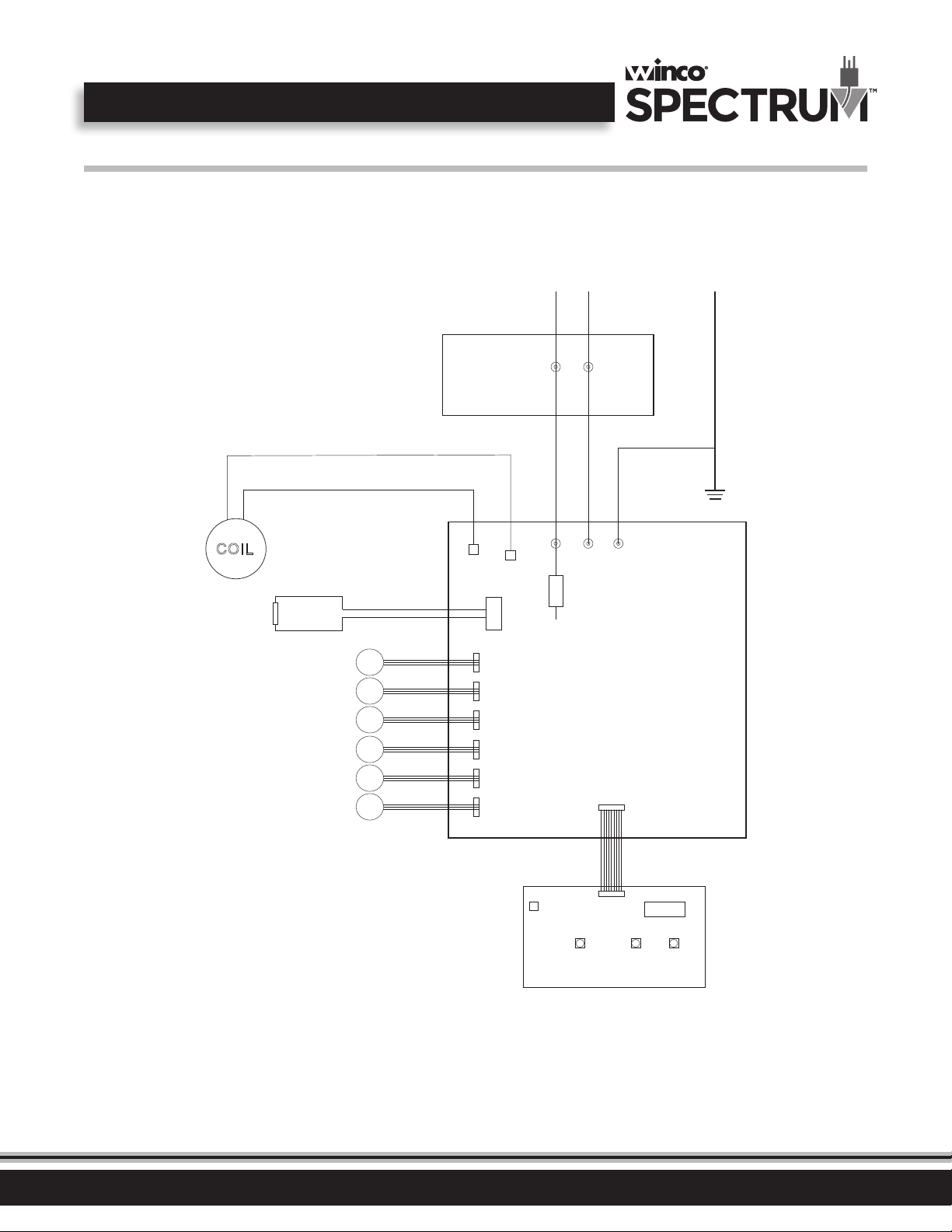

Electrical Circuit Diagram
MODELS: EICS18 / EICS18C / EICS34
This circuit diagram has been provided to assist qualied electricians;
only SPECTRUM™ service agents or qualied electricians should carry out
repairs if required.
Do not remove any components or service panels on this product.
Power
Board
L N
POWER SUPPLY
120V / 240V 60Hz
COIL
E
FUSE
LN E
MAIN BOARD
THERMAL
LINK
FAN
FAN
FAN
FAN
FAN
SENSOR
Control board
888

11
Limited Warranty
Please keep this manual in a safe place for future use!
WINCO® warrants to the original purchaser of new equipment that said
equipment, when installed in accordance with our instructions within
North America and subjected to normal use, is free from defects in
material or workmanship for a period of 1 year. The labor warranty is
one year from original installation or 18 months from actual factory
shipment date, whichever date occurs rst.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
WHETHER EXPRESSED OR IMPLIED. WINCO EXPRESSLY
DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR EXPRESSED OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE.
WINCO’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY
IS EXPRESSLY LIMITED TO REPAIRING AND REPLACING
EQUIPMENT THAT PROVES TO BE DEFECTIVE IN MATERIAL OR
WORKMANSHIP WITHIN THE APPLICABLE WARRANTY PERIOD.
IN NO EVENT SHALL WINCO BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY,
INCLUDING, WITHOUT LIMITATION, LOSS OF PROPERTY,
PERSONAL INJURY, LOSS OF BUSINESS OR PROFITS OR OTHER
ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGES,
WHETHER IN NEGLIGENCE, WARRANTY, STRICT LIABILITY, OR
OTHERWISE.
This warranty is given only to the rst purchaser from a retail dealer.
No warranty is given to subsequent transferees.
Warranty does not cover product failures caused by: failure to maintain,
neglect, abuse, damage due to excess water, re, normal wear,
improper set up and use. Periodic maintenance is not covered.
This warranty is not in force until such time as a properly completed
and digitally signed Installation/Warranty Registration has been
received by WINCO within 30 days from the date of installation.
WARRANTY SERVICE
To initiate warranty service
email: [e-mail] or call: 973-295-3899
DO NOT send unit to WINCO® without rst contacting our customer
service department.
Please provide or have the following information available:
• Model & Serial Number (located on the silver identication tag, on side
or rear of unit)
• Date of Purchase
• Purchase Dealer
• Operator / Installation Contact Information
• Business Name & Business Address
• Contact Name & Contact Telephone Number
REGISTER ONLINE AT:
www.wincous.com
Proof of purchase is required to extend warranty more than 1 year from
date of shipment from the factory.
THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE
AND EXCLUSIVE STATEMENT BETWEEN THE BUYER AND SELLER.
WINCO®NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS
TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN
CONNECTION WITH SAID EQUIPMENT.
Examples of items not covered under warranty, but not limited to just
these items:
1. Natural disasters (ie: earthquakes, tornadoes, hurricanes, etc.), re,
water damage, burglary, accident, theft.
2. Freight damage.
3. Improper installation or alteration of equipment.
4. Use of generic or after-market parts.
5. Repairs made by anyone other than a WINCO® designated service
provider.
6. Lubrication.
7. Expendable wear parts, adjustable feet, blown fuses, lamps, etc.
8. Cleaning of equipment.
9. Misuse or abuse.
Warranty voided if:
1. Product is altered by user
2. Serial number plate is removed
3. Product is installed in a prison or any correctional facility.

Models: EICS-18 / EICS-18C / EICS-34
www.wincous.com
