WINLAND REMOTE BUZZER
Remote Annunciation for Winland products
Z1885 Rev D (Aug 2009)
ONE YEAR LIMITED WARRANTY
Winland Electronics, Inc. warrants that each product of its manufacture is free from defects in material
and factory workmanship, when properly installed and operated under normal conditions according to
the manufacturer’s instructions.
Manufacturer’s obligation under this warranty is limited to correcting, without charge, at its factory
any part of parts thereof which shall be returned to the factory, by the original retail purchaser,
transportation charges prepaid, within one year after purchase and which upon examination shall
disclose to the manufacturer’s satisfaction to have been originally defective. Correction of such defects
by repair to, or supplying of replacements for defective parts shall constitute fulfillment of all obligations
to purchaser. Repair service performed by the manufacturer after one year from date of purchase will be
for a reasonable service charge.
This warranty shall not apply to any of the manufacturer’s products which have been subject to misuse,
negligence or accident of which shall have been repaired or altered outside of the manufacturer’s
factory.
Manufacturer shall not be liable for loss, damage, or expense directly or indirectly from the use of its
product or from any other cause.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE ARE EXCLUDED, AS ARE ALL OTHER
REPRESENTATIONS TO THE USER-PURCHASER, AND ALL OTHER OBLIGATIONS OR LIABILITIES, INCLUDING
LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES, ON THE PART OF THE MANUFACTURER OR
THE SELLER.
No person, agent or dealer is authorized to give any warranties on behalf of the manufacturer nor to
assume for the manufacturer any other liability in connection with any of its products.
SPECIFICATIONS
Dimensions 4.5 x 2.75 x 0.23” (11.43 x 6.99 x 0.58 cm)
Weight 0.65 lb (0.3 kg)
Power Requirements 12VDC @ 4.5mA
24VDC @ 9mA
Sound Output 2800 Hz ±15% continuous
Sound Pressure Level 12VDC - 90 db
@ One Foot (0.3 m) 24VDC - 95 db
Operating Temp -40˚ to +176˚F (-40˚ to +80˚C)
Mounting Standard 1-gang switch mounting box
Warranty 1 Year Limited
CONTENTS
This package contains:
• 1 BZ-1 Remote Annunciator
• UAL Connectors
• 1 Installation/Operating Instructions Guide BZ-1
1950 Excel Drive • Mankato, MN 56001 USA
(Tech Support 8:00am - 5:00pm CST)
[phone] • [phone] P • [phone] F
www.winlandsecurity.com

The BZ-1 Buzzer is intended for use with the Winland VehicleAlert and other Winland
products (see products below). Up to 5 buzzers may be connected in parallel to
provide remote annunciation throughout a home or business.
The BZ-1 is provided with a UAL connector packet. The UAL connector allows you
to splice up to 3 wires in each connector. To use the connectors, follow these simple
steps:
1. DO NOT STRIP INSULATION
2. Hold the connector button side down. Insert wires 18-22 AWG into the ports of the
connector. Be sure the wires are inserted all the way into the end of the connector
past the center of the button.
3. Crimp the button down using pliers until it is completely seated into the body of the
connector.
When connecting to Winland products, follow the product instruction manual and use
the following color code:
Red = Positive ( + ) White / Red = Negative ( - )
VehicleAlert Connections - To install the BZ-1 Buzzer to the VehicleAlert
“Console” first remove power from the console by unplugging the Transformer. Using a
wire cutter, cut the “red” lead from the console connector (Not the “Sensor Probe” lead).
Insert the two ends of the “Console” lead into two of the ports of the UAL connector.
Then insert the “Red” lead from the “Buzzer” into the UAL connector. Make certain
that the wires are inserted all the way into the end of the connector past the center of
the button. Crimp the connector (use the crimping notes shown above).
Next connect the “White/Red” lead from the remote “Buzzer” to the “White/
Red” lead from the “Console” using a UAL connector. Crimp the connector.
Using a wire cutter, cut the “Black” lead from the console connector (Not the
“Sensor Probe” lead). Insert the two ends of the console lead into two ports of the
UAL connector. Then insert the “Grey” lead from the console into the UAL connector.
Crimp the connector.
BZ-1 MAY BE CONNECTED TO MANY WINLAND PRODUCTS:
Hold connector
button side down.
Insert wires past the
connector center.
Use pliers to crimp wires
in connector.
BUZZER Red wire to red console wire
Note: For operation, the
“Grey” must be connected
to the “Black” lead (12 VDC
negative) on the VAL-1
console connector.
White/Red to VAL-1 console
accessory output white/red
EnviroAlert EA200
Simultaneously monitor 2 zones for water, temperature, and/or humidity
Eight event alarm memory with date and time
Auxiliary output relay for local audible alarm
EnviroAlert EA400
Simultaneously monitor 4 zones for water, temperature, and/or humidity
Eight event alarm memory with date and time
Auxiliary output relay for local audible alarm
EnviroAlert EA800
Simultaneously monitor 8 zones: 4 wireless and 4 hardwired
Complete downloadable data logging via USB stick
Monitor for water, temperature, humidity, contact closure, and more

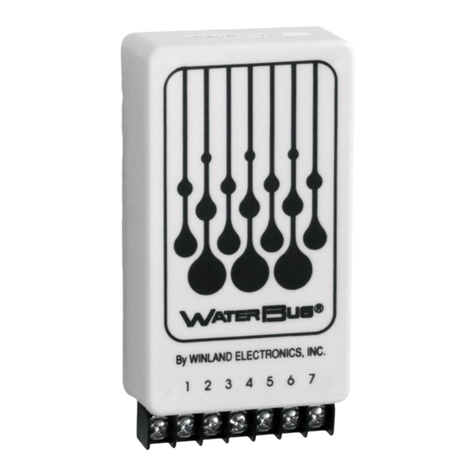

WaterBug 200
Run as many as 6 unsupervised sensor probes up to 100’ away
Hardwire powered
Includes one standard unsupervised sensor
WaterBug 800
Run as many as 8 supervised sensor probes up to 500’ away
Hardwire powered
Includes one standard supervised sensor
VehicleAlert
Monitor long driveways for unwanted traffic
Sense cars at commercial drive-up windows
To connect the BZ-1 to Winland devices other than the Vehicle Alert, please visit the
Product Specifications FAQ for each device at www.winlandsecurity.com.
For instructions to connect the BZ-1 to these products, please visit www.winlandsecurity.com and click into the Product Specifications FAQ for the appropriate product.
