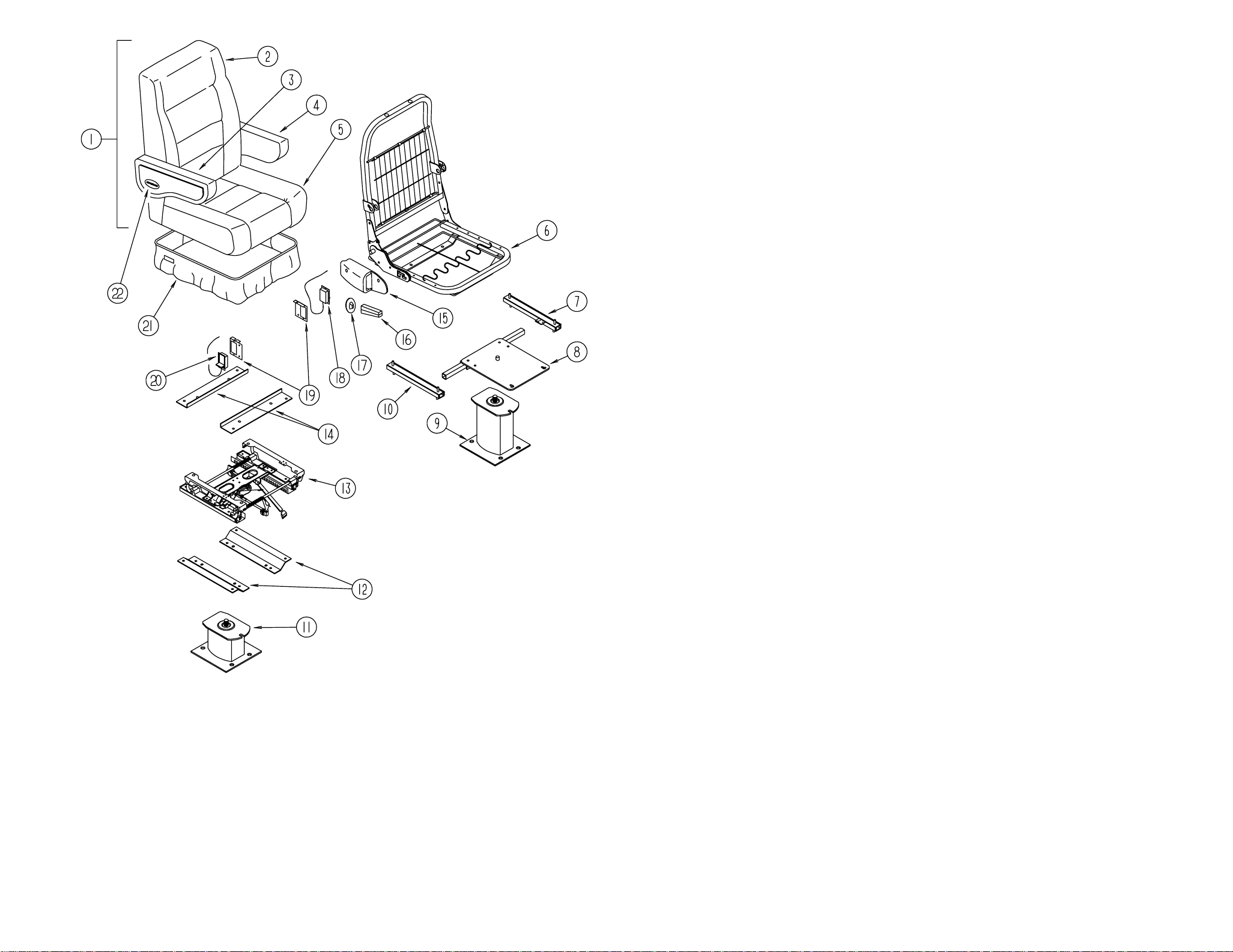

Winnebago WCF23RC 1995 User manual

1995
WCF23RC
F04
F05
F06
F07
F14
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

ACCESSORIES GROUP
OPERATOR MANUAL
KEYPART NUMBER U/MDESCRIPTION
054185-C5-000 EAMANUAL-OPERATOR, 1995 BRAVE
092318-01-000 EABINDER - 3 RING, MOTOR HOME MANUAL
092319-01-000 EAPOCKET PAGE - 3 RING BINDER, PLASTIC
113921-01-000 DWTOP LEVEL DRAWING-F, 1995
AUDIO VIDEO GROUP
PATIO ENTERTAINMENT CENTER
KEYPART NUMBER U/MDESCRIPTION
108847-01-000 EABRACKET-ANTENNA GROUND
110469-01-000 EASPEAKER - 4" X 6", OVAL - MAGNADYNE F46XB-12
110470-01-01A EAGRILLE-SPEAKER, OVAL - 4" X 6" - BLACK - MAGNADYNE G46WI
087683-03-000 EARADIO-AM/FM STEREO W/CASSETTE - AUDIOVOX RS-100
077069-02-000 EACABLE-ANTENNA, RADIO - EXTENSION 96" - ARA 6700667
090944-01-000 EAANTENNA-RADIO, 16" RUBBER
109889-02-000 EAANTENNA-SHAFT EXTENDER, 2" - MAGNADYNE RV71EX2
RADIO SYSTEM & ANTENNA
KEYPART NUMBER U/MDESCRIPTION
110267-03-000 EARADIO-AM/FM STEREO, CD COMPATIBLE - AUDIOVOX IM-400
116148-01-000 EARADIO-AM/FM STEREO, CD PLAYER - CLARION 5633CD
077069-02-000 EACABLE-ANTENNA, RADIO - EXTENSION 96" - ARA 6700667
090944-01-000 EAANTENNA-RADIO, 16" RUBBER
104498-01-000 EABRACKET-ANTENNA MOUNT, STEEL
081059-02-000 EAWIRE ASM - 9-PIN, RADIO - AUDIOVOX 112B-1761
089340-02-000 EAGRILLE-SPEAKER, 6.5" SQUARE
089340-03-000 EASPACER-GRILLE, 6.5" SQUARE - TAN - MAGNADYNE G514
094097-01-000 EASPEAKER-RADIO, W/O GRILLE - 5.25" DIA - AUDIOVOX 110C3030
110469-01-000 EASPEAKER - 4" X 6", OVAL - MAGNADYNE F46XB-12
110470-01-01A EAGRILLE-SPEAKER, OVAL - 4" X 6" - BLACK - MAGNADYNE G46WI
CB ANTENNA
KEYPART NUMBER U/MDESCRIPTION
105248-01-000 EAANTENNA-CB, ADVANCE 8604
104498-01-000 EABRACKET-ANTENNA MOUNT, STEEL
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

AUDIO VIDEO GROUP (CONTINUED)
TV, VCR & CONTROL CENTER
KEYPART NUMBER U/MDESCRIPTION
098447-07-000 EATV - 13", COLOR W/JACK - U.S. - MAGNAVOX RR1342C
FROM: 00-00-00 THRU: 07-17-94
098447-07-700 EAREMOTE-TV, MAGNAVOX RR1342C
098447-11-000 EATV - 13", COLOR W/JACK - U.S. - MAGNAVOX 13PRC10
FROM: 07-18-94 THRU: 99-99-99
098447-11-700 EAREMOTE-TV, MAGNAVOX 13PRC10 AND 13XNC15
098447-08-000 EATV - 13", COLOR W/JACK - CANADIAN - MAGNAVOX XR1333C
FROM: 00-00-00 THRU: 10-09-94
098447-08-700 EAREMOTE-TV, MAGNAVOX XR1333C
098447-12-000 EATV - 13", COLOR W/JACK - CANADIAN - MAGNAVOX 13XNC15
FROM: 10-10-94 THRU: 99-99-99
098447-11-700 EAREMOTE-TV, MAGNAVOX 13PRC10 AND 13XNC15
098446-06-000 EAVCR-VHS CABLE READY W/REMOTE - MAGNAVOX VR9210
FROM: 00-00-00 THRU: 10-02-94
098446-06-700 EAREMOTE F/MODEL #9210
098446-07-000 EAVCR-VHS CABLE READY W/REMOTE - MAGNAVOX VR9320
FROM: 10-03-94 THRU: 99-99-99
098446-07-700 EAREMOTE F/MODEL #9320
099717-01-000 EATIEDOWN-TV, STRAP ON FEMALE END IS 22.8" LONG
099717-02-000 EATIEDOWN-TV, STRAP ON FEMALE END IS 28.7" LONG
098819-01-000 EASPEAKER - 2 WATT, 8 OHM - 4"
093214-01-02A EAGRILLE-SPEAKER, 4" BROWN
086757-03-000 EACONTROL CENTER-SWITCH, VCR/TV - MAGNADYNE VCS-6
TV CABLE, CONNECTORS, & WALLPLATES
KEYPART NUMBER U/MDESCRIPTION
076319-03-000 FT CABLE-COAXIAL, 75 OHM
076319-06-000 EAADAPTOR-CABLE ROOF PLATE, WINEGARD RPJ-1
076319-09-000 EAWALLPLATE-CABLE RECEPTACLE, TV - SINGLE - BROWN
076319-12-000 EACONNECTOR-COAXIAL, ONE PIECE
082134-01-000 EAADAPTER-TV, CABLE TO CABLE - WINEGARD F-81M
086756-01-000 EASPLITTER-TV, 2 WAY
086777-01-000 EAPLATE-WALL, TV CABLE W/ANTENNA SWITCH - IVORY - WINEGARD RV-0710
086777-03-000 EAPLATE-WALL, CABLE - W/TV ANTENNA SWITCH & BOOSTER - IVORY - EUROPEAN
086777-05-000 EAPLATE-WALL, ANTENNA - 1 OUTPUT - IVORY - WINEGARD RV-0921
AUDIO VIDEO GROUP (CONTINUED)
3
2
4
5
6
7
8
9
10
11
13
12
14
1
15
TV ANTENNA
KEYPART NUMBER U/MDESCRIPTION
1076319-01-000 EAANTENNA-TV, ROOF MOUNT - 44.5" MAST - RVA W02
2076319-01-700 EAHEAD-ANTENNA, AMPLIFIED - WINEGARD# RVSA U/V
3076319-01-701 EAGEAR-ELEVATING, PLASTIC - WINEGARD# 2200046
4076319-01-702 EASHAFT ASM-ELEVATING, WINEGARD# RVP-400A
5076319-01-711 EABASE & LIFT ASM - WINEGARD# 2762802
6076319-01-706 EACRANK-ELEVATING, W/SET SCREW - WINEGARD# 5755100
7076319-01-705 EAGROMMET-NYLON, 7/8" ID - WINEGARD# 3200658
8076319-01-708 EADECAL-CRANK, WINEGARD# 5413002
9076319-01-707 EASPRING-HANDLE, WINEGARD# 5160800
10076319-01-709 EAPLATE-DIRECTIONAL, FOR HEAD - WINEGARD #3200644
11076319-01-712 EAPLATE-CEILING, WINEGARD# 3200608
12076319-01-704 EABEARING-NYLON, 1.25" OD - WINEGARD# 3200657
13076319-01-713 EAPLATE-BASE, STEEL - WINEGARD# 3100523
14076319-01-703 EABEARING-NYLON, 5" OD - WINEGARD# 3200656
15076319-01-714 EAHOUSING-ROTATING GEAR - WINEGARD# 2200049
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

BATH GROUP
BATHROOM CABINET & COMPONENTS
KEYPART NUMBER U/MDESCRIPTION
1075241-05-000 EAFAUCET-SHOWER, BONE
075606-01-000 EAPANEL-FAUCET BACK, SHOWER - 5" X 9" - PLASTIC
2103092-01-000 EASHOWER HEAD-W/60 IN HOSE - U.S.
103092-02-000 EASHOWER HEAD-W/HOSE - CANADIAN
103092-01-700 EABRACKET ONLY-CLEAR, F/SHOWER HEAD - 2328028
3102851-01-E07 EACABINET-STORAGE, BATH - W/O DOORS
4M06803-06-E07 EADOOR-W/MIRROR - W/O HARDWARE - 285 MM X 500 MM (F04/F05/F06/F07)
4M06803-06-F14 EADOOR-W/MIRROR - W/O HARDWARE - 285 MM X 500 MM (F14)
5102821-01-C43 EACABINET-MEDICINE
6102326-05-000 EADOOR-MIRRORED, 500 MM X 750 MM - JENSEN IND
FROM: 00-00-00 THRU: 07-17-94
6115237-01-E10 EADOOR-MIRRORED, 500 MM X 750 MM
FROM: 07-18-94 THRU: 99-99-99
7M06803-28-E10 EADOOR-WARDROBE, W/O HARDWARE - 305 MM X 1220 MM (F04/F05/F06/F07)
7M06803-28-F14 EADOOR-WARDROBE, W/O HARDWARE - 305 MM X 1220 MM (F14)
8075240-06-000 EAFAUCET-LAVATORY, BONE
9104222-11-E08 EACOUNTERTOP ASM (F04/F07)
9104222-11-F05 EACOUNTERTOP ASM (F05)
9104222-11-F06 EACOUNTERTOP ASM (F06)
9104222-15-F14 EACOUNTERTOP ASM (F14)
10096927-01-01A EASINK-LAVATORY, RECTANGULAR - PLASTIC - BONE
096927-01-700 EASINK-STOPPER
096927-01-701 EATAILPIECE-SINK
11P04222-01-E08 EACABINET ASM-LAVATORY, W/O DOORS OR HARDWARE (F04/F07)
11P04222-01-F05 EACABINET ASM-LAVATORY, W/O DOORS OR HARDWARE (F05)
11P04222-01-F06 EACABINET ASM-LAVATORY, W/O DOORS OR HARDWARE (F06)
11P04222-02-F14 EACABINET ASM-LAVATORY, W/O DOORS OR HARDWARE (F14)
12M06803-83-E07 EADOOR-W/O HARDWARE, 290 MM X 410 MM (F04/F05/F06/F07)
12M06803-83-F14 EADOOR-W/O HARDWARE, 290 MM X 410 MM (F14)
13M05971-B5-E07 EADRAWER-CABINET, W/O HARDWARE (F04/F05/F06/F07)
14067487-02-000 EATOILET-AQUA MAGIC IV,LOW
063740-01-700 EALEVER-WATER, THETFORD 12514
063740-01-706 EABOLT PACKAGE-CLOSET, THETFORD 12524
063740-01-710 EALINK, THETFORD 12513
063740-01-713 EASEAL-BALL VALVE TO BOWL, THETFORD 12502
063740-01-714 EAVALVE ASM-WATER, THETFORD 12492
063740-01-717 EATUBE-FLUSH, TOILET - THETFORD 12509
063740-02-700 EASEAT & COVER, PARCHMENT - THETFORD 20829
15102046-01-01A EASURROUND-SHOWER - OFF WHITE
113714-02-01A EARETAINER-SHELF, SHOWER 306 MM X 25 MM - PLASTIC - OFF WHITE
16 M02429-06-000 EAPAN-SHOWER
011069-02-000 EATAILPIECE-TUB/SHOWER, 1 1/2" X 1 1/4" X 4" - BRASS
066436-01-000 EANUT-SLIP, TAILPIECE - 1.5"
066440-01-000 EASTRAINER W/RUBBER WASHER
069735-01-000 EAWASHER-STRAINER TO TAILPIECE PLASTIC, 1.5"
057671-01-000 EACOVER-SCREW, #8 - PLASTIC - OFF WHITE
075452-02-000 EAHOLDER-TOILET TISSUE, BRASS
100357-01-000 EAROD-TOWEL, BRASS W/ENDS BENT FOR BACK OF BATH DOOR
075454-02-000 EARING-TOWEL, W/MOUNTING HARDWARE - BRASS
M87868-05-E07 EADOOR-BATH
094485-03-01A EAKNOB-DOOR,BRASS - THUNADER L132PB
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

BEDROOM GROUP
DOUBLE BEDROOM CABINETRY
KEYPART NUMBER U/MDESCRIPTION
1103278-01-F04 EACABINET-OVERHEAD, W/O DOORS OR HARDWARE
2M06803-02-E07 EADOOR-W/O HARDWARE - 400 MM X 710 MM (F04/F05/F06/F07)
2M06803-82-F14 EADOOR-W/O HARDWARE - 400 MM X 710 MM (F14)
3M06803-13-E07 EADOOR-W/MIRROR W/O HARDWARE - 400 MM X 710 MM (F04/F05/F06/F07)
3M06803-13-F14 EADOOR-W/MIRROR W/O HARDWARE - 400 MM X 710 MM (F14)
3M06803-02-E07 EADOOR-W/O MIRROR W/O HARDWARE - 400 MM X 710 MM (F04/F05/F06)
EUROPEAN OPTION
4103273-01-F04 EACABINET-OVERHEAD, W/O DOORS OR HARDWARE
4103273-01-F05 EACABINET-OVERHEAD, W/O DOORS OR HARDWARE
4103273-01-F06 EACABINET-OVERHEAD, W/O DOORS OR HARDWARE
4103273-01-F07 EACABINET-OVERHEAD, W/O DOORS OR HARDWARE
4103273-01-F14 EACABINET-OVERHEAD, W/O DOORS OR HARDWARE
5M04169-02-C05 EADOUBLE BED TOP
6M04169-03-C05 EADOUBLE BED TOP
7P02963-01-E07 EACABINET-DOUBLE BED W/O TOPS
089076-08-000 EASUPPORT-BED, H-CHANNEL - 1.96" X 72.7" - ALUMINUM - OFF WHITE
BEDROOM GROUP (CONTINUED)
TV STAND
KEYPART NUMBER U/MDESCRIPTION
1084357-02-E07 EASTAND-FOLD DOWN, TV - W/MIRROR
2084413-01-000 EAHINGE-CONTINUOUS, W/HOLES
3084451-01-000 EACATCH-TV SHELF, BRASS
4084412-01-000 EASUPPORT-HINGED (PAIR)
5084356-08-000 EAINSERT-TV STAND, W/SUPPORT HINGE - METAL - OFF WHITE
5058331-14-000 EAMIRROR-GLASS, SAFETY - 14" X 12.7"
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CHASSIS GROUP CHASSIS GROUP (CONTINUED)
FRONT BUMPER
KEYPART NUMBER U/MDESCRIPTION
1103692-01-02A EAPANEL-FACIA, BUMPER - FRONT RIGHT - OFF WHITE
2103512-01-000 EACHANNEL ASM-BUMPER
3103497-01-000 EABRACE-BUMPER, FRONT
4086140-03-000 EASUPPORT-FRONT BUMPER, PASSENGER SIDE - 9.1" X 4" - STEEL
5086140-04-000 EASUPPORT-FRONT BUMPER, DRIVER SIDE - 9.1" X 4" - STEEL
6103611-01-000 EABRACE-BUMPER, FRONT
7103692-02-02A EAPANEL-FACIA, BUMPER - FRONT LEFT - OFF WHITE
8103758-01-E07 EABUMPER ASM-FRONT, W/DRIVER & PASSENGER SIDE FACIA PANELS
103491-02-000 EABRACKET ASM-LICENSE PLATE, FRONT - JAPAN
087234-01-000 EANUT-JACK, 1/4" X 20 THREADS, MOLLY - ARDEN 8-L,JN BRASS
REAR BUMPER, TRAILER HITCH & COMPONENTS
KEYPART NUMBER U/MDESCRIPTION
1102944-01-000 EABRACKET ASM-TIRE CARRIER
2078678-02-000 EAPLATE-MOUNTING, BUMPER - REAR
3078668-01-000 EASUPPORT ANGLE-BUMPER, REAR
4083376-01-000 EASKID PLATE
5102945-03-000 EABRACKET ASM-BUMPER, REAR
6103228-01-05A EACAP-END, BUMPER - REAR - DRIVER OR PASSENGER SIDE - UNPAINTED
7083425-07-000 EATIRE - 7.50XR16 LRD, MICHELIN XPS RIB - GAS
051377-03-000 EASTEM-VALVE, TRO 600HP - GAS
089359-03-000 EAWHEEL-STEEL, 16" X 6"K - 8 HOLE - PRIMED - GAS
8034513-01-000 EAPIN-HITCH, 3/16 WIRE
9034512-01-000 EAPIN-LOCKING-DRAWBAR
10 107707-01-000 EAHITCH ASM W/O DRAWBAR
11103099-01-02A EABUMPER-REAR, OFF WHITE
12 102945-04-000 EABRACKET ASM-BUMPER, REAR
113589-02-000 EACONNECTOR-SOCKET, TRAILER - GENERAL 433601
113589-01-000 EACONNECTOR-PLUG, TRAILER - GENERAL 433501
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CHASSIS GROUP (CONTINUED)
CHASSIS GROUP (CONTINUED)
STORAGE COMPARTMENTS & WHEELWELLS
KEYPART NUMBER U/MDESCRIPTION
1085967-01-000 EACOMPARTMENT-SEWER HOSE, 6" X 6.6" X 17.8" - PLASTIC
2102921-01-000 EAWHEELWELL - PLASTIC
3102979-01-000 EABOX-POWER CORD
4078137-04-000 EATRAY-COMPARTMENT, 29.1" WIDE X 22.4" DEEP - GENERATOR PREP OPTION
4105732-02-000 EATRAY-GENERATOR - EMERALD PLUS ONLY
4114070-02-02B EASUPPORT-GENERATOR, LH - 490 MM LONG - STEEL - BLACK - MICROLITE ONLY
4114071-02-02B EASUPPORT-GENERATOR, RH - 490 MM LONG - STEEL - BLACK - MICROLITE ONLY
5077848-02-000 EASTEP-PULLOUT
5091176-01-000 EASUPPORT-BASE-ENTRANCE STEP
106208-01-01A EACOMPARTMENT-EXTERIOR SHOWER, OFF WHITE - PLASTIC
017516-01-000 EAFLAP-MUD, 14" X 18" - BLACK
020167-04-000 EAGUARD-DIRT
056748-01-000 EAPLUG-CAP, 1.5" DIAMETER - BLACK
115361-01-01A EAPLUG-PLASTIC, .55" DIAMETER HOLE - CAPLUG# W-5
PATIO ENTERTAINMENT CENTER
KEYPART NUMBER U/MDESCRIPTION
1104897-03-01A EABOX-ENTERTAINMENT CENTER - OFF WHITE
2104899-01-C05 EAPLATE-RADIO MOUNTING
3105230-01-E01 EASHELF ASSEMBLY
4105377-01-01A EABRACKET-TABLE HANGER, OFF WHITE
5105376-01-02A EAHINGE-CONTINUOUS, 2" X 140 MM - OFF WHITE
6105230-11-E01 EASHELF
7105230-12-E01 EASUPPORT-SHELF
8104898-01-01A EAPLATE-PLASTIC, BOTTOM - 19.38" X 3.1" - OFF WHITE
9104898-02-01A EAPLATE-PLASTIC, REAR - 16.1" X 6.3" - OFF WHITE
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

1
5
3
6
2
4
7
8
CHASSIS GROUP (CONTINUED)
LP COMPARTMENT COMPONENTS - JAPAN
KEYPART NUMBER U/MDESCRIPTION
1107414-01-000 EACRADLE-LP TANK
2098408-01-000 FT SEAL-SPONGE RUBBER, CLOSED CELL
3107414-02-000 EACRADLE-LP TANK
4097207-02-02A EAHINGE-CONTINUOUS, LP DOOR, BLACK
4097207-02-01A EAHINGE-CONTINUOUS, LP DOOR, UNPAINTED
5107433-01-C82 EADOOR ASM-LP, W/HINGE, LATCH, CRADLE, SPRINGS, BOLTS & SEAL
6107394-01-000 EASPRING-COMPRESSION, LP DOOR
7107393-01-000 EABOLT-SHOULDER, SOCKET HEAD - LP DOOR
8107395 01 02A EALATCH-BOLT, FINGER - LP DOOR - BLACK
8107395 01 01A EALATCH-BOLT, FINGER - LP DOOR - UNPAINTED
9107433-02-C82 EADOOR ASM-LP, W/HINGE, LATCH, CRADLE, SPRINGS, BOLTS & SEAL
10097207-03-02A EAHINGE-CONTINUOUS, LP DOOR, BLACK
10097207-03-01A EAHINGE-CONTINUOUS, LP DOOR, UNPAINTED
11107421-01-000 EAPLATE-STRIKE, LP DOOR - BLACK
CHASSIS GROUP (CONTINUED)
REAR AXLE AIRSPRINGS
KEYPART NUMBER U/MDESCRIPTION
1084086-04-000 EAAIRSPRING-BELLOWS, REAR AXLE - FIRESTONE# MHA224 - GAS ENGINE
2084086-04-702 EAAIR BAG-ONLY, FIRESTONE# W217602064
3084086-01-701 EATUBING-DOT 1/4" X 18' - FIRESTONE# 21-0938
4084086-01-702 EABOLT-RIBBED NECK, 3/8"-24 X 2.5" FIRESTONE# 21-0829
084086-01-705 EATUBING PROTECTORS, FIRESTONE# 21-0899
5084086-01-706 EABRACKET-UPPER TO FRAME, FIRESTONE# 21-0150
6084086-01-711 EAHEAT SHIELD-224 DOS SYSTEM, FIRESTONE 21-5042
7084086-01-713 EAAXLE STRAP BRACKET, AXLE TUBE - 3 USED - FIRESTONE# 21-1163
8084086-01-714 EAAXLE STRAP BRACKET, DIFFERENTIAL - 1 USED - FIRESTONE# 21-5038
084086-04-700 EABRACKET-LOWER DRIVERS SIDE
084086-04-701 EABRACKET-LOWER PASSENGER SIDE
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CHASSIS GROUP (CONTINUED)
EXHAUST SYSTEM
KEYPART NUMBER U/MDESCRIPTION
1101544-01-000 EASHIELD-HEAT, EXHAUST - 19.7" X 28.9" - STEEL
2101544-02-000 EASHIELD-HEAT, EXHAUST - 30" X 28.9" - STEEL
3098608-02-000 EAPIPE-EXHAUST, TAIL
114670-01-000 EAPIPE-EXHAUST, TAIL - EUROPEAN DIESEL OPTION
4094918-01-000 EACLAMP-EXHAUST, 3" - GUILLOTINE STYLE
114678-01-02B EAHANGER-EXHAUST, Z - STEEL - EUROPEAN DIESEL OPTION
CHASSIS GROUP (CONTINUED)
EXHAUST SYSTEM - EUROPEAN & JAPAN - GAS
KEYPART NUMBER U/MDESCRIPTION
1101544-02-000 EASHIELD-HEAT, EXHAUST - 30" X 28.9" - STEEL
2094918-01-000 EACLAMP-EXHAUST, 3" - GUILLOTINE STYLE
3117029-01-02B EAHANGER-EXHAUST, 9.3" X 1.5" - STEEL
4102116-02-000 EABRACKET-EXHAUST W/WELDNUTS, UPPER - 4" X 2"
5117048-01-000 EAPIPE-EXHAUST, TAIL - 3" ID X 74.4"
6095190-01-000 EAHANGER-EXHAUST, 4" X 1.4"
7096054-04-000 EAHANGER-EXHAUST, 5" X .8"
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CHASSIS GROUP (CONTINUED)
FUEL SYSTEM
KEYPART NUMBER U/MDESCRIPTION
1072447-04-000 EASHROUD-FUEL FILL, UPPER - PLASTIC
2095854-01-02A EASHROUD-FUEL FILL - OFF WHITE
3098804-01-000 EAPIPE-VENT, FUEL FILL - 12" LONG
4098805-01-000 EAPIPE-FUEL, FUEL FILL - 11.4" LONG
007063-01-000 FT HOSE-GAS, 1/4" ID X 1/2" OD
024142-01-000 EATEE-BARB, 3/16" - PLASTIC
087269-01-000 EATEE - 1/4" X 1/4" X 1/4", BRASS - DIESEL OPTION
084884-01-000 EAPLUG-BRASS, 3/8"
CHASSIS GROUP (CONTINUED)
ELECTRIC ENTRY STEP
KEYPART NUMBER U/MDESCRIPTION
075723-02-000 EASPACER-SWITCH, W/HOLE - .2" X .9" X 2" - METAL - OFF WHITE
FOR ELECTRIC STEP DOOR JAMB SWITCH
FROM: 00-00-00 THRU: 10-23-94
P01713-01-000 EASWITCH ASSEMBLY-PUSH BUTTON, IN DOOR JAMB - METAL - CHROME
FROM: 00-00-00 THRU: 10-23-94
113285-01-01A EASEAL-SWITCH, STEP - BLACK - LUNDELL
FROM: 00-00-00 THRU: 10-23-94
116995-01-000 EASWITCH/MAGNET-STEP, ELECTRIC - KWIKEE 905306
FROM: 10-24-94 THRU: 99-99-99
094708-01-01A EASTEP-ENTRY DOOR, ELECTRIC - SINGLE - KWIKEE 2813
094707-02-700 EAMOTOR REPLACEMENT KIT - MODELS 32 & 28 - KWIKEE 9520
094707-02-702 EAGEAR KIT - KWIKEE 9525
094707-02-703 EAPARTS KIT, (BEARINGS & PINS) - KWIKEE 9530
094707-02-704 EACONNECTOR KIT-MOTOR, KWIKEE 9537
094707-02-705 EACONTROL UNIT, (ORANGE) - KWIKEE 9513
094708-02-700 EAMOTOR/CONTROL CONVERSION KIT F/2800 SERIES - KWIKEE 9570
094707-02-707 EATREAD-NON-SKID, BLACK - 6" X 21" - KWIKEE 909333
094708-03-700 EALINKAGE ASM F/28 SERIES - KWIKEE 9522
FRONT SHOCKS
KEYPART NUMBER U/MDESCRIPTION
104993-01-000 EASHOCK ABSORBER-GAS, P30 FRONT - BILSTEIN B46-1173
TIRE COVERS
KEYPART NUMBER U/MDESCRIPTION
117213-01-000 EACOVER-TIRE, 32" - OFF WHITE
108163-01-01A EACOVER-TIRE, 16" CHEVY - CHROME - EXTERIOR TRIM OPTION
108560-02-03A EAINSERT-TIRE COVER, 16" CHEVY - BRIGHT WHITE - EXTERIOR TRIM OPTION
LUG WRENCH & LEVERAGE BAR
KEYPART NUMBER U/MDESCRIPTION
080208-01-000 EALUG WRENCH, 1.06 X 1.00
080208-02-000 EALEVERAGE BAR-LUG WRENCH
16" CHEVY STAINLESS STEEL WHEEL LINERS
KEYPART NUMBER U/MDESCRIPTION
091209-05-000 EALINER-WHEEL, SET OF 4 - 16" - STAINLESS STEEL
091209-03-702 EACOVER-AXLE, FRONT - 8 LUG - FORD & CHEVY
091209-03-703 EACOVER-AXLE, REAR - 8 LUG - FORD & CHEVY
091209-03-704 EARING-SNAP, FRONT OR REAR - 8 LUG - FORD & CHEVY
091209-05-700 EALINER-WHEEL, 16" FRONT - W/AXLE COVER & 8 LUG - CHEVY/FORD
091209-05-701 EALINER-WHEEL, 16" REAR - W/AXLE COVER & 8 LUG - CHEVY/FORD
077030-02-000 EAEXTENSION-VALVE STEM, 1.25"
16" CHEVY WHEEL COVERS
KEYPART NUMBER U/MDESCRIPTION
109443-05-000 EAWHEEL COVER - 4/SET, 16" SS - DICOR SHFM16
109443-05-700 EACOVER-WHEEL, 16" - SHFM16-CVR
109443-05-701 EALUG NUT COVER-ABS, (PLATED) - SP-FM-LNC
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
