Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

MNHO-073

User Manual

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

Intel® E3845 4 LAN 1 COM AES-NI

4G Fanless Firewall Router

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

The subject matter of this document causes the disclosure of Winston Marriot Ltd

confidential and/or proprietary information. It shall not be disclosed to any person other

than responsible officers and employees of yours who are aware that the same is

commercially confidential and who are bound to treat it as such. It shall not be duplicated,

disclosed or used, in whole or in part for any purpose other than to evaluate the subject

matter of the document. Provided that, if a contract is awarded as a result of, or in

connection with the submission of this information you shall have rights to duplicate,

disclose or use the information as the contract may provide. This restriction does not limit

your right to use this document if it is obtained from another source without restriction.

This document and any copies containing any of this information must be returned to

Winston Marriot Ltd on request.

Winston Marriot Ltd reserves the right to change the contents of the product described in

this manual at any time and without prior notice.

No part of this manual may be reproduced, stored, copied or transmitted in any form or

any storage medium by any means, electronic, photocopying, recording or otherwise,

without the prior written permission of Winston Marriot Ltd.

Trademarks

Registered Names and Trademarks are the copyright and property of their respective

owners.

Products, corporate names and their logos presenting in the manual may or may not be

explanation and identification without intent to infringe.

Disclaimer

All information, specifications and illustrations contained in this manual are based on the

latest information (at the time of publication) and for informational use only with subject to

change at any time without notice. Winston Marriot Ltd takes no liability and responsibility

for any in error that may appear in this manual.

Winston Marriot Ltd will not be responsible and liable for the errors that may contained in

this manual and for incidental or consequential damages (including lost profits) in

connection with the furnishing, performance or use of this material.

United Kingdom

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

CONTENTS

1. INTRODUCTION

1.1 –Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08

1.2 –Front & Back Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09

1.3 –Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09

2. SRTUCTURE

2.1 –Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.2 –Opening The Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3. MOTHERBOARD

3.1 –Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.2 –Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.3 –Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.3.1 –Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.4 –Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.4.1 –mSATA SSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.4.2 –2.5” SATA SSD/HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.5 –Wi-Fi & 3G/4G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.5.1 –Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.5.2 –3G/4G LTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.6 –Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.6.1 –DC-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.6.2 –HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.6.3 –LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.6.4 –System FAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.6.5 –SATA2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.6.6 –USB (2.0 & 3.0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.6.7 –BAT1 (CMOS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.6.8 –FP1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4. BIOS

4.1 –Functions & Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.2 –Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.2.1 –Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2.2 –Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.2.2.1 –ACPI Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

4.2.2.2 –System Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.2.3 –CPU Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.2.4 –PPM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.2.2.5 –SATA Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.2.2.6 –LPSS & SCC Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4.2.2.7 –CSM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.2.2.8 –USB Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.2.3 –Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4.2.3.1 –North Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4.2.3.2 –South Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.2.4 –Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.2.5 –Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.2.6 –Save & Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

5. Warranty & RMA

5.1 –Terms and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

5.2 –Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

APPENDIX A (Glossary) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

APPENDIX B (Troubleshooting) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

APPENDIX C (Abbreviations) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

Chapter 1

Introduction

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

PONDESK PICO PC 4 LAN fanless firewall router security gateway appliance equipped with

the quad-core Intel® Atom™ E3845 processor up to 1.91GHz with Intel® AES-NI for secure

and fast data encryption and decryption. A complete network hub as a VPN with RJ45

console port and to take on a number of networking and communication tasks. Protected

from meltdown and spectre vulnerabilities.

Small network appliance with 4x Intel® I211-AT gigabit Ethernet for high bandwidth and fast

communications. Also support wireless networks 802.11 b/g/n/AC WiFi and WWAN 3G & 4G

LTE (optional). Ready for IoT (Internet of Things) by simply connecting using WiFi, 3G/4G

LTE via mini PCIe (can use only one network connection at a time). I/O options include two

USB2.0 & USB 3.0 ports and VGA display port features Intel® HD Graphics. Compatible with

Windows 7/8/10, Windows Server, Linux & Firewalls etc.

Support up to 8GB SODIMM DDR3L 1.35V low voltage non-ECC single sided memory and

dual storage drives including mSATA SSD and 2.5" SATA SSD/HDD.

High performance & perfect for VPN, DNS Server, DHCP Server, network bandwidth

controller, network servers, LAN or WAN router, firewall and UTM applications to deliver a

high throughput, reliable operation and wide array of network applications, network

servers, Linux, Unix, Windows, firewalls (either open-source or commercial) and gateways;

pfSense, Sophos, Untangle, Ubuntu, ClearOS, FreeBSD, Monowall, Debian, Endian,

Smothwall UTM, OpenBSD, Zeroshell, Zentyal, OpenWRT and VyOS etc.

You can add multiple LAN's or multiple WLAN's to your network, each segmented for

maximum security and configurability. It combines a robust industrial-grade performance

and the advantages of network security management, can be widely used in virtual private

networks, traffic control, network firewalls or other network applications.

Completely fanless aluminium alloy compact size durable dustproof structure provides

universal performance for small and medium sized business networks, offices, Internet

service providers, MSP/MSSP etc.

For details: https://www.pondesk.com/product/MNHO-073

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

1.1 SPECIFICATIONS

Processor

Intel® Atom® E3845

2M Cache, 1.91 GHz

4 Cores, 4 Threads

Memory

Support up to 8 GB

SODIMM DDR3L 1.35V Low Voltage Single-

Sided Memory

One Memory Slot

Storage

Support 1 x mSATA SSD

Support 1 x 2.5" 7mm SATA SSD/HDD

Graphics

Integrated Intel® HD Graphics

688 MHz Base Frequency

854 GHz Max Dynamic Frequency

Intel® Quick Sync Video

Advanced Technologies

Intel® Virtualization Technology (VT-x)

Enhanced Intel SpeedStep® Technology

Intel® AES New Instructions

Execute Disable Bit

Expansion Slot

1 x Mini-PCIE Slot (For WIFI, 3G/4G)

1 x mSATA Slot (For SSD)

I/O Specifications

4 x Intel® I211-AT Gigabit LAN

1 x HDMI

1 x RJ45 COM

1 x USB 3.0

1 x USB 2.0

2 x Wi-Fi Antenna Interface

1 x Restart Switch

1 x I/O Switch

2 x LED Signal indicator (power & hard

drive indicator)

Onboard I/O

1 x SYS FAN (1*3pin)

1 x DT-126RP-02P Terminal Block

1 x CTR1 (2*5pin)

1 x SATA2.0

1 x BAT1 (1*2pin) CMOS battery connector

1 x 6pin SIM interface

Support Windows 7, 8, 10 & Linux

Support pfSense, Untangle, Debian,

Smoothwall, ClearOS, m0n0wall etc.

Power & Working Environment

Adapter Input: AC 100-240V ~ 50-60Hz

Adapter Output: DC 12V 5A

System Input: DC 12V

Consumption: 9W~14W approx.

Operating Temperature: -10°C ~ 55°C

Storage Temperature: -20°C ~ 70°C

Humidity: 5% - 95% Non-Condensing

Others

BIOS: AMI

Type: Fanless

Structure: Aluminum Alloy Dustproof

Size: 126mm x 134mm x 40.6mm (L*W*H)

Weight: approx. 0.5 KG

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

1.2 FRONT & BACK SIDE VIEW

1.3 PACKAGE

1 x Firewall Router 1 x Power Adapter

1 x Power Cord 2 x WiFi Antenna (optional with WiFi)

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

Chapter 2

Structure

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

Small and slim fanless aluminum alloy dustproof chassis smaller than A4 paper, with

excellent ventilation and heat dissipation. Compact, lightweight, stylish and durable. Just 5.3

inches by 5 inches by 1.6 inches. Support 2.5" 7mm SATA SSD/HDD.

2.1 INTERFACES

4 x Gigabit LAN 1 x HDD & Power Indicator

1 x USB3.0 & 1 x USB2.0 1 x 12V Power Connector

1 x HDMI 1 x I/O Switch

1 x RJ45 COM 1 x Restart Switch

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

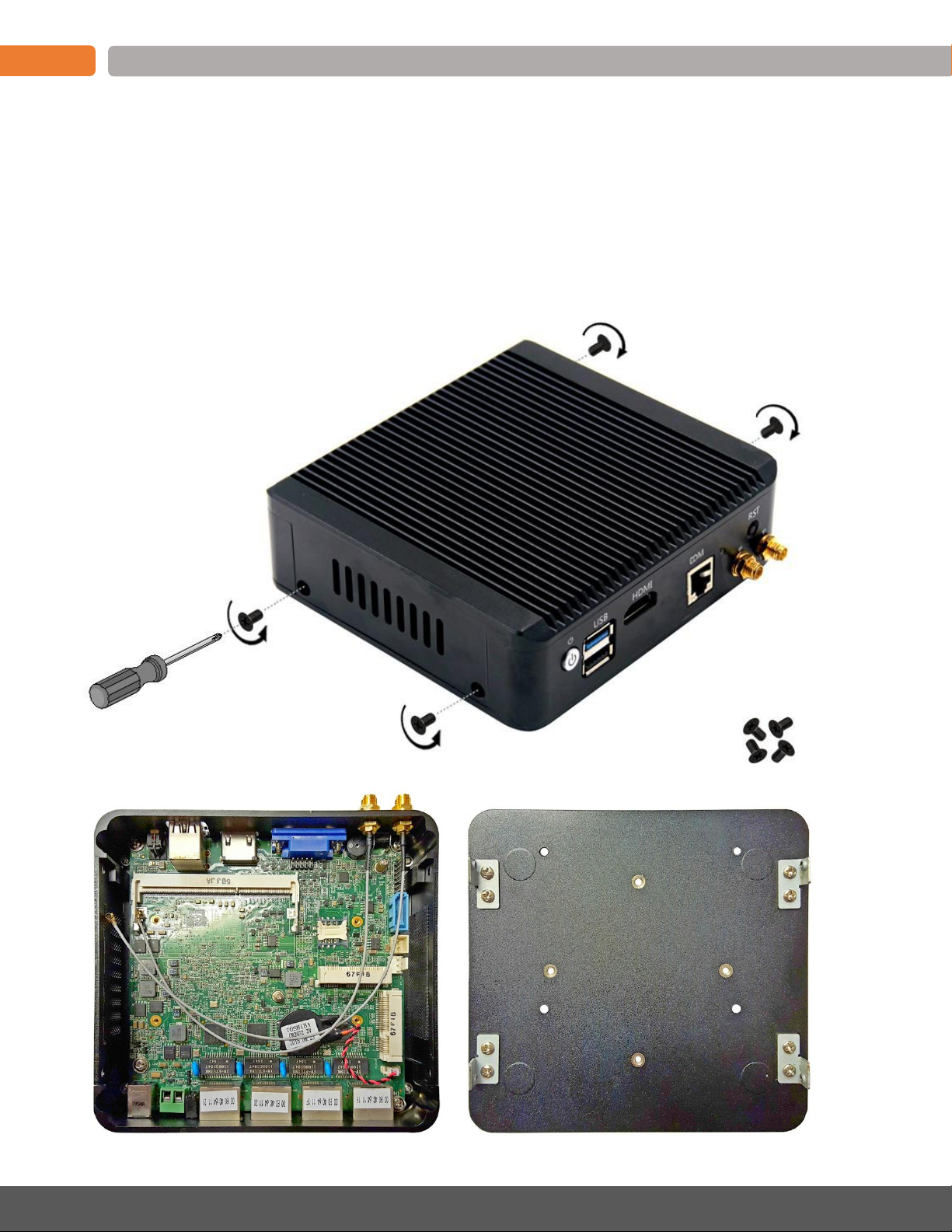

2.2 OPENING THE CASE

There are 4 screws (two screws on each sides) for holding the case cover.

Remove the case. By unscrewing these screws, to add or remove SSD, memory etc. Don’t

over-tighten the screws, it causes damage the screw holes.

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

Chapter 3

Motherboard

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

PONDESK PICO PC 4 LAN Firewall router equipped with low power Nano-ITX (12*12 cm)

industrial motherboard equipped with embedded Baytrail series quad-core E3845

processor.

Following figure shows the top interfaces of the motherboard. In the process of installation

of the device must be careful for some part, if not properly installed, it will not work

properly.

01. Restart Switch 08. Mini PCIe (WiFi/3G/4G Module)

02. RJ45 COM 09. mSATA (SSD)

03. HDMI 10. Power Input 12V

04. USB 2.0 & 3.0 11. LED Indicator

05. Power Switch 12. RJ45 NICs

06. SODIMM Memory Slot 13. SATAII (2.5” SSD/HDD)

07. 3G/4G SIM Socket

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

3.1 LAYOUT

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

3.2 PROCESSOR

The system is equipped with onboard Intel Atom® Processor

E3845 (2M Cache, 1.91 GHz) processor powered by the Intel® Bay

Trail series chipset. Features Intel® AES-NI encryption allowing

data to be completely protected from the moment.

(Detail specifications: https://ark.intel.com/products/78475)

3.3 MEMORY

There is one SO-DIMM slot, which supports up to 8GB of DDR3L SODIMM 204Pins 1.35V low

voltage single sided memory.

NOTE: The system doesn’t support ECC & 1.5V DDR3 memory, always use non-ECC 1.35V DDR3L memory.

3.3.1 Installation

Step 1: Turn off the system before installing and removing the memory.

Step 2: Align the notch and insert the memory module into the socket at a slight 30-40°

angle relative to the memory slot.

Step 3: Push down the memory until it slips down and properly seated into the socket.

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

3.4 STORAGE

The system supports dual storage drives including 1 x mSATA SSD & 1 x 2.5" 7mm SATA

SSD/HDD.

3.4.1 mSATA SSD

Turn off the machine and remove the chassis cover.

Locate mSATA socket (refer to the image on page 14) on the motherboard and align the

notches of the SSD with mSATA socket and insert it.

After that screw it according to the below illustrations.

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

3.4.2 2.5” SATA SSD/HDD

PICO PC also support 1 x 2.5” SATA SSD OR 2.5” SATA HDD (7mm) secondary storage.

To add 2.5” SSD in the machine, first remove the case cover and locate the SSD/HDD holes.

(please refer to page # 12 & 13)

First attach SSD/HDD with the case cover by the 4 screws and then connect the SATA data

& power cable with the machine. As shown in below image.

Intel® E3845 4 LAN 1 COM AES-NI 4G Fanless Firewall Router MNHO-073

3.5 Wi-Fi & 3G/4G

The system supports wireless or 3G/4G LTE networks.

There is one mini PCIe slot for WiFi or 3G/4G LTE module.

3.5.1 Wi-Fi

PICO PC support 802.11 b/g/n/ac half mini PCI-E

wireless module.

3.5.2 3G/4G LTE

System support 3G/4G LTE networks. There is 6pin SIM interface for WWAN connectivity.

Please follow below the useful links to find the list of 3G (UMTS) and 4G (LTE) networks

around the world, grouped by their frequency bands. Helps to find the right module as per

your country/Territory.

3G (UMTS): https://en.wikipedia.org/wiki/List_of_UMTS_networks

4G (LTE): https://en.wikipedia.org/wiki/List_of_LTE_networks

Table of contents

Popular Network Router manuals by other brands

Leonton

Leonton PG2-1002-SFP Series user manual

3Com

3Com OfficeConnect WL-542 user guide

AT&T

AT&T NVG589 Self-installation guide

B&B

B&B Spectre user manual

Conceptronic

Conceptronic C150BRS4 Multi Language Quick Guide

LevelOne

LevelOne WAB-2000 user manual

D-Link

D-Link DGS-2208 - Desktop Switch user manual

Strong

Strong 750 installation instructions

Allied Telesis

Allied Telesis Formula 8200 installation guide

Lancom

Lancom 1781VAW Quick reference guide

TP-Link

TP-Link Aginet AXE11000 Quick installation guide

TRONTEQ

TRONTEQ ROQSTAR installation guide

Avaya

Avaya 3500 series Quick start configuration

Enterasys

Enterasys X-Pedition XSR-1805 datasheet

Dell

Dell PowerConnect 3248 specification

Topcom

Topcom Wireless Kit 108MBPS user guide

Linksys

Linksys RTP300 - Broadband Router With 2 Phone Ports Administration guide

Redline Communications

Redline Communications RedCONNEX AN80IB user manual

Winston MNHO-073 User manual

Popular Network Router manuals by other brands
